Brief
Waste Truck Garbage Compressor Refuse Trucks are widely used by Municipal committees and Private Housing Schemes around the world. The Garbage Compactor truck helps to collect wastage from wastage points and with a huge compression level, the garbage compactor compacts the garbage in the storage tank with the given compression so that more storage resources can be resourceful.
Garbage Compactor is Hydraulically operated via Premium Quality Hydraulic Jack. Truck Mounted Compactors are manufactured from 3 to 25 cubic meter capacity. It is a simple design and field-tested product known for robustness and durability.

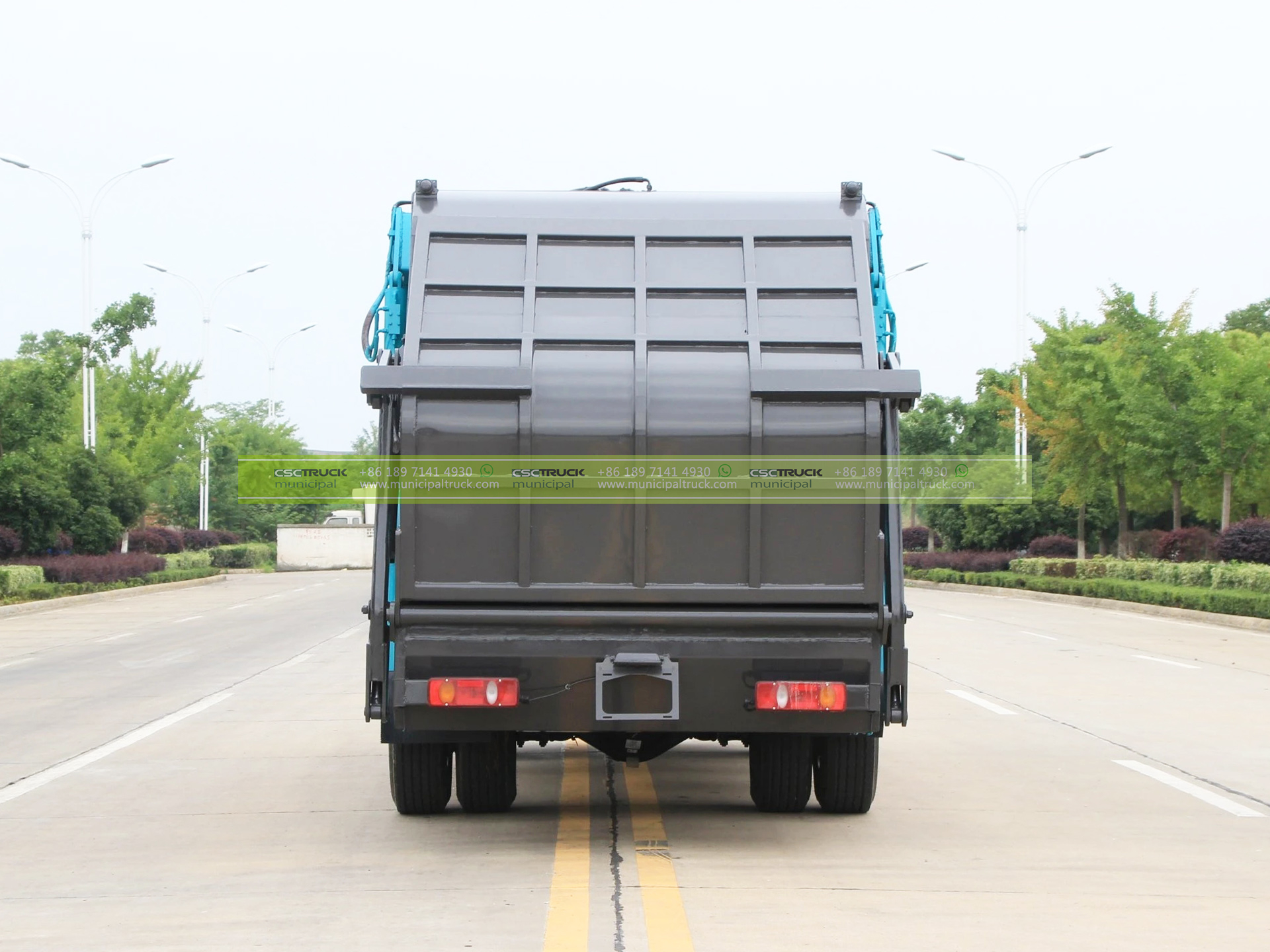

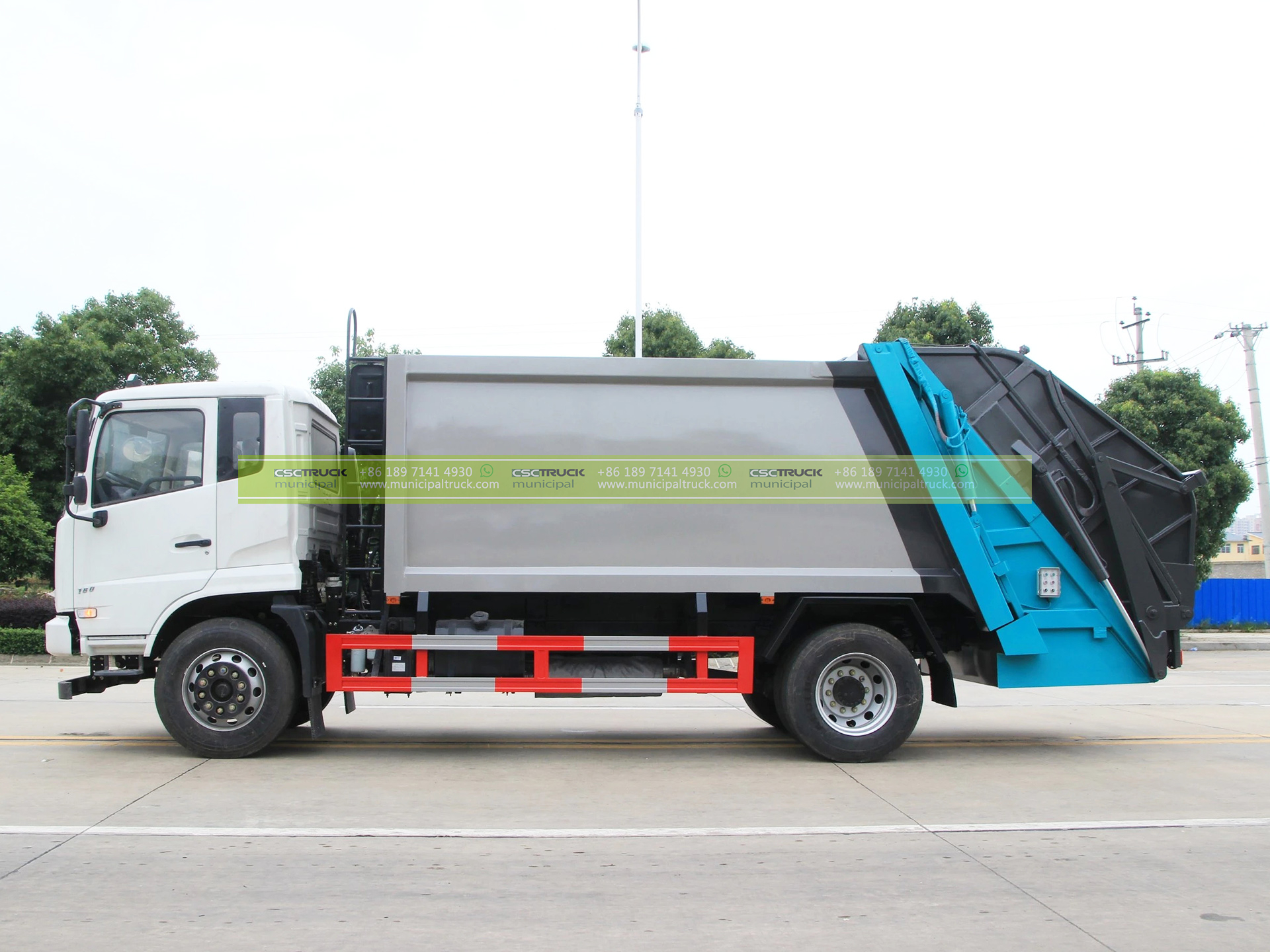

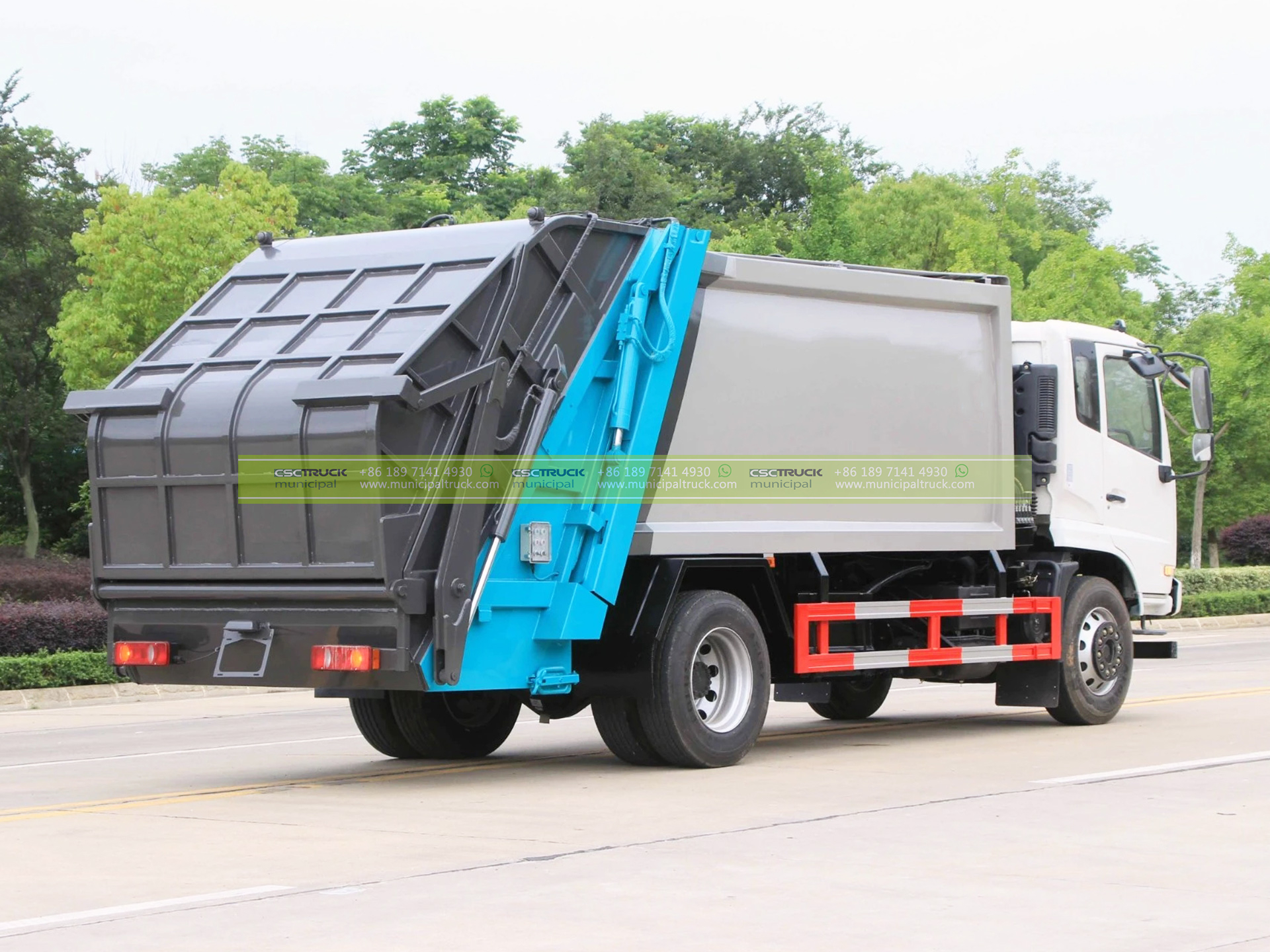

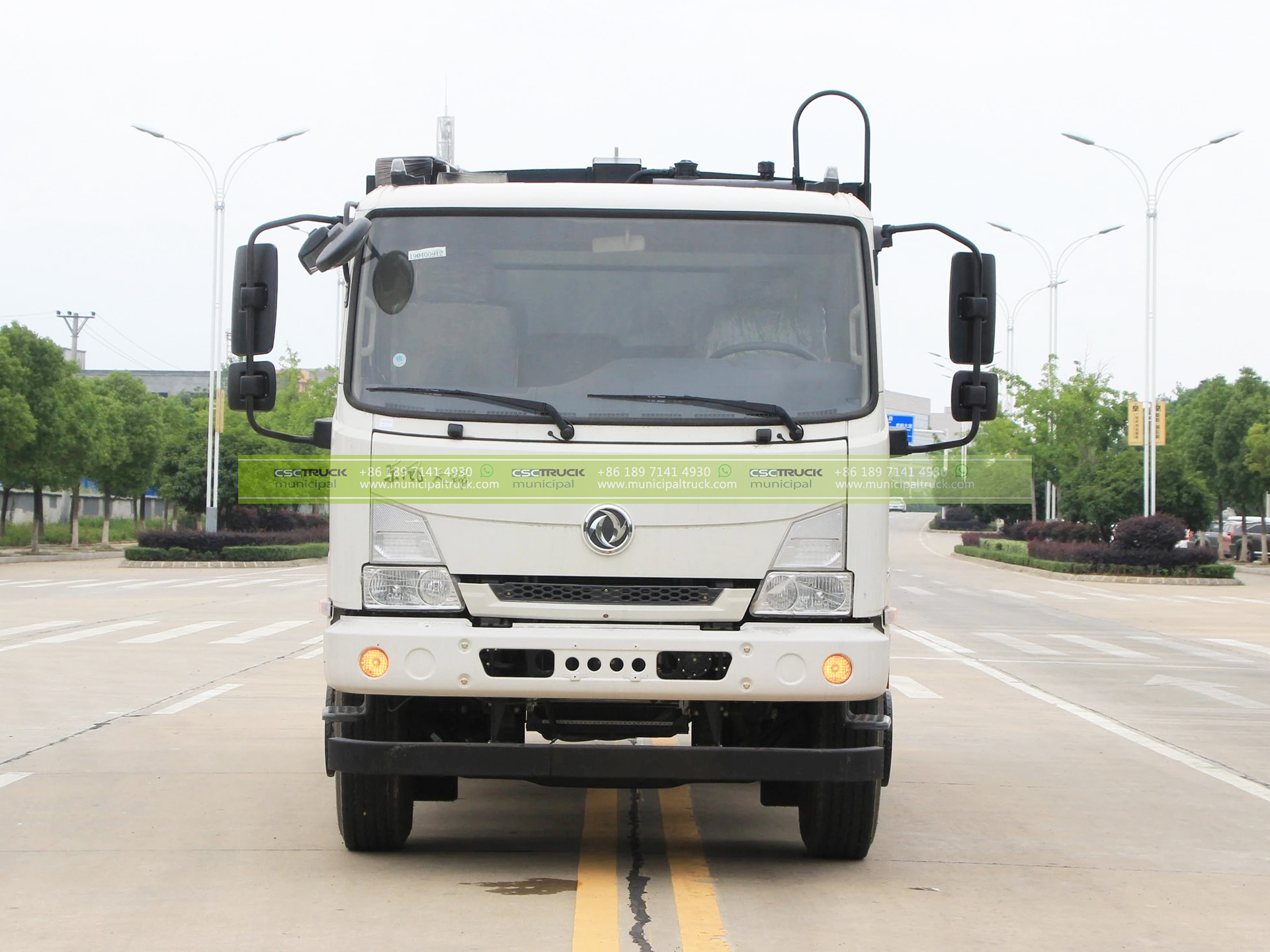

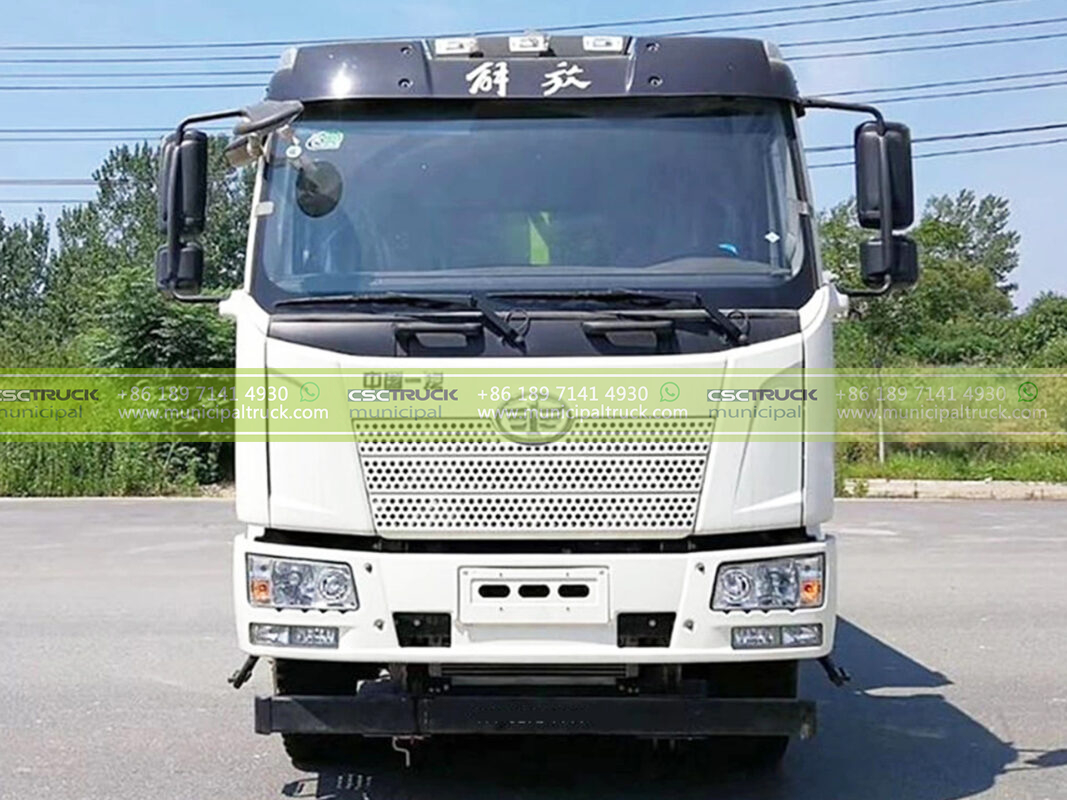

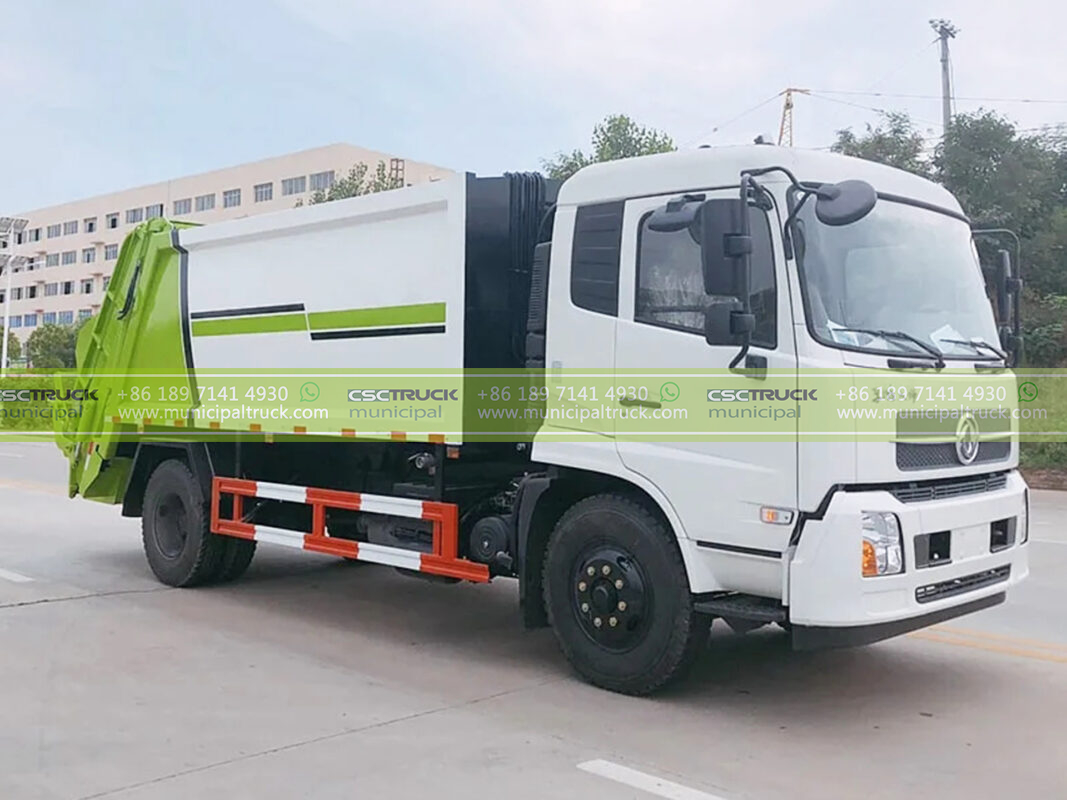

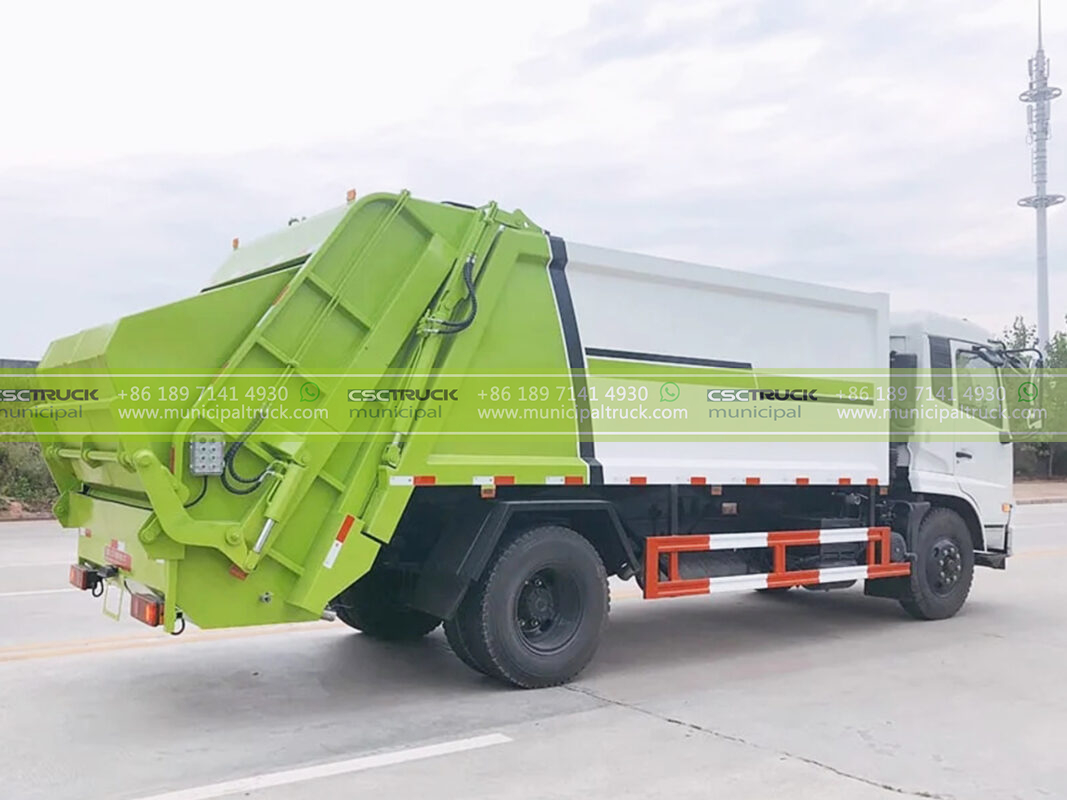

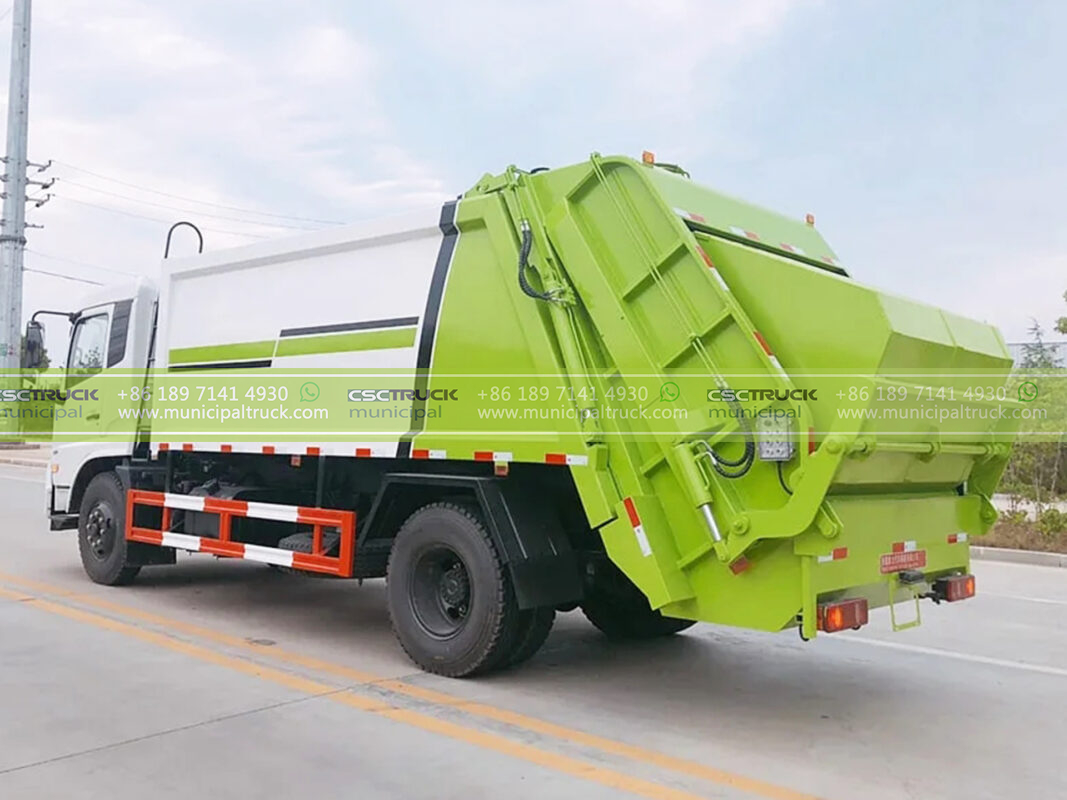

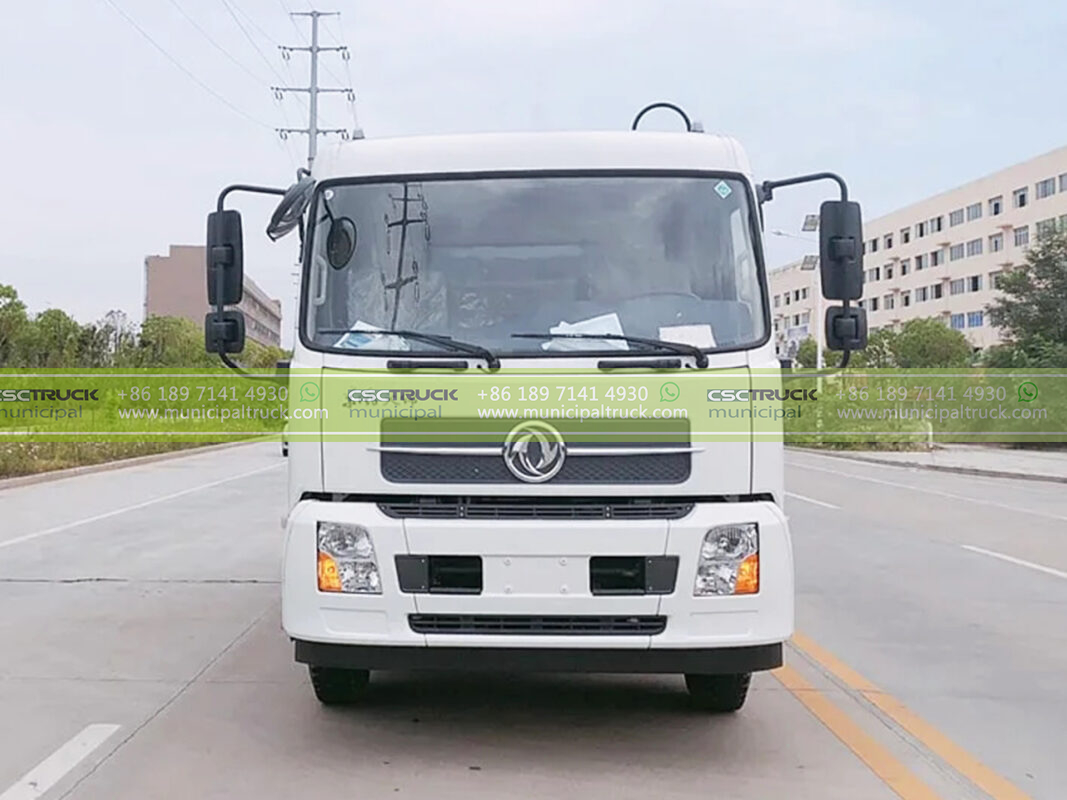

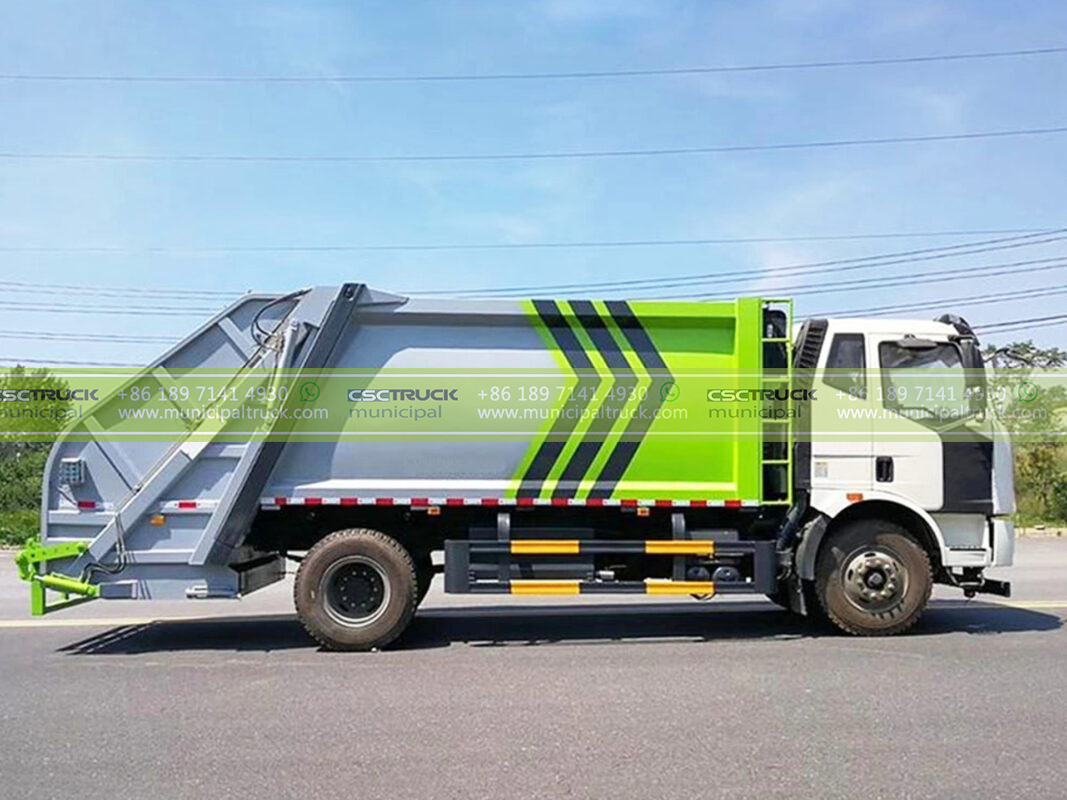

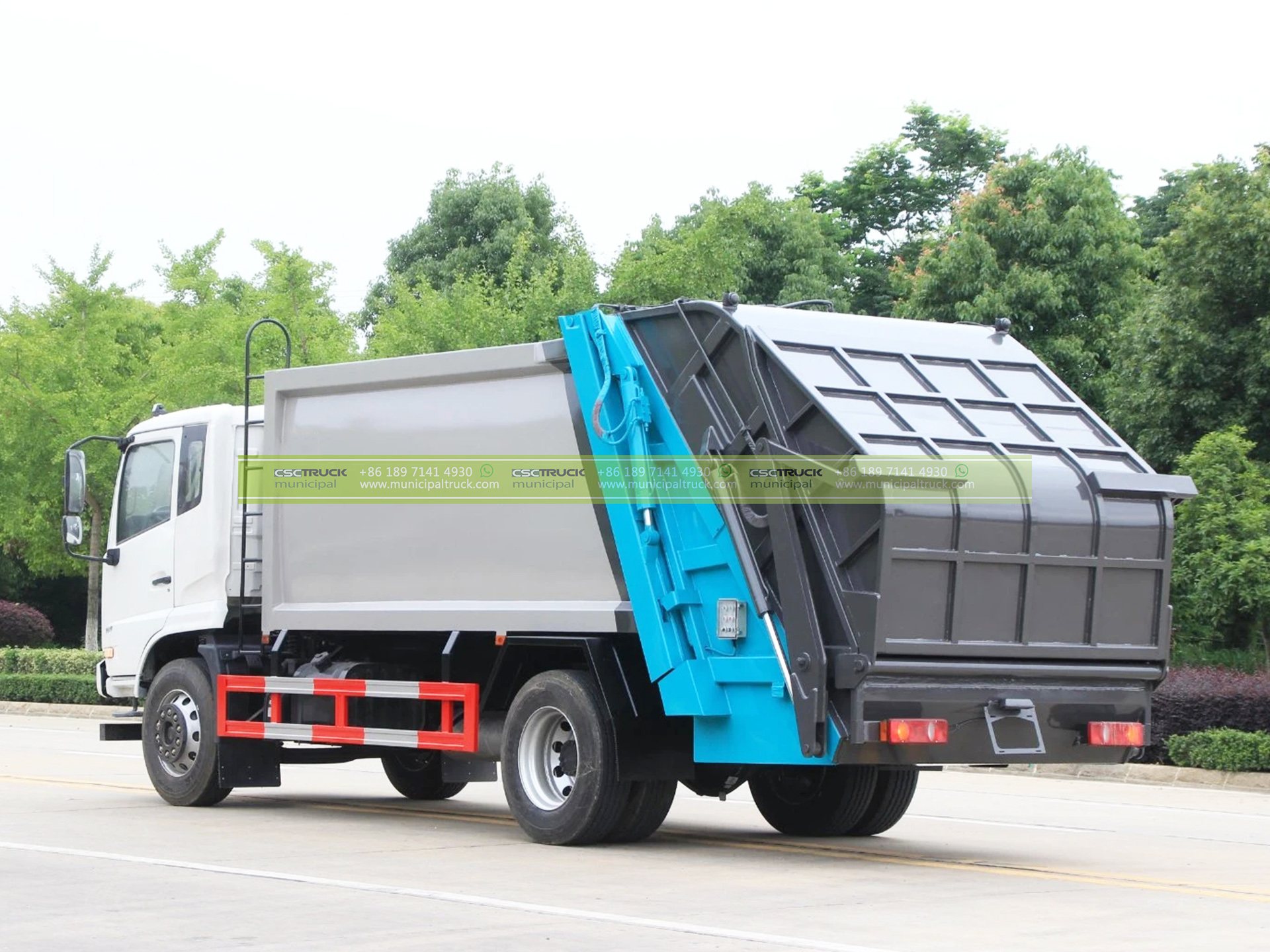

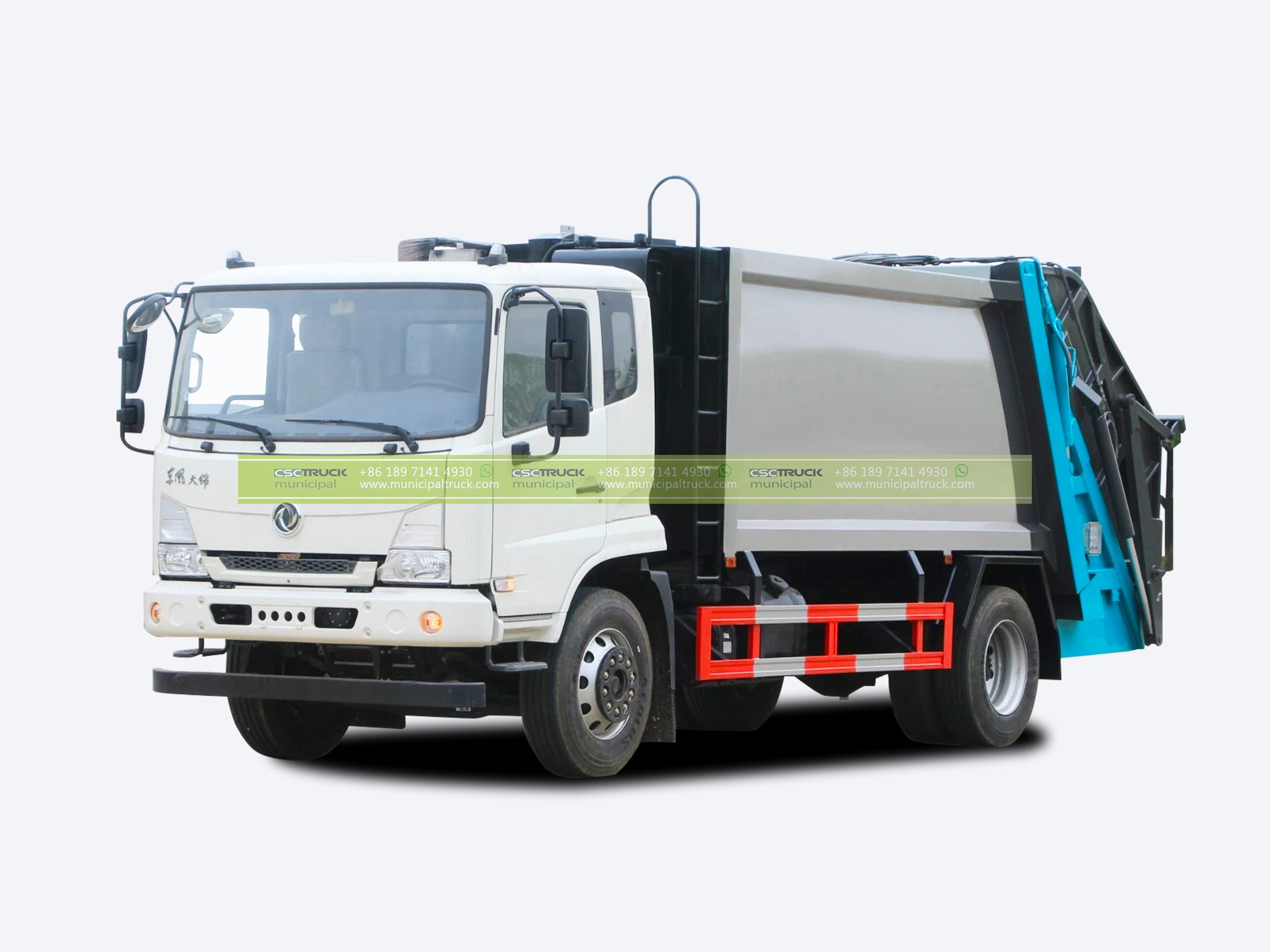

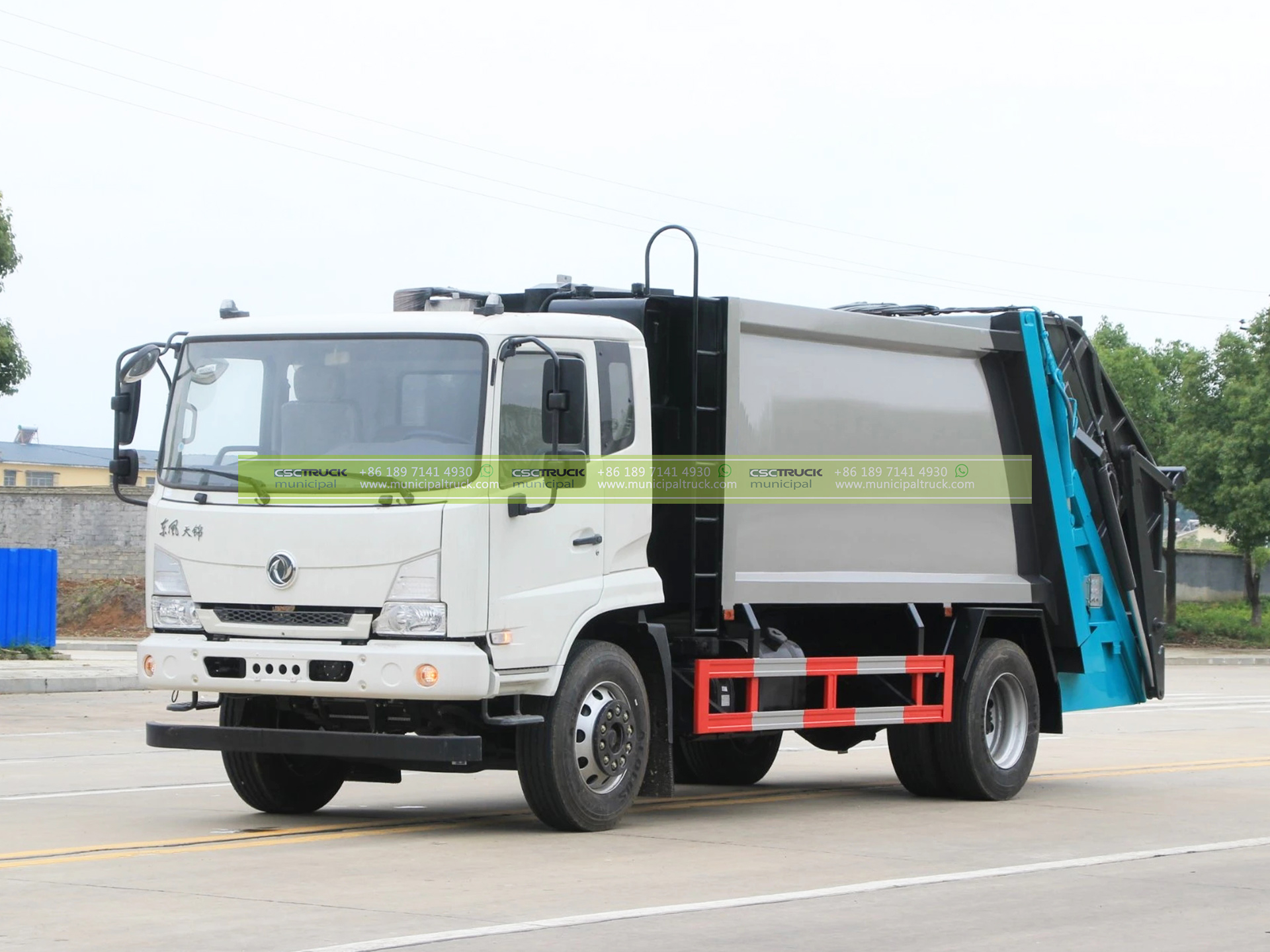

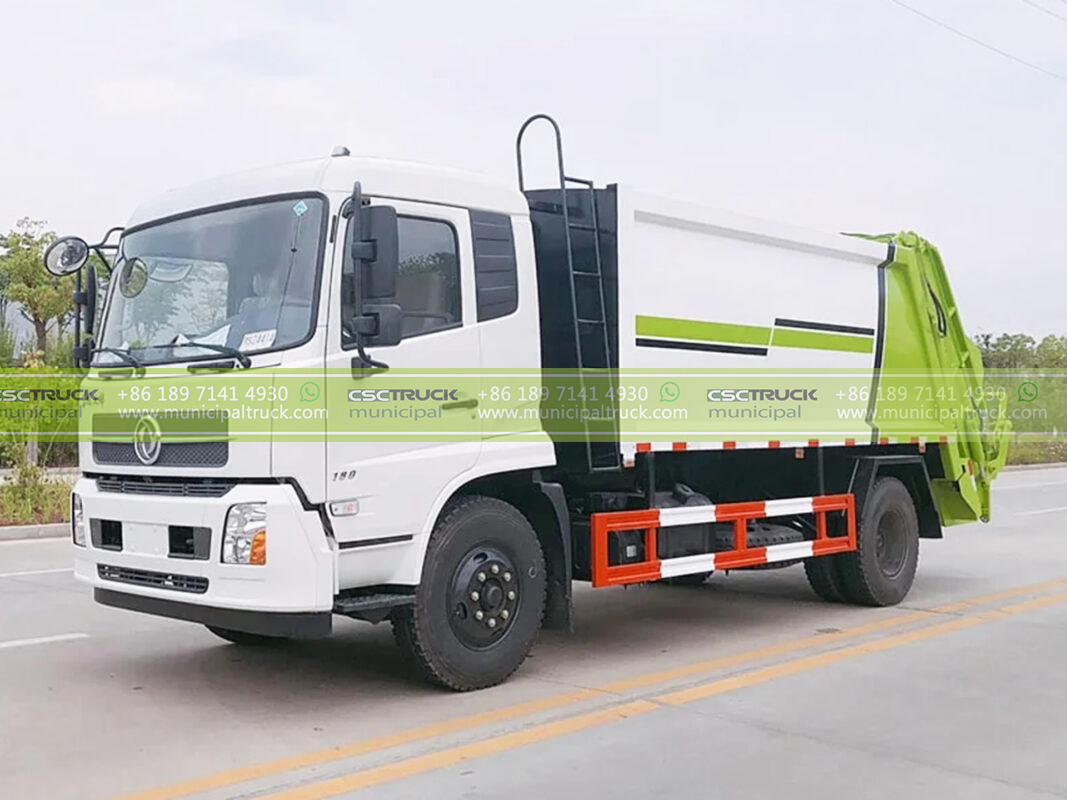

Gallery
See this Truck Video on Youtube
features
Treatment of Sewage Overflow and Discharge
-The sewage tank is set under the bottom plate of the hopper, the sewage collecting tank is connected with the sewage tank by a hose, and the bottom plate of the hopper and the sewage tank can form a relatively closed space, and the sewage cannot be swayed out.
-Due to the sealing of the scraper and the sliding plate, the hopper space connected with it will not let sewage out.
-Some compressed garbage trucks are also equipped with a hopper cover, which completely closes the hopper.
High Compaction and Fuel-Saving
Installed back pressure valve, two-way continuous compaction, the compression ratio can reach 0.6~0.8t/m3, which allows more waste to be stuffed onto a truck which reduces the number of round trips to the dumping site. This results in significant fuel savings.
Manufactured according to European Standards
- Hydraulic Oil Tank
- Telescopic cylinder
- Slide Cylinder
- Shovel cylinder
- Tailgate cylinder
- Container cylinder
- Control Box
- A front-directional control valve
- A rear directional control valve
- Counter Pressure Valve
Reliable High-Quality Components
Reliable high-quality components effectively reduce maintenance and maintenance costs.
Double Acting type 2 sets of Hydraulic Cylinders assembled using Imported Hard Chrome Rods and Honed Tubes.
Bin Lifter

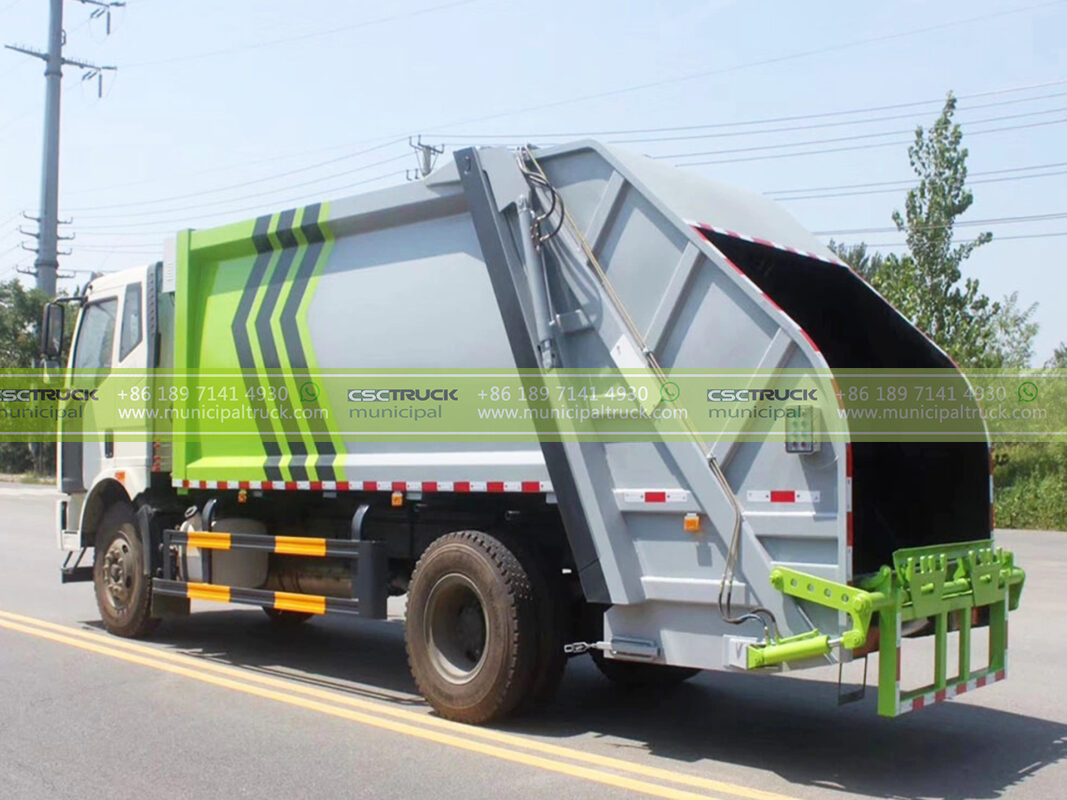

Bin lifting and tilting mechanism on compactor installed at the rear end of the unit for emptying containers of 0.8m3 into a hopper.
specification
| Chassis | |
| Size | 8200x2500x3550mm |
| GVW/Curb Weight | 17,500/9,000kg |
| Wheelbase | 4700mm |
| Tire | 10.00R20, 6+1 tires |
| Engine | |
| Make/Model | Cummins/B190 33 |
| Type | Diesel Engine |
| Engine System | 4 Stroke, High-Pressure Common Rail, Inter-cooling Turbo-Charged,4 Cylinders |
| Output Power@ speed | 190hp@2500rpm |
| Displacement | 5.9L |
| Max. torque @ Speed | 640N.m@1500rpm |
| Emission standard | Euro 3 |
| Transmission | |
| Gears | 6F+1R |
| Operation | Manual |
| Cabin | |
| Type | Steel construction, Single Row, Flat |
| Passenger No. | 3 |
| Body and Compaction System | |
| Capacity | 14CBM |
| Material | Weather-resistant steel, high corrosion resistance |
| Design | Sealed leakage proof |
| Compaction Ratio | 1:3- 1:4 |
| Effective volume of bucket | ≥0.8cbm |
| Loading Cycle Time | ≤40s |
| Unloading Time | ≤45s |
| Containers Lifting Devices | High capacity articulated lifter works in a minimum of two stages by four double effects hydraulic cylinders to ensure the lifting and lowering of containers smoothly.
Lifting weight capacity not less than 800 kg. |
| Control System | Equipped with three sets of automatic, manual control, and wireless remote control modes, it can control the operation of the garbage truck in the driver’s cab, the middle of the garbage, and the rear of the garbage. |
