Chassis | |
Size | 6190×2080×2540mm |
GVW/Curb Weight | 7,360kg/4,195kg |
Wheelbase | 3,360mm |
Front/Rear Axle | 2.64/4.72T |
Tire | 7.00R16 6+1 tires |
Engine | |
Type | Diesel |
Make/Model | DACHAI/CA498E3-12/120hp/Euro3 |
Transmission | |
Make/Model | WLY5-35 |
Gears | 5F+1R |
Operation | Manual |

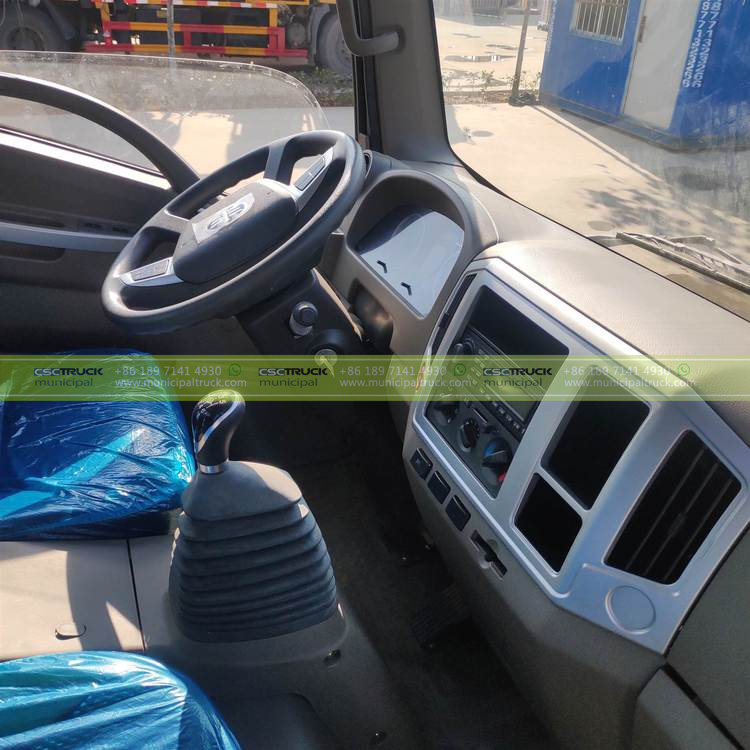

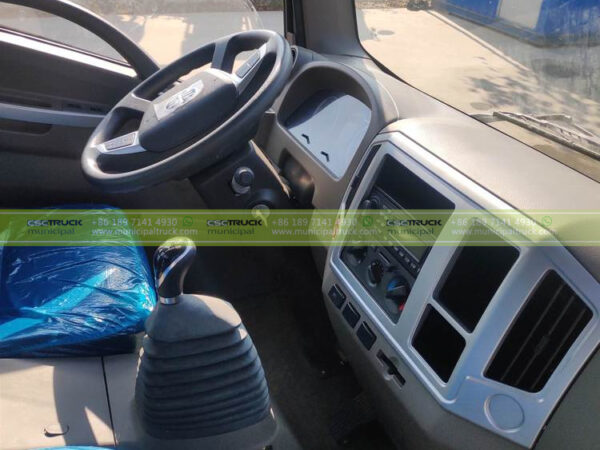

Cabin | |
Driving | FAW Tiger VR 4×2 Day Cab, Left-hand Drive |
Type | Steel construction, Single Row, Flat |
Passenger No. | 3 |

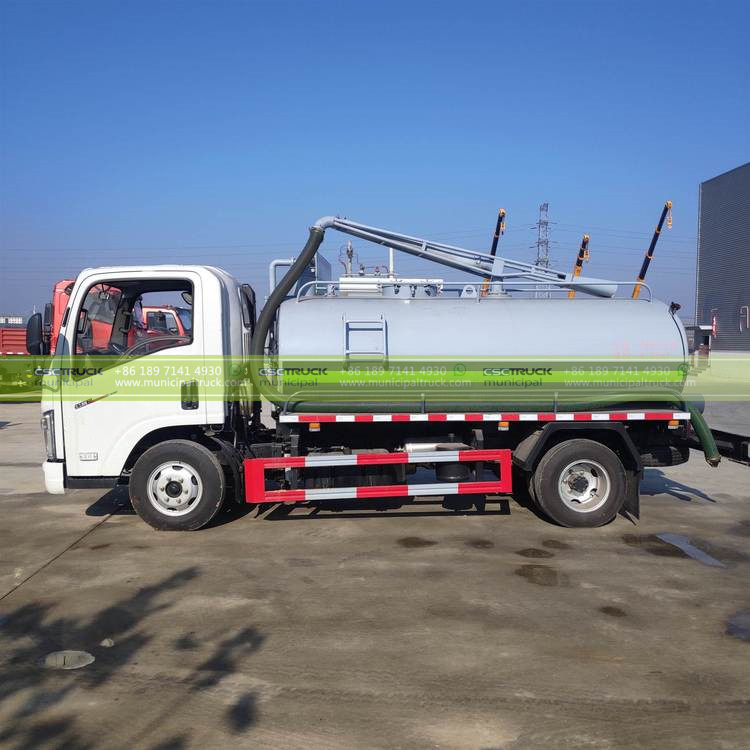

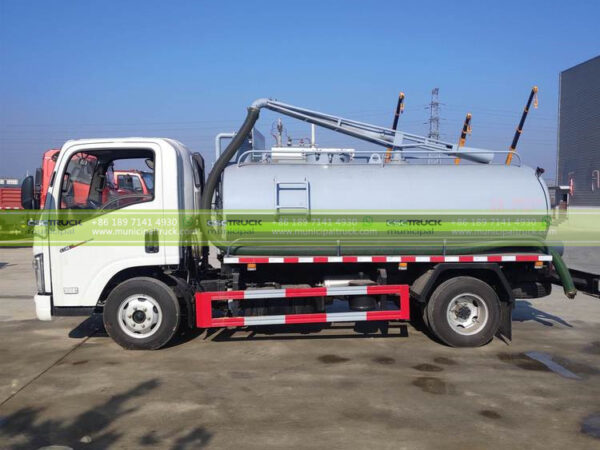

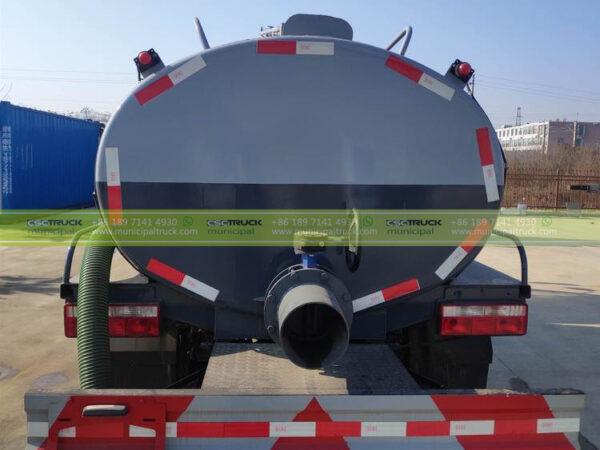

Body System | |
Capacity | 5CBM |
Shape | Oval |
Material | Q235B Carbon Steel |
Thickness | Tank Body 6mm |

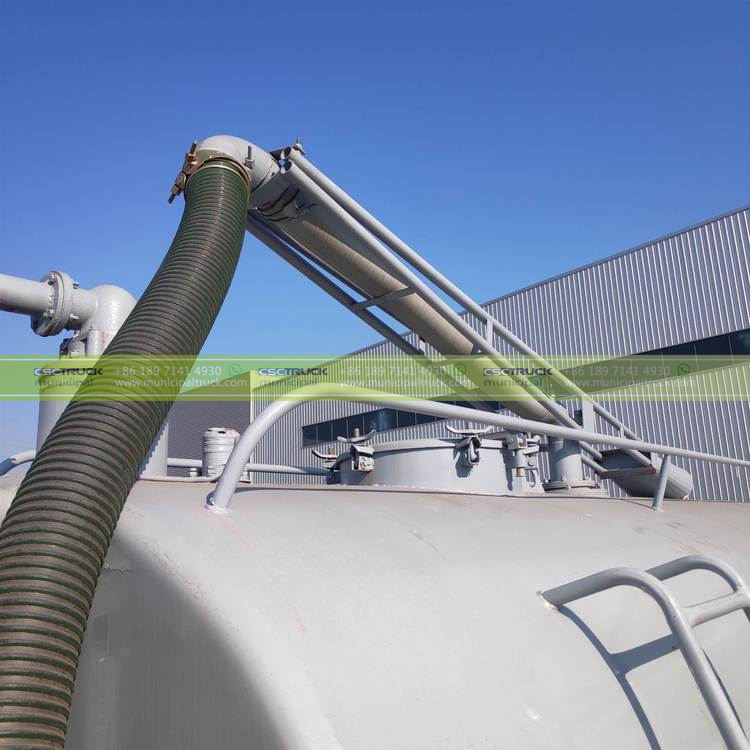

Vacuum Pump | Chinese famous brand |
Flow Rate | 45m3/h |
Ultimate Pressure | 7000pa |
Max Suction Lift | >6m |
Vacuum | >500mmHg |
Speed | 800~1400r/min |
Sewage Pipe | 5 meters |
Suction Time | ≤5min |

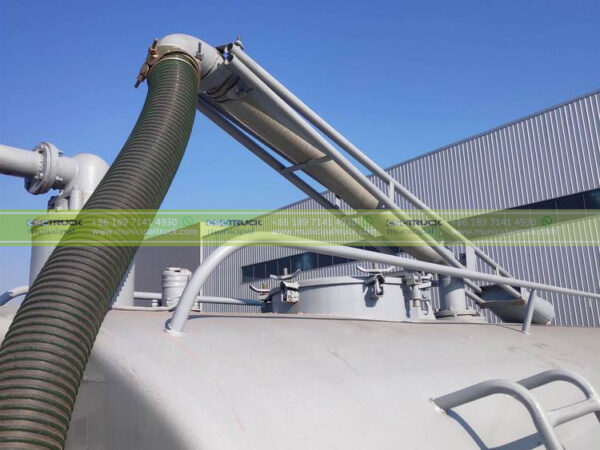

Basic Equipment | Vacuum pump, ball valve, suction pipe, pressure
meter, inspect windows, cleaning systems, hoist bases, oil-water separators, overflow valves, etc. |
Optional Equipment | Tanker material: stainless steel Vacuum pump: Italy or Spain vacuum pumps Anti-rust coating inside the tank Anti-flow devices |

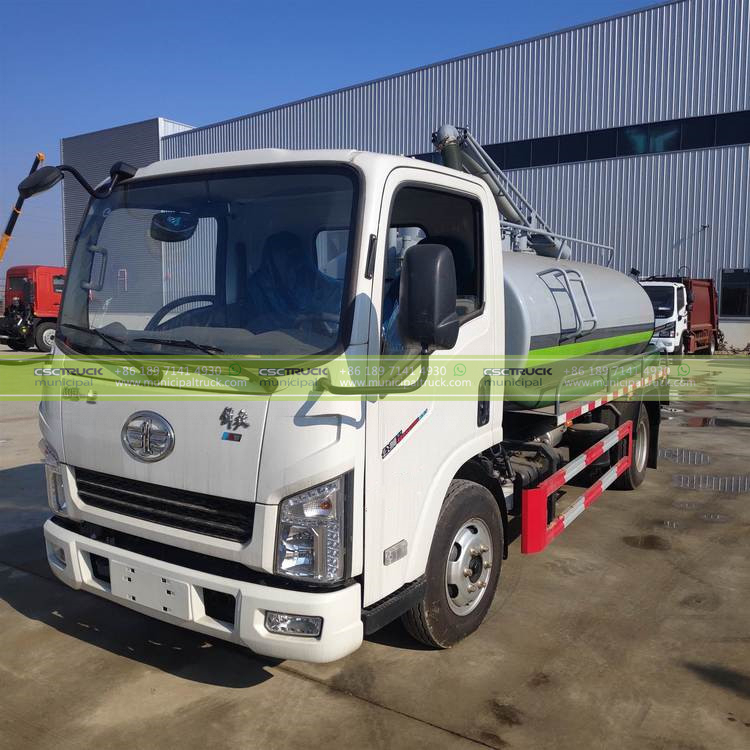

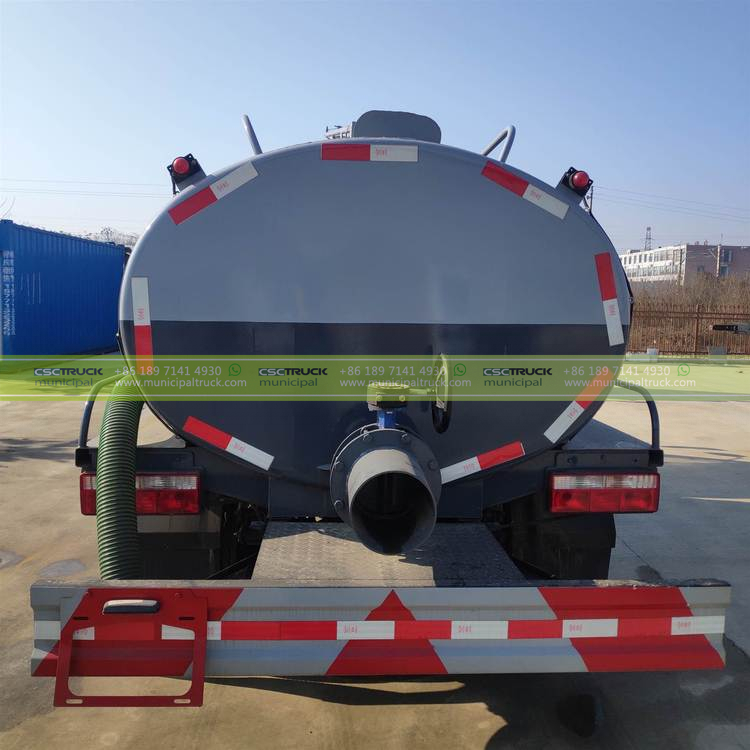

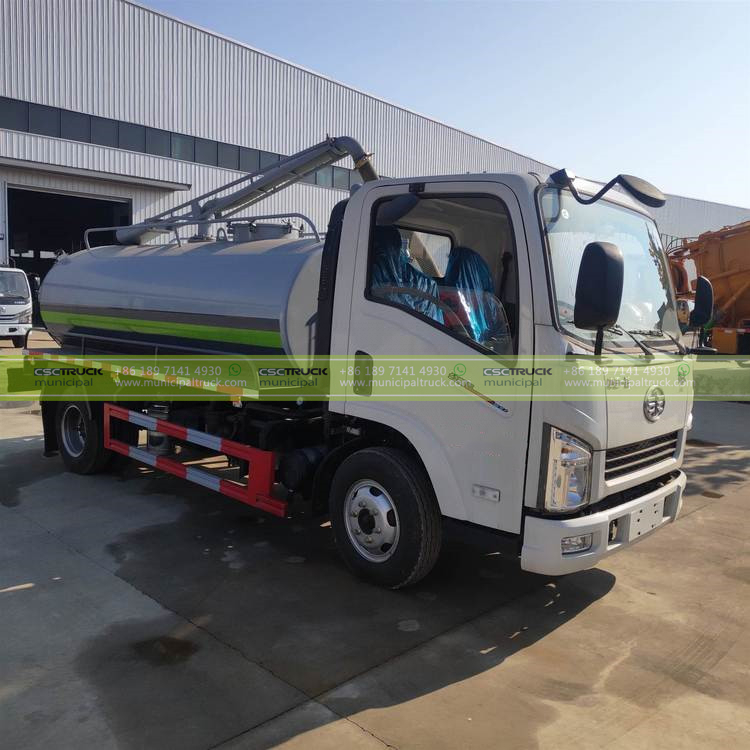

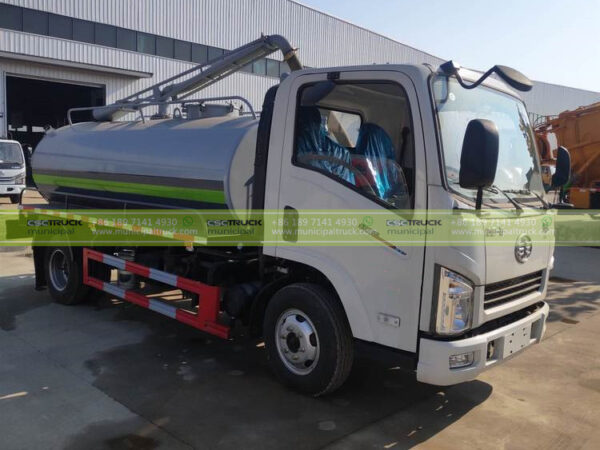

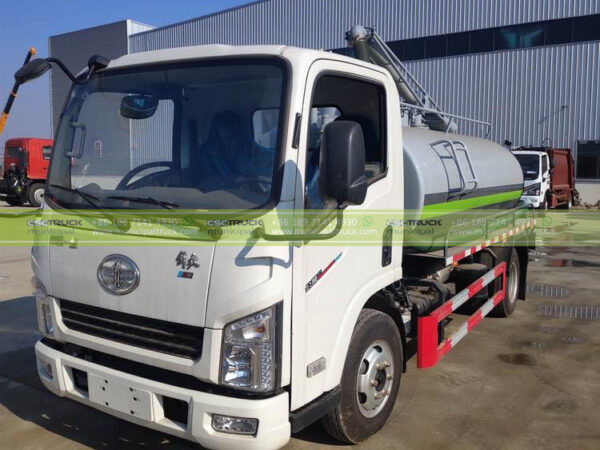

FAW 5,000L Cesspit Emptier Truck
Make/Model | CSCTRUCK/SC05CA120L3 |
GVW | 7,360kg, Medium Duty Vehicle |
Cab Truck | FAW Tiger VR 4×2 Day Cab |
Engine | DACHAI/CA498E3-12/120hp/Euro3 |
Transmission | WLY5-35 manual 5+1 Speed |
Sludge Tank Capacity | 5,000 Liters, 5 Cubic Meters, 1320 Gallon |
Vacuum Pump | Weilong/JUROP/MORO Capacity 700LPM to 3333LPM |
