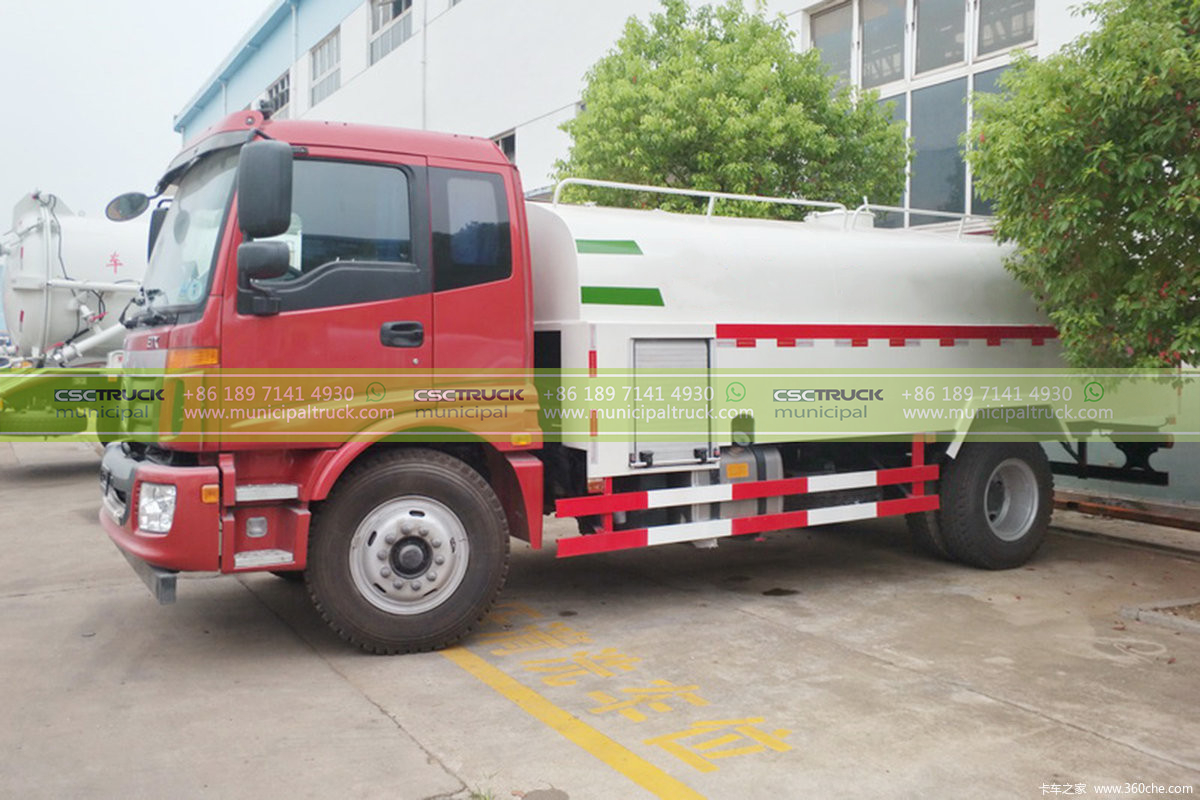

How Does a Water Jetting Truck High-Pressure Unit Operate?
Beneath the unassuming exterior of a water jetting truck lies a core of controlled, elemental power. Far surpassing the capabilities of consumer pressure washers, these industrial workhorses generate hydrodynamic forces capable of slicing through compacted soil, pulverizing concrete, excavating trenches, and obliterating the most stubborn sewer blockages. At the heart of this transformative capability resides the high-pressure unit – an intricate assembly of pumps, hoses, nozzles, and controls engineered to convert diesel horsepower into a focused, devastating stream of water moving faster than the speed of sound. Understanding the precise operation of this high-pressure unit reveals the sophisticated interplay of physics, mechanics, and materials science dedicated to tackling the toughest cleaning and cutting challenges across municipal, industrial, and construction landscapes.
Power Generation: Harnessing Engine Output for Intense Pressure
The foundational step involves transforming the substantial mechanical energy of the truck’s diesel engine into the hydraulic or direct-drive power necessary to drive the high-pressure pump. This process demands robust engineering to handle immense loads continuously.
Power Take-Off (PTO) & Driveline Integration: Mounted directly to the truck’s transmission or engine, a heavy-duty Power Take-Off (PTO) unit engages to divert a significant portion of the engine’s power away from propelling the vehicle and towards driving the high-pressure pump. This PTO is specifically rated for the high torque demands of pressure pumping, featuring reinforced gears and robust lubrication systems. A short, solid driveshaft transmits this torque from the PTO to the input shaft of the high-pressure pump assembly, requiring precise alignment and heavy-duty universal joints to accommodate frame flex and vibration. The engagement mechanism is often electro-pneumatic or hydraulic, allowing the operator to activate the system safely from the cab.
Alternative Hydraulic Drive Systems: While direct mechanical drive via PTO dominates larger jetting trucks, some configurations, particularly on units designed for versatility like combination sweeper truck and jetter models, may employ an intermediate hydraulic system. Here, the PTO drives a high-capacity hydraulic pump, which pressurizes fluid. This hydraulic fluid then powers dedicated hydraulic motors directly coupled to the water pump. This setup offers greater flexibility in pump placement, smooth power transmission, and easier integration with other truck-mounted systems, though it introduces additional components like motors, hoses, and potential efficiency losses through the double energy conversion.
The Core Component: Engineering the Triplex Plunger Pump
The triplex plunger pump is the undisputed workhorse of the high-pressure unit. Its robust design is engineered to withstand the punishing forces required to generate pressures often exceeding 20,000 PSI (1,380 bar) and flows of 15-25 GPM (55-95 LPM) or more, operating reliably cycle after cycle under extreme stress.
Plunger Mechanism & Crankshaft Assembly: Three cylindrical plungers, typically made from hardened stainless steel or ceramic-coated alloys for wear resistance and corrosion protection, reciprocate linearly within precision-machined plunger sleeves or liners. These plungers are driven by a heavy-duty crankshaft connected to the power source (PTO shaft or hydraulic motor). The crankshaft converts rotational motion into the reciprocating motion of the plungers, phased 120 degrees apart. This phasing ensures a remarkably smooth and continuous flow of pressurized water, minimizing pressure pulsations that could stress hoses and components and improving operator control. Crankshaft bearings are massive, often tapered roller types, meticulously lubricated to handle enormous radial and thrust loads.
Valve Dynamics: Intake & Discharge: Efficient operation relies on precisely timed opening and closing of valves. As a plunger retracts within its cylinder during the suction stroke, it creates a low-pressure zone. This drop in pressure forces the inlet valve (typically a spring-loaded check valve or flat-seated valve) open, drawing water from the supply tank into the cylinder. On the pressurization stroke, the plunger moves forward rapidly. The inlet valve slams shut under pressure and spring force, trapping the water. As pressure skyrockets within the cylinder, it overcomes the spring force holding the discharge valve closed. The discharge valve opens, allowing the highly pressurized water to exit the pump chamber into the high-pressure manifold. Valve seats and seals are hardened materials designed for millions of cycles without failure.
Lubrication & Cooling: Protecting the Heart: The crankcase housing the crankshaft, connecting rods, and crossheads requires constant, pressurized lubrication. A dedicated gear pump circulates oil from a sump through filters and coolers before feeding it to bearings, crosshead guides, and other critical friction points. This oil bath absorbs heat generated by internal friction and compression, preventing overheating and component seizure. Cooling jackets surrounding the pump head (where the plunger sleeves reside) are often integrated, using either a portion of the bypassed water supply or a separate coolant circuit to manage temperatures generated by the adiabatic compression of water.
Pressure Control & Fluid Management: Governing the Flow
Generating immense pressure is only half the challenge; controlling and safely delivering that pressure is equally critical. This involves sophisticated valving and fluid handling systems.
Unloader & Bypass Valves: Essential Regulators: The unloader valve is arguably the system’s most crucial safety and control component. When the operator closes the jetting gun trigger, water flow stops instantly. Without an unloader, pressure would catastrophically spike, potentially bursting hoses or damaging the pump. The unloader senses this pressure surge and instantly diverts the entire pump output flow either back to the supply tank or through a dedicated cooling circuit. This “unloaded” state maintains pump flow at minimal pressure until the gun trigger is reopened, whereupon the valve rapidly redirects flow back to the high-pressure line. Bypass valves (sometimes integrated with unloaders) also manage flow during operation, allowing a controlled portion of water to recirculate at lower pressures to maintain pump cooling even when the gun is active, particularly during low-flow nozzle use.
Pressure Regulation & Relief:Pressure regulating valves allow the operator to actively dial down the maximum system pressure from the cab control panel, matching the power output to the task (e.g., light cleaning vs. concrete demolition). These are typically pilot-operated valves responding to electronic or hydraulic signals. Crucially, a pressure relief valve acts as the ultimate safety backup. This valve, often a simple spring-loaded poppet design calibrated to a specific maximum pressure (e.g., 110% of rated pump pressure), will automatically open and dump flow back to tank if system pressure exceeds its set point, regardless of unloader function, protecting the entire system from dangerous over-pressurization.
Water Supply & Filtration: A consistent, clean water supply is vital. The truck’s supply tank, often baffled to prevent sloshing, feeds the pump via large-diameter suction lines. Suction filters (strainers) prevent debris large enough to damage pump valves or plungers from entering. Water quality matters significantly; contaminants can accelerate plunger and seal wear. Some advanced systems incorporate deionization or chemical injection for specialized cleaning tasks.
High-Pressure Conveyance: The Critical Role of Hoses & Fittings
Containing and directing water at tens of thousands of PSI requires specialized components engineered for extreme conditions.
Reinforced Hoses: Strength in Layers: High-pressure hose assemblies are marvels of composite engineering. They typically feature a seamless synthetic rubber tube resistant to water and abrasion, surrounded by multiple layers of high-tensile steel wire braiding (sometimes spirally wound) for reinforcement, and finished with a tough, weather-resistant outer cover. These layers work synergistically to contain the enormous internal pressure while maintaining flexibility. Hose diameter and number of reinforcement layers are carefully matched to the system’s operating pressure and flow requirements. Safety cages or whip-checks are mandatory attachments where hoses connect to guns or reels to mitigate the hazard if an end fitting fails.
Precision Fittings & Connections:End fittings, usually forged steel and crimped permanently onto the hose, are critical weak points requiring meticulous design and manufacture. Threaded connections (often JIC, NPT, or specialized high-pressure types like MSP) must precisely match and incorporate robust seals like O-rings or tapered metal-to-metal seats to prevent leaks and catastrophic blow-outs under pressure. Regular inspection of hoses and fittings for abrasion, kinking, bulging, or leakage is a non-negotiable safety protocol.
Nozzle Physics: Transforming Pressure into Cutting Force
The journey culminates at the nozzle, where hydraulic energy converts into kinetic energy with devastating effect. The design determines the jet’s function.
Orifice Dynamics & Velocity: Water forced through the tiny orifice of a nozzle accelerates dramatically due to the conservation of energy principle (Bernoulli’s Equation). The pressure energy upstream is converted into kinetic energy downstream. Jet exit velocities routinely exceed Mach 3, creating intense localized shear forces capable of cutting hard materials and imparting massive impulse forces to dislodge blockages. Orifice diameter (typically 0.008″ to 0.120″) is inversely proportional to pressure output for a given flow rate – smaller orifices yield higher velocity jets but drastically reduced flow and cleaning coverage.
Jet Formation & Cleaning Mechanisms: Nozzle geometry dictates jet characteristics. Straight stream nozzles produce a coherent, long-range jet for deep penetration, cutting, or long-distance cleaning. Fan nozzles create a wide, flat sheet of water ideal for surface cleaning large areas efficiently. Rotary nozzles, powered by the jet reaction, spin rapidly, directing rotating streams for omnidirectional cleaning inside pipes, effectively scouring walls. The impact force (F ∝ P * √Q) and cleaning power (CP ∝ P * Q) are key metrics defining effectiveness. The jet’s ability to cut or clean relies on this concentrated force exceeding the material’s yield strength or the adhesive forces binding debris to a surface.
The immense power demands intuitive control, rigorous safety protocols, and constant innovation to expand capabilities.
Cab Controls & Monitoring: Modern jetting trucks offer sophisticated operator interfaces. Electronic control panels allow precise adjustment of pressure (via regulator valve signals), engine throttle (governing pump speed and flow), and reel functions. Digital displays provide real-time feedback on critical parameters: system pressure, water flow rate, engine RPM, hydraulic pressure (if applicable), and diagnostic codes. Some systems integrate camera feeds from nozzle heads for visual confirmation of cleaning progress inside pipes.
Comprehensive Safety Systems: Safety is paramount. Systems incorporate numerous interlocks: pressure cannot be built without the hose reel brake engaged; the pump won’t start unless adequate water supply is confirmed; emergency stop buttons instantly cut power and unload pressure. Hose reels equipped with level-wind mechanisms and rotation sensors prevent dangerous twisting and overruns. Operators require extensive training on pressure hazards, hose handling, confined space entry (for sewer work), and PPE requirements including face shields and cut-resistant gear. The high-pressure zone is treated with the same respect as high-voltage electricity.
Innovation & Future Capabilities: Leading manufacturers continually push boundaries. Variable frequency drive (VFD) electric motors offer precise pump speed control without engine throttling, improving fuel efficiency and noise reduction. Pulsating jet systems, rapidly cycling pressure on/off via specialized valves, significantly enhance cleaning efficiency on tough surfaces by creating intense fatigue stresses in debris. Automated hose deployment/retrieval systems and robotic crawlers equipped with jetting heads enable safer, more efficient cleaning of complex pipe networks. Water recycling systems address environmental concerns and water scarcity. Companies like CSCTRUCK Municipal exemplify this drive for innovation, integrating cutting-edge pump technologies with robust chassis platforms derived from their proven road sweeper truck designs, focusing on system reliability, operator safety, and maximized productivity for municipal infrastructure maintenance. Their research explores advanced nozzle materials for extended life, intelligent pressure control adapting to blockage density in real-time, and hybridization technologies reducing the environmental footprint of these essential public works assets, ensuring water jetting remains a vital tool for managing modern infrastructure.
