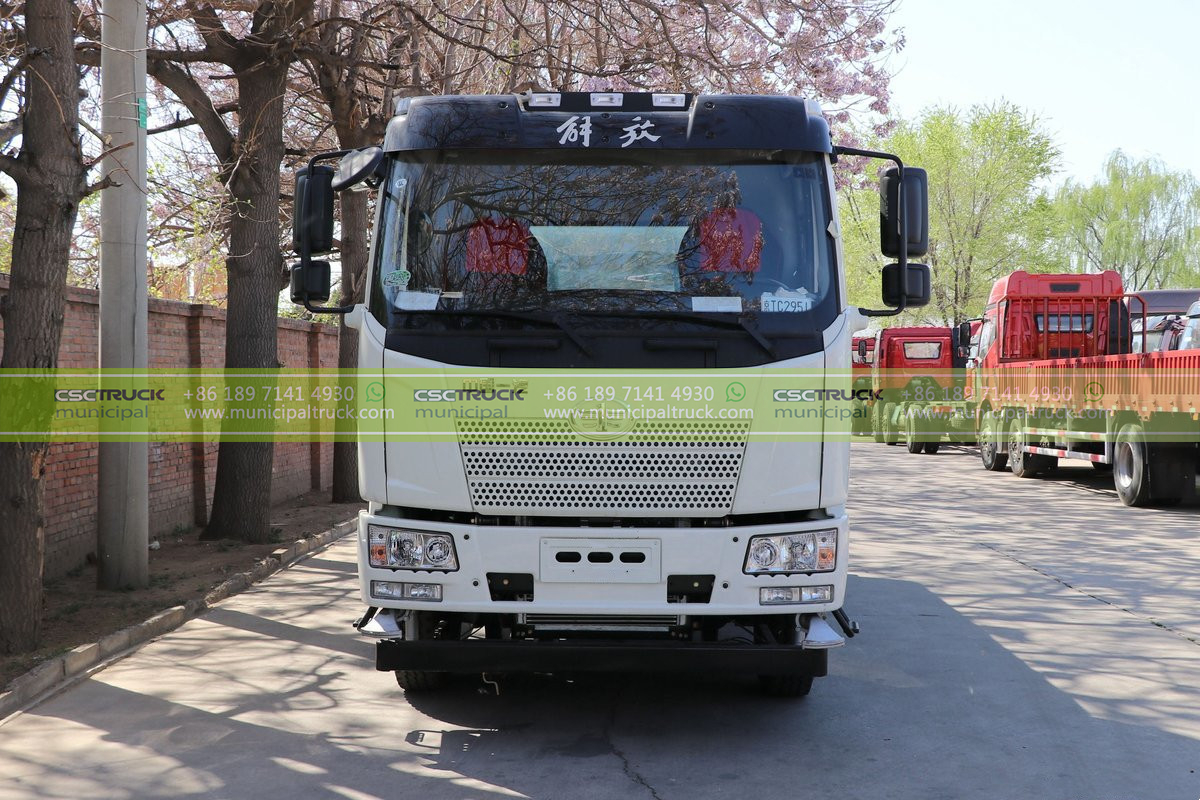

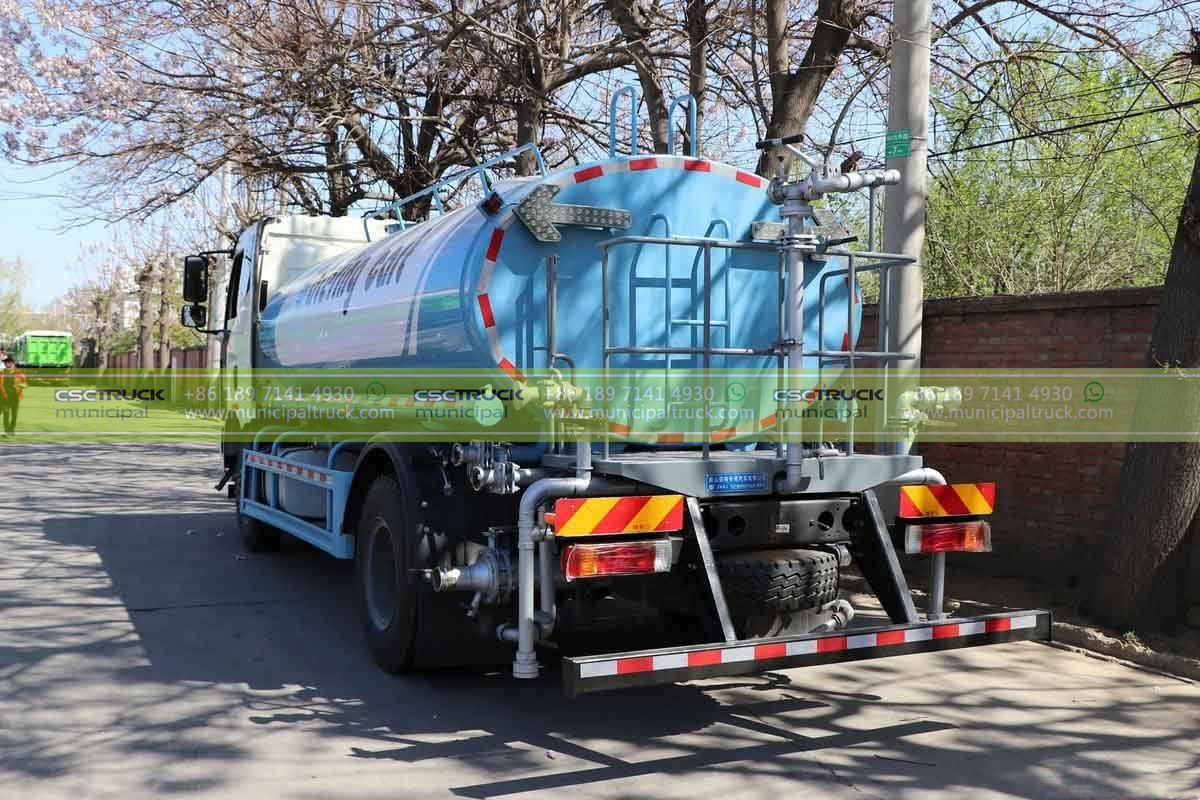

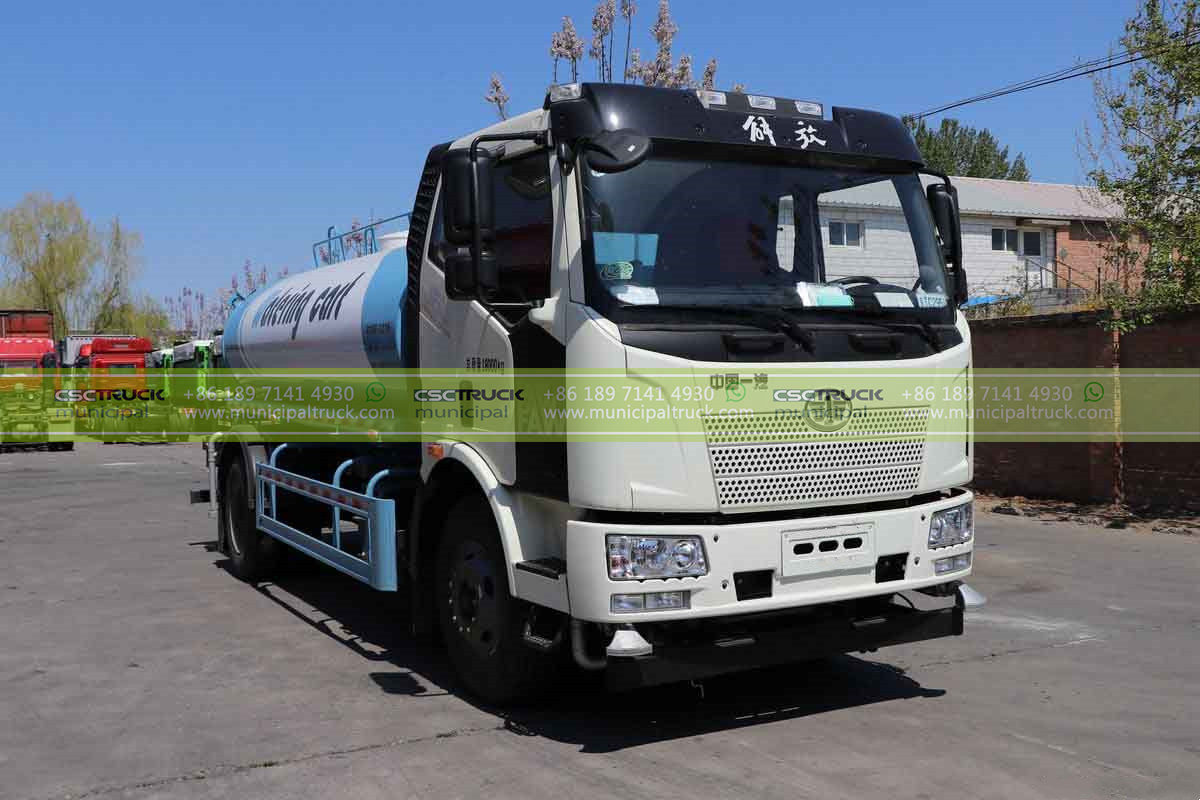

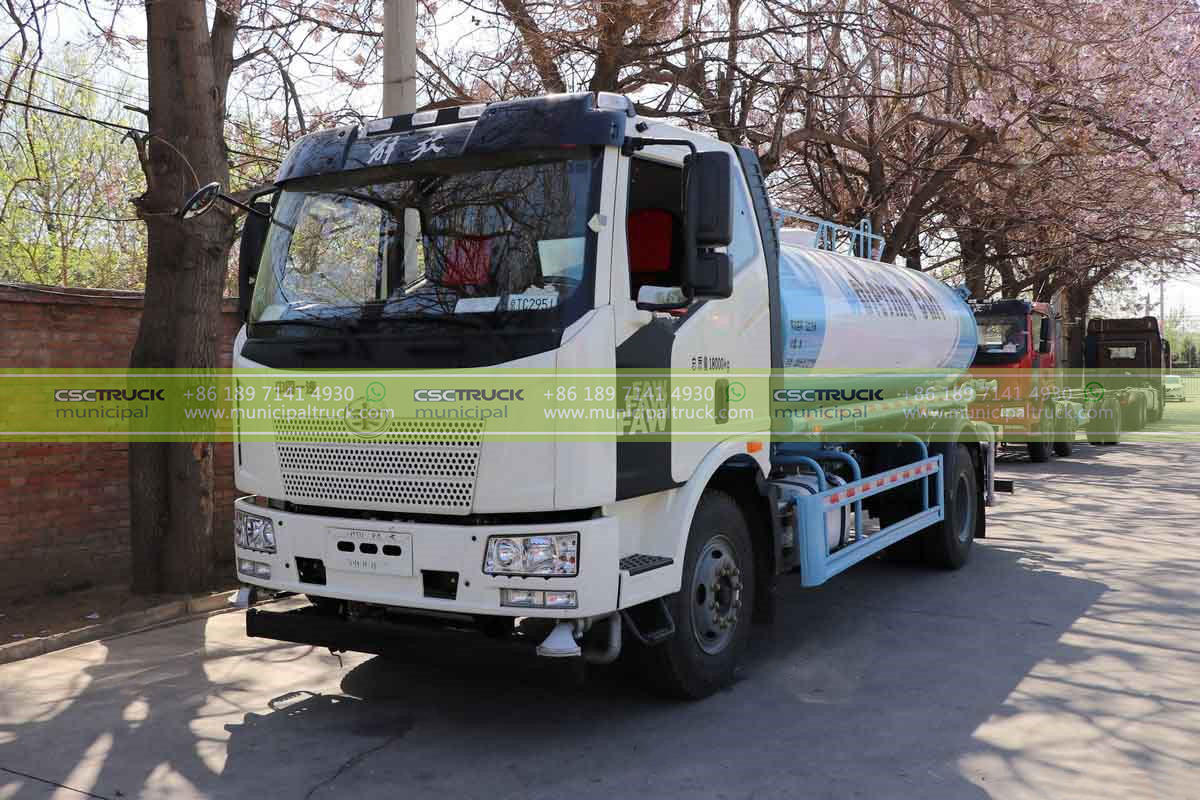

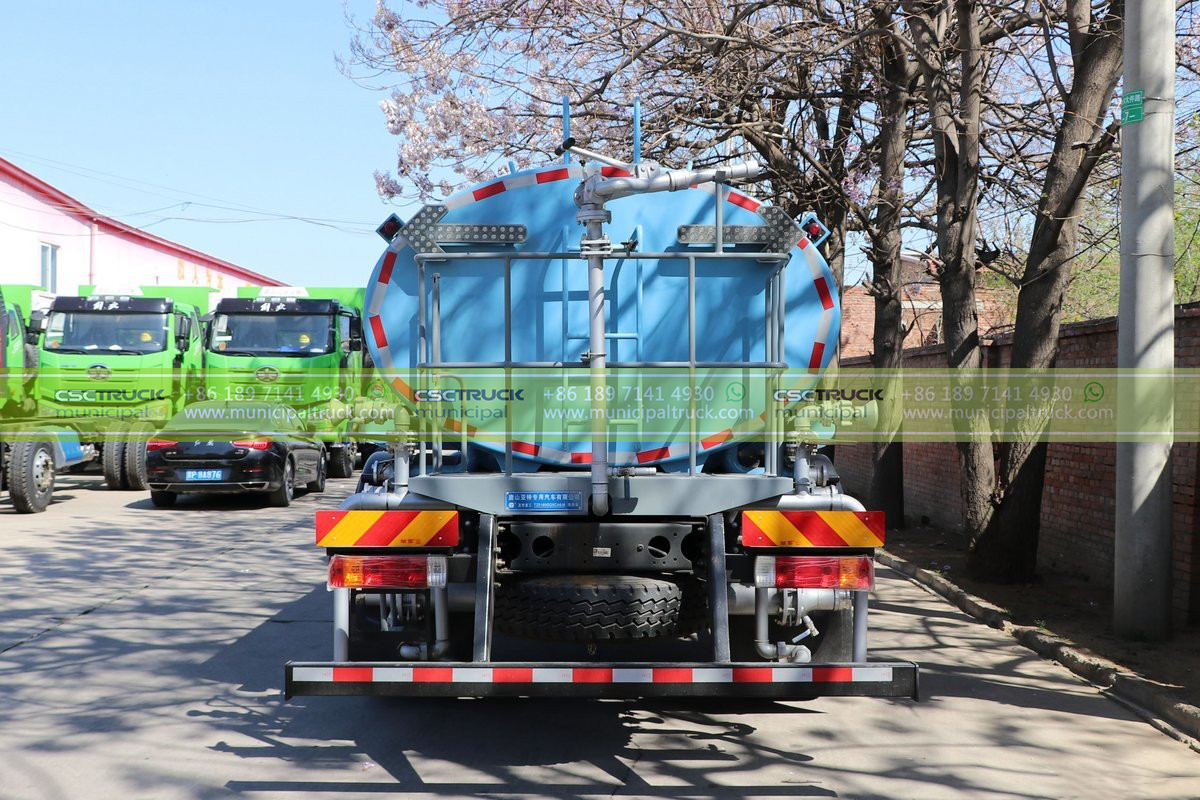

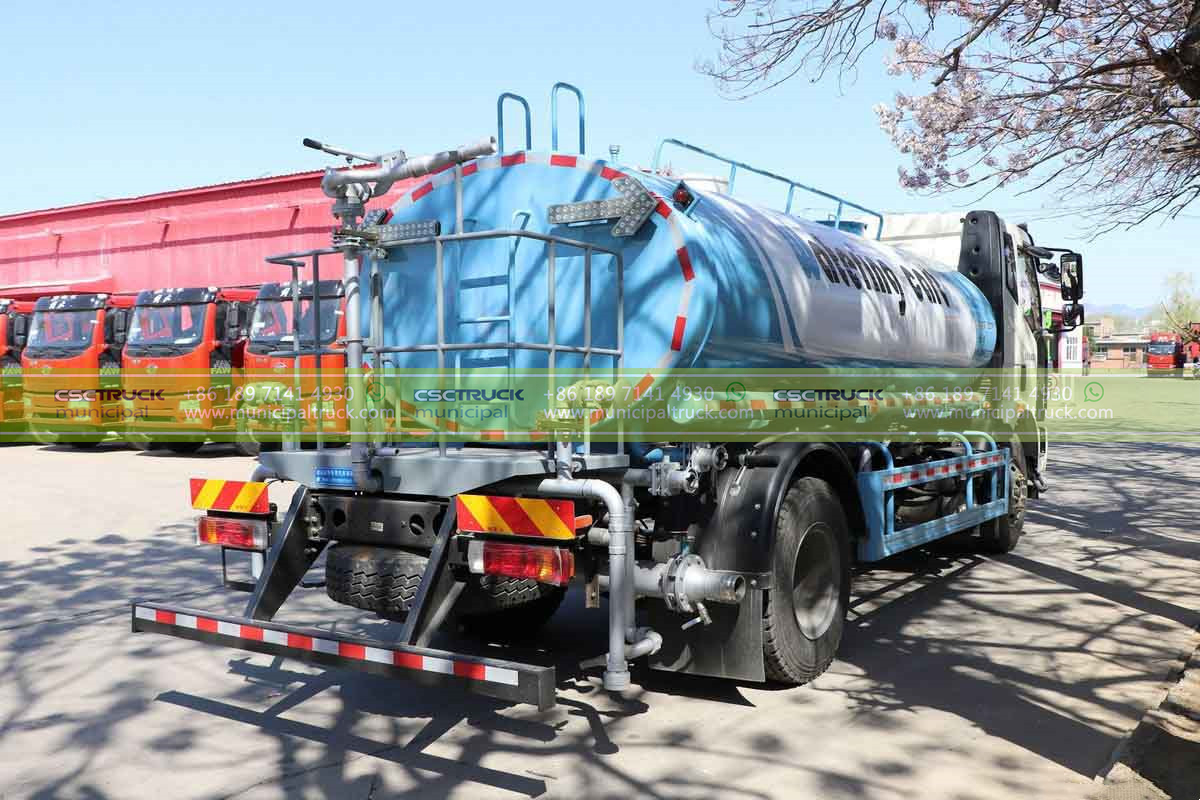

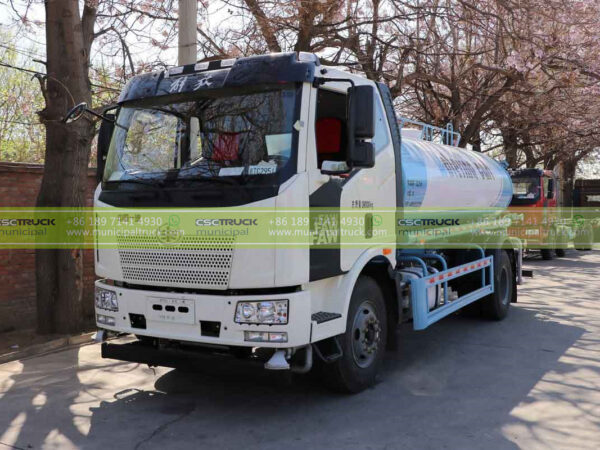

Introducing the FAW high pressure water cleaning sweeper truck, a powerful and efficient solution for keeping your roads and streets clean. Manufactured by the renowned brand CSCTRUCK, this sweeper truck is built to handle the toughest cleaning jobs with ease. Let’s take a closer look at what this truck has to offer.
Chassis:
The FAW high pressure water cleaning sweeper truck is built on a sturdy FAW chassis, which measures 8,352 x 2,500 x 2,940mm. With a GVW/Curb Weight of 18,000kg/8,004kg, this truck is designed to handle heavy loads with ease. It also features a wheelbase of 4,500mm and a front/rear axle of 6.5T/11.5T, providing excellent stability and control on the road. The truck is equipped with 10.00R20 6+1 tires, ensuring reliable performance in any weather condition.
Engine and Transmission:
Powered by a WEICHAI diesel engine with a make/model of WP10.270E32/270hp/Euro3, this sweeper truck delivers excellent performance and fuel efficiency. The engine is paired with a FAST transmission with 9F+1R gears, ensuring smooth and reliable shifting.
Cabin:

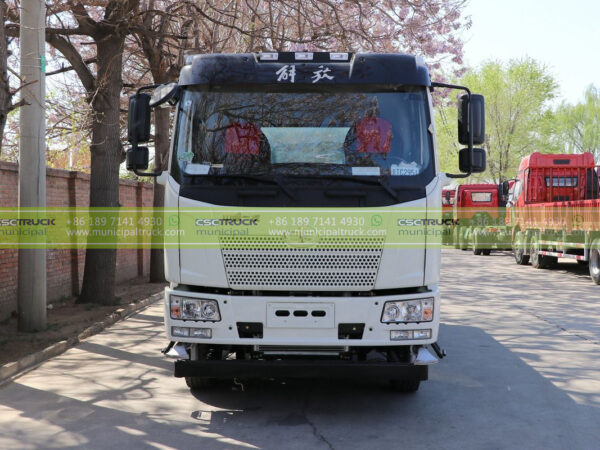

The FAW sweeper truck features a comfortable and spacious cabin, which can accommodate up to three passengers. The cabin is made of steel construction and is designed with a single row and a flat layout. The driver’s seat is positioned on the left-hand side, providing excellent visibility and control.
Body System:

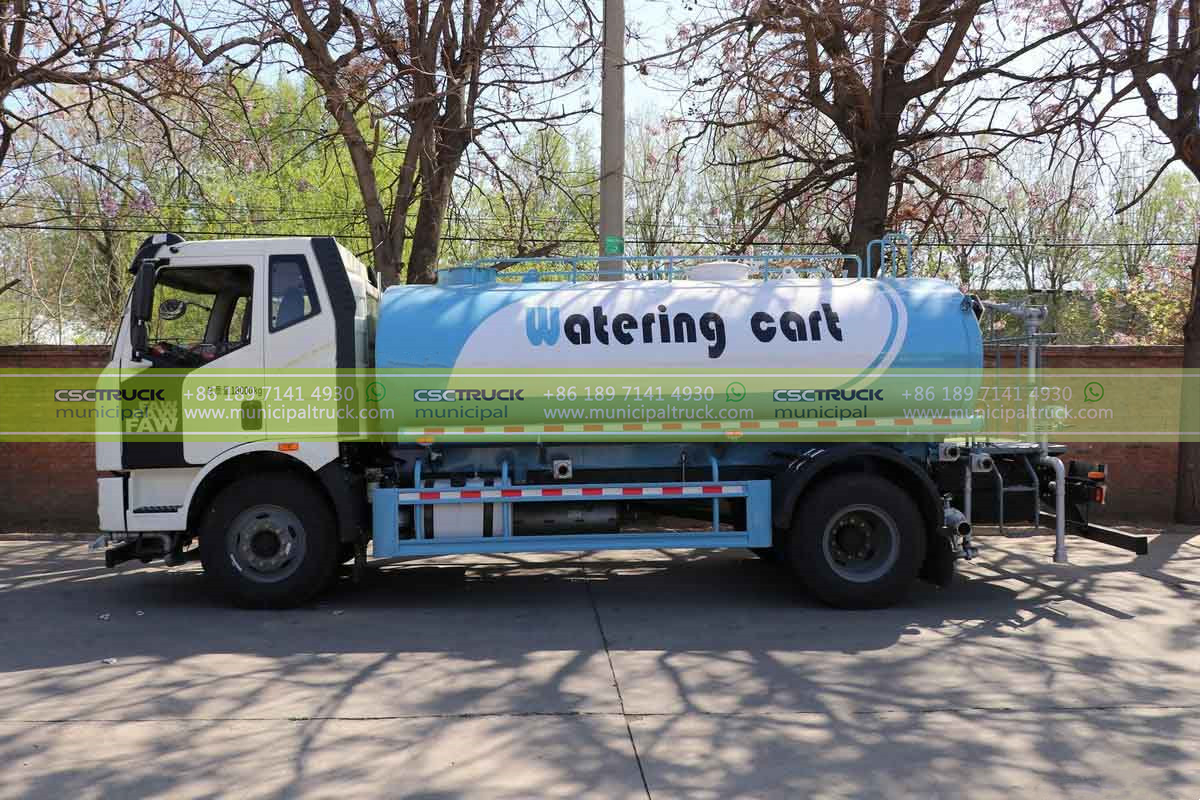

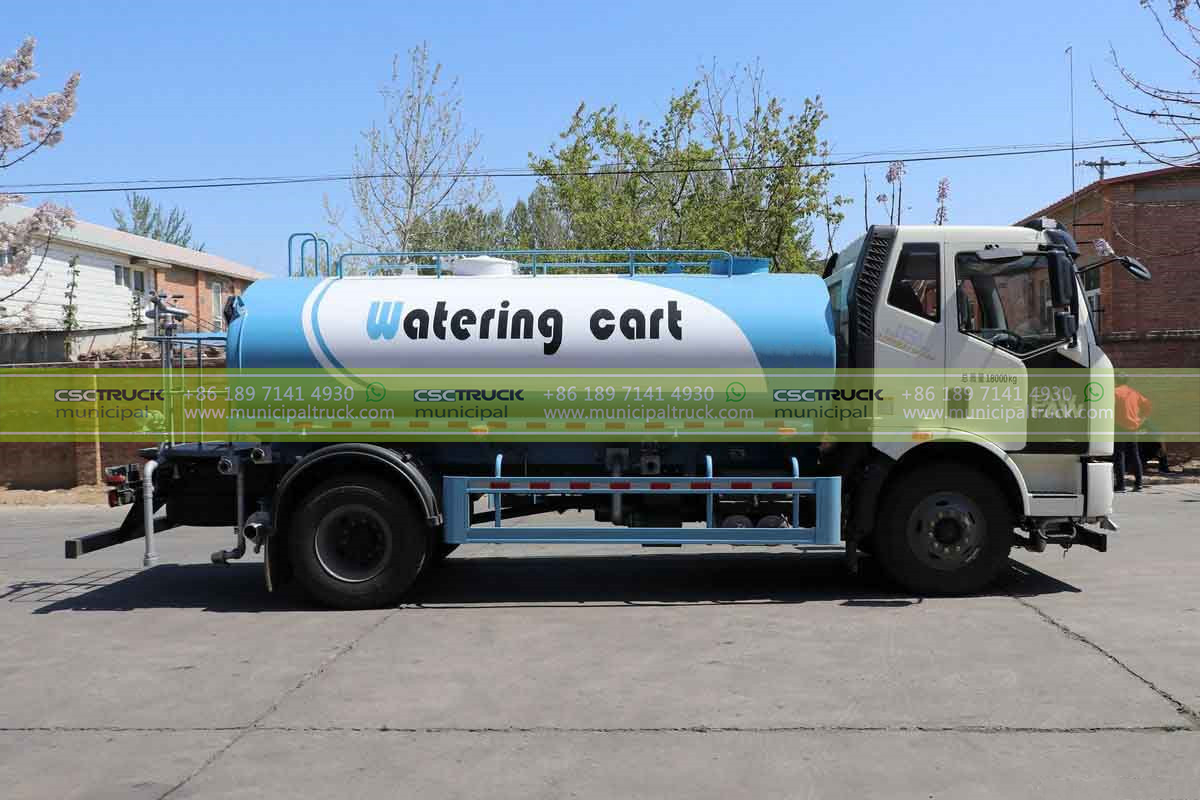

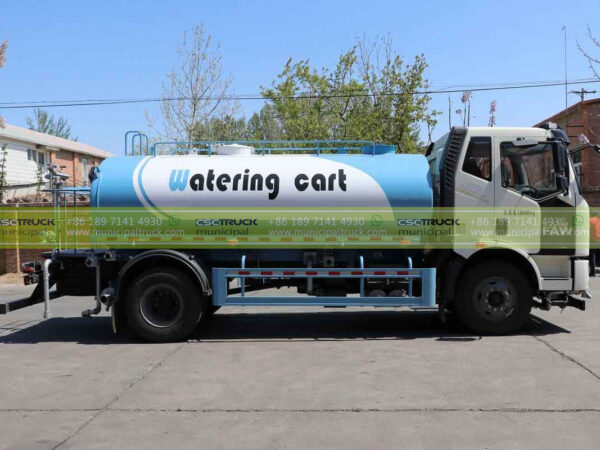

The sweeper truck has a capacity of 12,000L and is made of Q235B carbon steel material. The shell cover and tank body are 8mm and 6mm thick, respectively. The truck is equipped with a high-pressure jetting pump, which is drive-by PTO, with a working pressure of 16-24Mpa and a water flow rate of 75~275LPM. The water tank can be installed on the front or side of the truck, depending on your preference.
Performance:
The FAW high-pressure water cleaning truck has an excellent cleaning speed of 5-10km/h and a road flushing width of 2.5-3.5m, allowing it to efficiently clean large areas. The water flow speed is 120LPM, and the water gun range is ≥ 38m, making it easy to reach even the most challenging spots. The truck comes with basic equipment such as a high-pressure pump, hose reel, water cannon, and a basic tool kit.
Optional Equipment:
This sweeper truck offers optional equipment such as a tanker made of stainless steel, an elevating platform, and a high cannon. These additional features can be added to the truck depending on your needs.
In conclusion, the FAW high pressure water cleaning sweeper truck is an excellent investment for anyone looking for a reliable and efficient sweeper truck. With its powerful engine, spacious cabin, and excellent performance, this truck is sure to meet all your cleaning needs. So why wait? Contact CSCTRUCK today and get your hands on this fantastic sweeper truck.
| Chassis | FAW |
| Size | 8,352×2,500×2,940mm |
| GVW/Curb Weight | 18,000kg/8,004kg |
| Wheelbase | 4,500mm |
| Front/Rear Axle | 6.5T/11.5T |
| Tire | 10.00R20 6+1 tires |
| Engine | |
| Type | Diesel |
| Make/Model | WEICHAI/WP10.270E32/270hp/Euro3 |
| Transmission | |
| Make/Model | FAST/9JS119T |
| Gears | 9F+1R |
| Operation | Manual |
| Cabin | |
| Driving | FAW 4×2 Day Cab, Left-hand Drive |
| Type | Steel construction, Single Row, Flat |
| Passenger No. | 3 |
| Body System | |
| Capacity | 12,000L |
| Material | Q235B Carbon Steel |
| Thickness | Shell Cover 8mm, Tank Body 6mm |
| High-Pressure Jetting Pump | |
| Drive-By | PTO |
| Working Pressure | 16-24Mpa |
| Water Flow Rate | 75~275LPM |
| Water Tank | Front or side installed |
| Performance | |
| Water Flow Speed | 120LPM |
| Cleaning Speed | 5~10km/h |
| Road Flushing Width | 2.5~3.5m |
| Water Gun Range | ≥ 38m |
| Basic Equipment | High-Pressure pump, hose reel, water cannon, basic tool kit
|
| Optional Equipment | Tanker material: stainless steel. Elevating platform high cannon |
