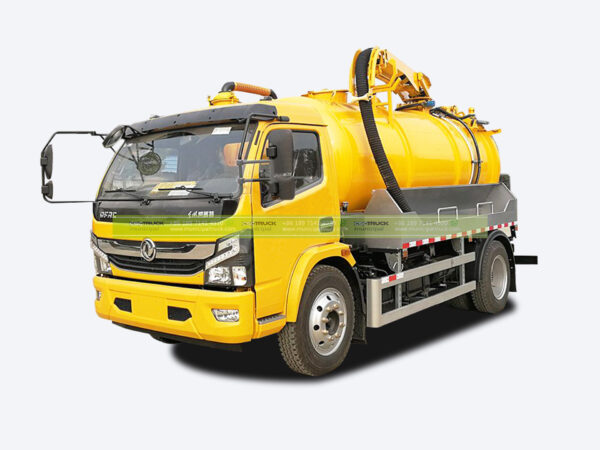

KEY FEATURES
● Tank full length of Hydraulic operated suction boom and suction hose.
● Easy loading and discharging operated, fast-dump sludge tank body.
● Powerful vacuum pumping system.
● Well-performance high-pressure water plunger pump.
● Rear-mounted small diameter high-pressure water flushing hose reel.
● 4000 Liters fresh water tanks and 6000liters sludge tank.
STANDARD SPECIFICATION
| SLUDGE TANK | |
| Volume | 6000 liters |
| Material | 5mm thickness abrasion & corrosion resistant steel |
| Rear Door | Full size hydraulically open the flat rear door, 4 heavy duty wing clamps |
| Tank Tipping | 45-degree dump angle tipping sludge tank |
| Load Level Indicator | Tank with full-size external acrylic level indicator |
| Body drain Hose | Full-length 5inch size rubber drain hose |
| Valves | 4inch & 5inch Manual Stainless Steel float ball shut off valves |
| VACUUM SYSTEM | |
| Vacuum Pump | Sliding Vane pump, Powered by PTO |
| Pump Make | CHINA TOP Brand |
| Capacity | 10~250 m3/h |
| Vacuum | <200Pa |
| Pressure Range | 100Pa – 100000Pa |
| BOOM & VACUUM HOSE | Rear-end operation with hose reel |
| Suction Hose | 5 in (125 mm) on all hose and tubes |
| Boom | Hydraulic lift extendable boom |
| Sliding | 120-degree rotation |
| Suction Pipe | 6 m steel suction pipe |
| ELECTRIC & HYDRAULIC SYSTEM | All connections sealed |
| Hydraulic Reservoir | Modular, accessible, and removable |
| Oil Tank Capacity | 150L |
| HIGH-PRESSURE RODDER HOSE | |
| High-Pressure Hose | 70m x 19 mm r wire reinforced hose |
| Nozzles | 15-degree sand nozzle, 30-degree sanitary nozzle |
| Hose Reel | Steel heavy-duty reel |
| WATER PUMP | |
| Plunger Pump Make | CHINA TOP Brand |
| Capacity | 15 m3/hour |
| Flow | 210L/Min |
| Pressure | 18Mpa |
| WATER TANK | |
| Volume | 4000Liters |
| Material | Steel inner anti-corrosive coating |
| Handgun | Manhole Cleaning Handgun for cleaning manholes |
| Valves & Fittings | Quick -connect coupler. Mid-ship mount, Variable flow pattern |
CHASSIS SPECIFICATION
| √ Cabin | Dongfeng Single Row, Tiltable |
| √ Drive Mode | 4 x 2 |
| √ Wheelbase | 4500mm |
| √ GVW | 14000kg |
| √ Engine Make | Dongfeng-Cummins |
| √ Engine Model | B190 |
| √ Gearbox | 6 speed |
| √ Front Axle | 4 Ton |
| √ Rear Axle | 10Ton |
| √ Tire | 10.00R20 |
| √ Brake | Air Brake |
