SUMMARY:

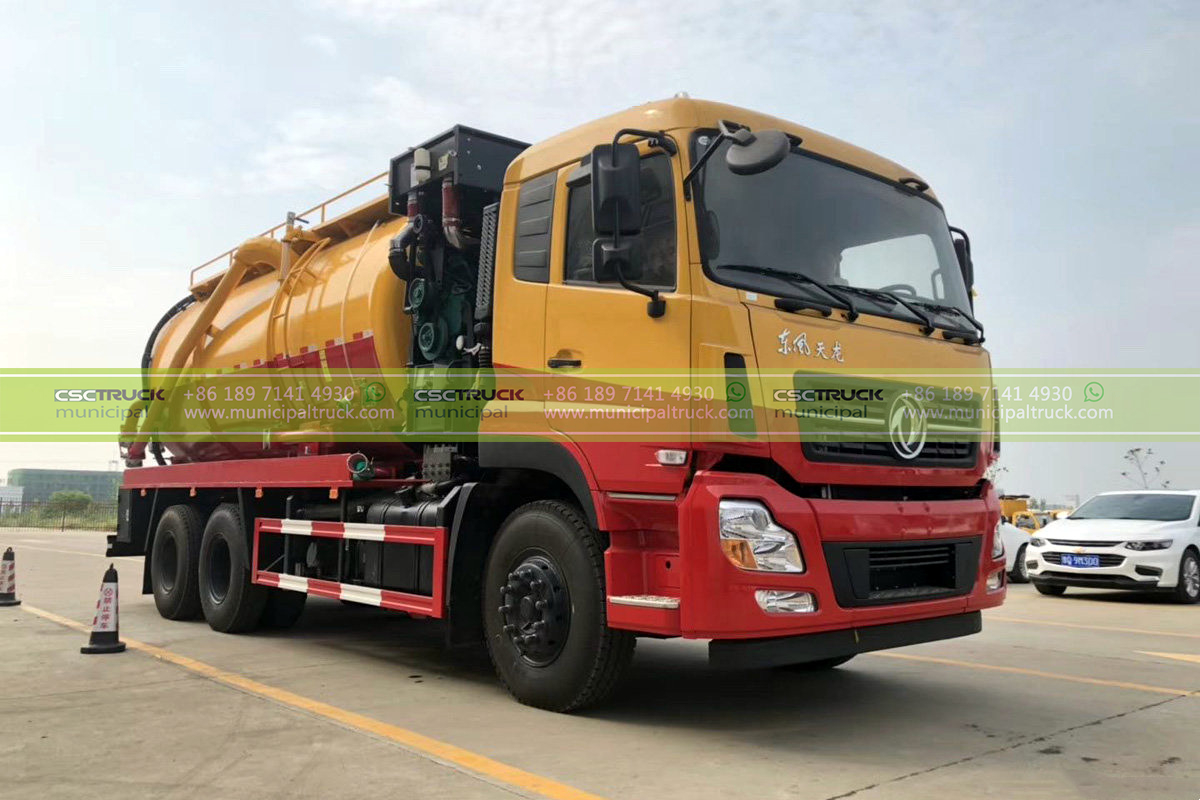

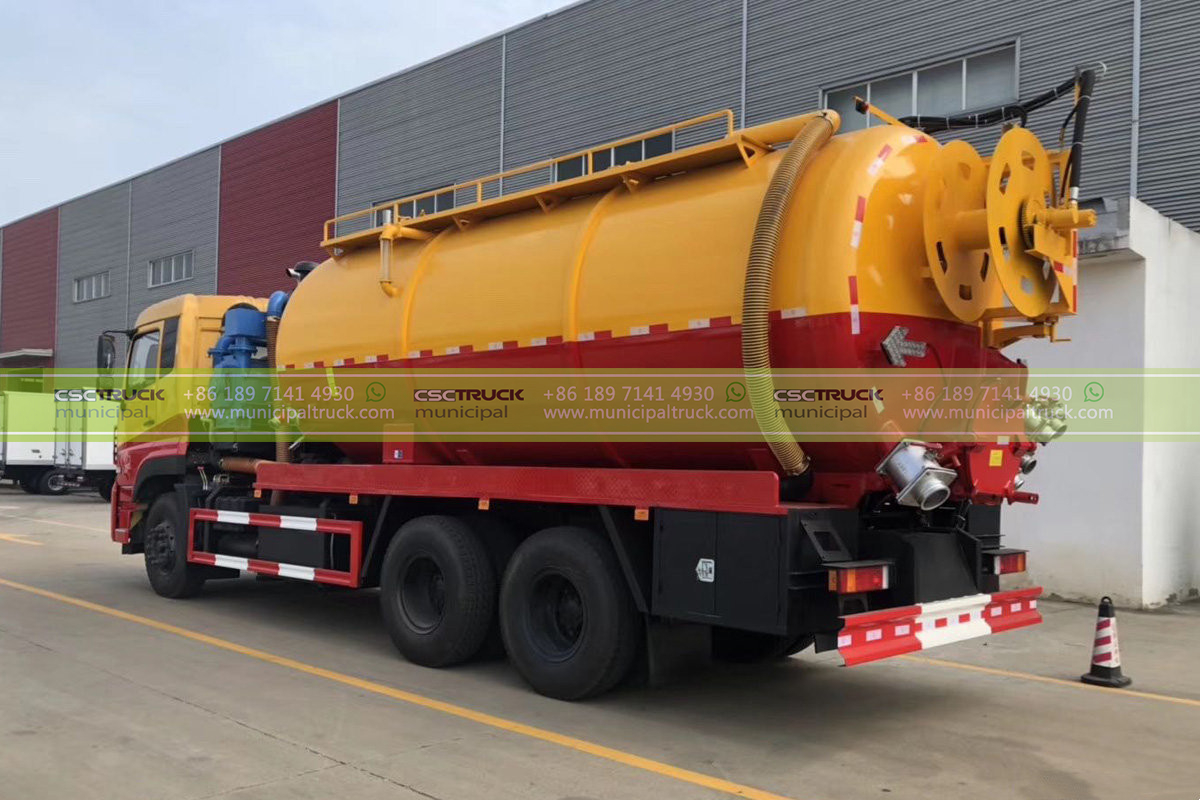

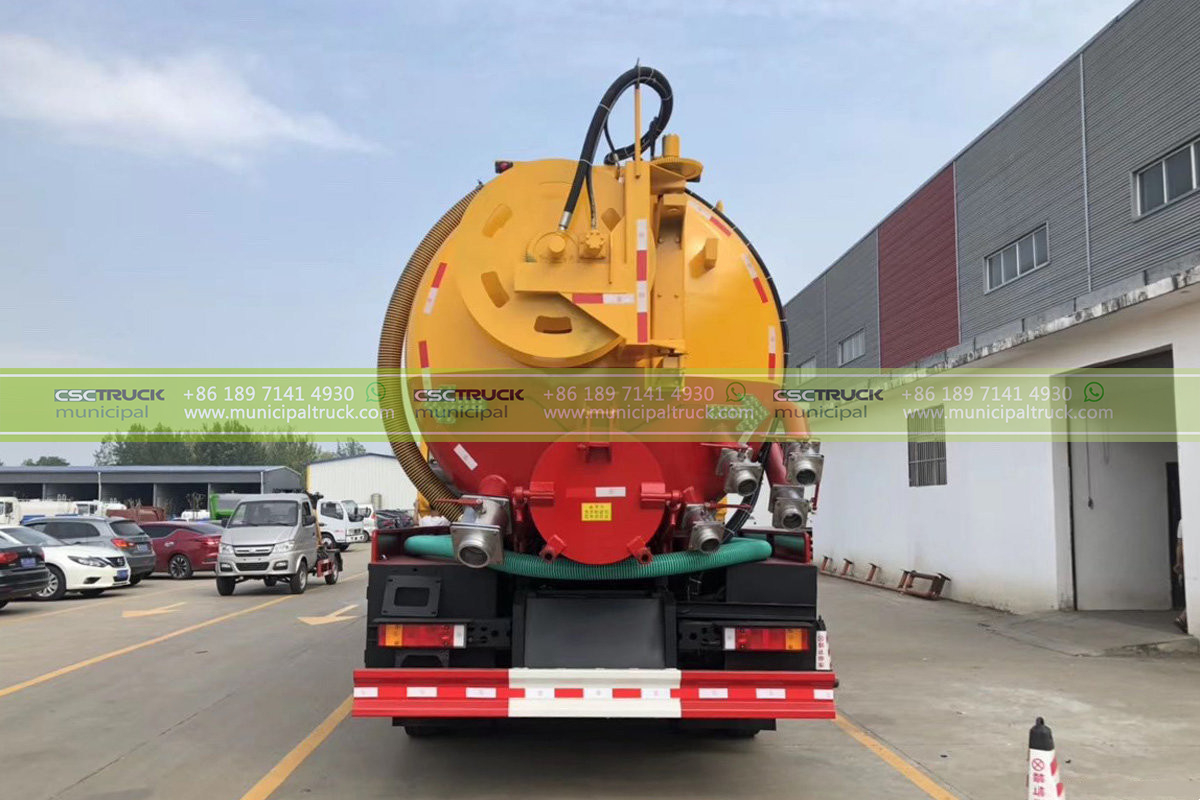

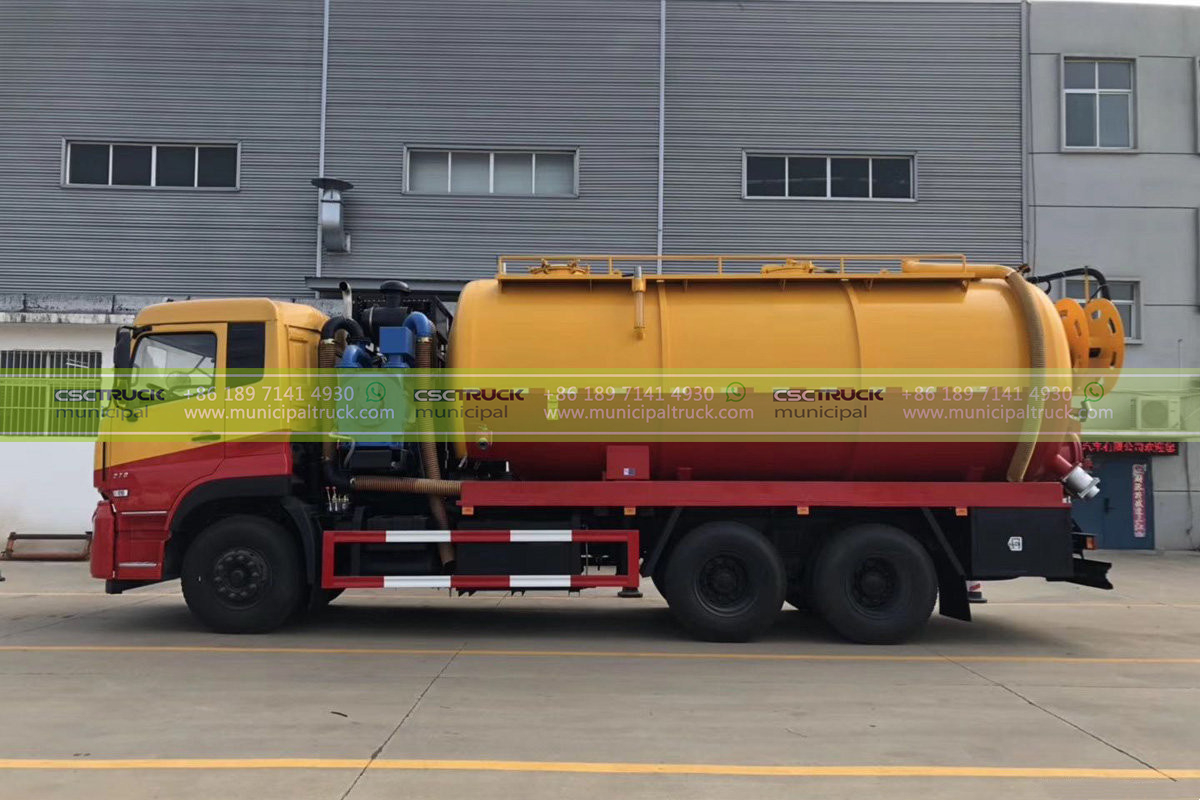

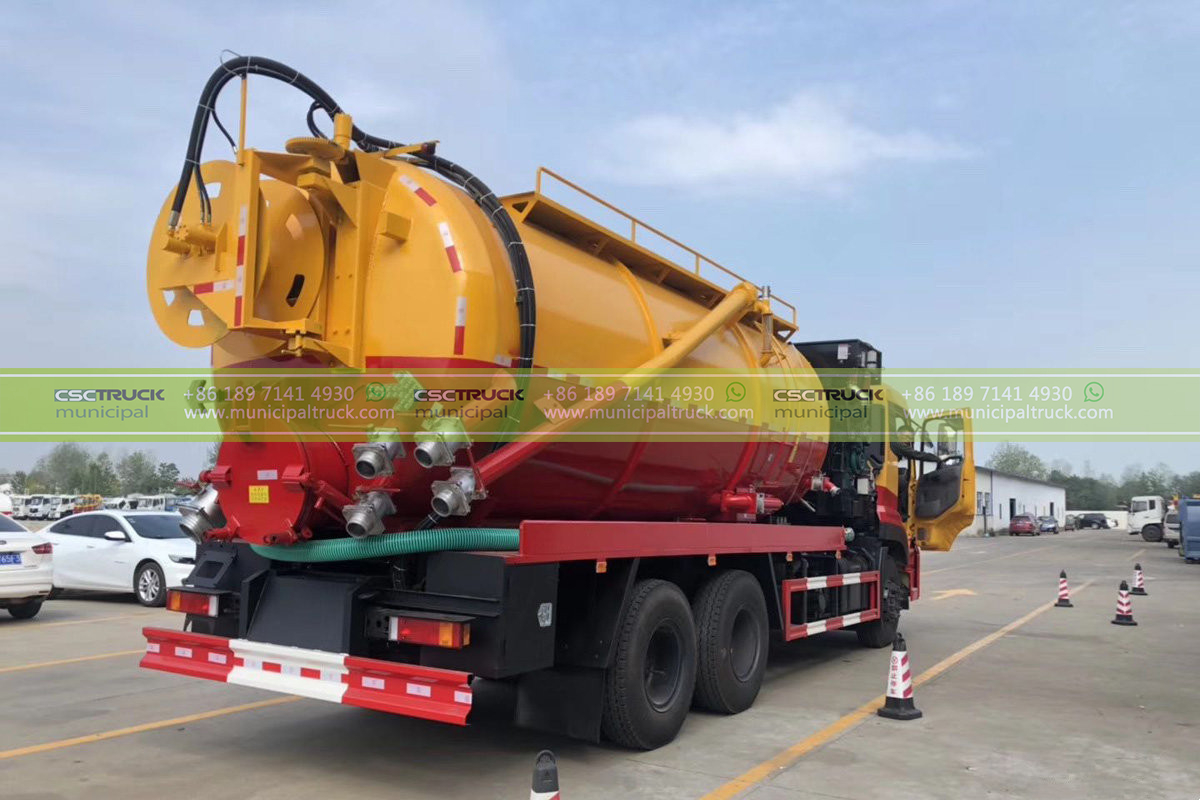

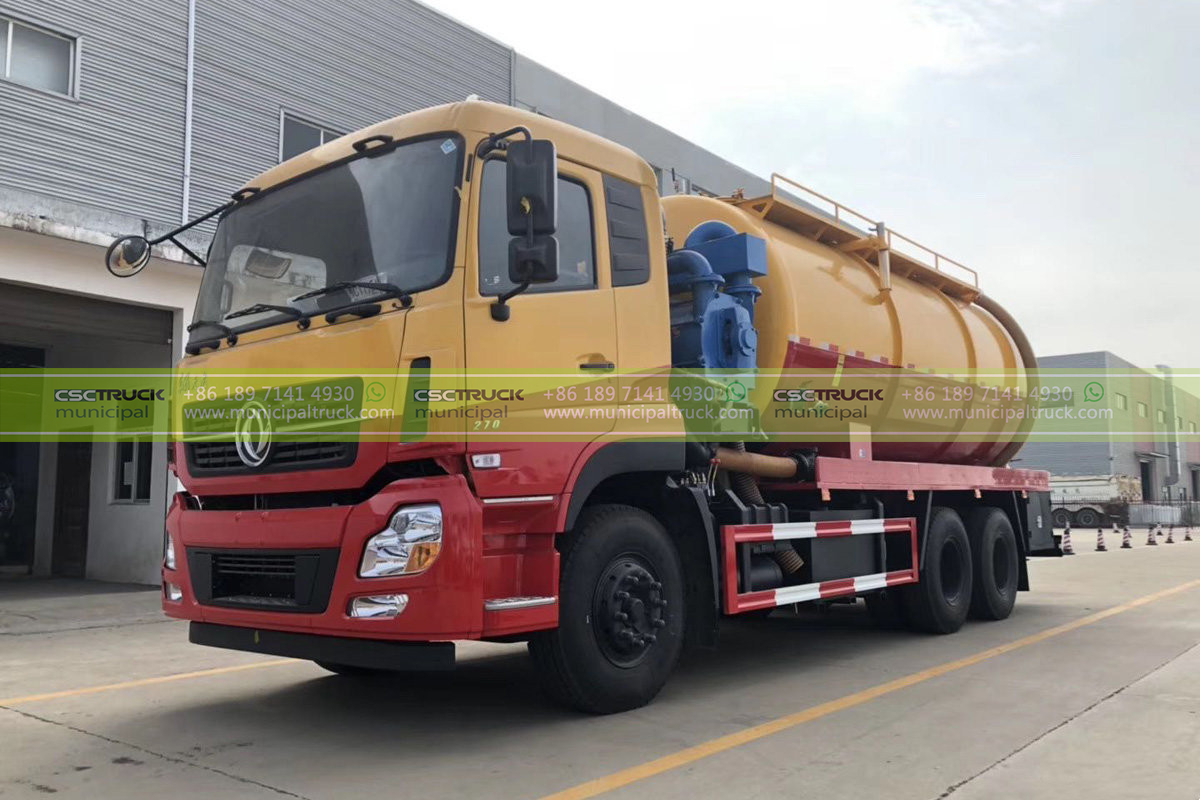

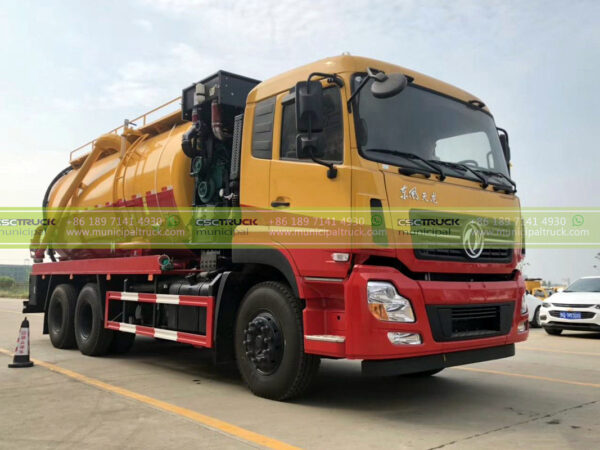

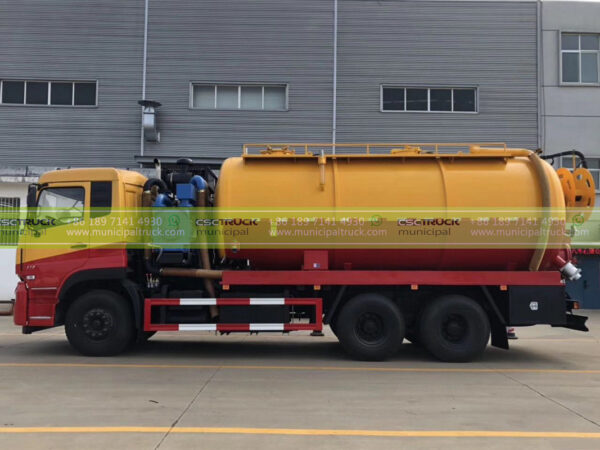

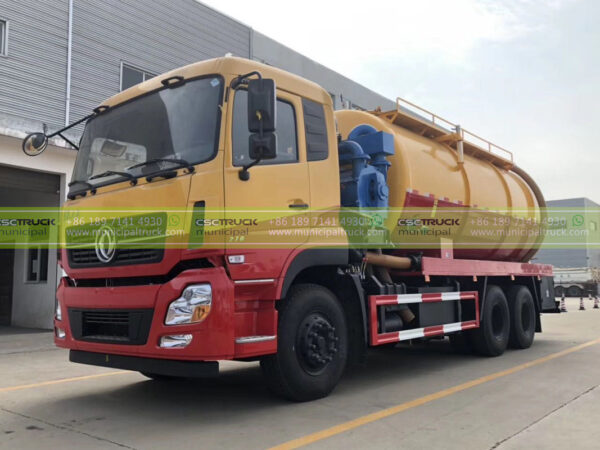

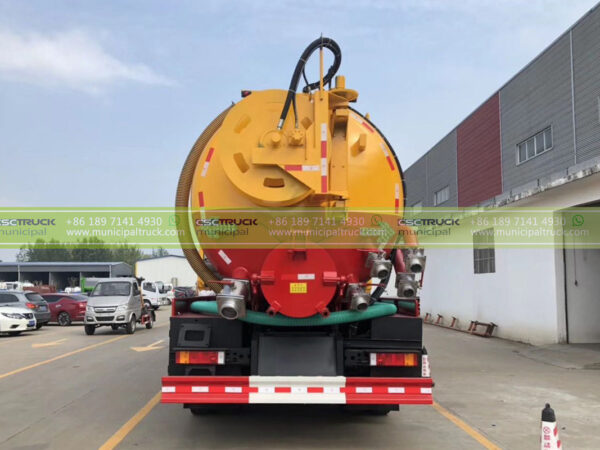

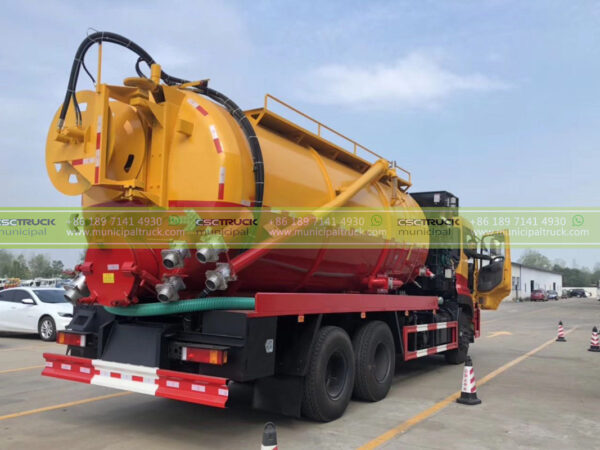

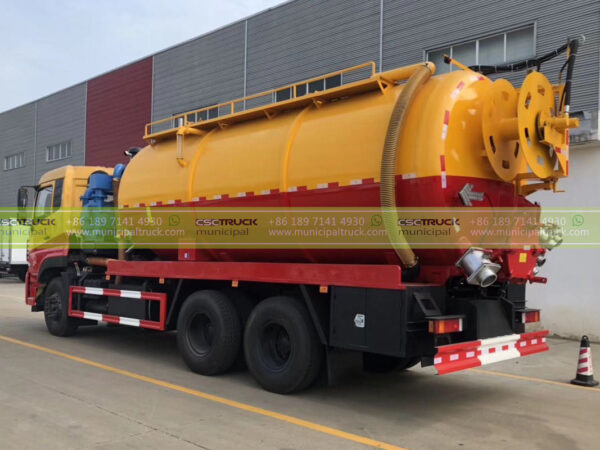

The DONGFENG 12 CBM Sewage Cleaner Truck is a powerful and efficient vacuum sewage suction truck designed to handle the collection and transportation of liquid waste. With its robust build and advanced features, this truck offers a reliable solution for maintaining sanitation and cleanliness in urban and industrial areas. Equipped with a high-performance engine, modern transmission system, and specialized tank, this sewage cleaner truck is a dependable asset for waste management and environmental upkeep.
The DONGFENG 12 CBM Sewage Cleaner Truck stands as a reliable and efficient solution for liquid waste management, combining powerful performance, advanced technology, and a purpose-built design to effectively serve sanitation needs.
FEATURES:
- Drive Mode: 4X2
- Wheelbase: 4500mm
- Type: Vacuum Sewage Suction Truck
- Body Size: 8.5X2.495X3.55 meters
- Gross Weight: 18 tons
- Rated Weight: 8.45 tons
- Front/Back Overhang: 1.43/2.57 meters
- Front/Rear Wheelbase: Front: 1880mm; Rear: 1800mm
Engine Parameters:
- Engine Model: Dongfeng Cummins ISD210 50
- Displacement: 6.7L
- Max Output Power: 155kW
- Max Horsepower: 210 hp
- Emission Standard: China V
- Fuel Injection System: Common Rail (CR5)
- Fuel Type: Diesel
- Rated Speed: 2500rpm
Upper Equipment Parameters:
- Vehicle Announcement: CSC5181GXWD
- Upper Brand: Chusheng Brand
- Tank Volume: 11m3
- Transport Medium: Liquid Waste
- Medium Density: 0.8 tons/cubic meter
Transmission Parameters:
- Transmission Model: Fast 8-speed
- Number of Gears: 8
Chassis Parameters:
- Chassis Brand: Dongfeng Commercial Vehicle
- Chassis Series: Dongfeng Tianjin
- Chassis Model: DFH1180BX1V
- Frame Dimensions: 270mm
- Number of Spring Leaves: 7/9+6, 8/10+8
Tires:
- Number of Tires: 6
- Tire Specifications: 10.00R20 18PR, 275/80R22.5 18PR
SPECIFICATIONS:
| Drive Mode | 4X2 |
| Wheelbase | 4500mm |
| Type | Vacuum Sewage Suction Truck |
| Body Size | 8.5X2.495X3.55 meters |
| Gross Weight | 18 tons |
| Rated Weight | 8.45 tons |
| Front/Back Overhang | 1.43/2.57 meters |
| Front/Rear Wheelbase | Front: 1880mm; Rear: 1800mm |
| Engine Parameters | |
| Engine Model | Dongfeng Cummins ISD210 50 |
| Displacement | 6.7L |
| Max Output Power | 155kW |
| Max Horsepower | 210 hp |
| Emission Standard | China V |
| Fuel Injection System | Common Rail (CR5) |
| Fuel Type | Diesel |
| Rated Speed | 2500rpm |
| Upper Equipment Parameters | |
| Vehicle Announcement | CSC5181GXWD |
| Upper Brand | Chusheng Brand(CSCTRUCK) |
| Tank Volume | 11m3 |
| Transport Medium | Liquid Waste |
| Medium Density | 0.8 tons/cubic meter |
| Transmission Parameters | |
| Transmission Model | Fast 8-speed |
| Number of Gears | 8 |
| Chassis Parameters | |
| Chassis Brand | Dongfeng Commercial Vehicle |
| Chassis Series | Dongfeng Tianjin |
| Chassis Model | DFH1180BX1V |
| Frame Dimensions | 270mm |
| Number of Spring Leaves | 7/9+6, 8/10+8 |
| Tires | |
| Number of Tires | 6 |
| Tire Specifications | 10.00R20 18PR, 275/80R22.5 18PR |
