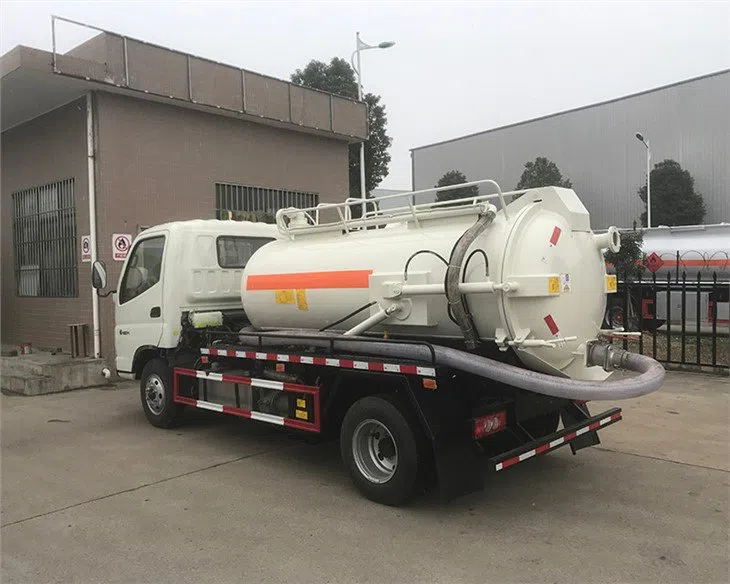

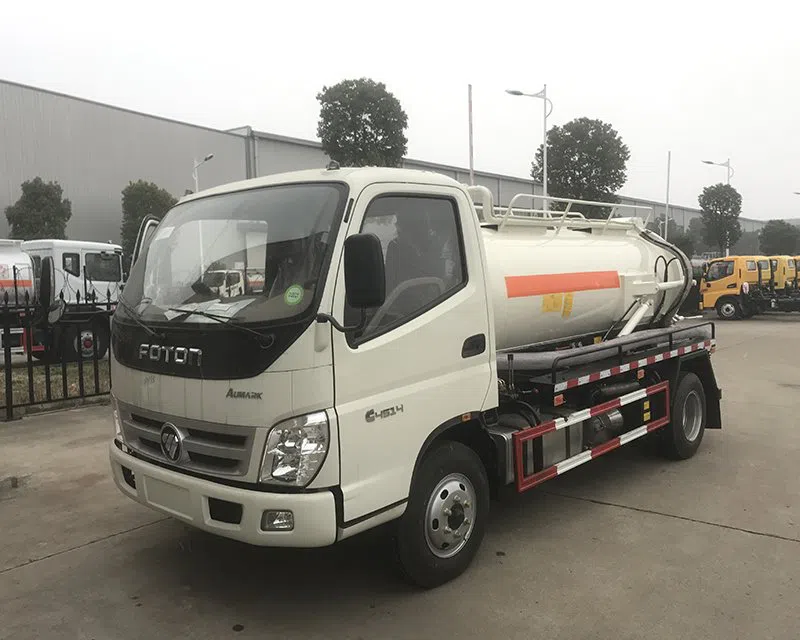

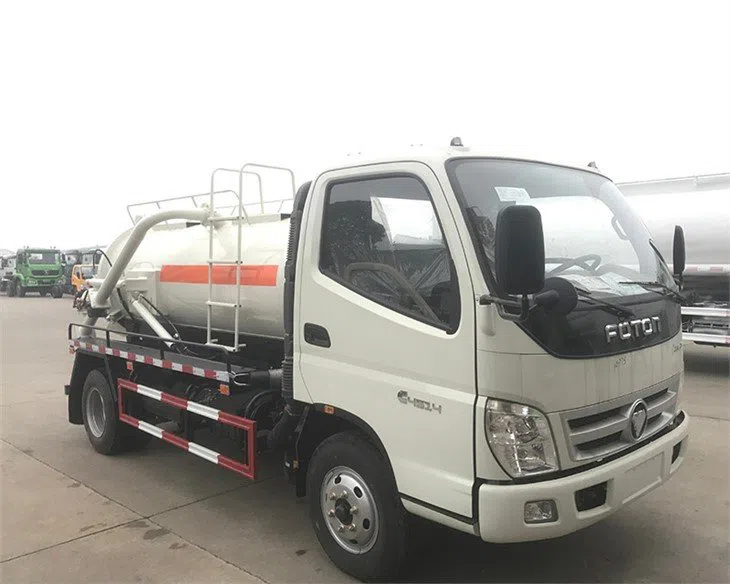

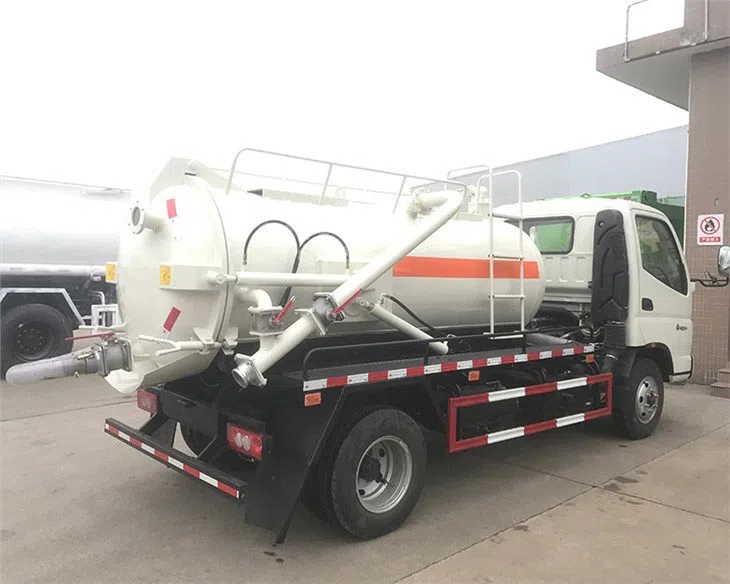

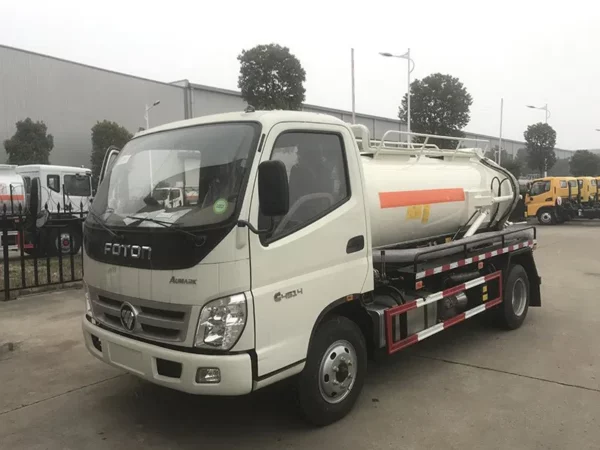

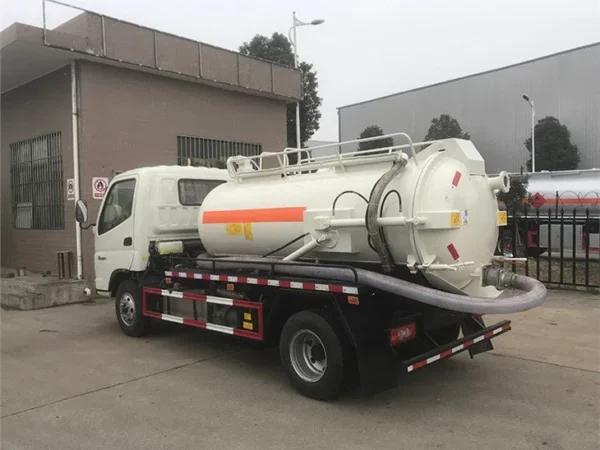

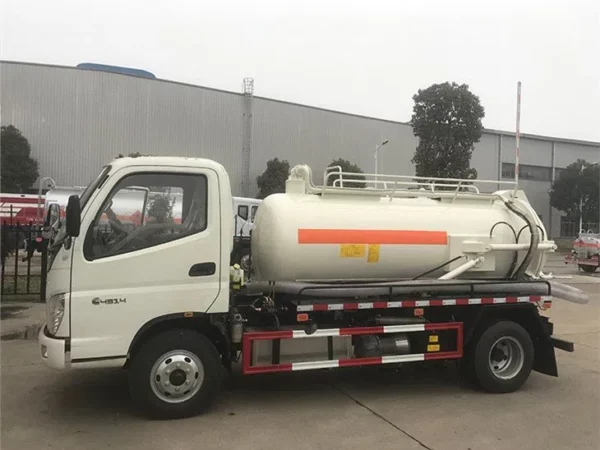

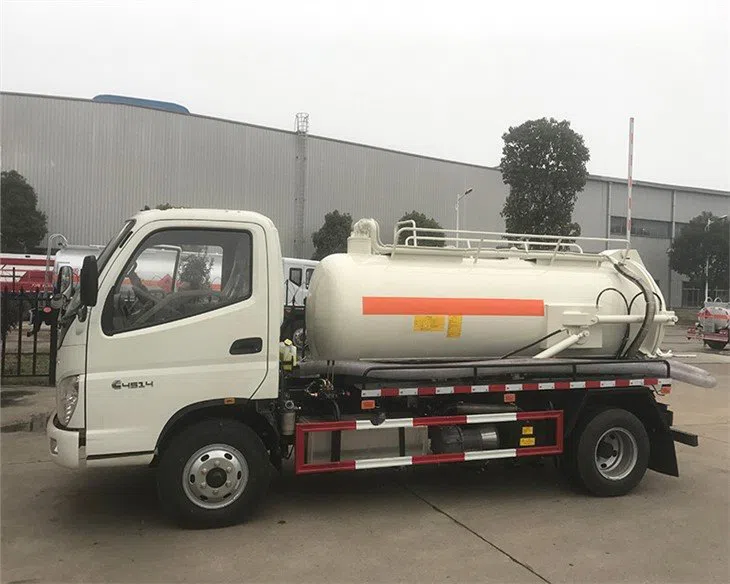

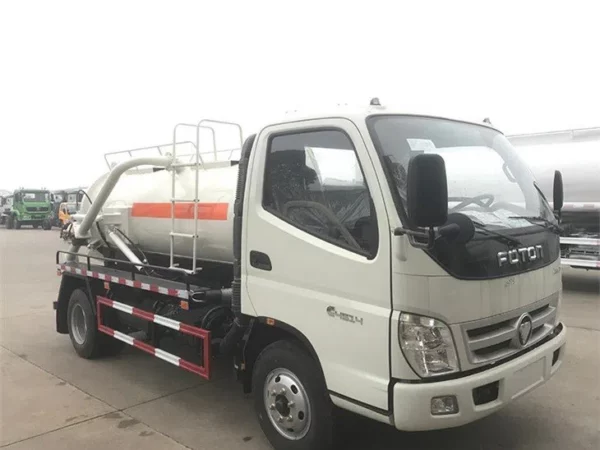

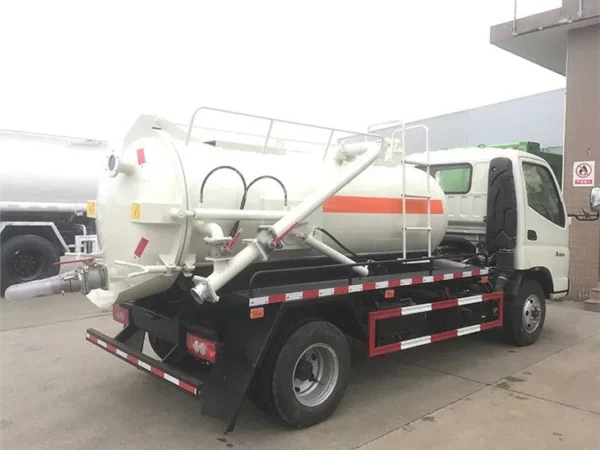

BRIEF
Vacuum Tank Capacity 5CBM
Model AUMARK-C33
Cummins 141hp Engine
Truck Size 5875×2030×2230mm
Wheelbase 3360 mm
EURO III Emission norm
| Vehicle Model | AUMARK-C33 | |
| Cabin | Single row/W1995/right rudder | |
| Whole vehicle’s main dimensions | Overall dimensions (LxWxH)mm | 5875×2030×2230 |
| Wheelbase(mm) | 3360 | |
| Weight data | Curb weight(kg) | 2600 |
| Gross vehicle weight（kg） | 6495 | |
| Persons in cab | 3 | |
| Whole vehicle’s main performance | Max. speed（km/h） | 95 |
| ENGINE | Model | F3.8s3141 |
| Emissions standards | EuroⅢ | |
| Displacement（L） | 3.76 | |
| Rated Power（kw/rpm） | 105 | |
| Max torque （N.m/rpm） | 450 | |
| Gearbox | Model | 6TS55 |
| Front axle | Type/Mainreducetion ratio | 2.2T |
| Rear axle | Type/Mainreducetion ratio | 5.5T/4.11 |
| Suspension | Front suspension/Leaf spring number | 3+1 |
| Rear suspension/Leaf spring number | 6+7 | |
| Brake system | Service brake | Drum pneumatic braking |
| Parking brake | Central drum brake | |
| Auxiliary brake | Engine exhaust brake | |
| Wheels and tyre size | 6+1(7.00R16) | |
| Tank | volume | 4m3 |
| Dimensions | Sectional shape: a perfect circle | |
| Tank material and thickness | Part of the tank material、thickness： Q235B carbon steel, 5mm
Head material and thickness: Q235B carbon steel, 5mm |
|
| Wave breaker | Quantity: 1
Material thickness: Q235B carbon steel, thickness 4mm |
|
| Sewage suction pump | Quantity: 1
Brand: Yifeng SK-6 Rotation speed of sewage suction pump: 1450r/min Pumping speed of sewage suction pump: 100L/S Absolute working pressure: 7000Pa (93%) Pump quality: 60kg Power: 11KW |
|
| Depth of dirt absorption | 7m | |
| Full time | ≤5min | |
| power takeoff | Quantity: 1 | |
| Lifting cylinder | Quantity: 2
Lifting cylinder: 63*35*650mm, 16MPa |
|
| Sealing cylinder with head | Quantity: 2 | |
| Multi-way valve | Quantity: 1 Two-way valve
Specification: DN20 Control method: manual |
|
| Hydraulic oil pump | Quantity: 1
Material: aluminum alloy Flow: #63 |
|
| Vacuum pressure gauge | Quantity: 1
Material: Stainless steel Pressure: -0.1-0Mpa |
|
| Hydraulic tubing material | Rubber steel wire hose | |
| Anti-overflow device | Quantity: 1
Material thickness: stainless steel |
|
| Liquid level alarm | Quantity: 1 Material: SUS304 | |
| Suction port | Specification: DN100, aluminum alloy
Control method: manual Length of suction pipe: 6 meters Sewage suction pipe length: 6 m |
|
| Discharge port | 1 self-draining port at the head and tail
Gravity head tail port 1 Specification: DN150, aluminum alloy Control method: manual |
|
| Stained window | Quantity: 1
Material: organic glass Thickness: 6mm |
|
| Climb the ladder | The welded non-slip ladder on the driver side of the tank | |
| Top guard | Protective handrails are installed on both sides of the tank top
The anti-skid plate was installed on the top of the tank Top of the tank mounting cleat |
|
| Material of tank foot auxiliary beam | Q345 manganese steel |
