Brief

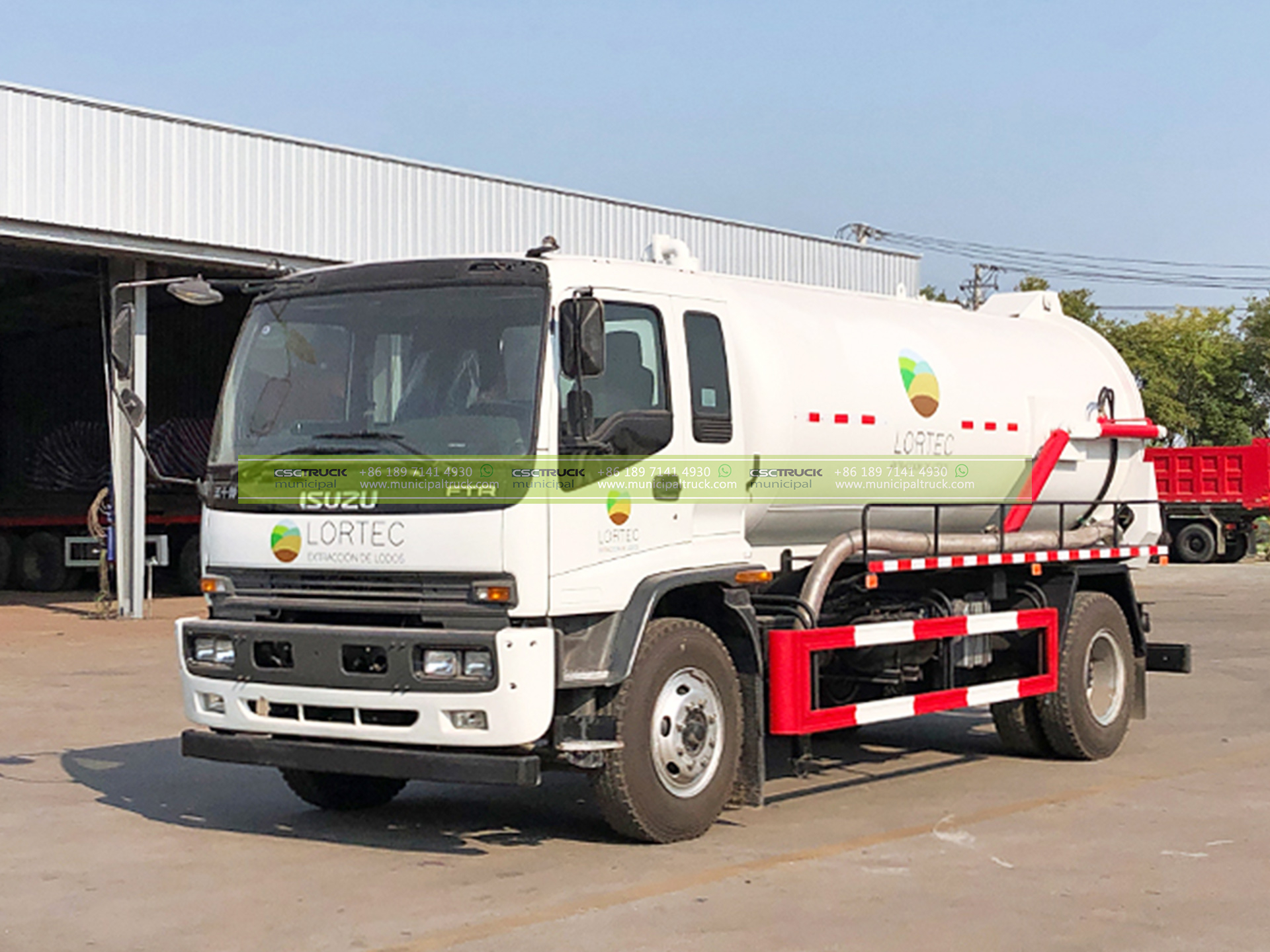

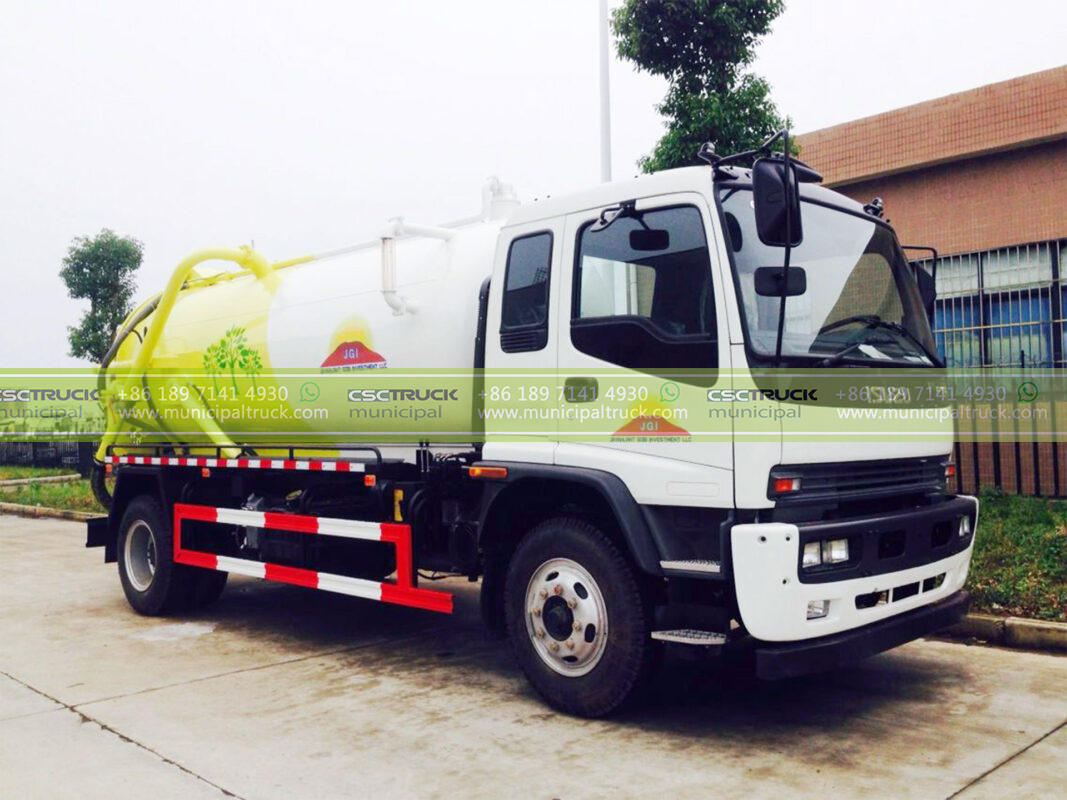

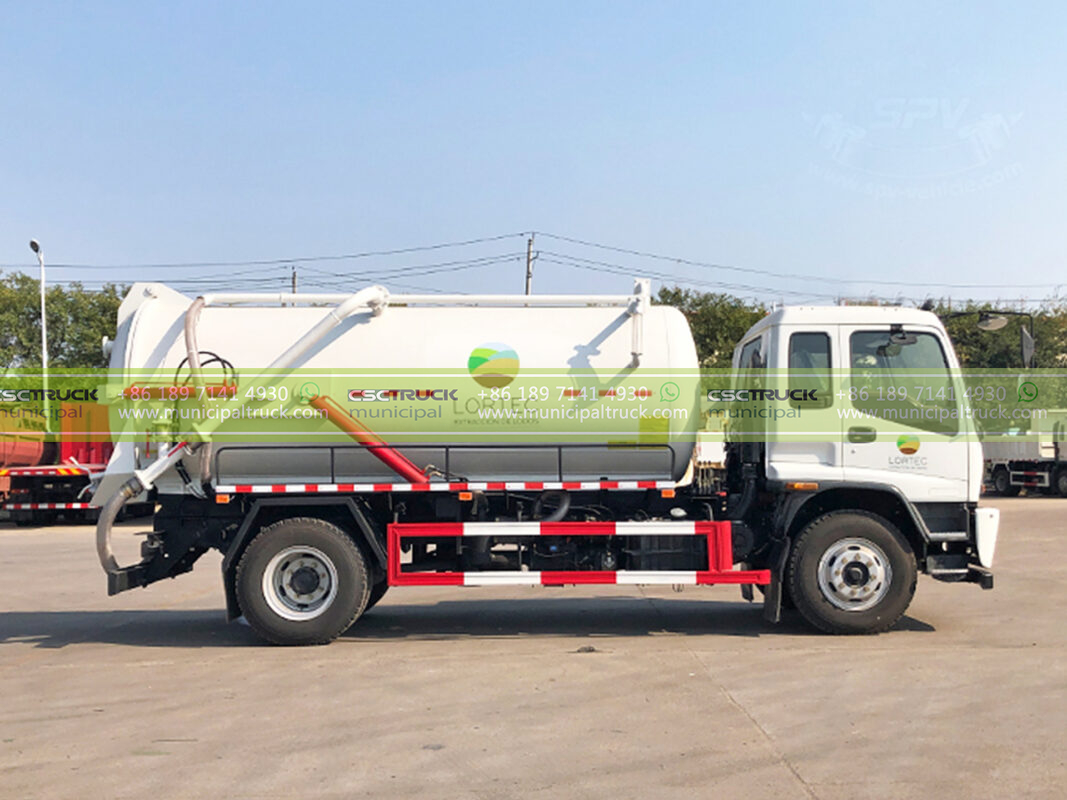

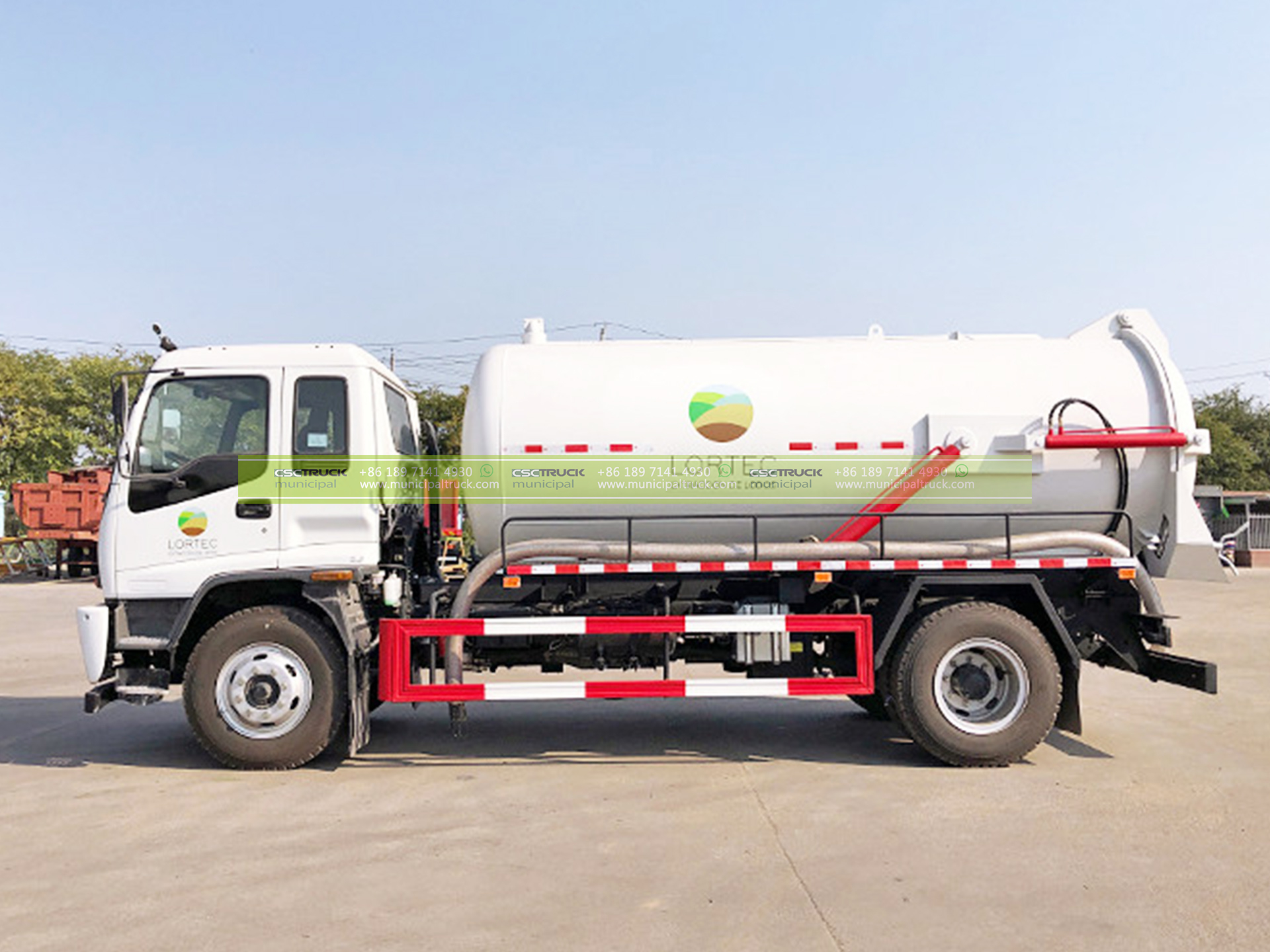

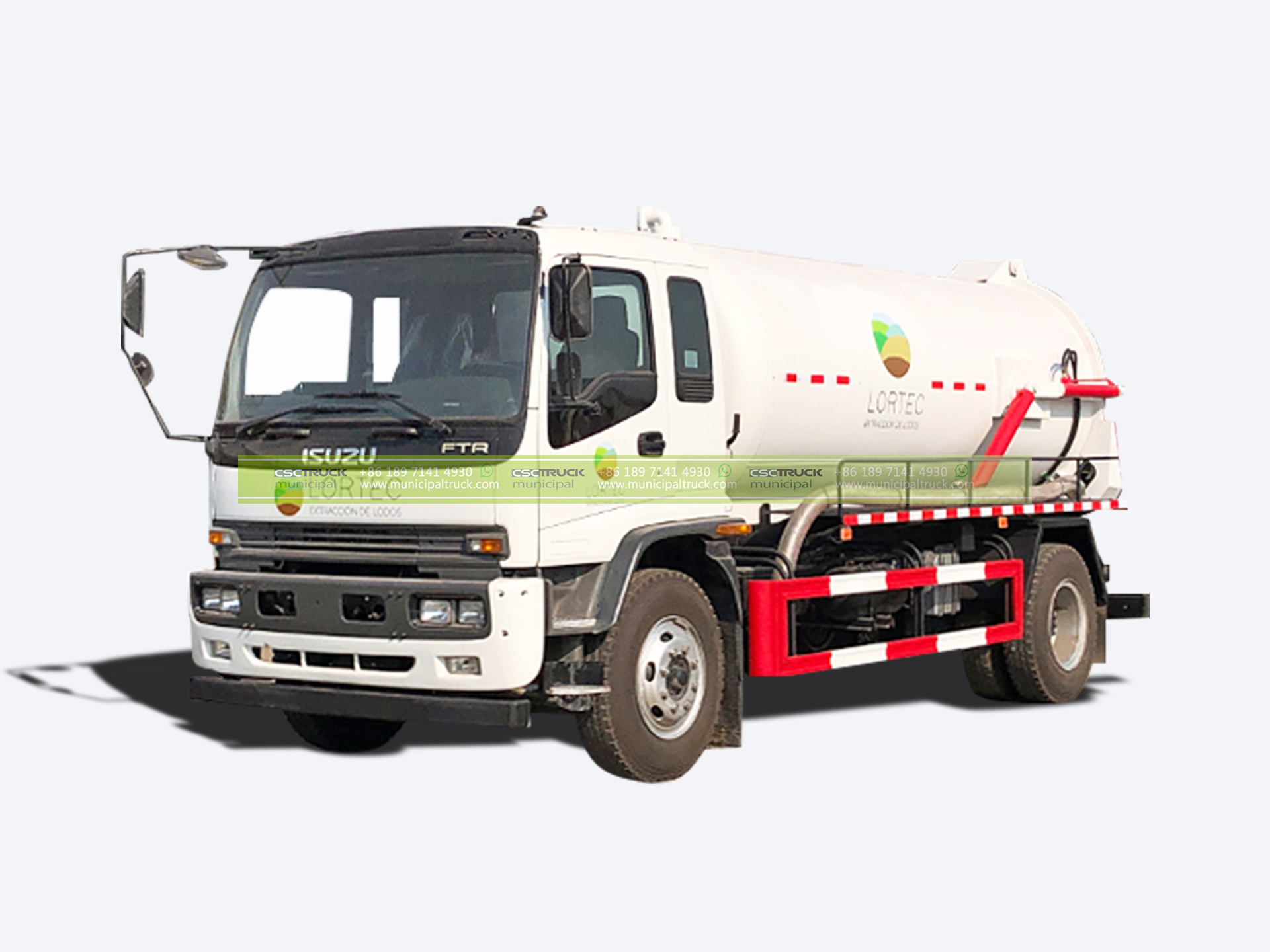

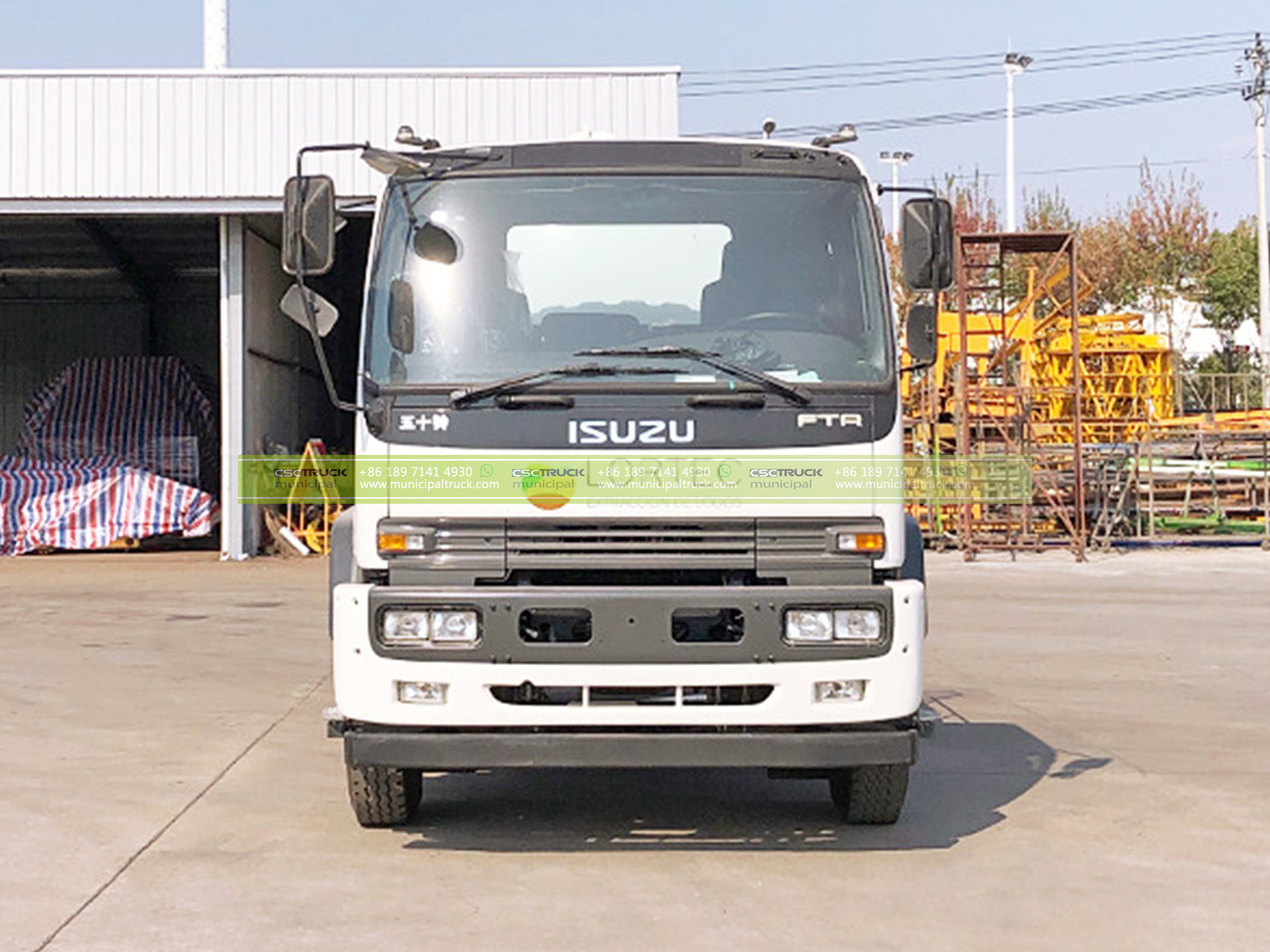

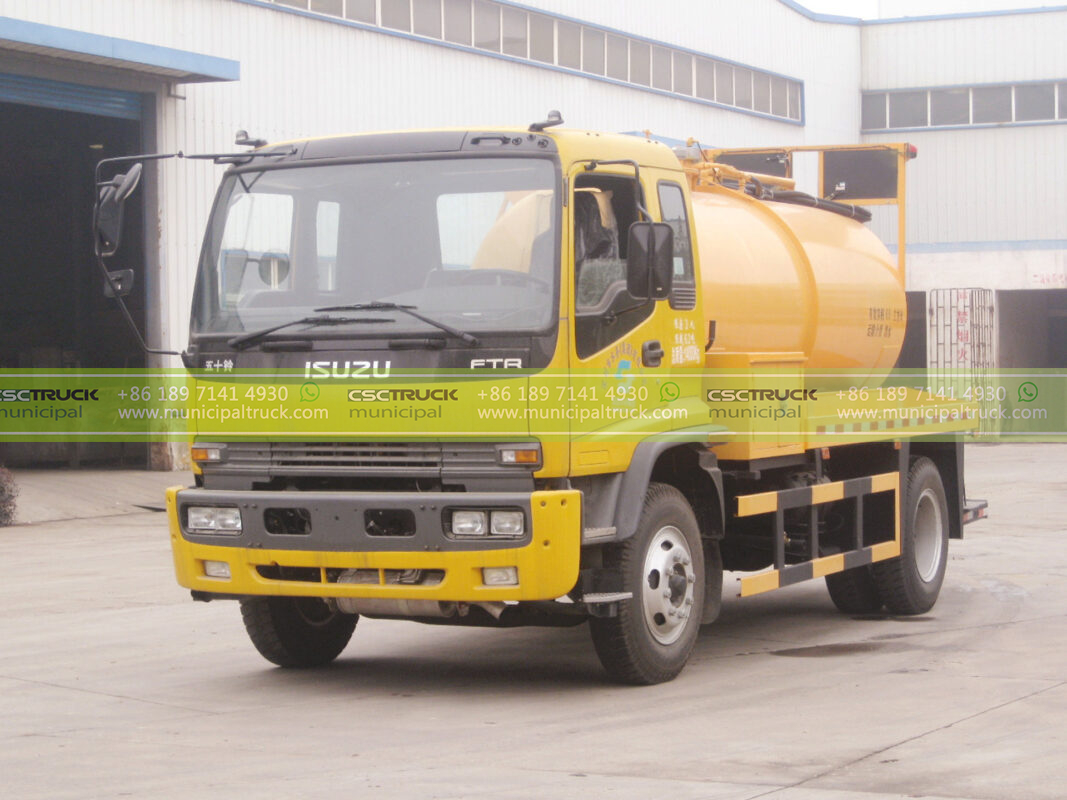

ISUZU 16 Ton Septic Vacuum Truck is mounted on ISUZU FTR chassis. Compared with the same level of other brand vehicles, ISUZU medium series have six outstanding advantages, such as being more efficient, more reliable, more economical, safer, comfortable, and more environmentally friendly, and having a full life cost advantage, creating greater value for users.
ISUZU 16 Ton Septic Vacuum Truck is equipped with ISUZU’s latest engine technology, and the design of the frame, axle, and other assemblies to ensure the carrying capacity. The tank is 12,000 liters capacity. Installed with JUROP PN58, Sliding Vanes, Capacity 6,500LPM.

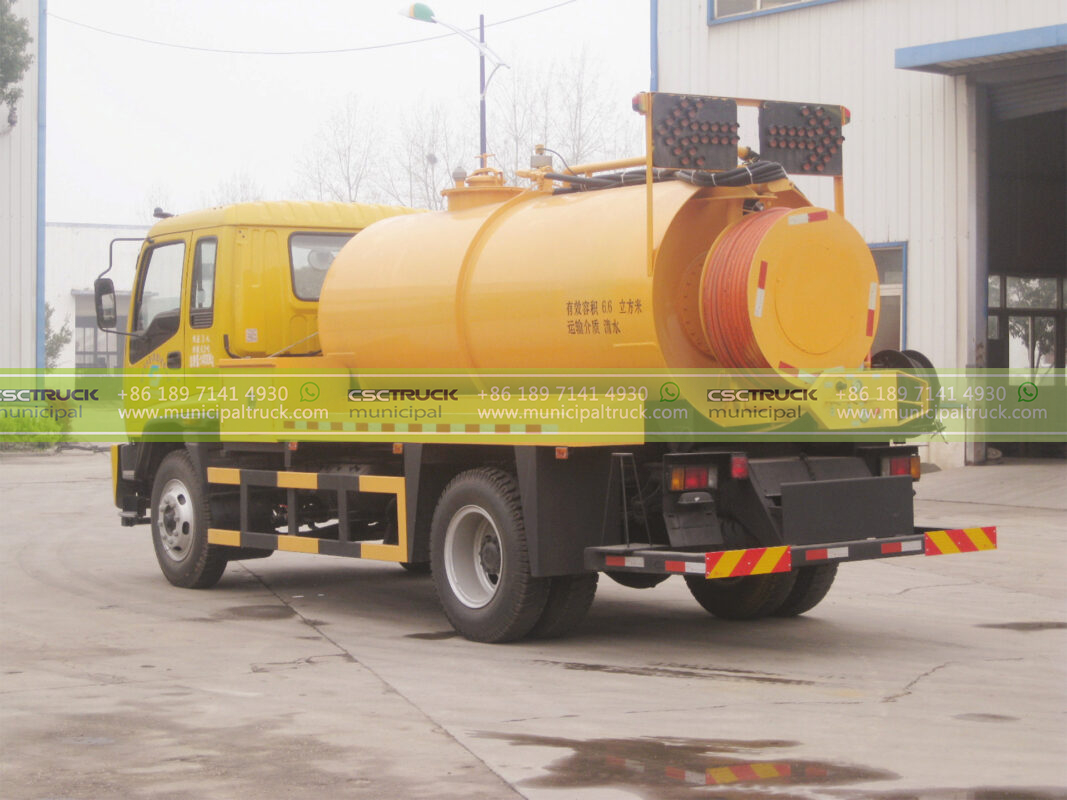

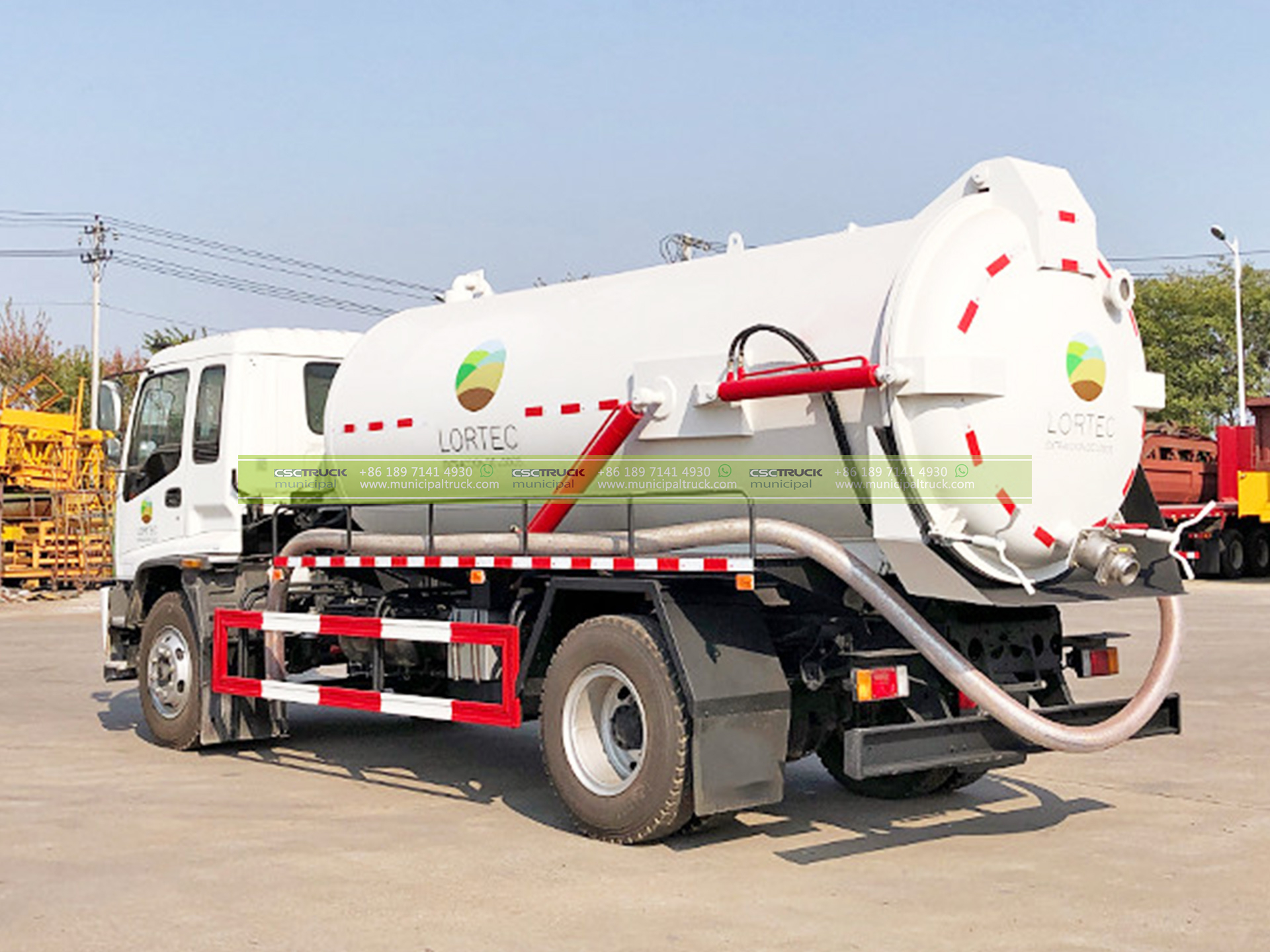

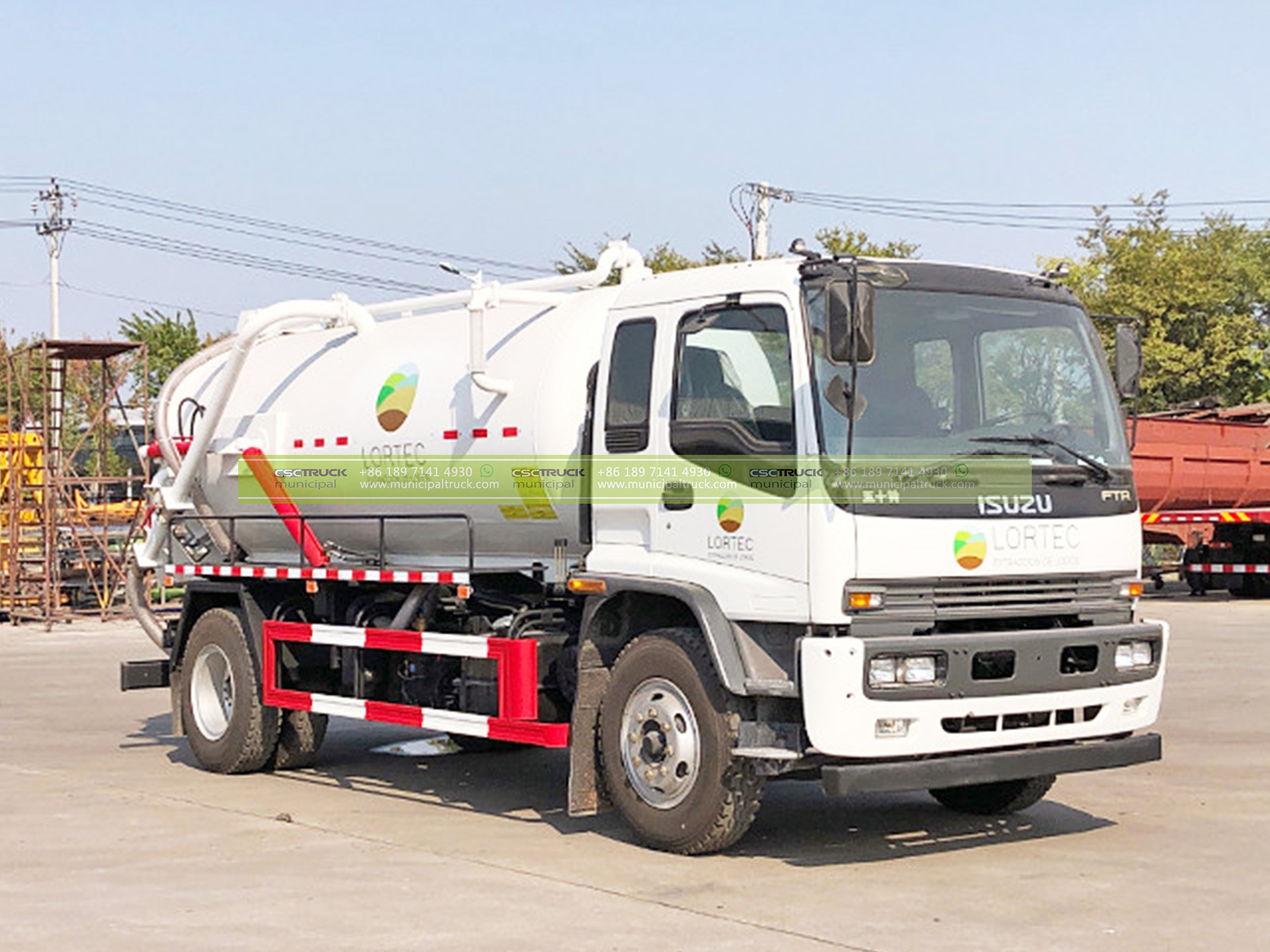

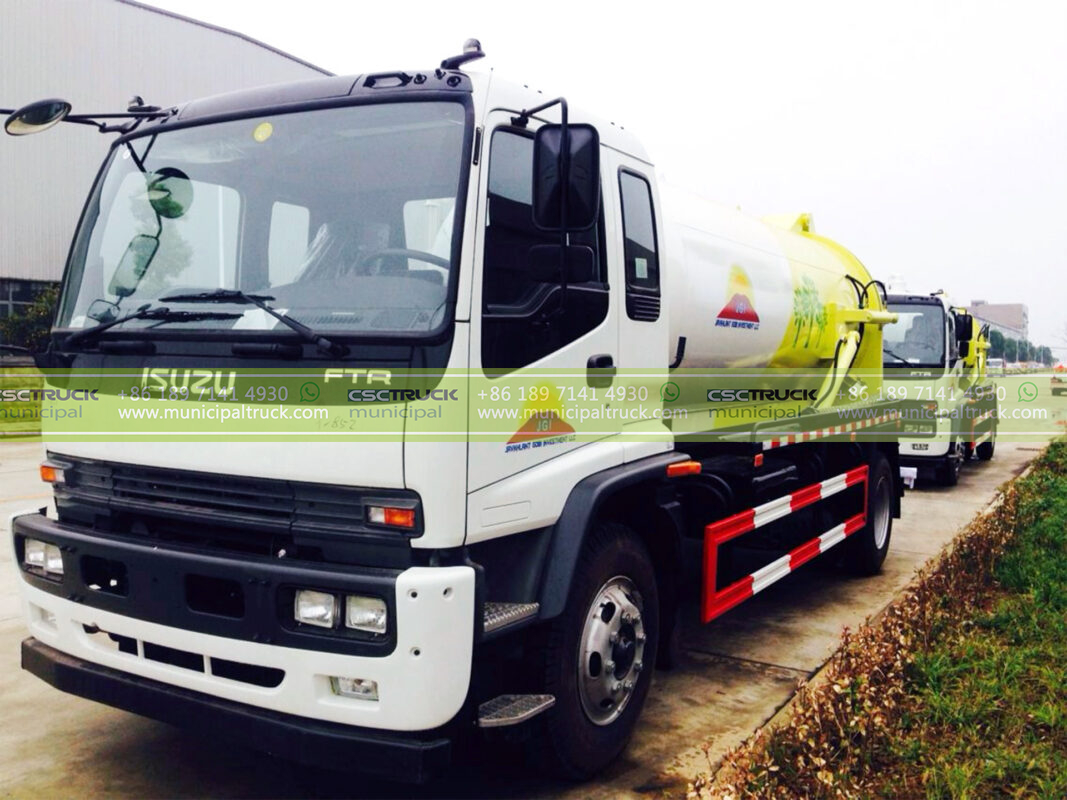

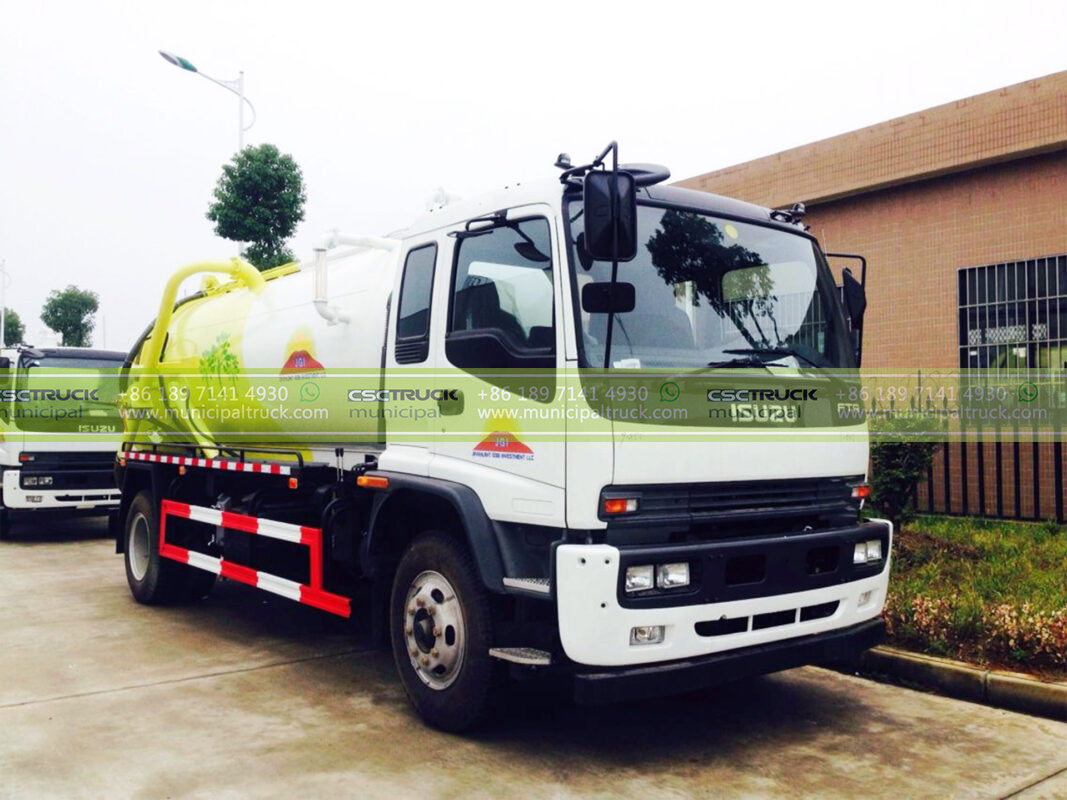

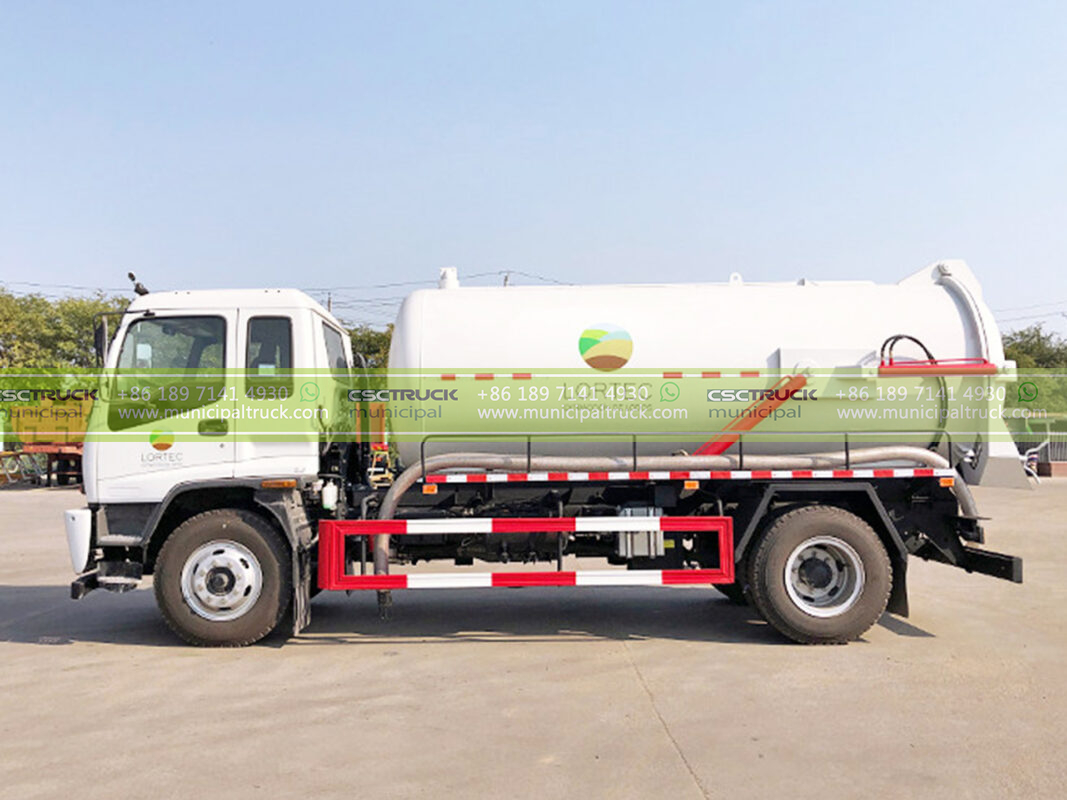

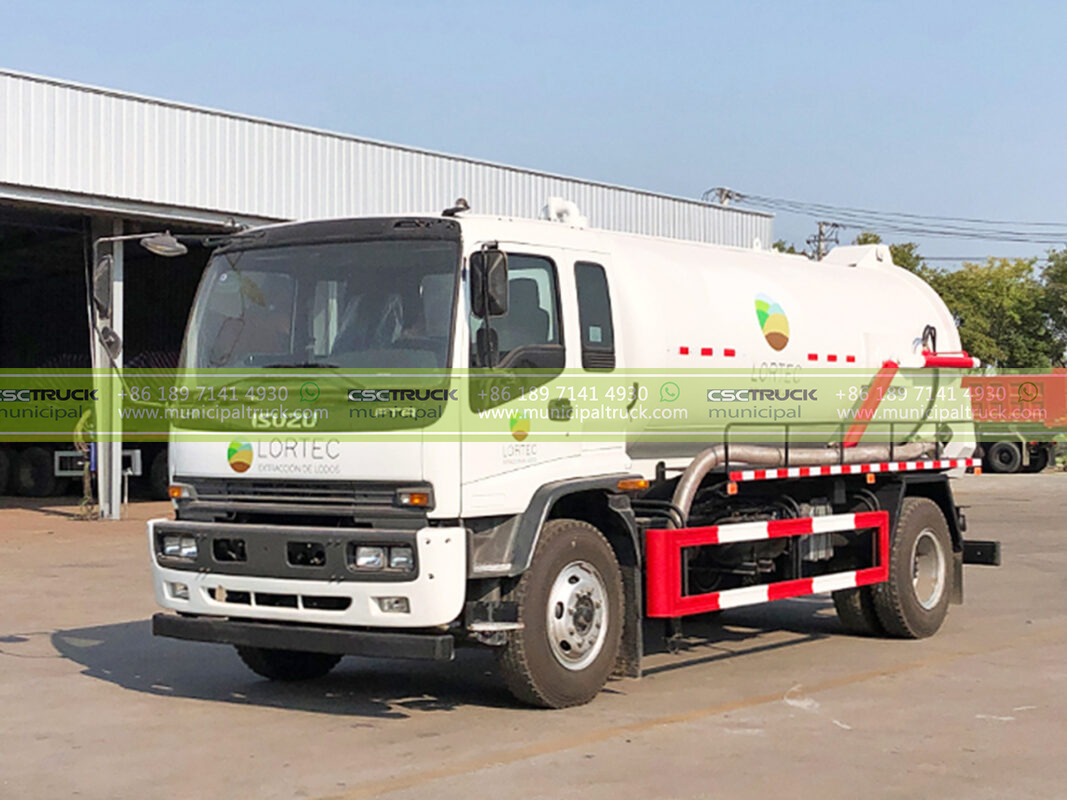

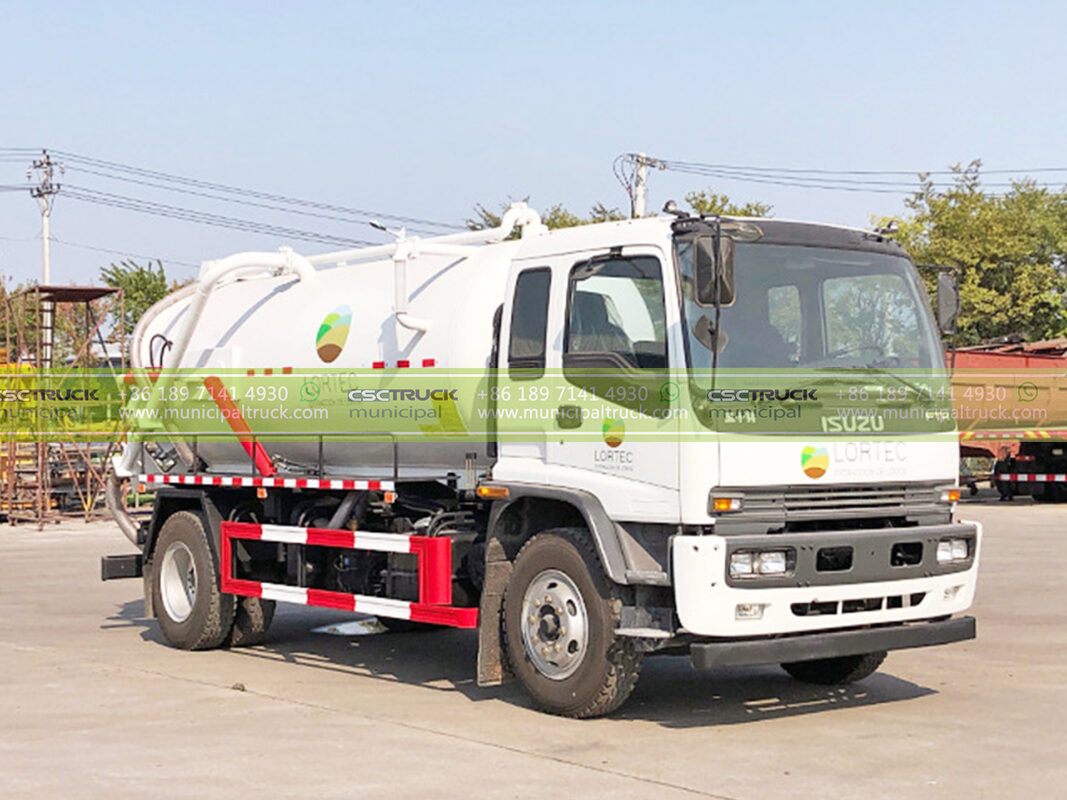

Gallery
Watch This Vacuum Sewer Truck Video on Youtube
features
Chassis Truck
Transmission
ISUZU MLD-6 Transmission was built for this FTR medium-duty chassis. Its proven durability and reliability provide greater uptime with a lower cost of operation.
Engine
The 4HK1 is a 4-cylinder diesel engine that generates 205 horsepower and 650 lb.-ft. of torque. This power and torque combination easily move heavier payloads through urban environments and on the highway.
ISUZU FTR Chassis
ISUZU low cab forward trucks and F-Series models feature superb visibility and comfort. Add in ISUZU’s rugged chassis, driver-friendly cab, and Isuzu’s long-standing reputation for a low total cost of ownership and it becomes clear. An F-Series truck is the right choice.
Body Unit

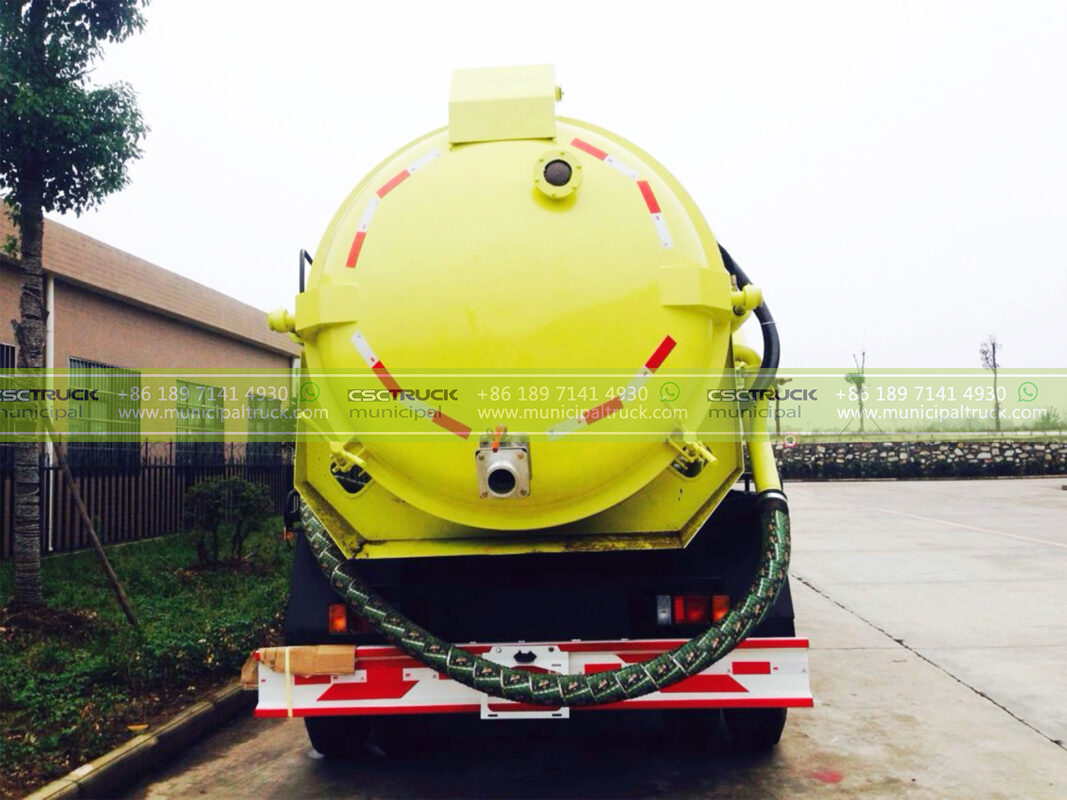

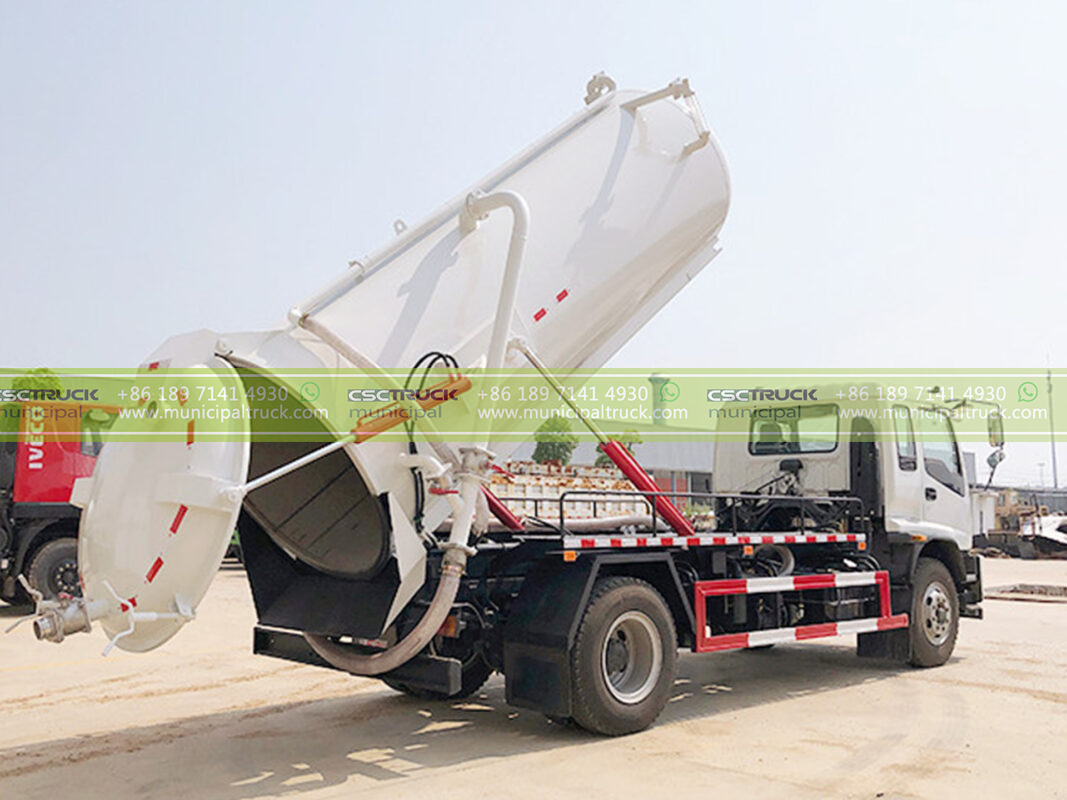

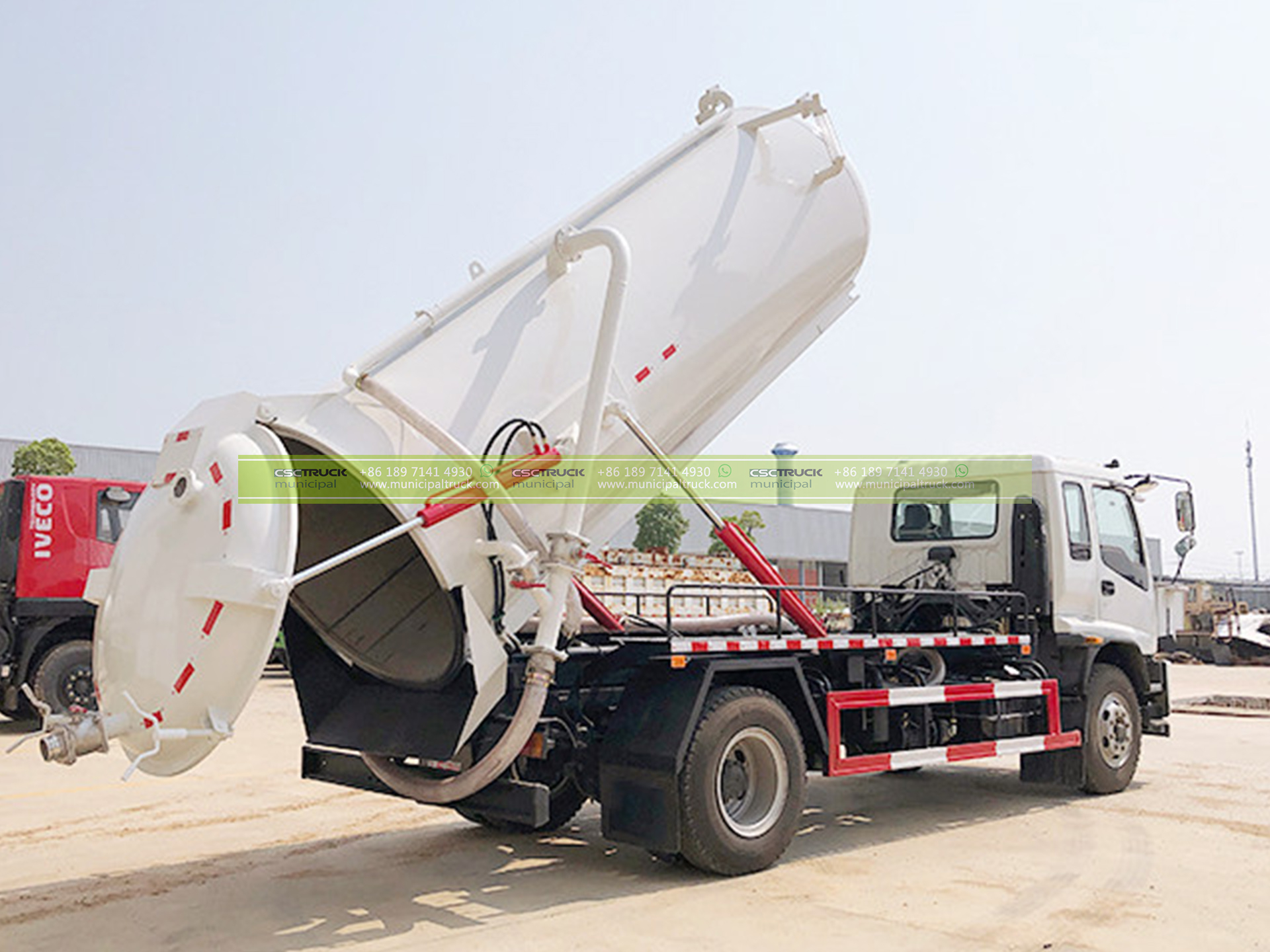

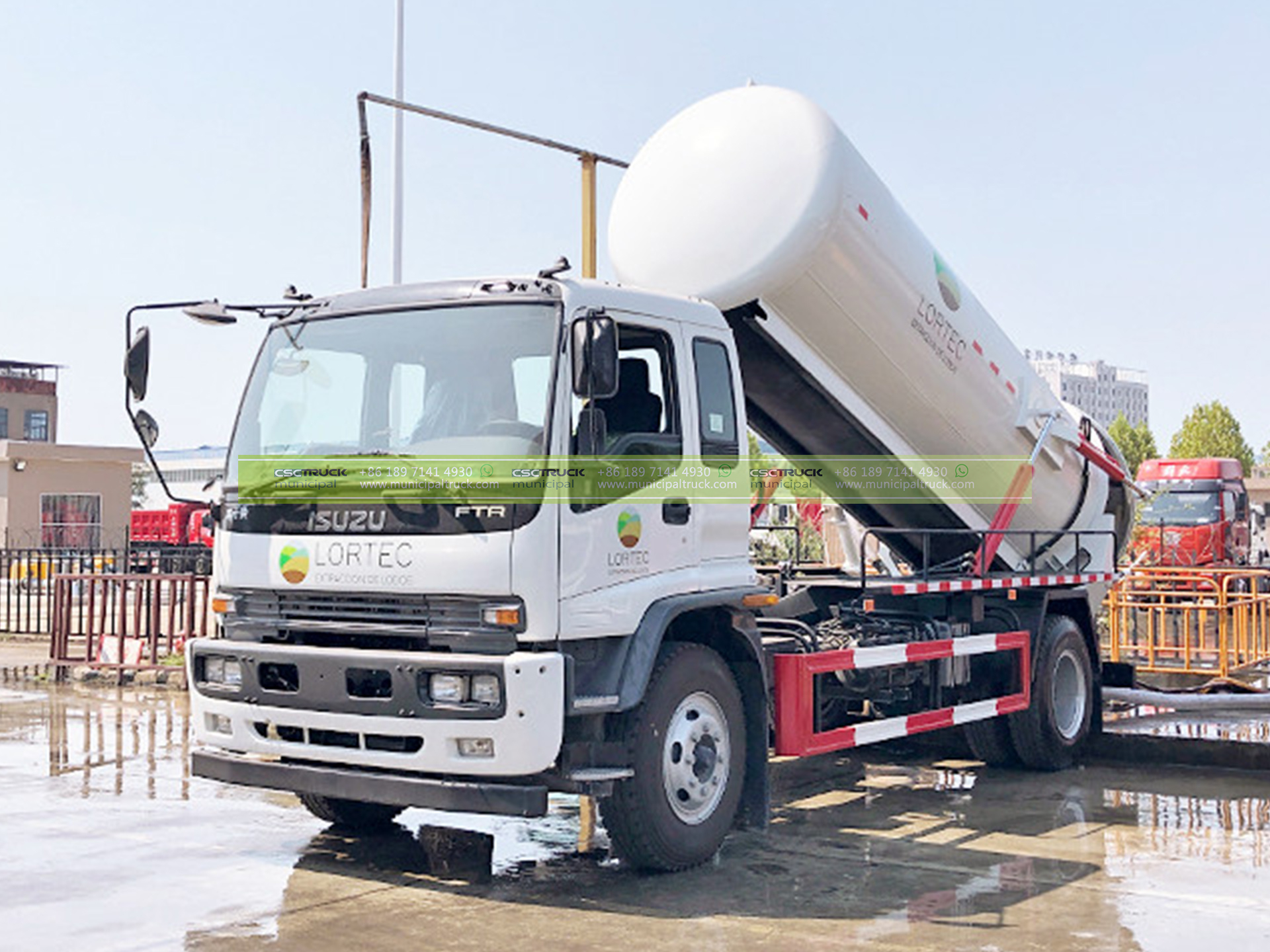

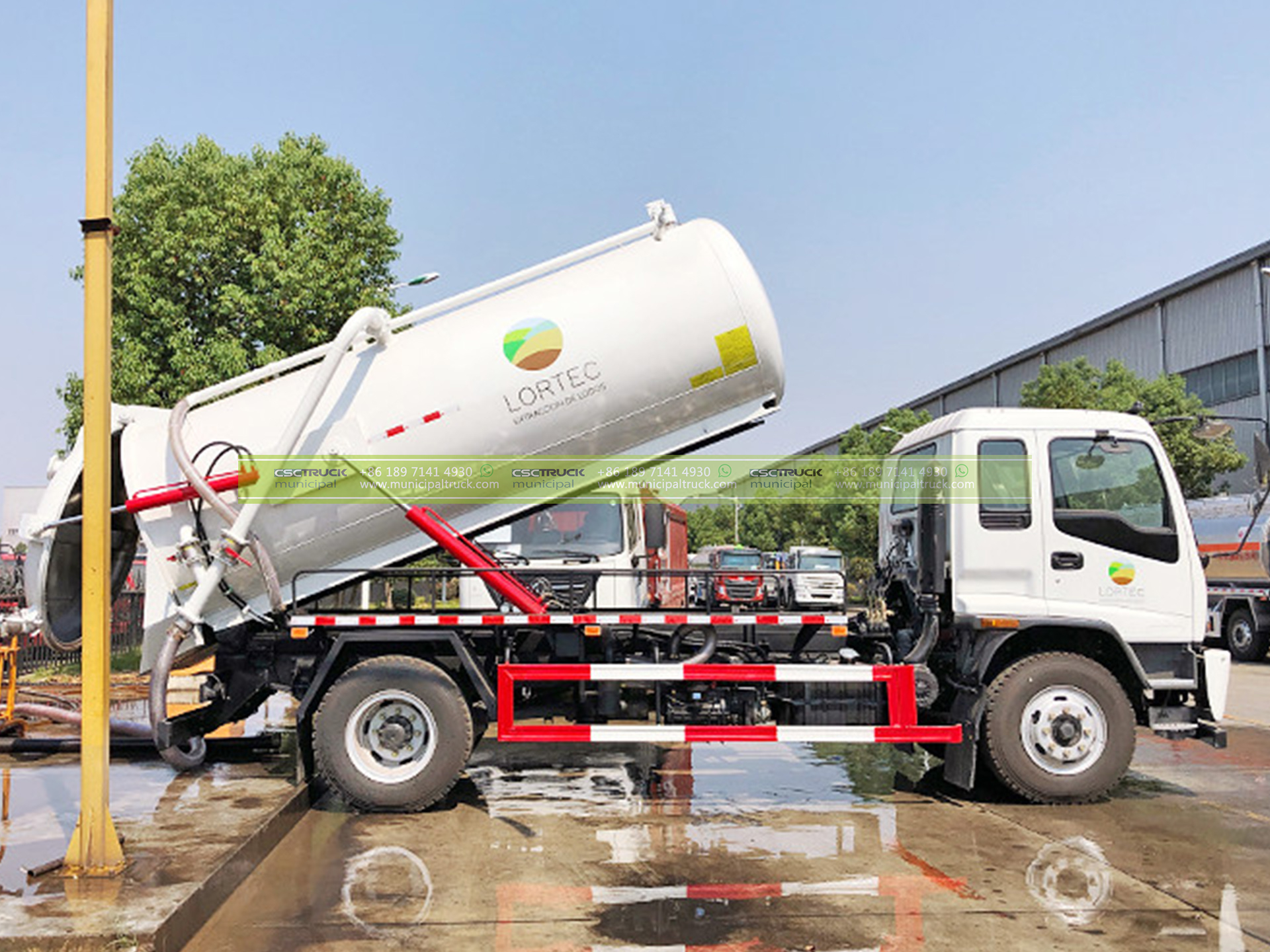

REAR – Tipping Tank
The sewage suction truck adopts double oil cylinder self-unloading, which is not afraid of blockage by large pieces of dirt, and it is faster to dump sewage。
Anti-flowing Valve
Air pump to safeguard pump from overflowing Sludge tank between the air pump and the tank. Can effectively prevent liquid from flowing out, optional liquid alarm device.
Jurop PN58 Vacuum Pump
– 6,500LPM, free air
-18″ continuous duty
-AIR cooled
-Forced oil lubrication
-Heat resistant kevlar vane
Factory Standard
“U” shape Sub Frame, Hydraulic system, Water and gas separator, Vacuum pressure gauge, Safety protection, Rotating Lamp, Working Lamp, Handholds, Mudguards, and rubber flaps…
Discharge Valve
100mm ball valve, fast flow, standard manual ball valve switch, optional hydraulic opening.
Optional Equipment
-Stainless steel tank
-Vacuum pump brand or model can be optional
– Electricity-controlled optional
-Water jetting system optional
specification
| Size | 8300×2550×3360(mm) |
| Gross weight | 16,000kg |
| Curb Weight | 11,000kg |
| Wheelbase | 4,500kg |
| Driving type | 4*2 LHD |
| Chassis model | ISUZU FTR |
| Tire size | 11R22.5 |
| Engine model | 4HK1,205hp, Euro 5 |
| Type of fuel | Diesel |
| Sewage Tank | 12,000L |
| Body Material | High-strength carbon Steel |
| Vacuum Pump | JUROP PN58,Sliding Vanes,Capacity 6,500LPM |
