Brief

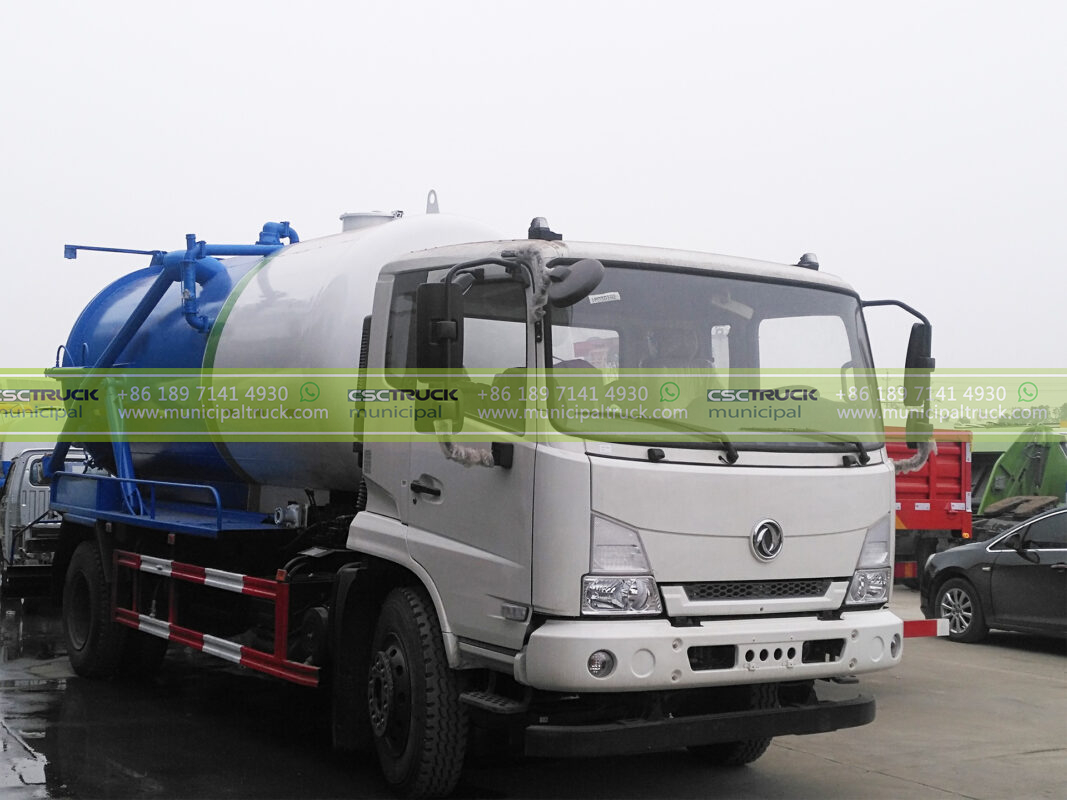

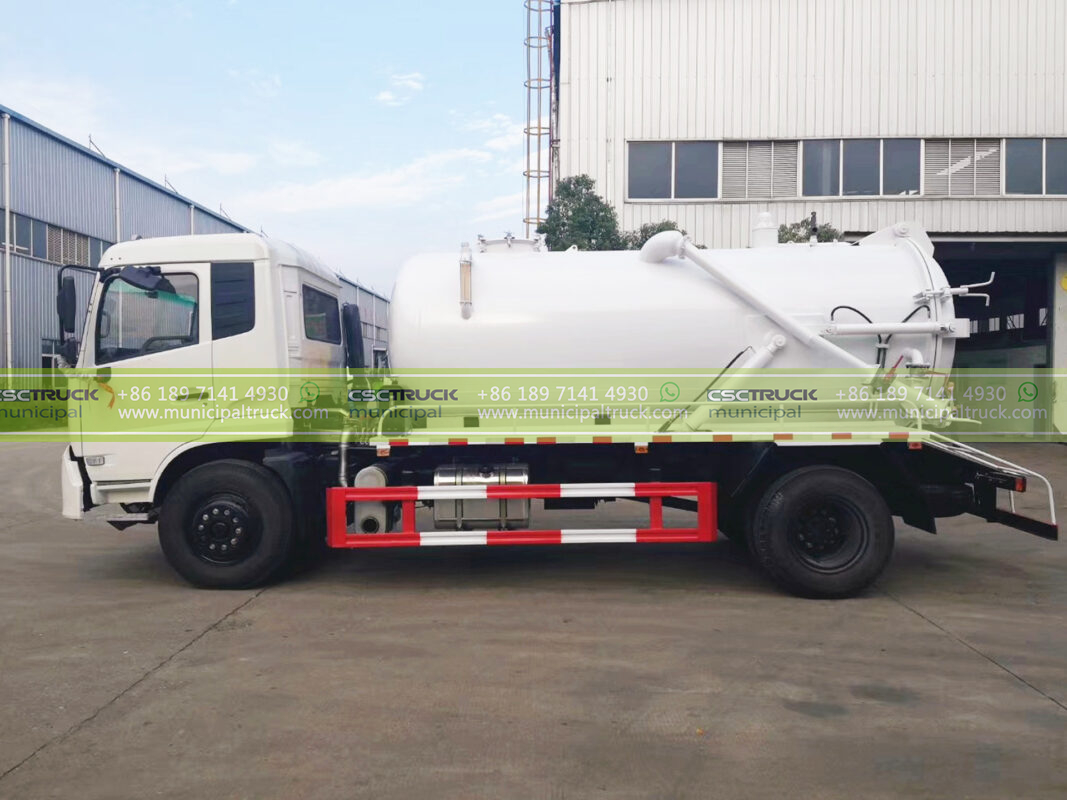

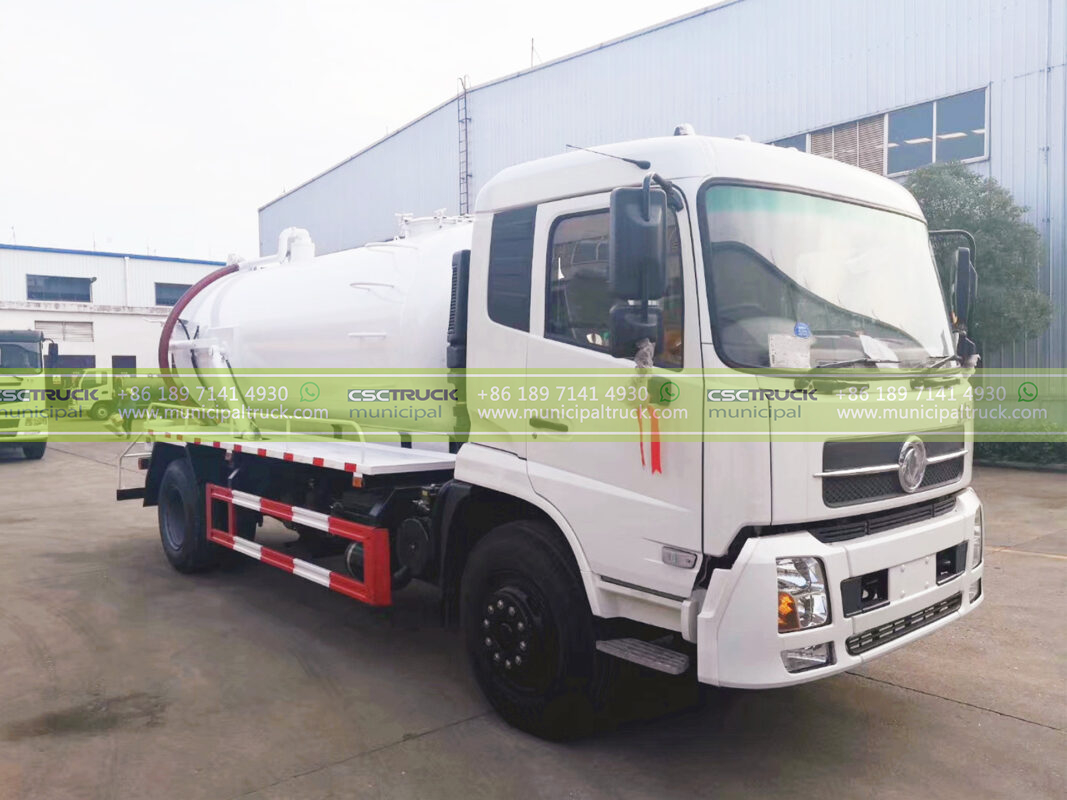

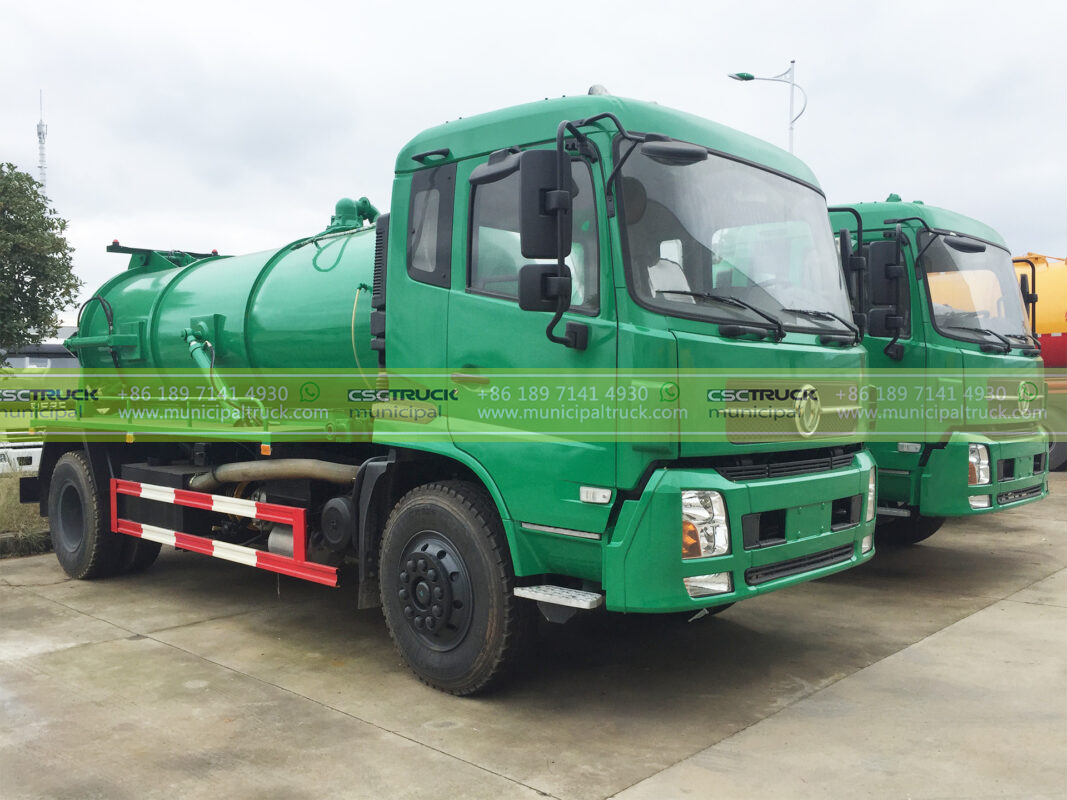

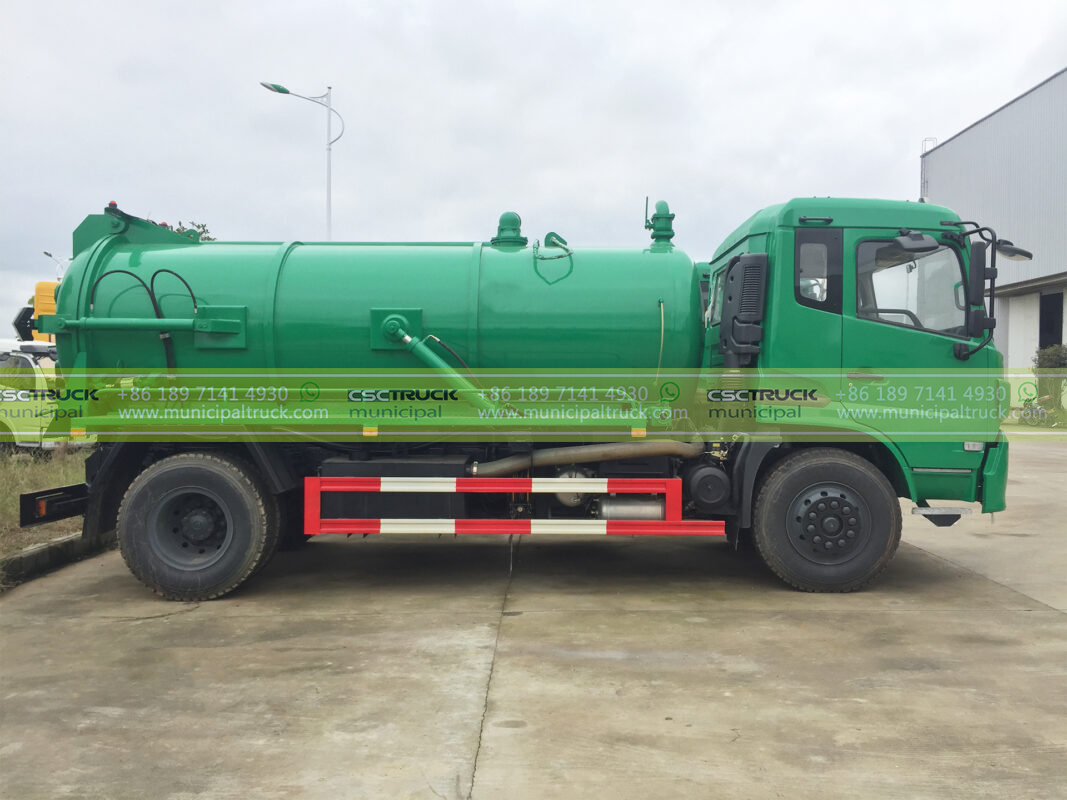

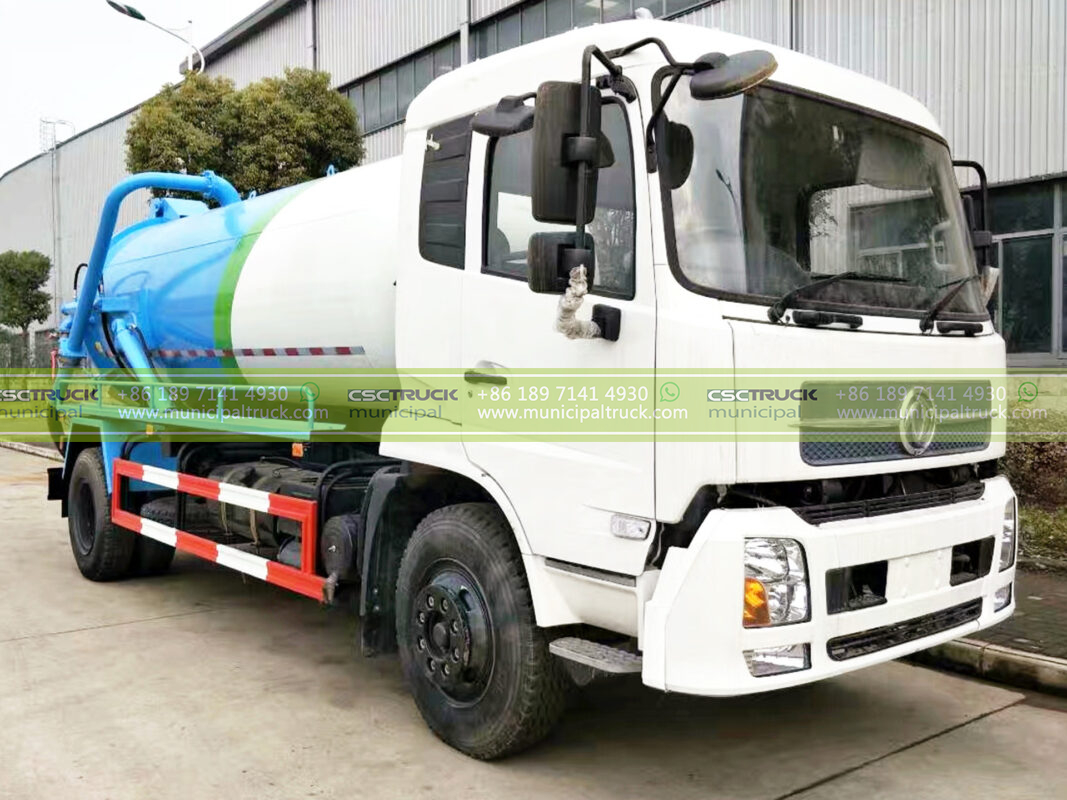

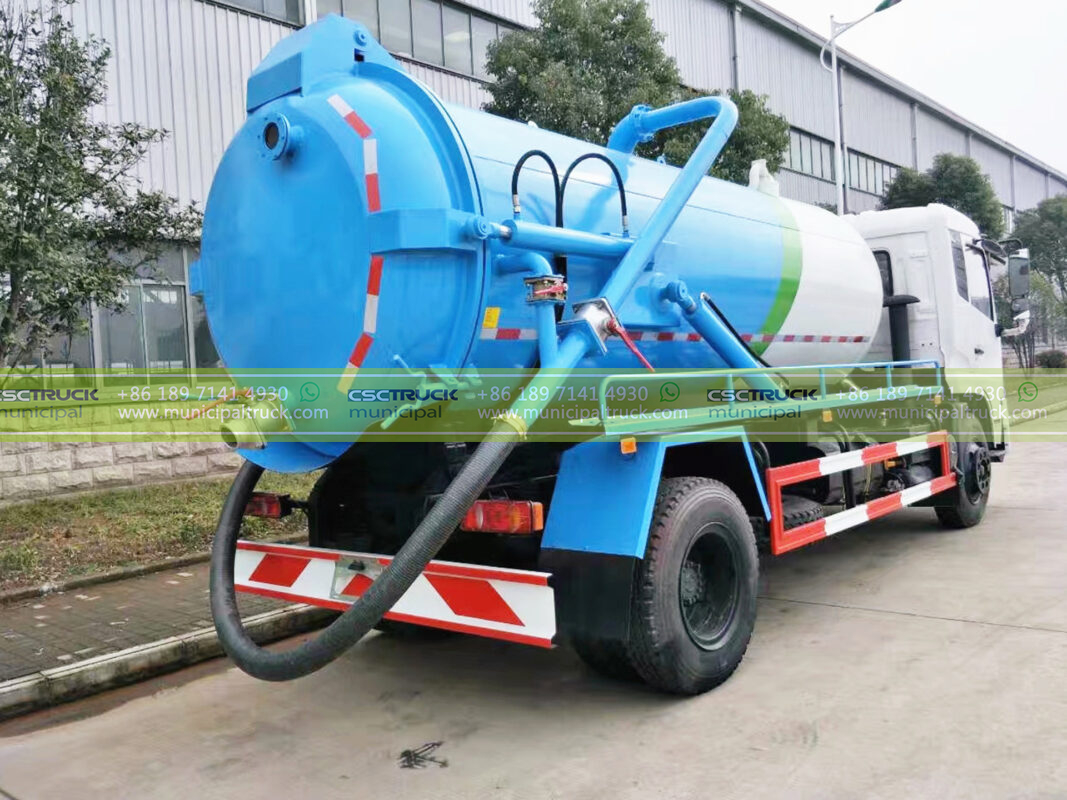

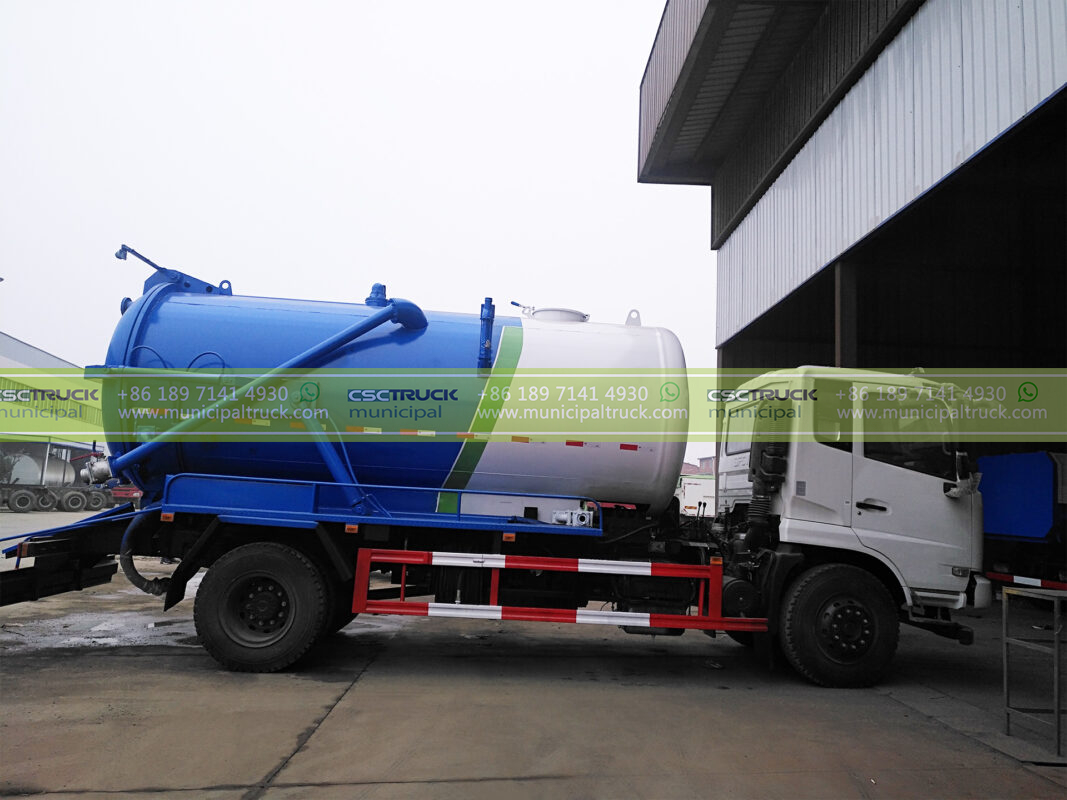

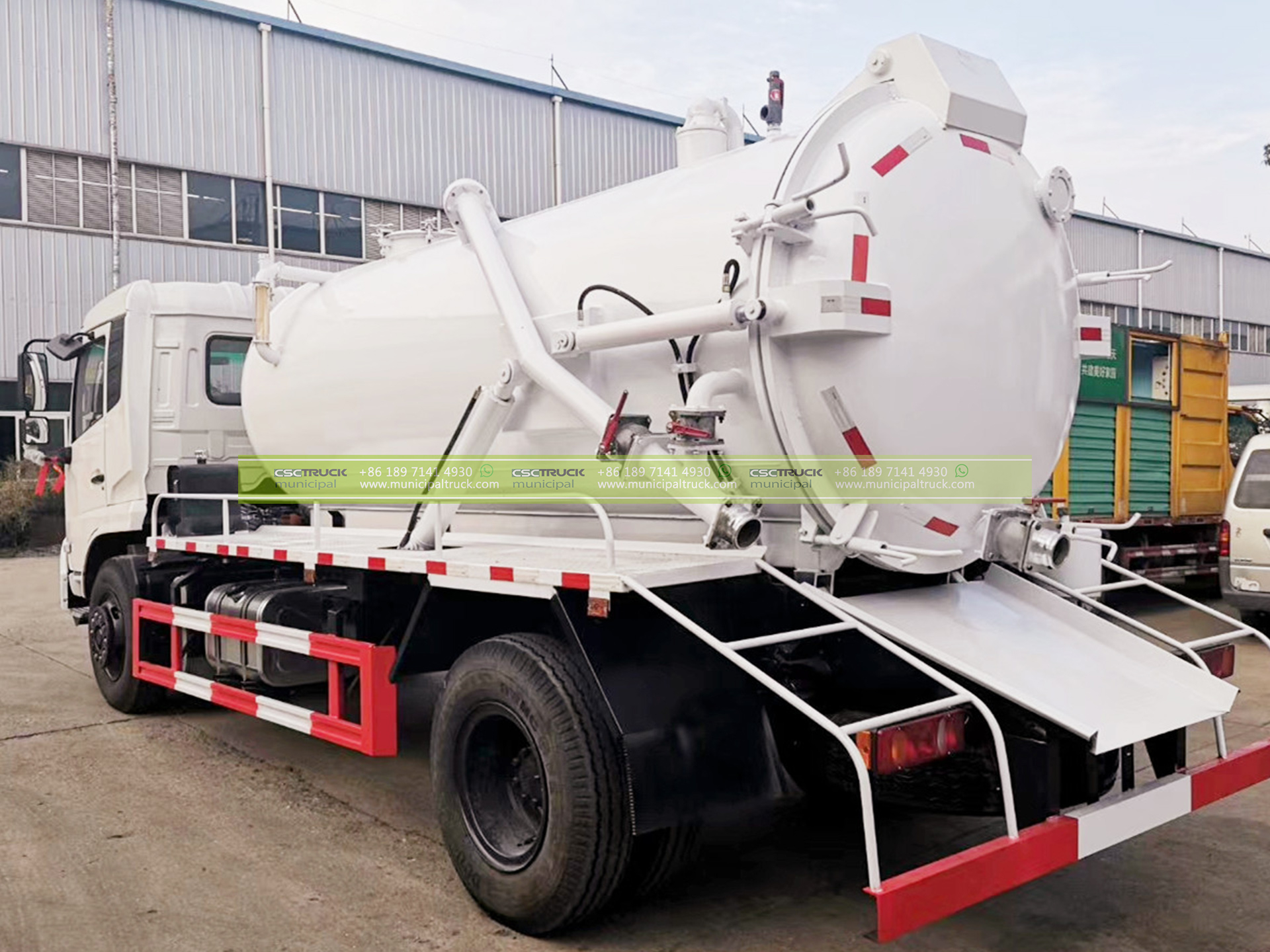

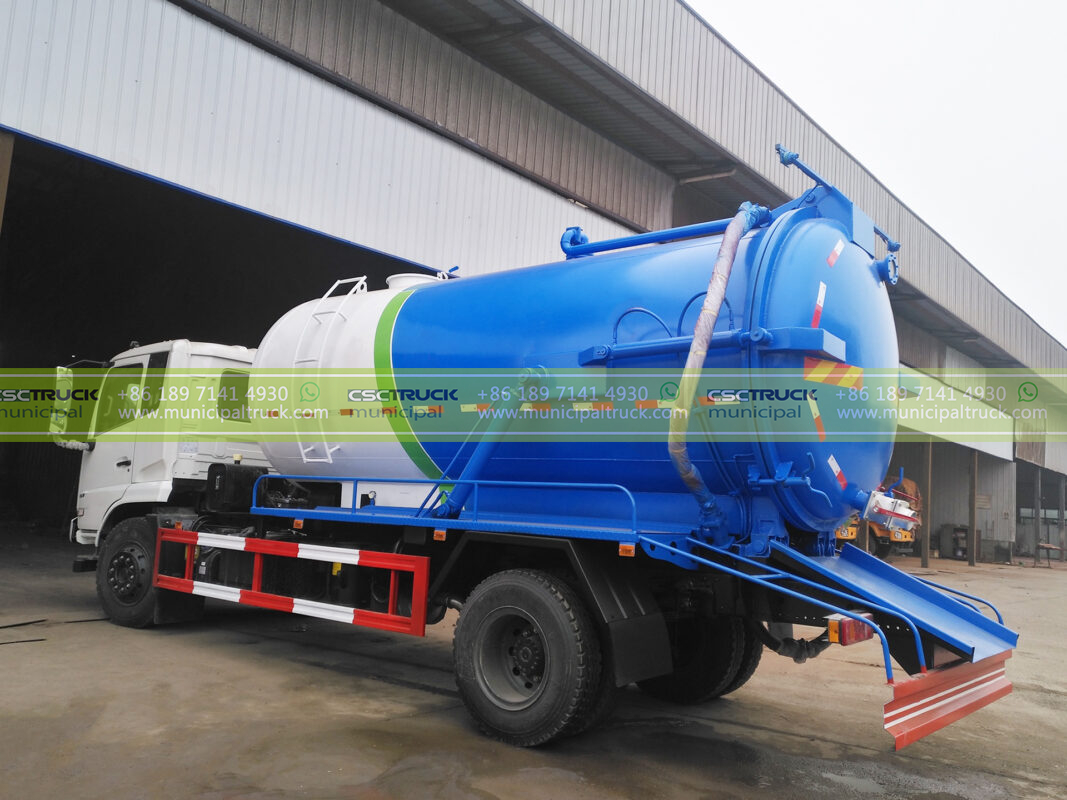

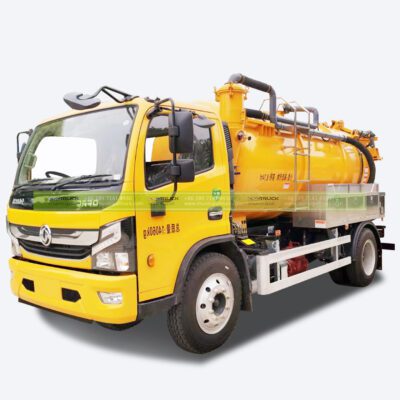

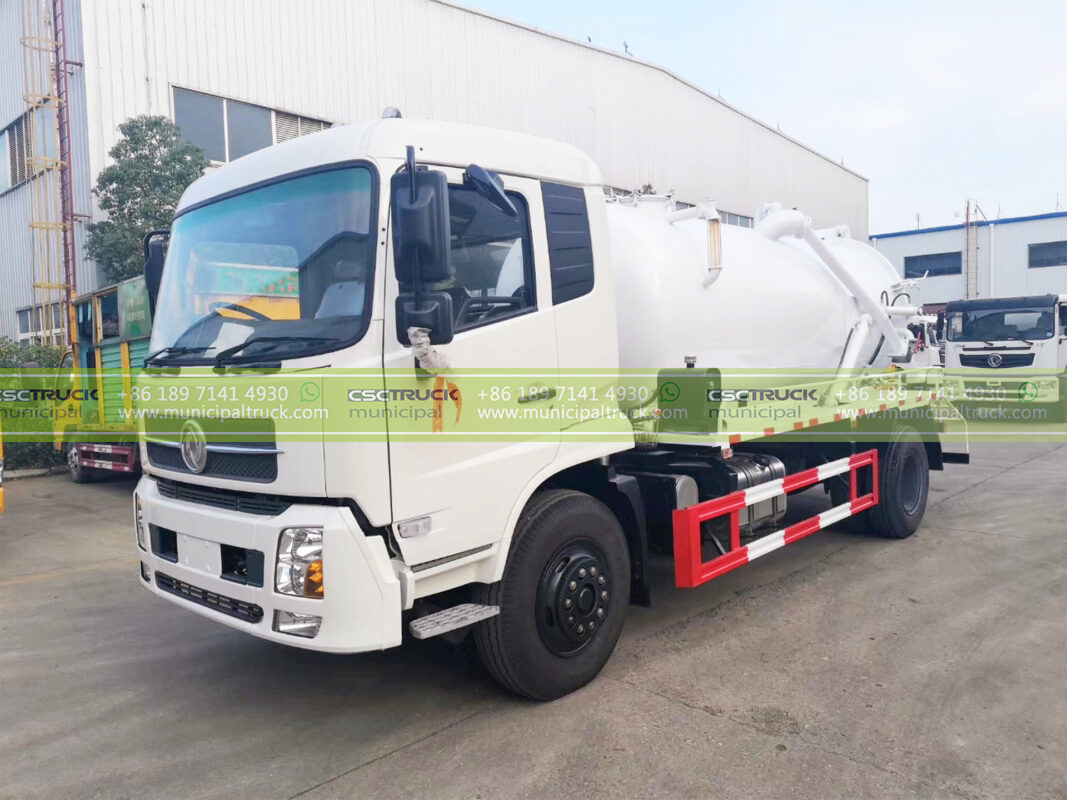

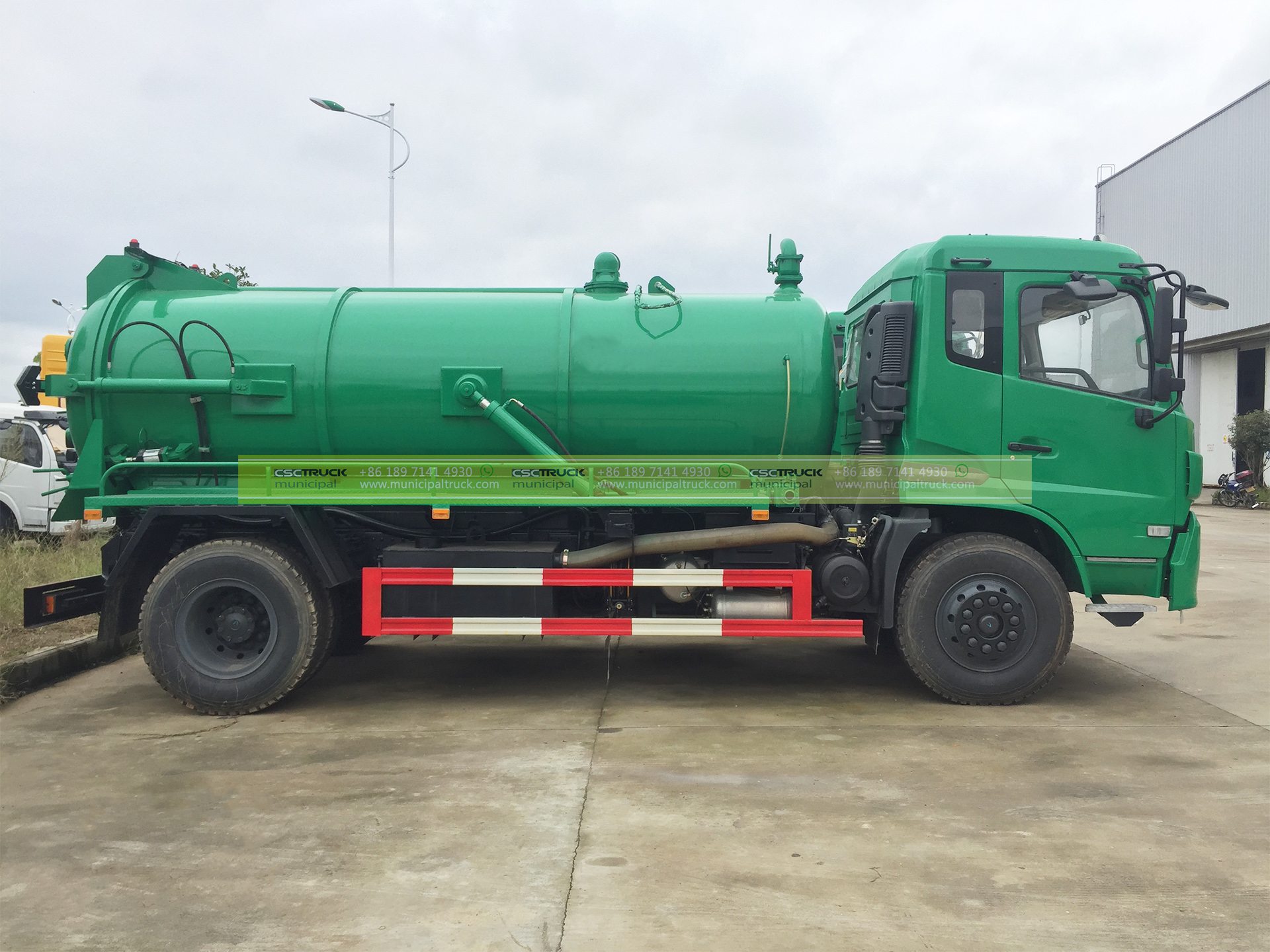

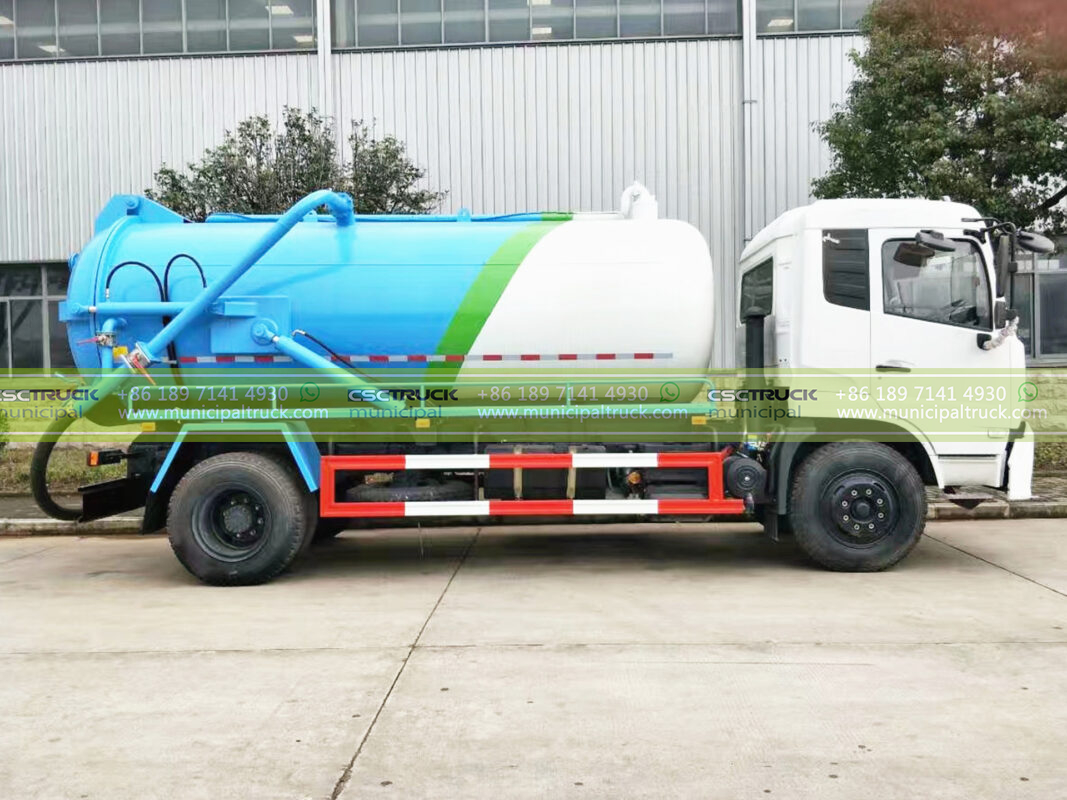

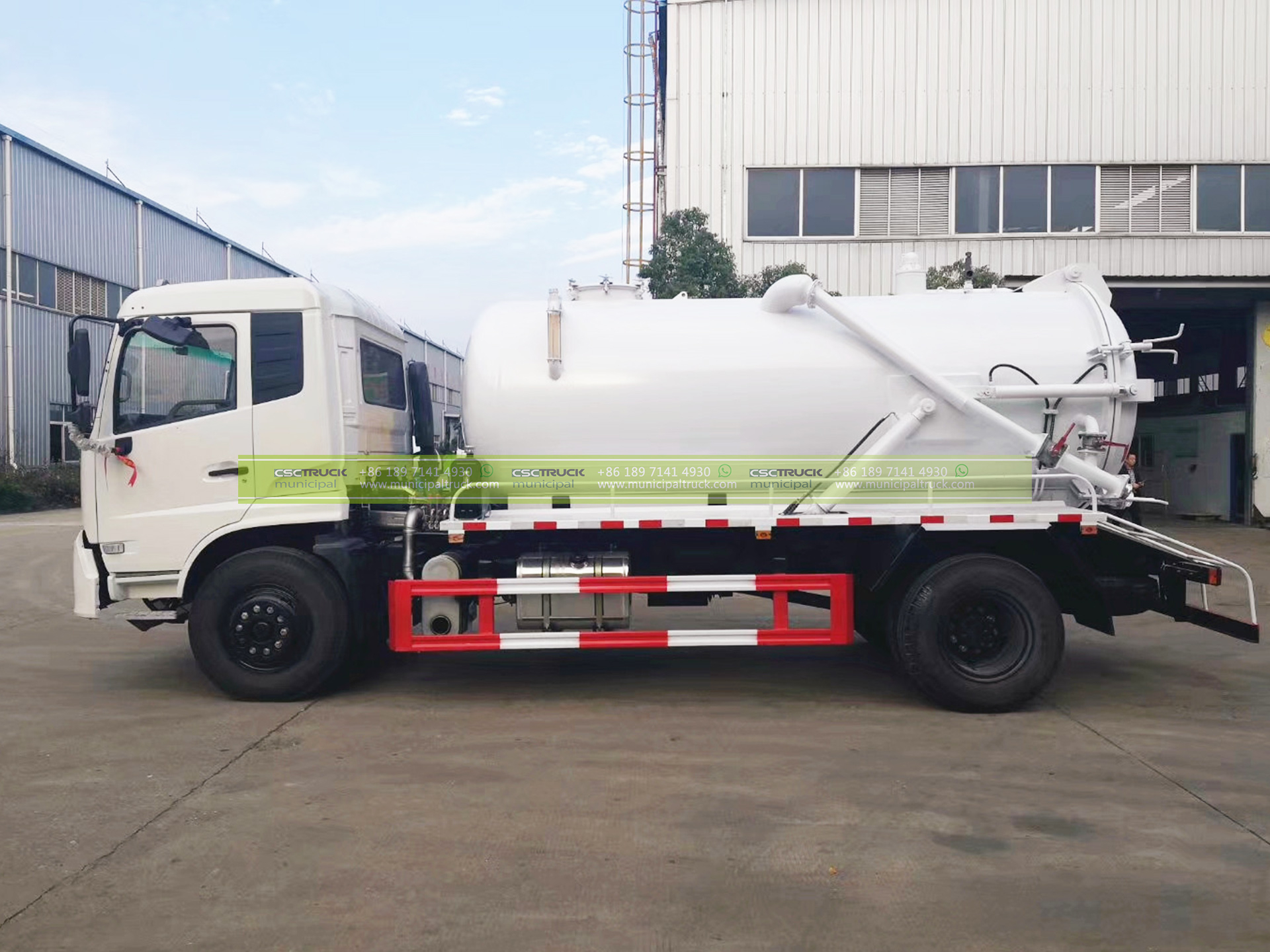

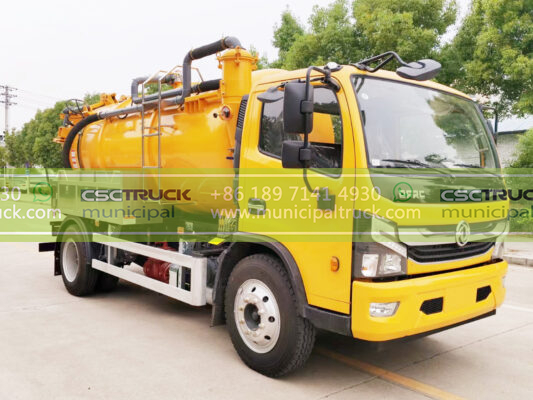

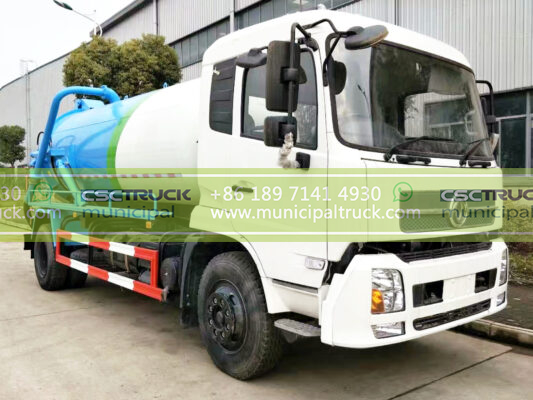

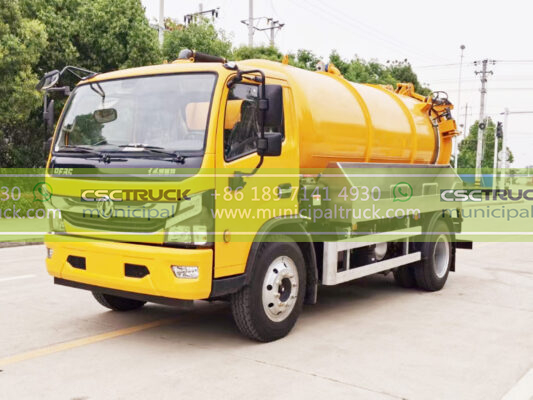

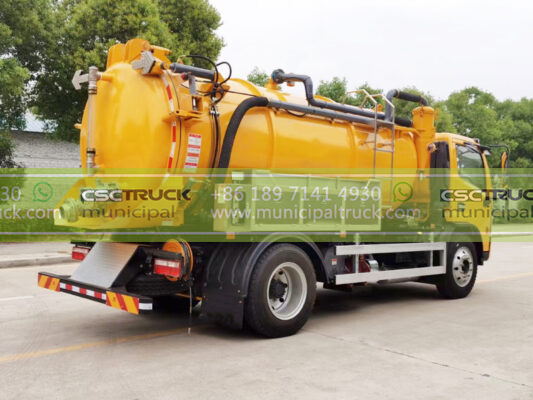

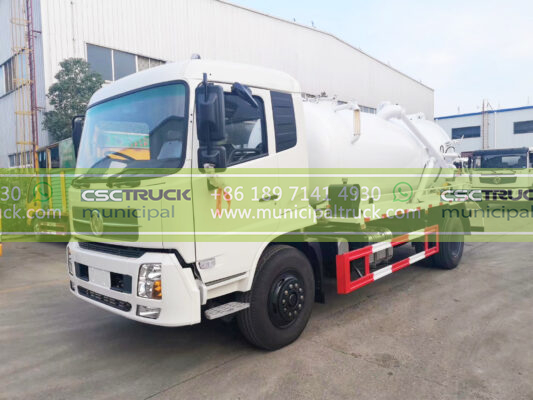

DONGFENG 14 Ton Vacuum Tank Mounted Truck consists of vacuum sewage suction pump, power take-off, transmission shaft, water and gas separator, oil and gas separator, multi-way reversing valve, tank body, sewage valve, pollution observation window, vacuum pressure gauge, pipe network system, hydraulic system, etc. The tank body is die-casted at one time, rear opened, self-unloading. The sewage suction truck can be self-suction and self-discharging. It has the characteristics of higher vacuum, longer suction stroke, higher pressure, high efficiency and wider use.
features
Chassis Truck
Engine
The CUMMINS engine offers advanced thermal engineering, electronic integration, and a High Pressure Common Rail fuel system. In addition, a Cummins wastegate turbocharger is used for excellent performance across rpm range and improved response through higher low-end torque.

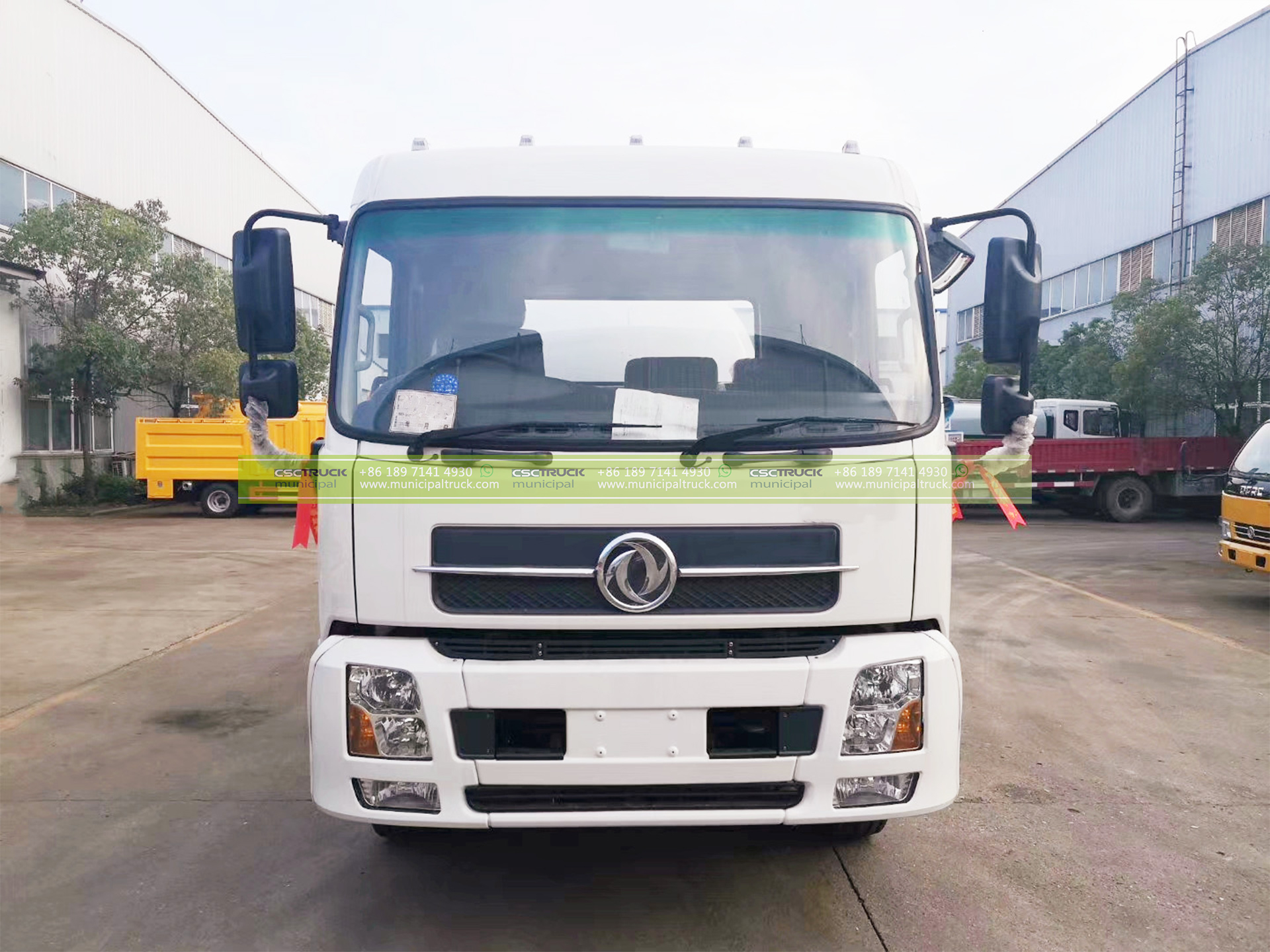

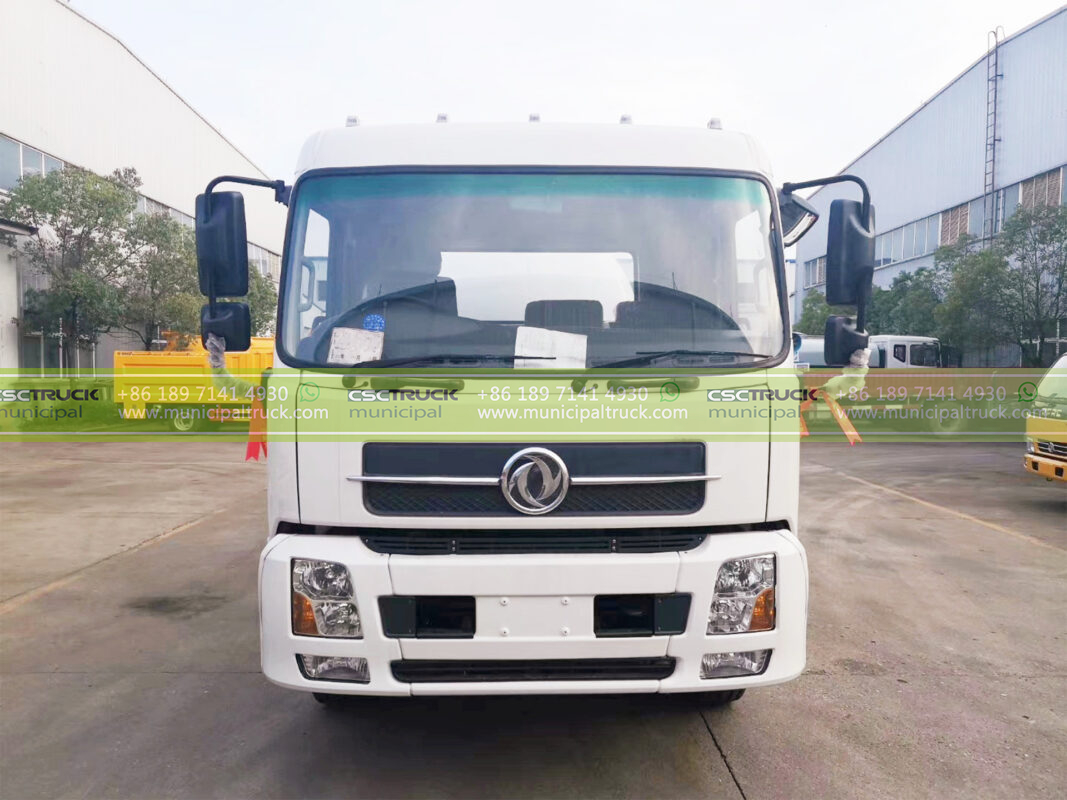

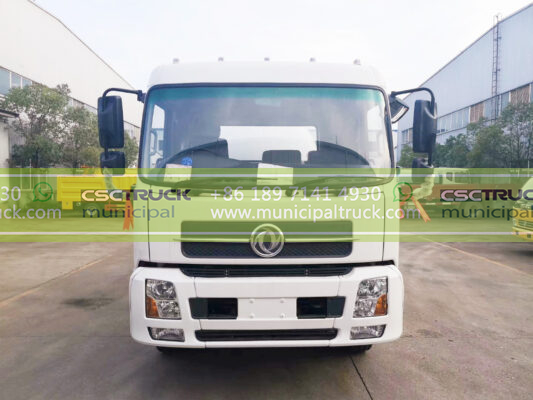

Cabin
Comfortable flexible and easy adjustable seating. Easy and safe entrance into the cab. All instruments and controls are easy to read and reach from the drivers position. Good visability, supported by exterior large mirrors. Eqiuped with front window wiper and washer, power-operated windows, airbag, central locking.
Curved Dashboard
All instruments and controls are easy to read and reach.
Dongfeng KinRun Chassis
The Dongfeng KR is a reliable truck, performing efficient power with low emissions Itis frequently used as a municipal sanitation vehicle and medium duty construction works.
Forward Gears Are Synchronized
Advanced software is used to analyze and optimize the design. This makes the gearbox more advanced and reliable.
Large Torque Output and Wide Ratio Range
Integrated main reducer housing introduces the light weight, high strength and good sealing, high-specification bearing ensures the reliability of transmission parts.
Body Unit
Sludge Tank
High-quality carbon steel casting with high strength and corrosion resistance.
Vacuum Pump
FLOWSERVE SIHI LEMC90 Liquid ring vacuum pumps Suction volume flow: 20 to 200 m³/h
Design
Compact structure, reasonable design and stable performance.
Workmanship
-All internal structural parts are treated with pickling and phosphating, primer is sprayed before welding, and the surface of the tank body is shot peened, which can prolong the service life of the tank body.
-Adopts the vacuum pump with leading technology, which has large suction force and long suction distance.
-New type of sanitation vehicle that collects, transfers and cleans up and transports sludge and sewage to avoid secondary pollution.
-Long service life, fast working speed, easy operation and convenient transportation

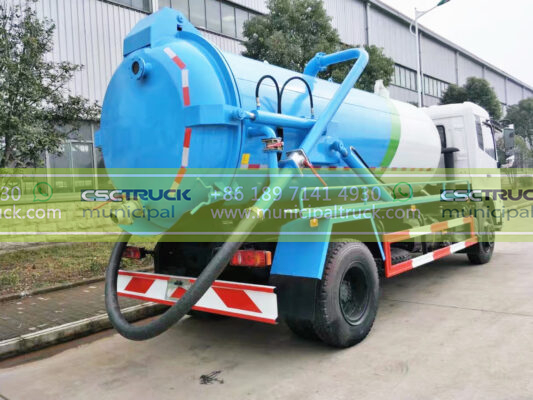

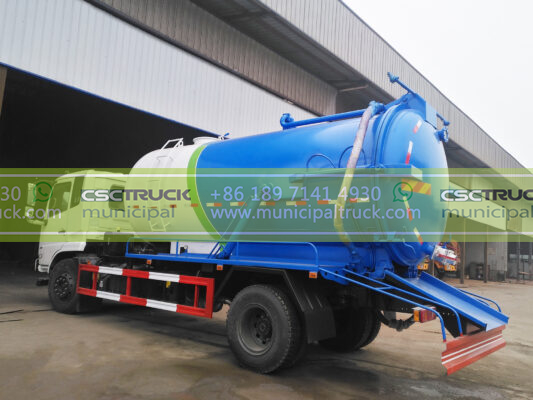

Hydraulic System

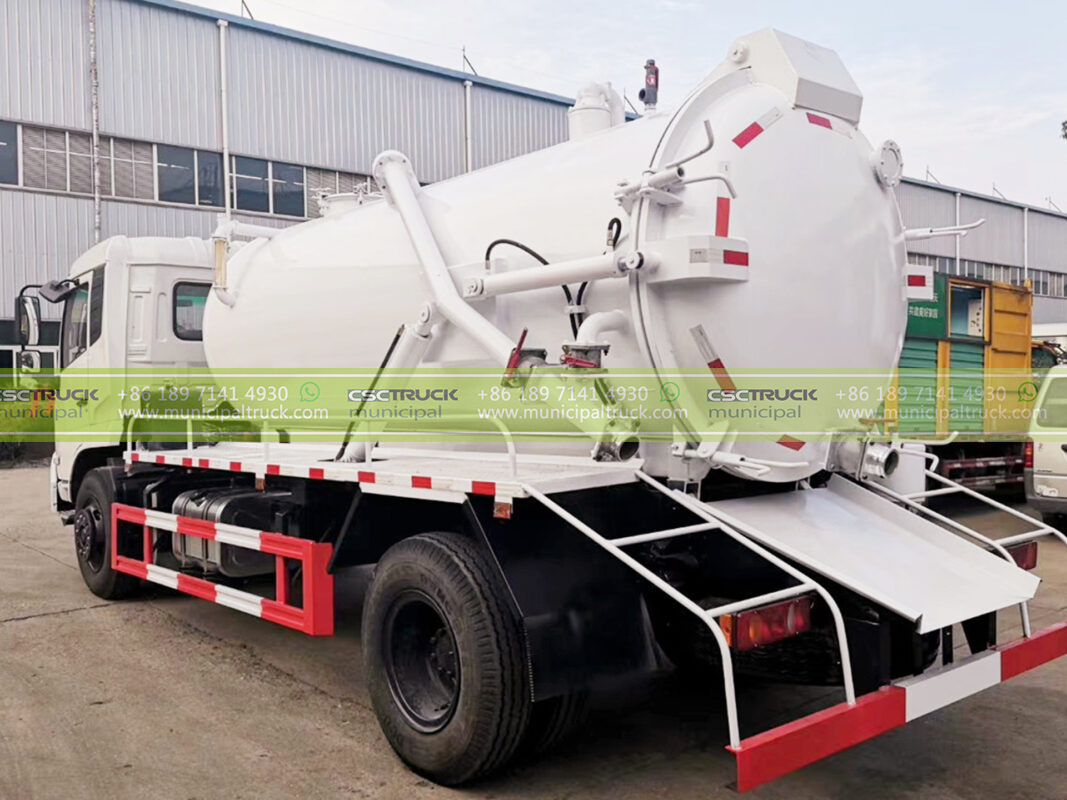

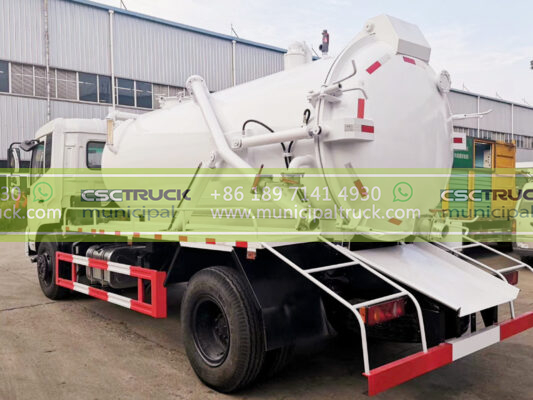

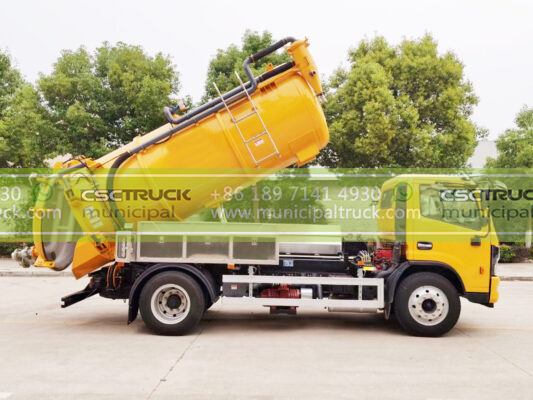

Hydraulic lift self-unloading function, easy to discharge all kinds of dirt and sludge. The rear tank door is hydraulically opened automatically, which is convenient for cleaning the sediment in the tank. It can be self-suction and self-discharging, easy to use.
Installation
-High-power vacuum pump with large suction and a long suction distance
-Install a float level controller, which can be equipped with an electronic alarm device;
-Install an anti-overflow device to prevent sewage from being sucked back into the vacuum pump system
specification
|
Size |
7450×2360×3100(mm) |
|
Gross weight |
14,000kg |
|
Curb Weight |
7,300kg |
|
Wheelbase |
3,800kg |
|
Driving type |
4*2 LHD |
|
Chassis model |
DONGFENG KinRun |
|
Tire size |
8.25R20 |
|
Number of Tires |
6+1 |
|
Passengers in cab |
3 |
|
Engine model |
CUMMINS/B17033 Euro 3 |
|
Type of fuel |
Diesel |
|
Power |
170HP |
|
Emission standard |
EURO 3 |
|
Sewage Tank |
8,500L |
|
Body Material |
High-strength carbon Steel |
|
Full Suction Time |
≤5 min |
|
Vacuum Pump |
XD360, Sliding Vane, Capacity 6,000LPM |
|
Effective Suction Distance |
6 M |
|
Suction Pipe Inner Diameter |
110 mm |
|
Discharge Valve |
One way 100mm ball valve |
|
Over Pressure Device |
Yes |
|
Hose and Hose-carrier |
Factory standard |
|
Control Panel |
English |
|
Tool box |
Yes |
|
Painting |
Two primers, and one final paint coating |
|
Optional equipment 1, Stainless steel tank 2, Vacuum pump brand or model can be optional 3, Electricity controlled optional 4, Water jetting system optional |
|
