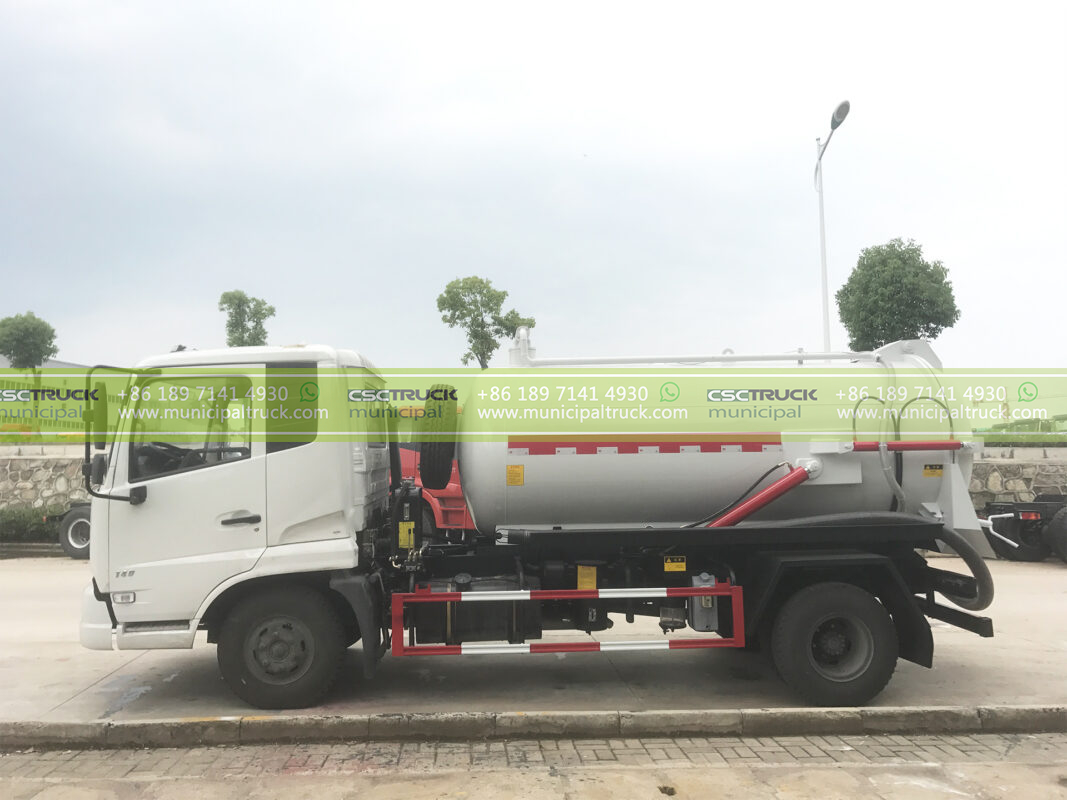

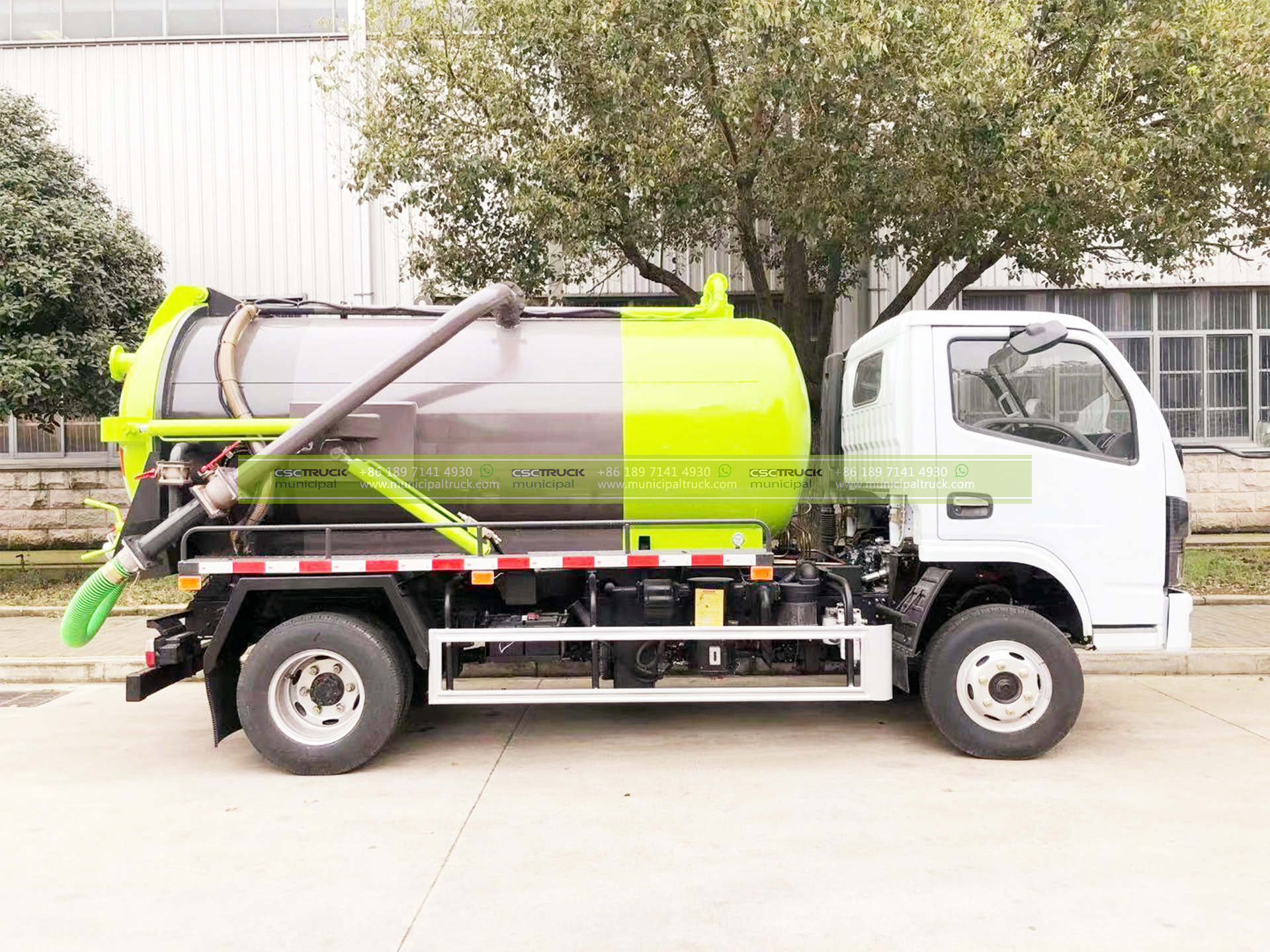

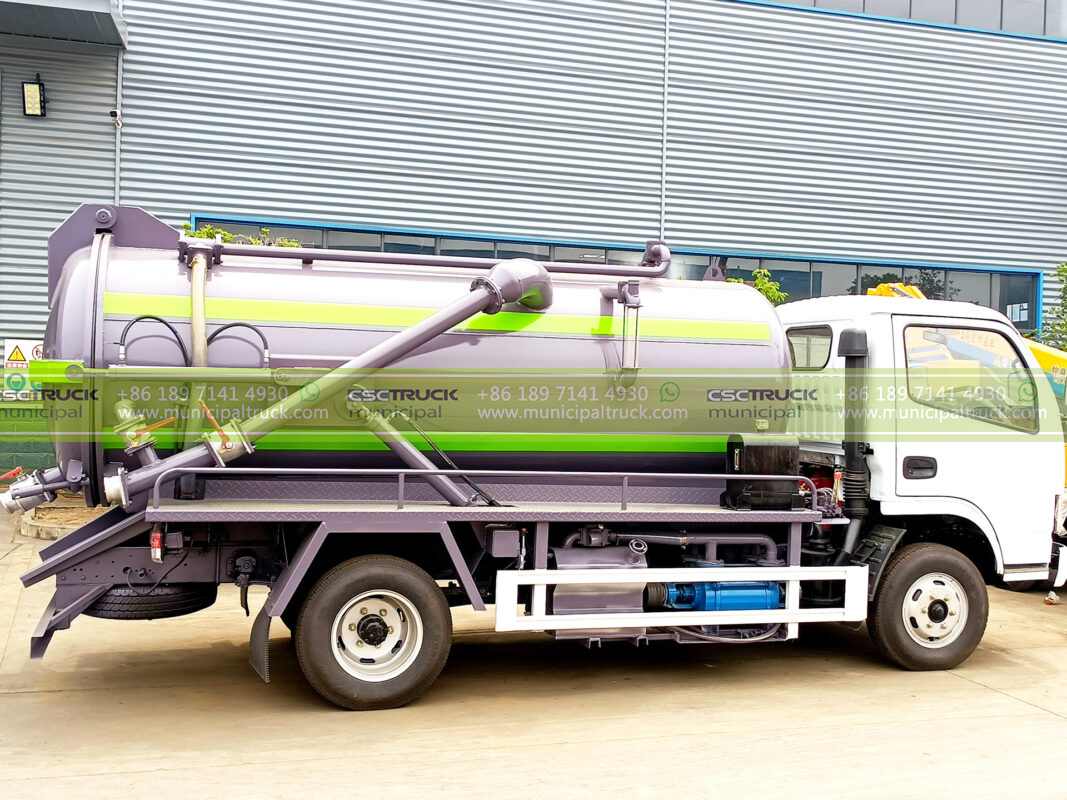

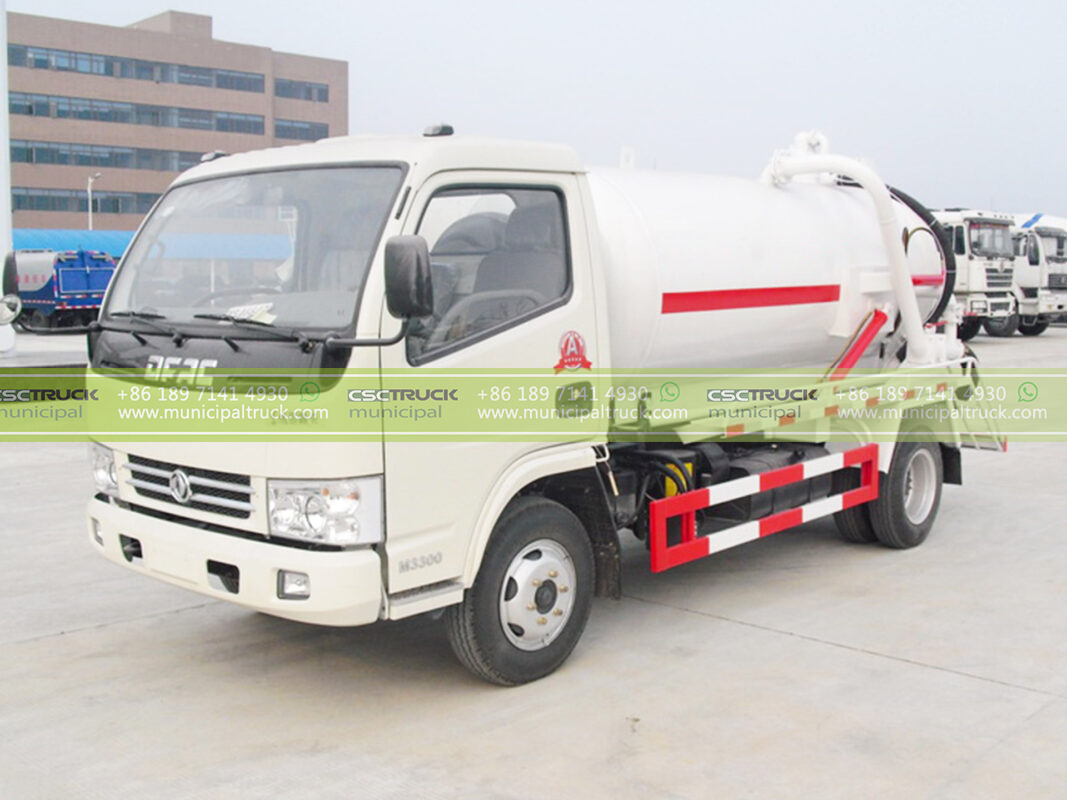

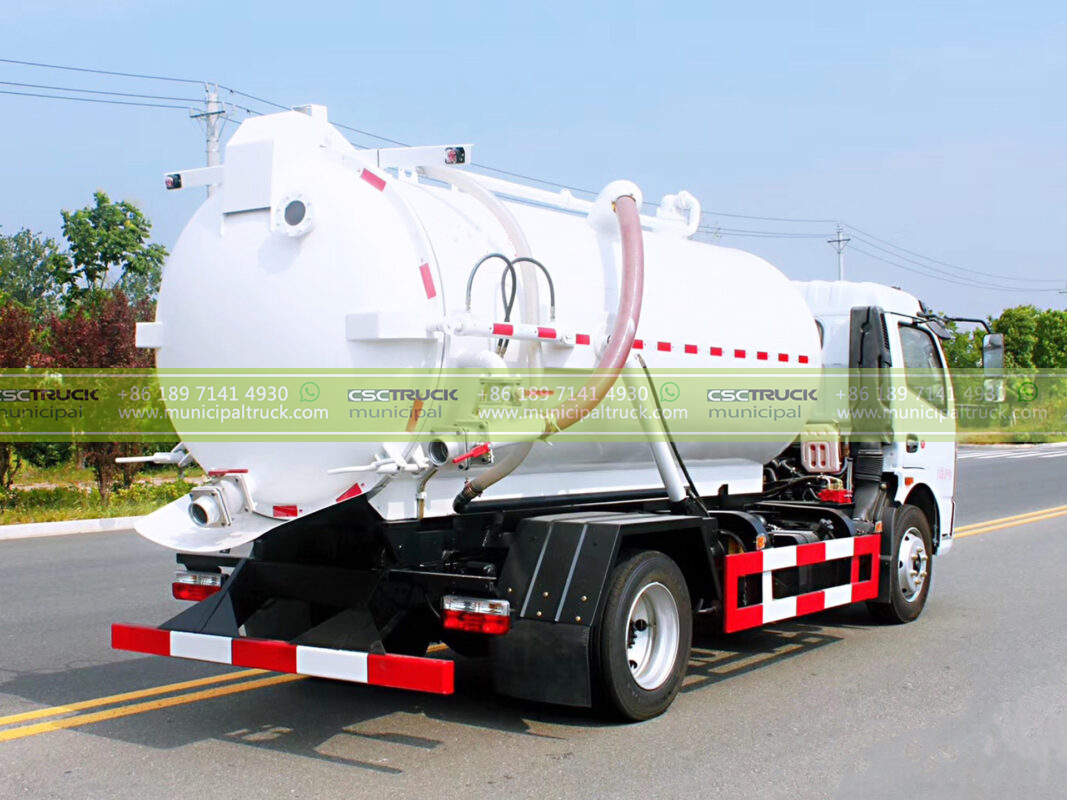

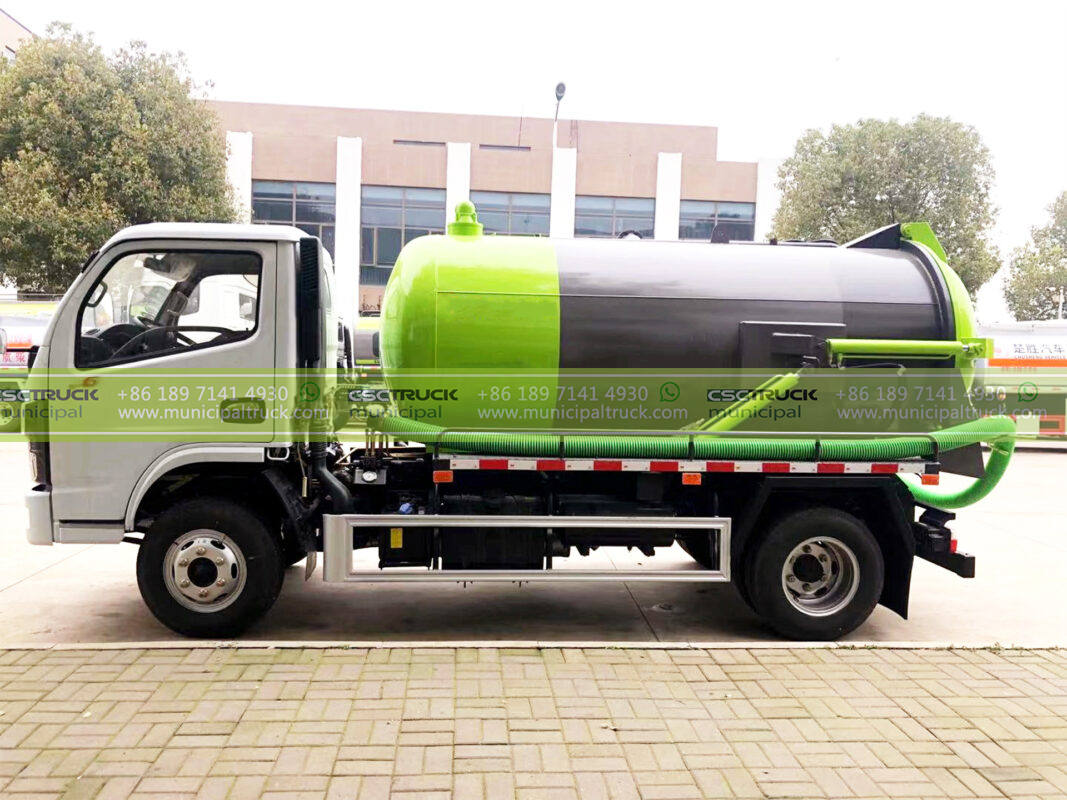

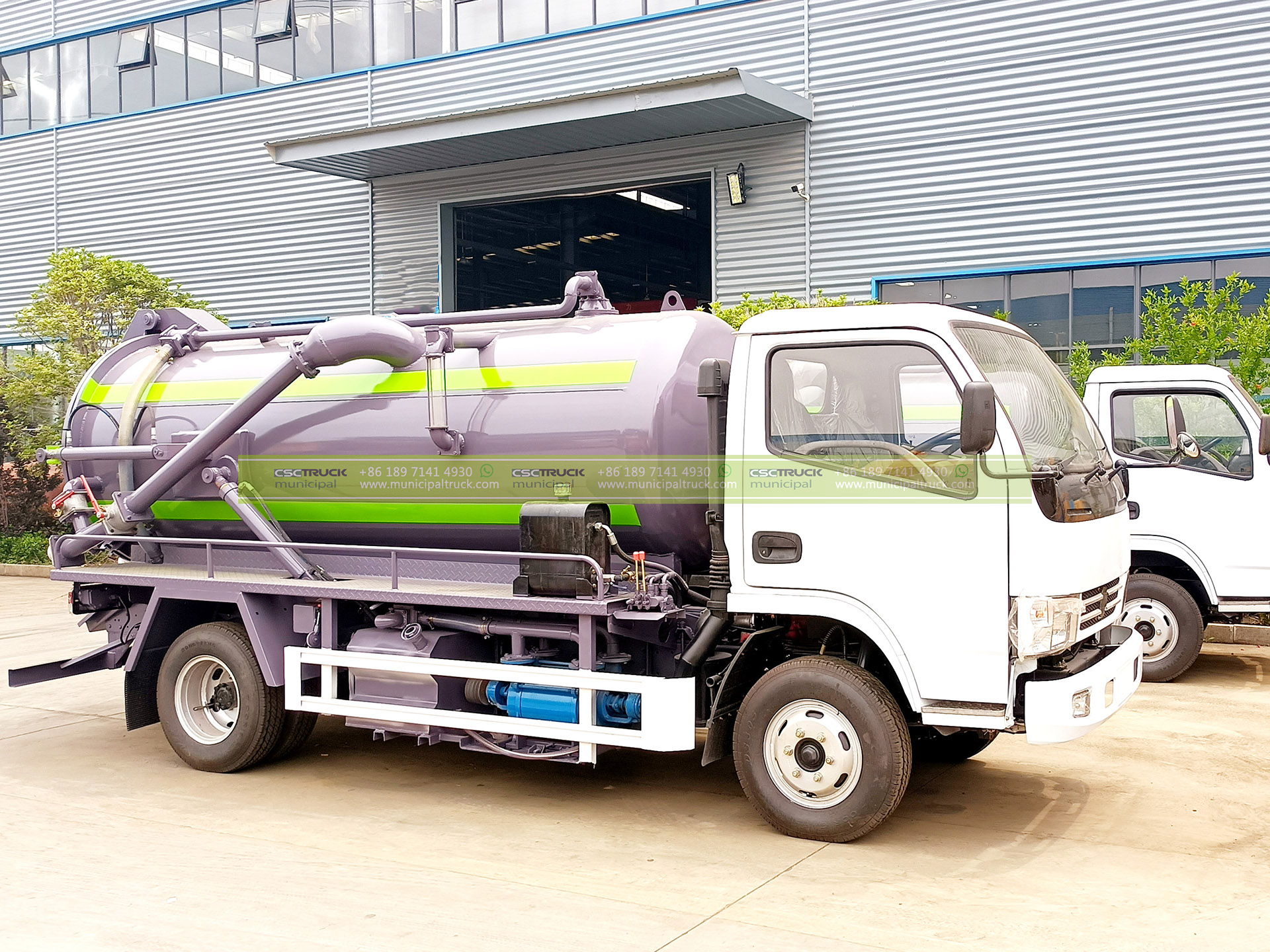

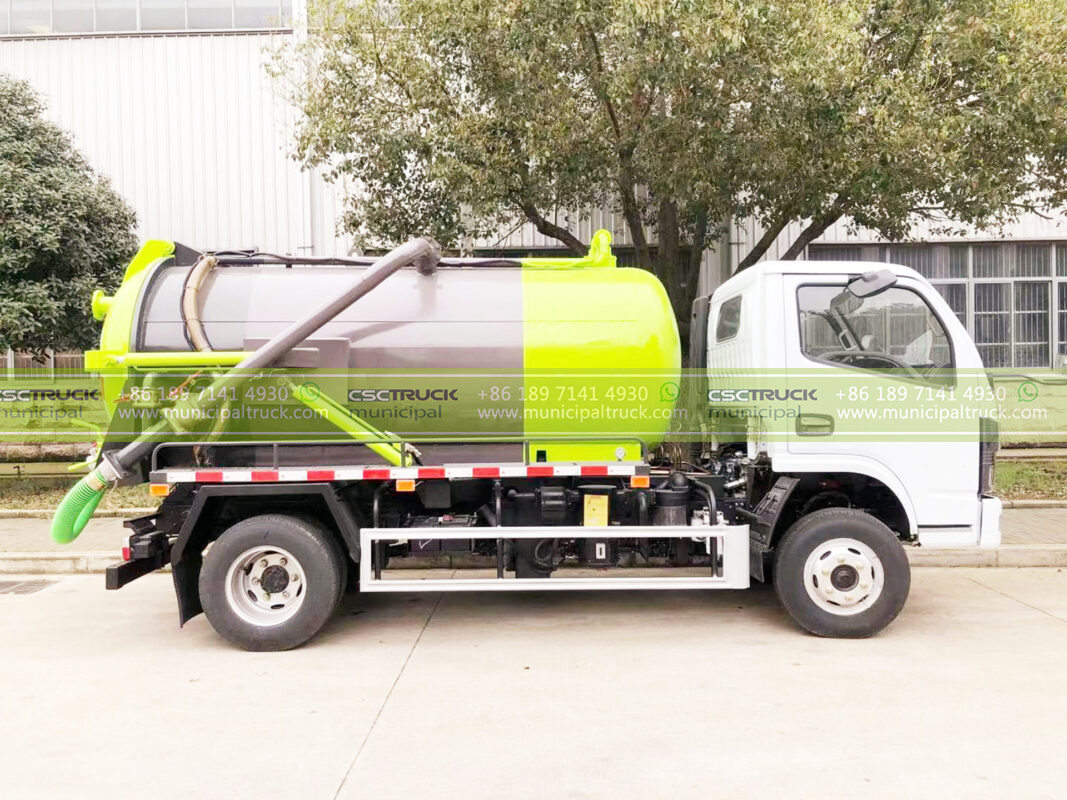

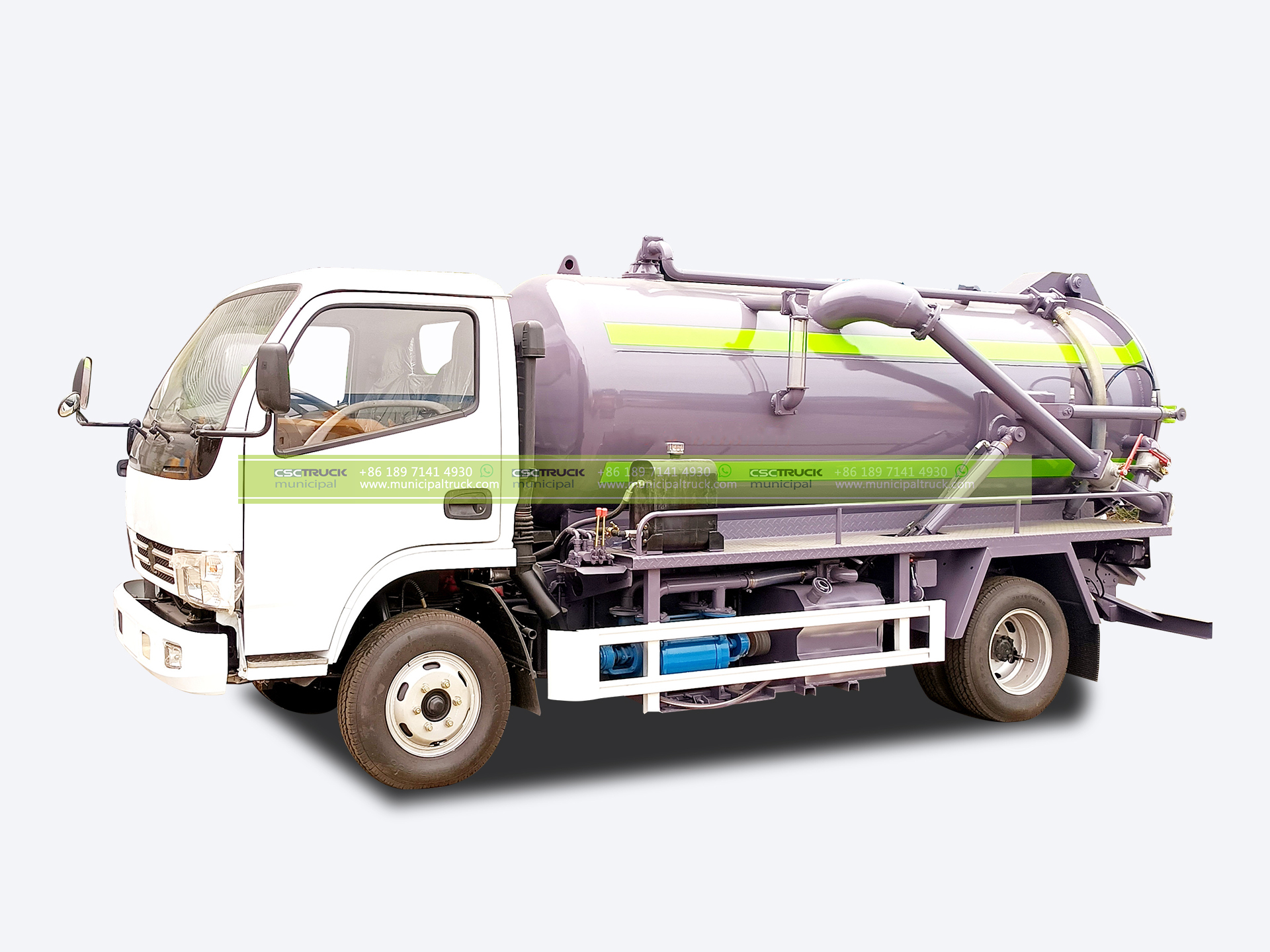

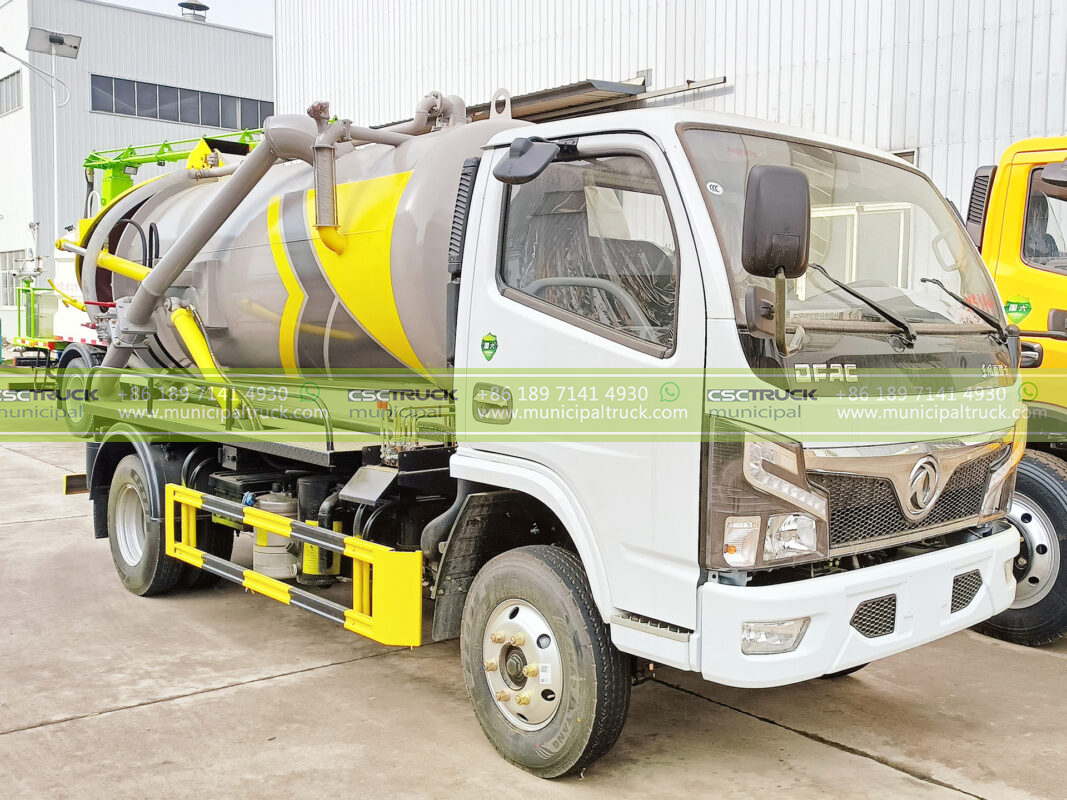

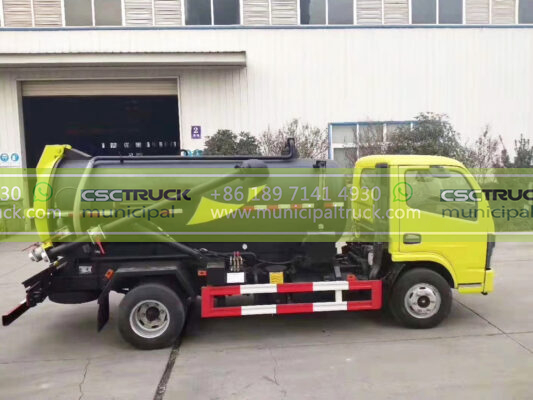

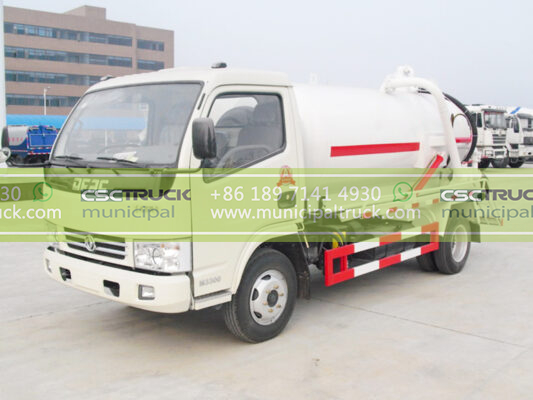

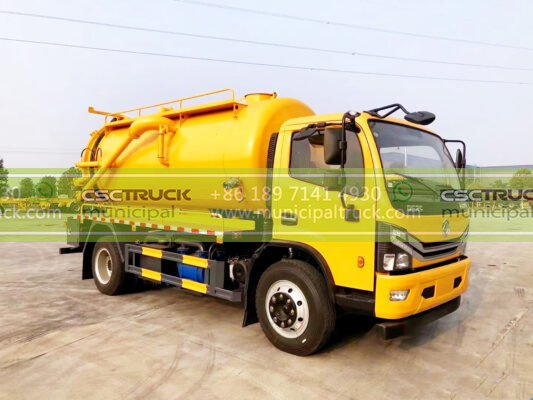

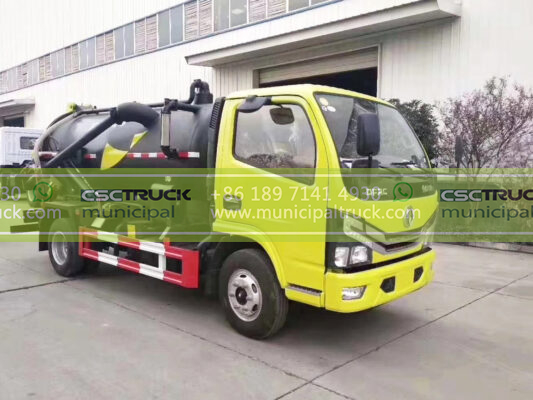

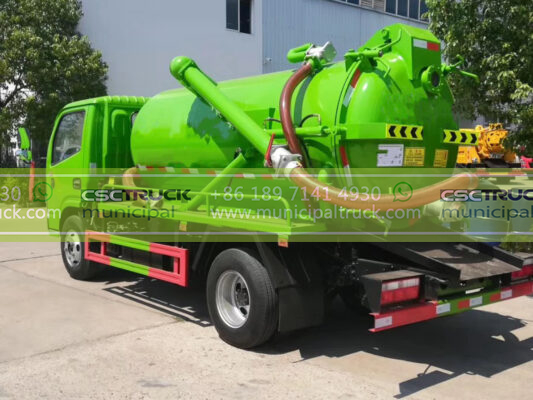

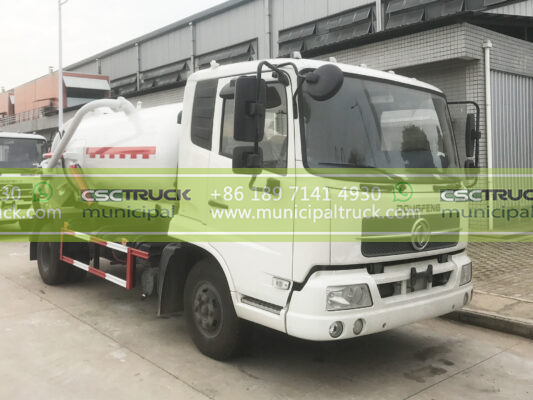

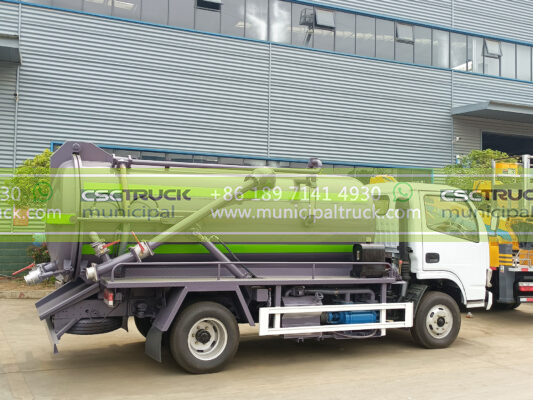

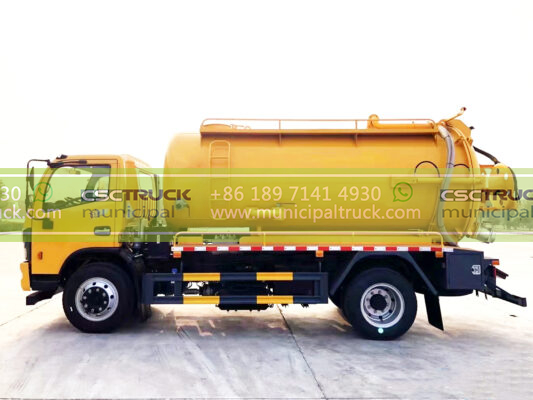

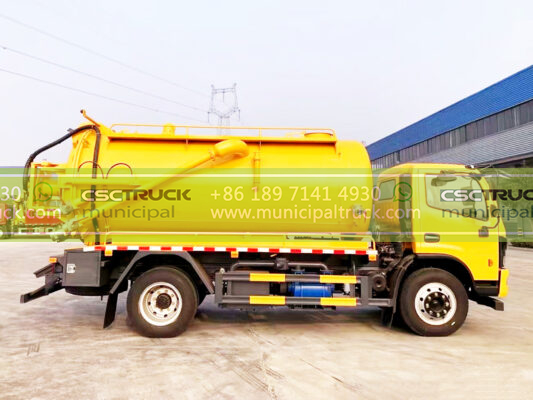

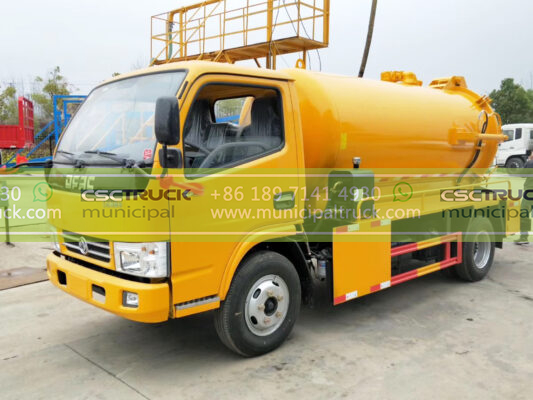

DONGFENG 8 Ton Liquid Vacuum Tanker Truck unit is mounted on a DONGFENG DFAC 4×2 Day Cab truck chassis (optional for sleeper cab). Installed with sewage pump consists of a subframe connected to the truck chassis, a cylindrical tank, a hydraulically opening full diameter tailgate, and the vacuum system powered by the PTO. Available for both Left Hand Drive and Right-Hand Drive models. The engine is 120HP, emission class in euro 3. Equipped with a 6F+1R manual transmission.
The DONGFENG 8 Ton Liquid Vacuum Tanker Truck tank capacity is 8,000 liters, and the tank is fabricated from high tensile steel thick in 5mm, anti-corrosion treatment, and coated with anti-corrosion and non-toxic water tank paint, which has good embroidery performance, and designed to suck effluents from cesspit, sewer, etc. by vacuum pump Chinese or Italy brand like JUROP, MORO for your option. The tank is tipped by two lift cylinders for discharging, easy-to-empty sludge,

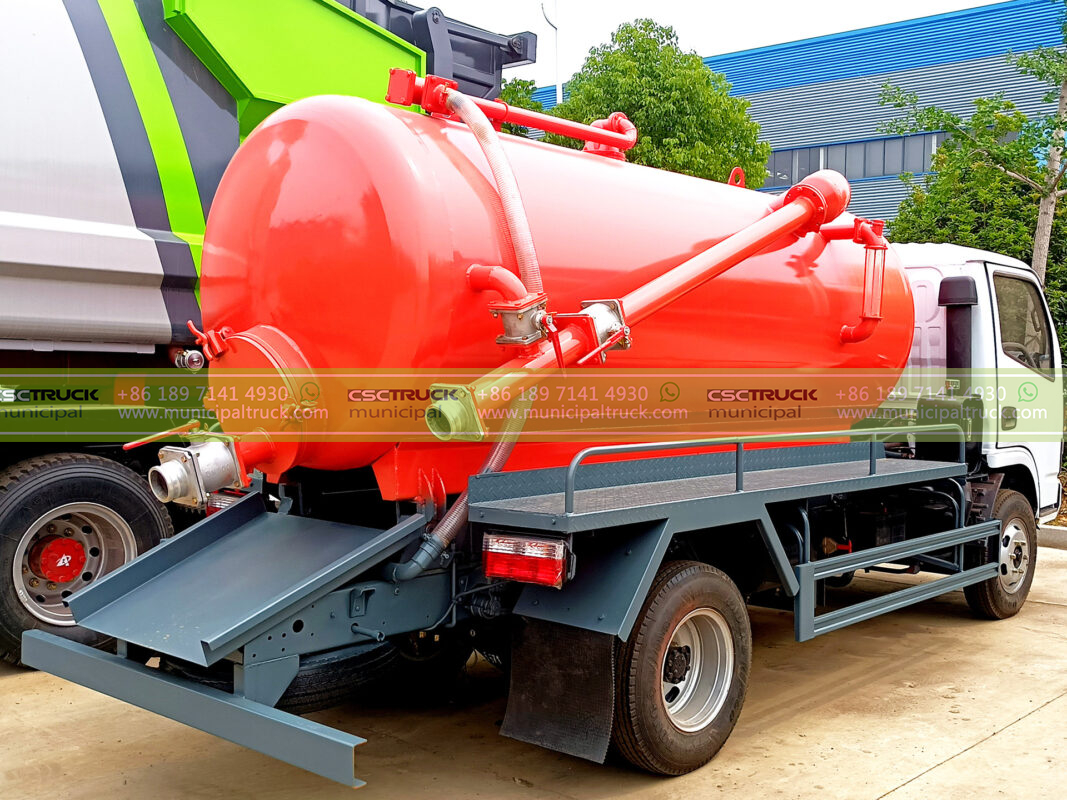

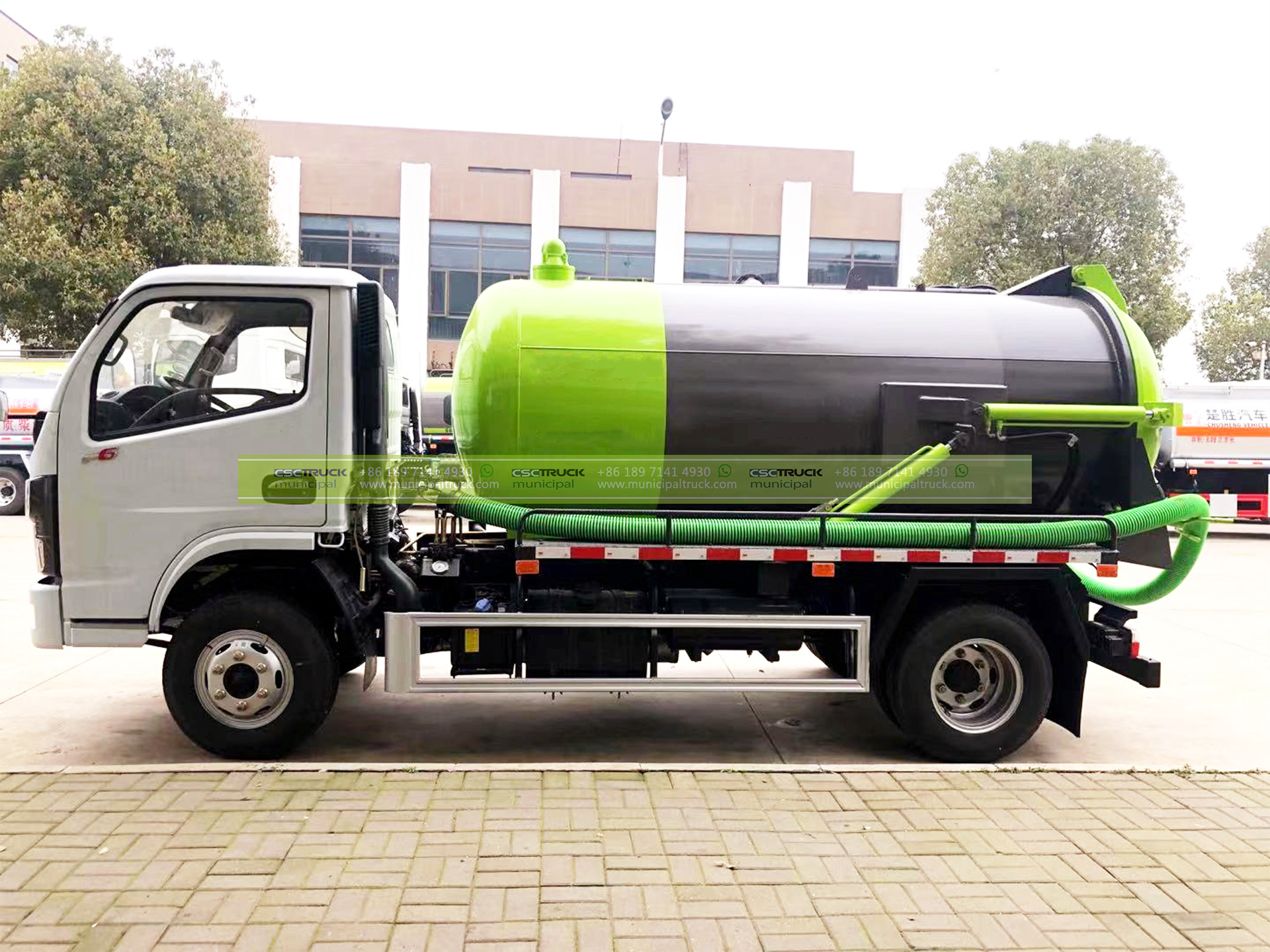

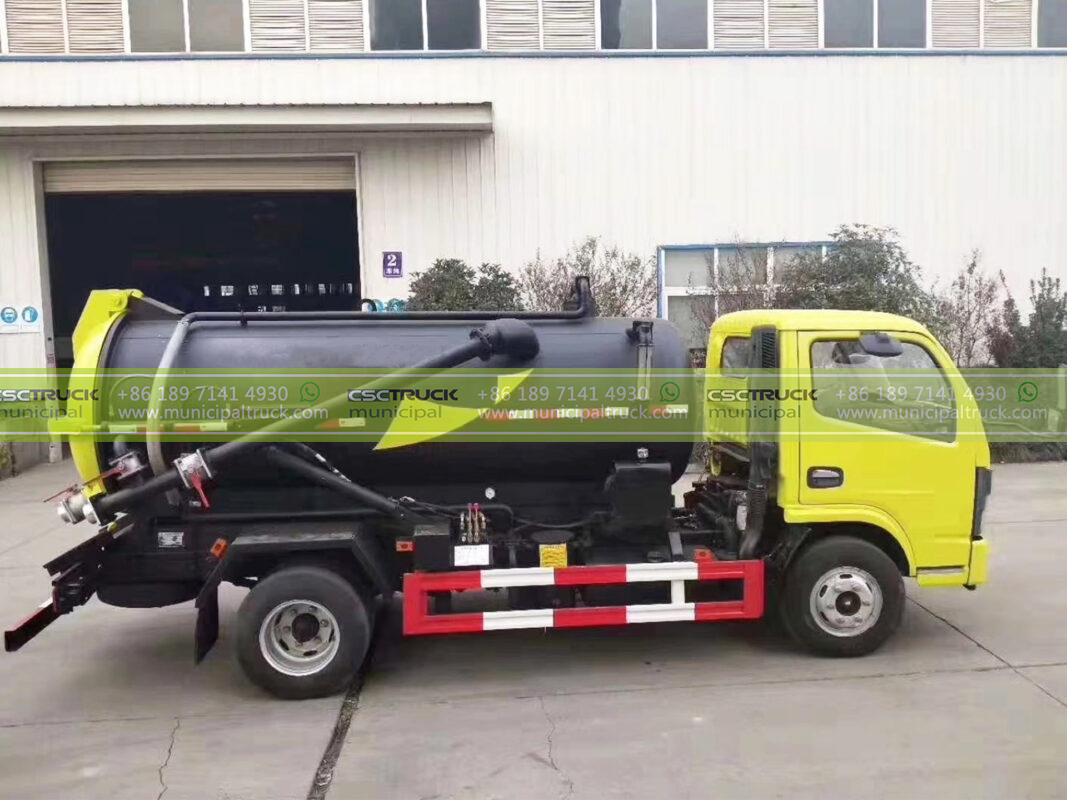

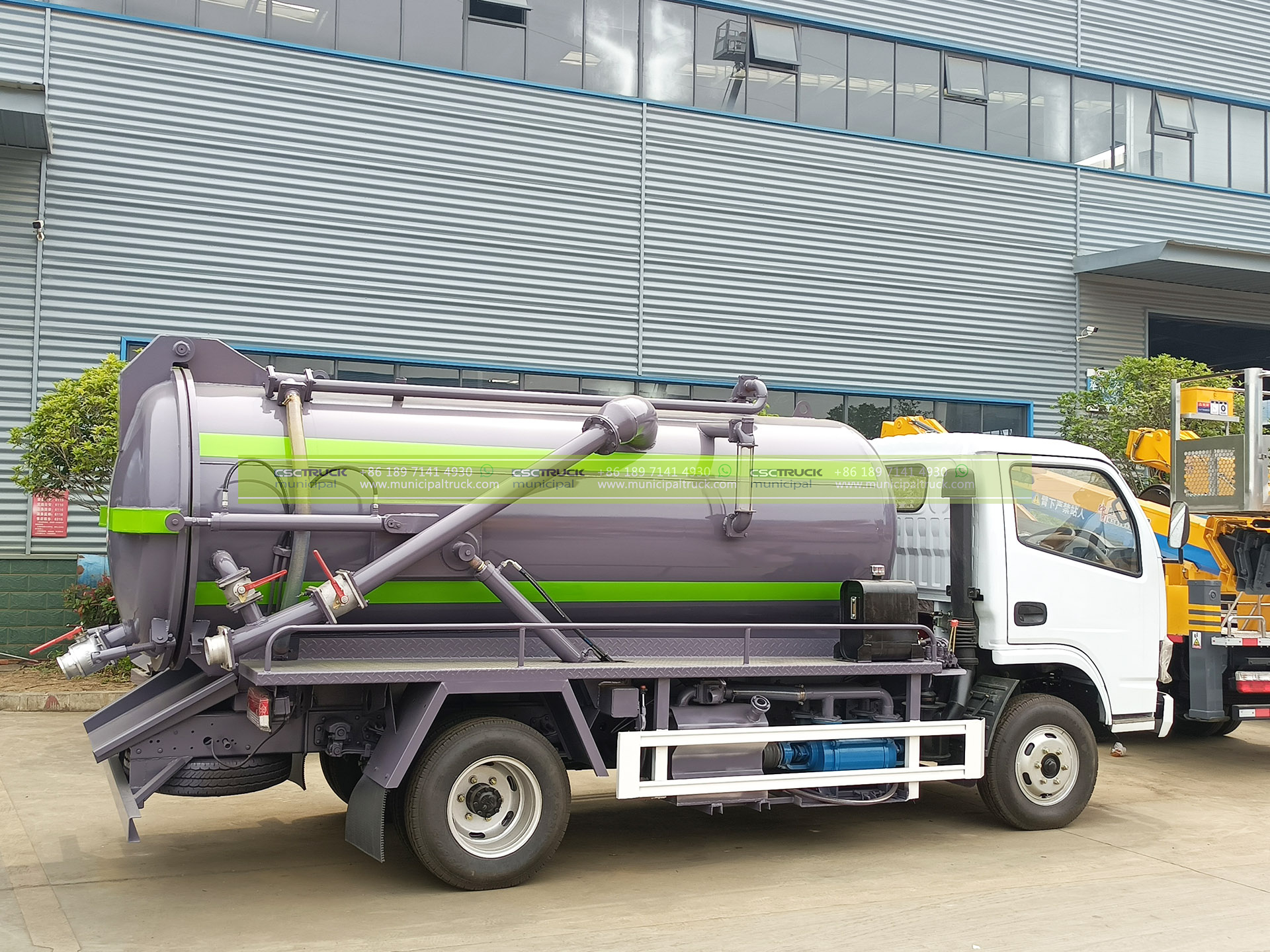

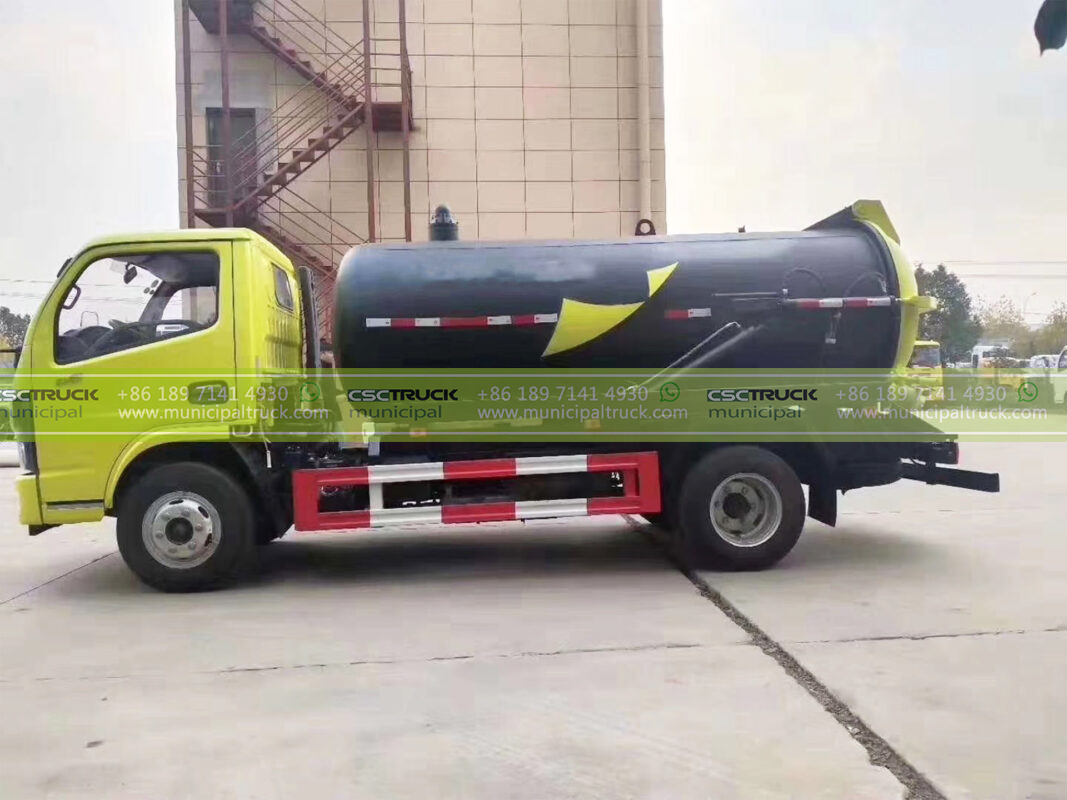

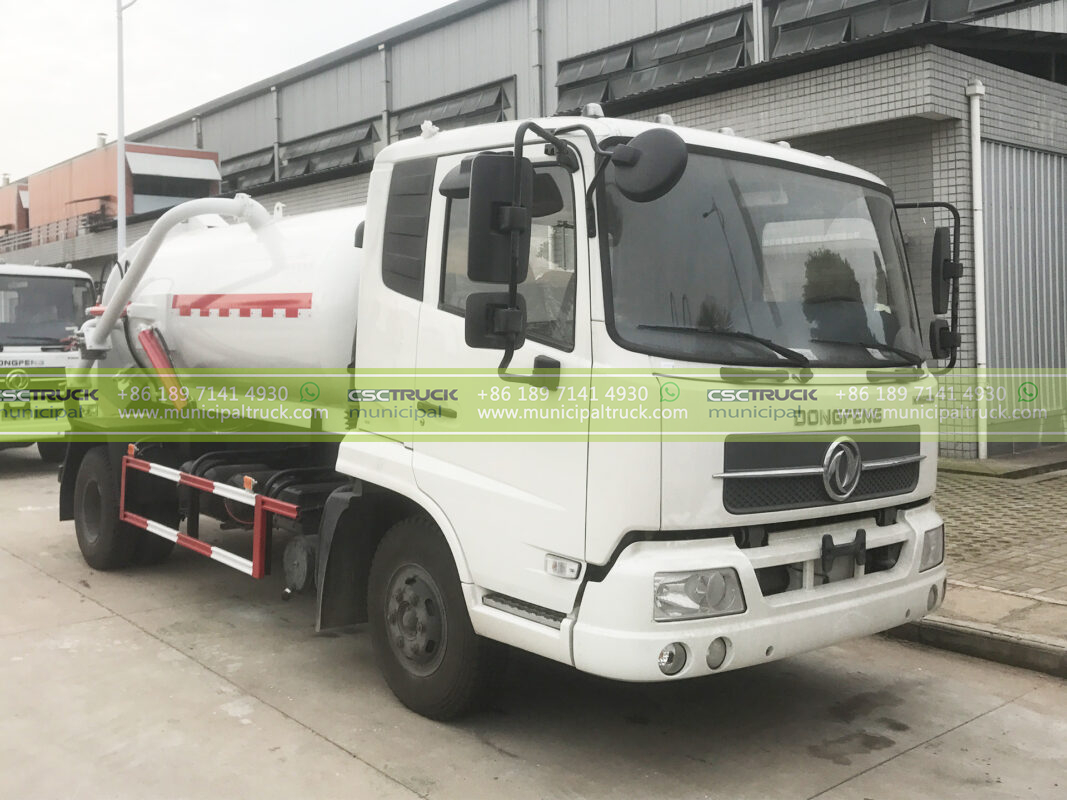

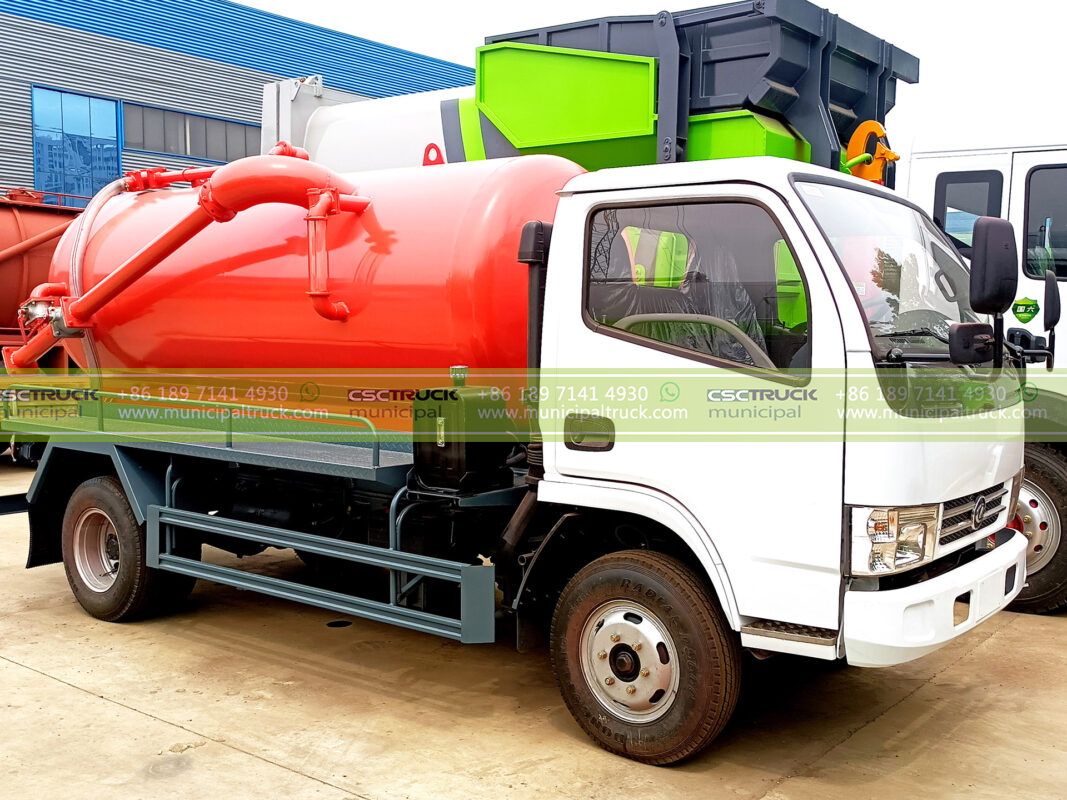

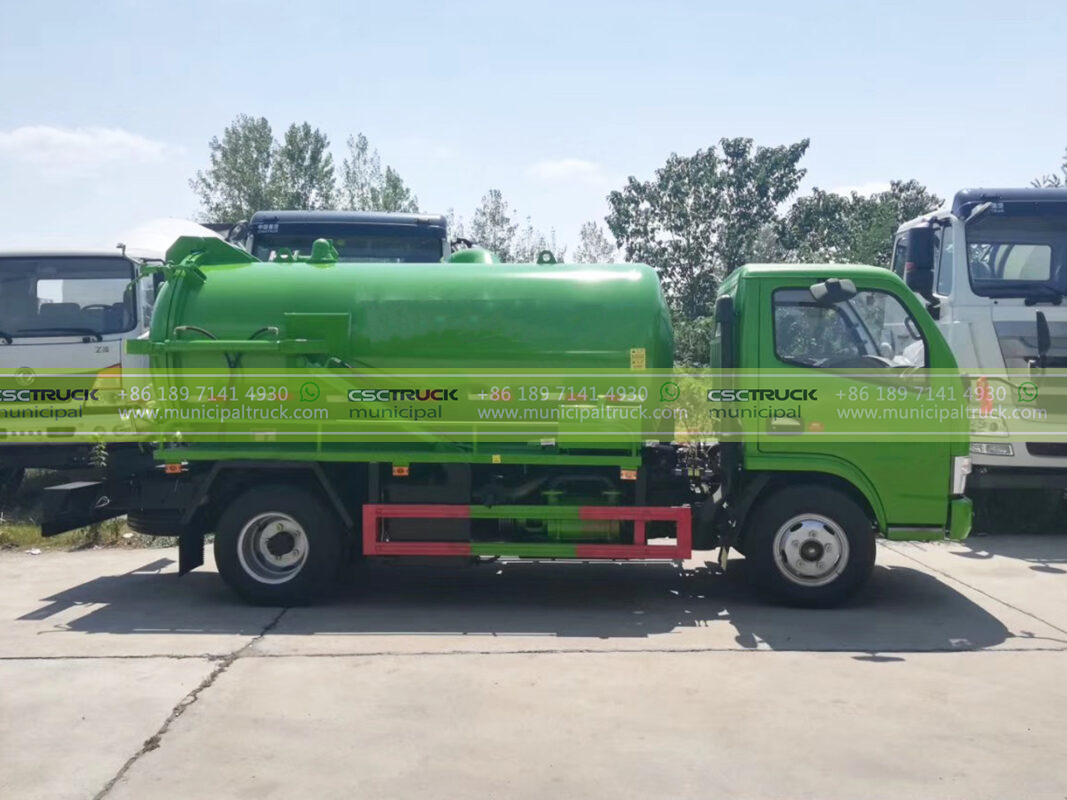

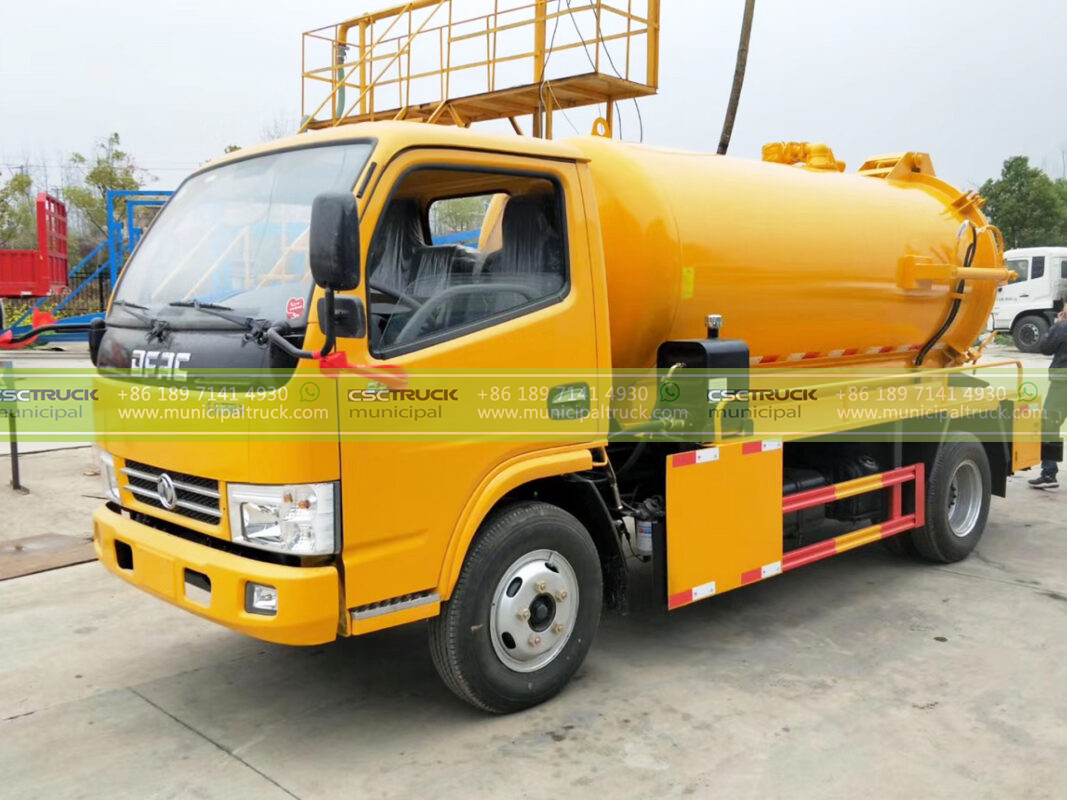

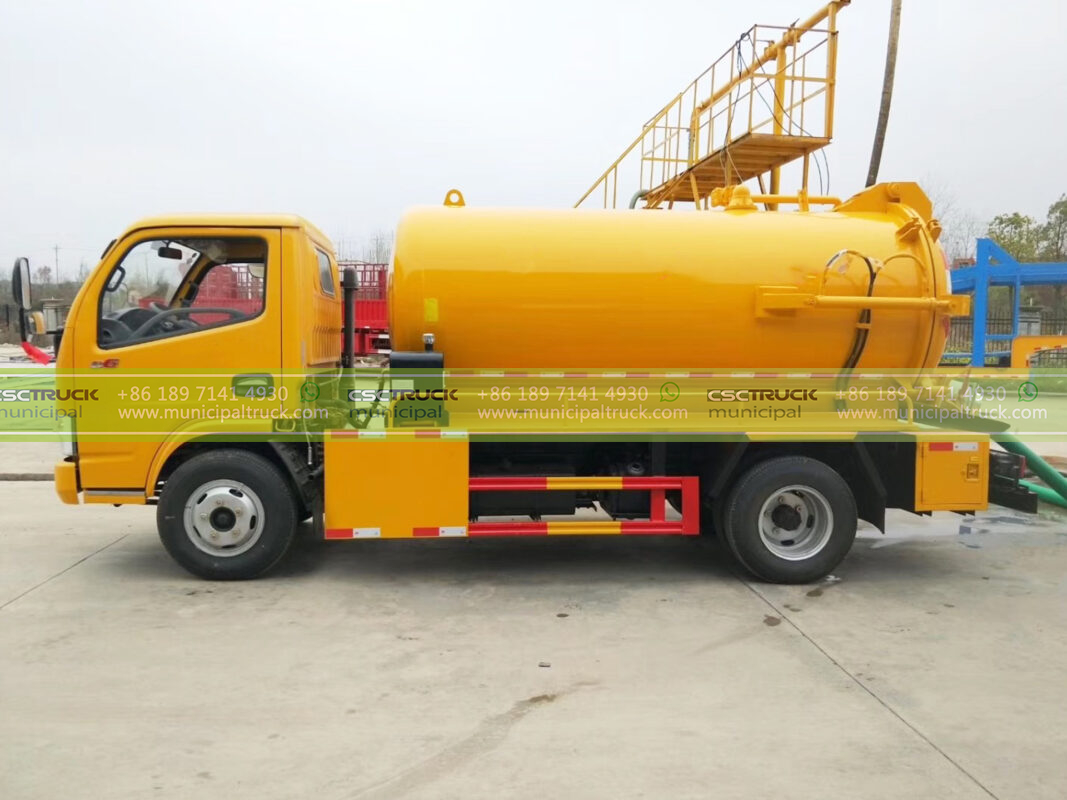

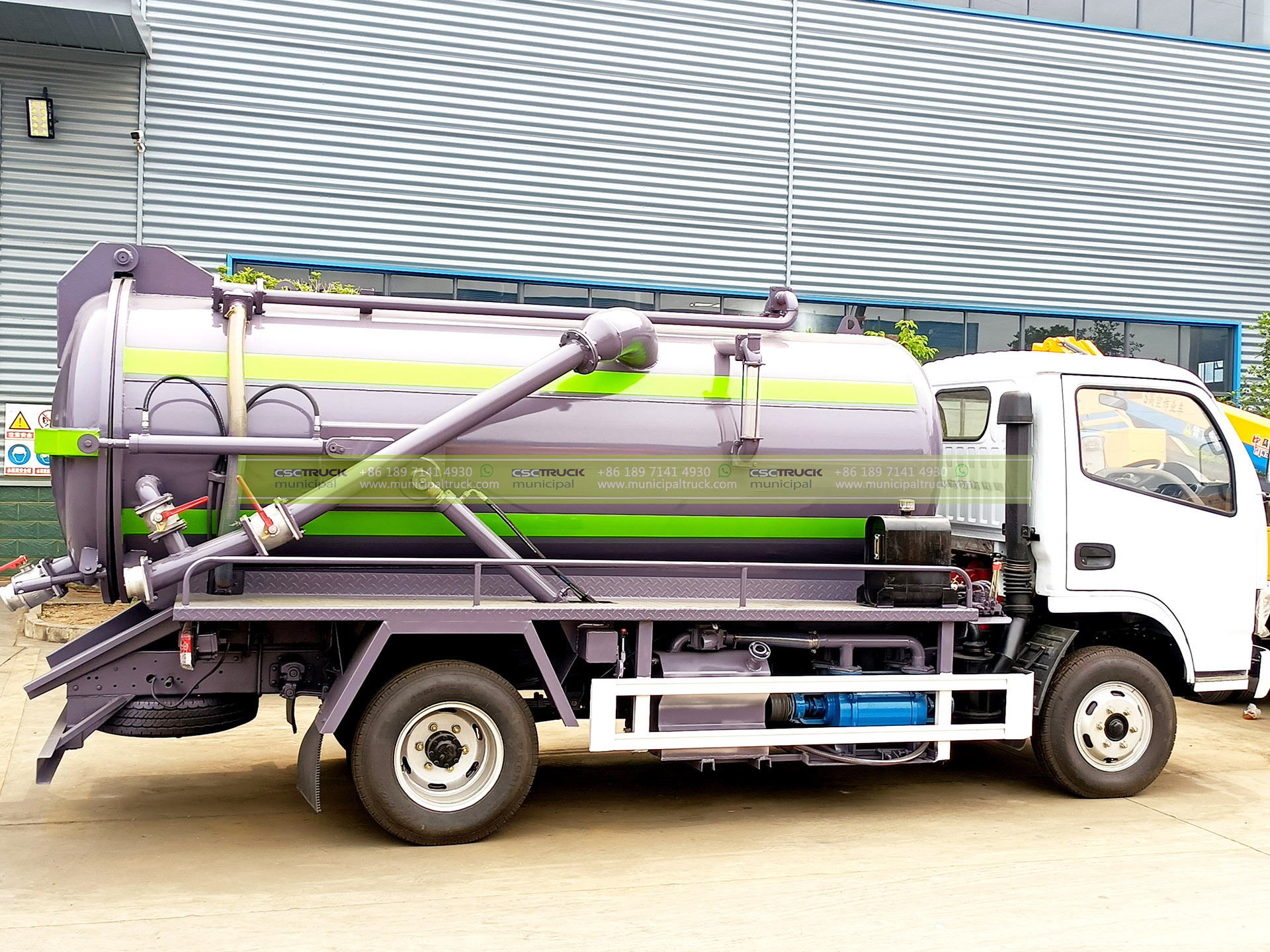

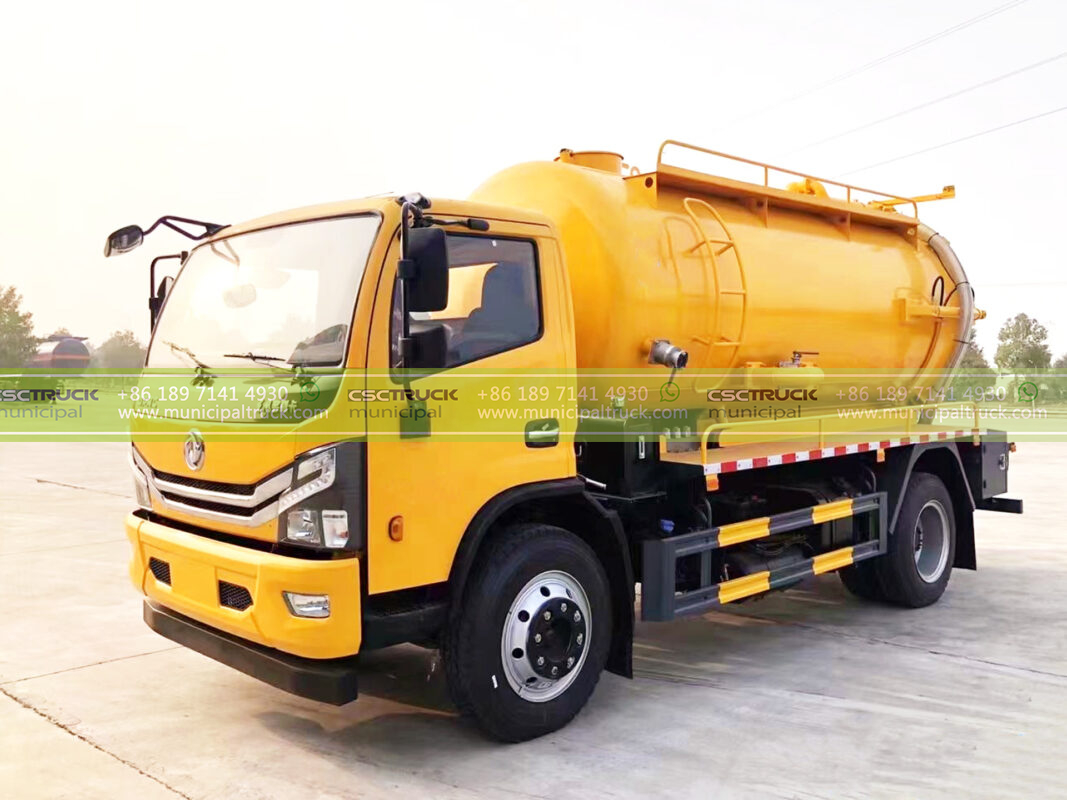

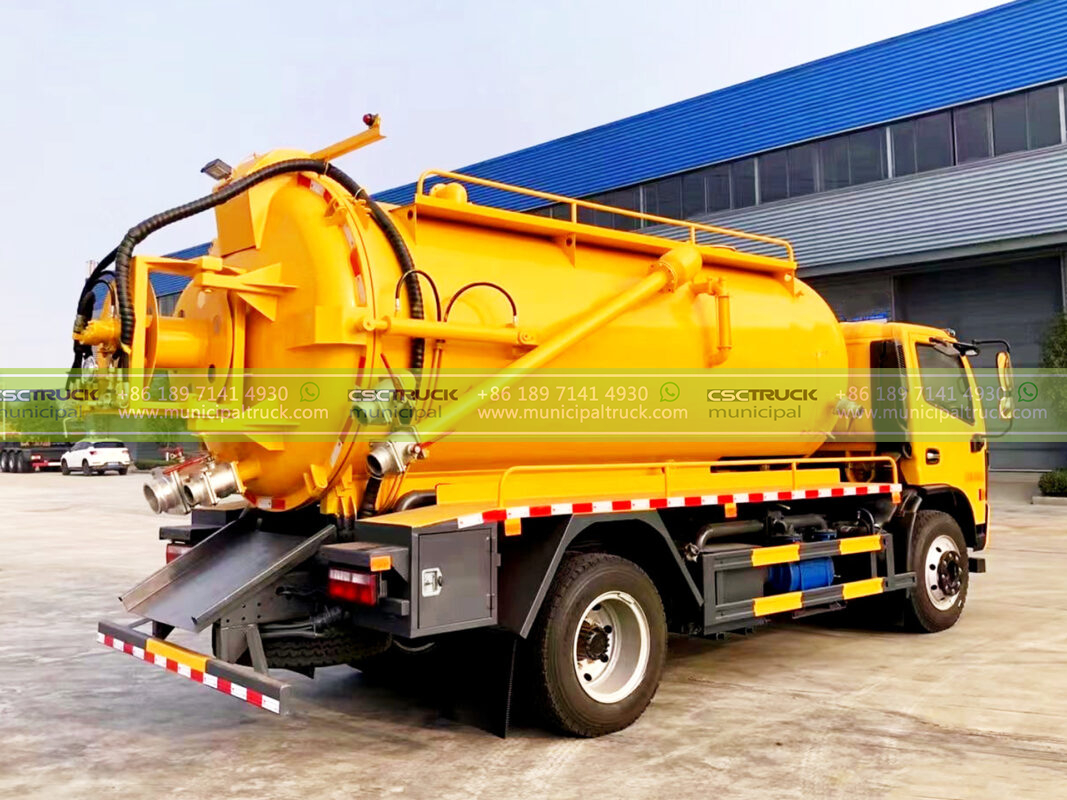

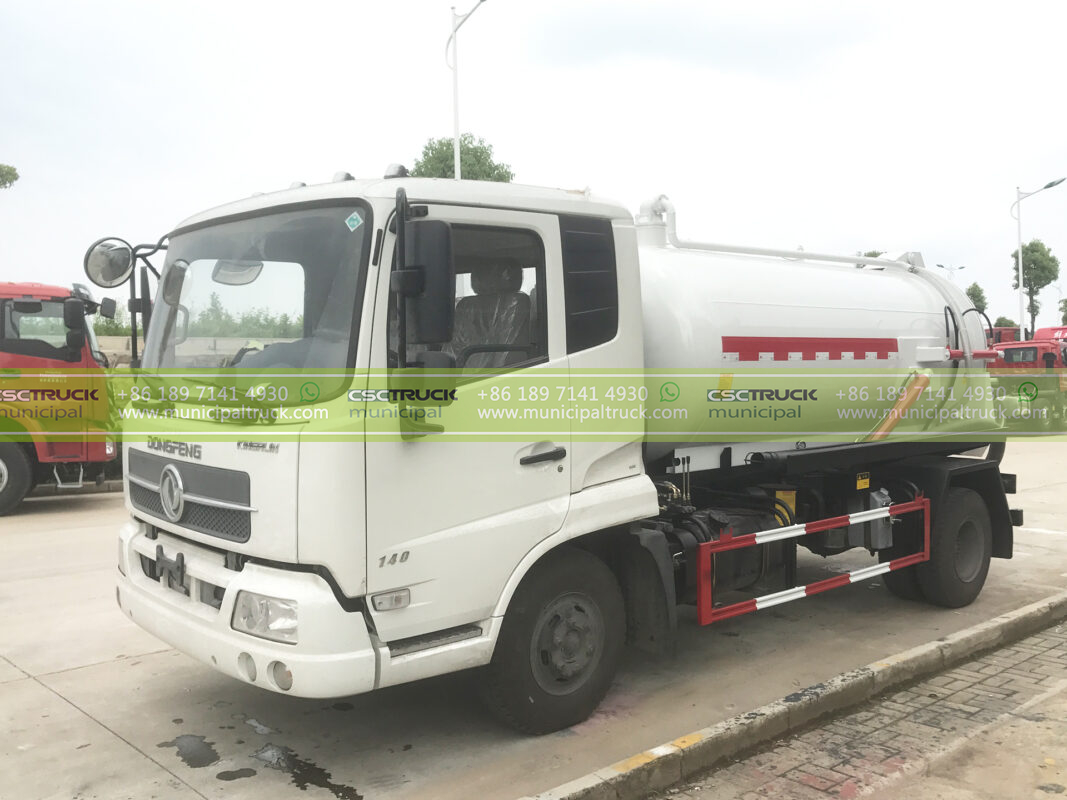

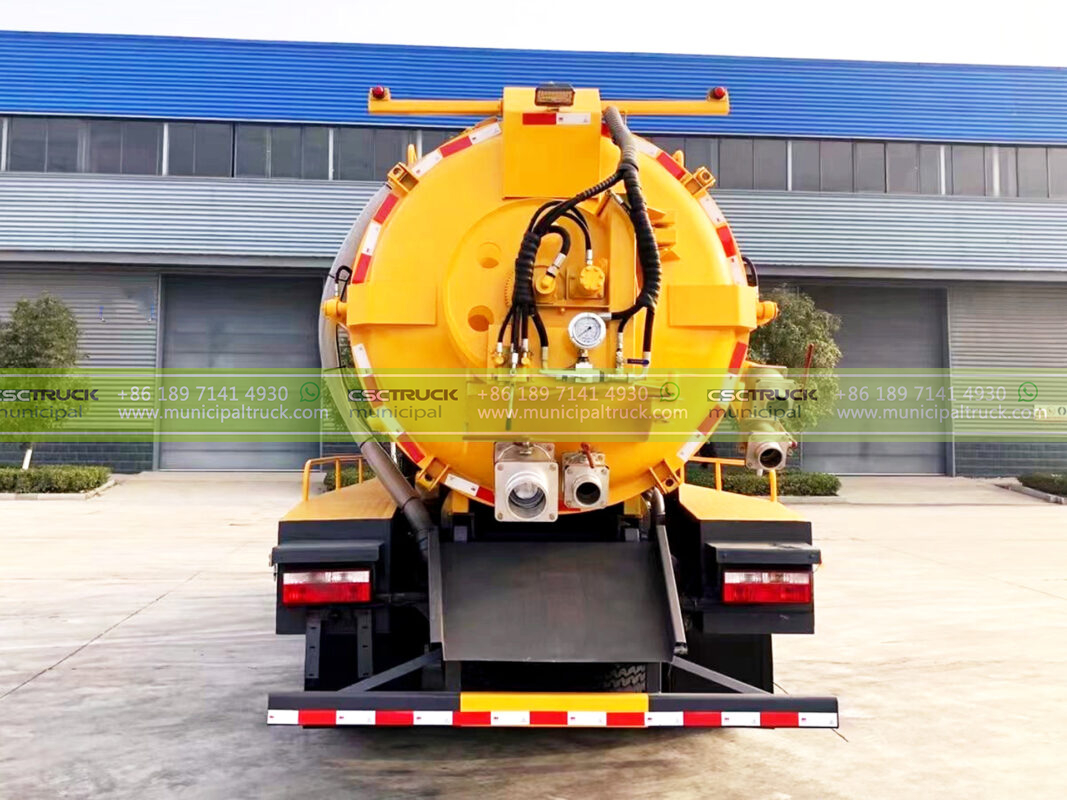

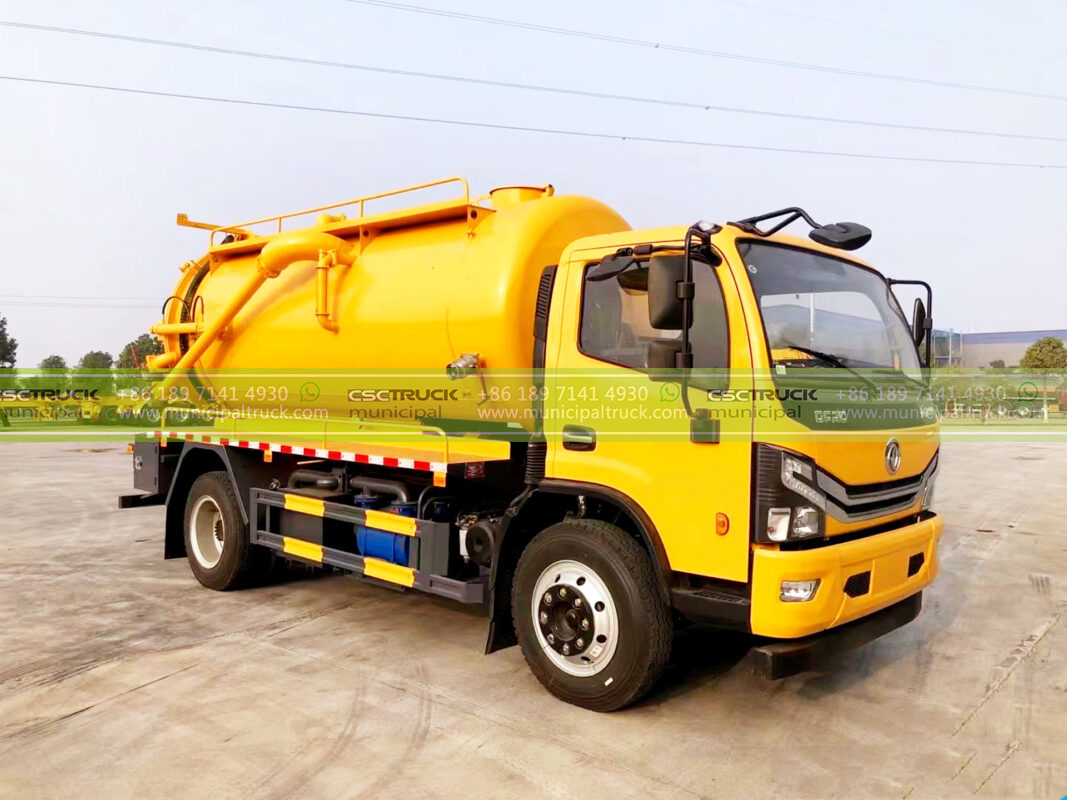

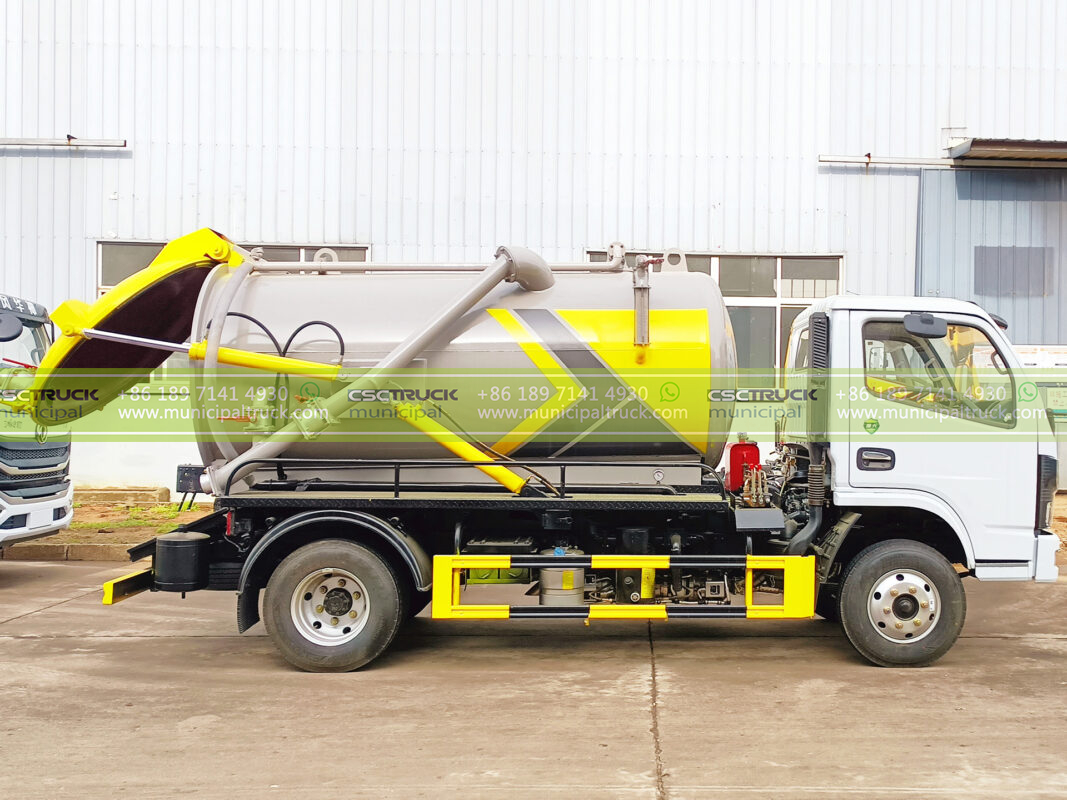

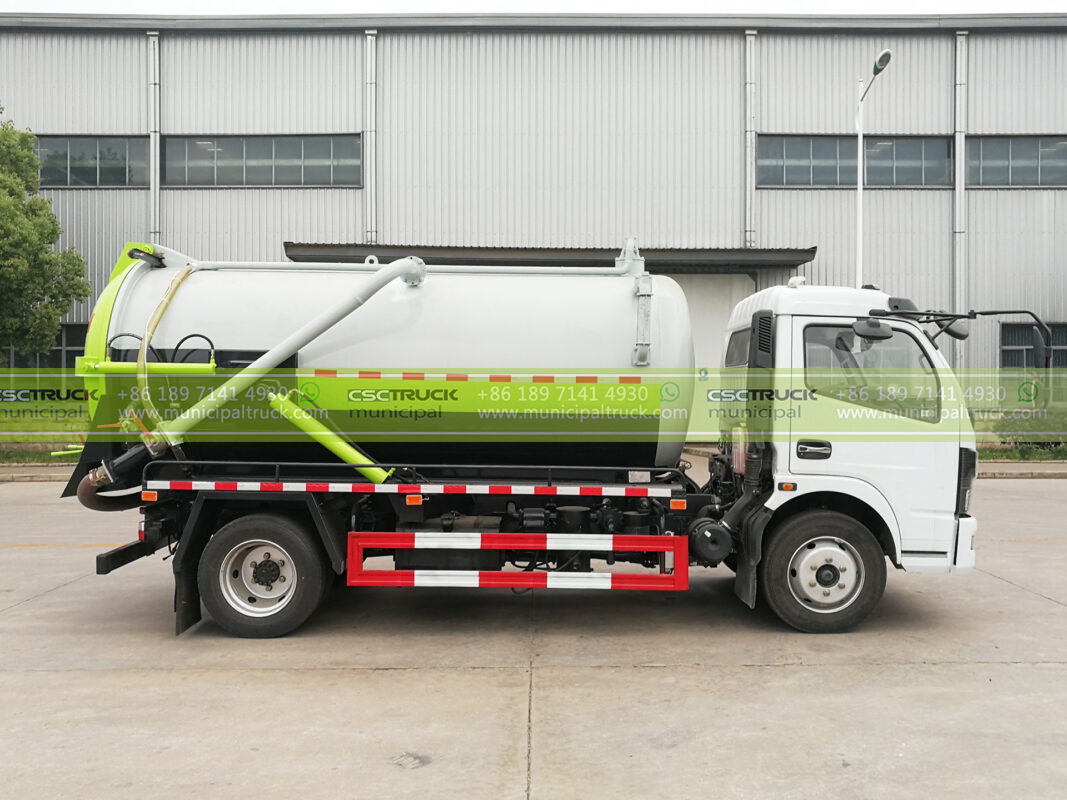

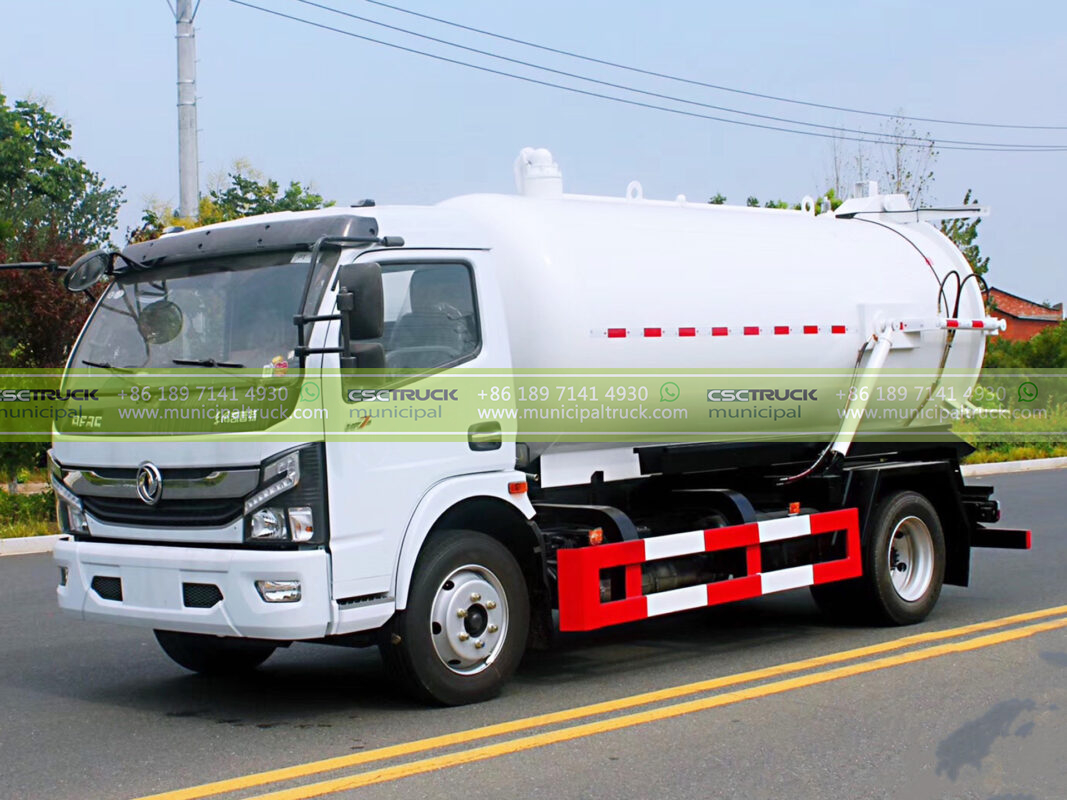

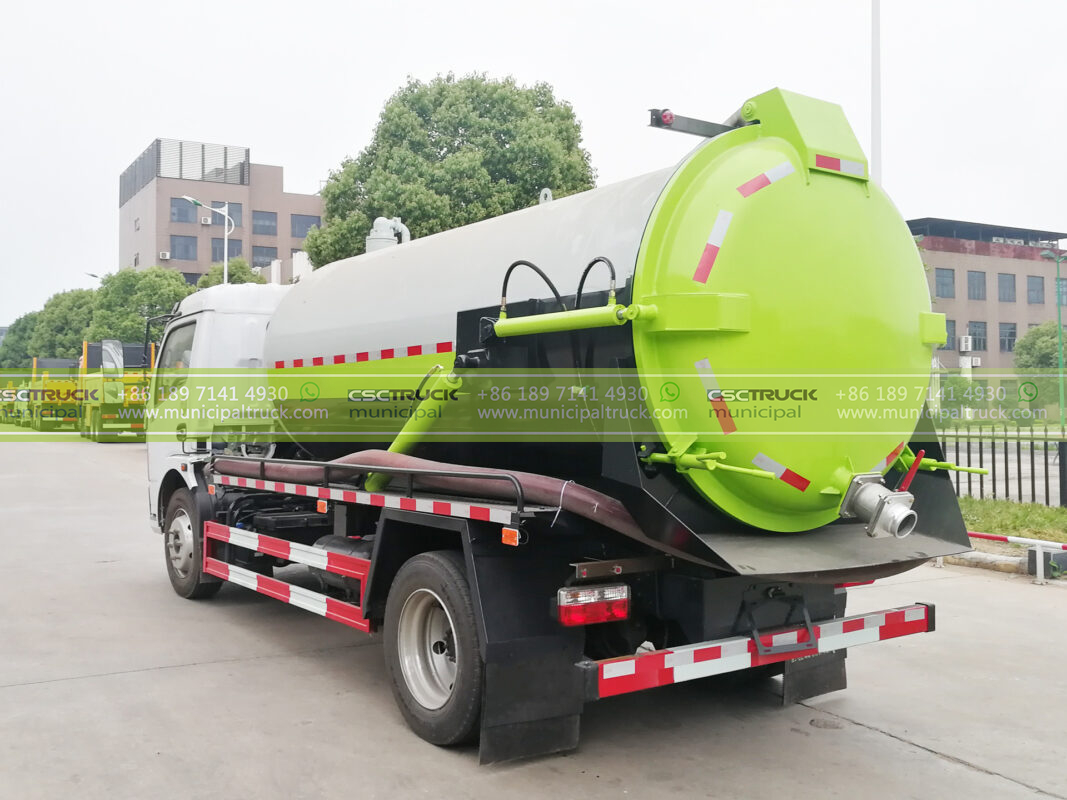

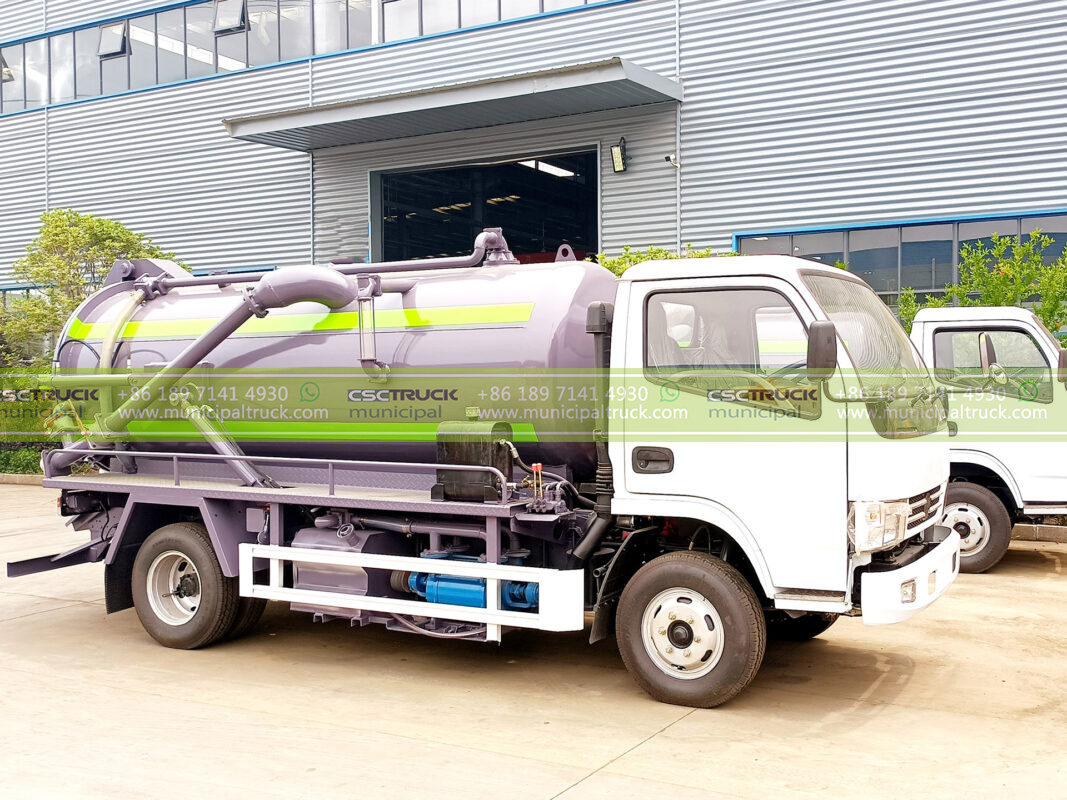

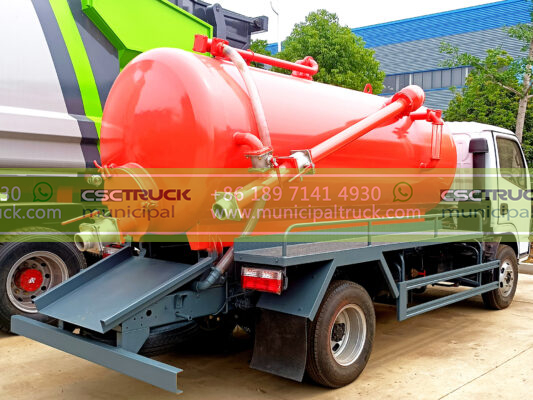

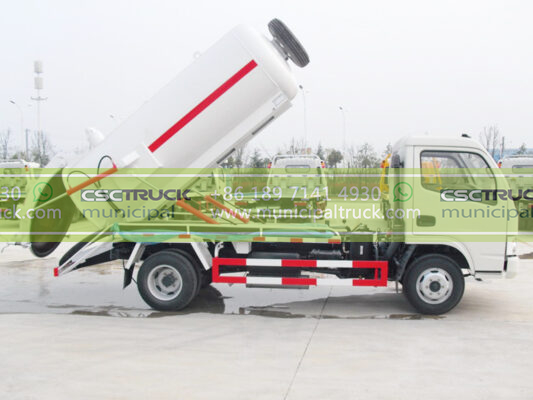

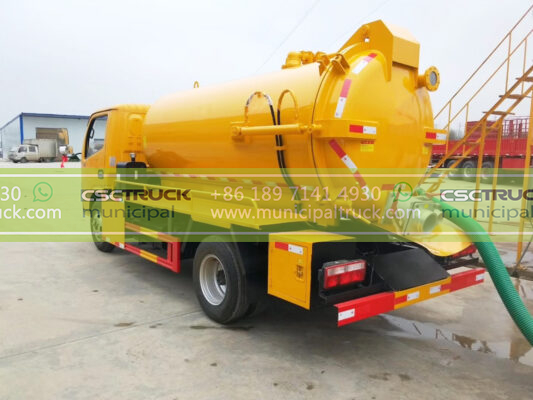

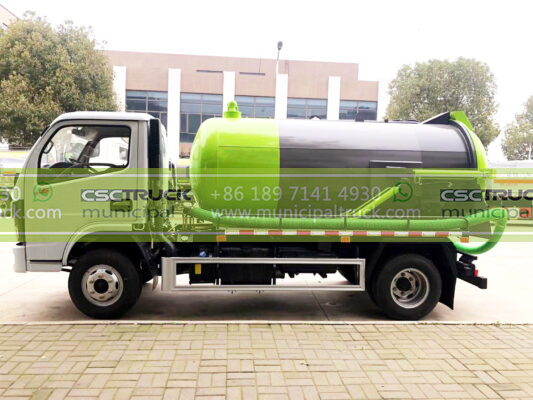

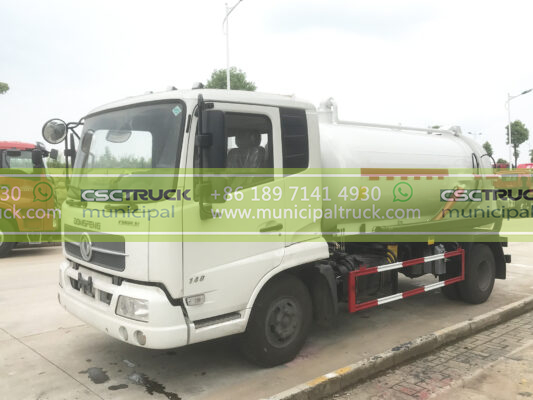

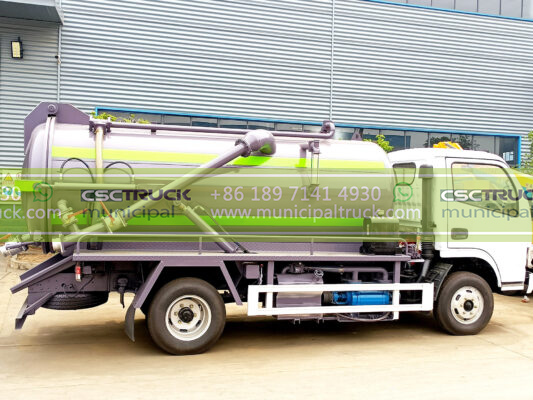

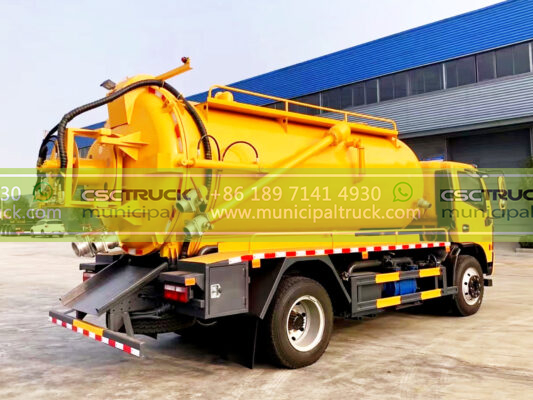

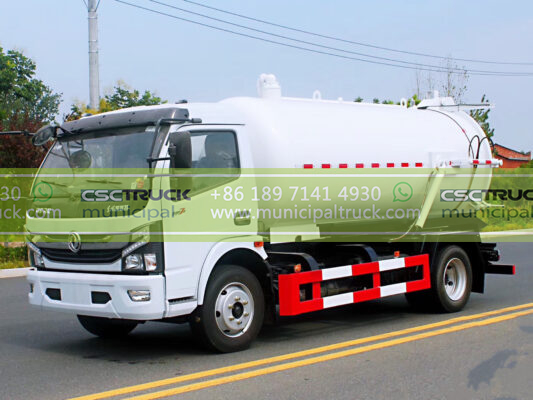

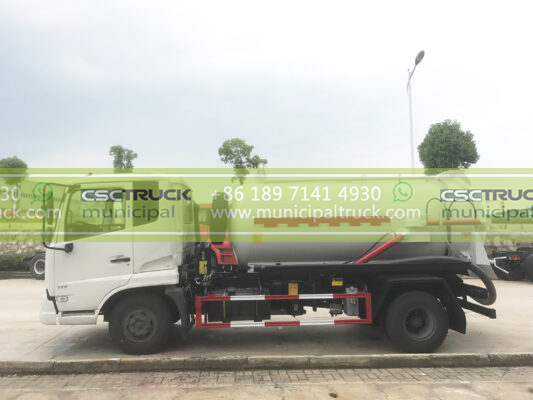

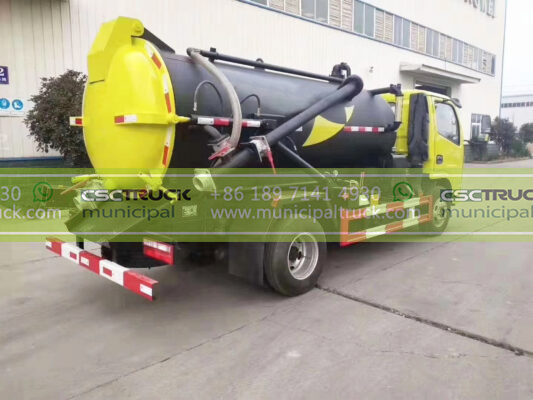

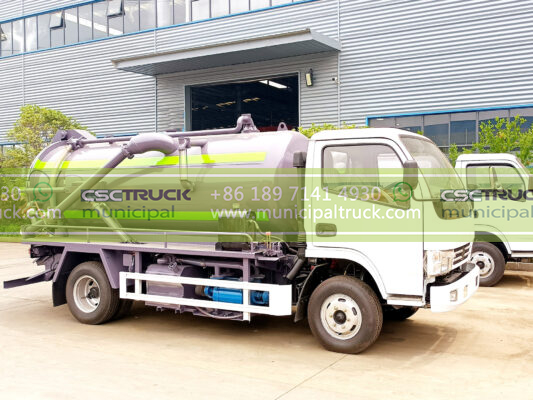

Gallery
See this Truck Video on Youtube
features
Chassis Truck
The 2,315 cab has the largest width among vehicles in the same class.
Double Angle Door

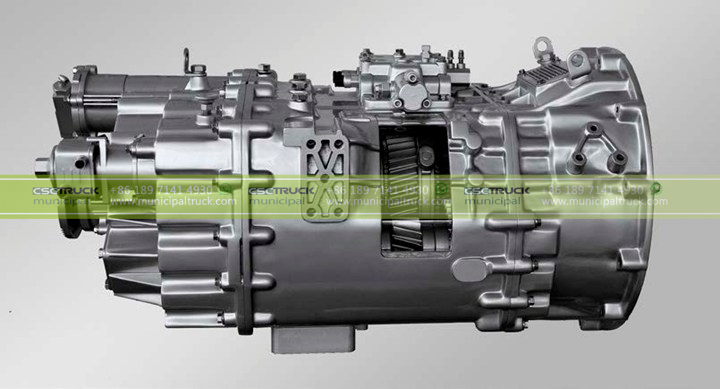

Gearbox
Six-speed transmission with a double-cone synchronizer. There is also a FAST eight-speed transmission option to make gear shifting smoother and more convenient.
LINEUP Different but professional model design satisfies different requirements for individuality.

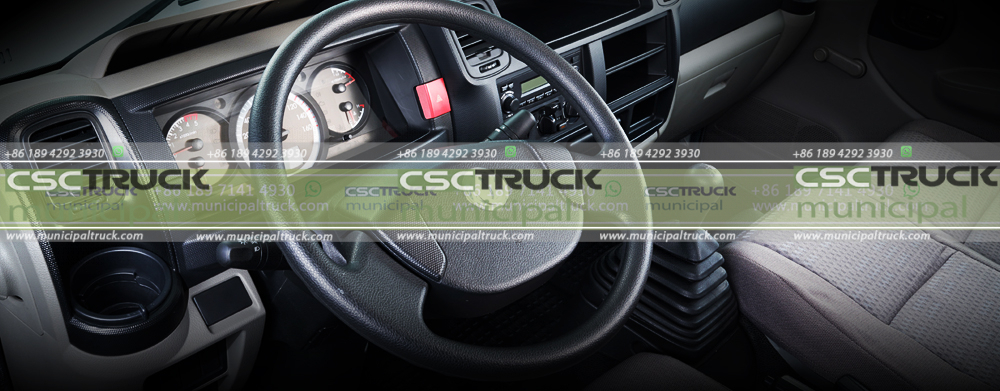

Luxurious interior trimmings for comfier driving and riding.
Comfy Driving and Riding
Safe & Reliable
High-Quality Steel Reinforced Chassis
Efficient and Safe Steering System
Reliability and Safety
The complete vehicle has undergone reliability testing of 120,000 kilometers in total, and the engine has been put through bench testing for nearly 1,000 hours, guaranteeing the product’s safety and reliability.
The blind spot mirror and front view mirror, a better field of view and enhanced driving safety.
Dynamics Engine
The world-class Cummins ISD engine enables you to make a free choice horsepower for high efficiency, fuel economy and strong dynamics.
Active and Passive Safety System
Control Convenience
Hydraulic tilting technology ensures convenient, safe, and reliable titling, the one-button control over the central locking and power window brings you more convenience.
Body Unit

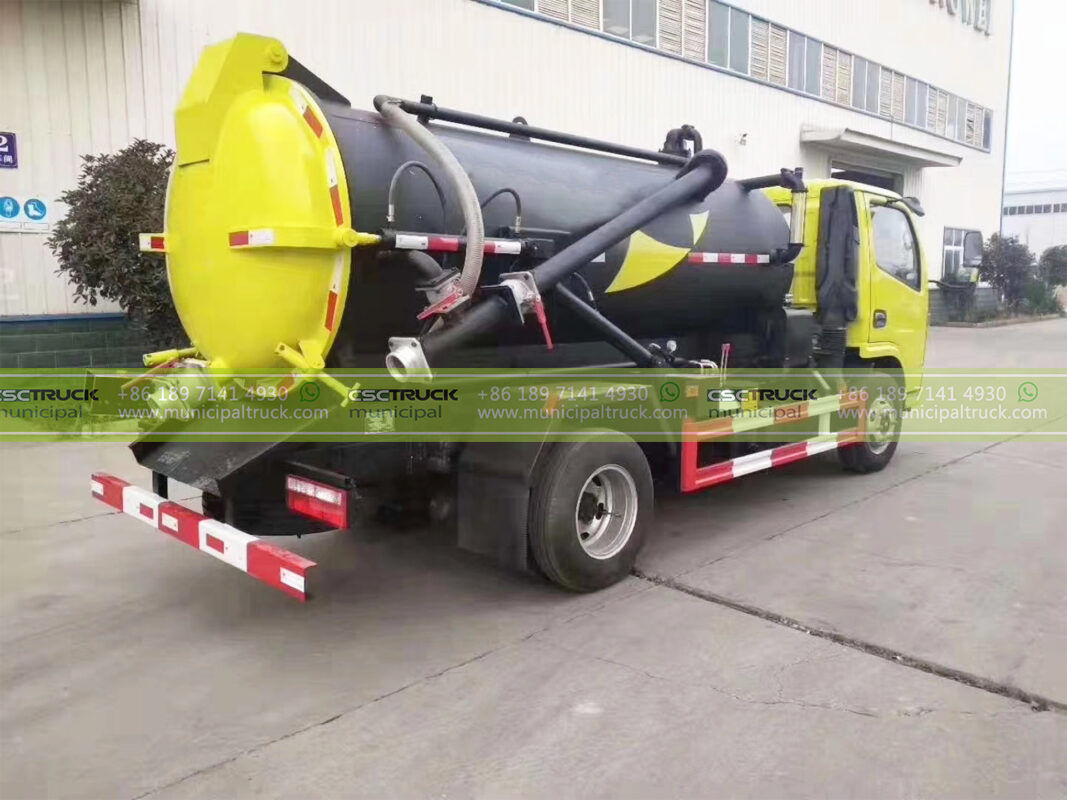

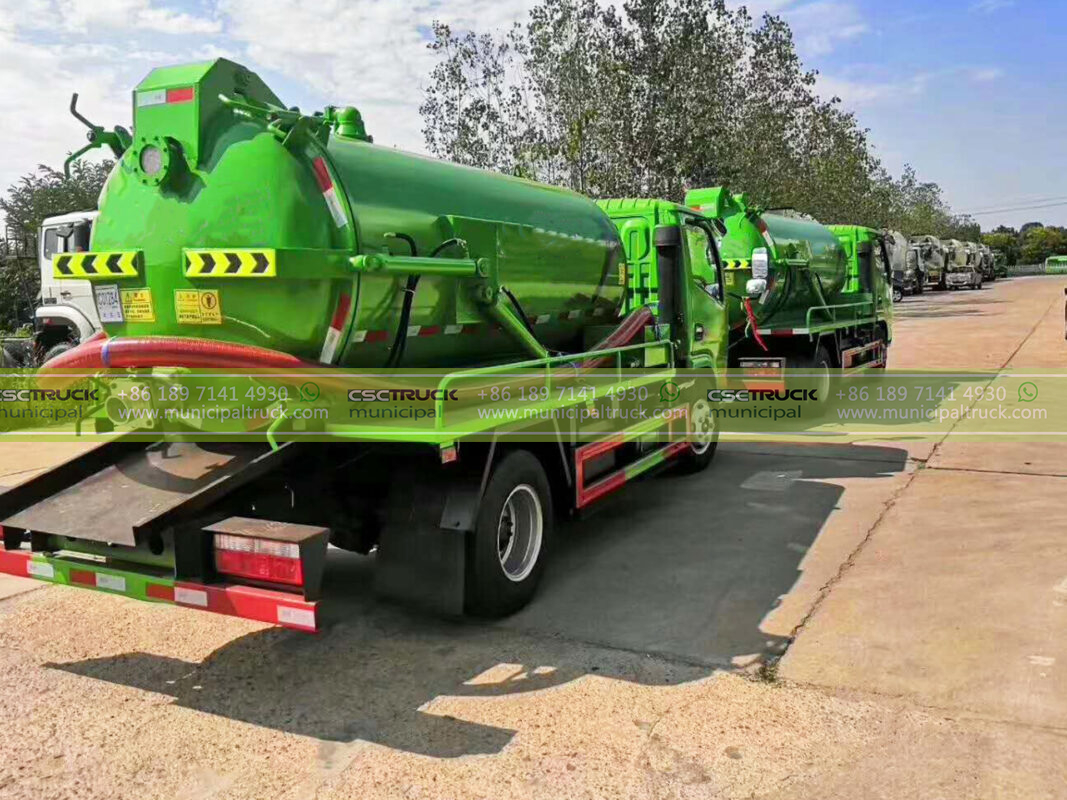

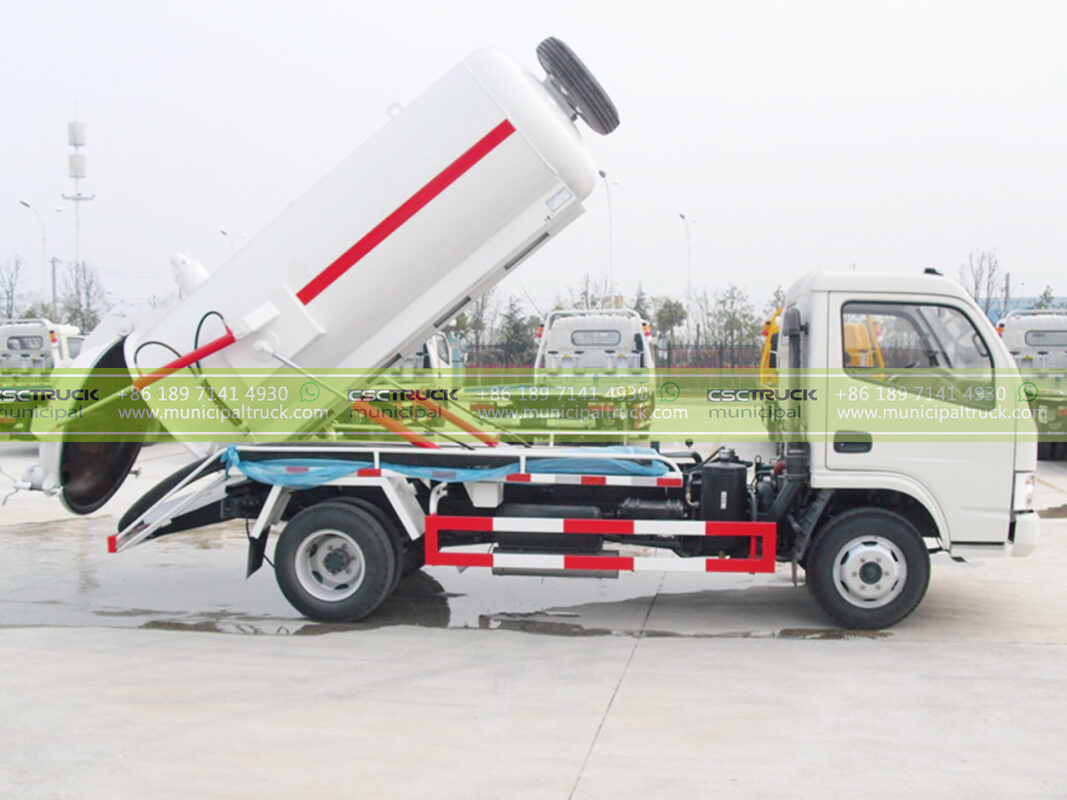

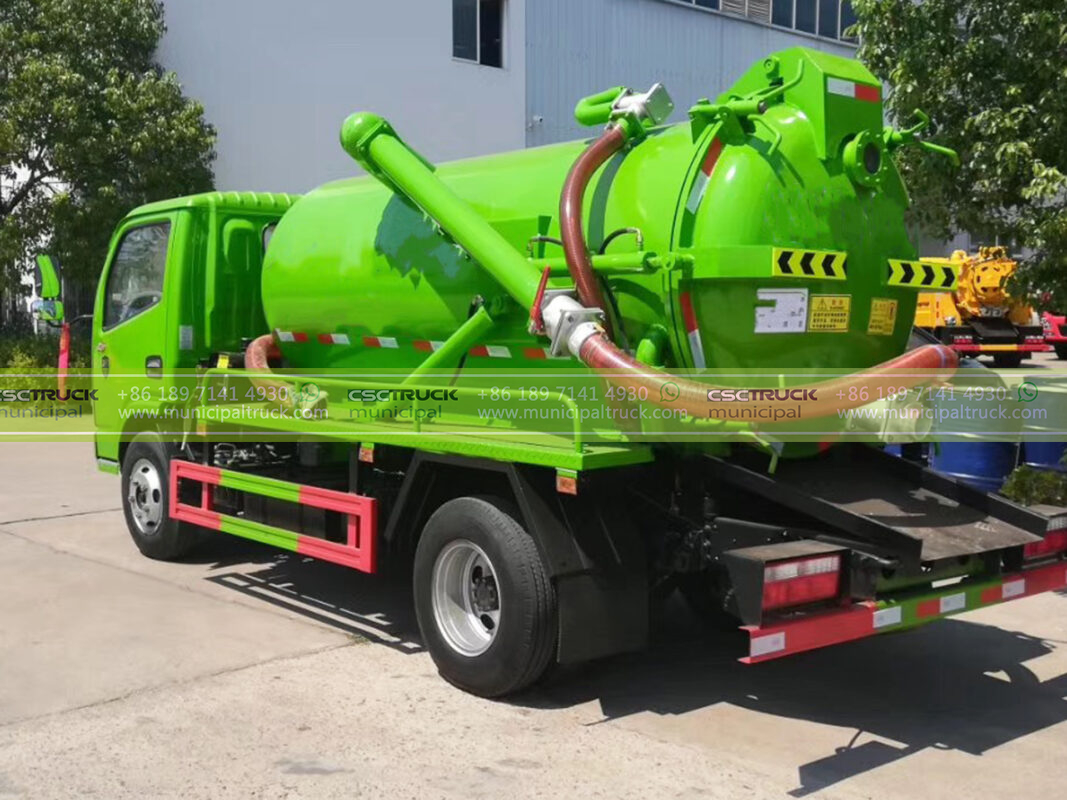

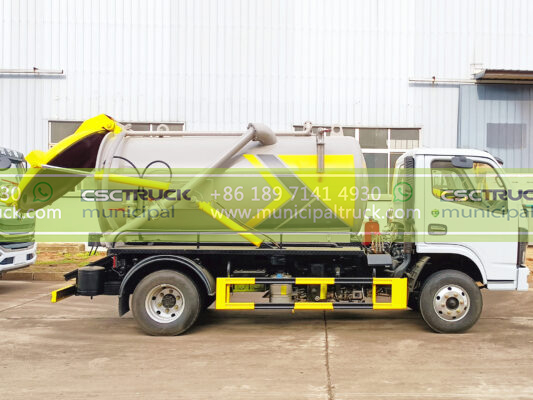

REAR – Tipping Tank
Cylindrical shape, Q235 mild steel, shell 6mm, rear lib 6mm, inner baffles 4mm, double cylinders rear lifting.
Vacuum Pump
Full range of pumps available, from 150m³/h to 2500m³/h. Pump types include rotary vane, oil-free, air-cooled, water-cooled, and liquid ring. Multiple pumps can be fitted for specific applications. The vacuum system is designed to minimize pumping losses regardless of pump type.

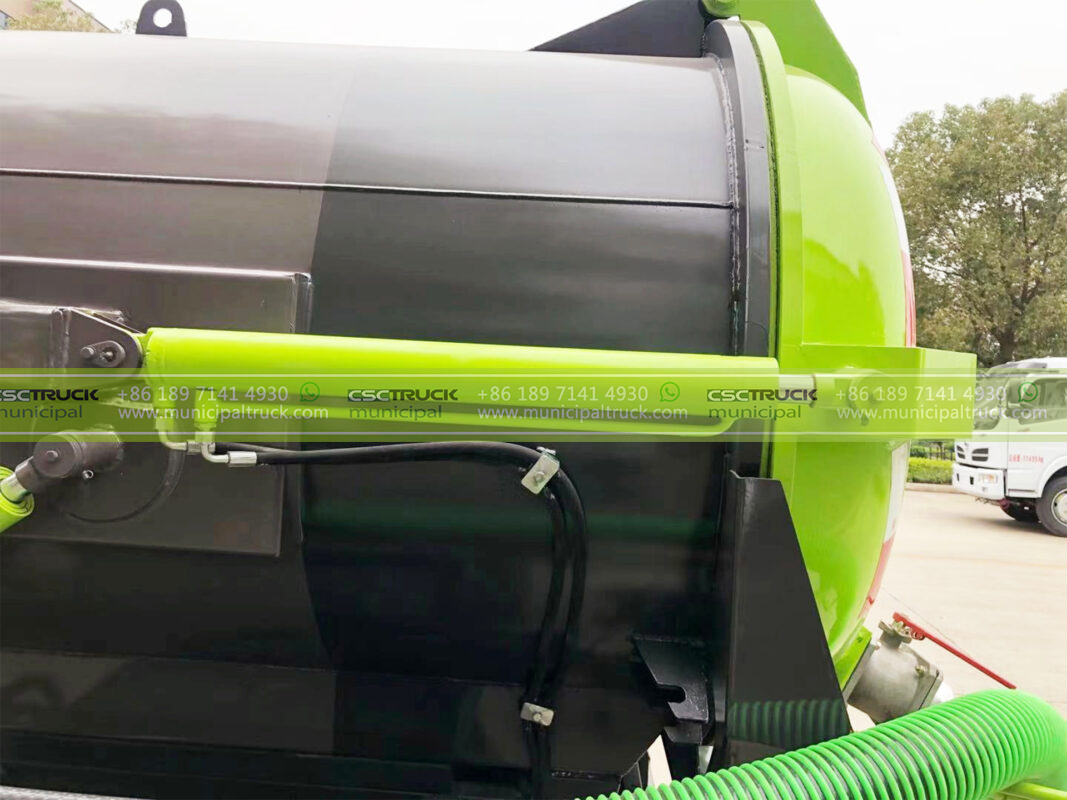

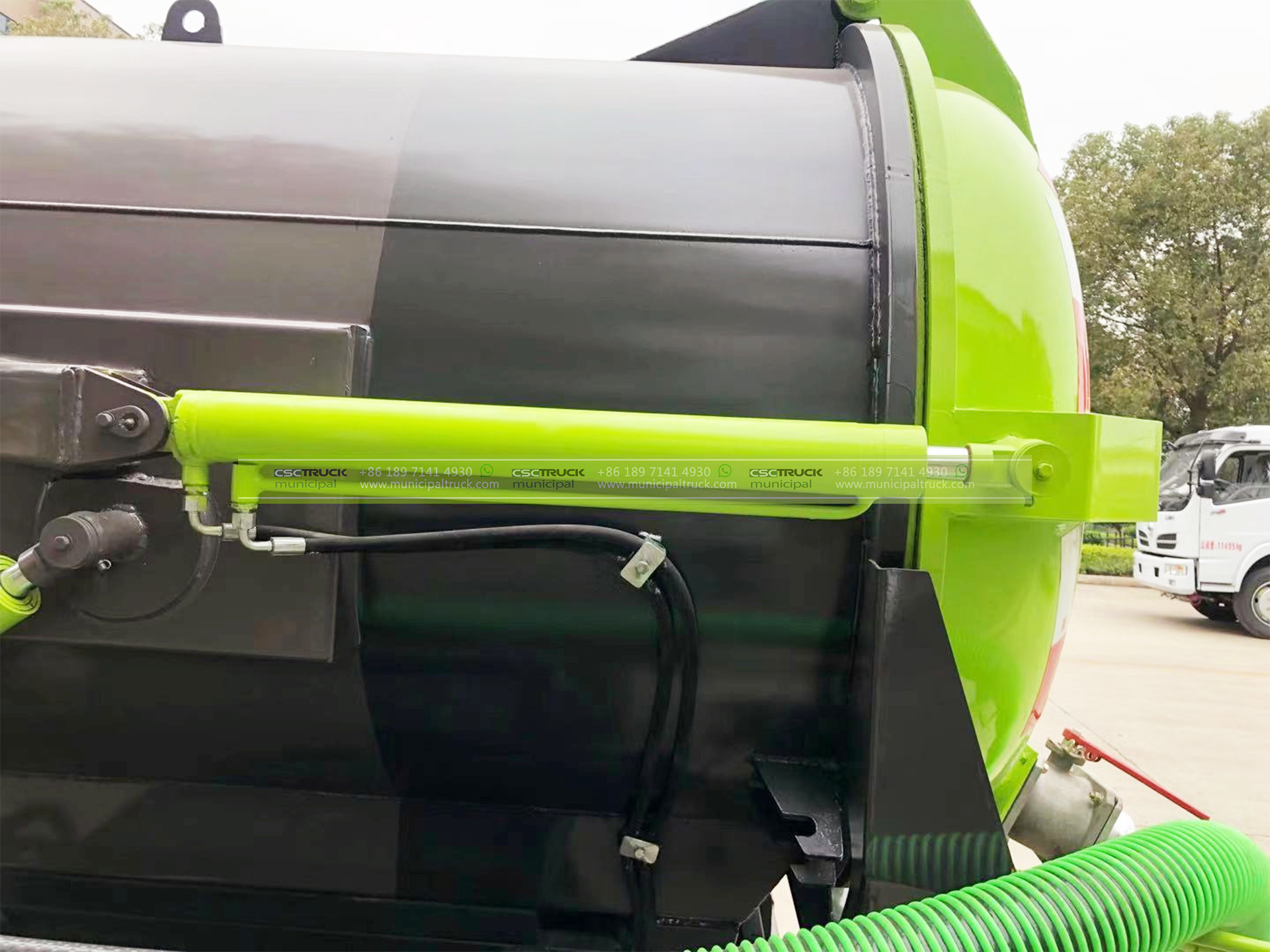

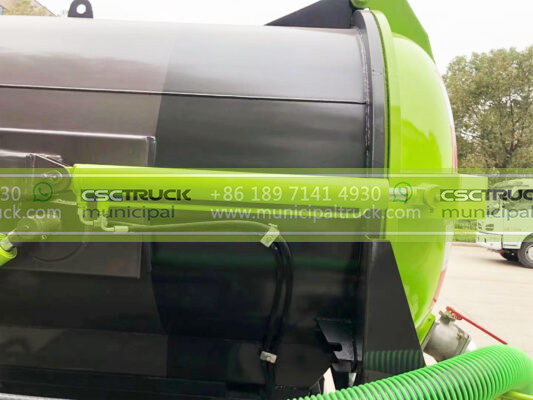

Hydraulic System
The hydraulic cylinder is made of high-pressure galvanized steel, with good hardness and pressure resistance, anti-corrosion and rust resistance, durable. Double oil cylinder self-unloading, which is more convenient and faster to dump sewage without fear of blockage by large pieces of dirt.
Loading
3″ High level & 2.5″ Lower suction port with Ball Valve and Couplings
Discharge
Through a 4″ Ball valve with coupling mounted on the rear dish.
Rear Lib Skirting
Mounted under the rear lib to protect sewage spattering.
Installation
Tipping tank Subframe truck mounted
Accessories
– Full-length Hose platform on either side of the tank.
– Suction and delivery rubber hose 3″ x 4 m length fitted with couplings 2 nos.
– Mudguard and rubber mud flaps for the rear wheel.
– Rear bumper with anti underrun protection.
– Level indicator sight glass
– Side marker lights
– Side crash guard
– Tank lifting hook
– Steel toolbox
– Steel water tank
– Fire extinguisher storage box
– Number plate
– Reflecting sticker as per traffic regulations

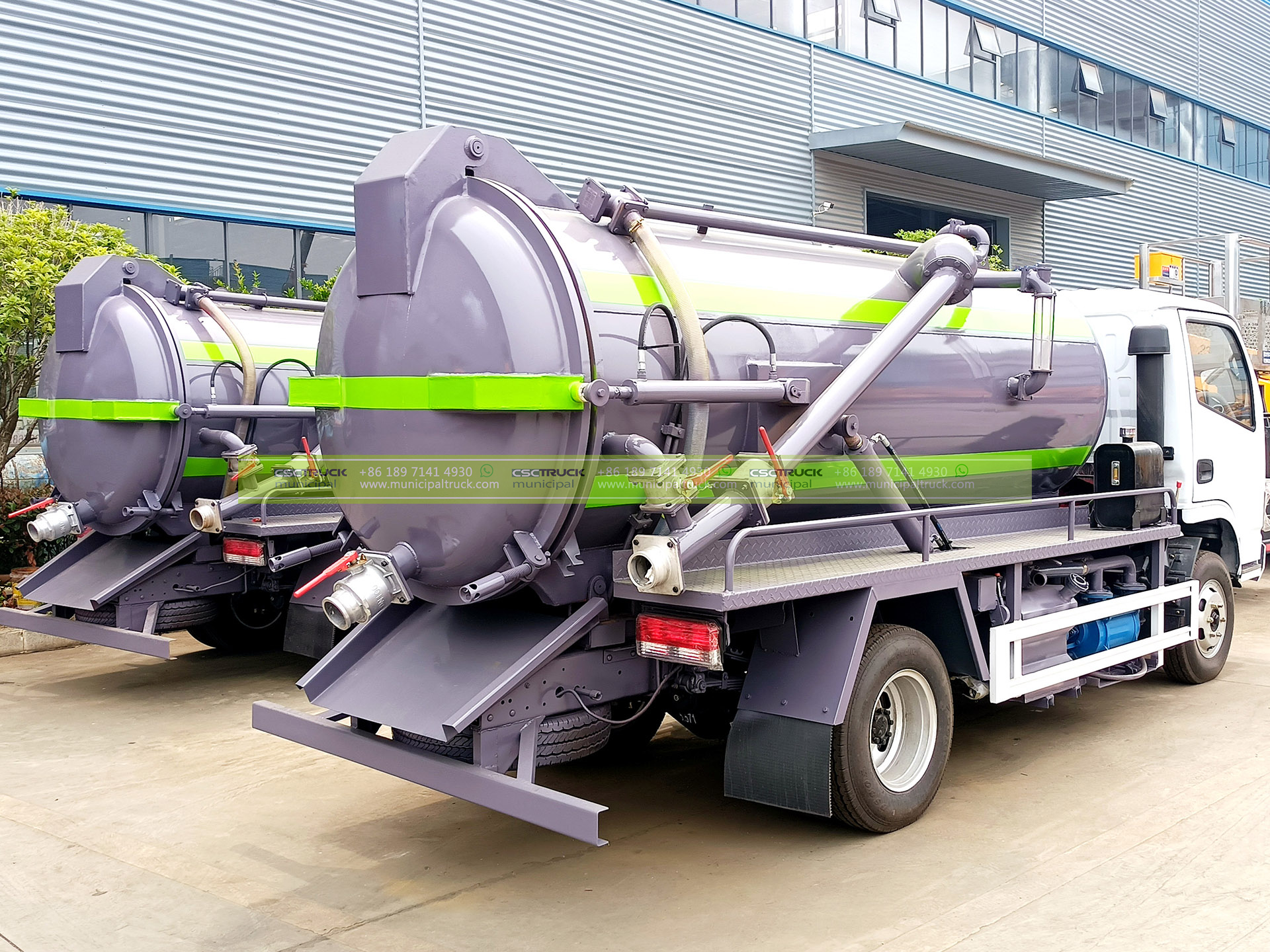

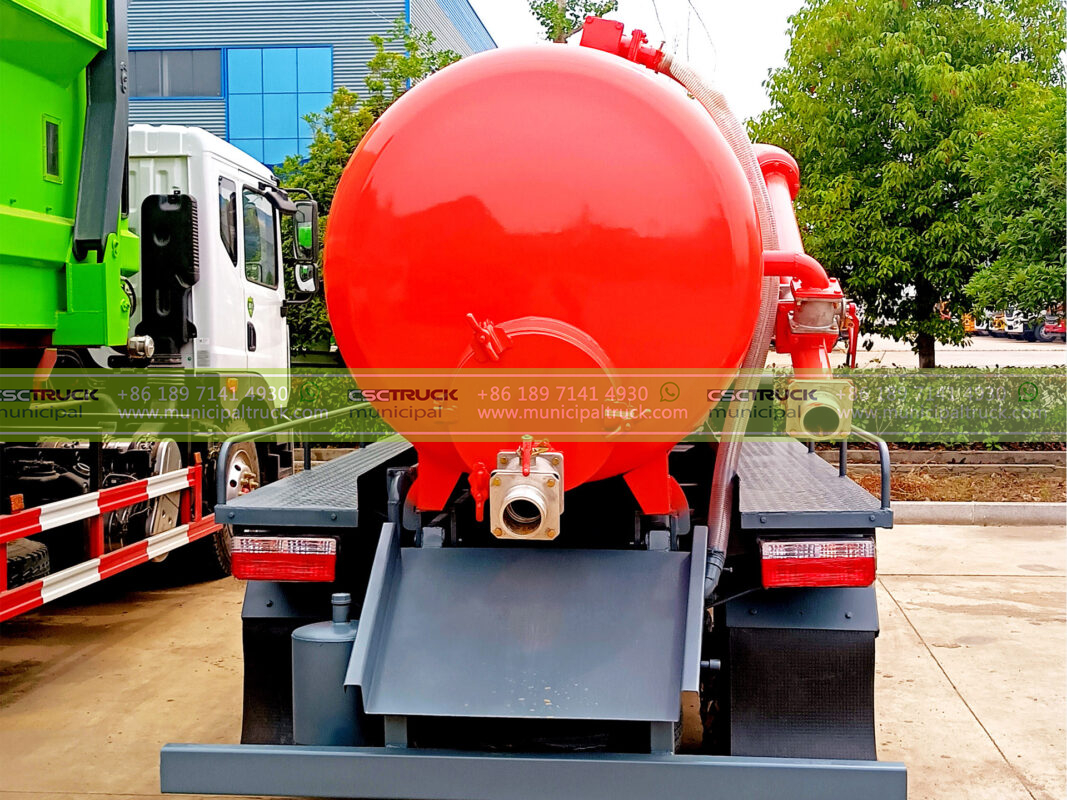

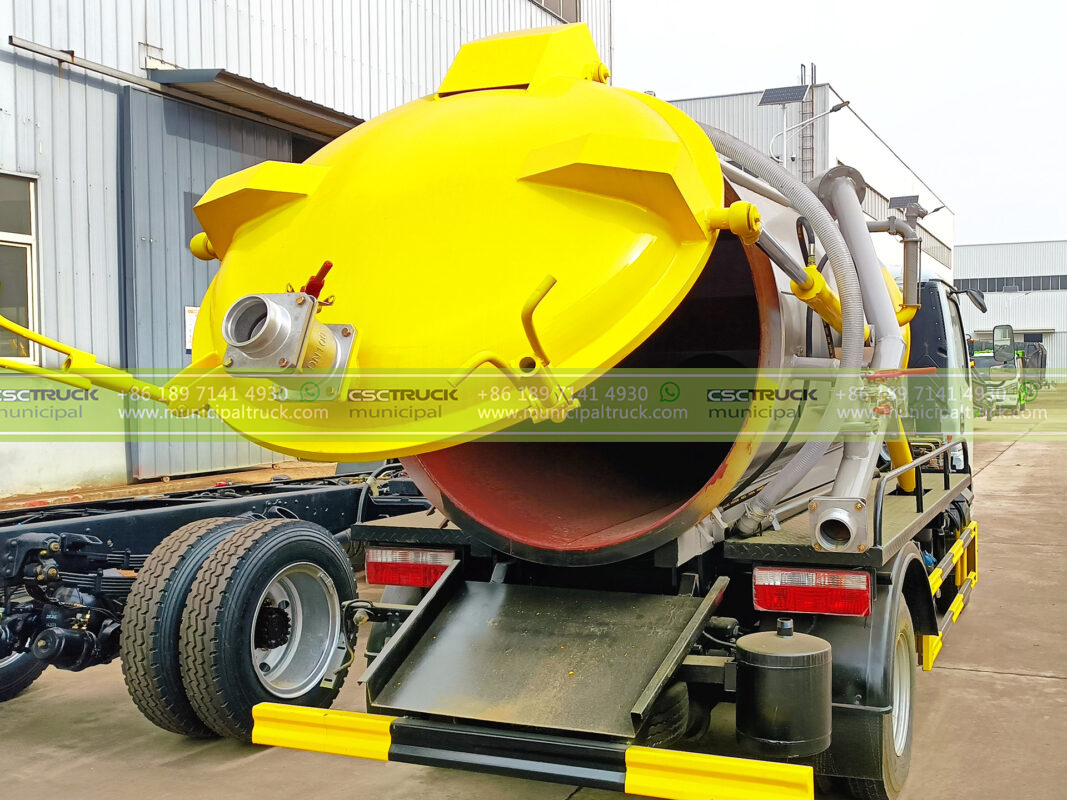

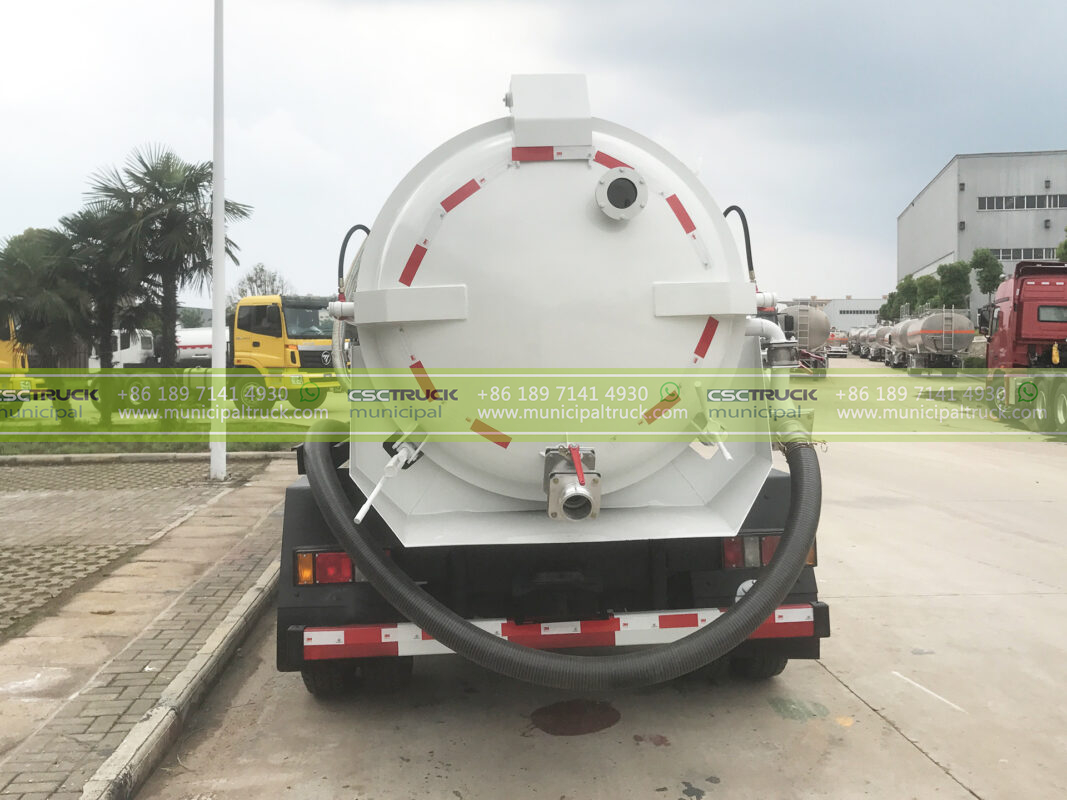

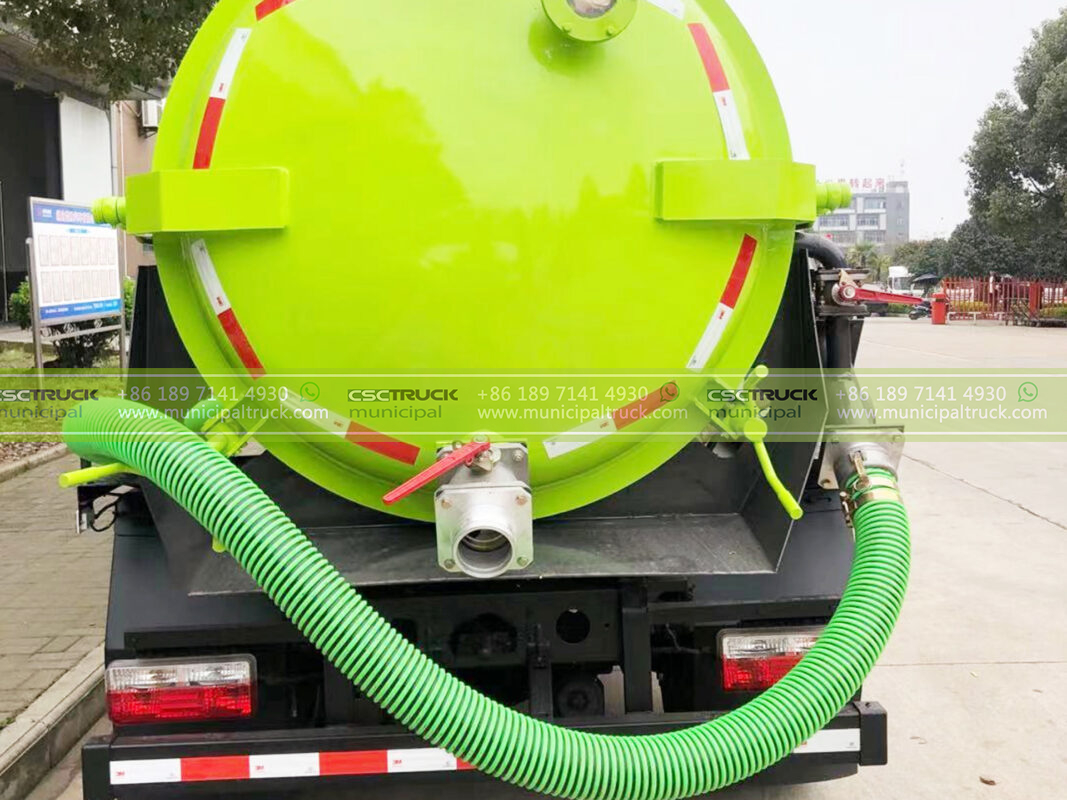

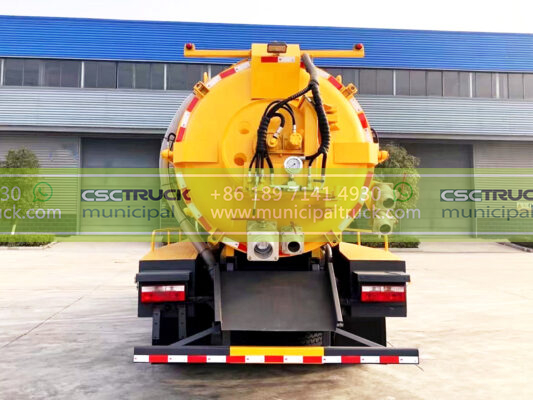

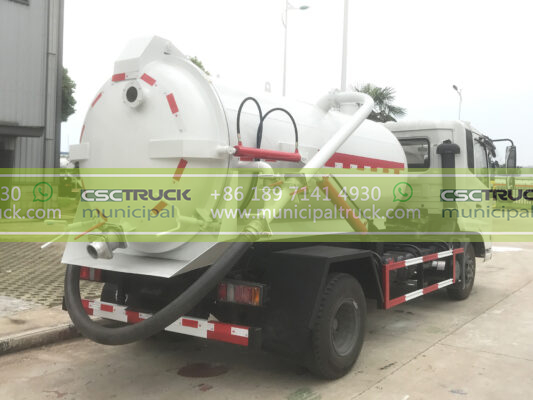

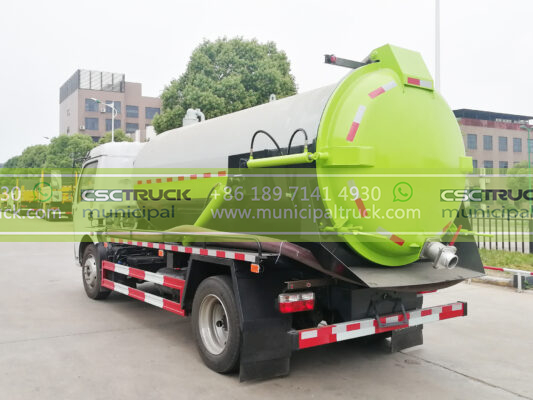

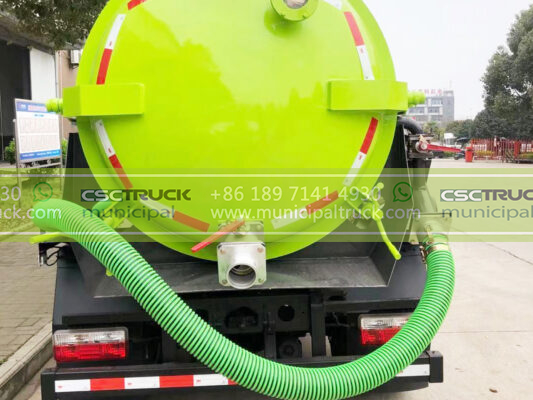

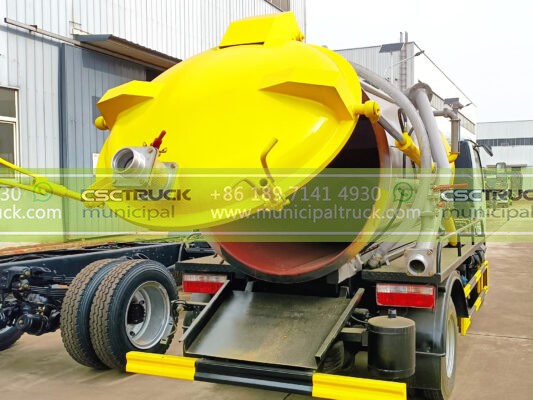

Rear Dish End
Manually openable side-hinged rear door and oil/fuel/sewage resistant rubber seal.
Safety Devices
-Sewage Observation Window
– Anti-overflow Valve
– Oil /Gas /Water Separator
– Vacuum Relief Valve
– Vacuum/Pressure Gauge
– Water Level Alarm
– Water Level Relief Anti-overflow Valve
– Loaded Liquid Full Automatic Stop Device
Painting
Spray-painted with two coats of superior quality anti-corrosive primer and two coats of enamel metal paint of a reputed make, white color on all exterior surfaces that is normally painted with color other than black. ( customer choice)
specification
Cab Chassis Make/Model
DONGFENG DFAC
Wheel Drive
4×2 LHD
Approach /Departure Angle
27°/14°
Fuel Tank Capacity
120liers, steel
Max. Driving Speed
99 KM/h
Overall Size (L × W × H)
6470×2050×2570 (mm)
Front/Rear Overhang
1040/1497 mm
Wheelbase
3308 mm
Ground Clearance
190 mm
Front/Rear Track
1525/1498 mm
Gross Vehicle Weight(G.V.W)
7,360 kg
Payload Weight
4,070 kg
Tare Weight
3,780 kg
Front/Rear Axle Rating
2640/4720 kg
Cab Style
Day Cab
Cab Roof
Standard Roof with Streamline Dome
Construction
All steel construction
Instrument & Controls
All gauges and meters to be indicated in metric unit
Tiltable
Manual
Cab Model
DONGFENG DFAC
Cab Width
2,315 mm
No. of Seats
1 driver plus for two passengers
Driver Seats
Adjustable & separate from passengers’ seat
Equipment & Device
Manual A/C, Manual Open Doors & windows & rear view mirror/MP3/Knitted Ordinary Seat
Make/Model
YUCHAI/YC4D120-33
Max. Torque@Speed
350Nm@1400~1800r/min
Engine Type
4 Cylinders Vertical inline, water-cooled, 4-stroke, supercharged
Output Power@Speed
90kw@2800rpm
Displacement
4214ml
Emission Regulation
Class 3(EURO/CN Stage)
Type
Friction clutch, Disc diameter 380mm
Clutch Booster
Standard Equipped
Make/Model
WLY Gearbox
Gear Numbers
5 speed forward, 1 speed reverse
Type
Manual shift control
Gear Ratio
Forward 1st: 5.06; 2nd: 2.61; 3rd: 1.57; 4th: 1; 5th: 0.76
Reverse 4.575
Model/Make
Power Assisted
Hydraulic Power Assisted steering system
Position
Left Hand installed steering
Type
Ladder
Construction
Heavy duty construction and capable of withstanding the strain of rigorous on and off-road surface
Towing Device
The front towing device and rear trailer coupling be fitted on the chassis frame
Section Modulus
105/170/130×55×5mm
Bumper
Heavy duty front and rear steel bumpers are installed
Front Axle Model/Make
Rear Axle Model/Make
Rear Axle Ratio
6.142
Font Axle Type
Heavy duty “I – beam’’
Rear Axle Type
Heavy duty, full–floating
Front
Heavy duty semi-elliptical front spring 3+1 no. leaf spring
Rear
Heavy duty semi-elliptical front spring 6+7 no. leaf spring
Wheels
6+1 nos.
Tires
7.00R16 Tube type
Rims
7.5-15 Steel Rim
Battery
Heavy duty, 2×12V, 180 Ah
Lighting
Headlights, parking lights, cabin interior lights, etc
Alternator Output
24V
Horns
electrical
Starter Motor Capacity
5.5kw
Warning Device
Audible and visible
Type
Pneumatically operated
Parking Brake
Mechanical spring-operated
Brake Control System
Load Sensing Proportional Valve
Service Brake
Dual system.Front and rear Drum type.
Engine Brake
Operating switch within driver’s reach
5000 Liters, 5 Cubic Meter, 1320 Gallon
Free Air Flow
4080LPM
Max. Vertical Suction
≥8m
Tank Discharging Time
﹤4min
Tank Full loading Time
﹤5min
