Brief

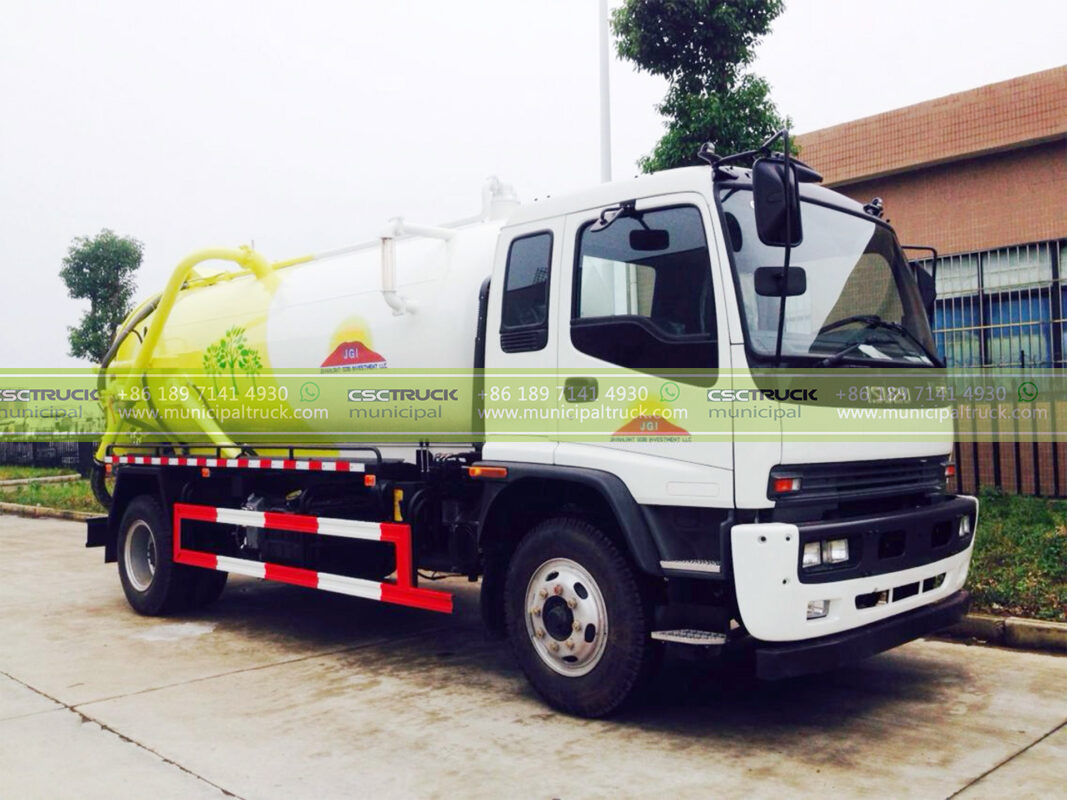

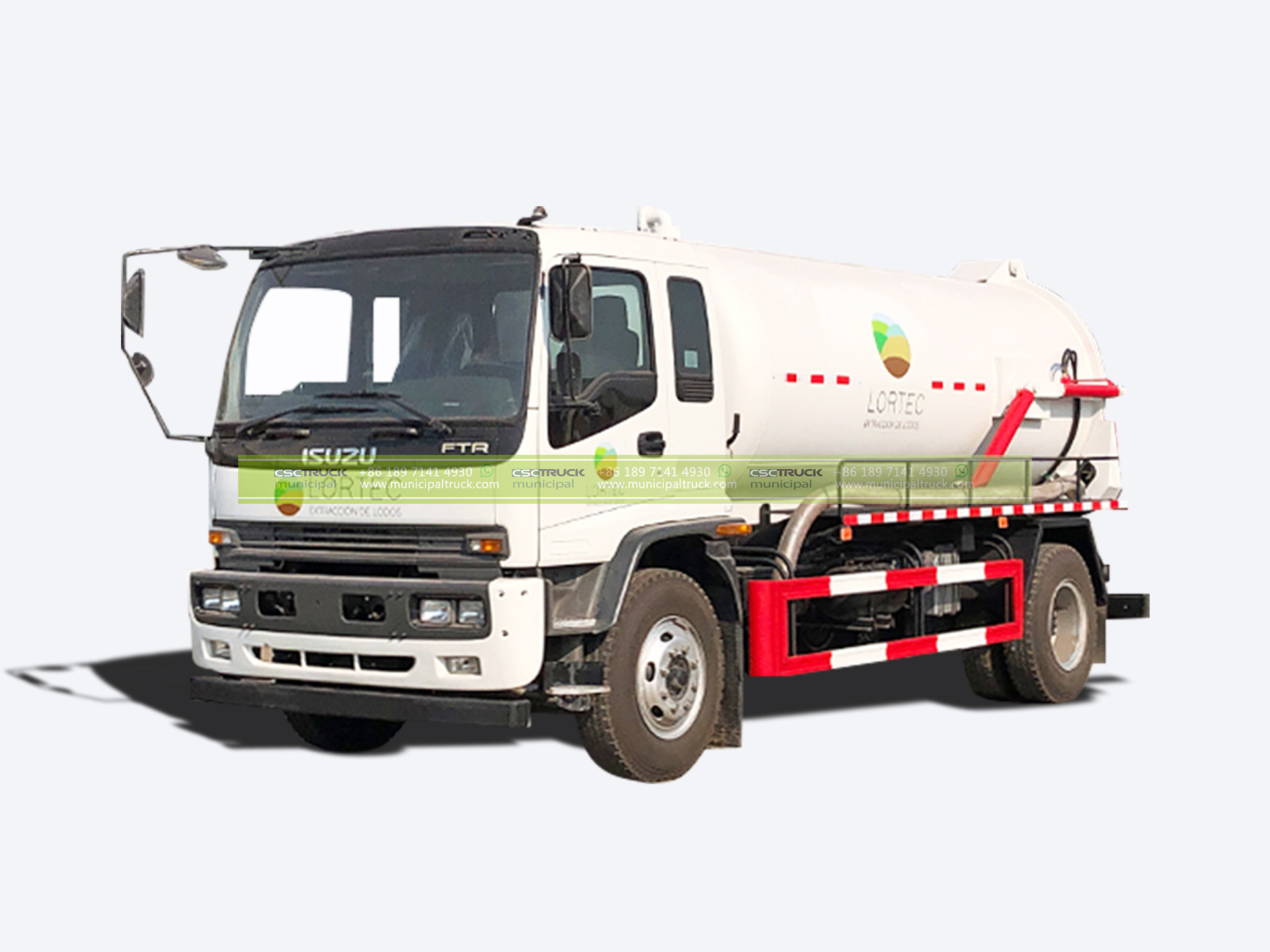

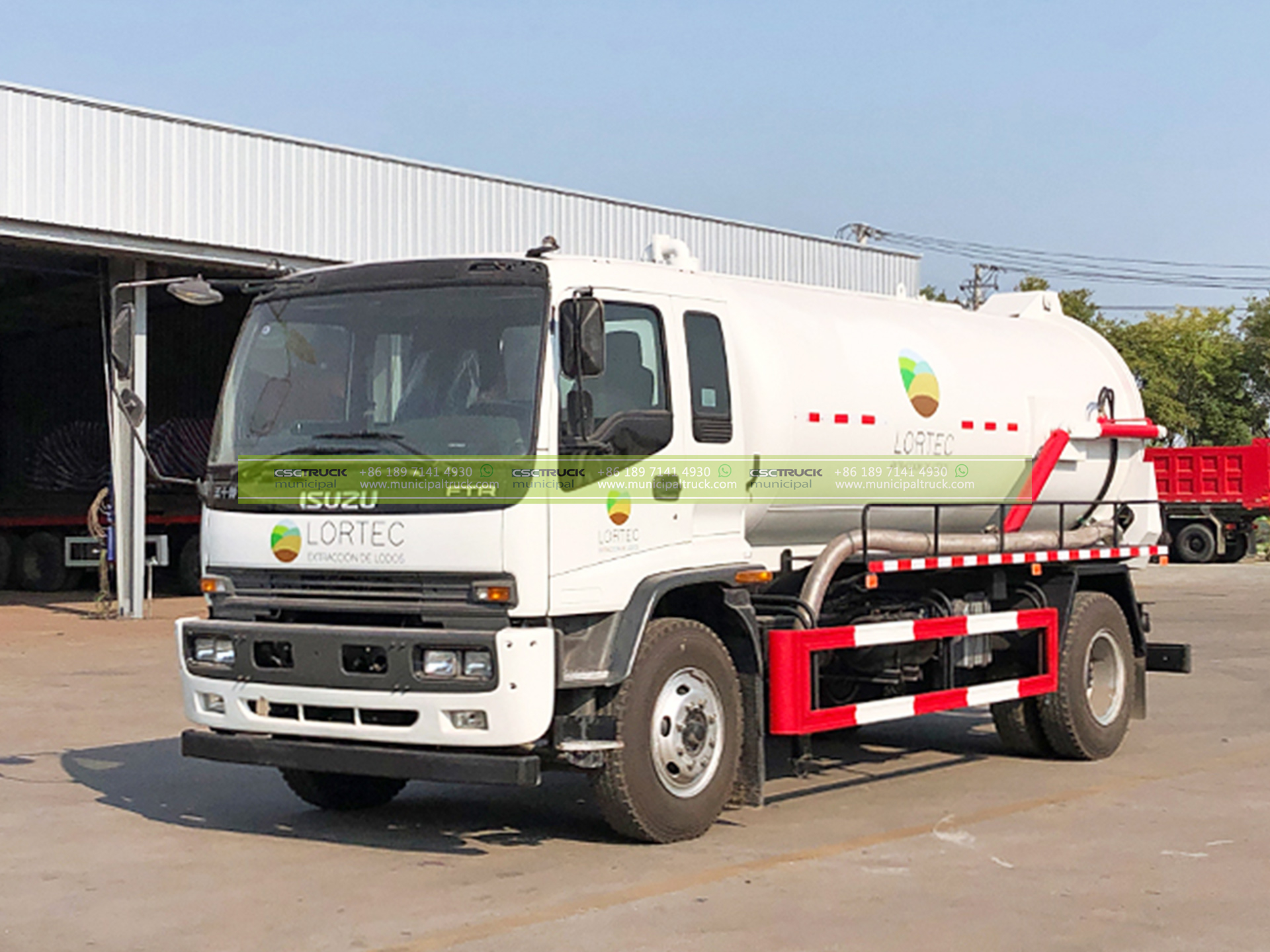

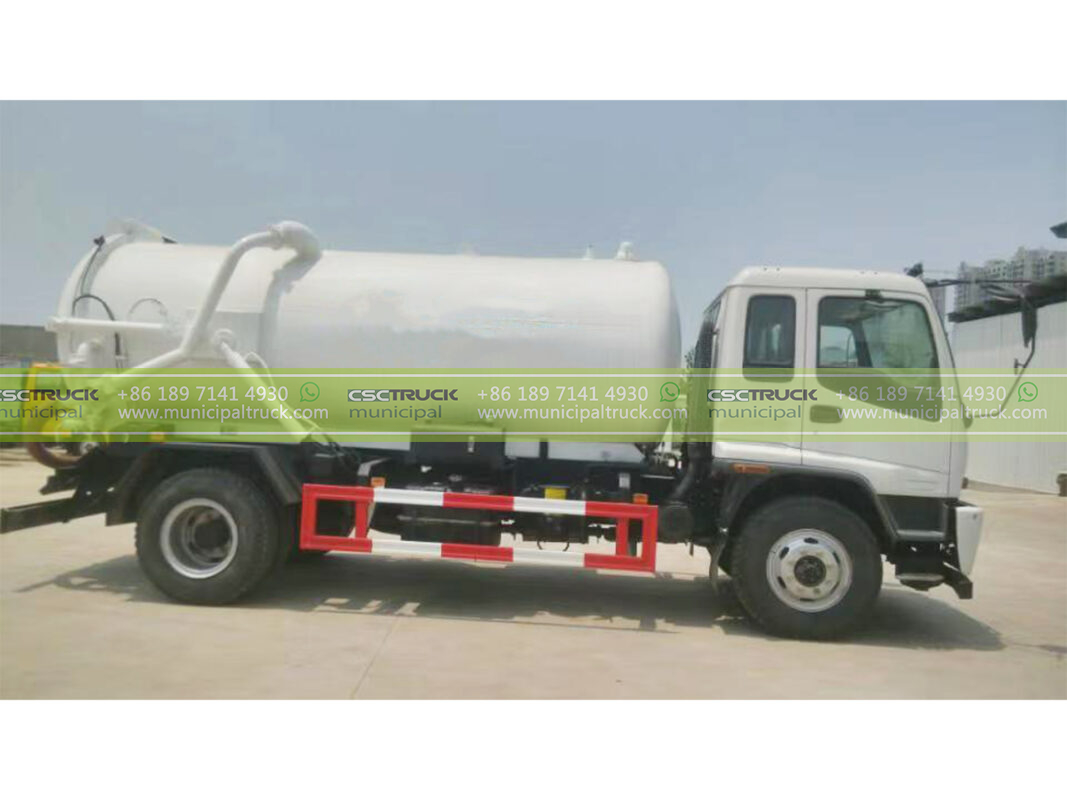

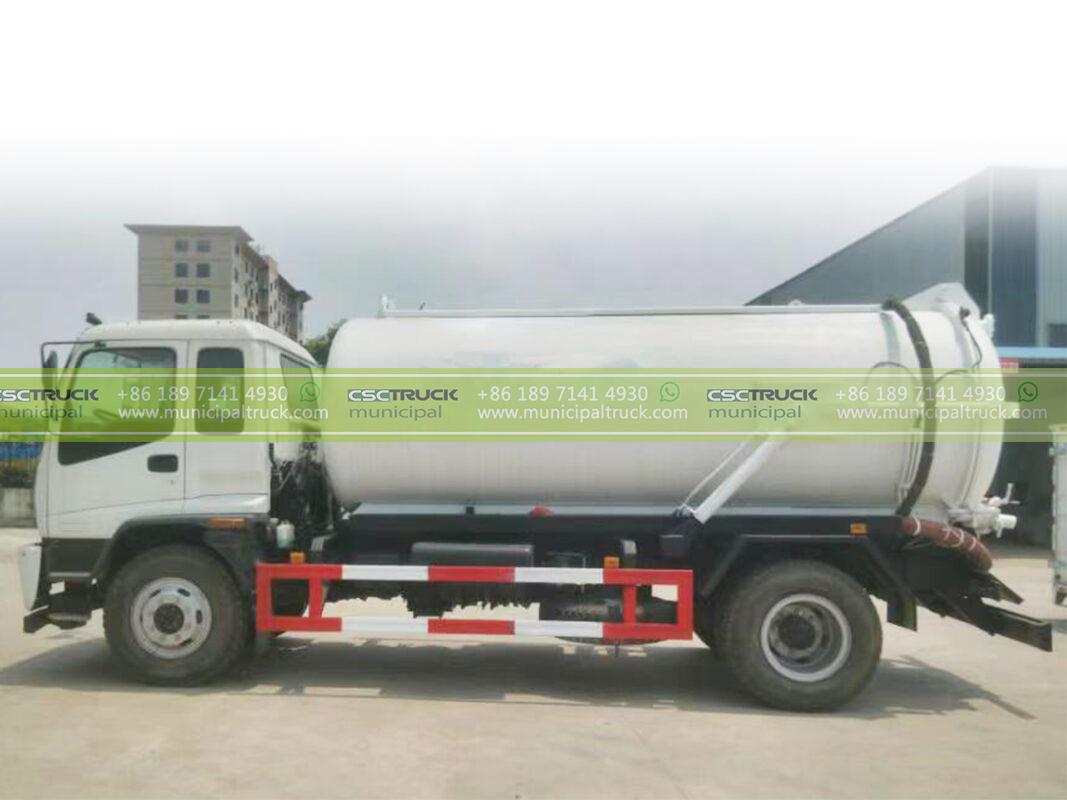

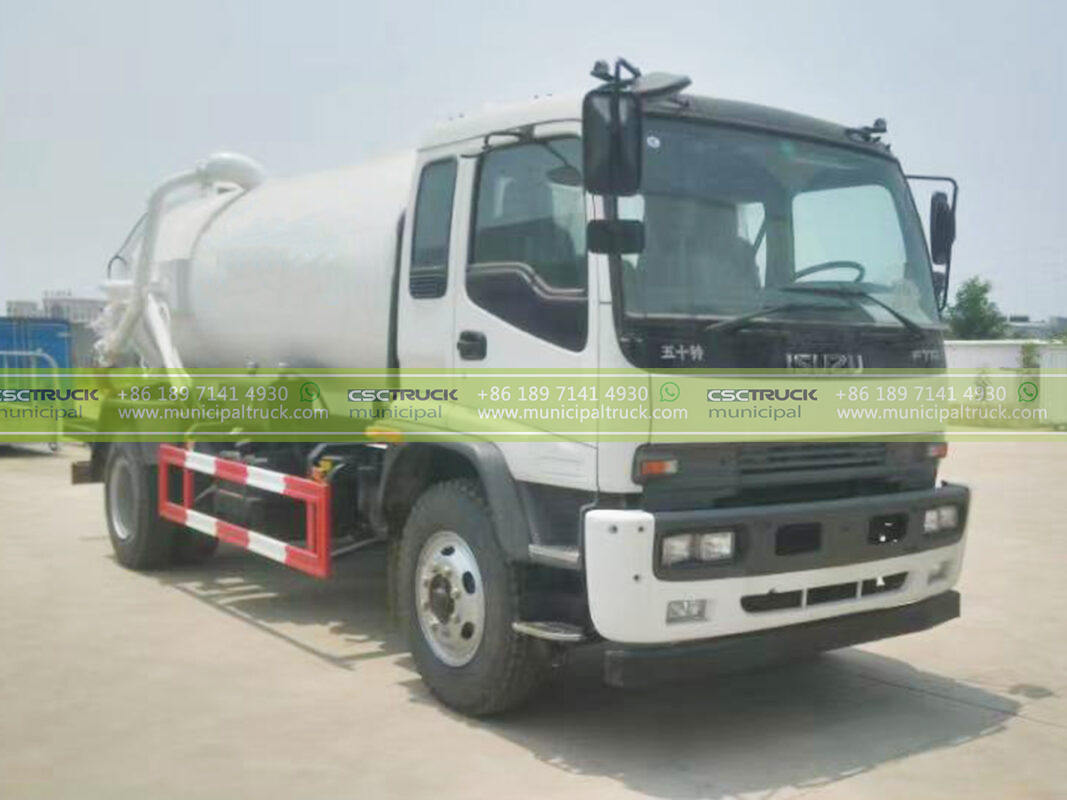

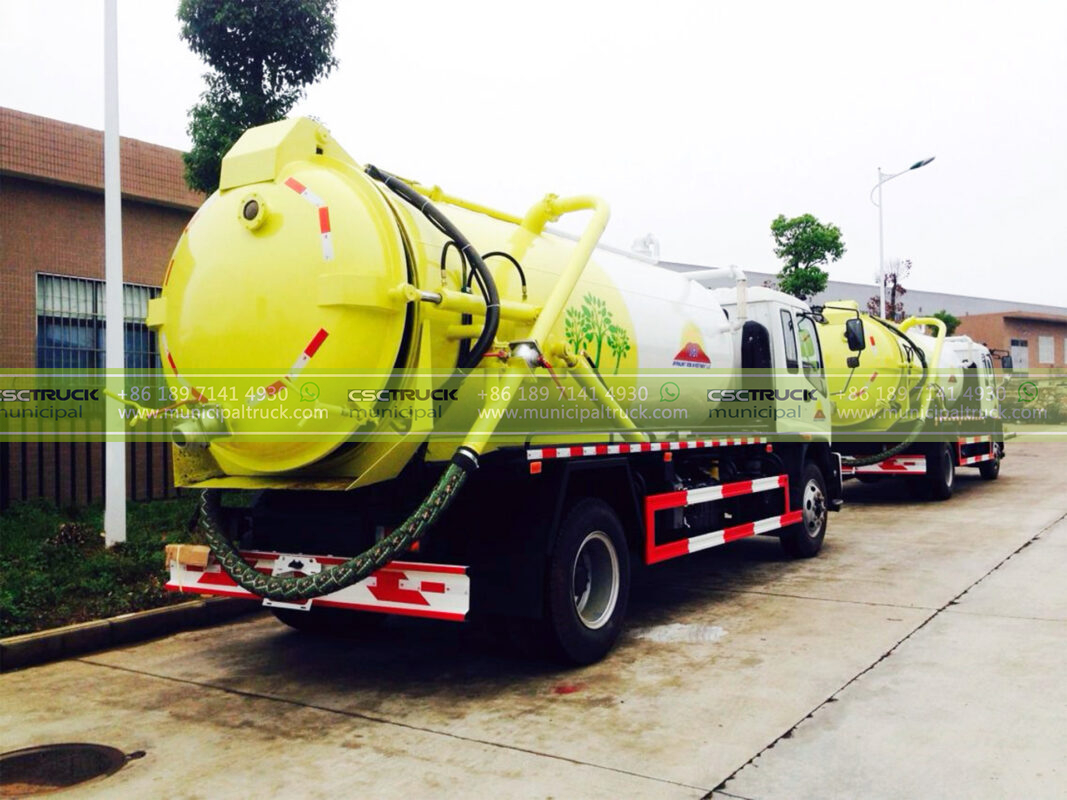

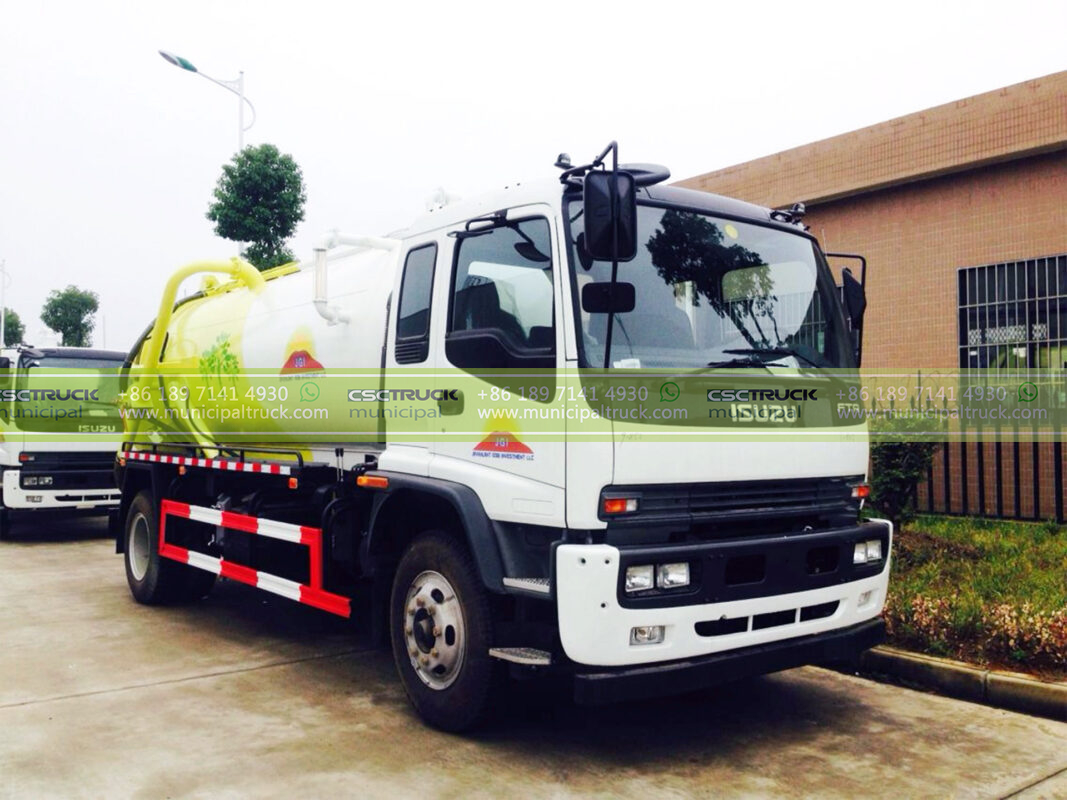

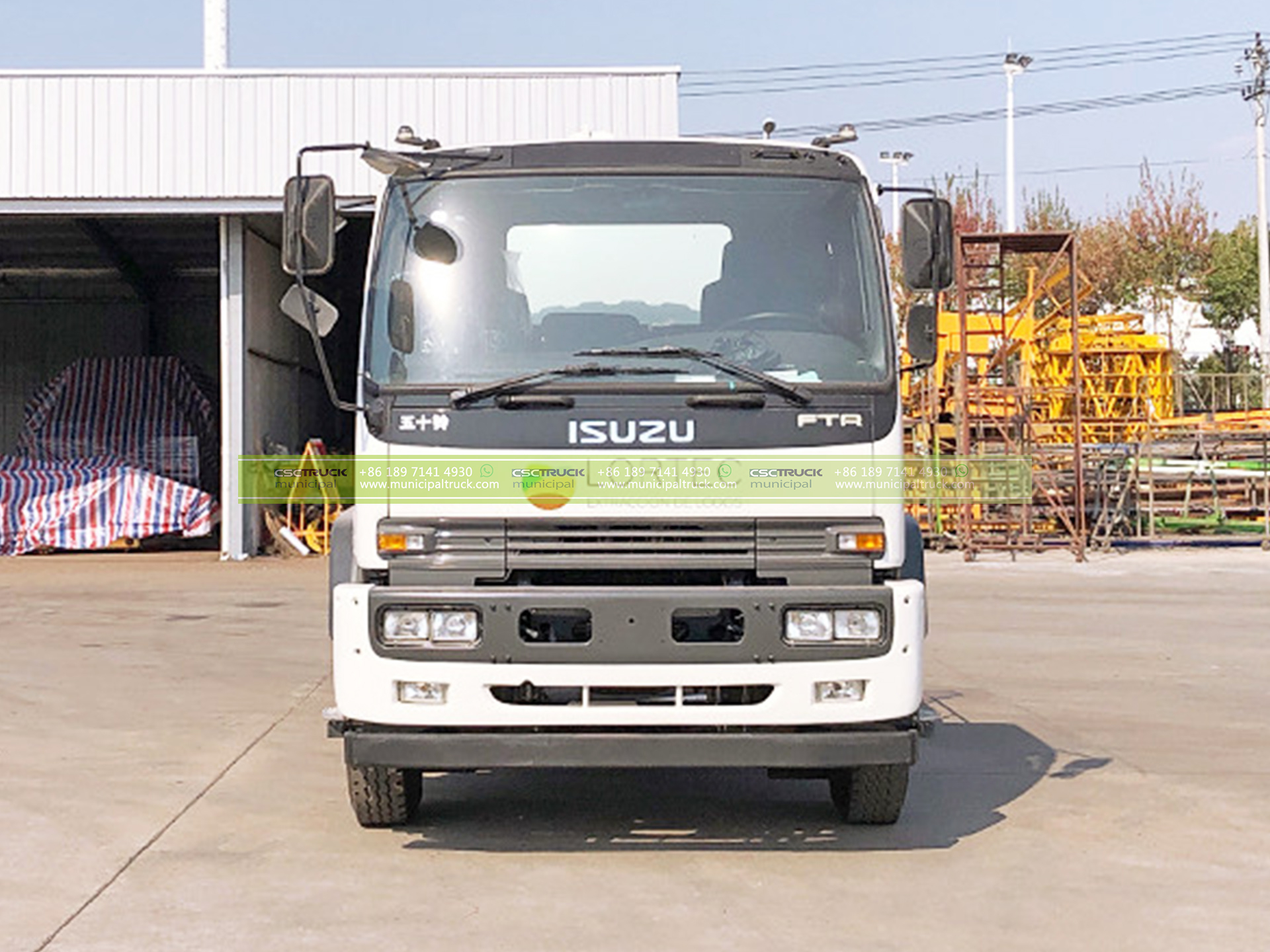

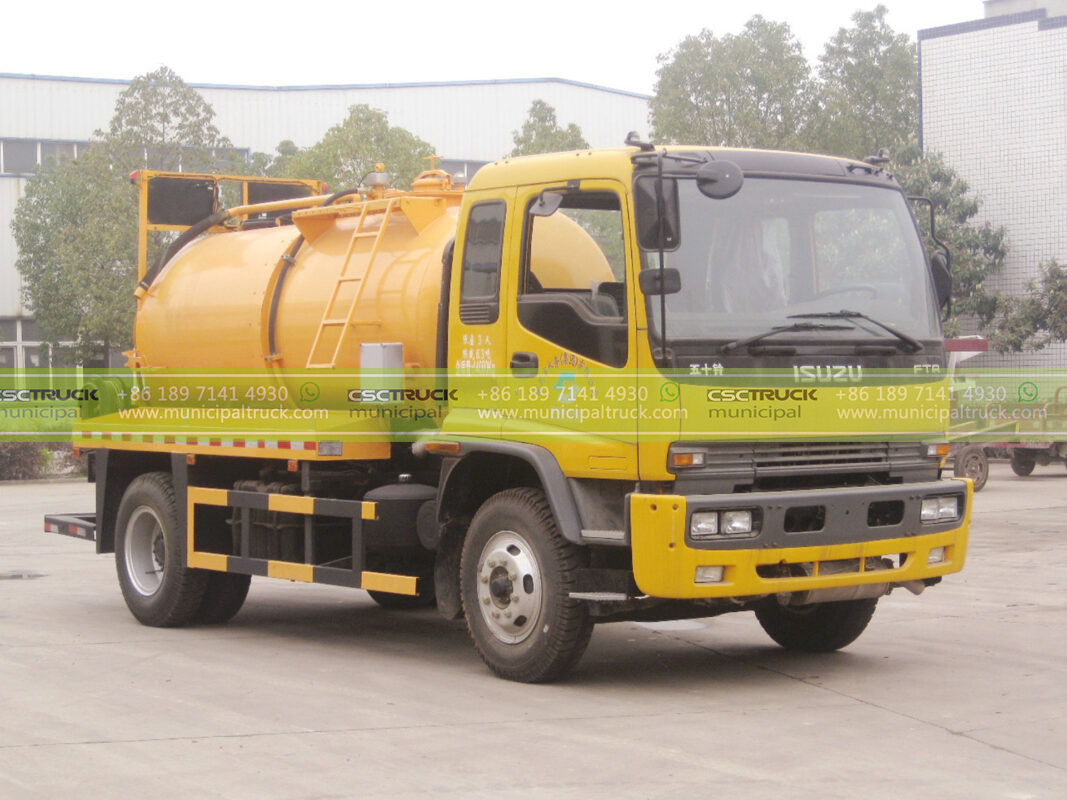

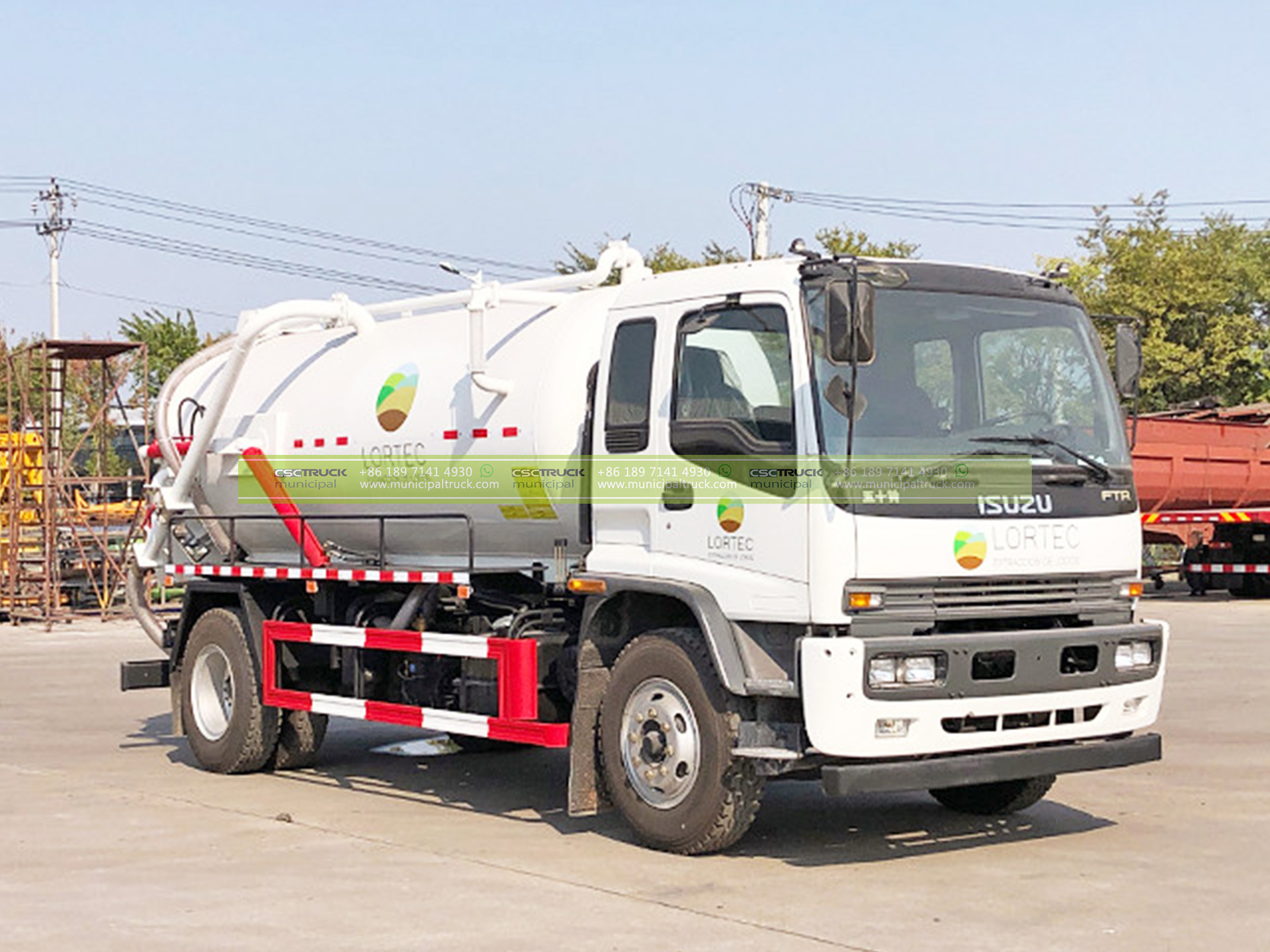

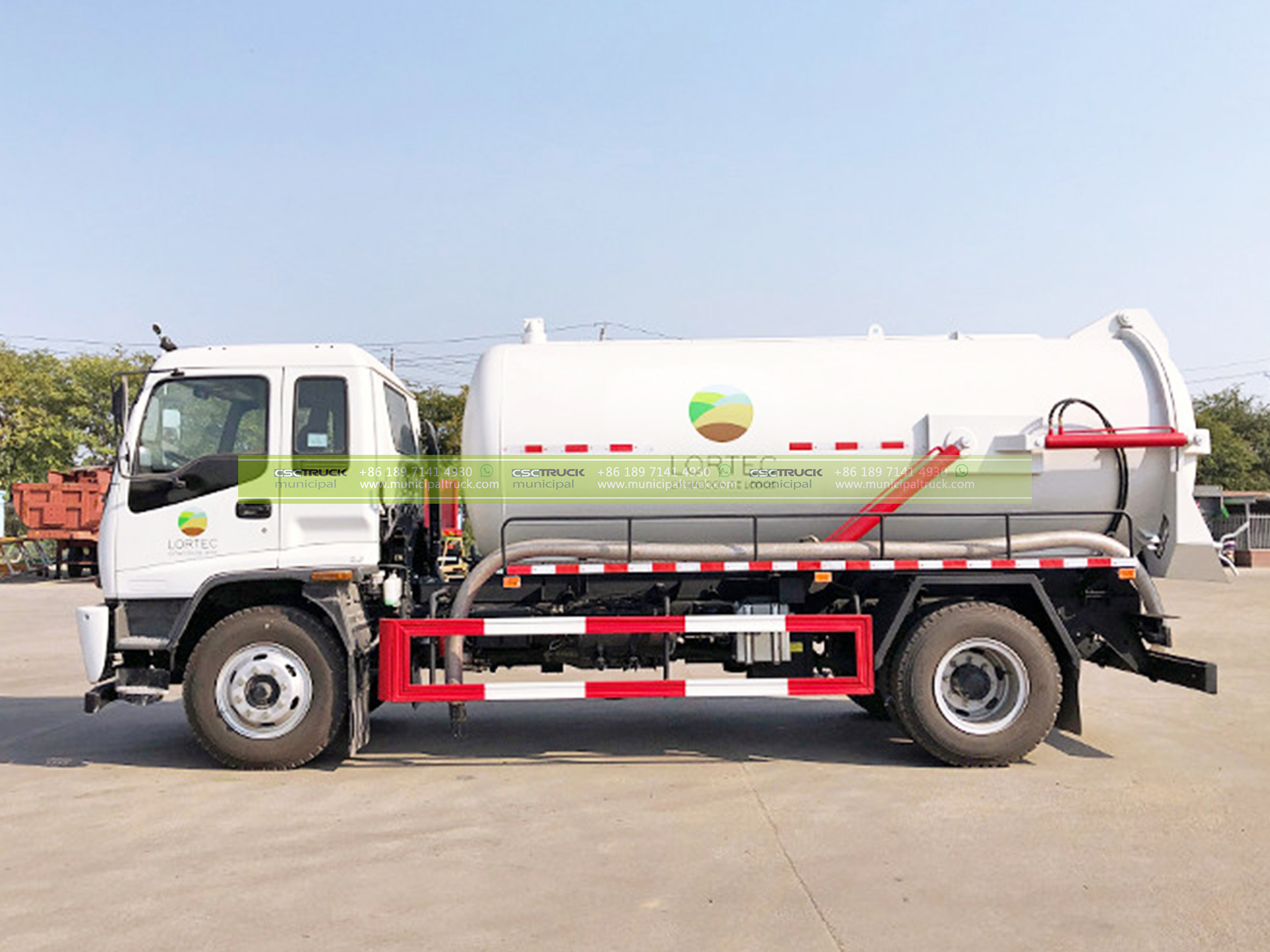

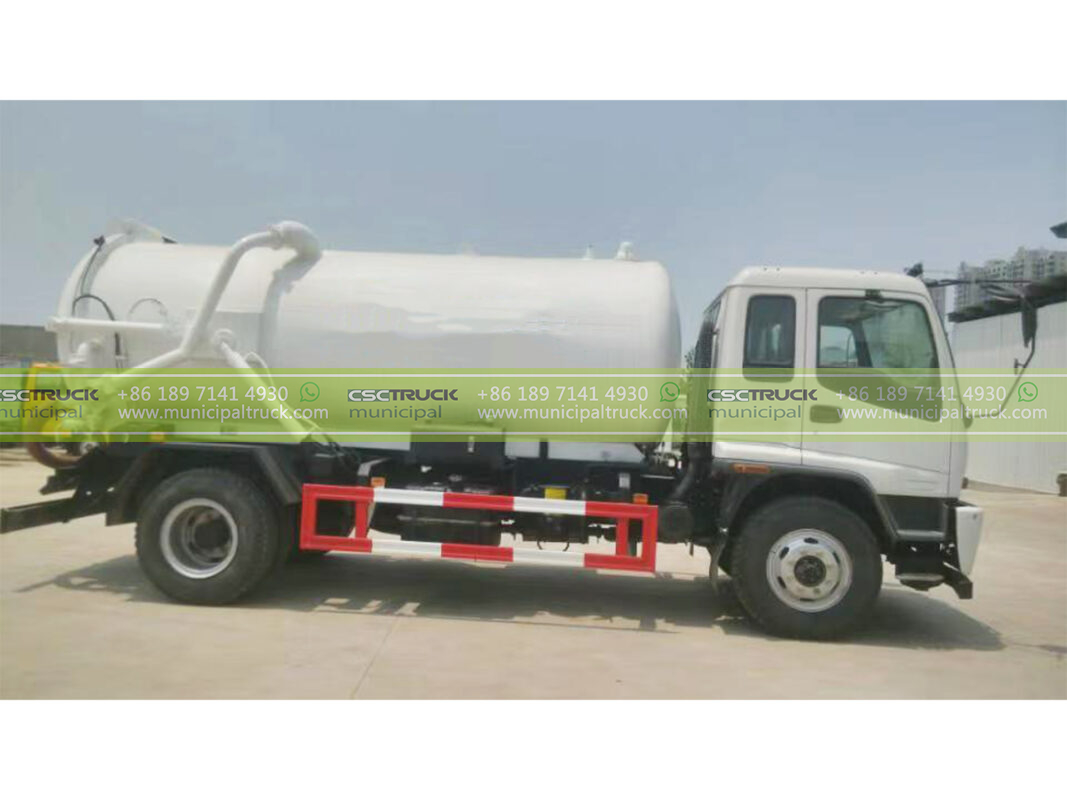

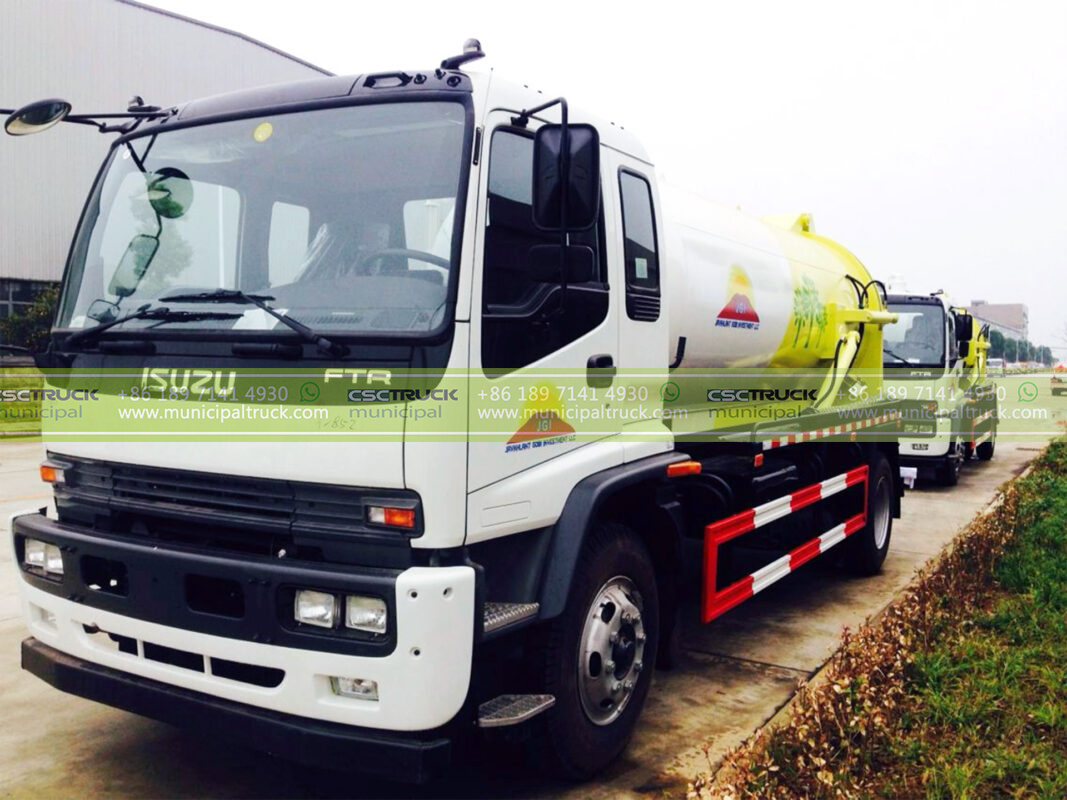

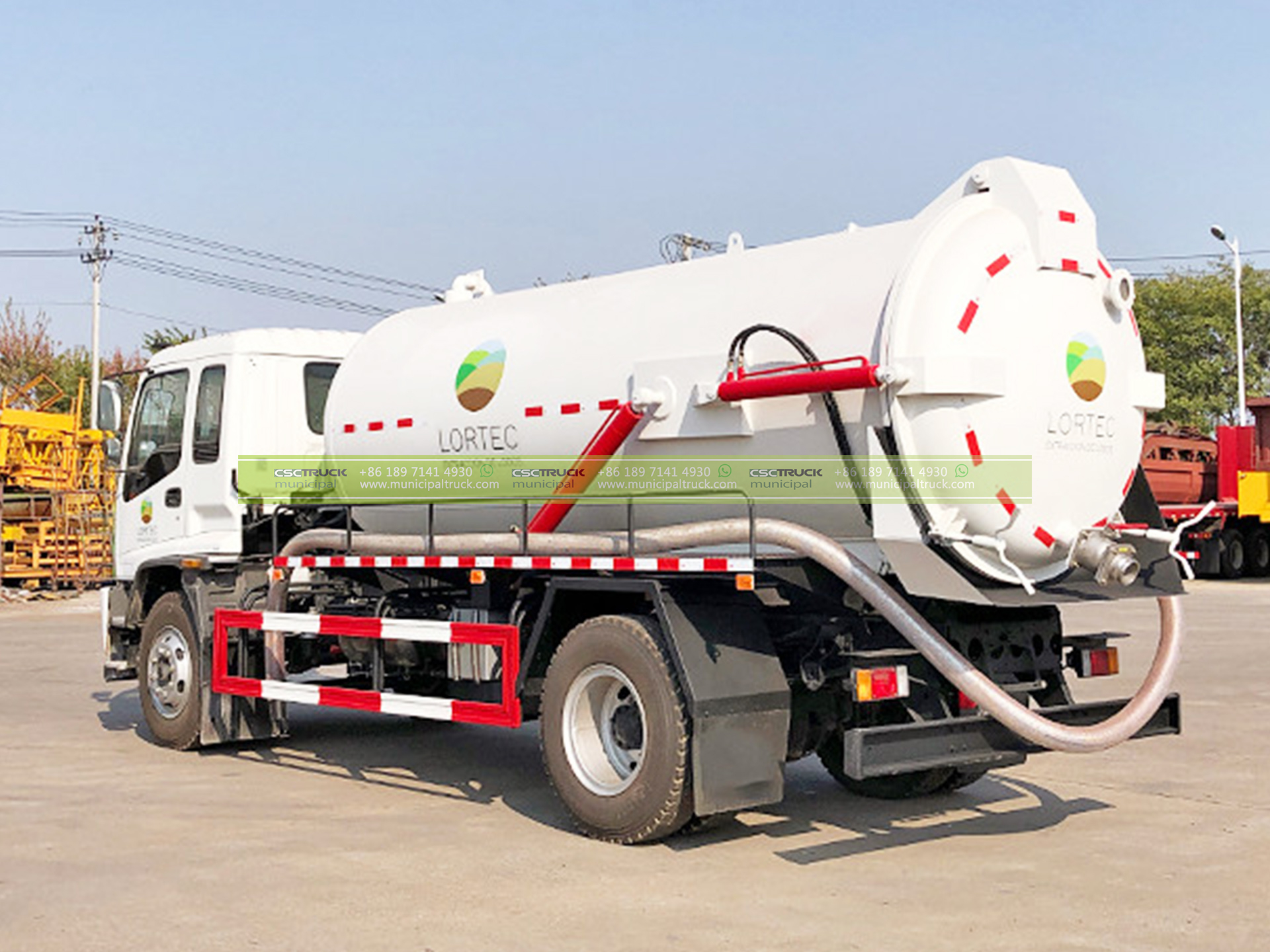

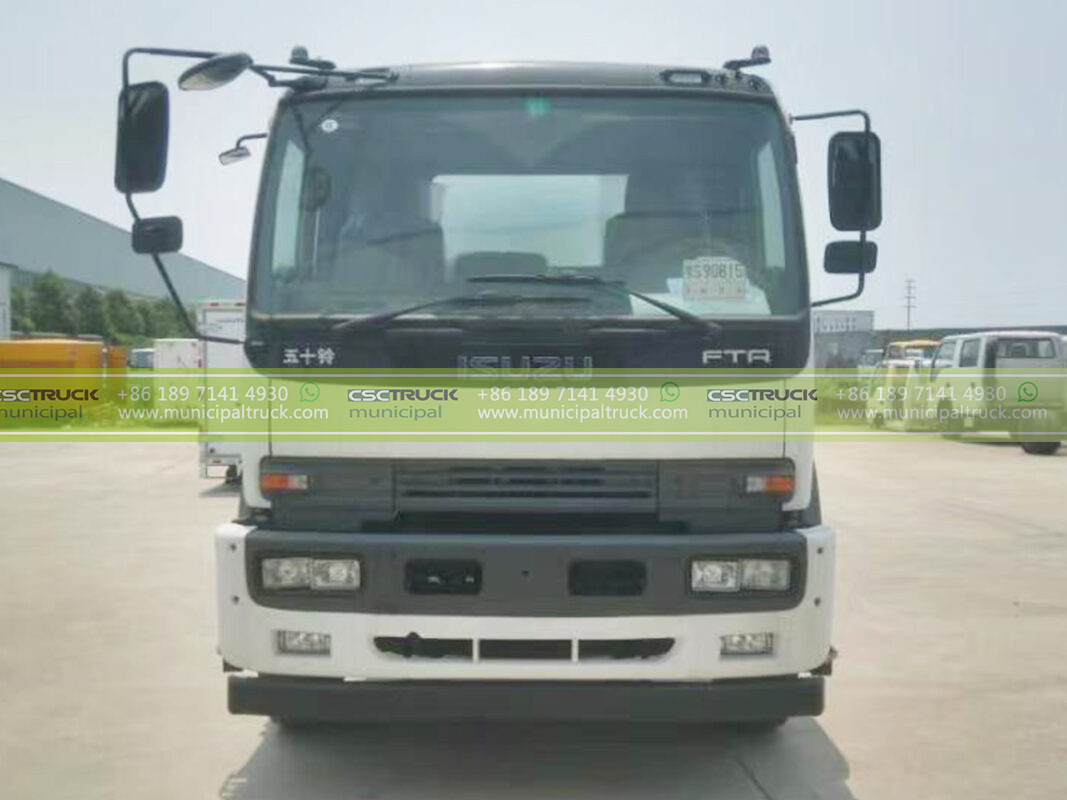

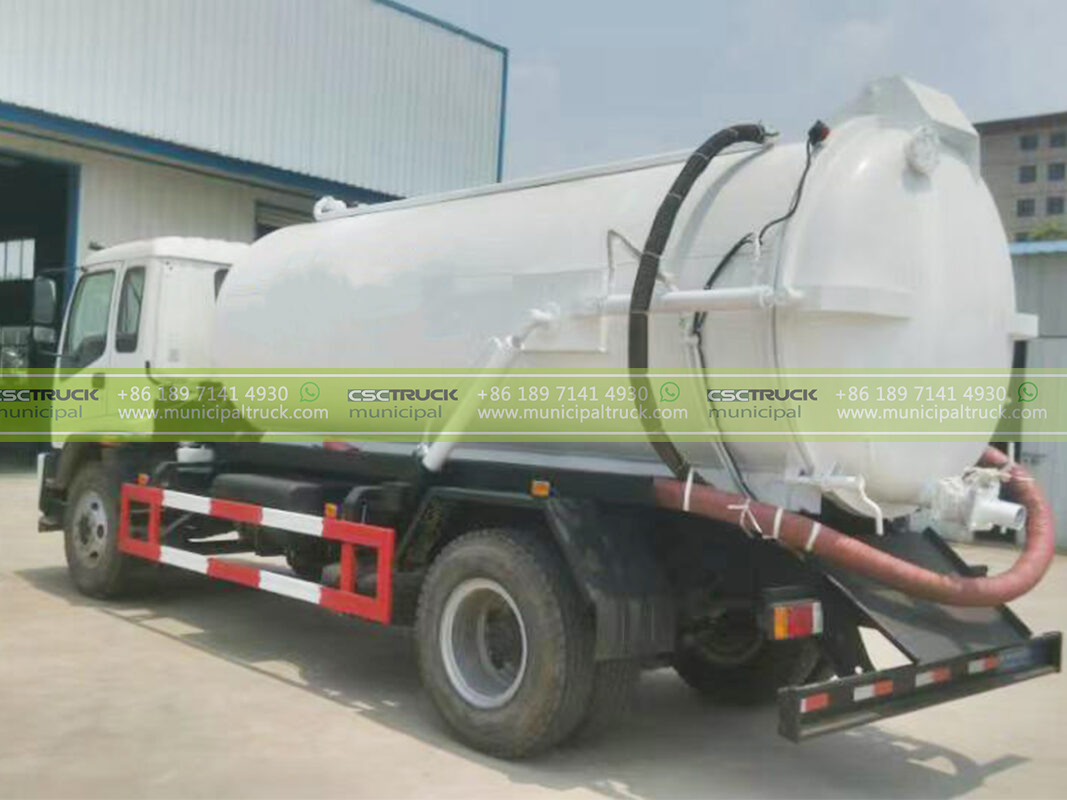

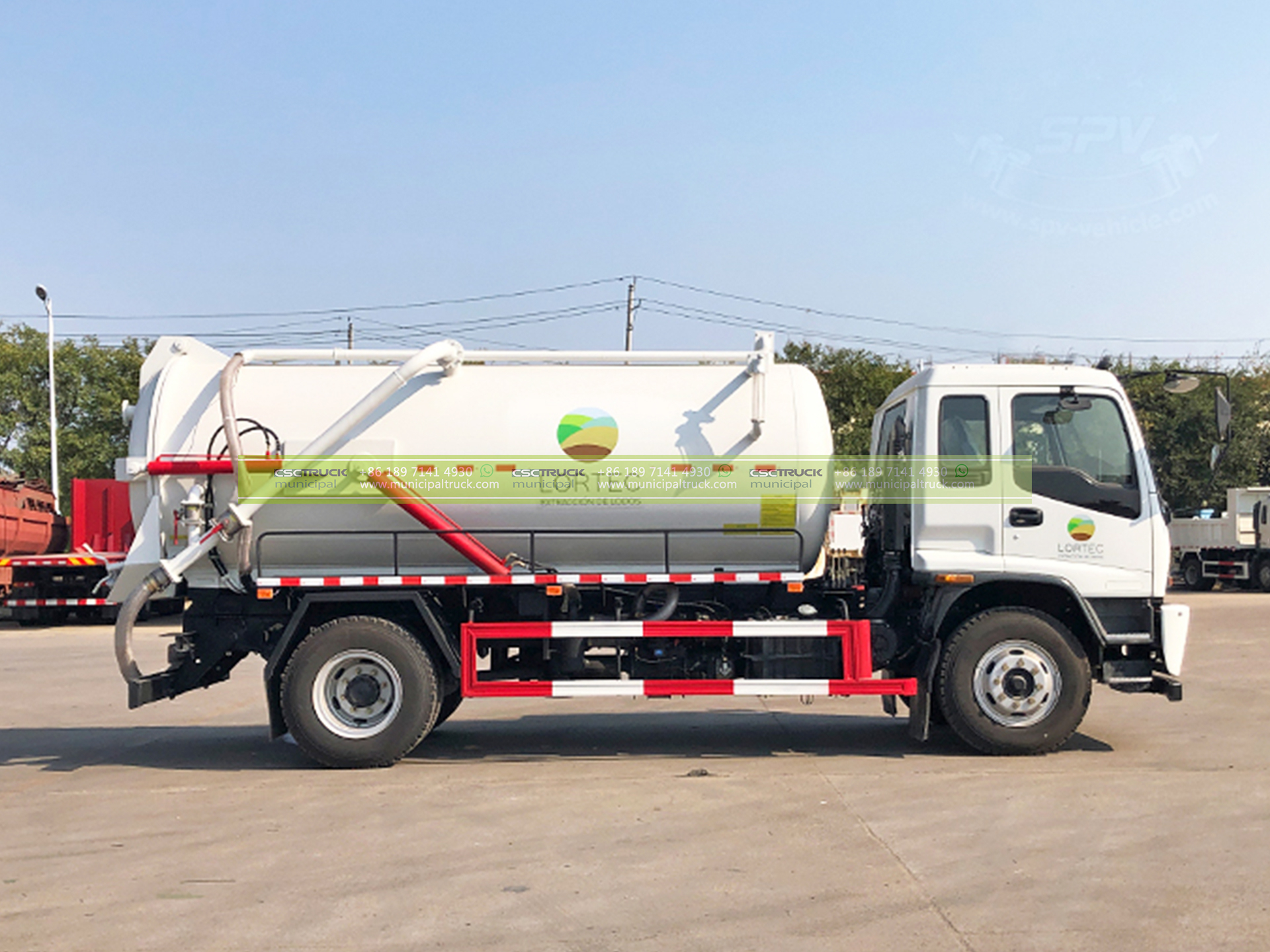

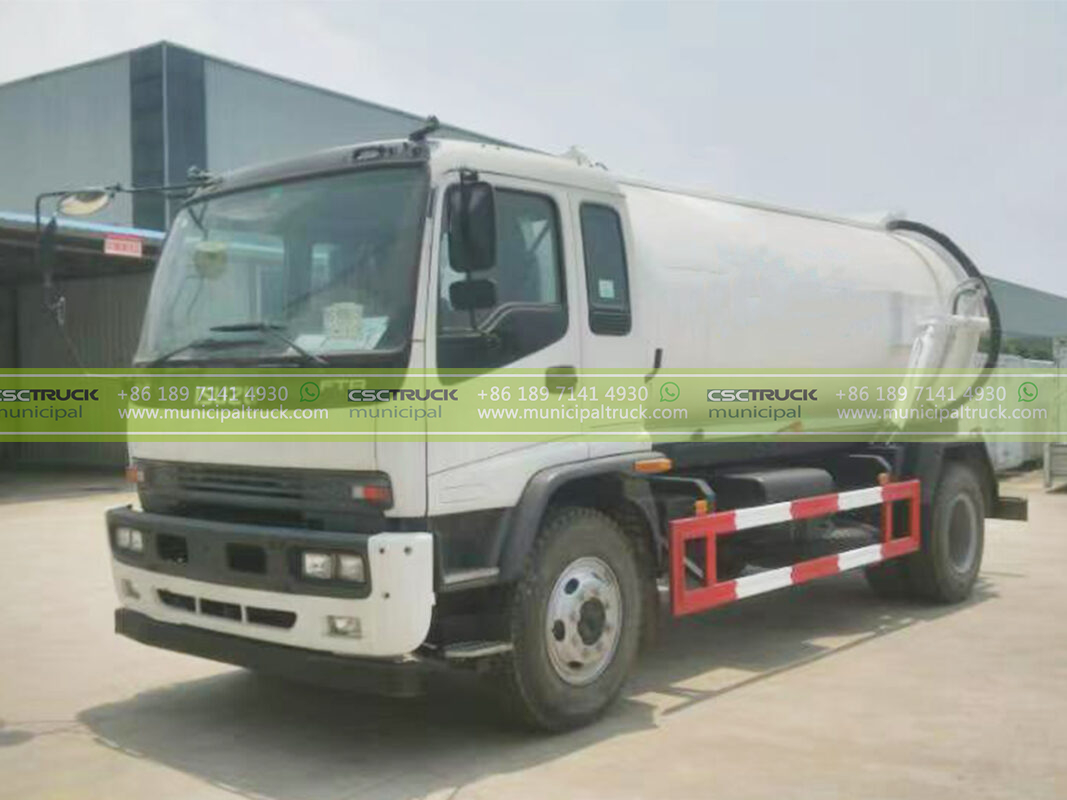

ISUZU 12-Ton Vacuum Sewage Truck is engineered and manufactured to collect liquid or solid waste of any kind. An optional filtering chamber collects fine, dry particles, keeping them from damaging the vacuum pump. It is mounted on 700P medium-duty chassis that adapts to the usage environment and purchasing power of different users. The energy absorbing steering system is available for Left Hand Drive model. Engine ISUZU 4HK1, 190hp, emission class in euro 5. Transmission is MLD-6 manual 6+1 Speed.
ISUZU 12 Ton Vacuum Sewage Truck tank debris tank with a capacity of 8,500 liters made of high-quality carbon steel plate of national standard, with a thickness of 5mm. The tank body can be lifted and the back cover can be opened. Buffle in the tank. Installed with JUROP PNR142, Sliding Vane, Capacity 14,200LPM.
features
Chassis Truck
More Efficiency
ISUZU 700P medium duty delivers goods quickly and in large volumes, creating more value and benefits for users.
New Electronic Control Technology
ECU computer board precisely controls the fuel injection amount and injection time of the engine, so that the engine is always in the best working state, reducing fuel consumption and prolonging service life.
Fuel Efficient & Cost-Saving
World-class 4H engine technology innovation, entering a new era of low carbon that is more energy-saving, low-emission, and more environmentally friendly.
Reliable (600,000 km without repair)
Using advanced coating technology and materials with strong anti-corrosion ability, the corrosion resistance reaches 7 years without rusting and 10 years without perforation.
Safer-Active Safety
- LSPV Valve (Load Sensing Proportional Valve)
- Standard Dryer System
- Exhaust Brake
Safer—Passive Safety
- Energy absorbing steering system
- High-strength steel plate cab with collision safety function
- The frame section structure design and the front end of the frame have a deformation energy absorption effect in the event of a collision, reducing the collision intensity.
Gearbox
Synchronizers, key bearings, etc. are made of super durable materials, which are of good quality, high strength, and long service life, and their service life is more than double that of ordinary materials.
Comfortable
The interior is generous in front, leg, rear, and headroom for a comfortable driving environment. Widen the width of the door pedals, making it easier and more convenient to get in and out of the truck.
Enlarge the pedals, widen and heighten the door, so that getting on and off is quick and smooth.
When the door is opened, the structure is designed to move outwards, and the opening angle of the door is large, which does not affect the foot space at all when it is opened.
Body Unit
Tipping Tank
Double Acting Cylinders on both sides, lifting the rear door.
Vacuum Pump
JUROP PNR142, Sliding Vane, Capacity 14,200LPM
SUCTION HOSE

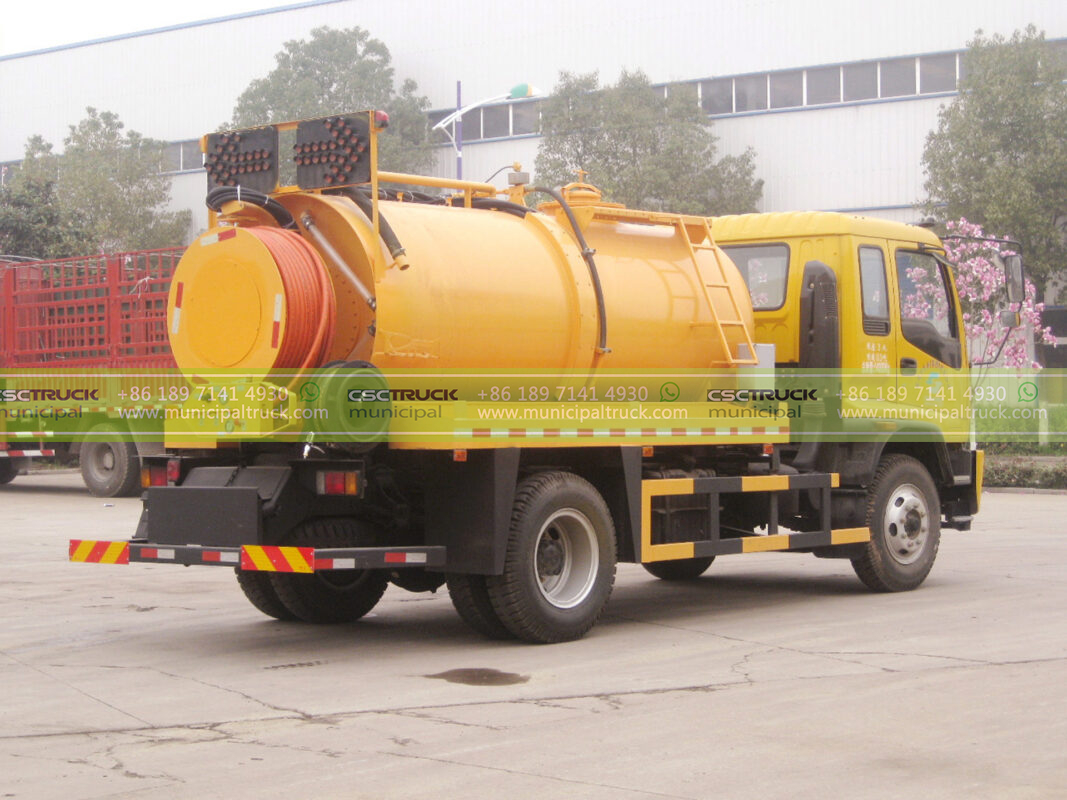

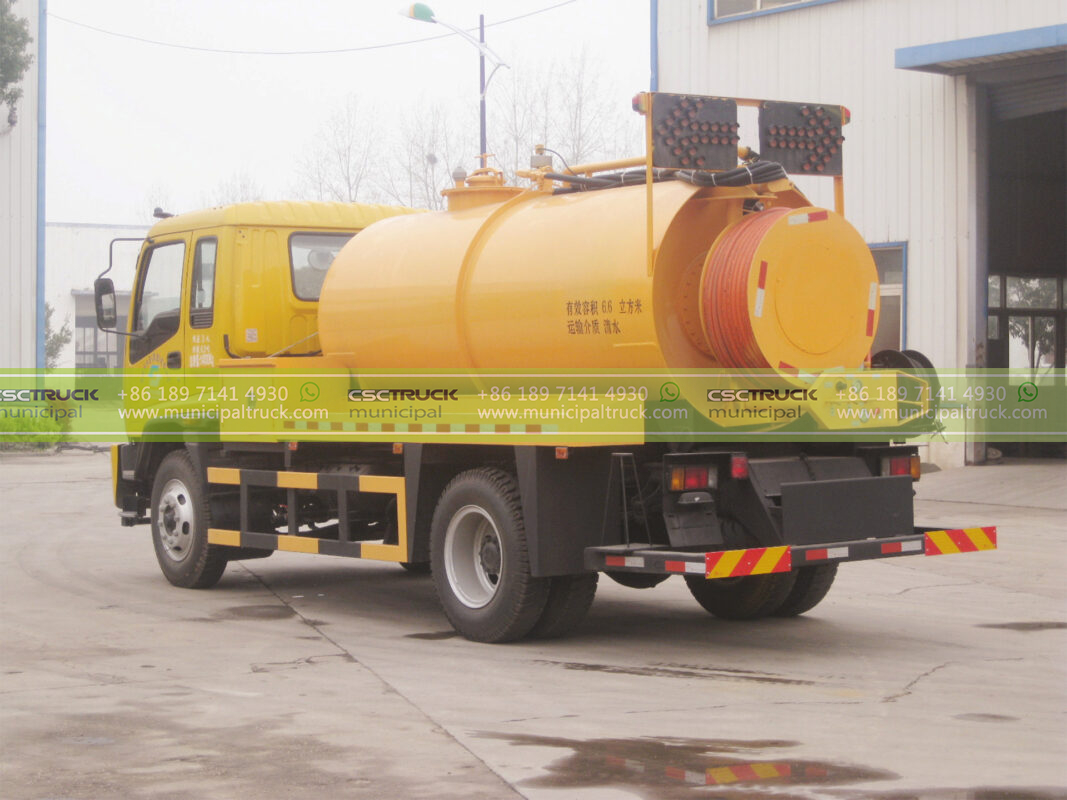

Hydraulic hose reel 76-80mm, 3 inches, PVC along with quick connect coupling.
Hydraulic dump system
Full door opening and hydraulic lock

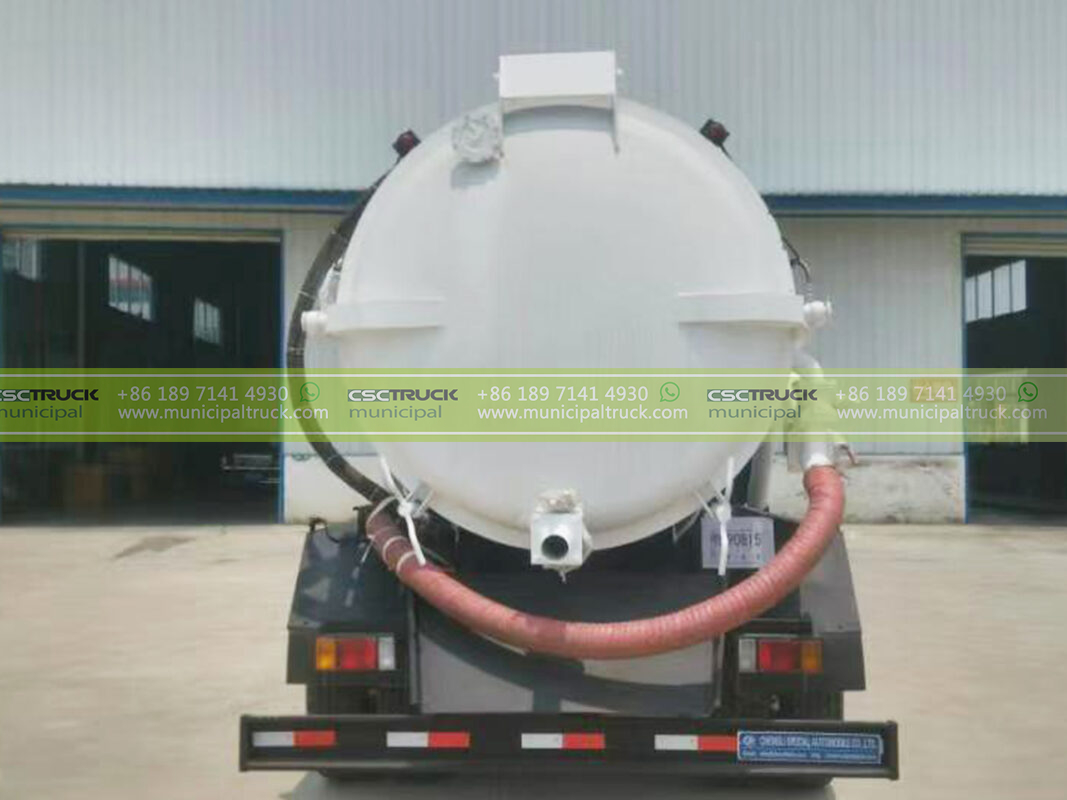

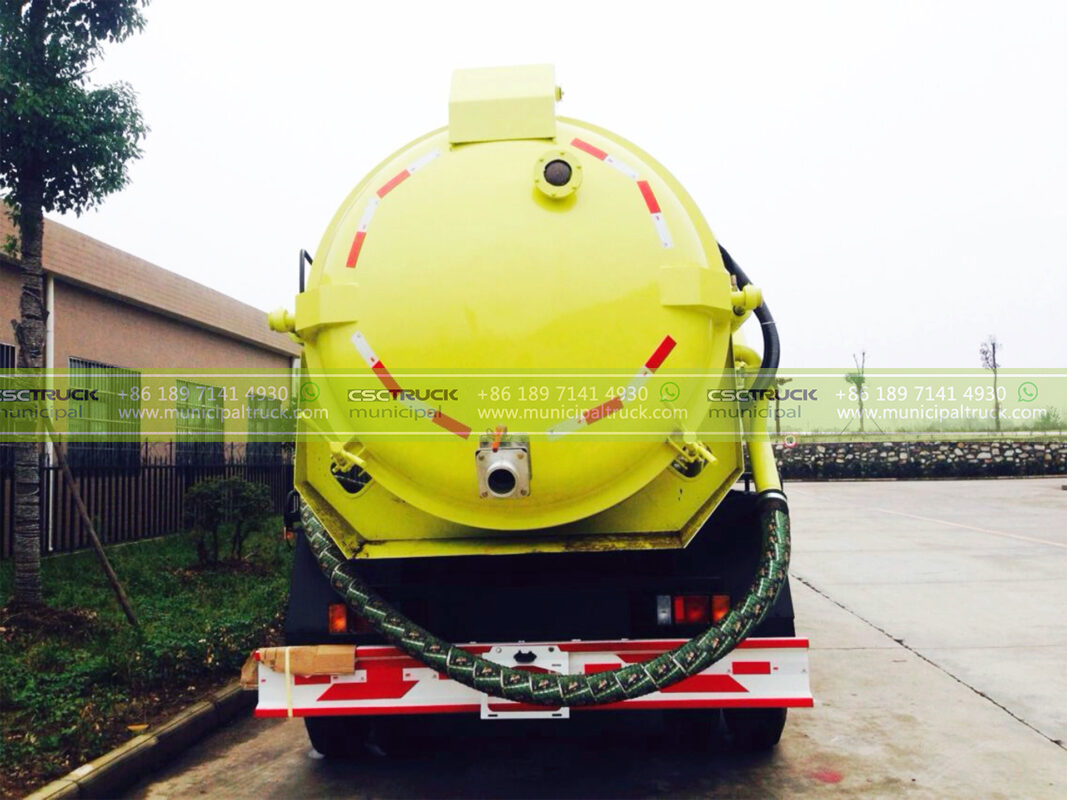

Hydraulic Open Rear Lid
Large (4-inch) Stainless Steel Discharge Valve. Rear Tank Skirt, avoid secondary pollution.
Safety Device
1. Primary anti-flow valve
2. Secondary anti-flow valve
3. Air safety filter
4. Vacuum relief valve
5. Pressure relief valve
6. Vacuum pressure gauge
7. Silencer (Oil catch muffler)
INSTRUMENT
– Temperature Gauge
– Pressure Gauge
– Level Control
Optional Features
-Import Vacuum Pump
-Rotary Suction Boom
-Remote Control Unit
-Extension Suction Connector
-Tank Self Cleaning Device
-Pneumatic Tube Cleaner
specification
| Chassis model | ISUZU 700P |
| Engine model | ISUZU/4KH1 |
| Type of fuel | Diesel |
| Power | 190hp |
| Emission standard | EURO 5 |
| Sewage Tank | 8,500L |
| Body Material | High-strength carbon Steel |
| Full Suction Time | ≤5 min |
| Vacuum Pump | JUROP PNR142 |
| Effective Suction Distance | 6 M |
| Suction Pipe Inner Diameter | 110 mm |
| Discharge Valve | One way 100mm ball valve |
| Over Pressure Device | Yes |
| Tool box | Yes |
| Painting | Two primers, and one final paint coating |
