Brief

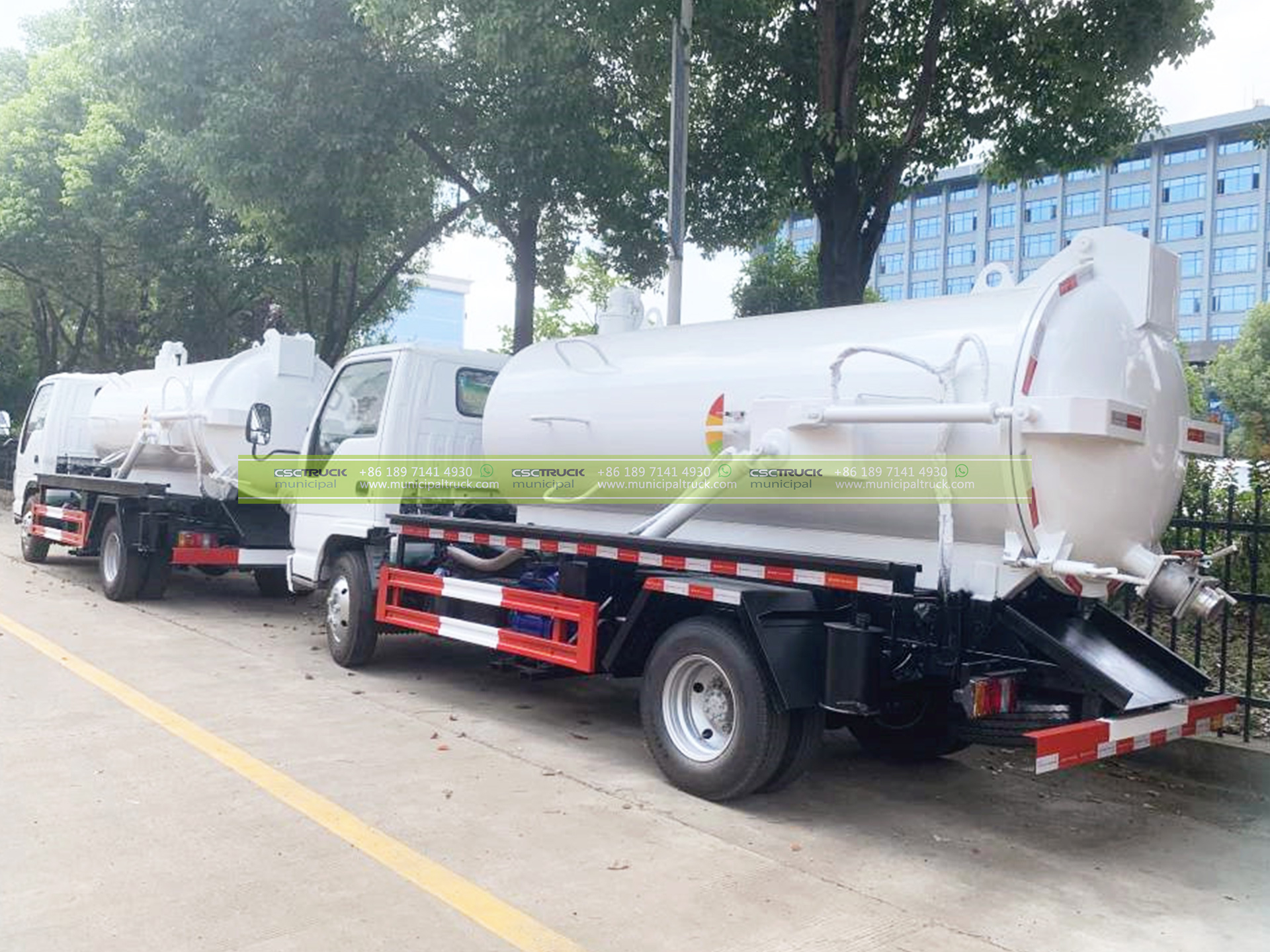

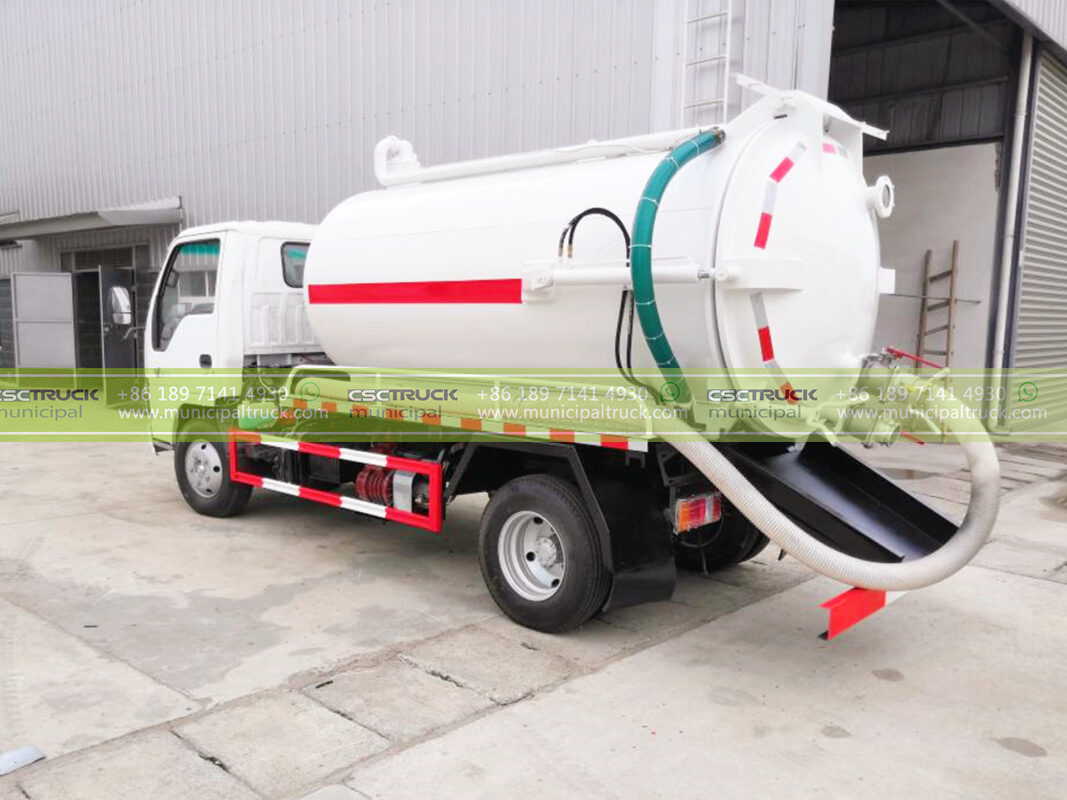

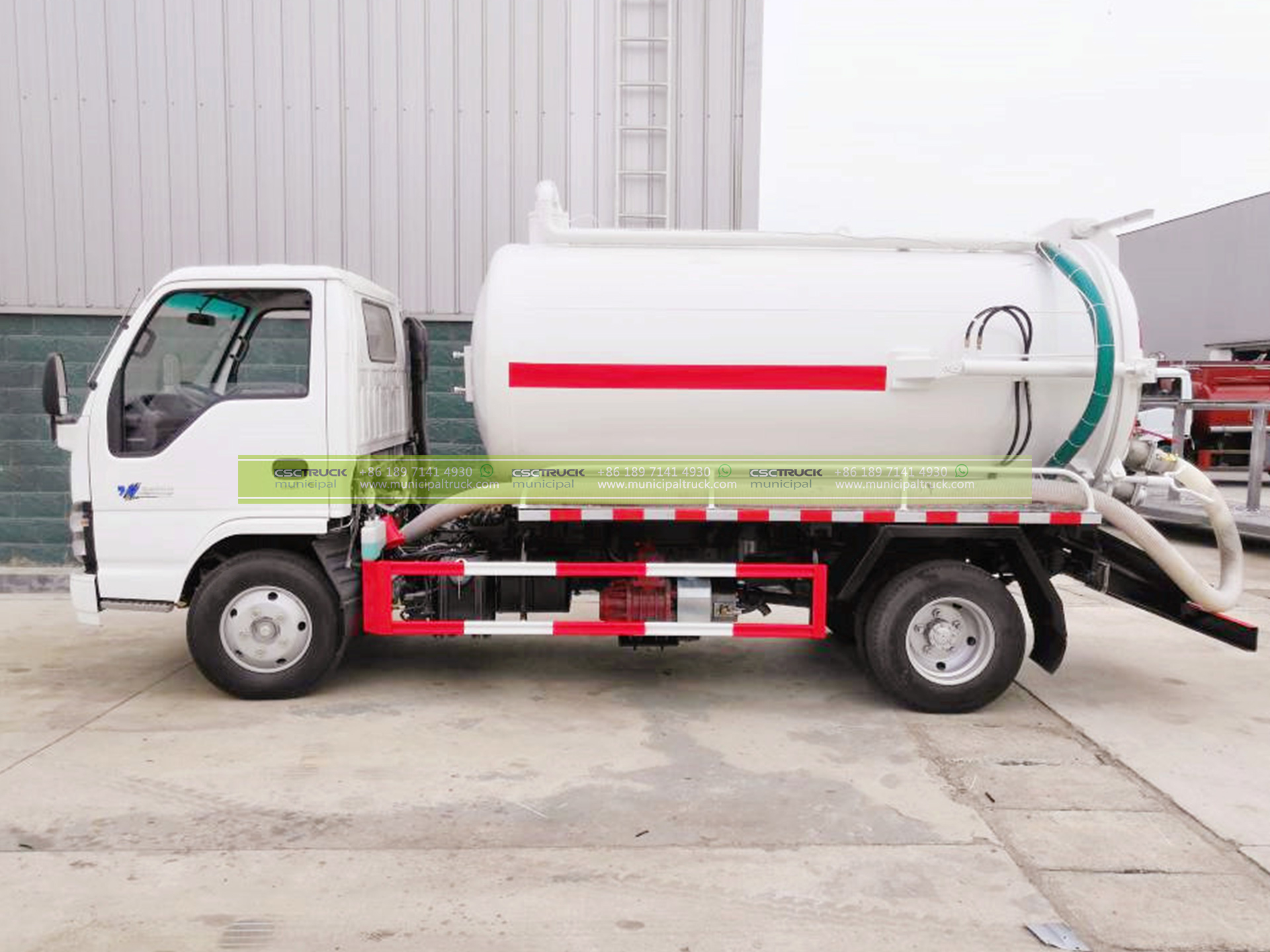

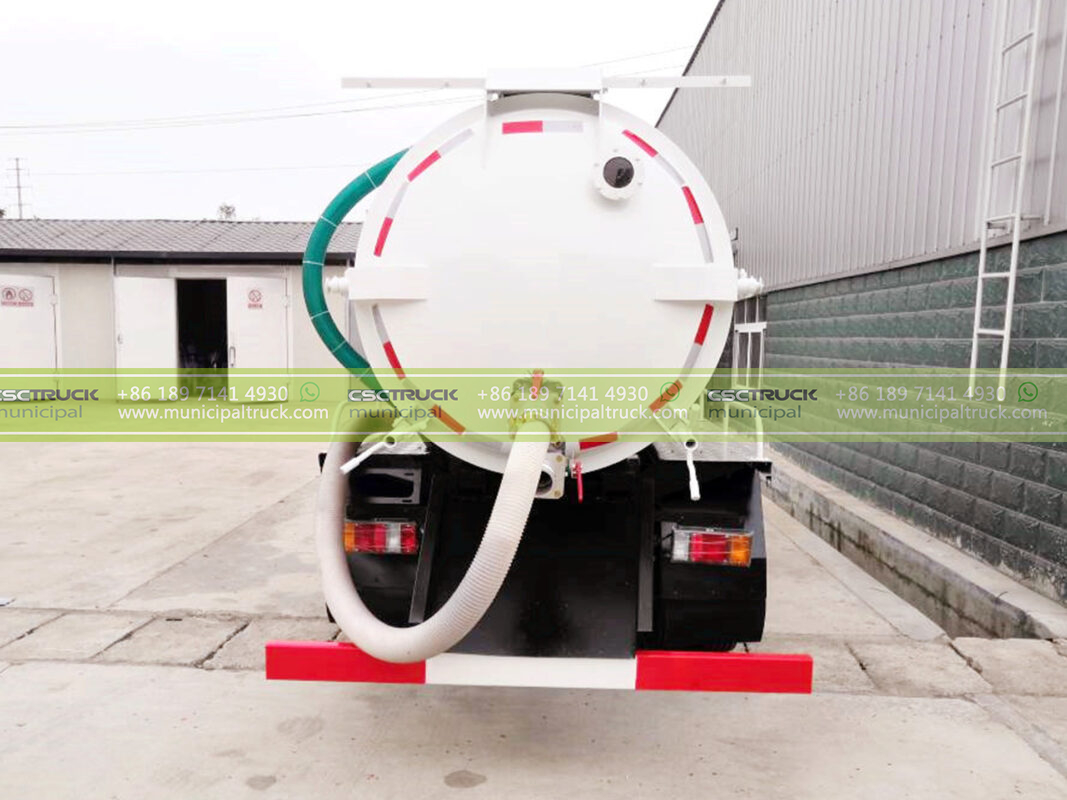

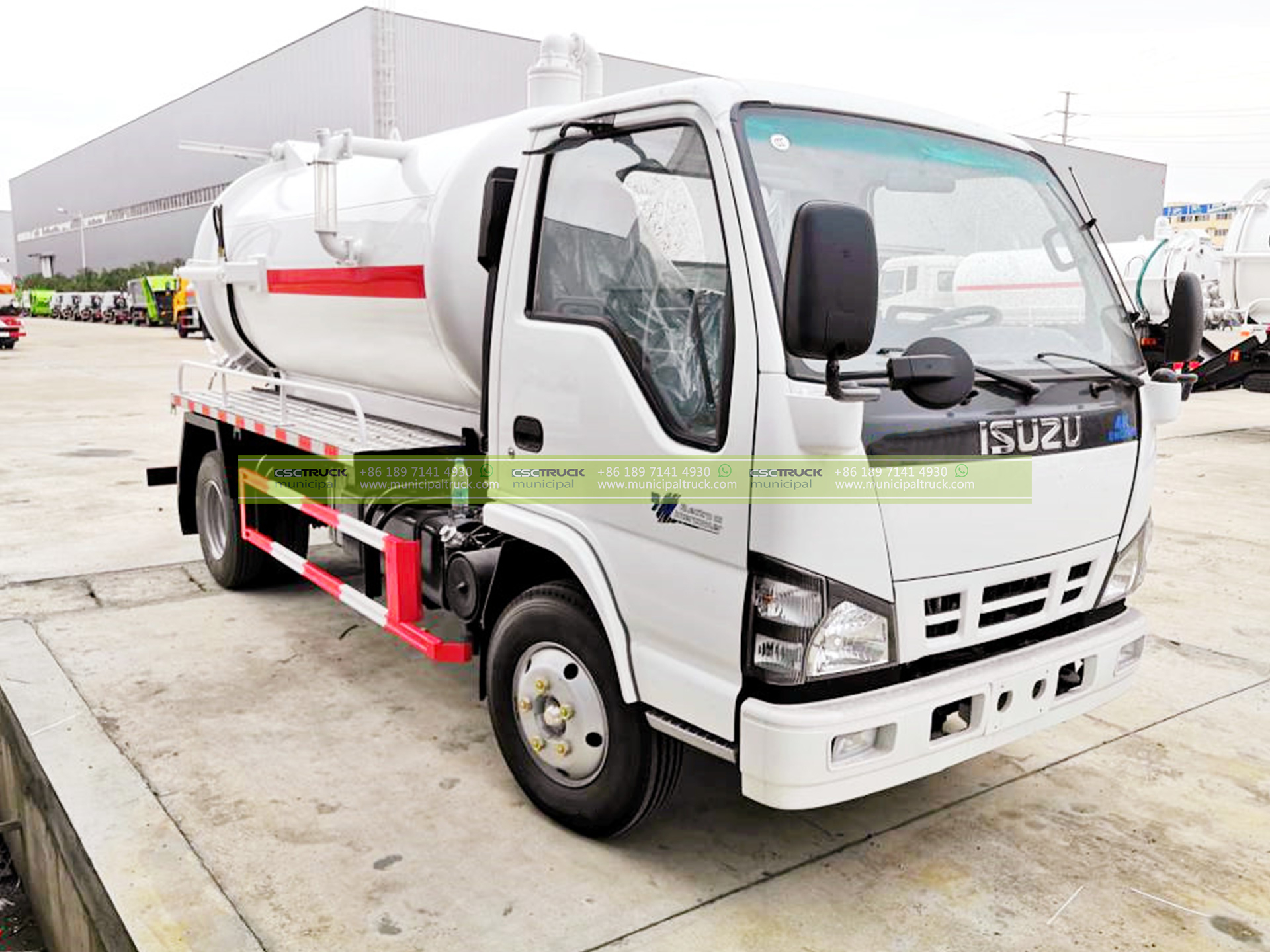

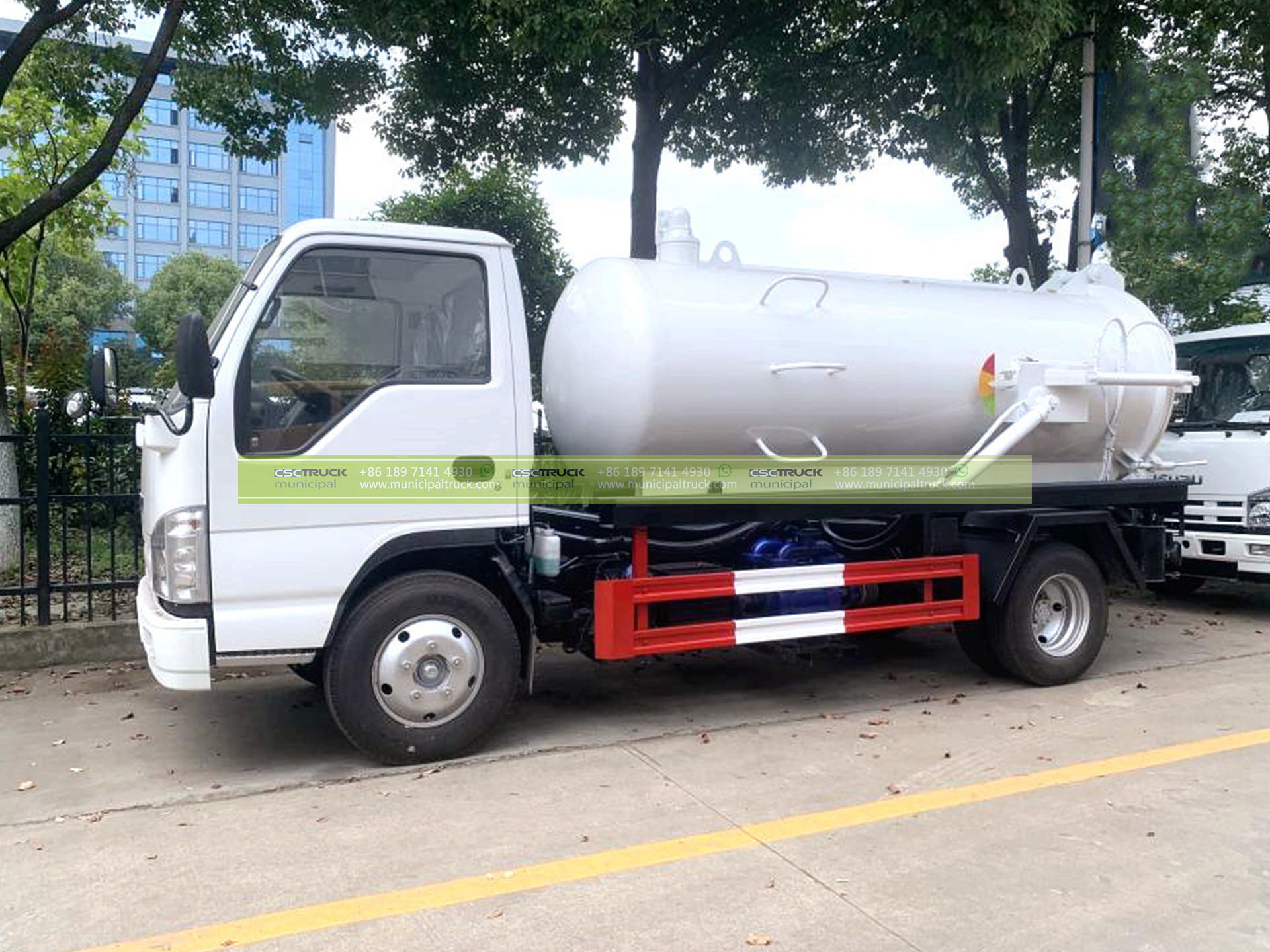

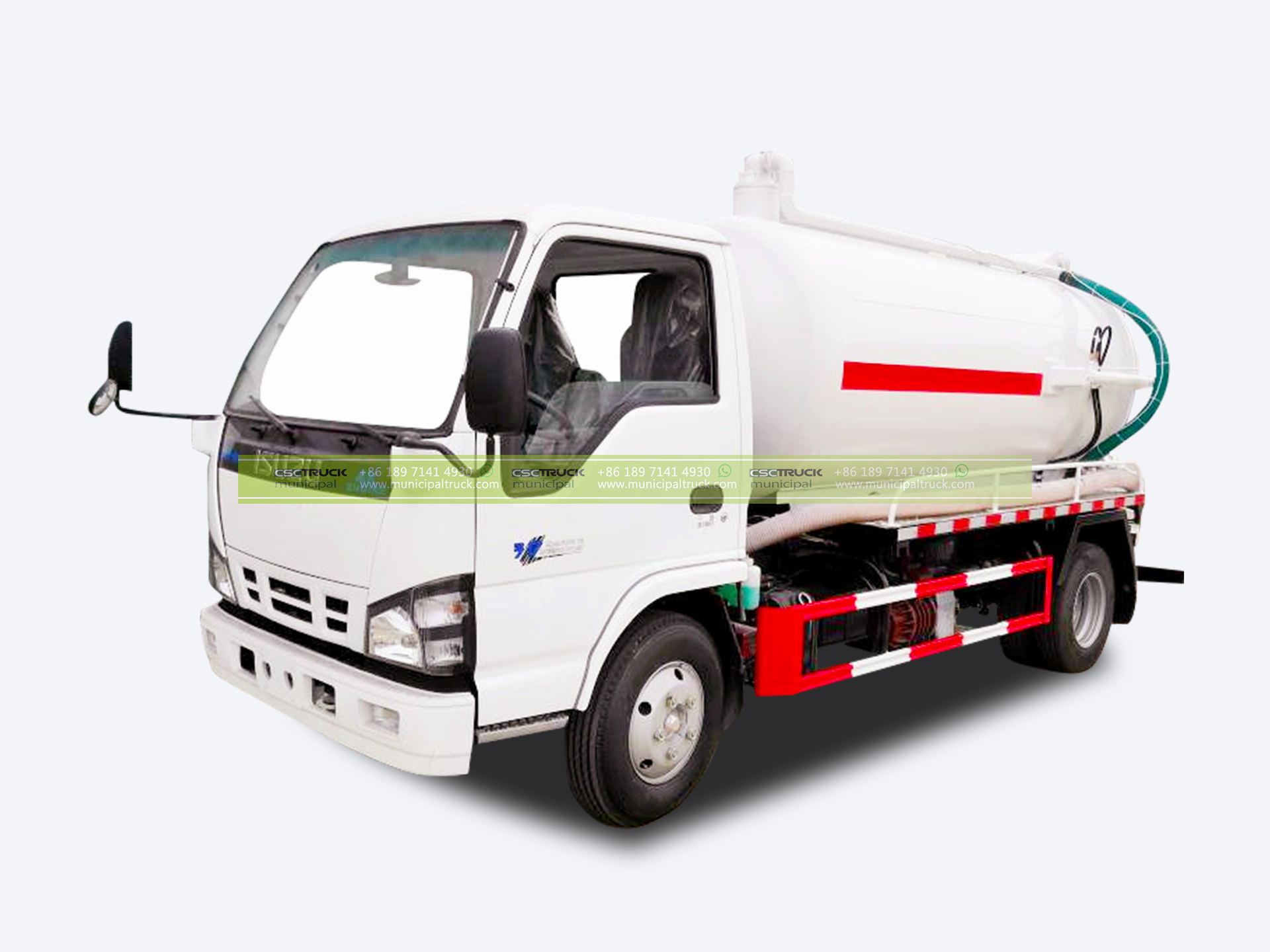

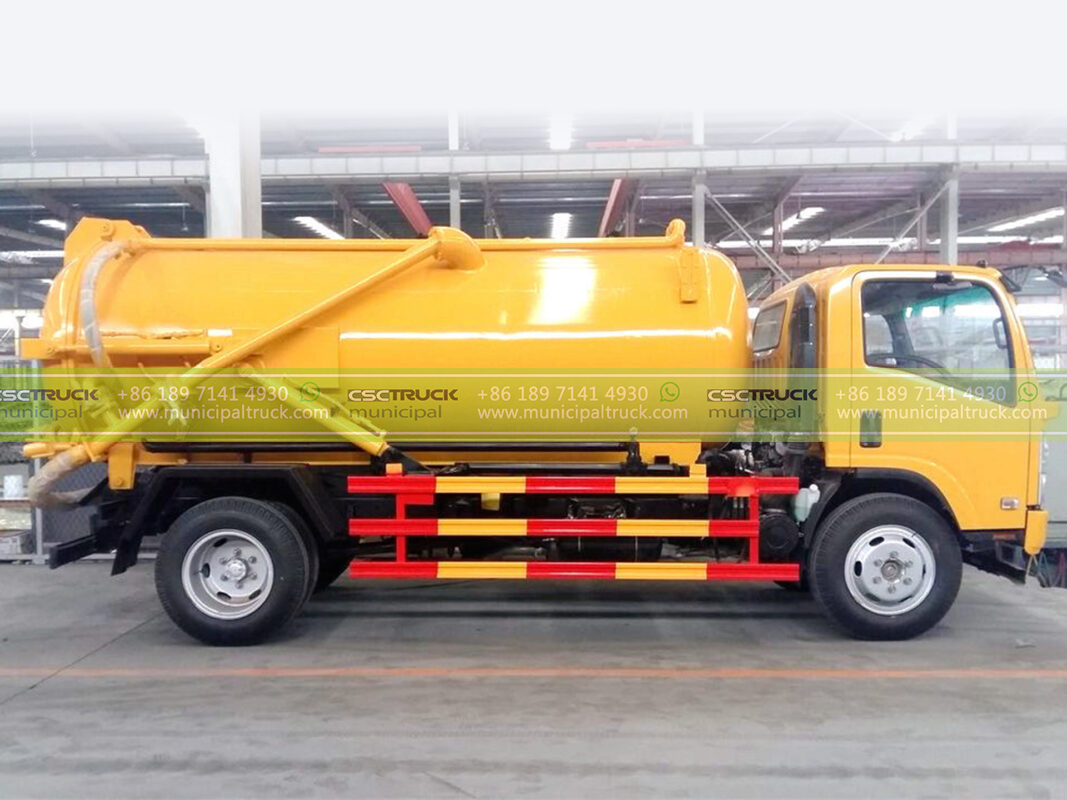

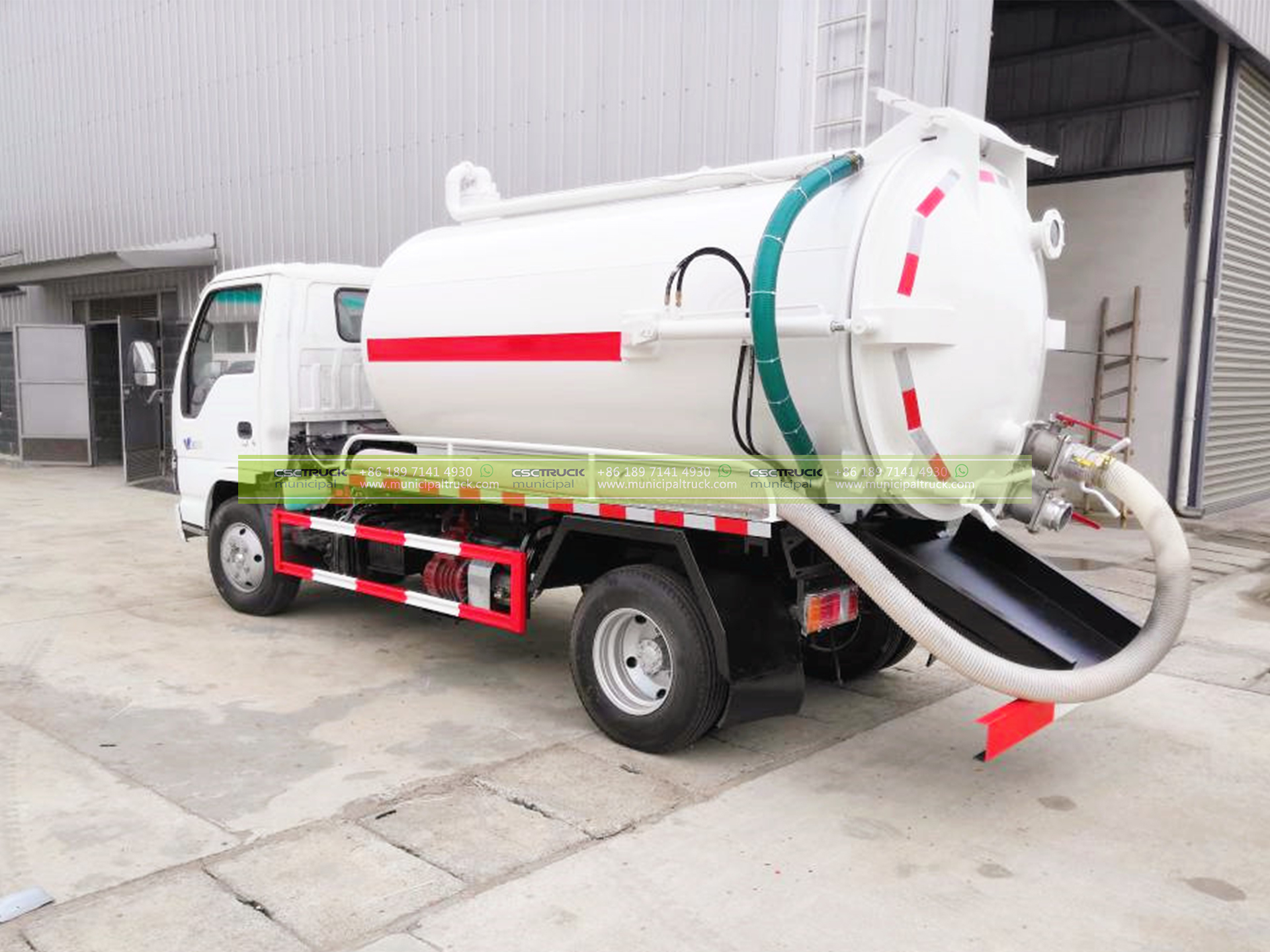

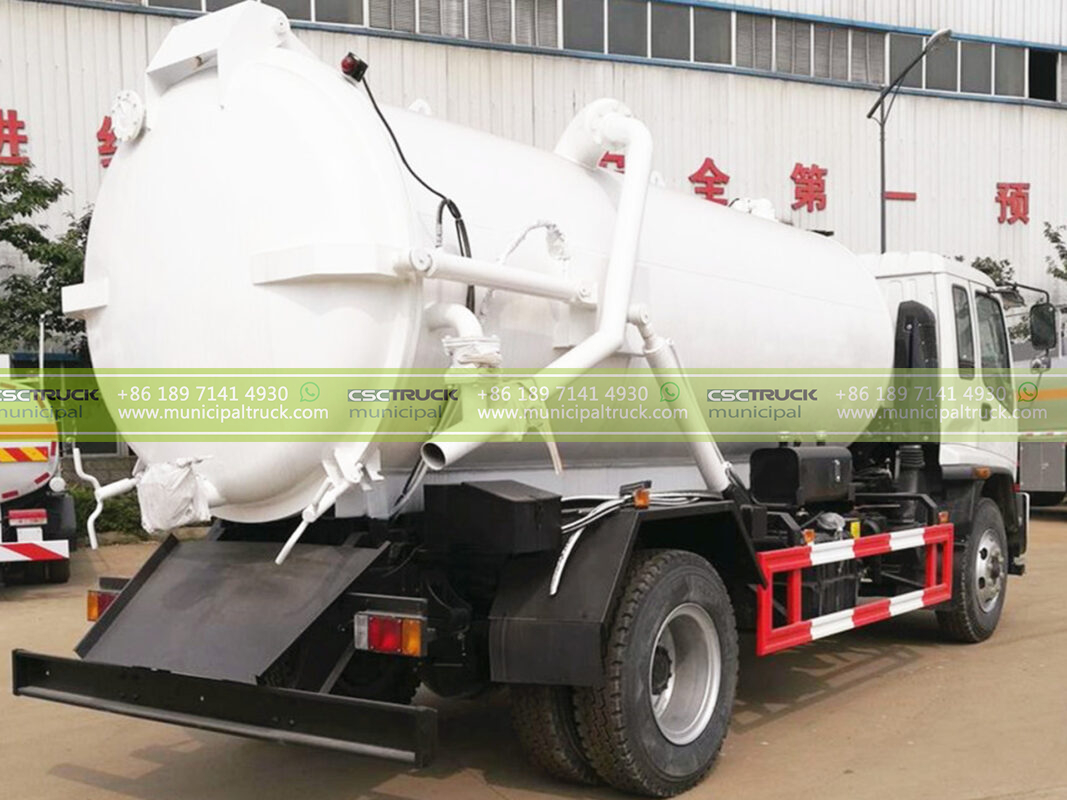

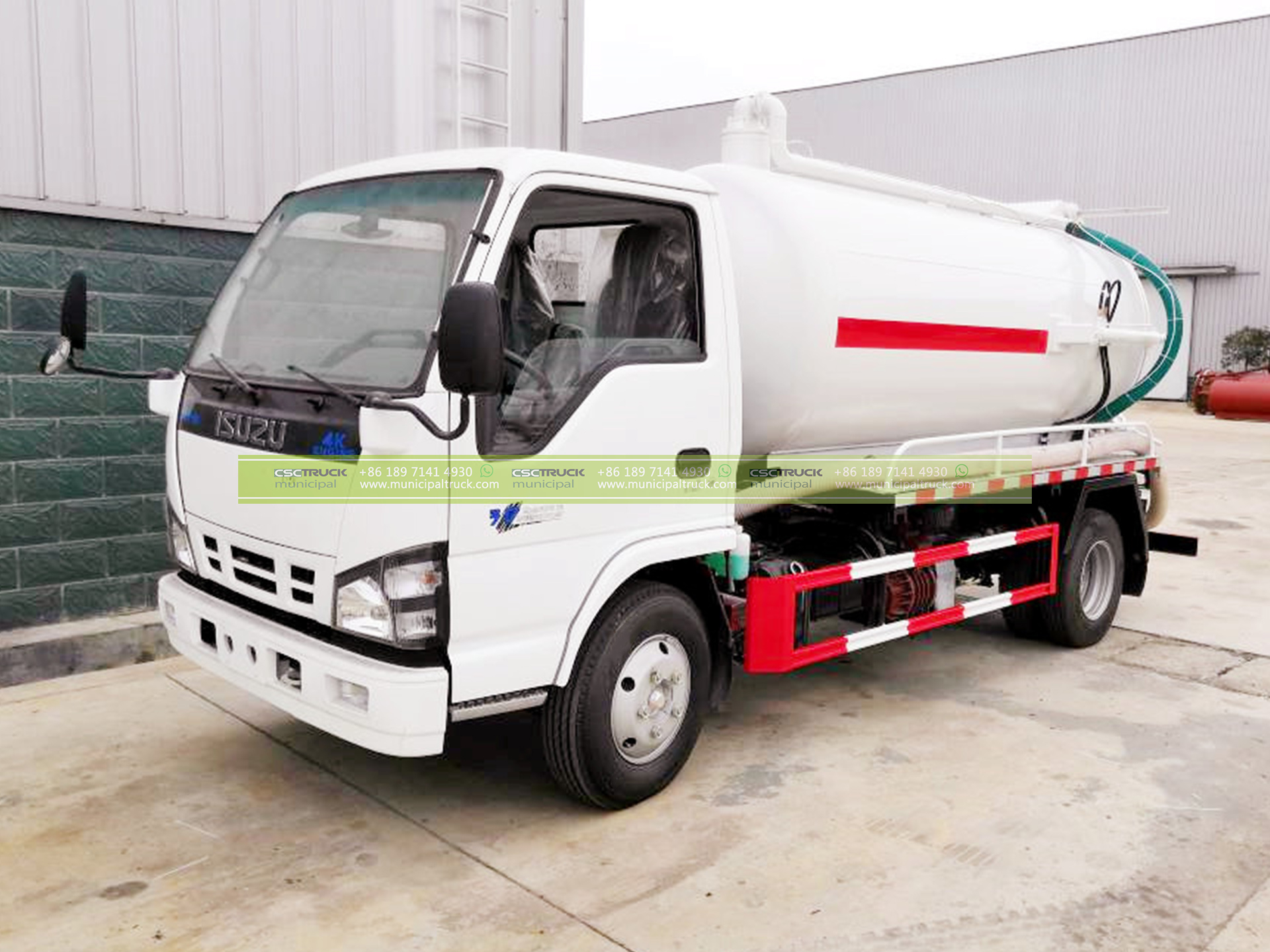

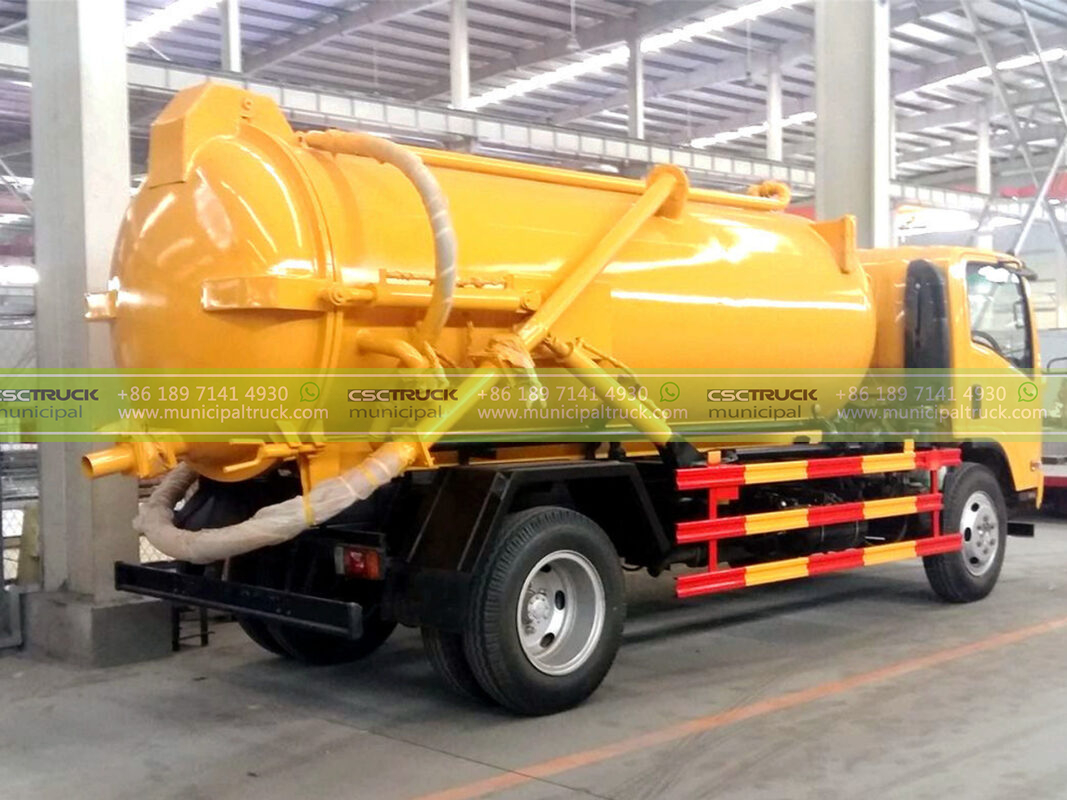

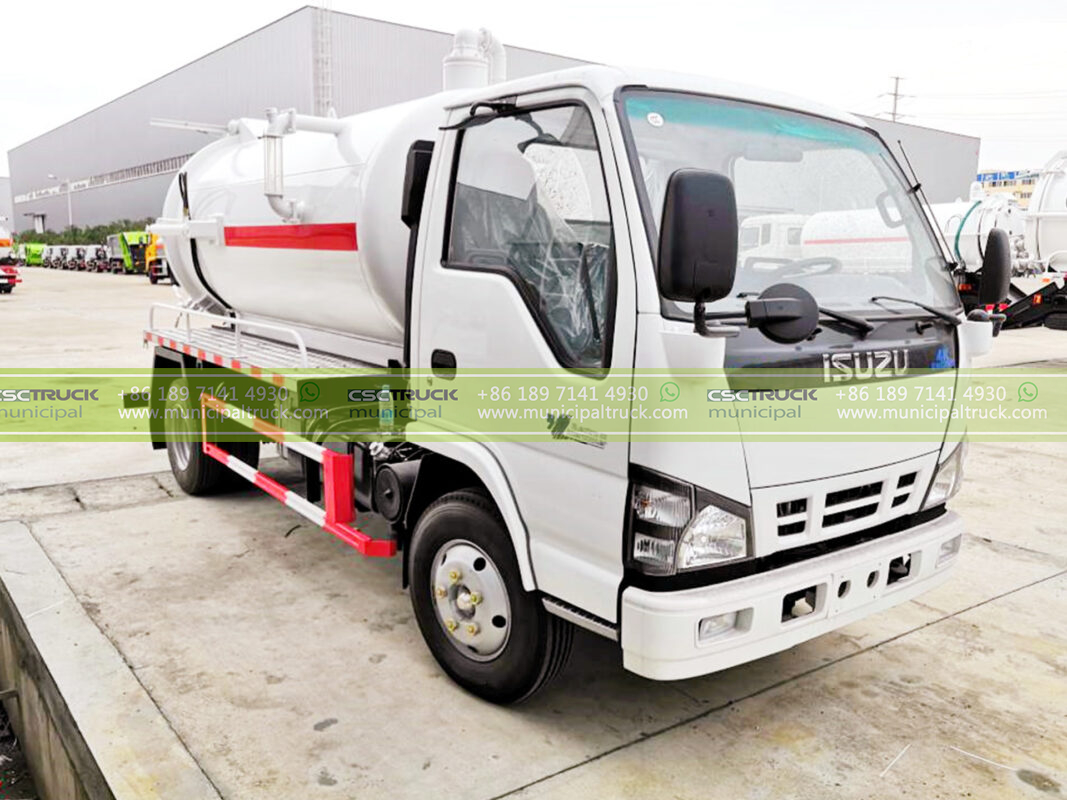

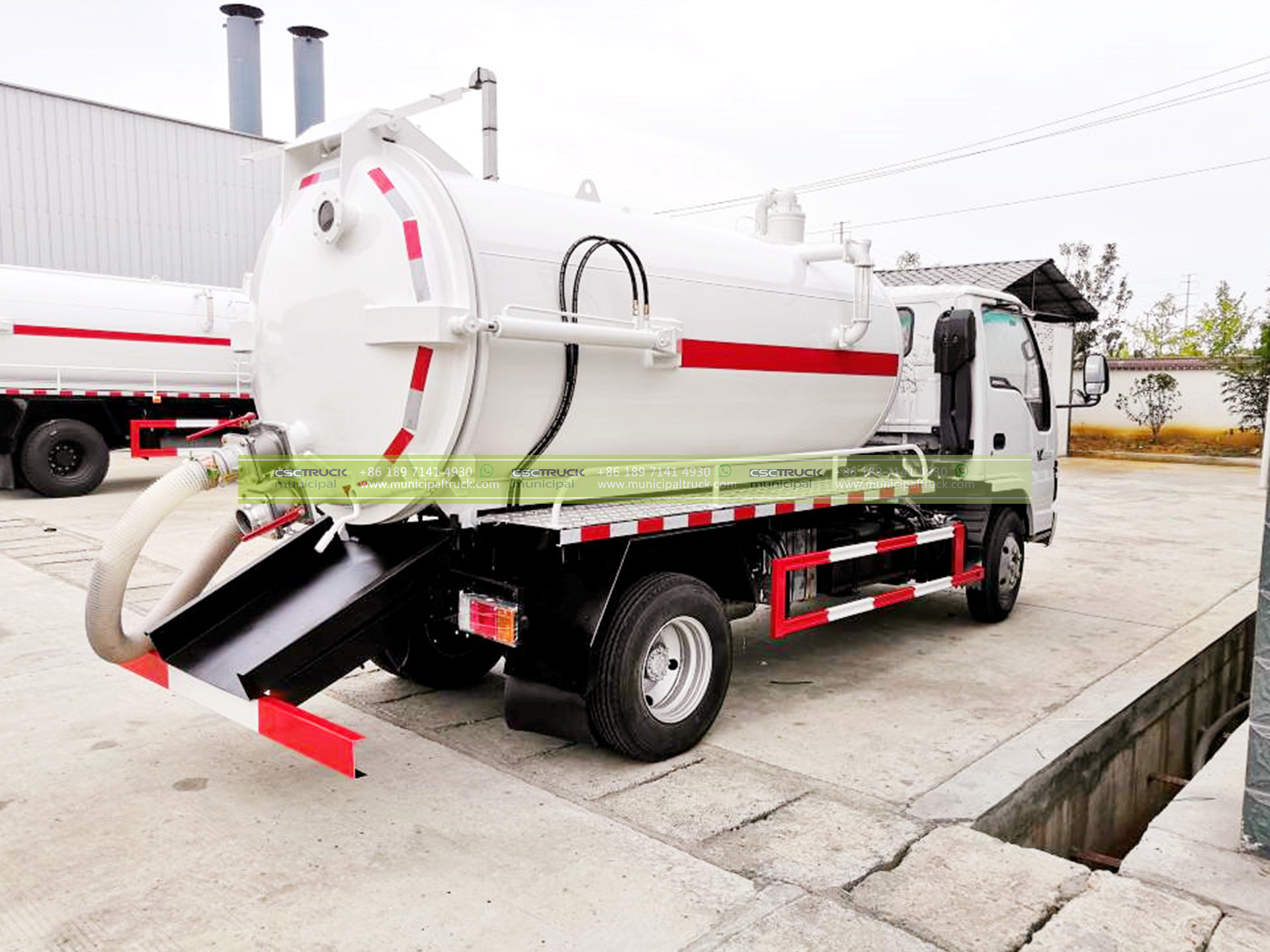

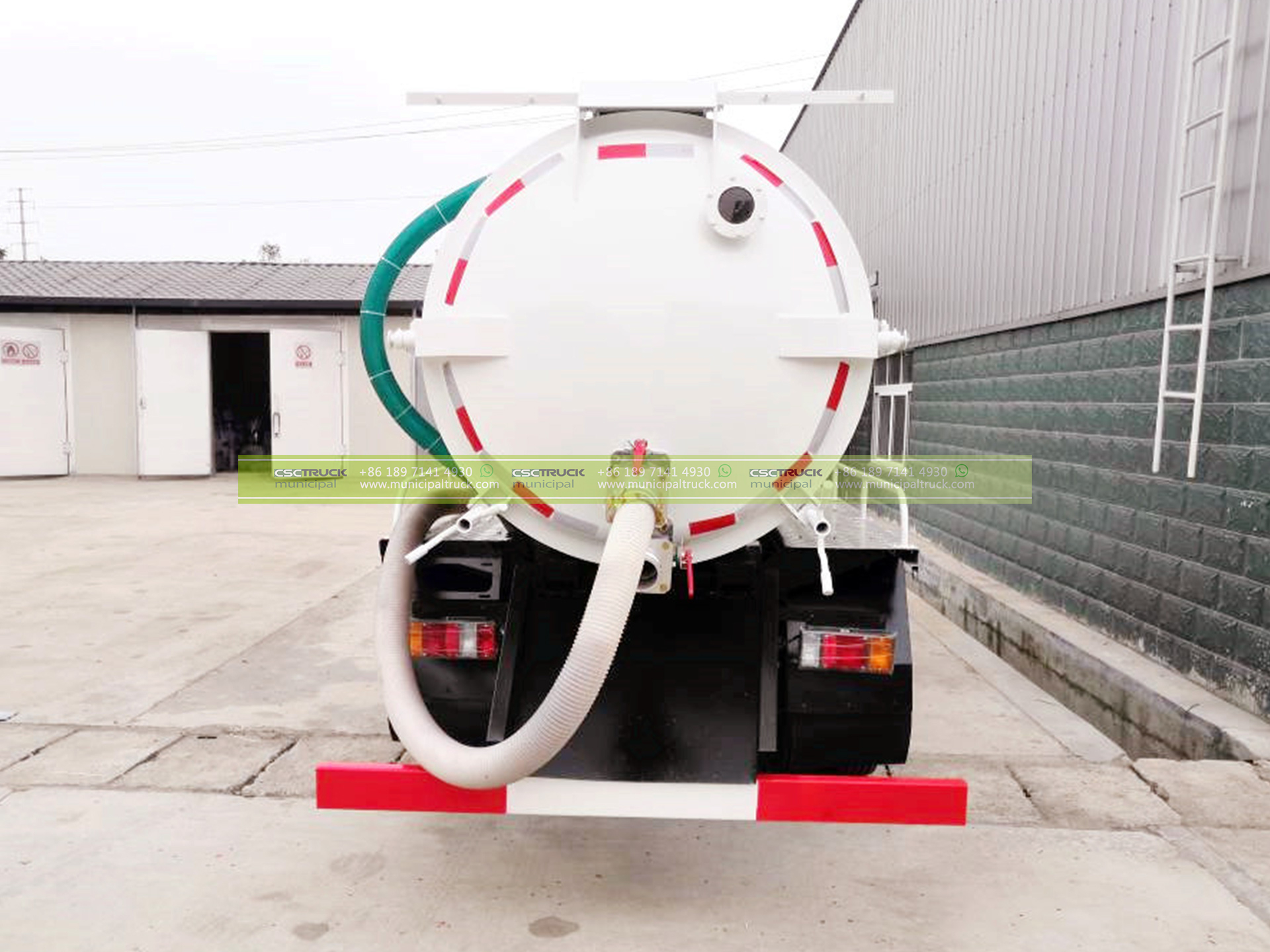

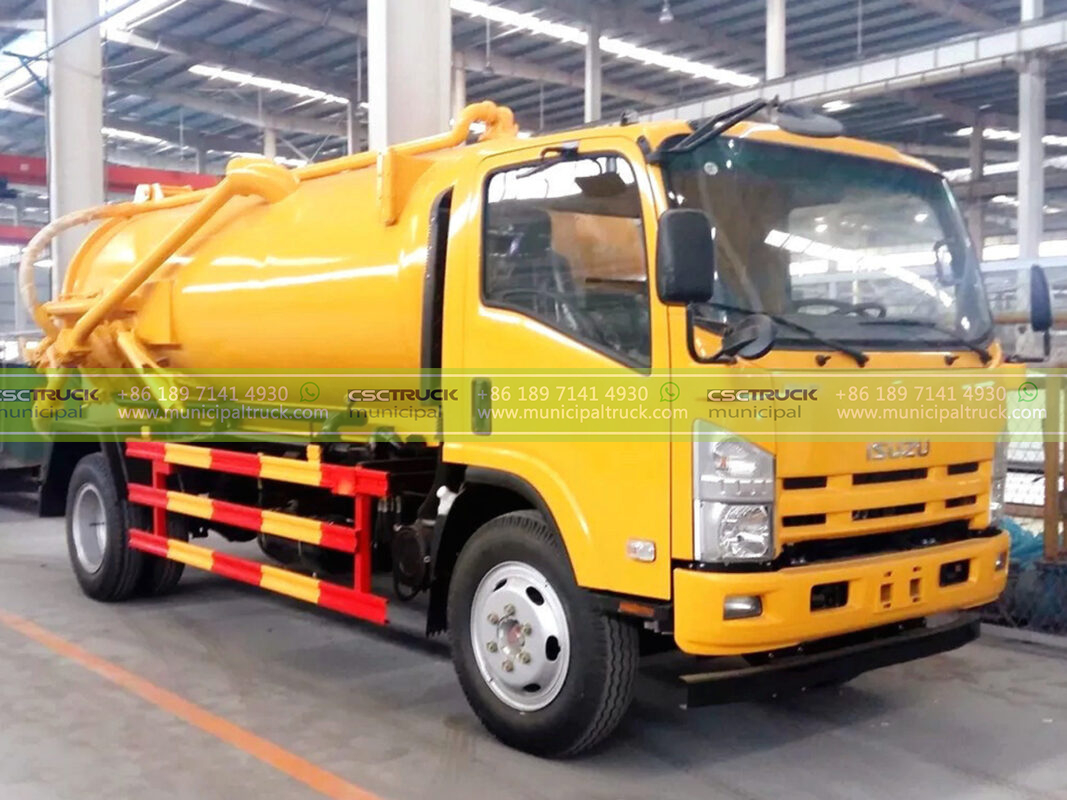

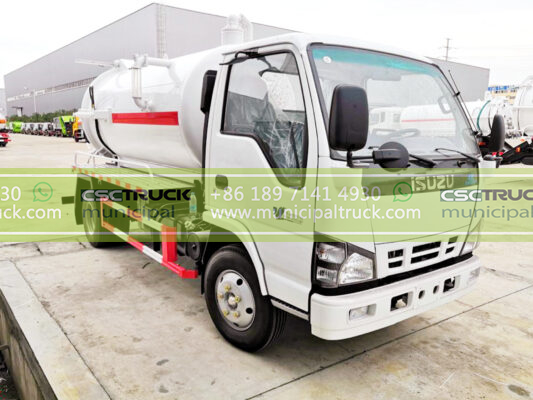

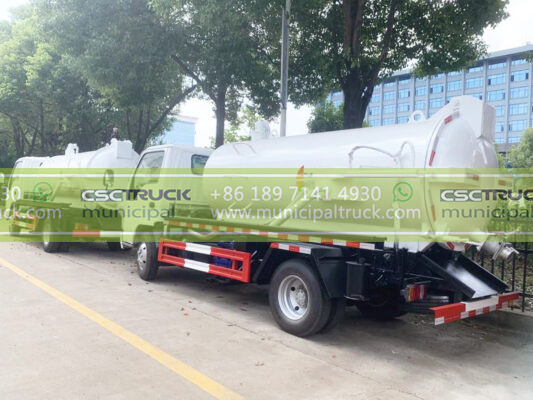

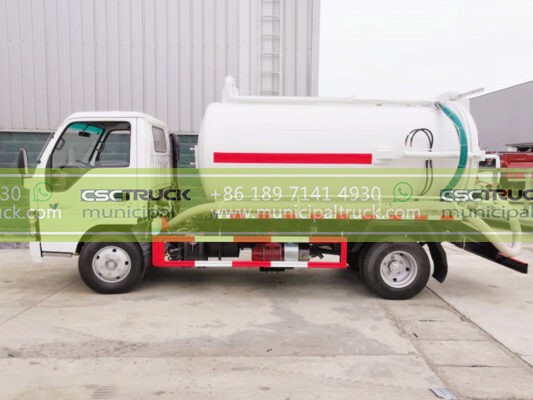

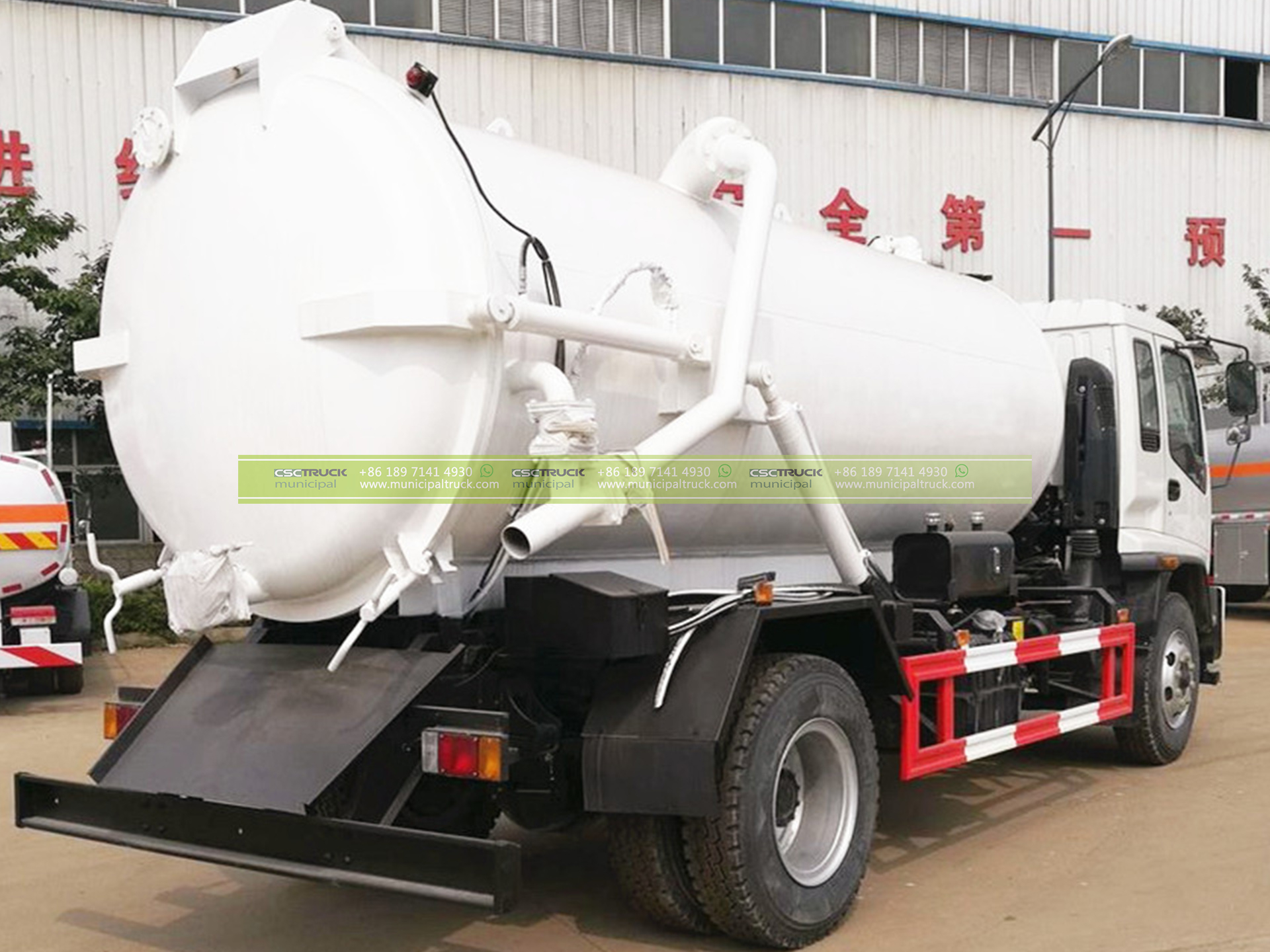

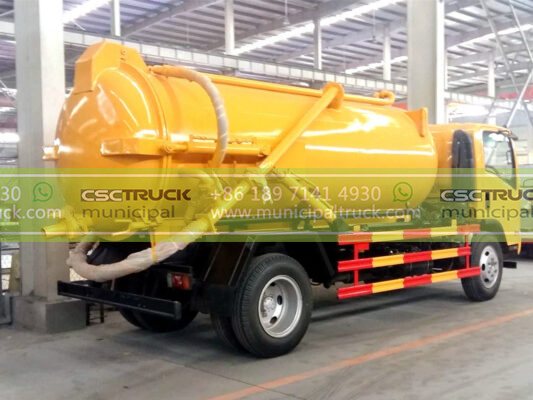

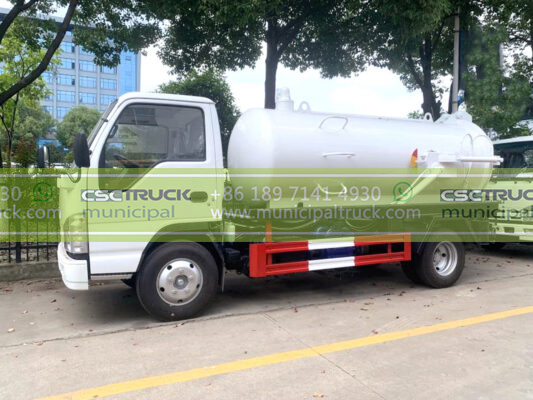

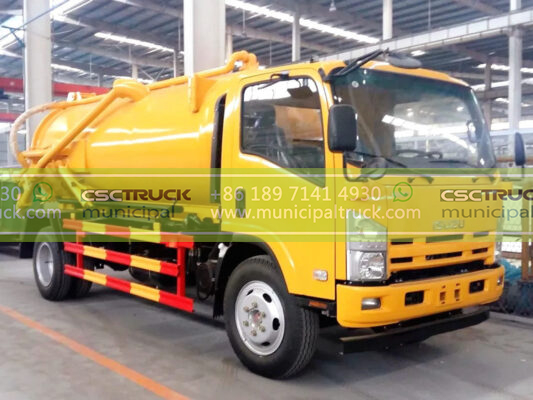

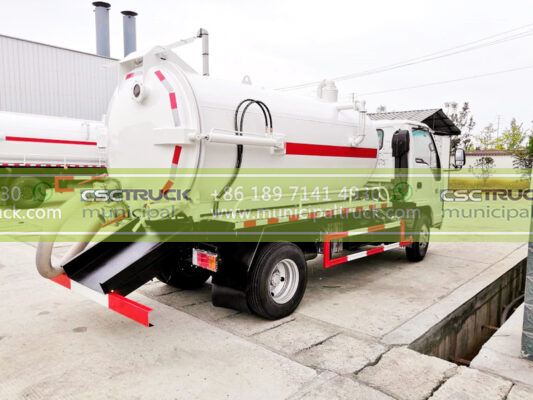

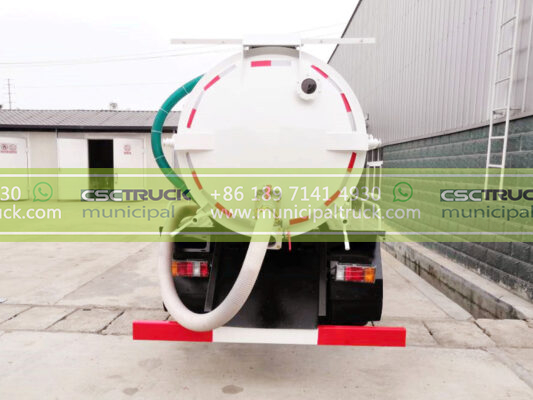

ISUZU 8 Ton Sewage Vacuum Truck is consists of a large tank for storing liquids, a strong pump for vacuuming and a series of hoses, collecting and transporting hazardous and nonhazardous liquid and semi-liquid waste. The truck is cost effective and good performance in short distance transportation. The KV600 chassis is provided with ISUZU 4KH1-TCG40 engine. And the power of engine is 96Kw,displacement is 2999ml,horsepower is 130hp, and transmission is Manual MSB-5SM, front seat have 3 seats,and the rear axle ratio is 5.375.
ISUZU 8 Ton Sewage Vacuum Truck tank capacity is 5000 liters, welded from high tensile steel thick in 5mm, to vacuum suction, pressure discharge and self-flow discharge, sewer etc. MORO PM60A vacuum pump driven by belt and pulley from transmission PTO, flow capacity is 7,200LPM.
features
Chassis Truck
ISUZU Technology
Equipped with the 4HK1-TC engine of Isuzu’s latest technology, which precisely controls fuel injection and power output, reasonably matches the 6-speed transmission and rear axle speed ratio, and the maximum vehicle speed can reach 120km/h or more to meet the needs of high-speed logistics transportation.
Reinforced Chassis Capacity
The design of the frame, axle and other assemblies is based on the premise of ensuring the carrying capacity, using high-strength materials, stamping and welding processes to achieve the lightweight design of the chassis, making the vehicle operation more economical.
Safety Drive
Equipped with large-size brakes (widened shoes), brake load-sensing proportional valves, engine exhaust brakes and other functional devices to ensure driving safety, making driving safer.
Body Unit
Debris Body
Q235 high tensile steel sheet of thickness 6 mm and side panel 5 mm thickness.
Anti-Flow Devices
-Anti-overflow Valve installed at the top of the tank, which is connected to the suction port of the pump to protect it
-Oil/Water Separator, water vapor and oil and gas to ensure the normal operation of the engine and the vacuum pump and prolong the service life.
Vacuum System
MORO PM60A, Sliding Vane, Capacity 7,200LPM
Hydraulic System
The control valve, oil cylinder and connecting pipeline of the hydraulic system of the sewage suction truck have advanced structure, reliable performance, simple operation and convenient maintenance.
Loading and Discharging
Tip-to-Dump or pressure unloading
Optional Devices
– Vacuum pump brand or flow capacity
– Valves from 75mm to 150mm diameter, level or air operated
– A fully opening rear door, hydraulically operated or side mounted manual
– A 600mm diameter rear access manholes can be fitted
SPECIFICATION
|
Chassis model |
ISUZU KV600 |
|
Tire size |
7.50R16 with 1 spare tire |
|
Passengers in cab |
3 |
|
Engine model |
ISUZU/4KH1 |
|
Type of fuel |
Diesel |
|
Power |
130HP |
|
Emission standard |
EURO 5 |
|
Sewage Tank |
5,000L |
|
Body Material |
High-strength carbon Steel |
|
Full Suction Time |
≤5 min |
|
Vacuum Pump |
Italy Brand MORO, Jurop or other brand |
|
Effective Suction Distance |
6 M |
|
Suction Pipe Inner Diameter |
110 mm |
|
Discharge Valve |
One way 100mm ball valve |
|
Over Pressure Device |
Yes |
|
Tool box |
Yes |
|
Painting |
Two primers, and one final paint coating |
|
“U” shape Sub Frame, Hydraulic system, Alarm, Water and gas separator, Vacuum pressure gauge, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps… |
|
