Brief

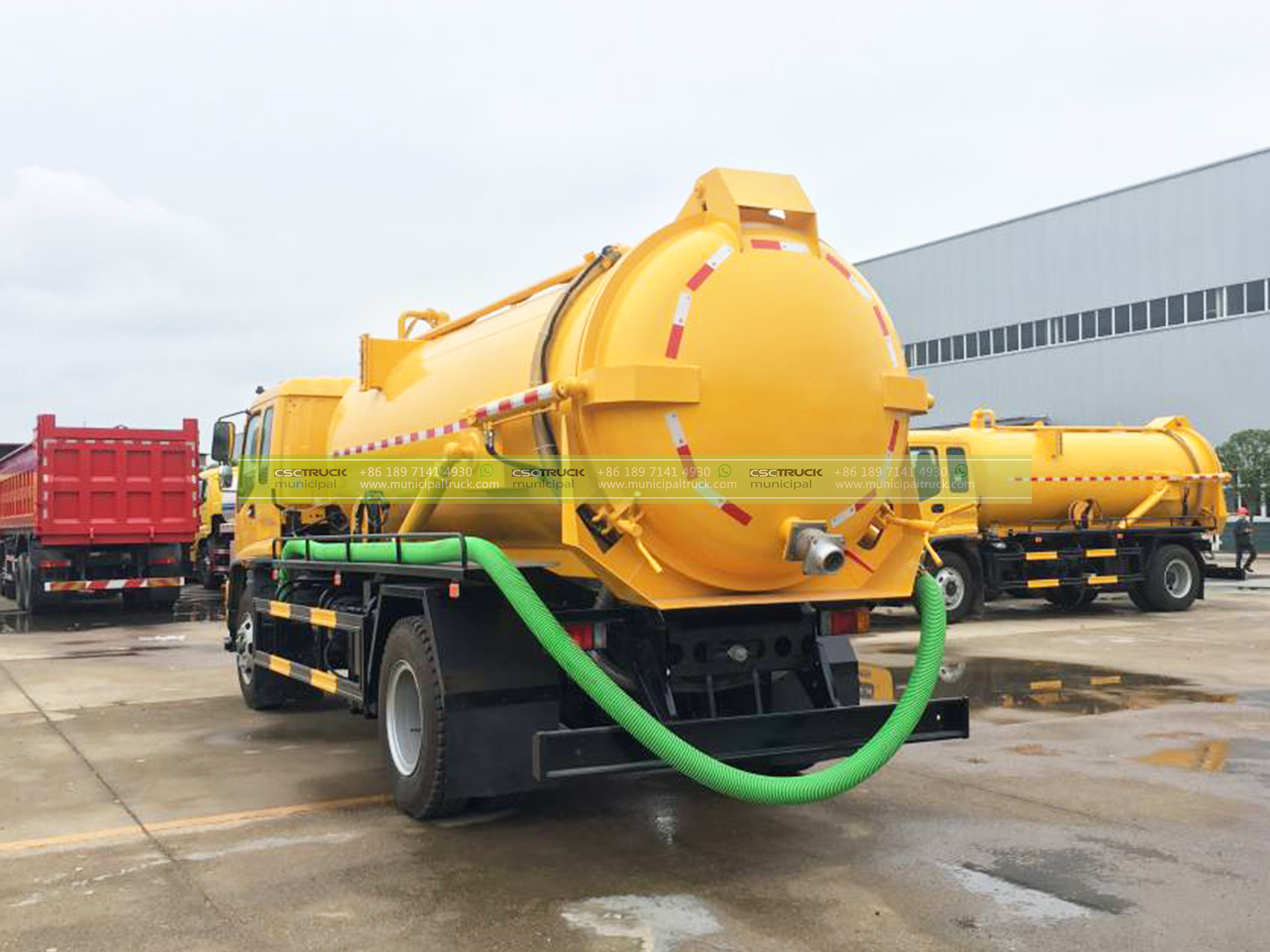

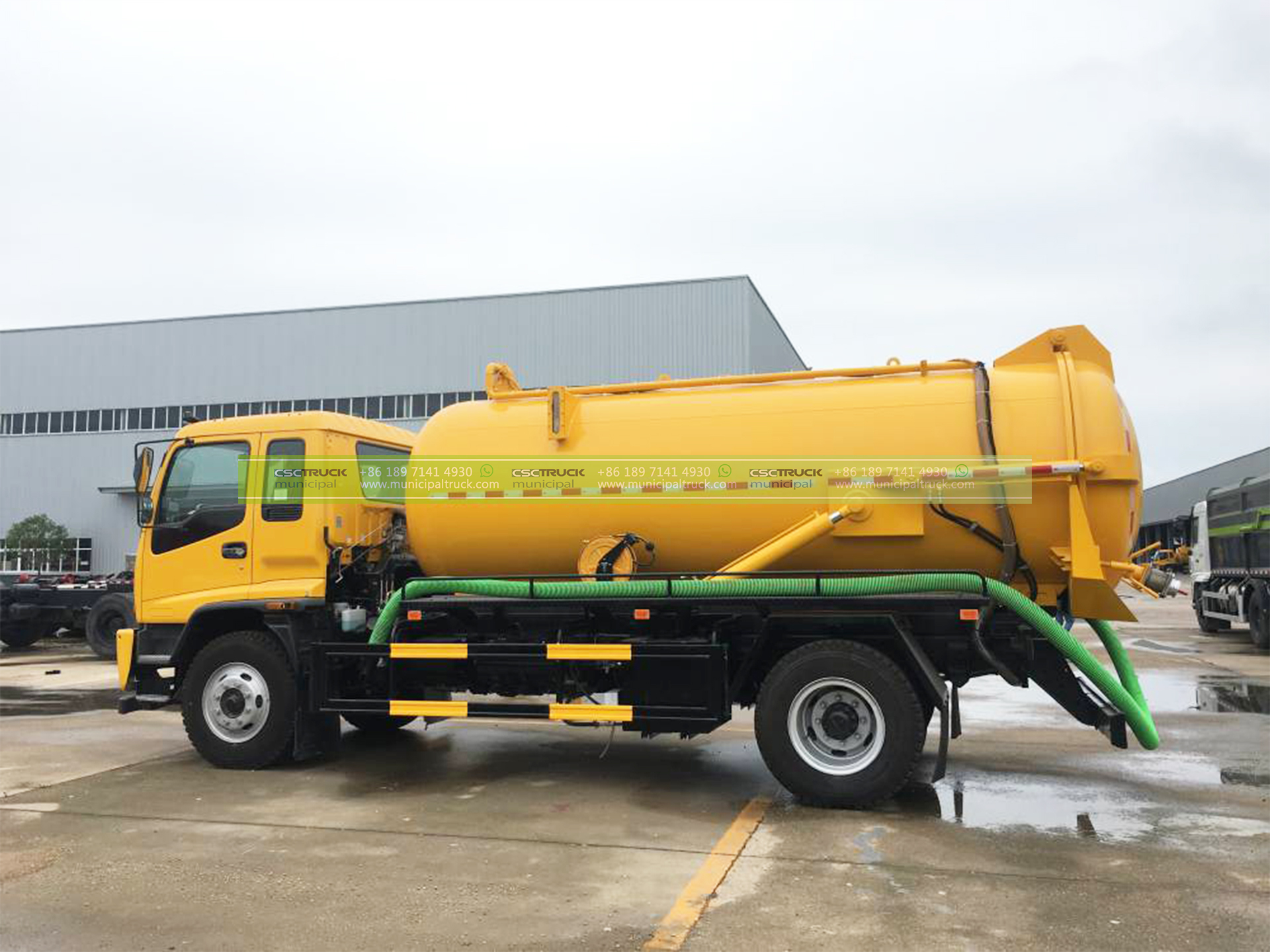

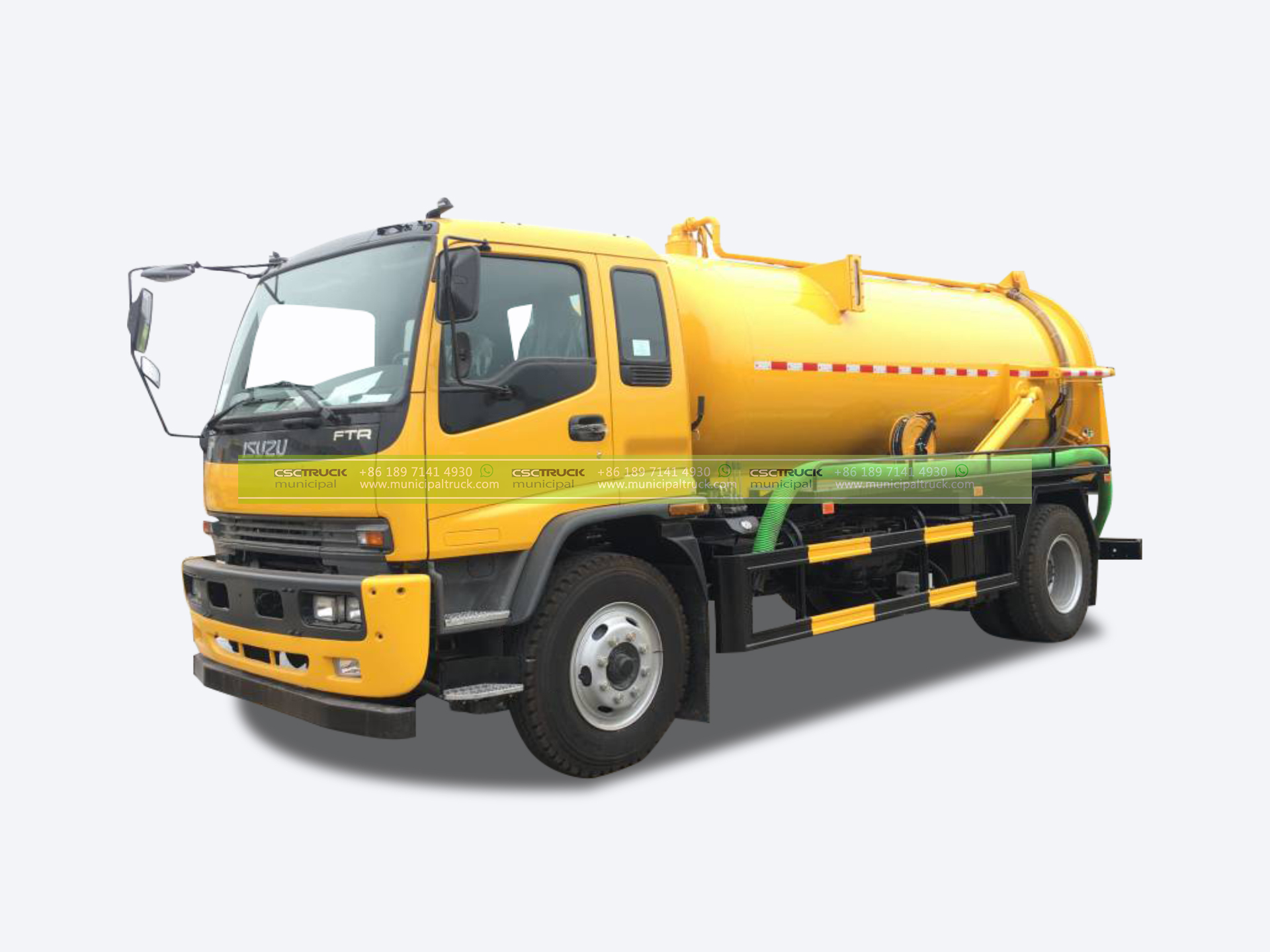

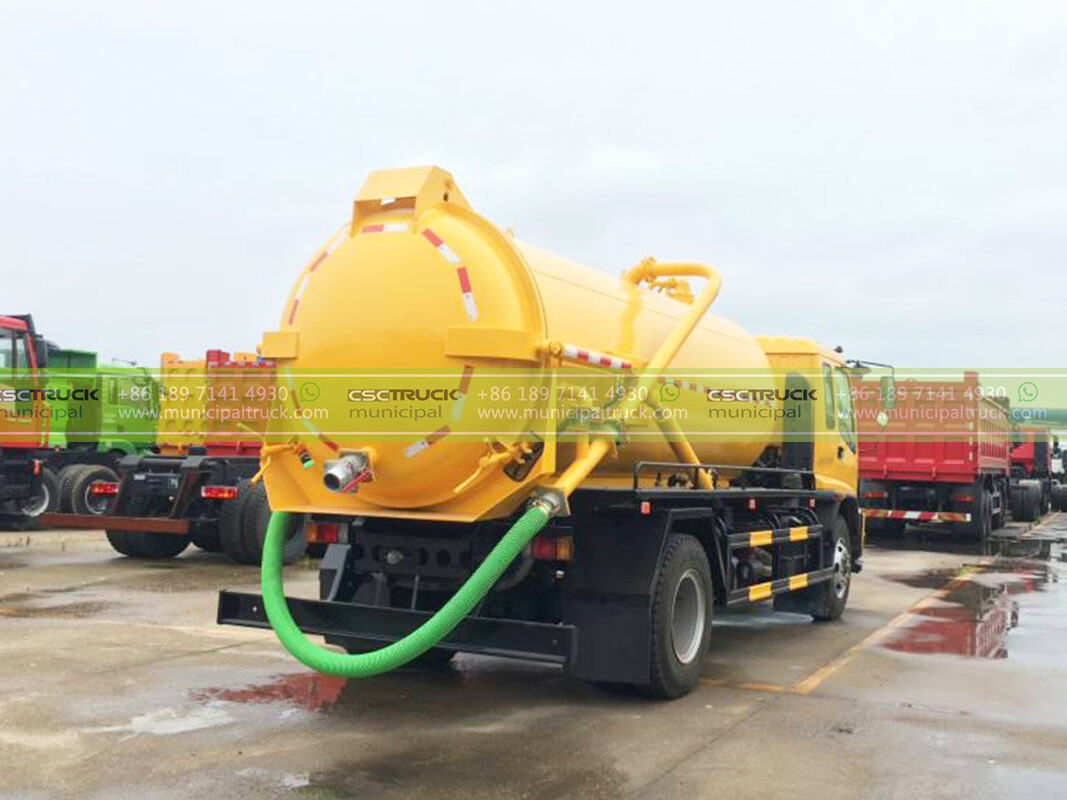

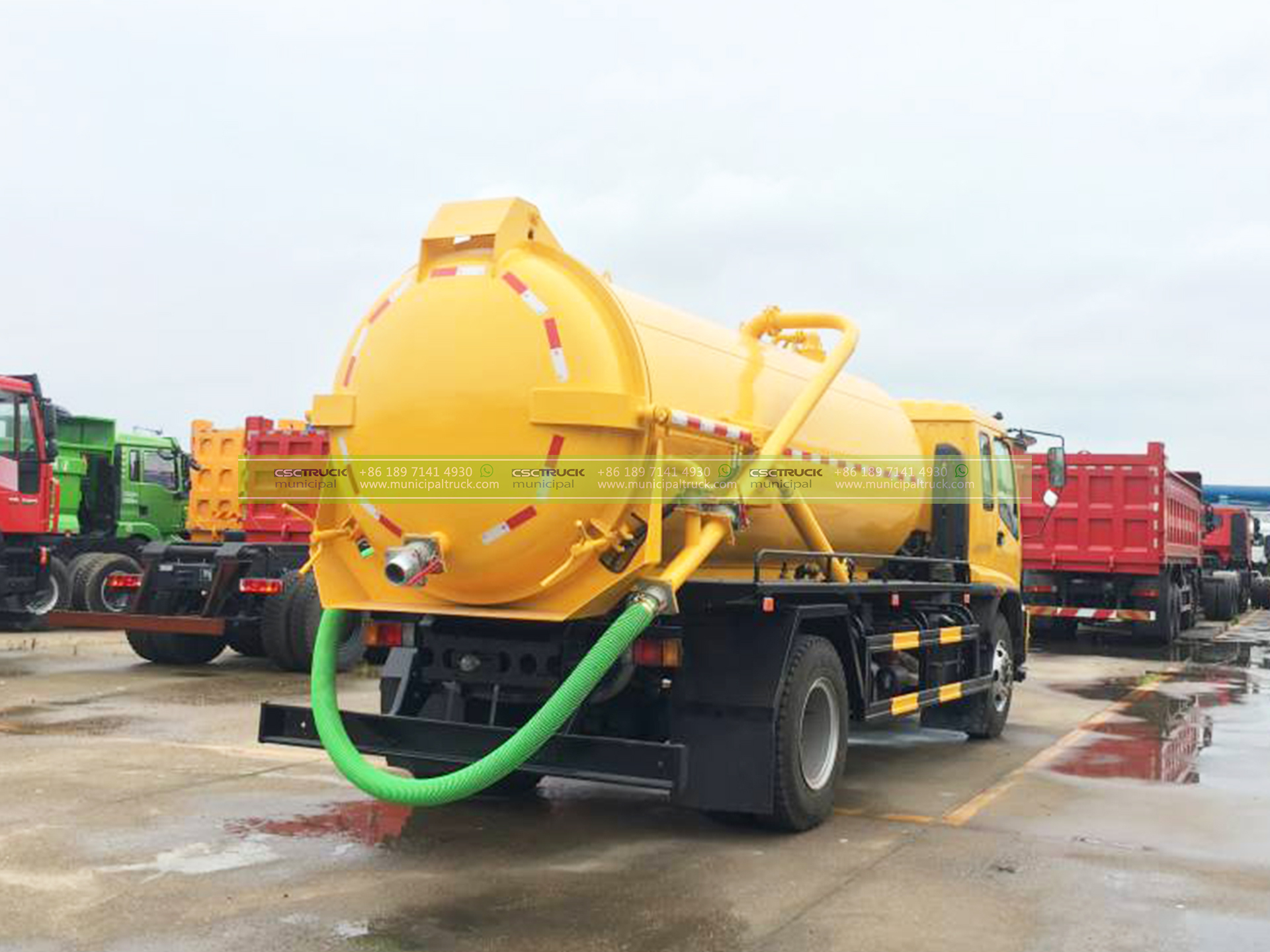

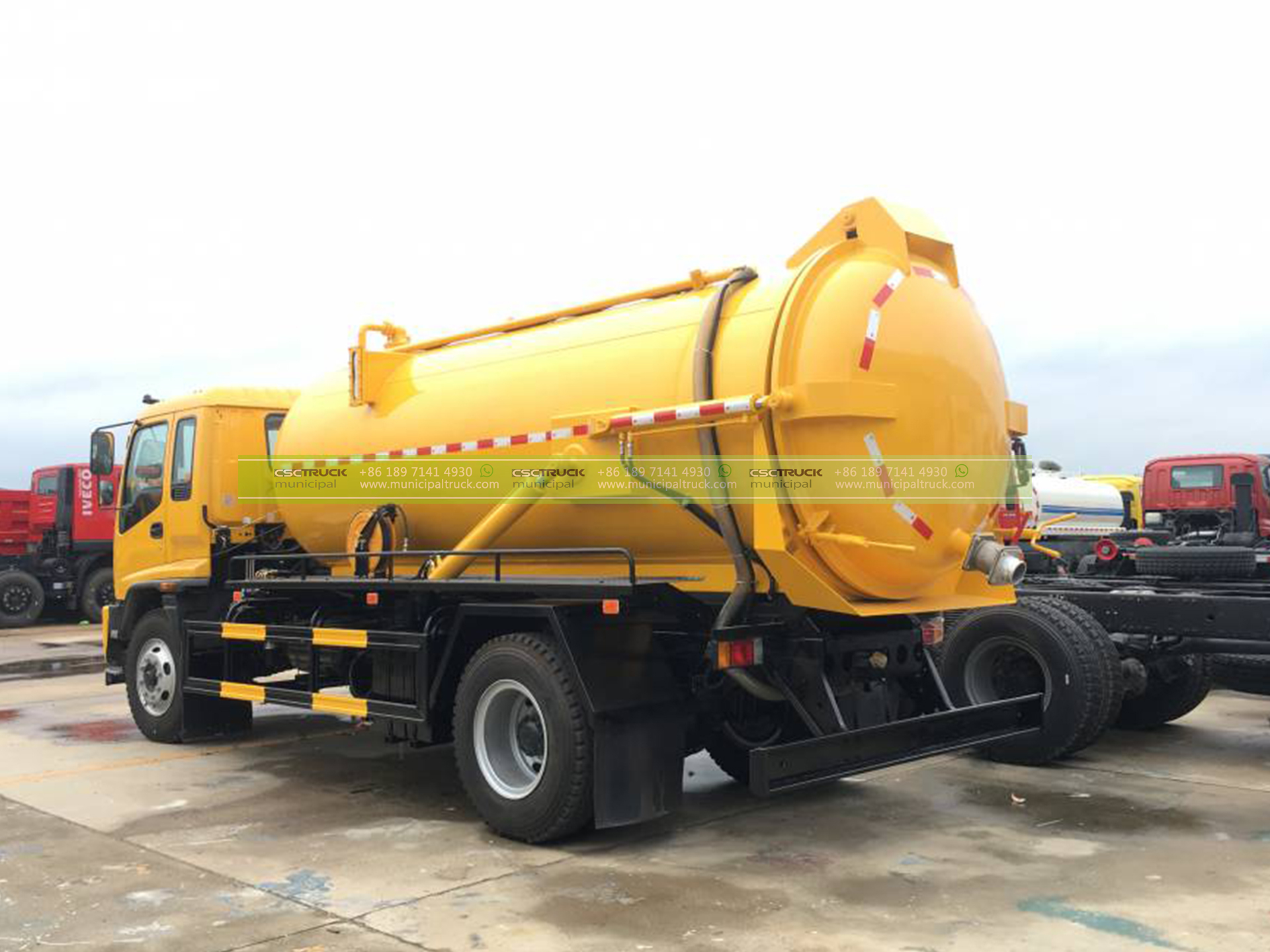

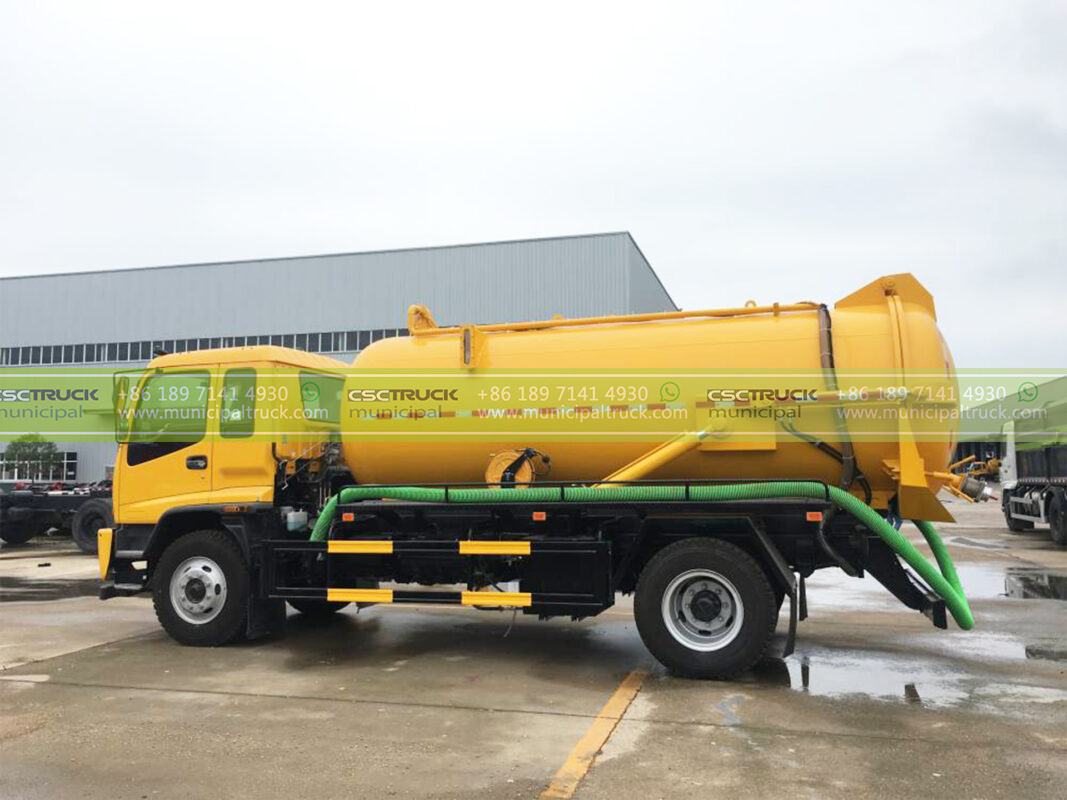

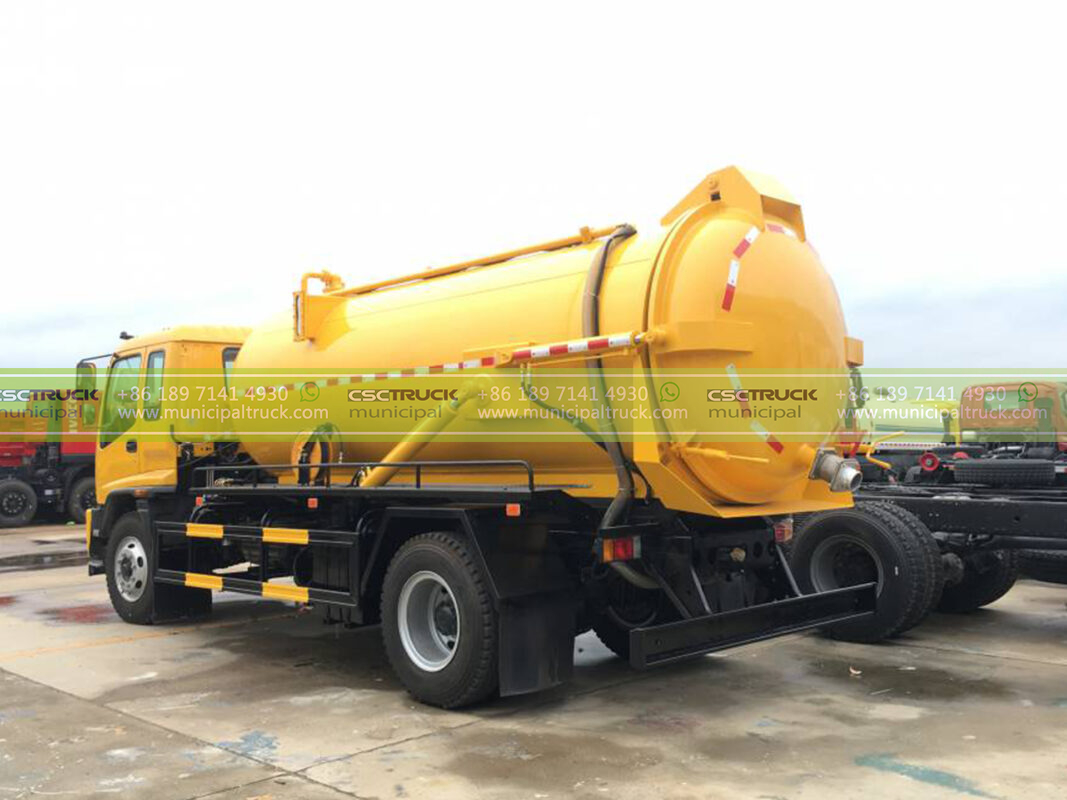

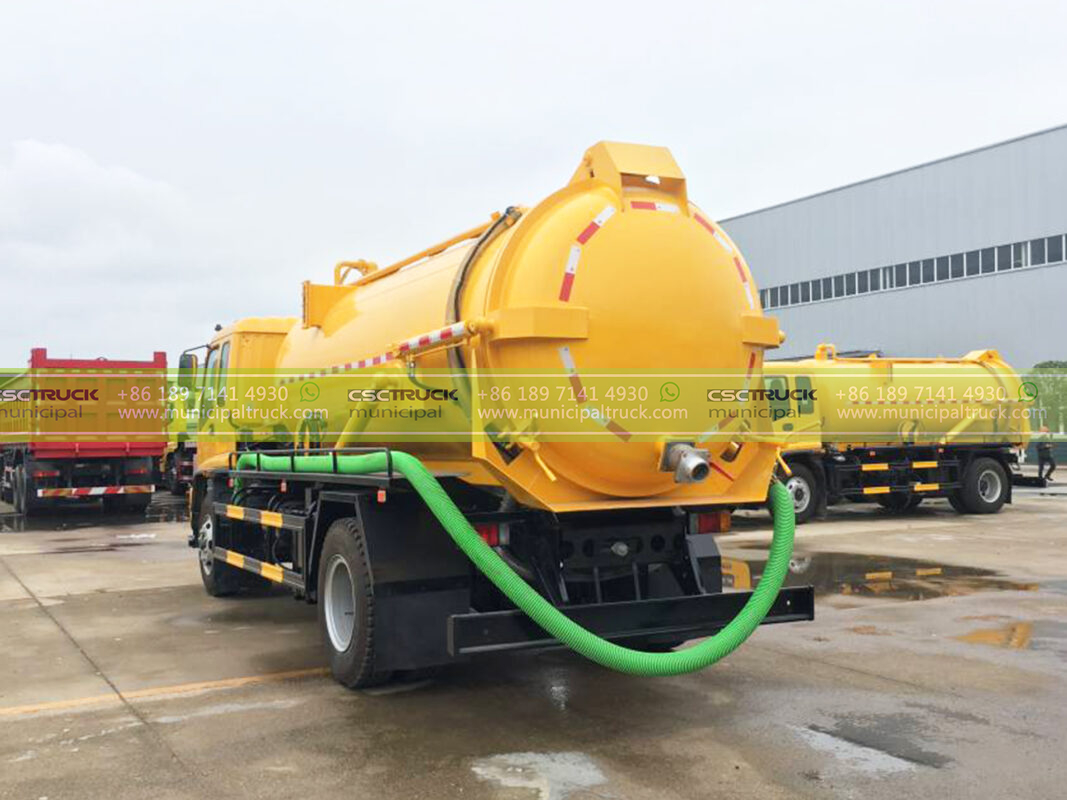

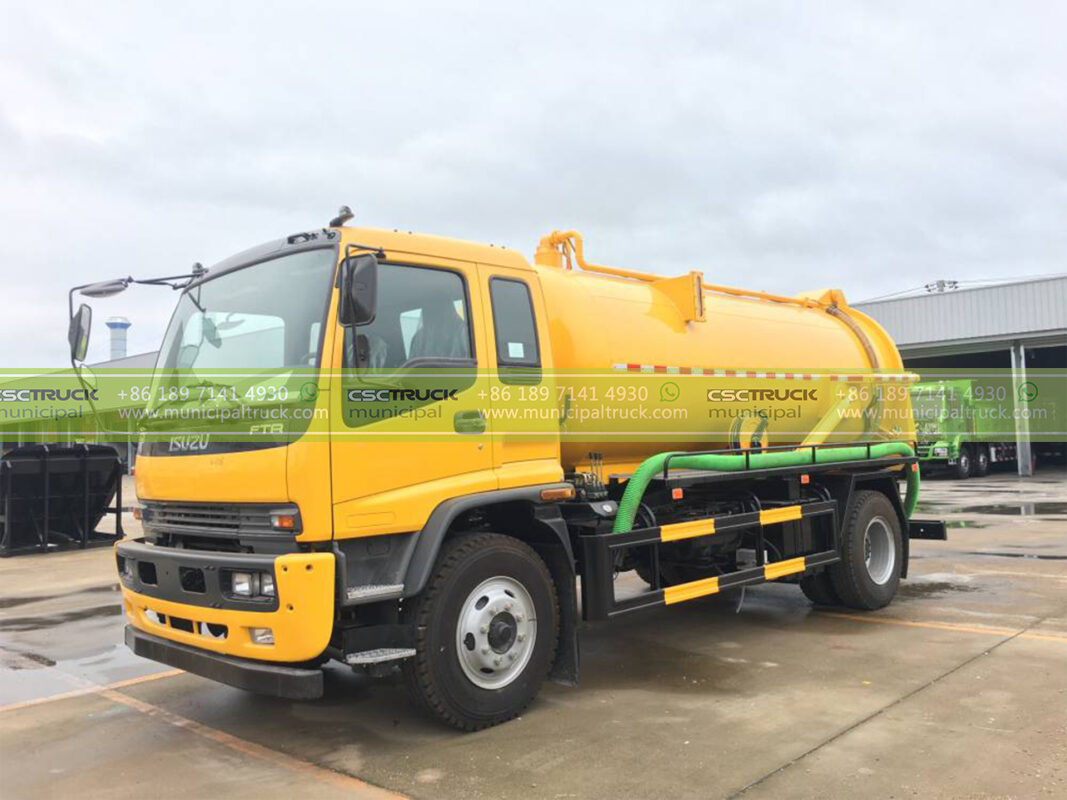

ISUZU 18 Ton Municipal Liquid Waste Tanker is mounted on ISUZU FVR 4X2 chassis, esigned to pneumatically suck liquids, sludges. Installed ISUZU inline-6 cylinder Diesel engine, 240HP and MLD-6 manual transmission.
ISUZU 18 Ton Municipal Liquid Waste Tanker capacity is 15,000 liters and tank is fabricated from mild steel, grade Q235, tensile 85/%, thickness 6mm. Equipped with MORO vacuum pump, capacity 12,000LPM to suction liquid, and double rear cylinder for loading.

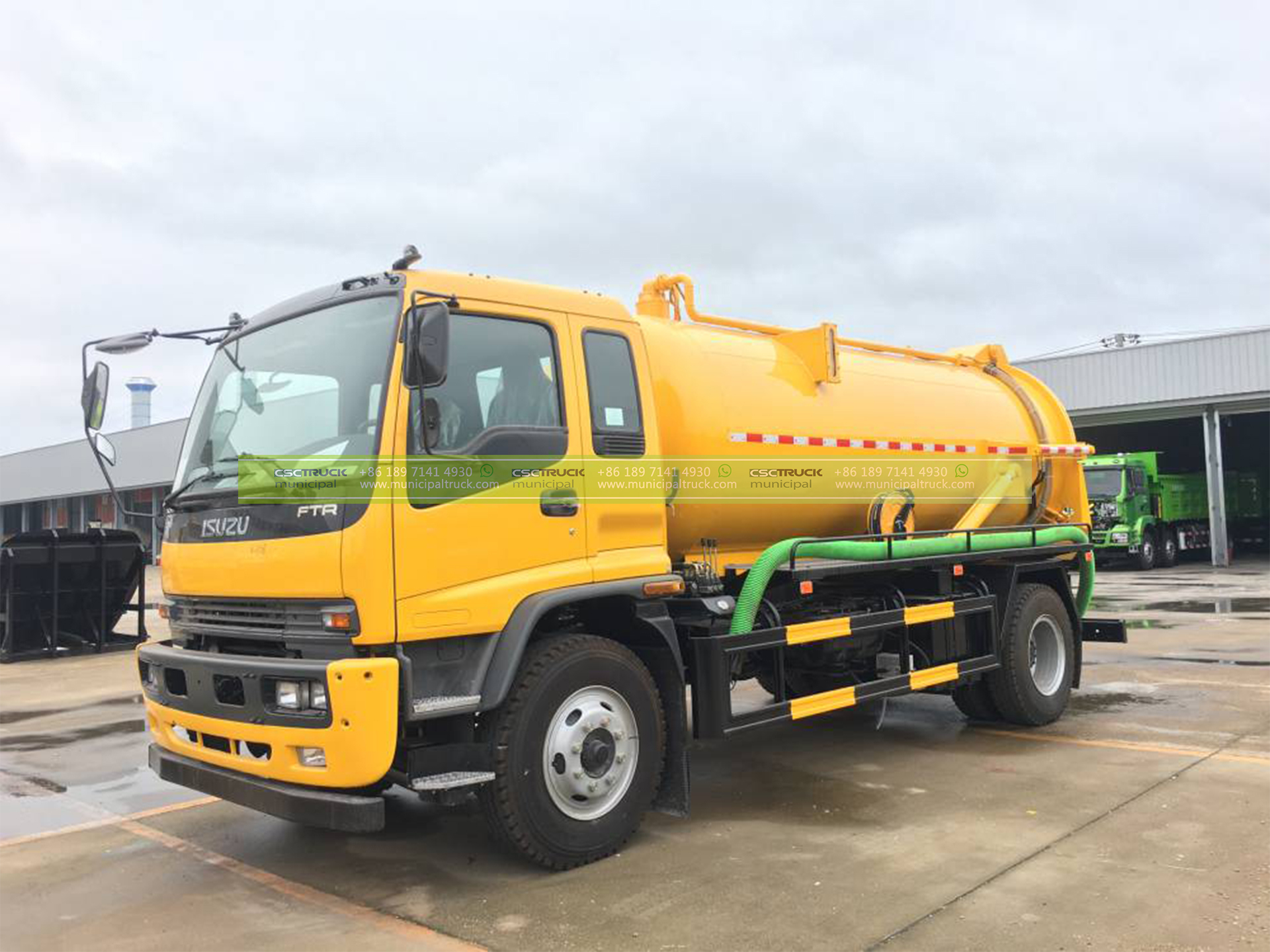

Gallery
See this Truck Video on Youtube
features
Chassis Truck
Data Recording Module
ISUZU diesel trucks are equipped with a Data Recording Module (DRM) that tracks your truck’s performance in key areas like fuel economy, engine and emission conditions and braking conditions to help you monitor how it is being driven, identify potential repairs.
Warranty
Specifically-designed replacement parts developed for Isuzu trucks. They are approved for all warranty repairs and carry a one-year unlimited mile warranty.
Maintence
Every new ISUZU diesel truck comes with a complimentary oilcoverage plan. It is more than just an oil and filter change every 10,000 miles or 300 engine hours. This maintenance plan covers lubricating the chassis, replacing engine and chassis fuel filters, checking your tire pressures and running a Vehicle
Health Report. This plan covers your truck for two years or 60,000 miles, whichever comes.
Body Unit
Sludge Tank
Tanks are made to GB18564 Road Tanker Transportation standards. Interior coated anti-corrosion paint of epoxy and polyurethane.
Filling Level Indicator
2 nos Indicator mark on the tank for maximum and minimum level of Acrylic Sight Glass furnished.
Loading & Unloading
-Height from ground to suction hose 1.4 m
-Tailgate tightly locked, acting by double hydraulic cylinders. Locking and sealing of the rear door done by hand wheel operated bolts.
-Provided Vacuum limiting valve and drain-off valve
-Outlet from tank provided with a quick connect coupling interface.
Control
Manually controlled, 4″ and 5″ Suction valves with a quick coupling.
VACCUM PUMP
MORO PM80W, Sliding Vanes,Capacity 12,000LPM
INSTRUMENTATION
-Temperature Gauge
-Pressure Gauge
-Level Control
specification
|
Size |
8300×2550×3360(mm) |
|
Gross weight |
18,000kg |
|
Curb Weight |
13,000kg |
|
Wheelbase |
4500 mm |
|
Driving type |
4*2 LHD |
|
Chassis model |
ISUZU FVR |
|
Tire size |
11.00R20 |
|
Number of Tires |
6+1 |
|
Passengers in cab |
3 |
|
Engine model |
6HK1,240hp, Euro 5 |
|
Sewage Tank |
15,000L |
|
Body Material |
High-strength carbon Steel |
|
Vacuum Pump |
MORO PM80W, Sliding Vanes,Capacity 12,000LPM |
