Brief

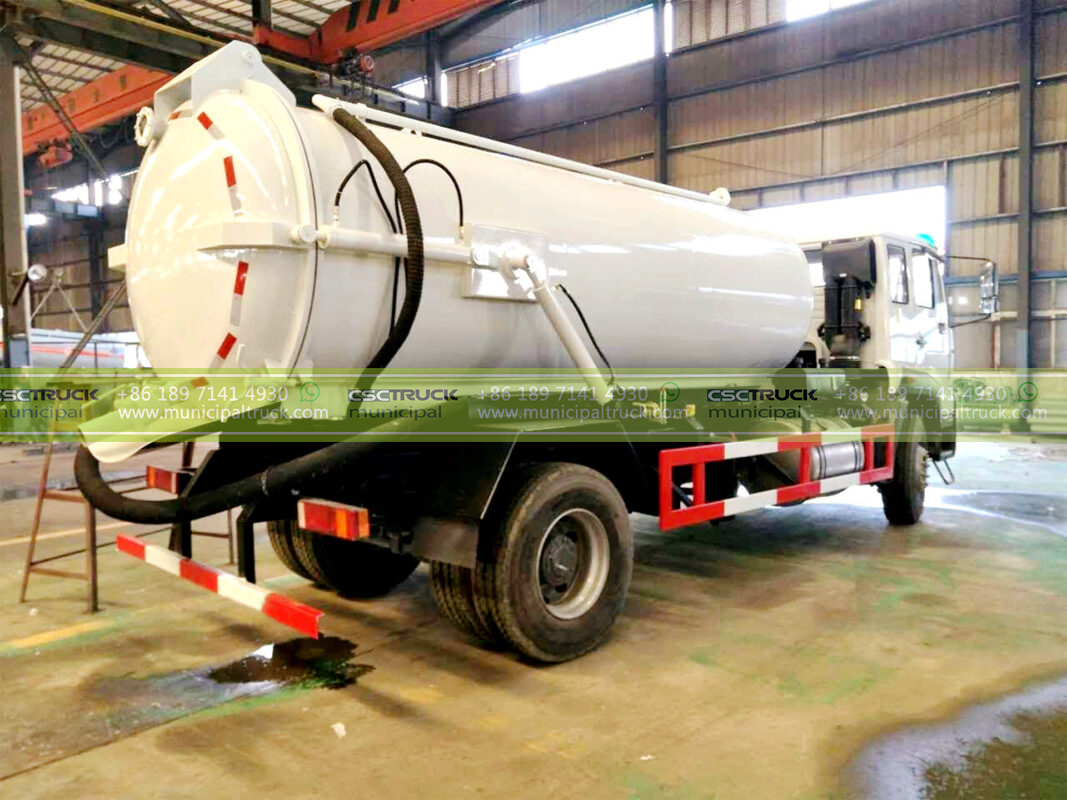

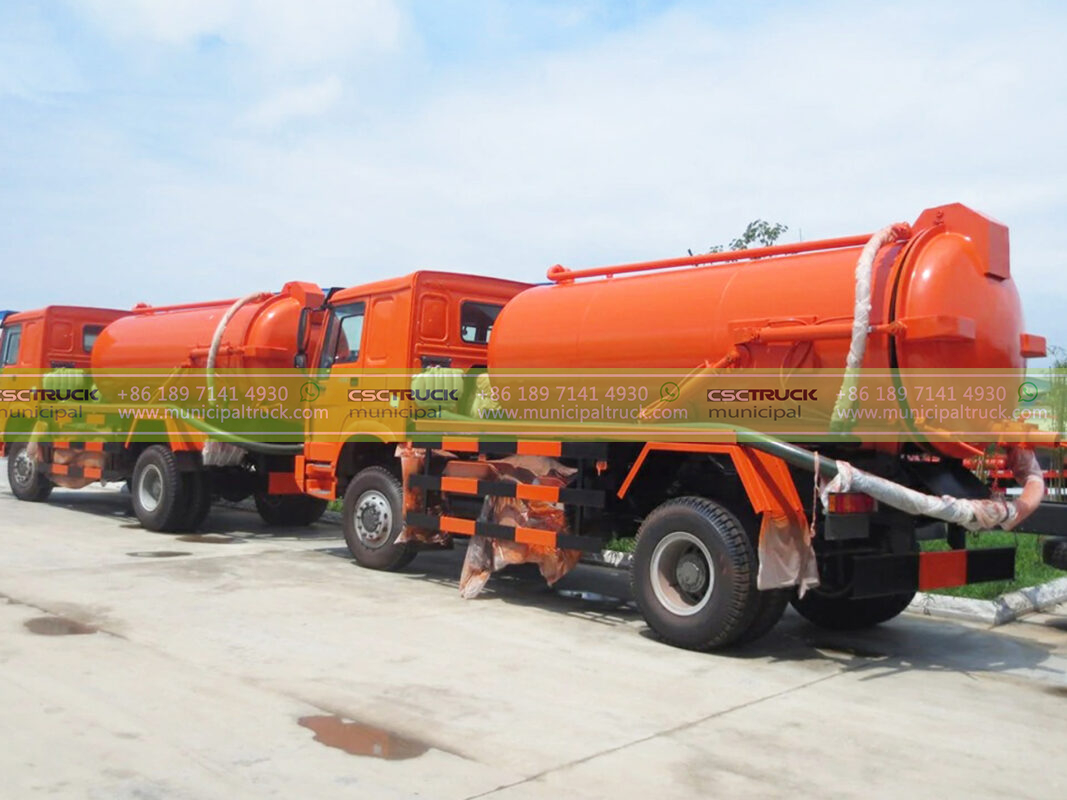

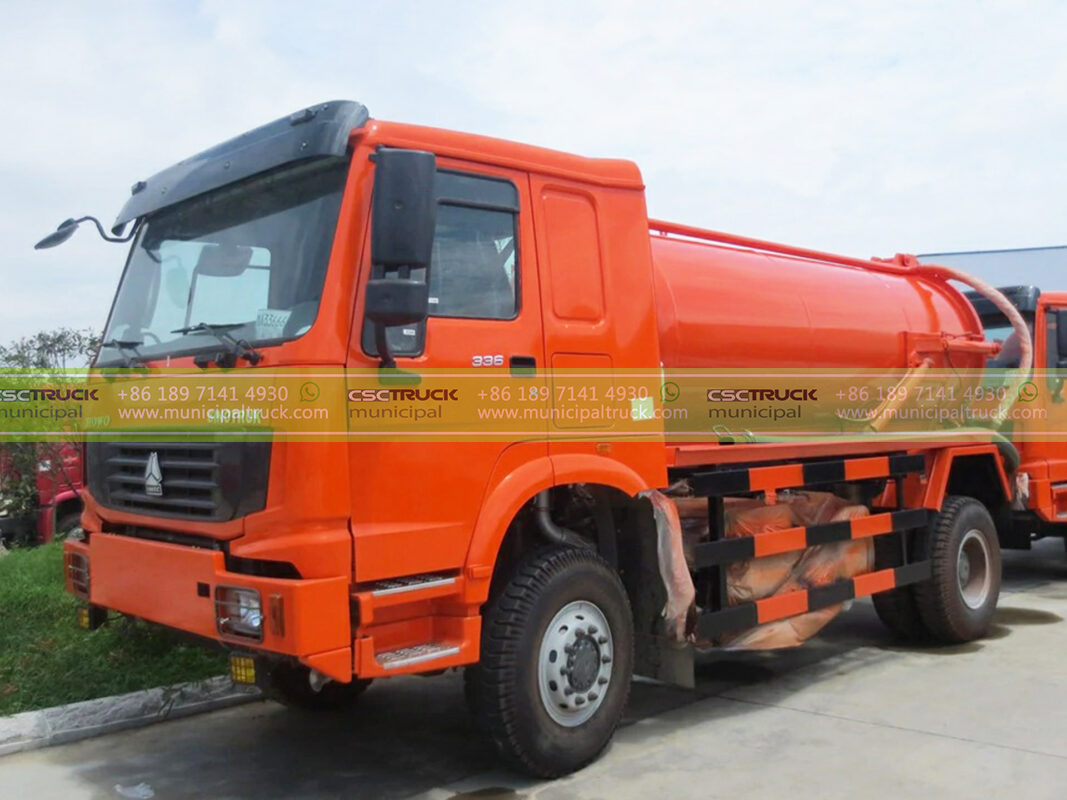

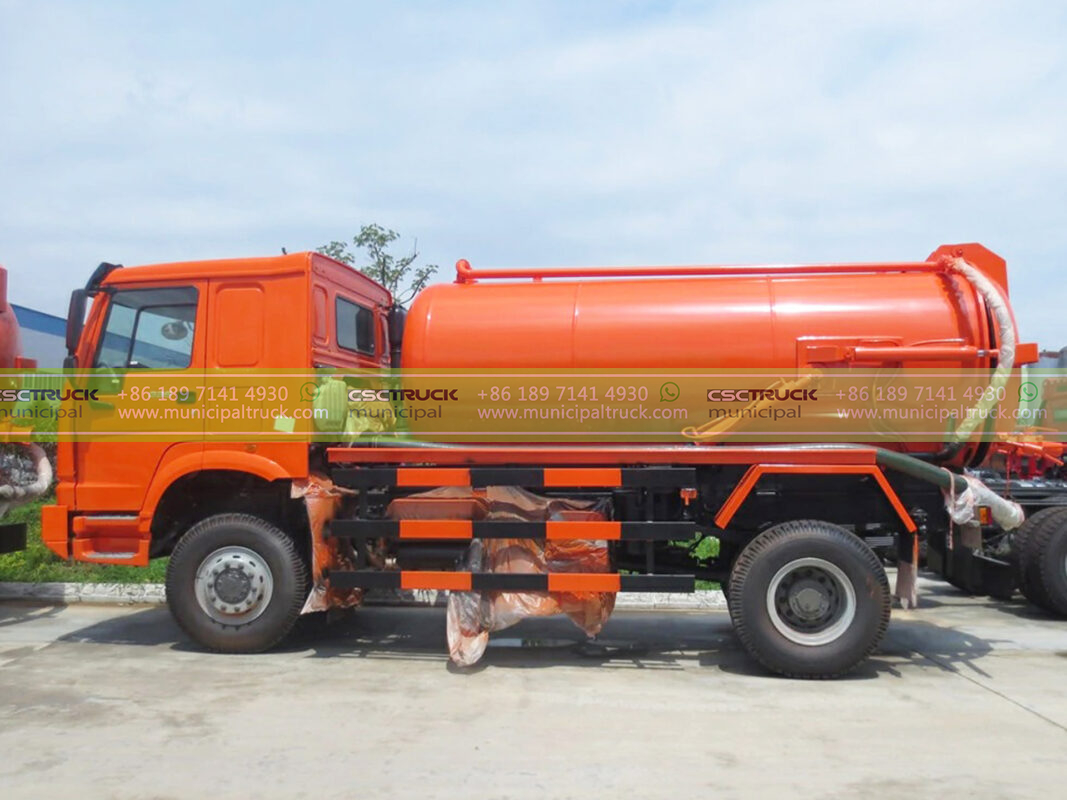

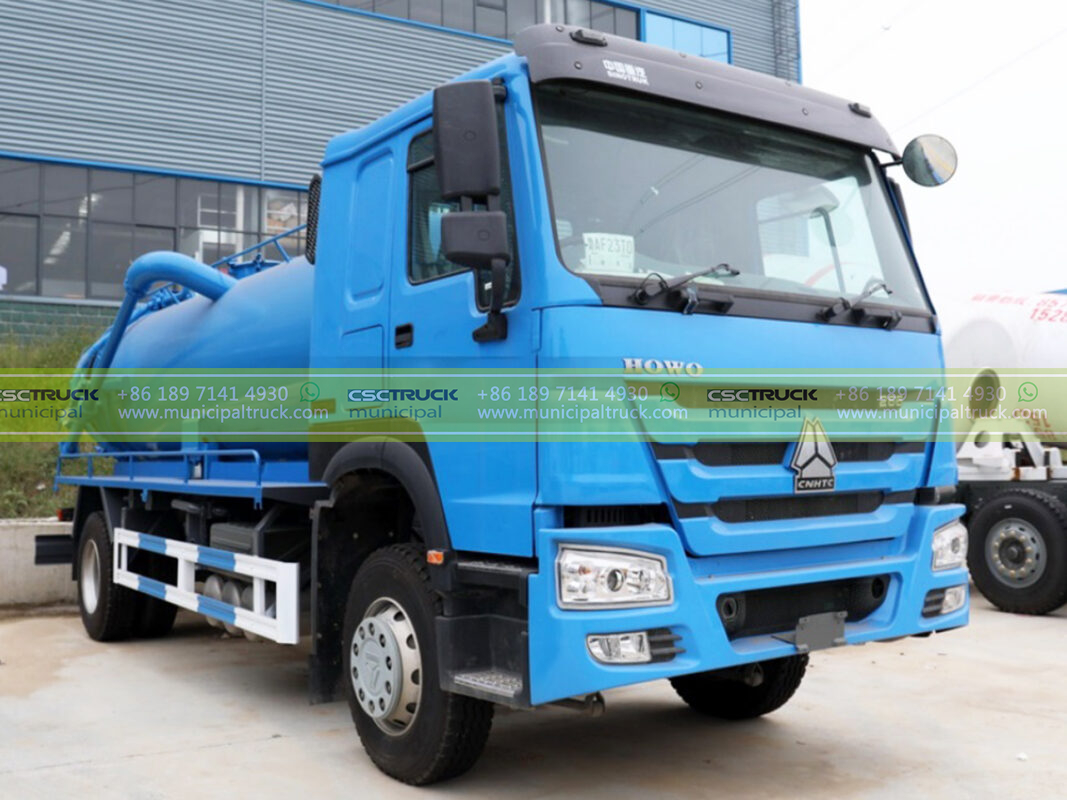

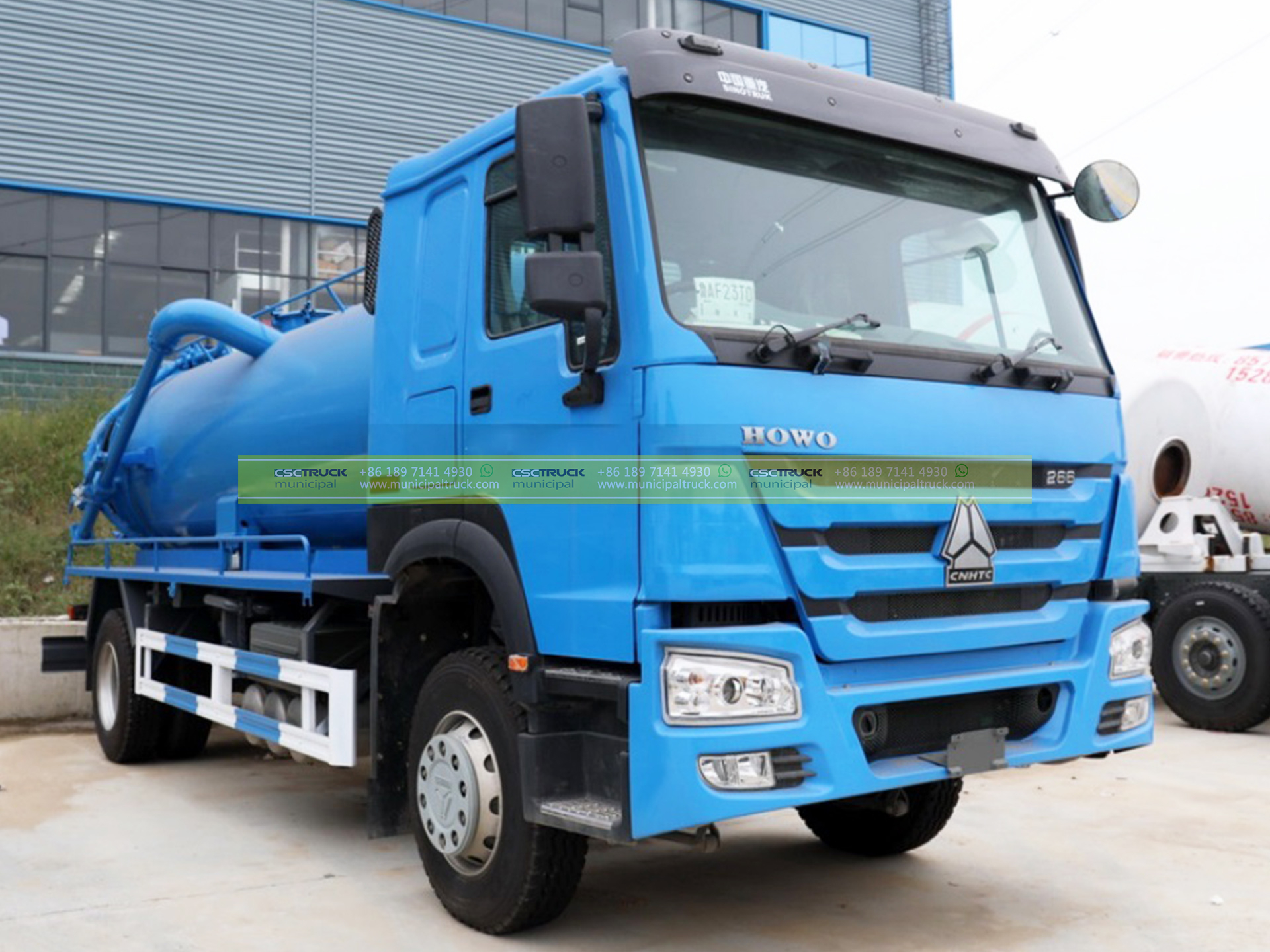

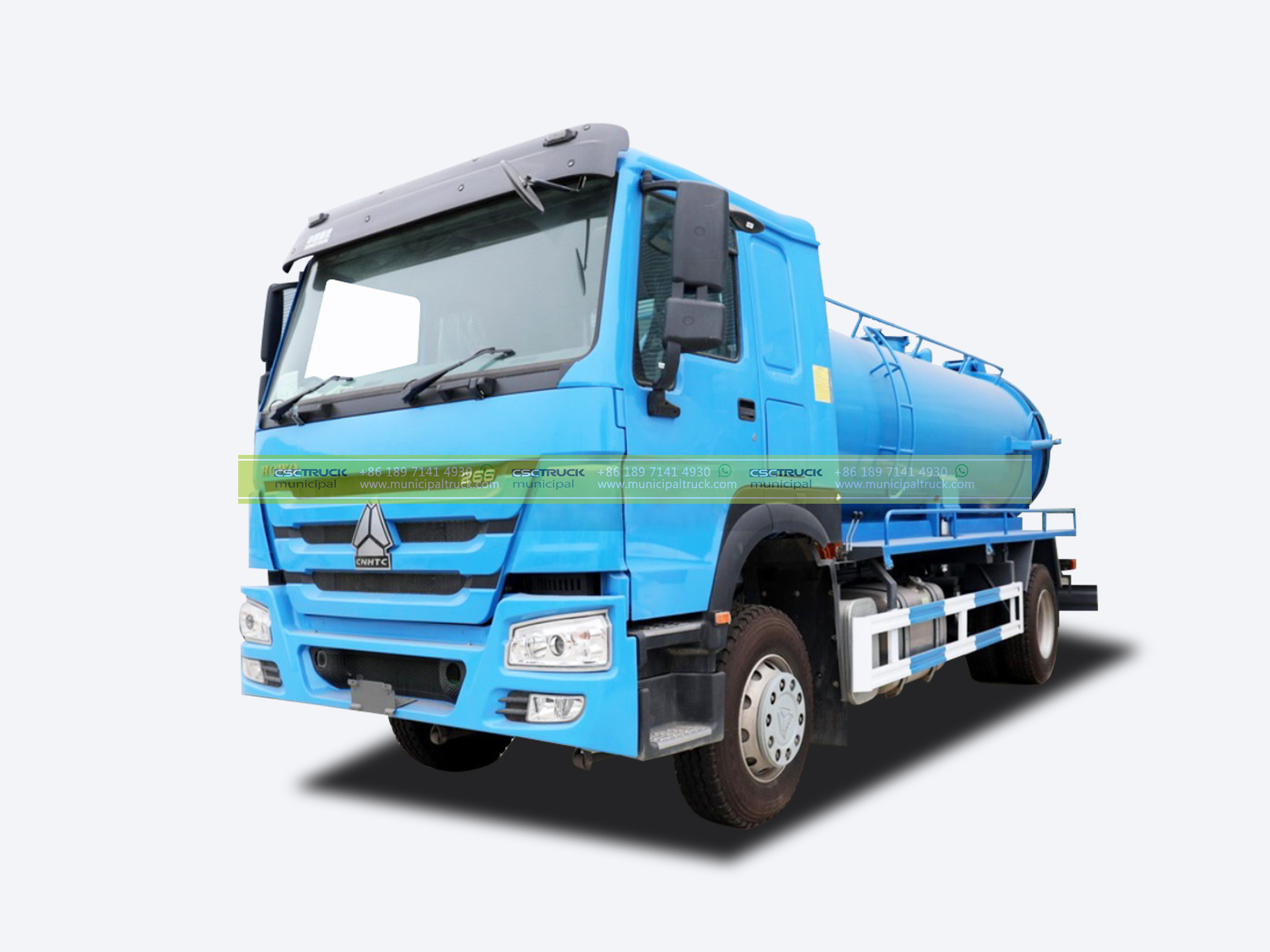

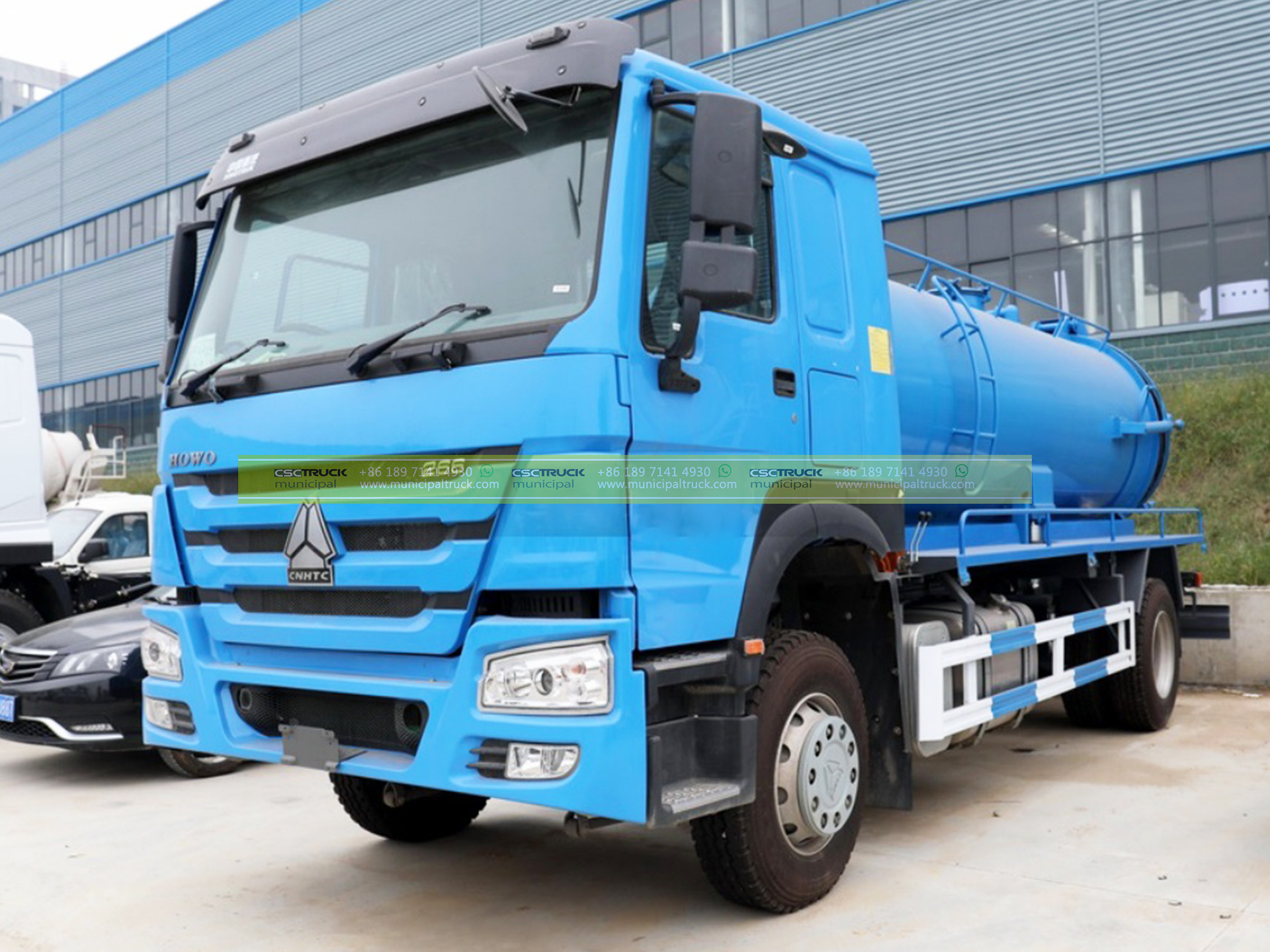

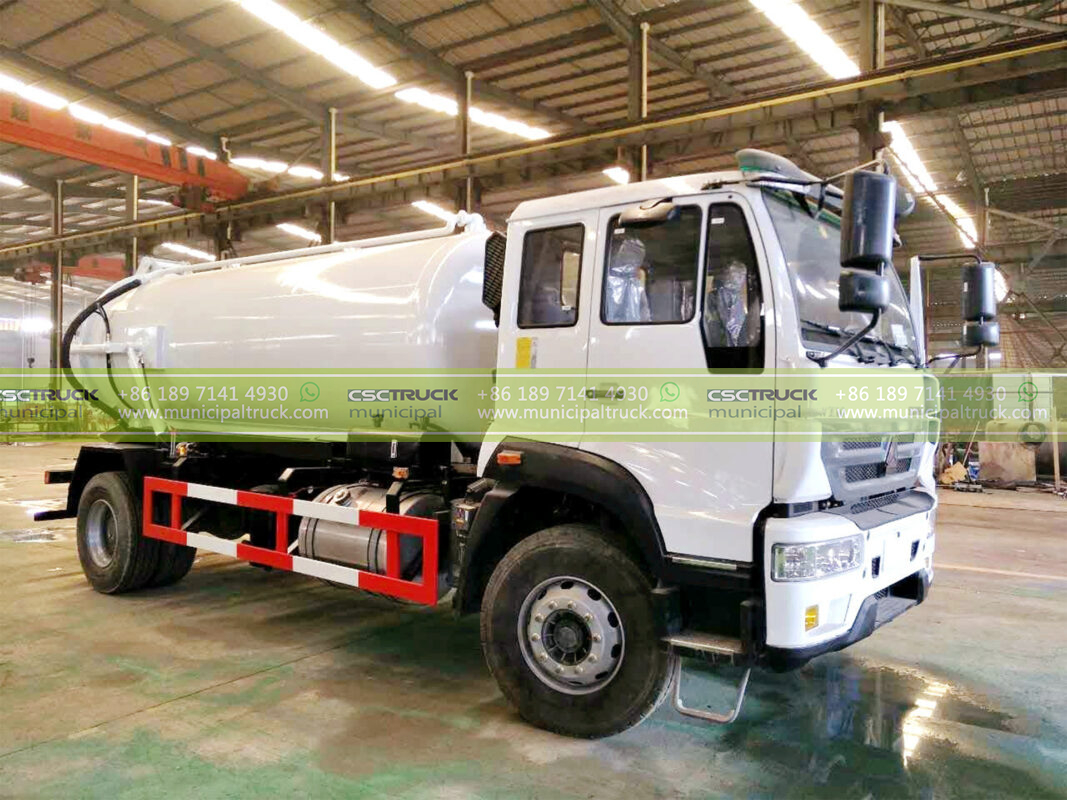

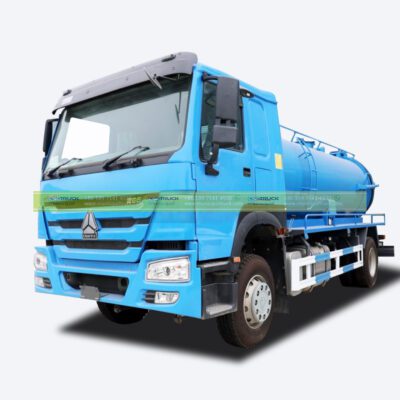

HOWO 16-Ton Tanker Sewer Truck unit is mounted on a suitable SINOTRUK 4×2 day cab truck chassis (optional for sleeper cab). The truck is cost-effective and has good performance in short-distance transportation. The steering system is available for both Left Hand Drive and Right-Hand Drive models. Engine optional for FOTON -ISUZU and FOTON CUMMINS ranged from 108 to 141hp, emission class in euro 3. The small vacuum sewer truck is equipped with a 5-speed gear numbers manual transmission.
The HOWO 16 Ton Small Vacuum Sewer Truck tank capacity ranged from a minimum of 2000 liters to 5000 liters maximum, and the tank is fabricated from high tensile steel thick in 5mm, and designed to suck effluents from cesspit, sewer, etc. by creating a vacuum inside the tank by PTO operated vacuum pump FLOWSERVE LEMC90 Liquid ring vacuum pumps, Suction volume flow: 20 to 200 m³/h. The tank contents are tipped by two lift cylinders for discharging by gravity or creating pressure inside the tank by a vacuum pump for fast emptying.
features
Chassis Truck
HOWO T-Series
Introducing the German Man technology, manufacturing equipment, and factory inspection standards.

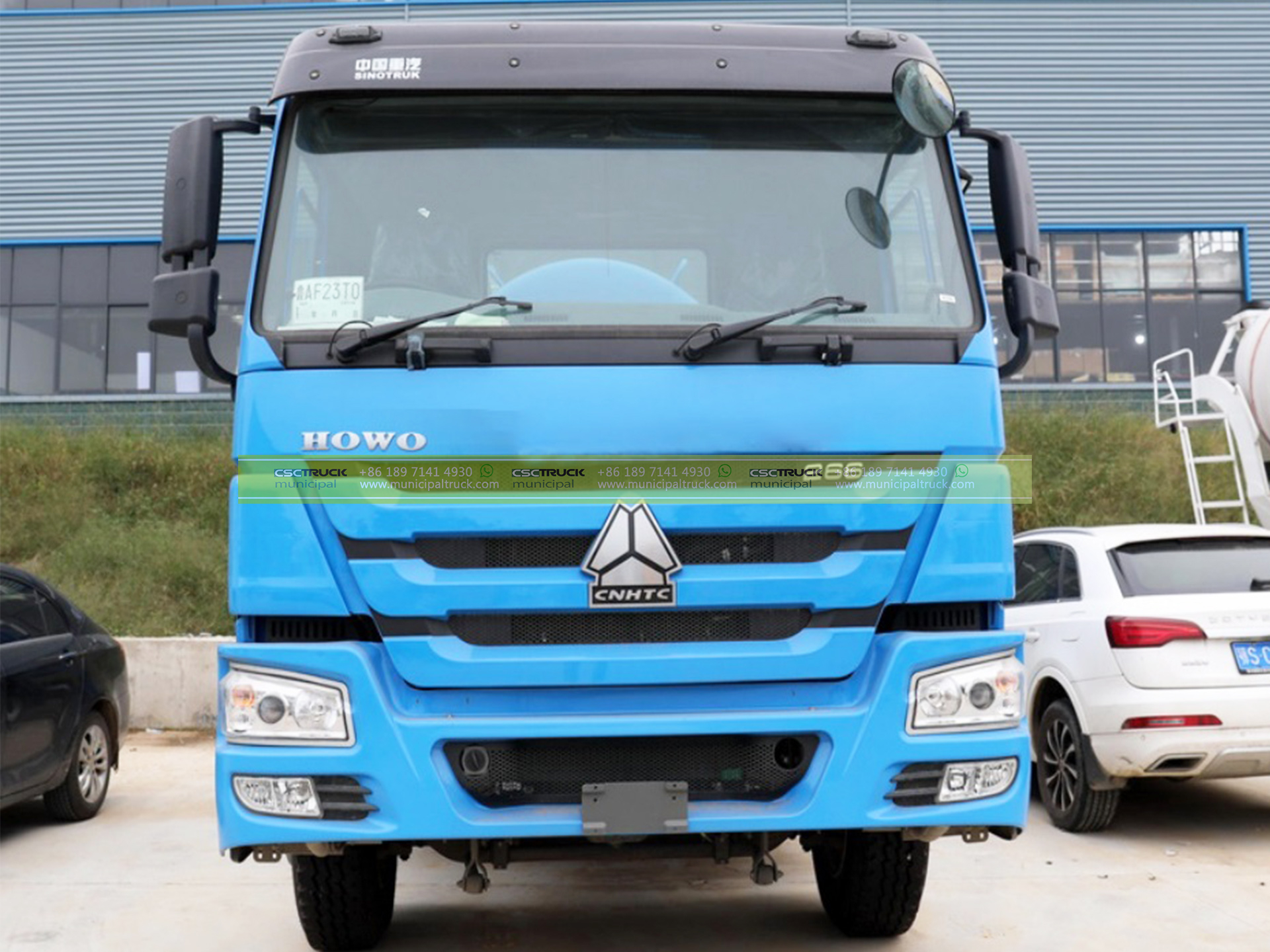

Cab
The cab show originality in design and presents a strong European style. 750mm wide, is the widest in the current domestic medium and heavy-duty market.
Frame
HOWO T5G is equipped with a high-strength frame and made of high-strength material. The steel pipe-type frame has the first front cross member with high torsional strength. In addition, finite element analysis has been made to optimize the design, which not only ensures the frame strength but also reduces its dead weight.
Engine
Application of a brand-new combustion principle that reduces fuel consumption and improves engine efficiency, the engine has very high fuel economy.
Body Unit

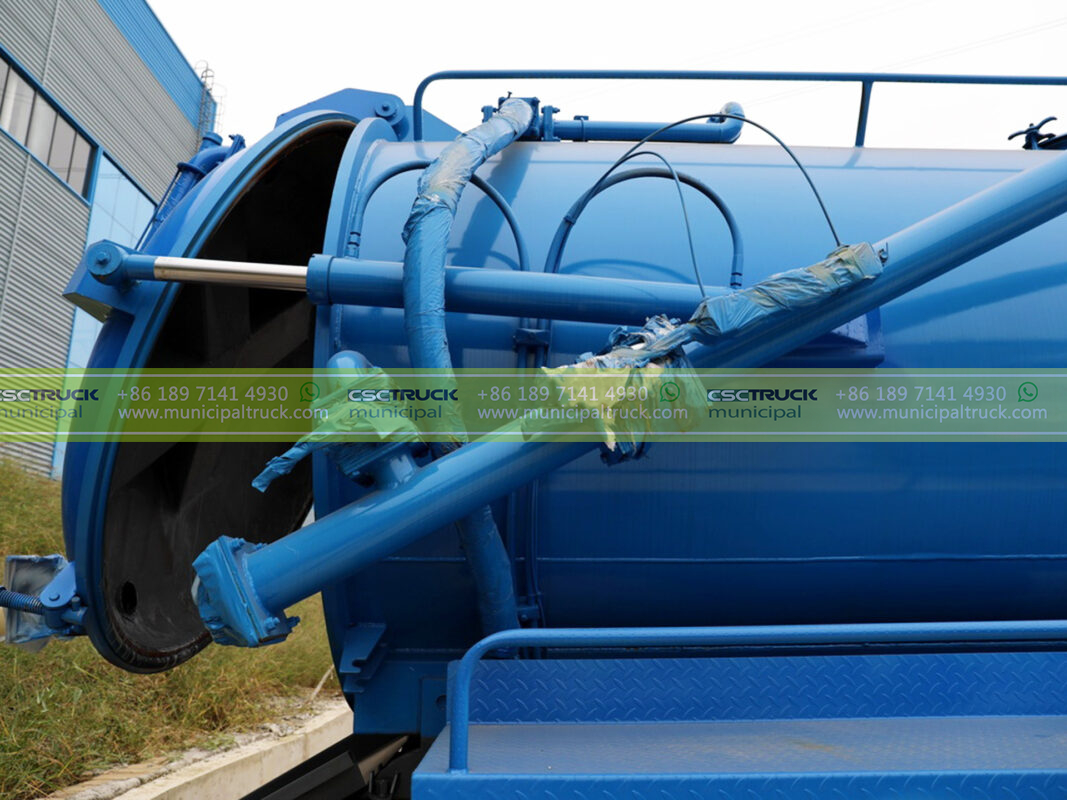

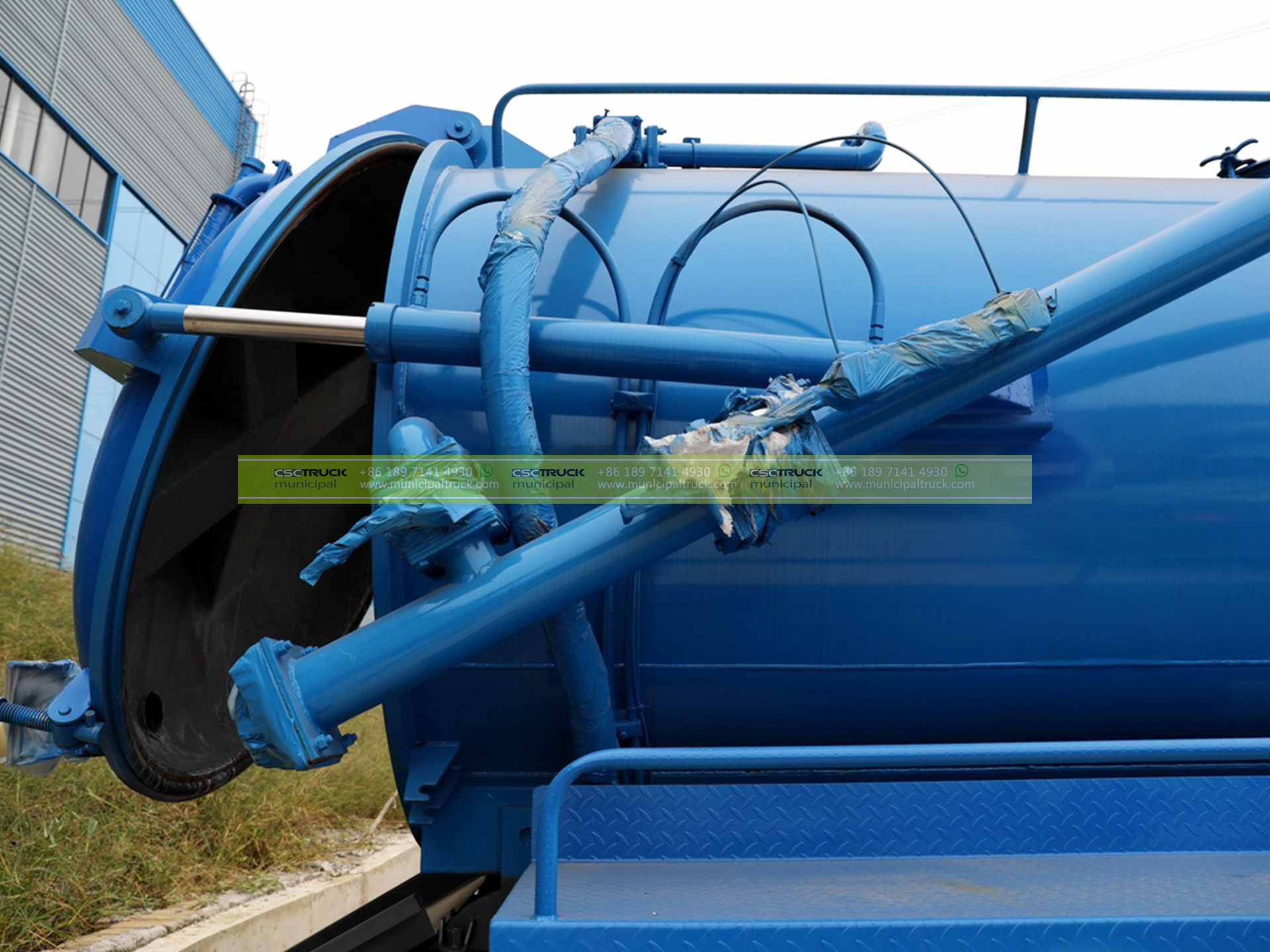

Hydraulic Open Rear Lid
-Large (4-inch) Stainless Steel Discharge Valve with Male Flange Connects
-Rear Tank Skirt, avoid secondary pollution
-Heavy Duty Wing Clamps
-Checking Window
Tipping Tank
-Double lifting cylinders, control of rear door, hoist, and vibrator
-Primary Overflow Prevention Device of anti-flow
-Climb Ladder, 25mm tubular handrails
VACUUM PUMP
-Italy MORO PM60A, Heavy duty Rotary blade/vane type, Air-Cooling.
– Flow capacity 7200LPM.
-Four-way-cock for suction and pressure manually controlled, safety valve for maintenance of the pressure. Adjusted pressure 0.5 bar.
Hose and Pipes
-Large Suction Tubes, standard 8-meter length with fitting & couplings.
-Two hose trays each one on the left and right, made of galvanized steel, Lockable storage compartments for hoses and other equipment along both sides of the tank.
specification
| Size | 7675×2360×3400(mm) |
| Gross weight | 16,000kg |
| Curb Weight | 8,900kg |
| Wheelbase | 4,200kg |
| Driving type | 4*2 LHD |
| Chassis model | HOWO T5G |
| Tire size | 10.00R20 |
| Number of Tires | 6+1 |
| Passengers in cab | 3 |
| Engine model | SINOTRUK,266hp, Euro 2 |
| Sewage Tank | 12,000L |
| Body Material | High-strength carbon Steel |
| Vacuum Pump | MORO,PM60A,Sliding Vanes,Capacity 7200LPM |
| Over Pressure Device | Yes |
