Brief

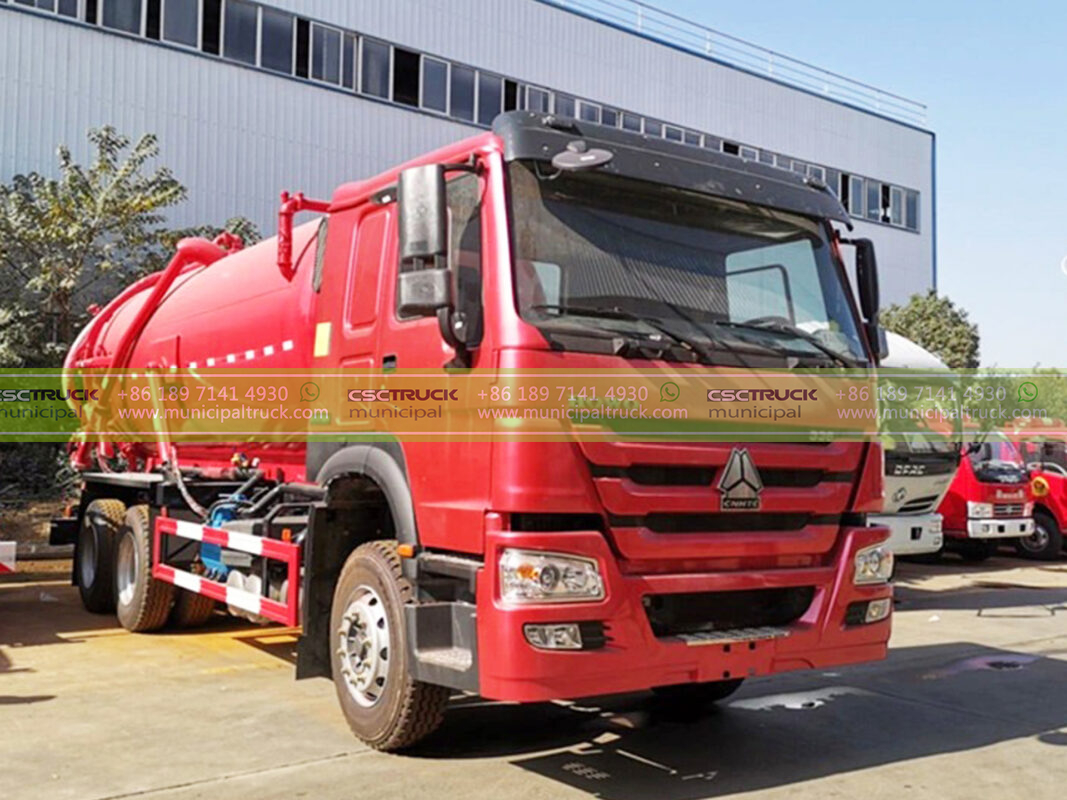

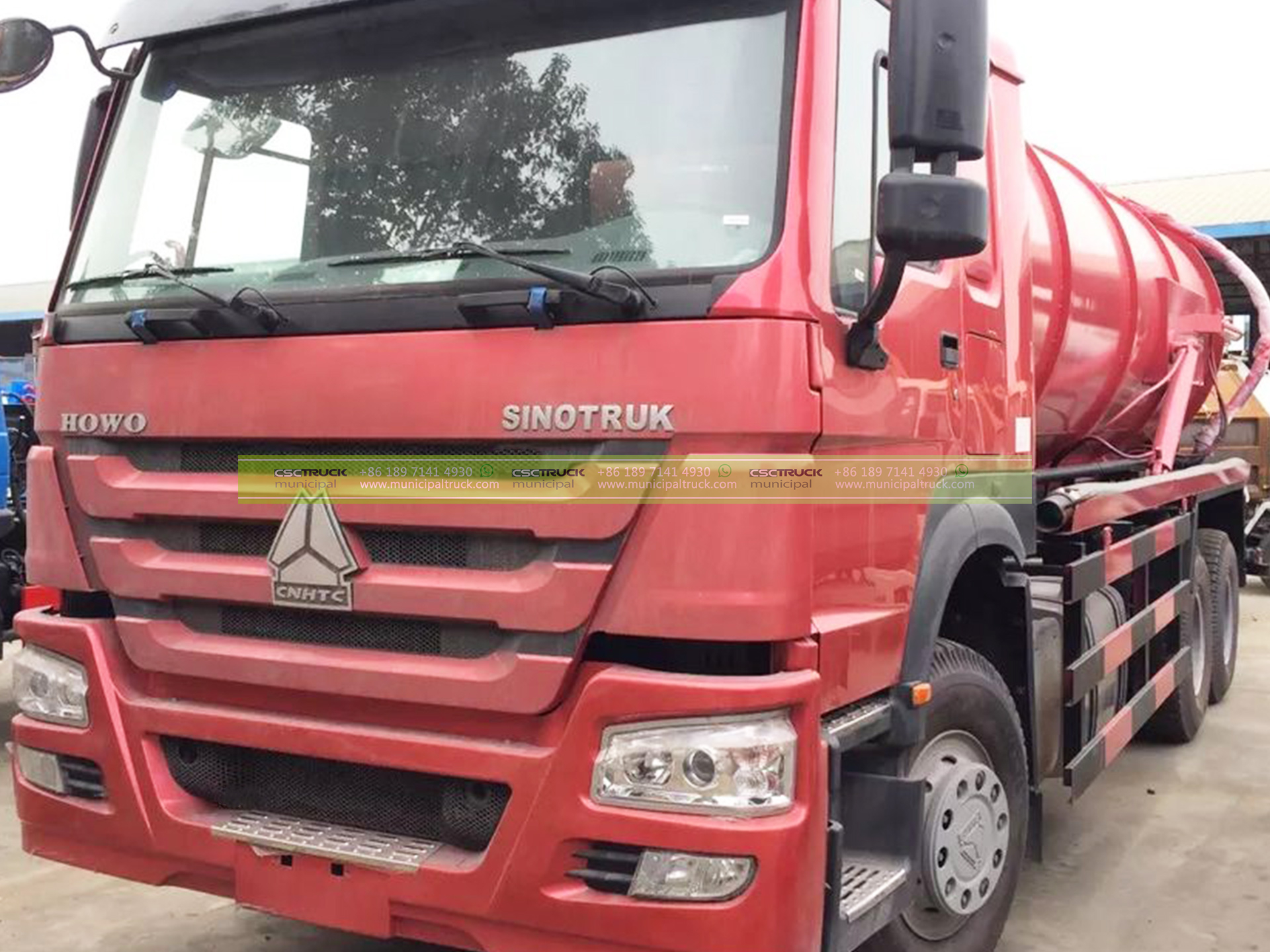

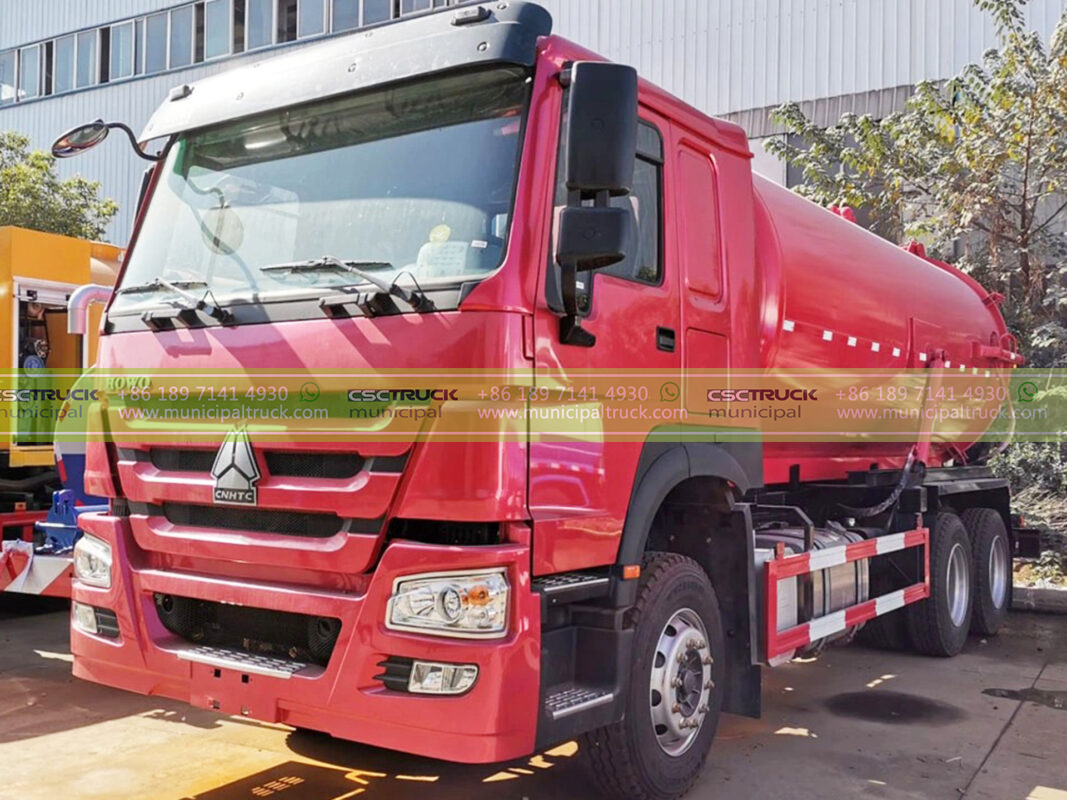

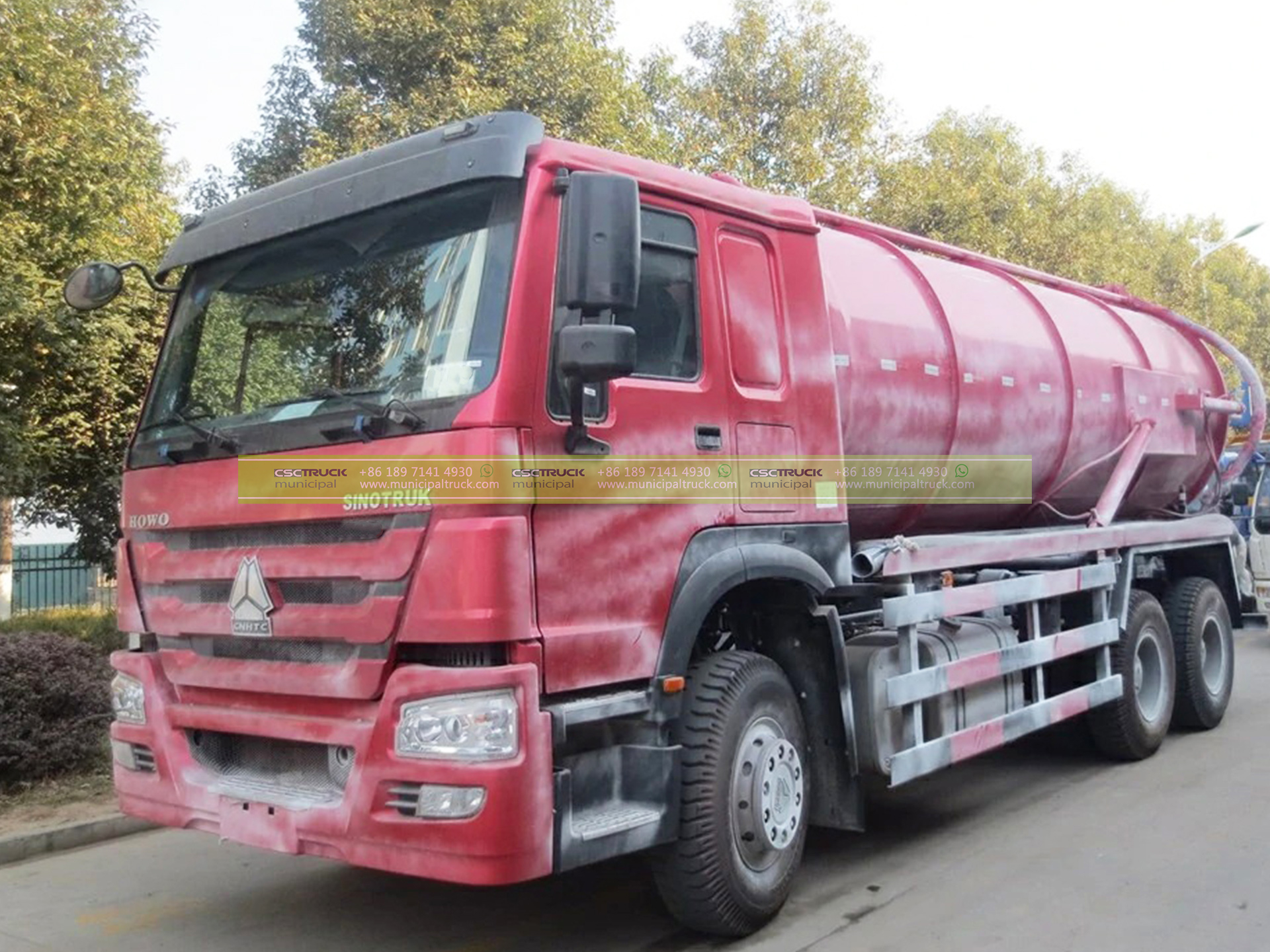

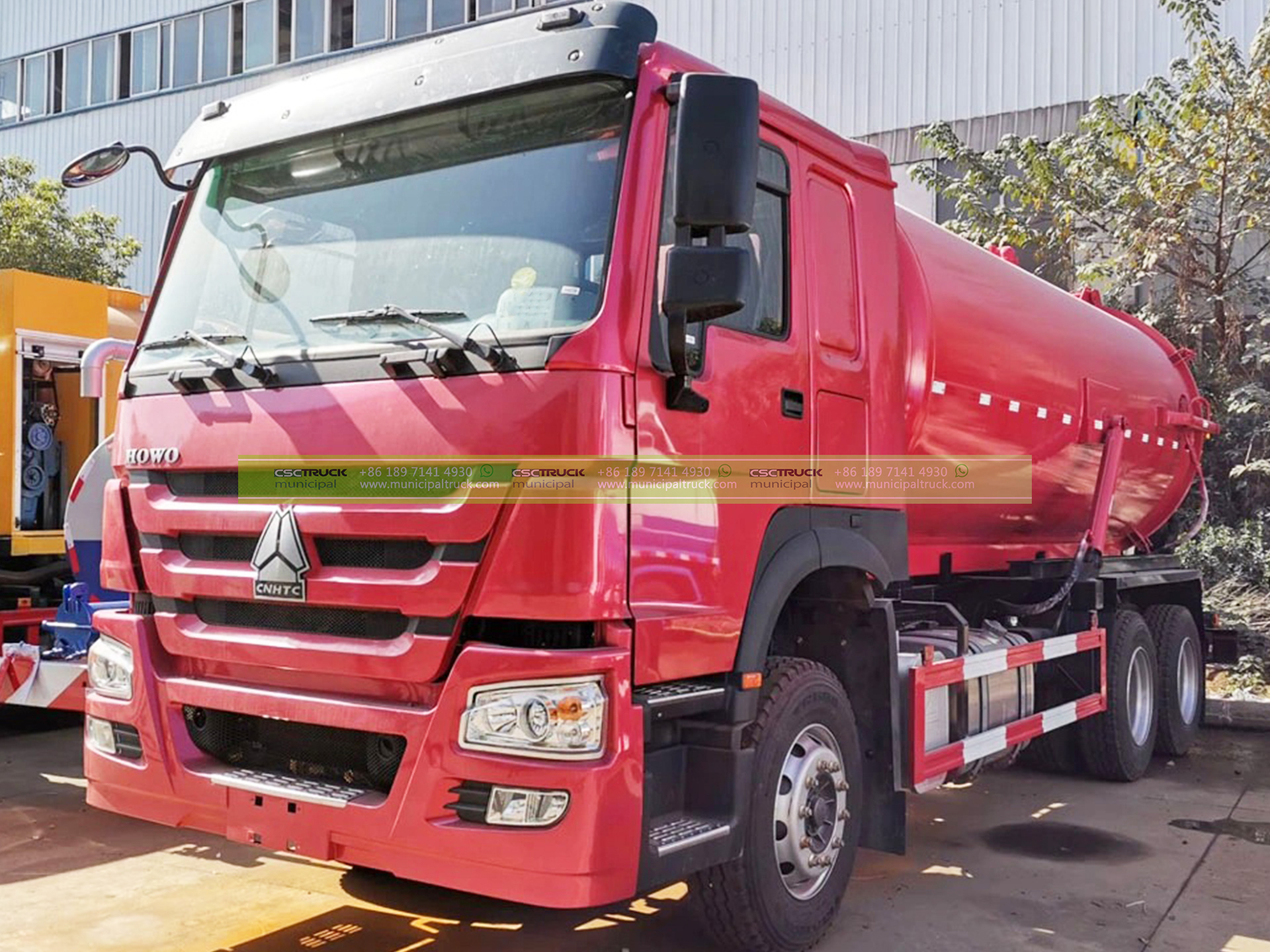

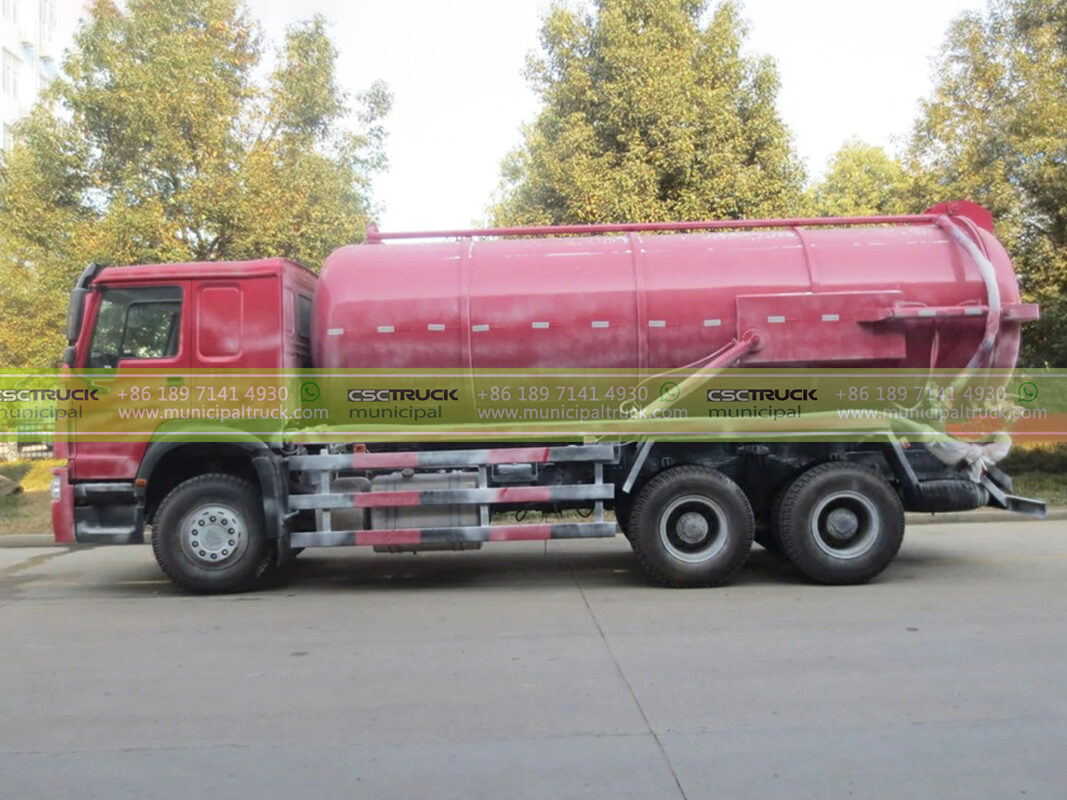

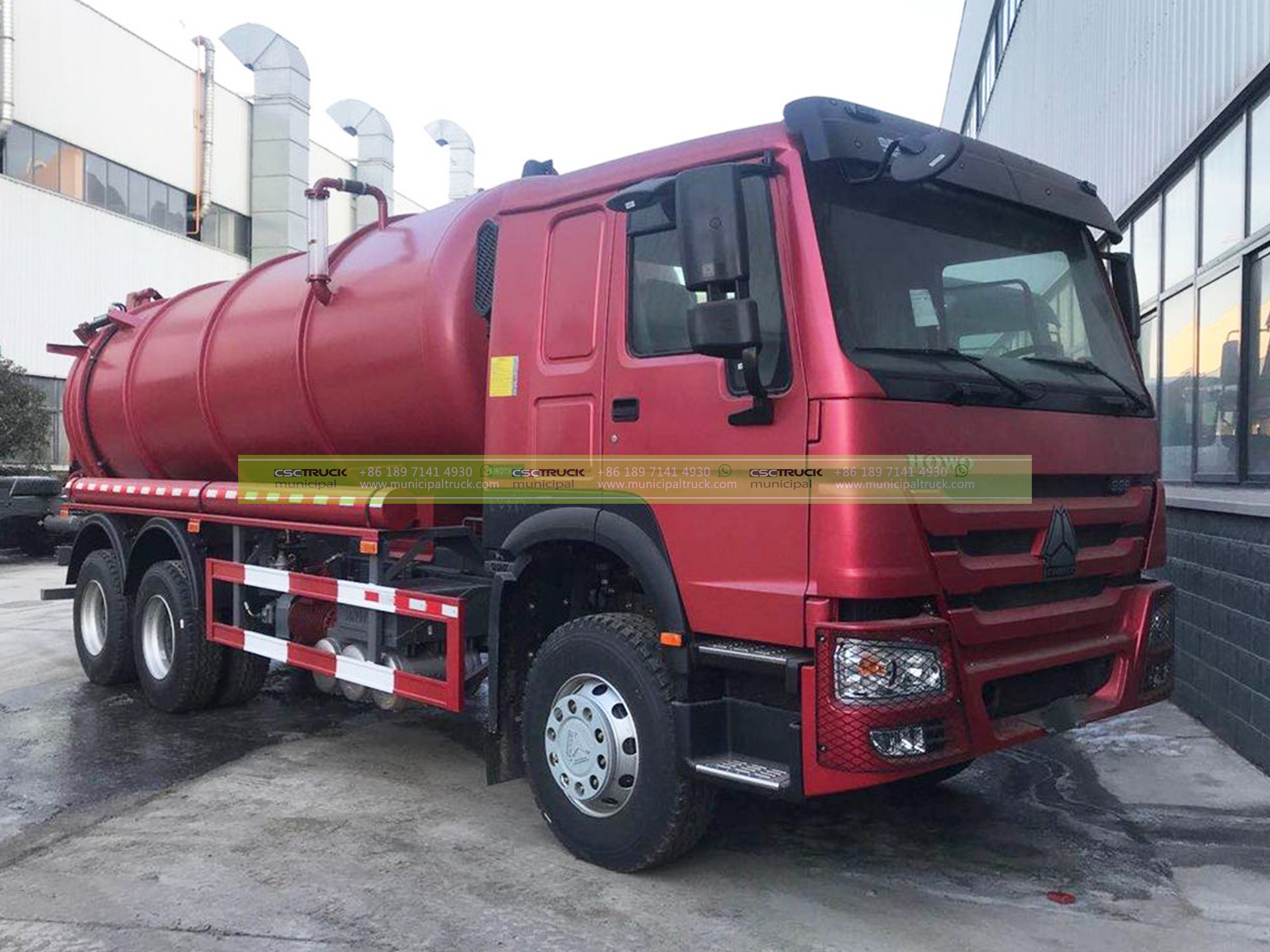

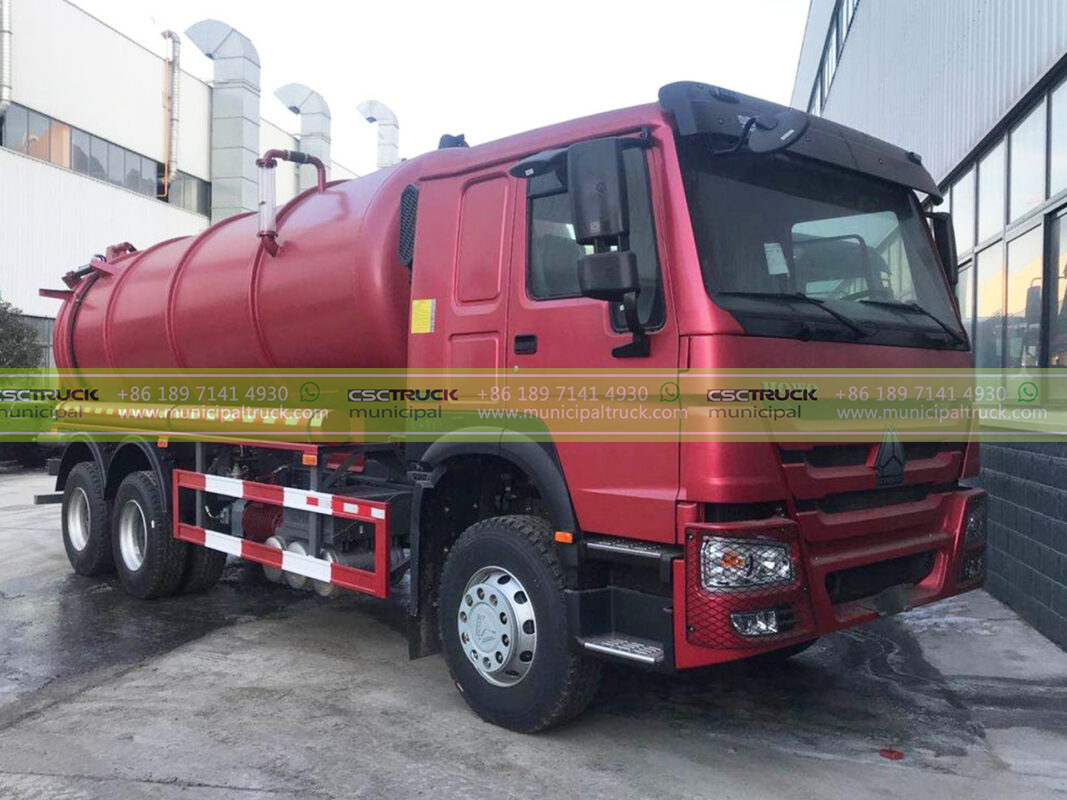

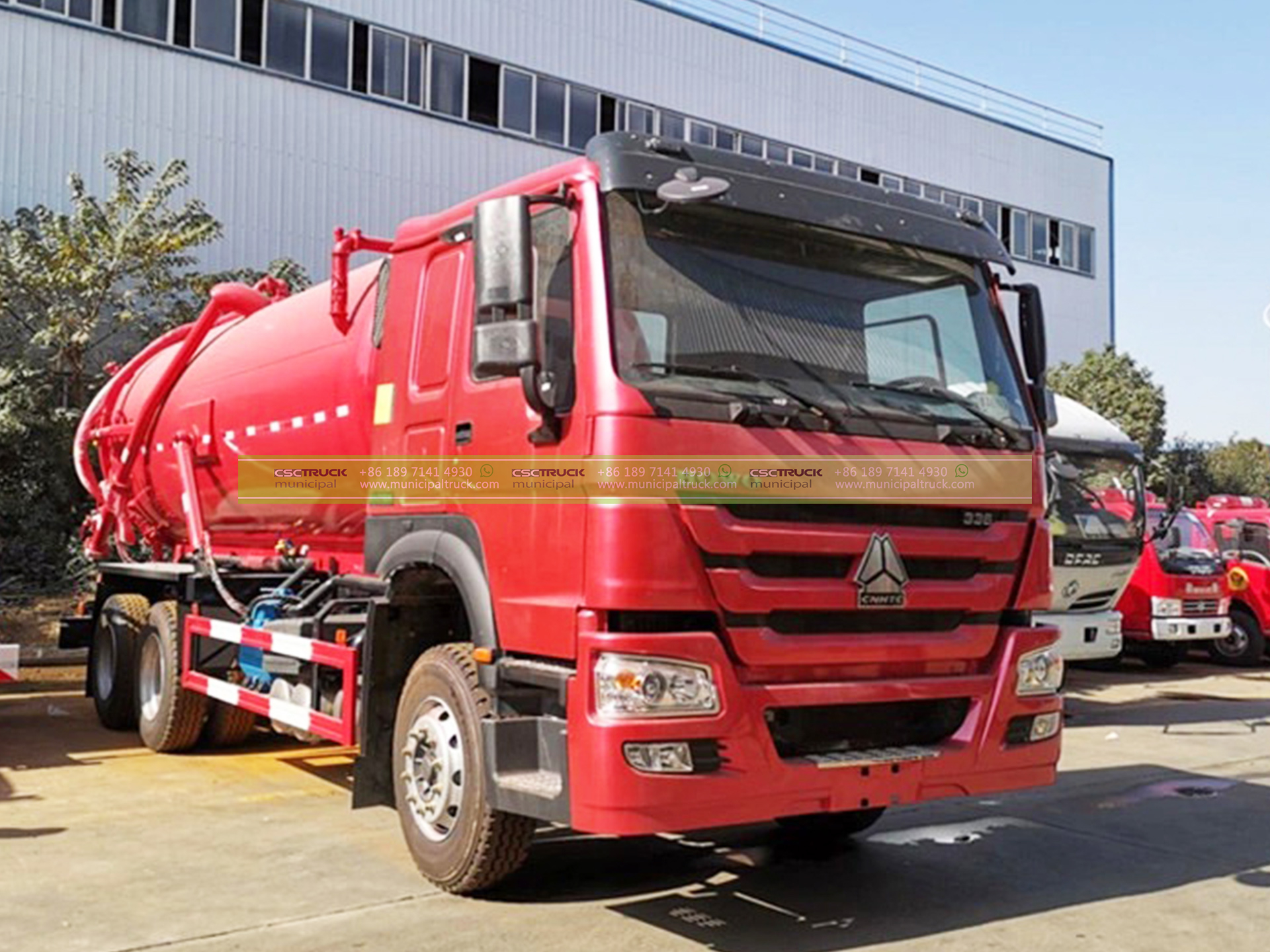

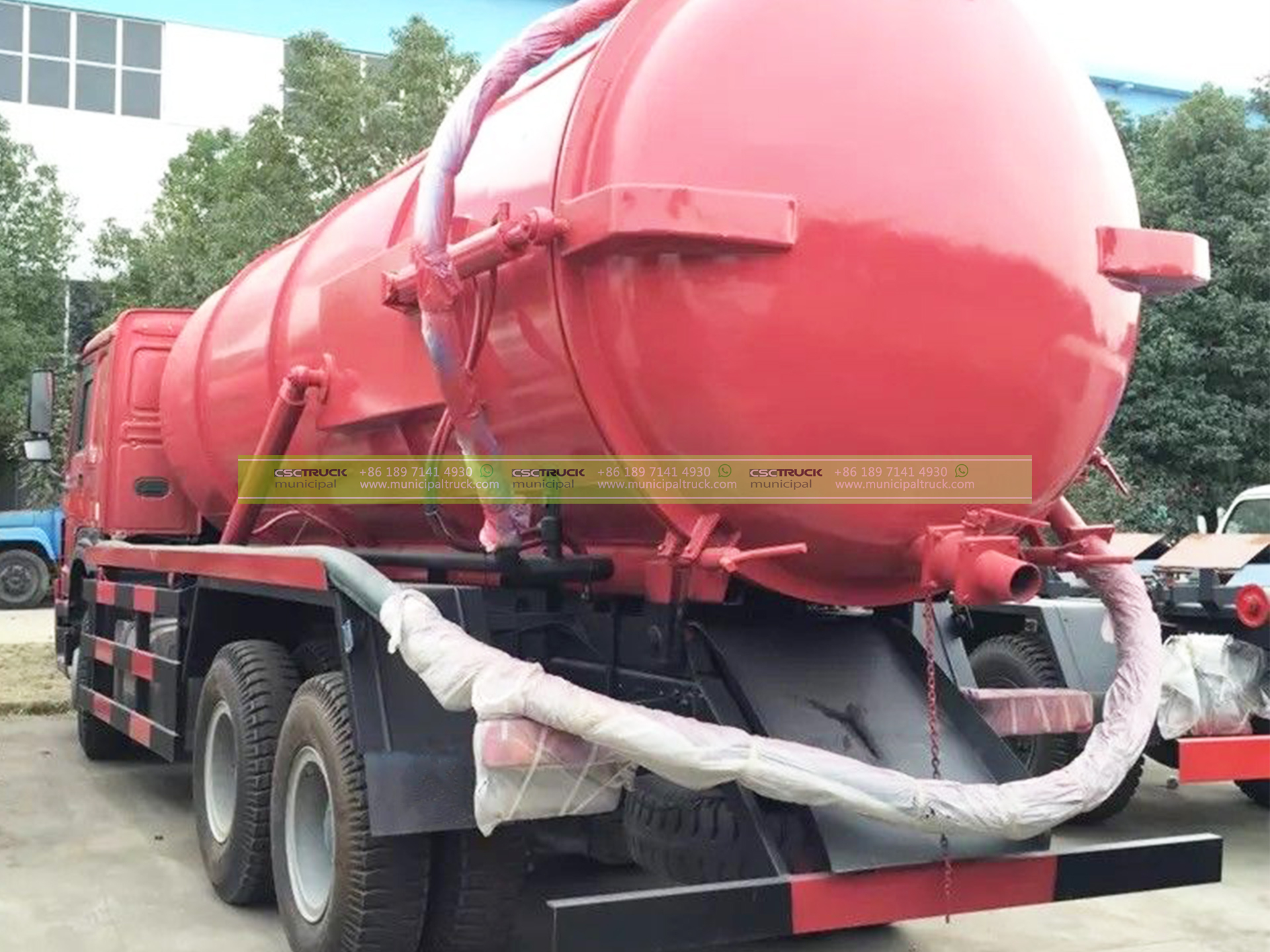

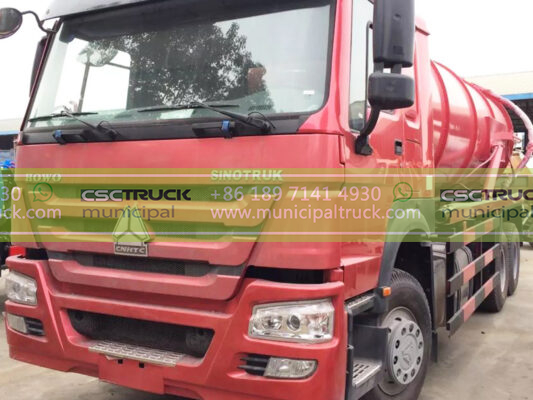

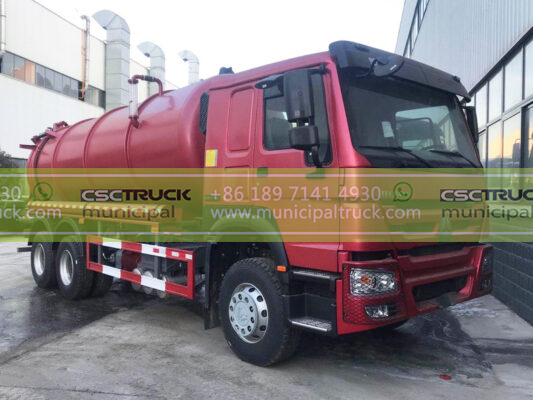

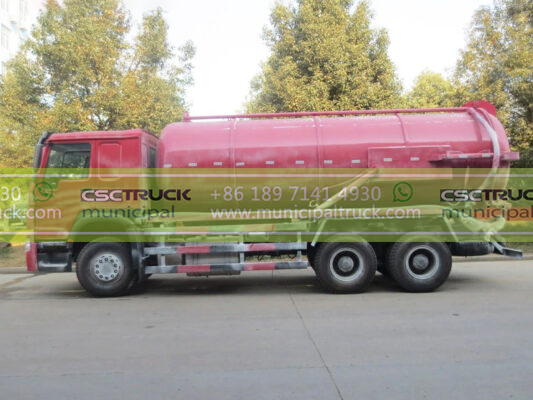

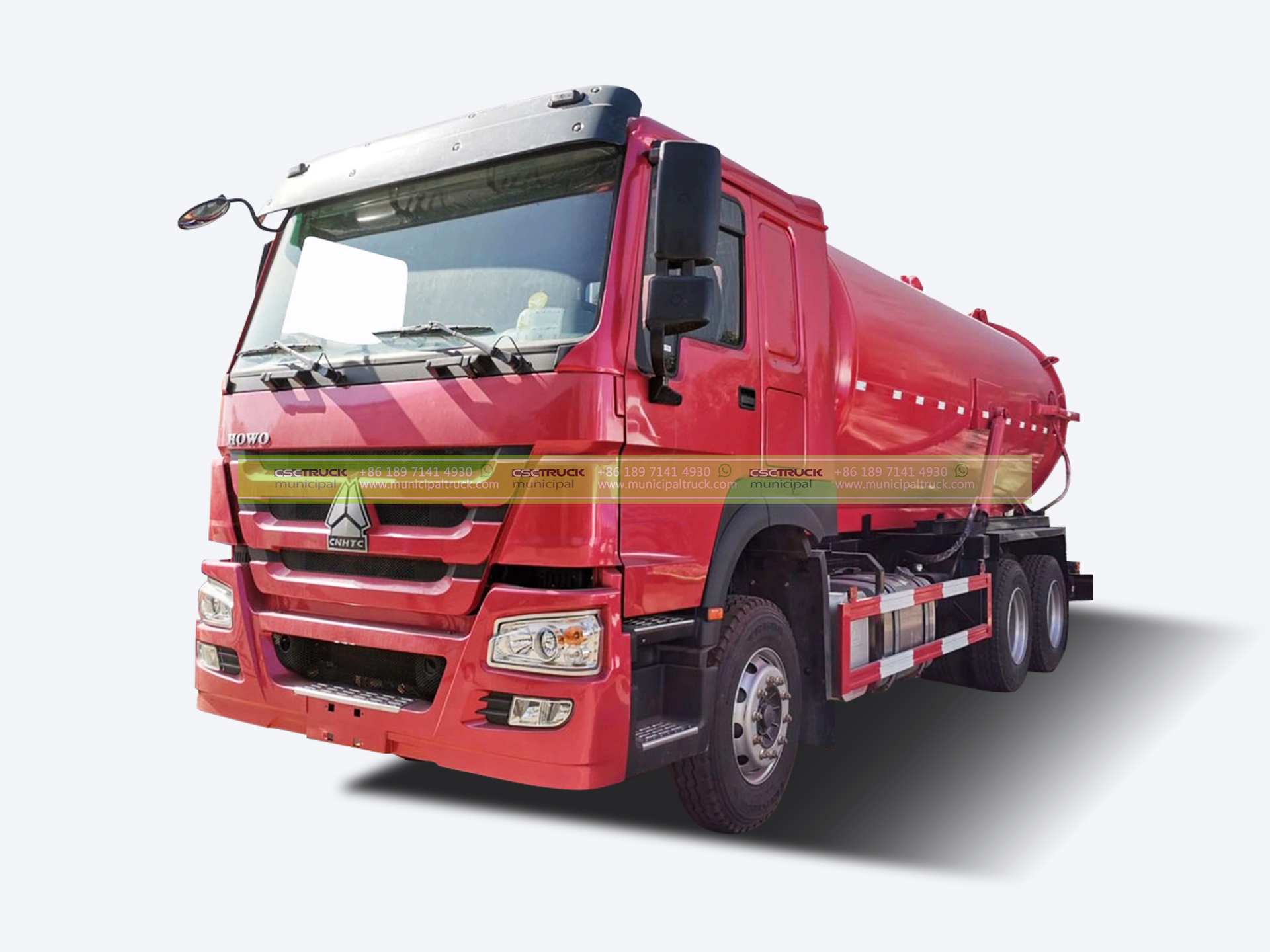

HOWO 16000 Liters Septic Tank Vacuum Truck is based on HOWO T5G 6×4 Sleeper Cab. It is one of SINOTRUK’s common exported types, with reliable features such as the JUROP PVT200, Roots Pump, Capacity 21,350LPM, high tensile steel frame, good quality sludge tank, reliable key parts of control valve, oil cylinder and connecting pipeline of the hydraulic system have designed with advanced structure, reliable performance, simple operation, and convenient maintenance. HOWO 16000 Liters Septic Tank Vacuum Truck is excellent for suction hoses up to 75mm diameter, remote access locations, and commercial and industrial areas.
features

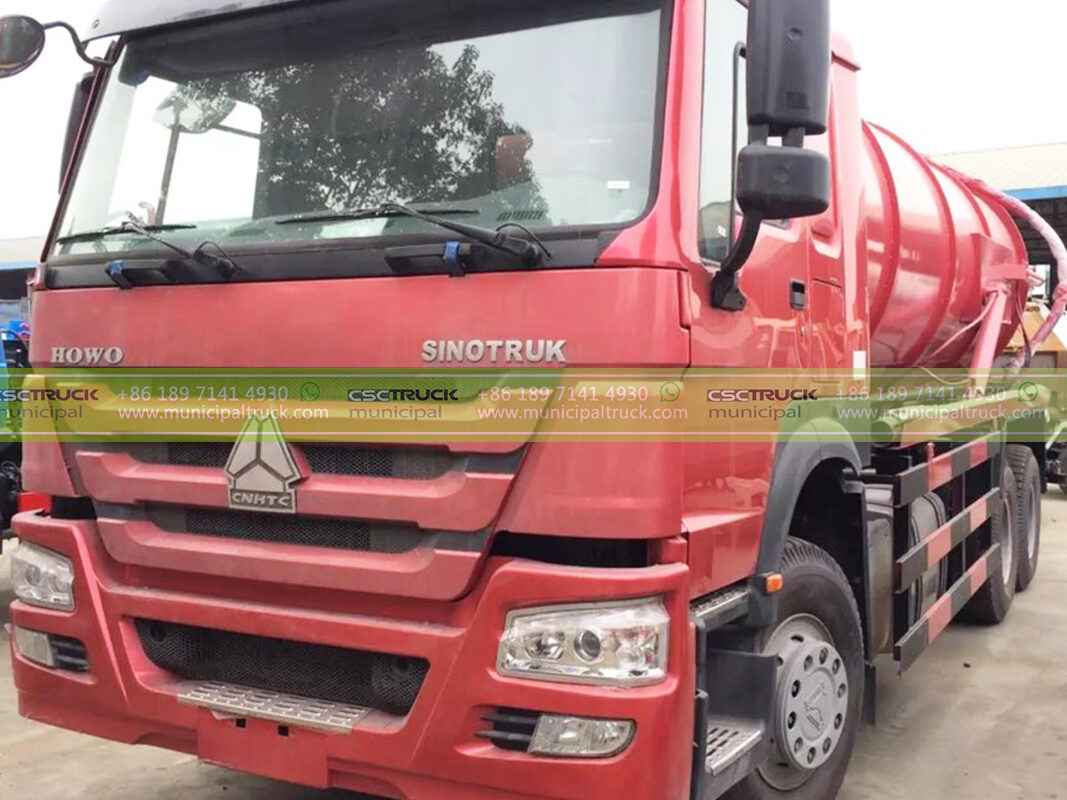

Chassis Truck
Lower Body Weight
With lower body weight, a lower chassis, and a higher loading capacity, T5G can be mounted with 295/80R22.5 vacuum tires. Achieving high speed and lower gas consumption, it is an ideal choice for all enterprises involved in logistic services.
153 (10 tons) Driving Axle
Its153 (10 tons) driving axle achieves a speed ratio of 4.111. Its transmission rate can also reach 98%. Its fuel filter specially designed for its axle housing and its SKF wheel hub bearing is among a host of big highlights.
Higher Reliability
Equipped with HW19710 transmission, makes the gear shifting an easier job. In the meantime, it helps the vehicle cut its noise level and improve its overall life expectancy.
T5G possesses an appealing appearance and fully meets EU ECE R29 collision safety regulations. With a more streamlined body, it has reduced its wind drag to just 0.56, the lowest among all its counterparts.
Higher Loading Capacity
With the H153 (5.5 tons) front axle, T5G boasts a higher loading capacity.
Powerful Performance
Sinotruk HW19710 engine with a torque reaching 1,900 N.m helps the van deliver powerful performances.
Body Unit

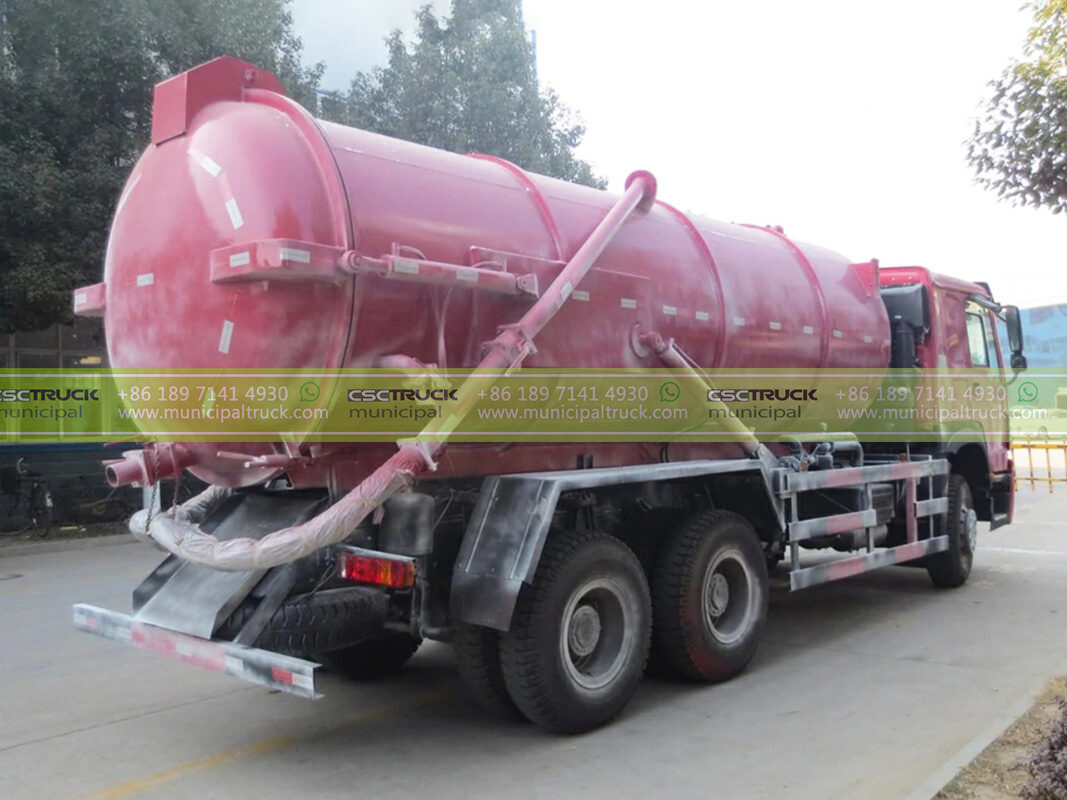

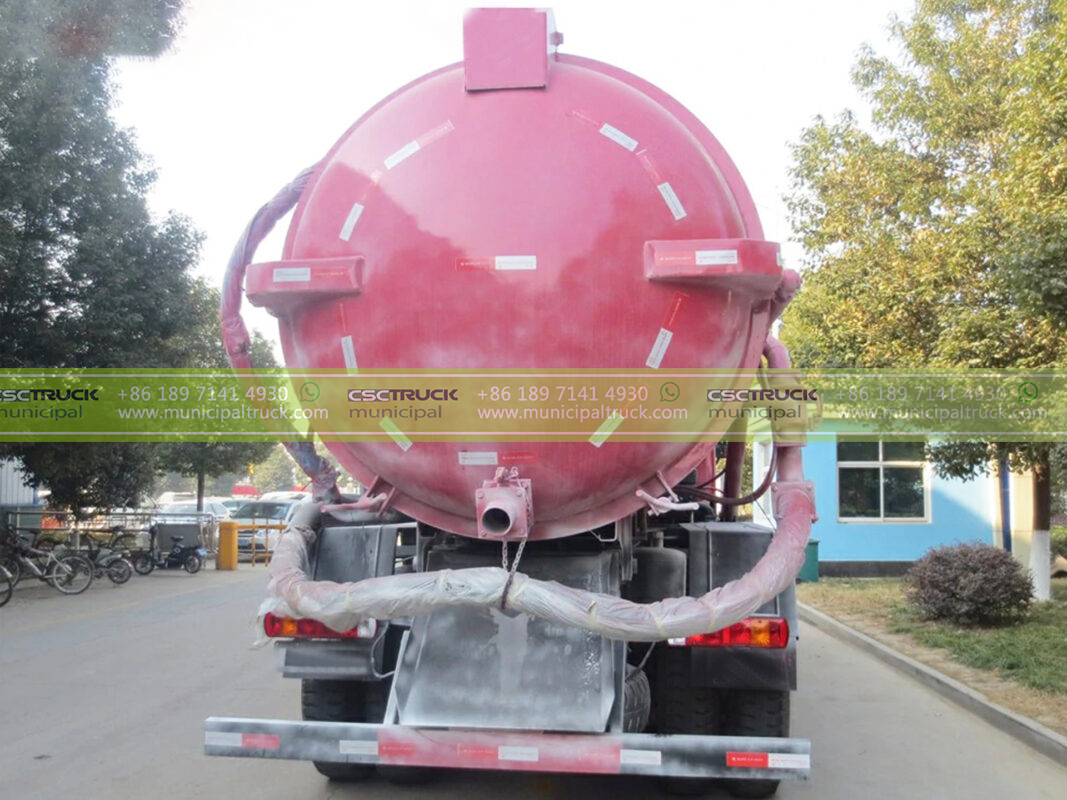

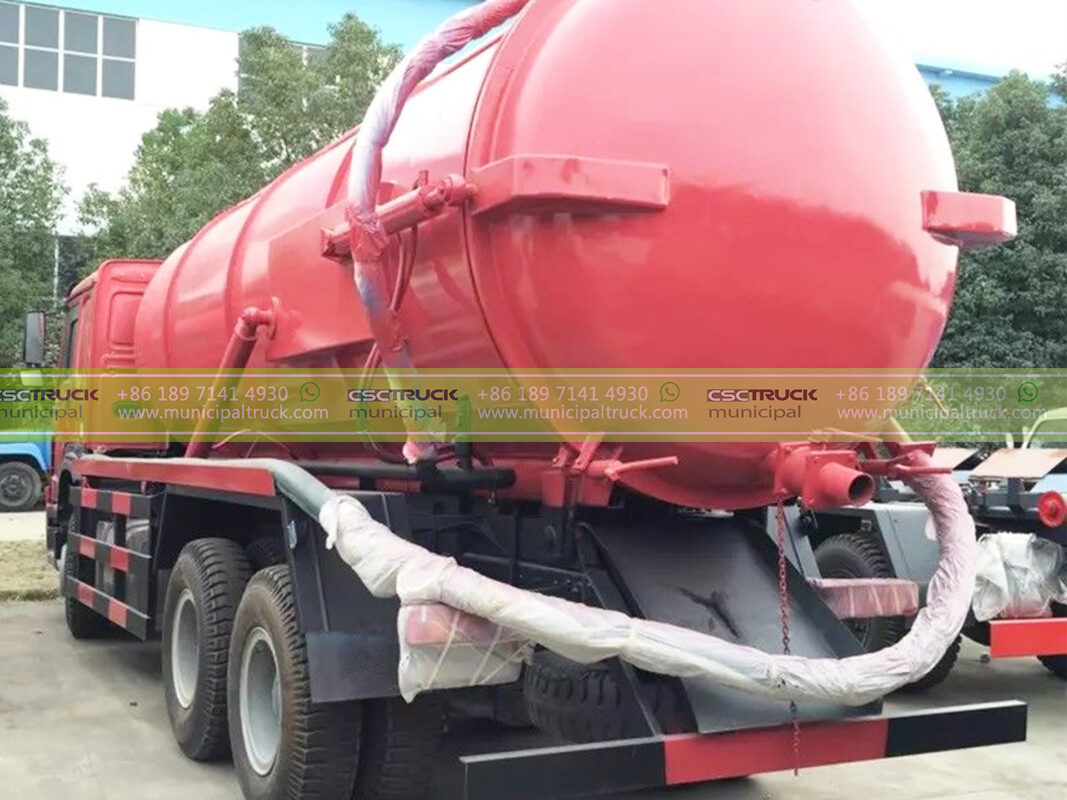

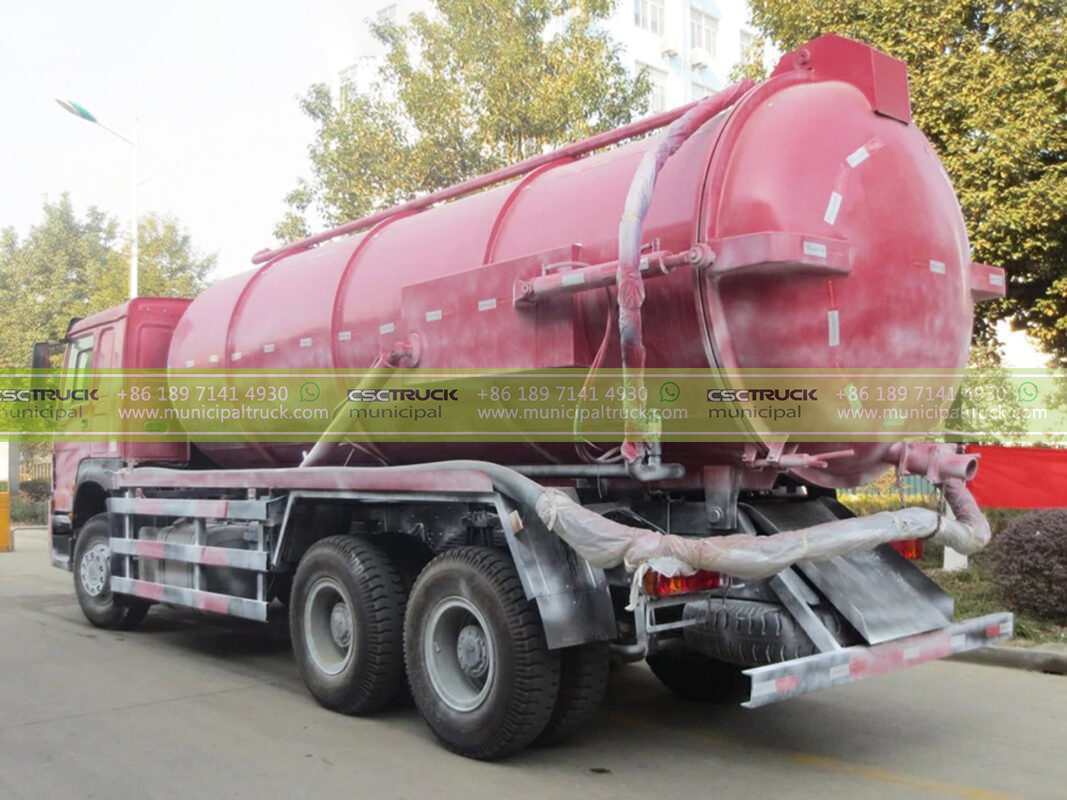

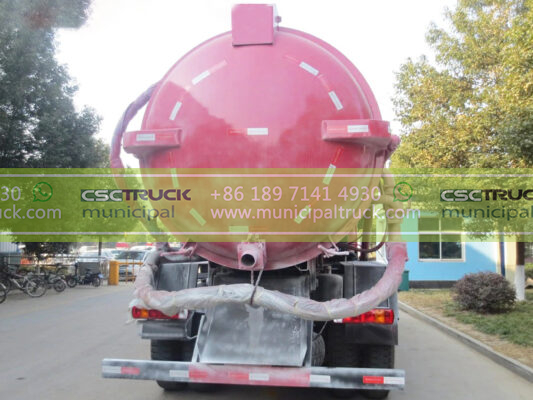

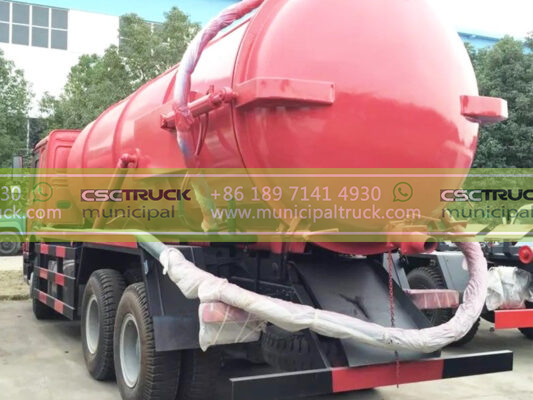

REAR – Tipping Tank
Double cylinders rear lifting
MAXIMUM VACUUM POWER
Utilizing high suction from JUROP PVT200, Roots Pump, Capacity 21,350LPM, that delivers maximum vacuum efficiency even in the toughest working conditions, also produces decreased noise emissions. Naturally, less noise leads to safer working conditions for operators. E-Stops come standard in multiple locations on the vacuum machine for the increased safety of all operators.
Primary Overflow Prevention Device
A sludge observation window and the anti-flow valve will be installed on our standard sewer truck.
Second Overflow Prevention Device
Its air inlet connector is connected to the air outlet of the tank top overflow prevention valve, and the air outlet connector is connected to the suction port of the vacuum pump; when the tank top overflow prevention valve fails, the sewage enters the secondary overflow prevention device and triggers the electronic liquid level. The switch controls the vacuum pump to stop working.
UNLOADING EFFICIENCY
Standard with a fully-opening rear door only requires one dump to eliminate all debris within the debris box. The door is raised through a minimum angle of 80° to the vertical, allowing for the easy and effective offloading of sludge into roll-off containers or any desired dump locations.
specification
| Size | 9370×2500×3450(mm) |
| Gross weight | 25,000kg |
| Curb Weight | 13,440kg |
| Wheelbase | 4600+1350 mm |
| Driving type | 6*4 LHD |
| Chassis model | HOWO T5G |
| Tire size | 11.00R20 |
| Number of Tires | 6+1 |
| Passengers in cab | 3 |
| Engine model | SINOTRUK WD615.69 336hp, Euro 2 |
| Sewage Tank | 16,000L |
| Body Material | High-strength carbon Steel |
| Vacuum Pump | JUROP PVT200, Roots Pump, Capacity 21,350LPM |
