Brief

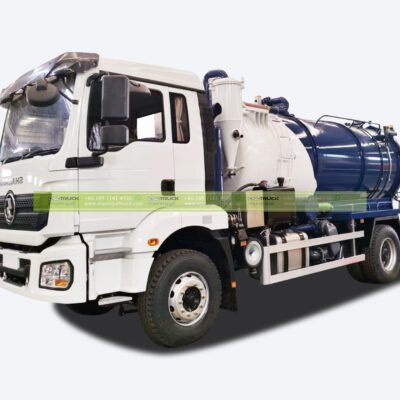

SHACMAN 20 Ton Sewage Tanker Truck is designed and manufactured to
collect liquid such as dirty water, sludge, septic, etc. It’s one of the most critical services in any city, building, or home sewage system.
The SHACMAN 20 Ton Sewage Tanker Truck is equipped with a vacuum pump of XD-420, sliding vanes, and a capacity of 6,960LPM. The bank is 10,000 liters capacity, with a hydraulic dump system, full door opening, and lock of the hydraulic door. It is the first choice of professional contractors and public utilities.

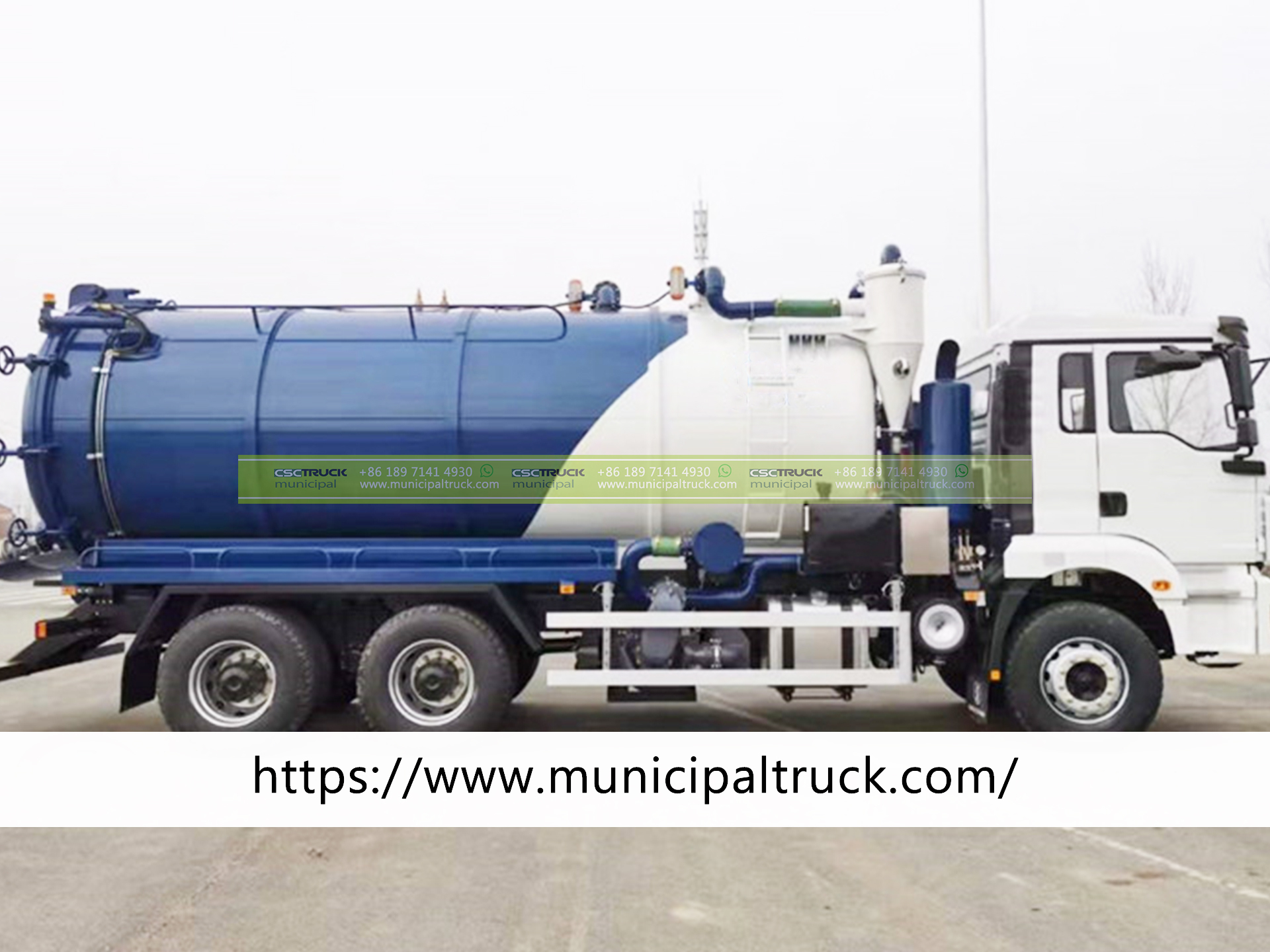

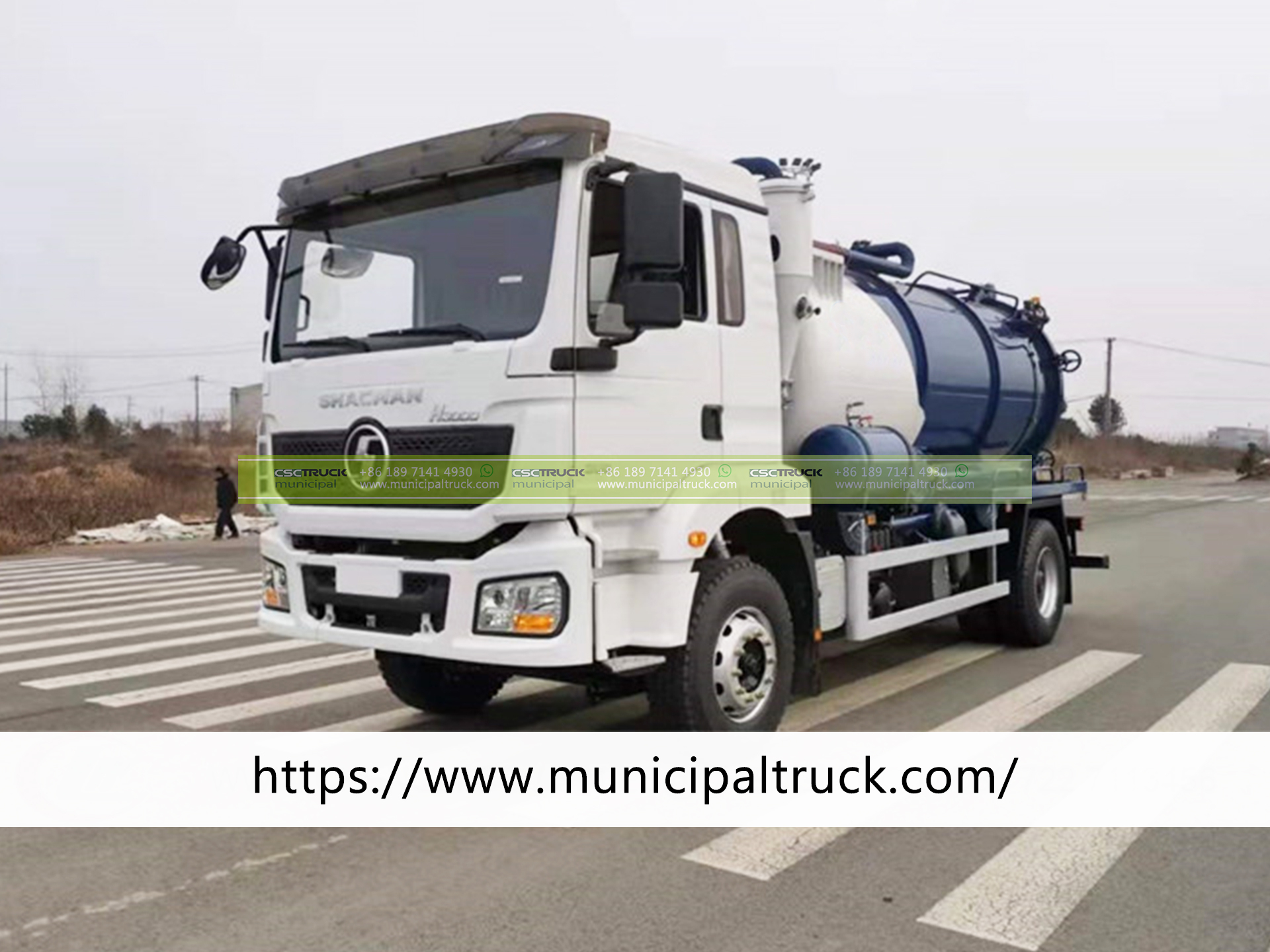

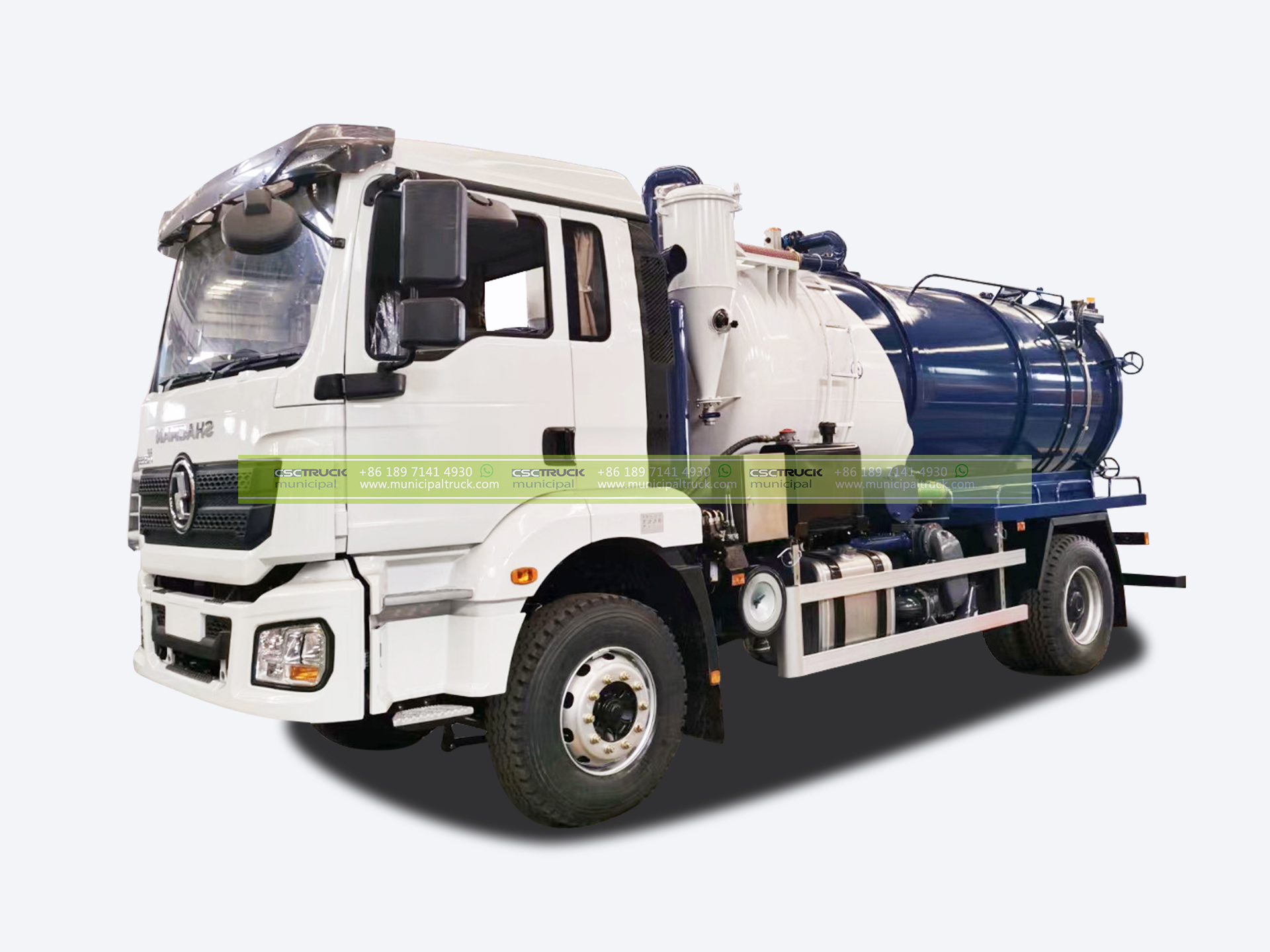

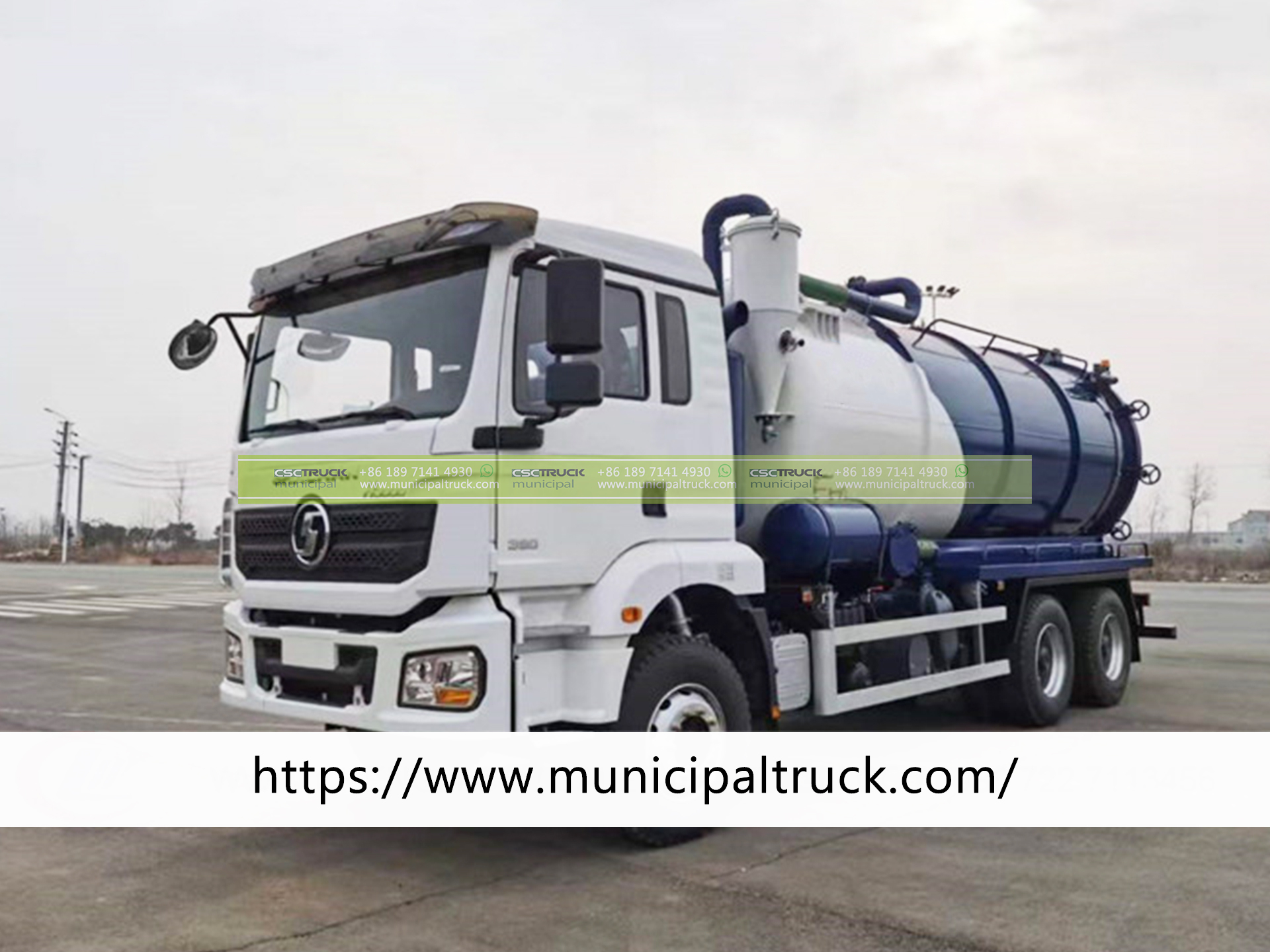

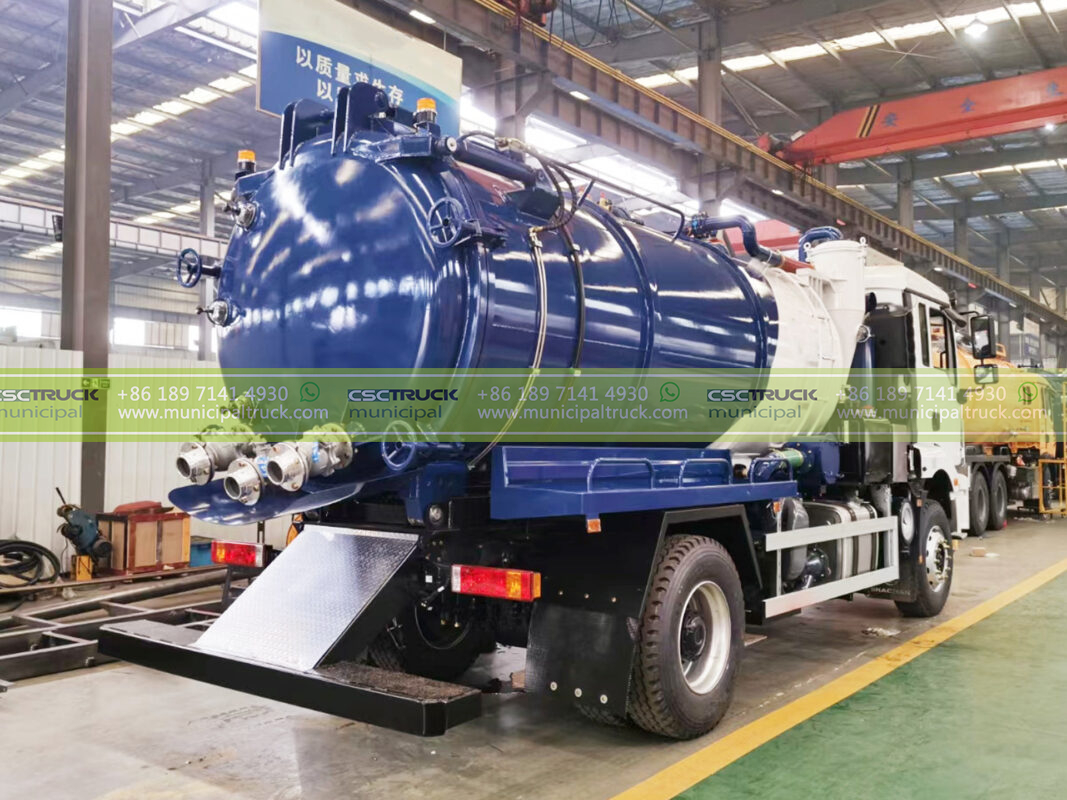

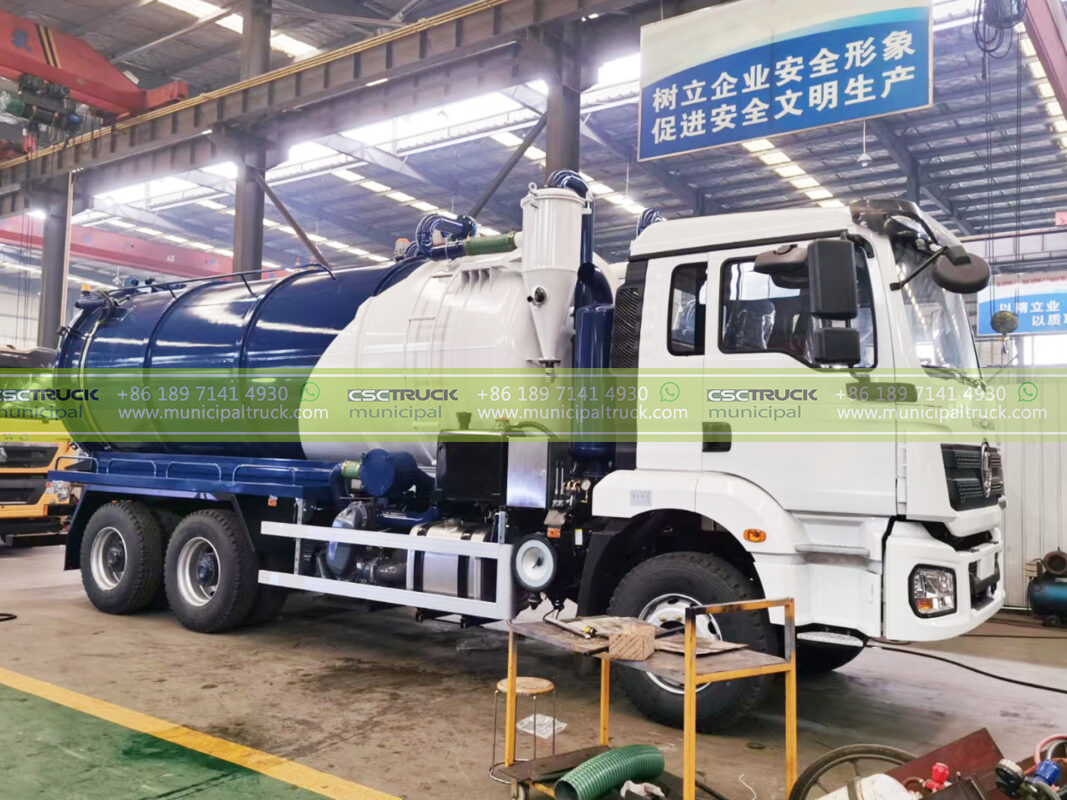

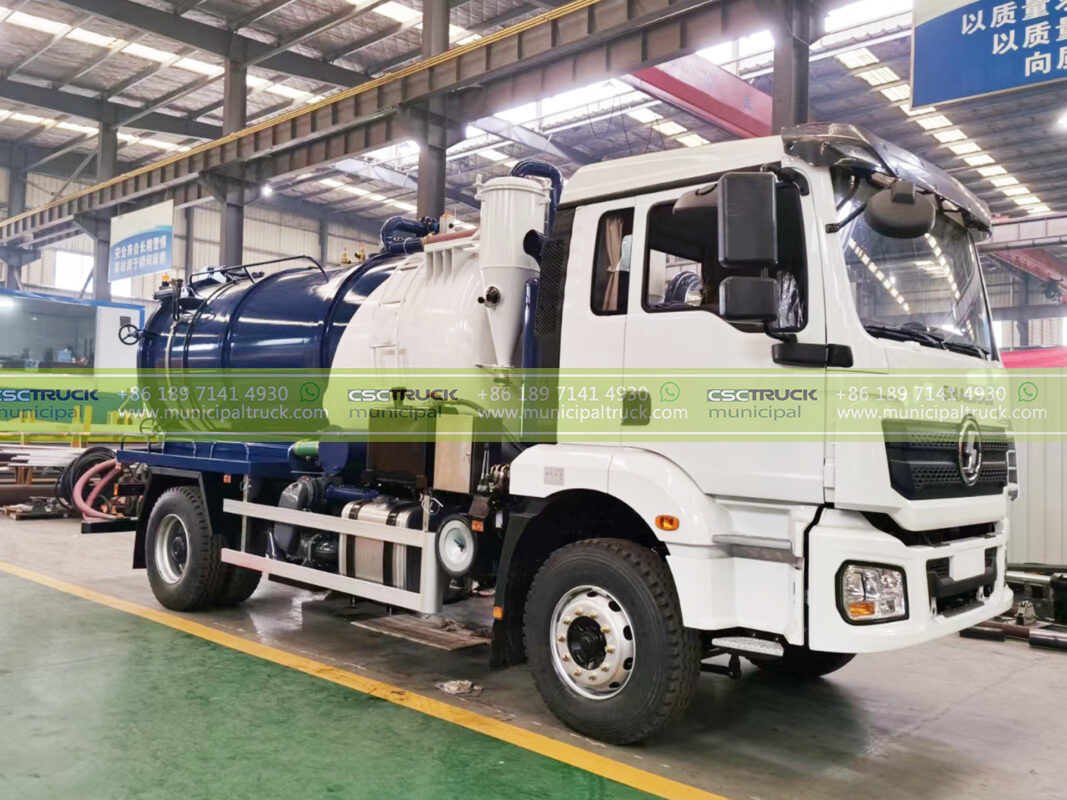

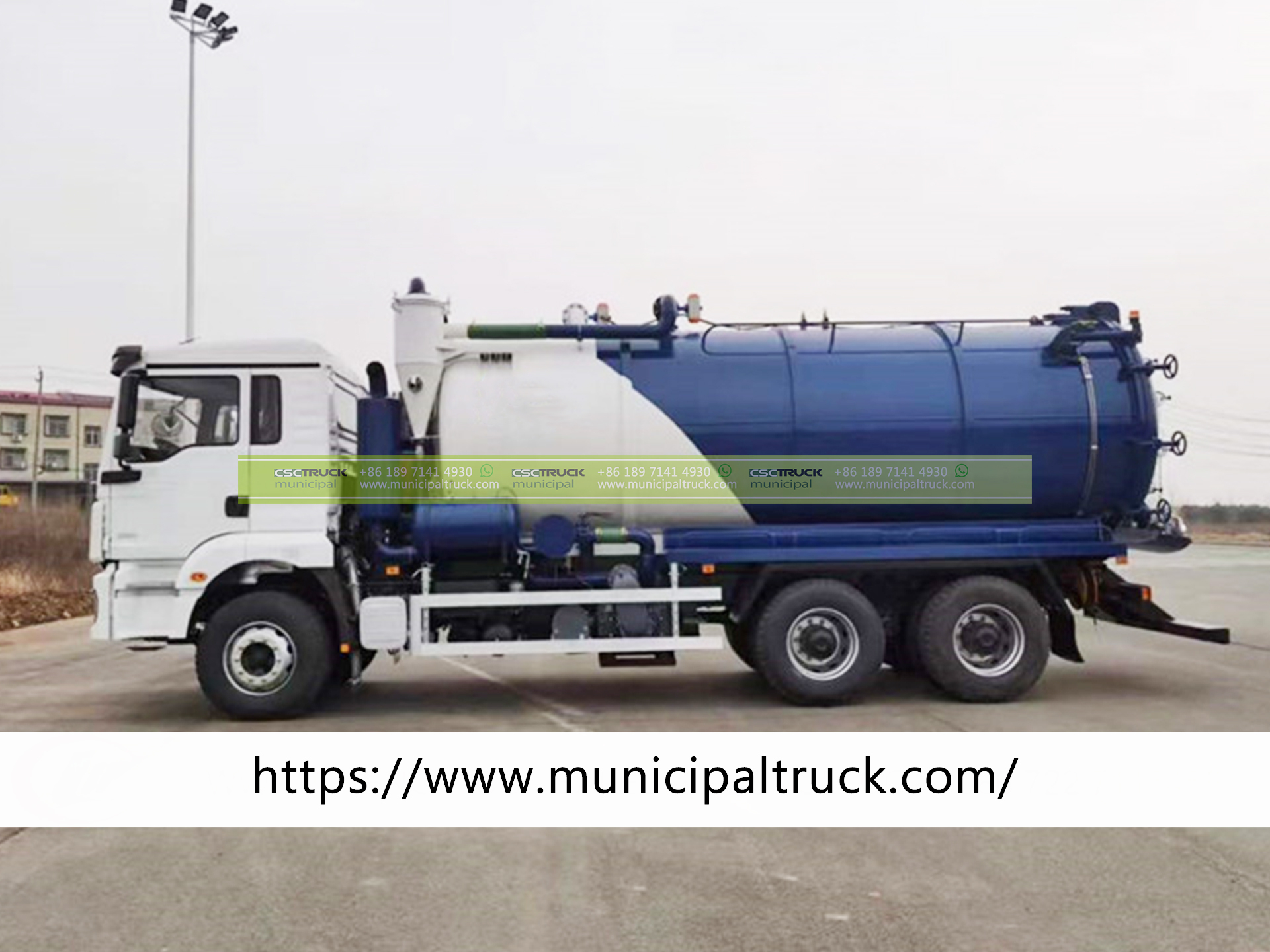

Gallery
See this Truck Video on Youtube
features
Chassis Truck
Innovative
Adopting the narrow body cab of the German MAN TGS model, it has the leading design technology in Europe.
Medium-duty Chassis
The H3000 series is great for medium to long-distance transportation in and around an urban environment.
You Can Depend On
-Optimized intake module decreasing intake resistance by 6%
-Efficient real axles that increase transmission efficiency by 13%
-Intercooler resistance was reduced by 29%
-Engine power loss reduced by 8%
-Efficient tires which reduce rolling resistance by 10%
-A cooling module developed by adopting German Behr BISS simulation software increasing cooling capacity by 10%
Comfortable and Safe
The H3000 series uses brand new European TGS cabin technology with improved cabin tightness, soundproofing, and insulation making your workday more enjoyable and safe.
Body Unit
Sludge Tank
The tank body is a carrier for suction and a container for vacuum suction.
Vacuum Pump
FLOWSERVE SIHI LEMC90 Liquid ring vacuum pumps Suction volume flow: 20 to 200 m³/h
Vacuum Pump
It is a powerful machine that sucks the air out of the tank and discharges it into the atmosphere. It is the heart of the vacuum sewage suction truck. It can also be inflated into the tank to accelerate the discharge of sewage without opening the tank door.
Hydraulic System
It mainly includes a fuel tank, hydraulic pump, multi-way reversing valve, lifting hydraulic cylinder, tank door hydraulic cylinder, pressure gauge, filter, etc. The main function is to drive the hydraulic cylinder to complete operations such as opening or closing the tank door, tipping the tank, and dumping dirt. Accessories include suction pipe fittings, operating levers, alarms, etc.
Air System
It is mainly composed of the four-way valve, oil and gas separator, safety valve, and pipeline. It is a complete set of equipment required for tank pumping and inflation.
Painting
It is necessary to remove the oil, dust, rust, welding slag, etc. on the surface of the workpiece. Then spray anti-rust paint, and spray the surface paint after the anti-rust paint is completely dry. The exterior coating needs to have excellent rust and corrosion resistance and strong adhesion. In order to enhance the anti-corrosion performance in the tank of the vacuum sewage suction truck, anti-rust paint or anti-corrosion coating can also be sprayed on the tank.
SPECIFICATION
| Size | 8150×2500×3250(mm) |
| Gross weight | 20,000kg |
| Curb Weight | 7,885kg |
| Wheelbase | 4,600kg |
| Driving type | 4*2 LHD |
| Chassis model | SHACMAN H3000 |
| Tire size | 10.00R20 |
| Engine model | WEICHAI,180hp, Euro 2 |
| Type of fuel | Diesel |
| Sewage Tank | 10,000L |
| Body Material | High-strength carbon Steel |
| Vacuum Pump | XD-420,Sliding Vanes,Capacity 6,960LPM |
| Toolbox | Yes |
| Painting | Two primers, and one final paint coating |
