Brief

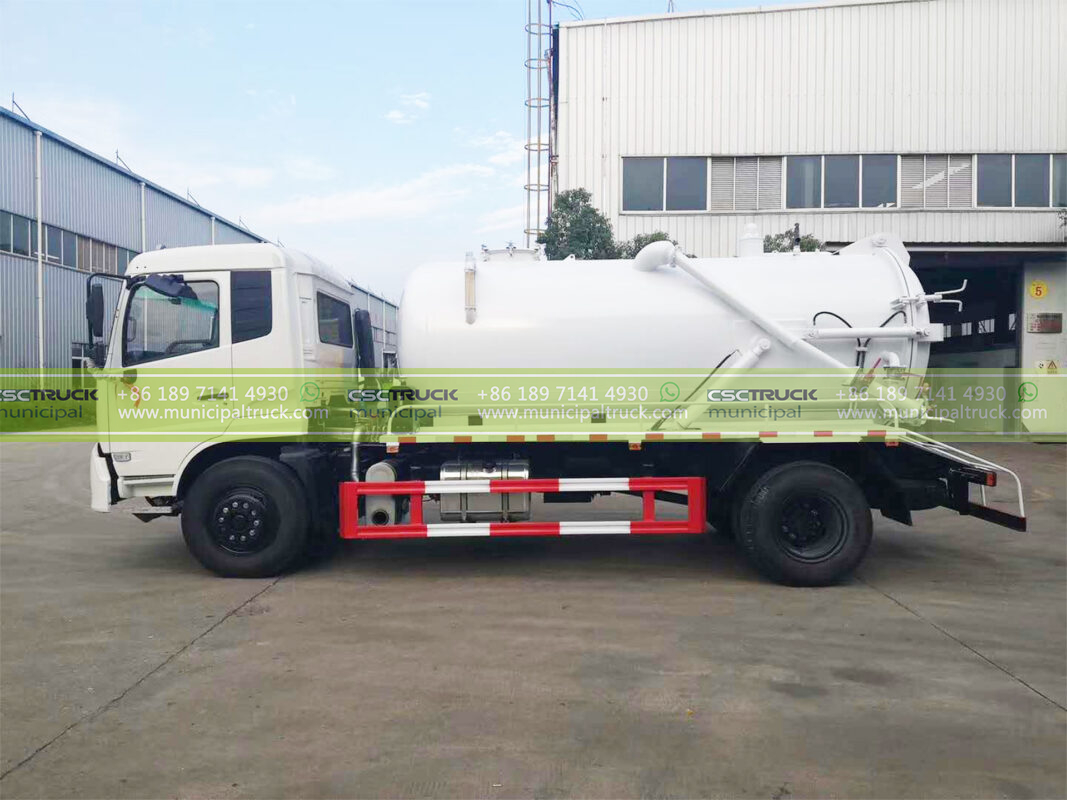

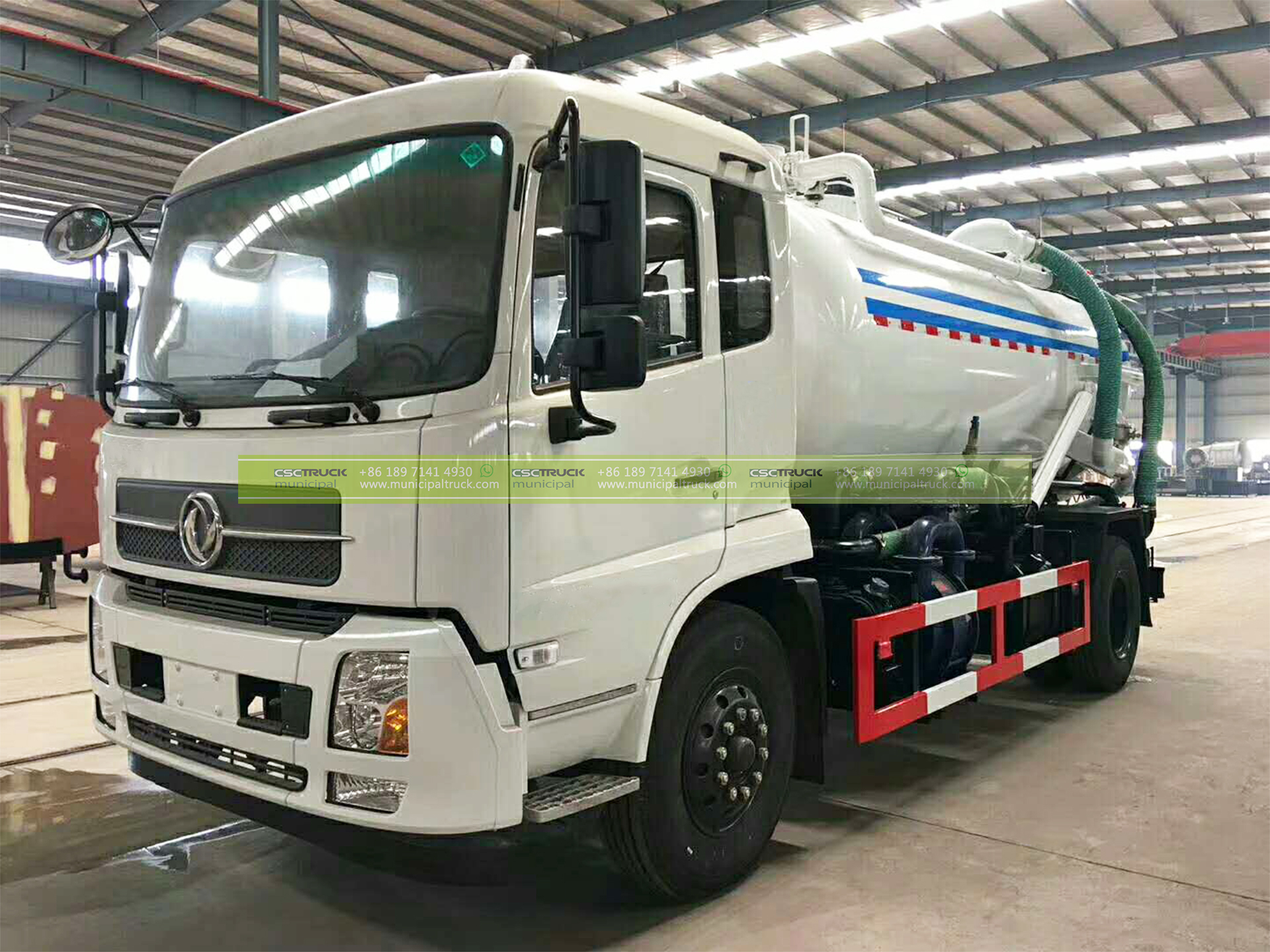

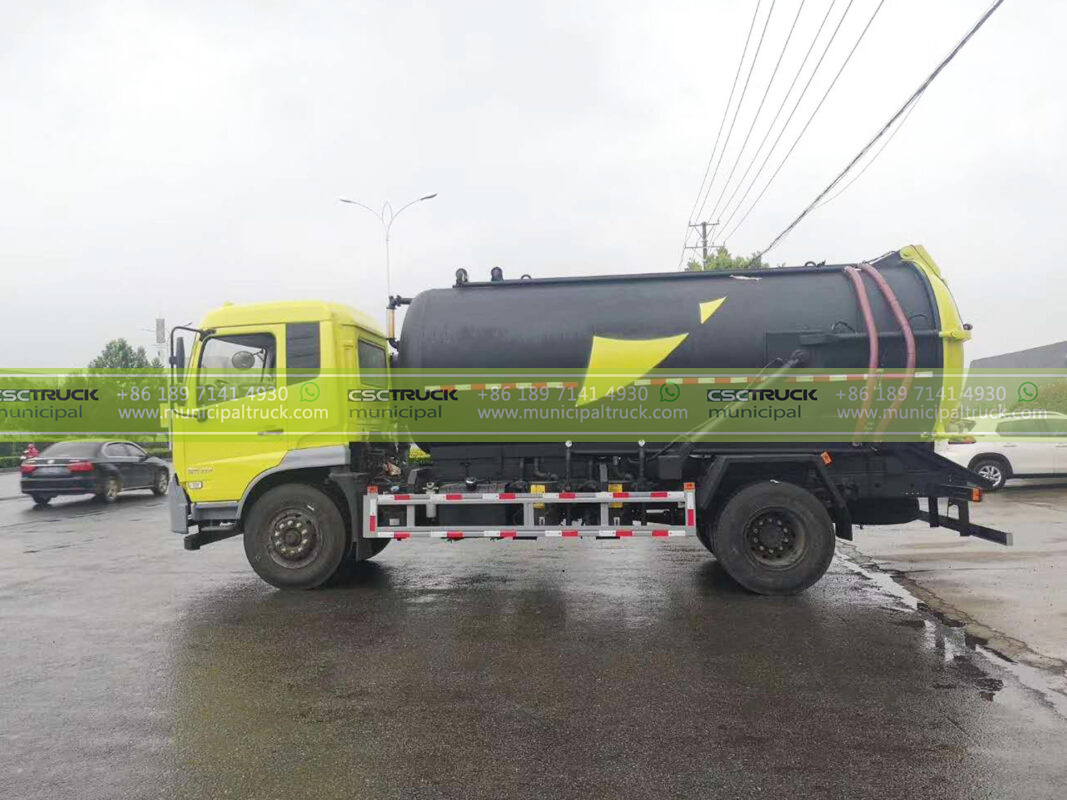

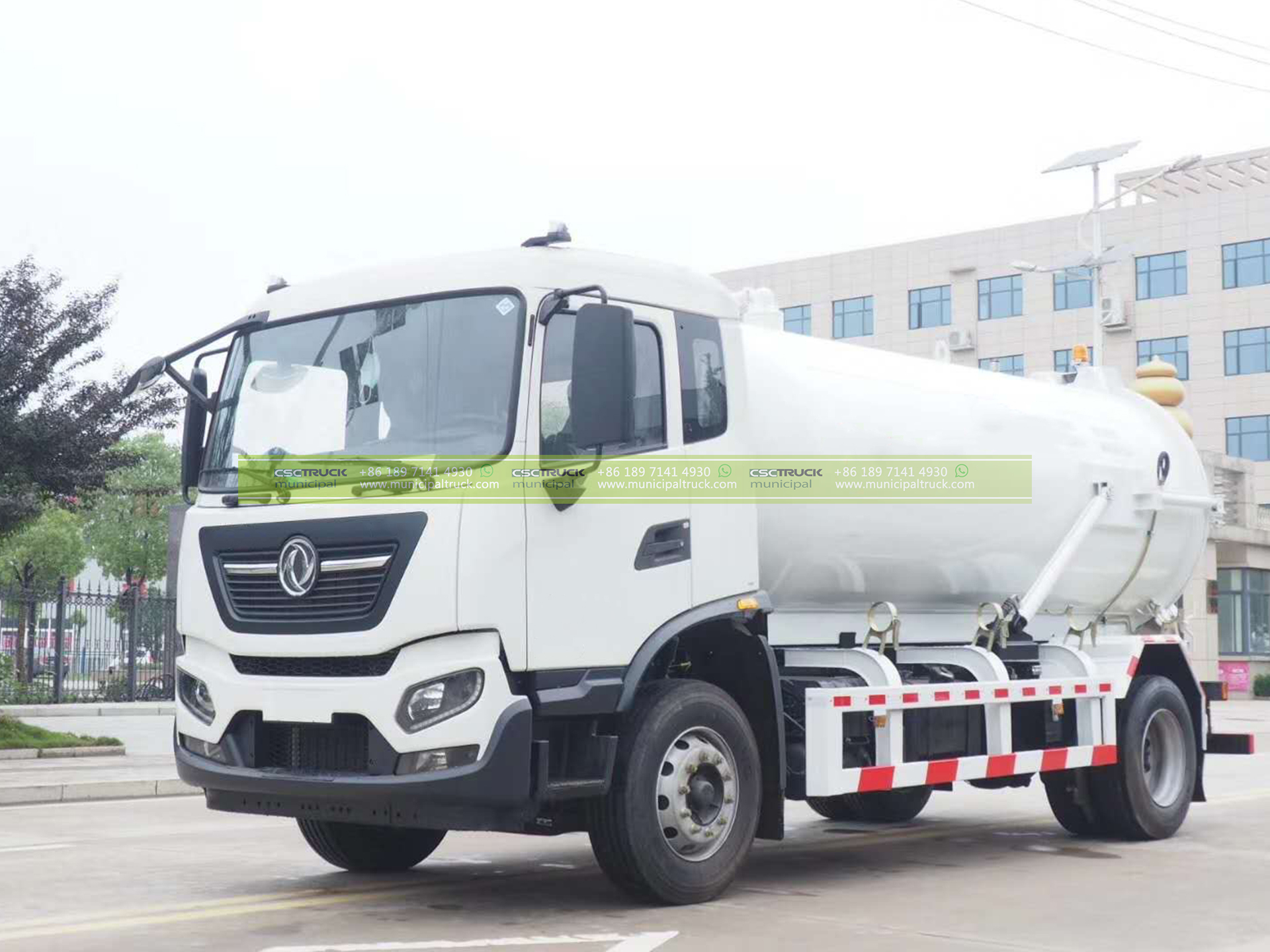

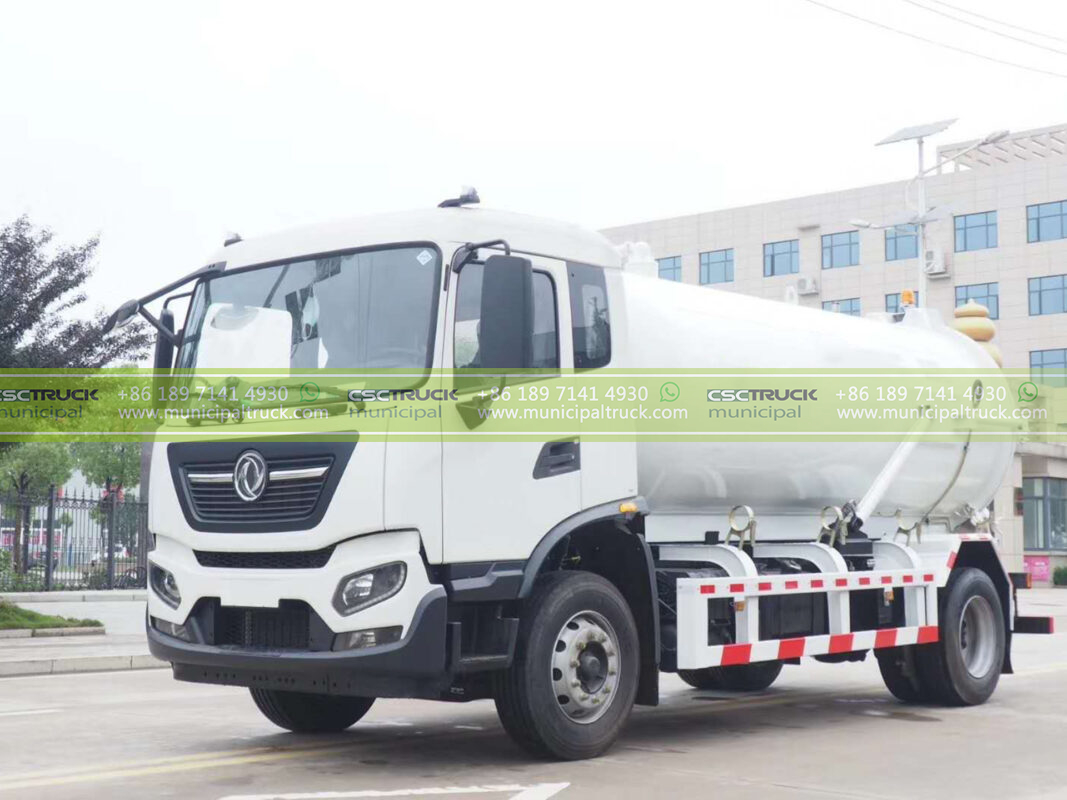

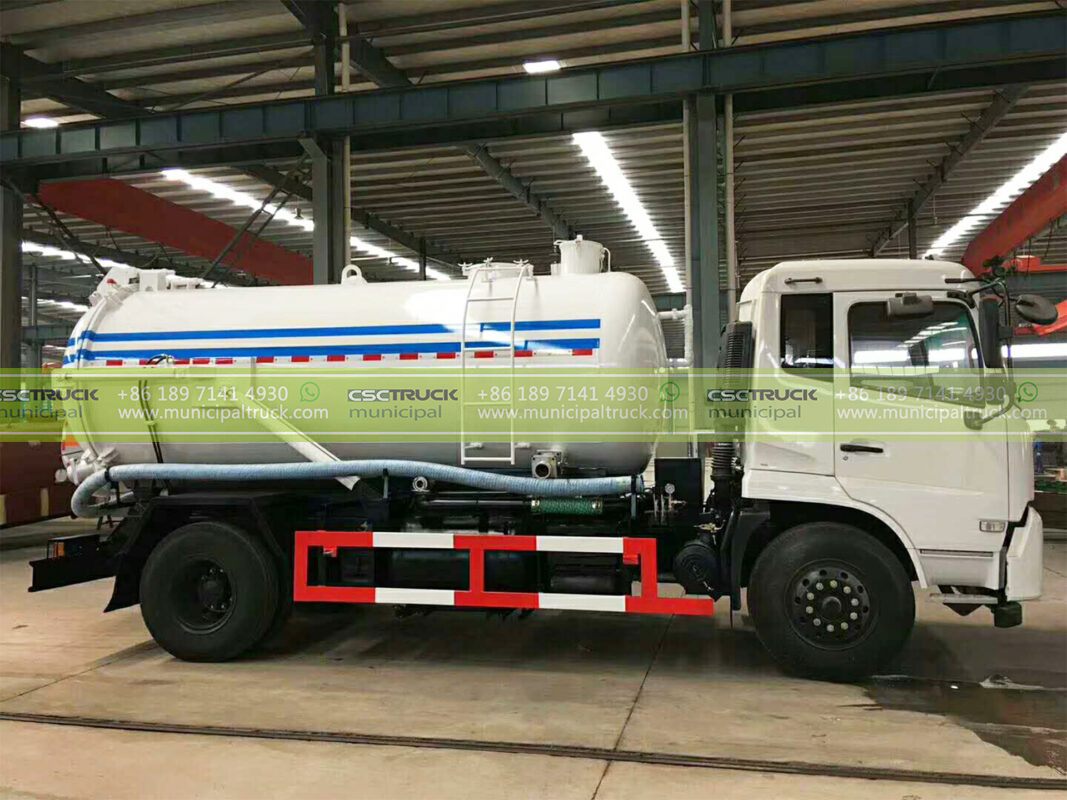

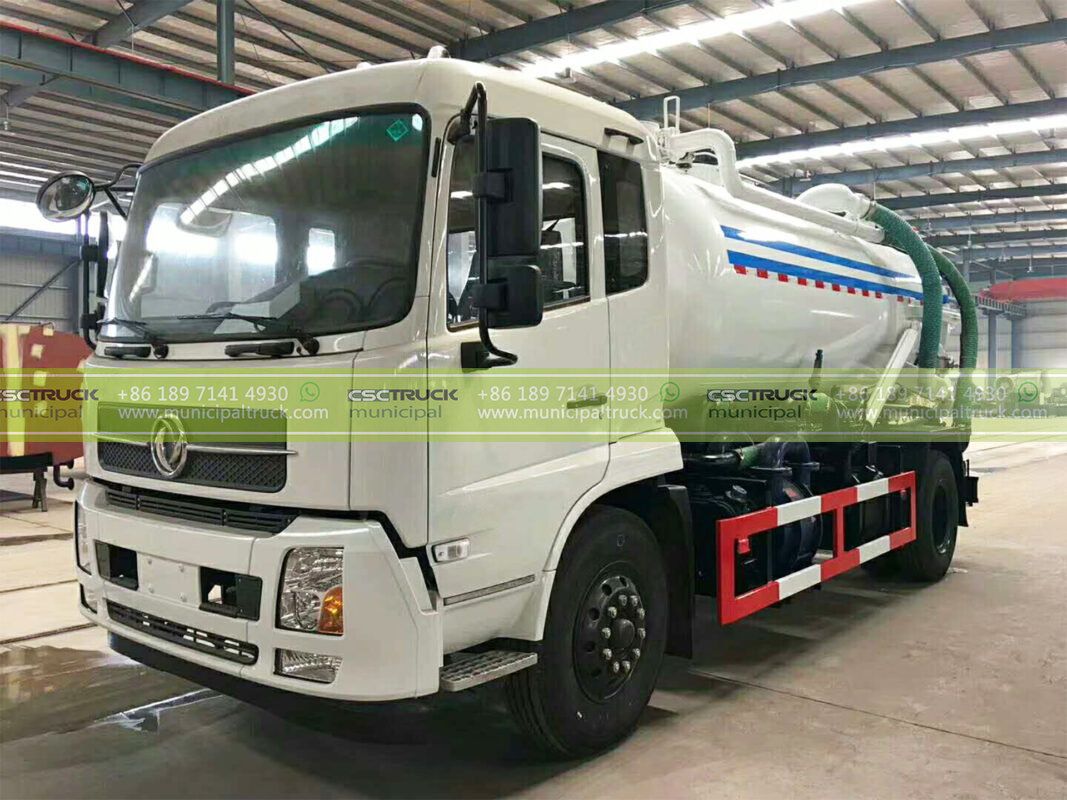

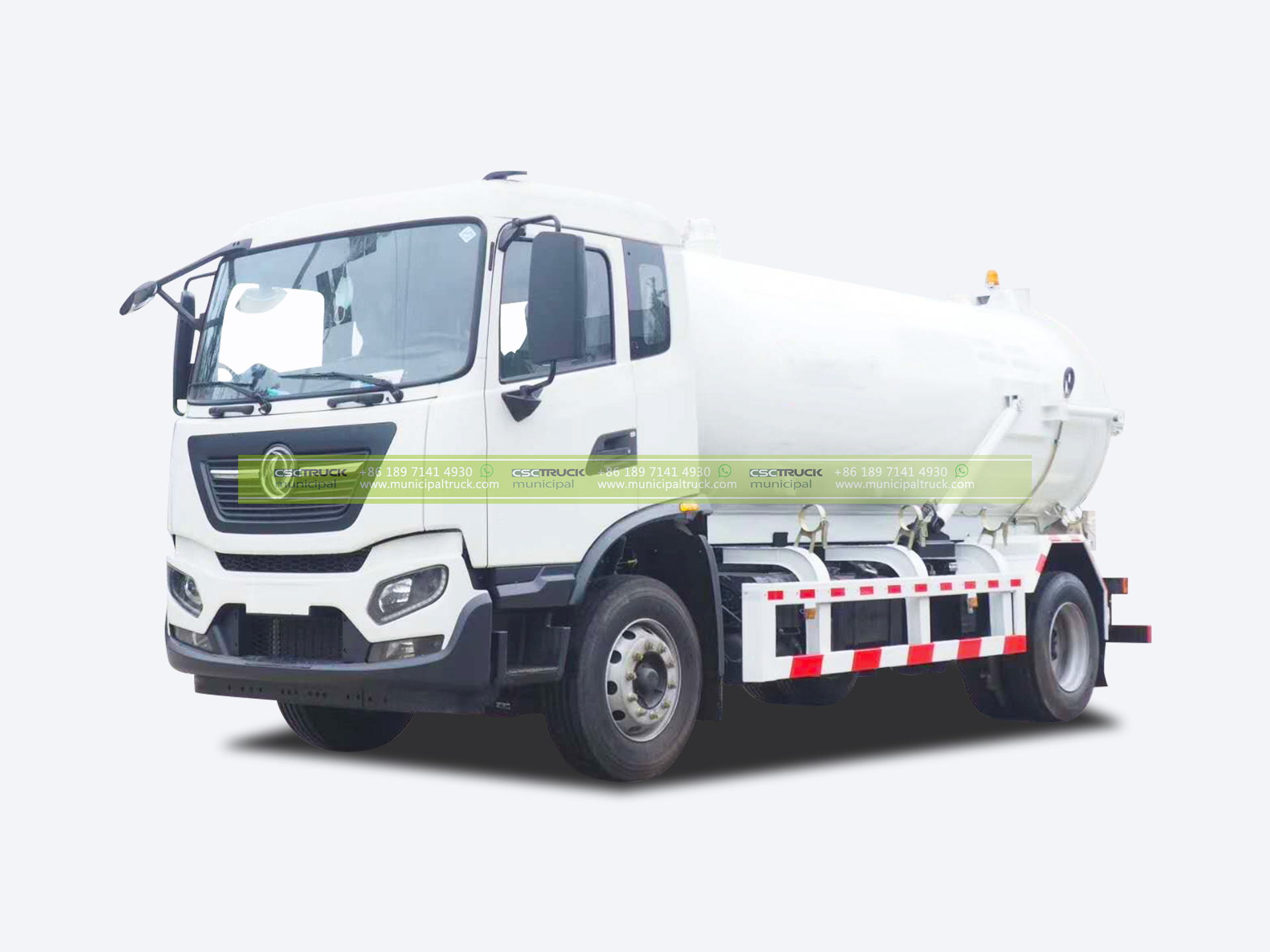

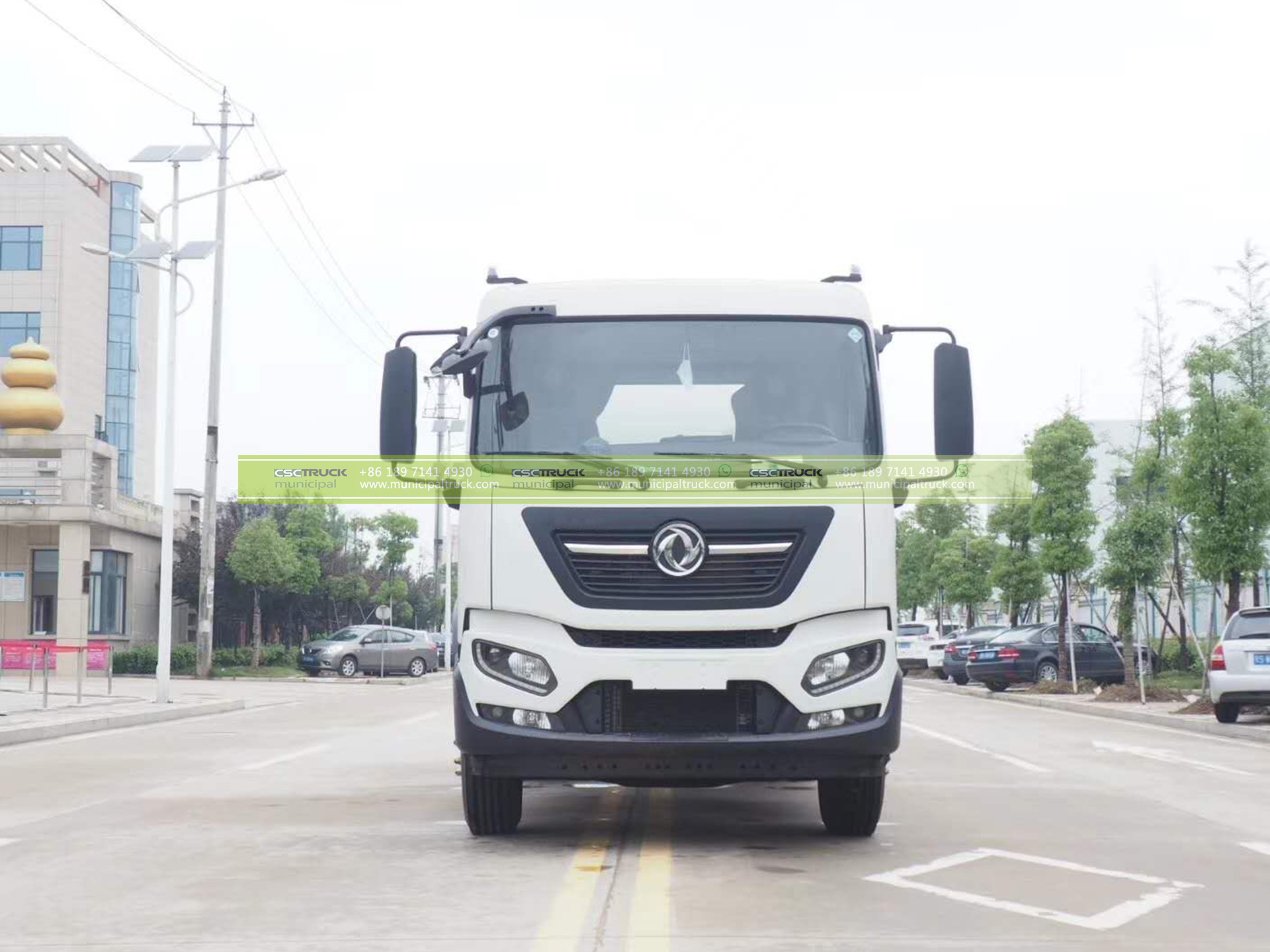

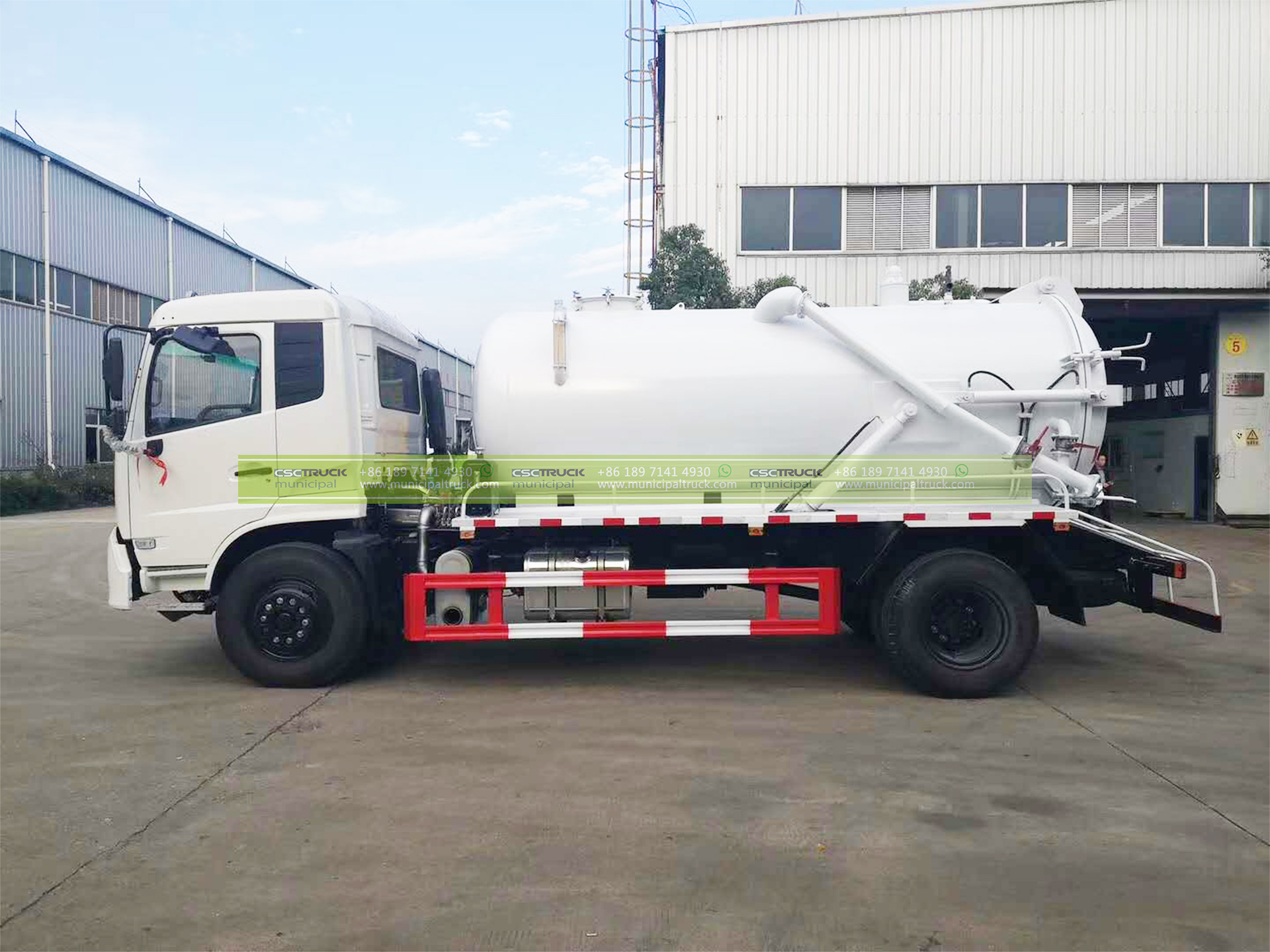

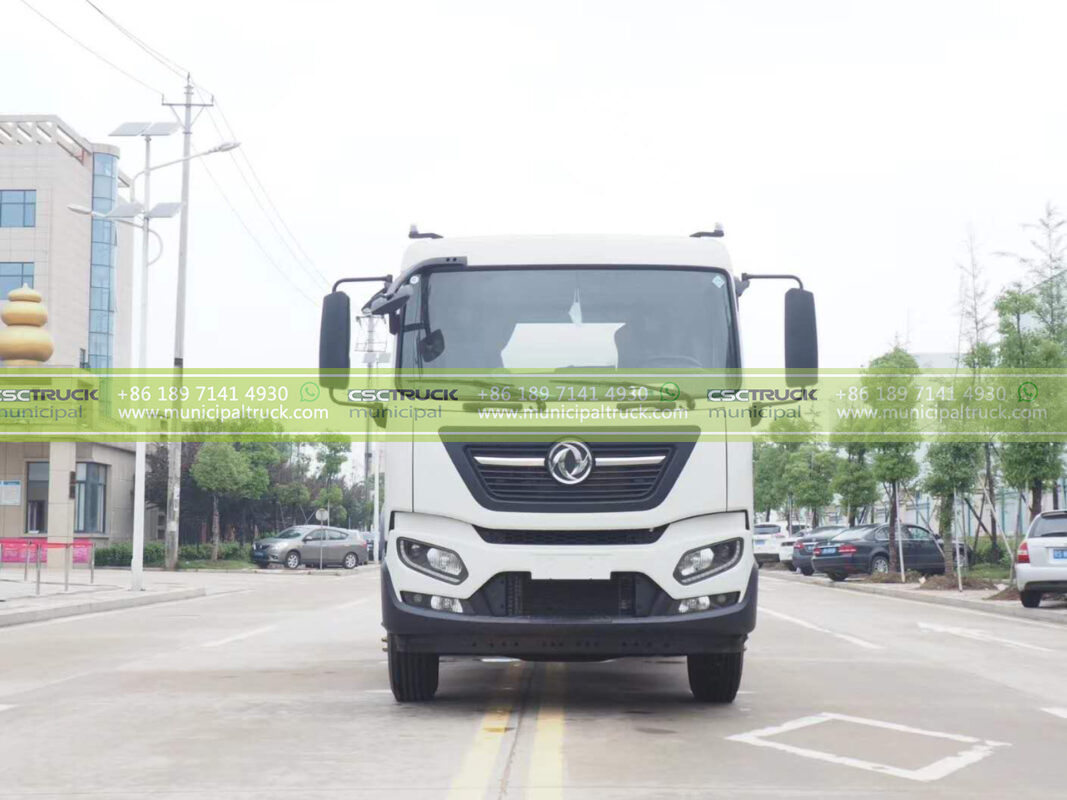

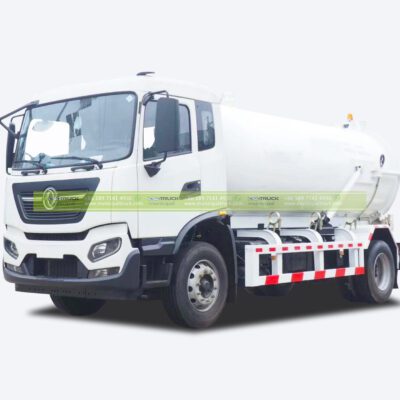

DONGFENG 18 Ton Septic Vacuum Tank unit is mounted on DONGFENG KR 4×2 Sleeper Cab. The truck is a liquid vacuum truck suitable for all commercial and industrial sites. This pump truck is designed to service municipal and community waste disposal.
DONGFENG 18 Ton Septic Vacuum Tank capacity is 15,000 liters, welded with high tensile and anti-corrosion steel thick in 5mm, and designed for liquid waste management. Equipped with vacuum pump MEC II 9000, Sliding Vane, Capacity 9,030LPM, four-way-cock for suction and pressure manually controlled, safety valve for maintenance of the pressure.
features
Chassis Truck
Dongfeng Kingrun
The Dongfeng KR is a reliable truck, performing efficient power with low emissions and has a human-oriented design.
Application
The truck is frequently used as a municipal sanitation vehicle plus for urban and intercity transport logistics. The Dongfeng KR truck is frequently used for medium-duty construction works.
Most Choice of Customer
Kingrun medium-duty truck series have become the top priority of customers due to their outstanding quality.
Body Unit

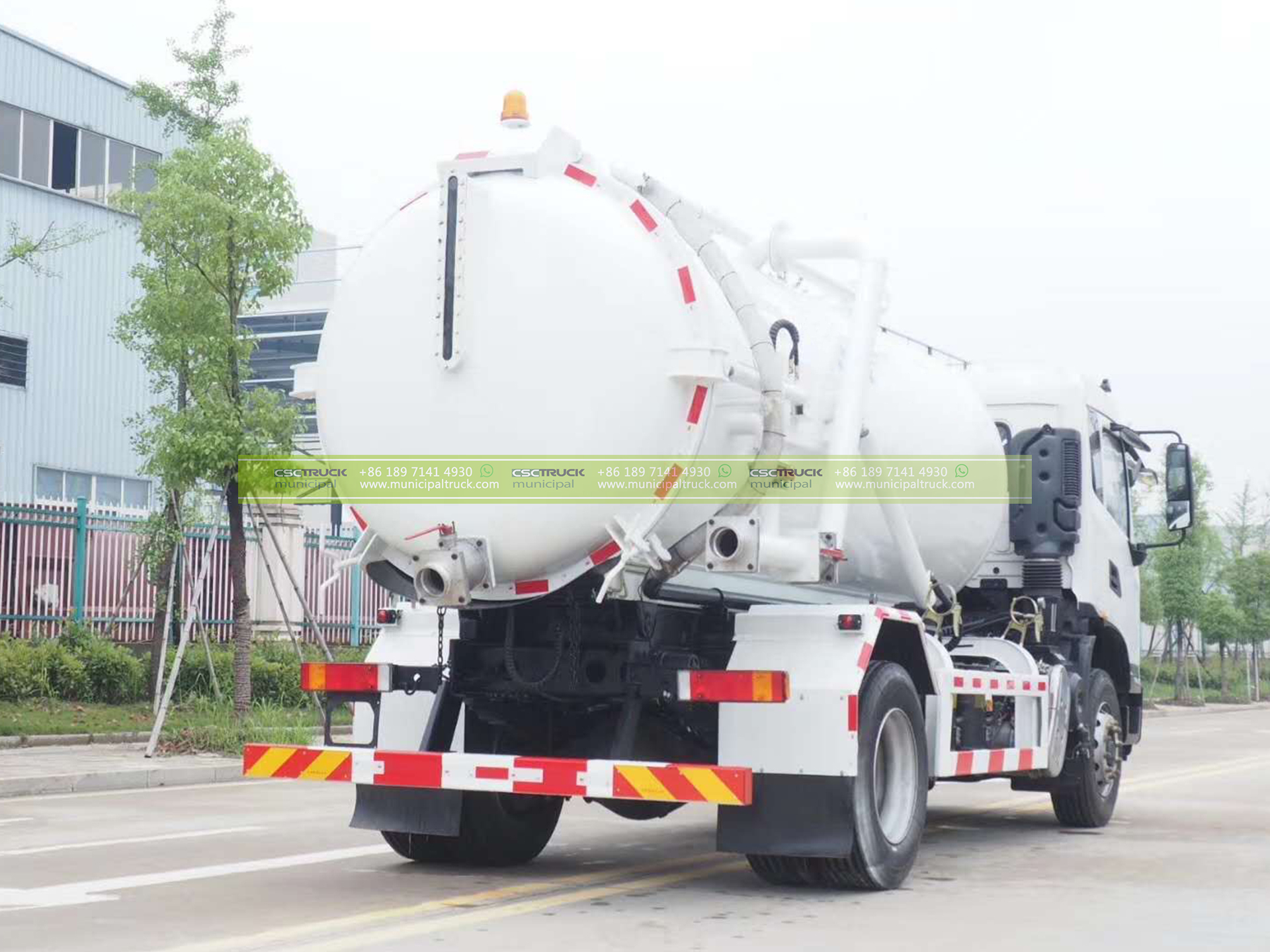

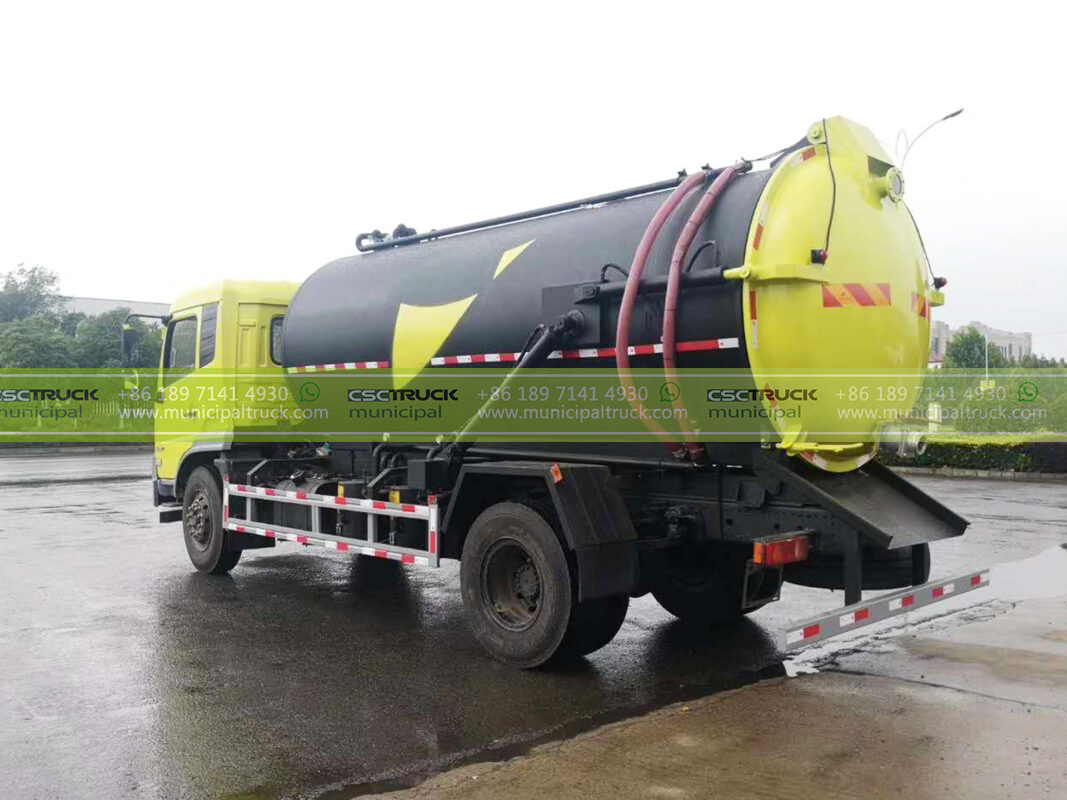

REAR – Tipping Tank
-Rigid round steel tank opening lid, high capacity.
-Hydraulic full opening rear door assembly with 2 heavy-duty wing clamps.
-Full-length hydraulic dump subframe with 5 ton – 80″ stoke 2 stage cylinder
Valves & Fittings
-2″ quick-acting brass drain valve (heated) mounted on the front head.
-Automatic release valve to avoid the excess pressure limit
Optional Equipment
-Imported Vacuum Pump
-Rotary Suction Boom
-Remote Control Unit
-Extension Suction Connector
-Tank Self Cleaning Device
-Pneumatic Tube Cleaner
Control
Double-acting hydraulic cylinder hydraulic controls the loading and unloading of the tank.
Customization Service
Colors, logos, and functions could be customized as the customer required.
specification
| Size | 7700×2500×3310(mm) |
| Gross weight | 18,000kg |
| Curb Weight | 8,740kg |
| Wheelbase | 4,500kg |
| Driving type | 4*2 LHD |
| Chassis model | DONGFENG KR |
| Tire size | 10.00R20 |
| Number of Tires | 6+1 |
| Passengers in cab | 3 |
| Engine model | CUMMINS EQB210 33,210hp, Euro 3 |
| Sewage Tank | 15,000L |
| Body Material | High-strength carbon Steel |
| Vacuum Pump | MEC II 9000, Sliding Vane, Capacity 9,030LPM |
