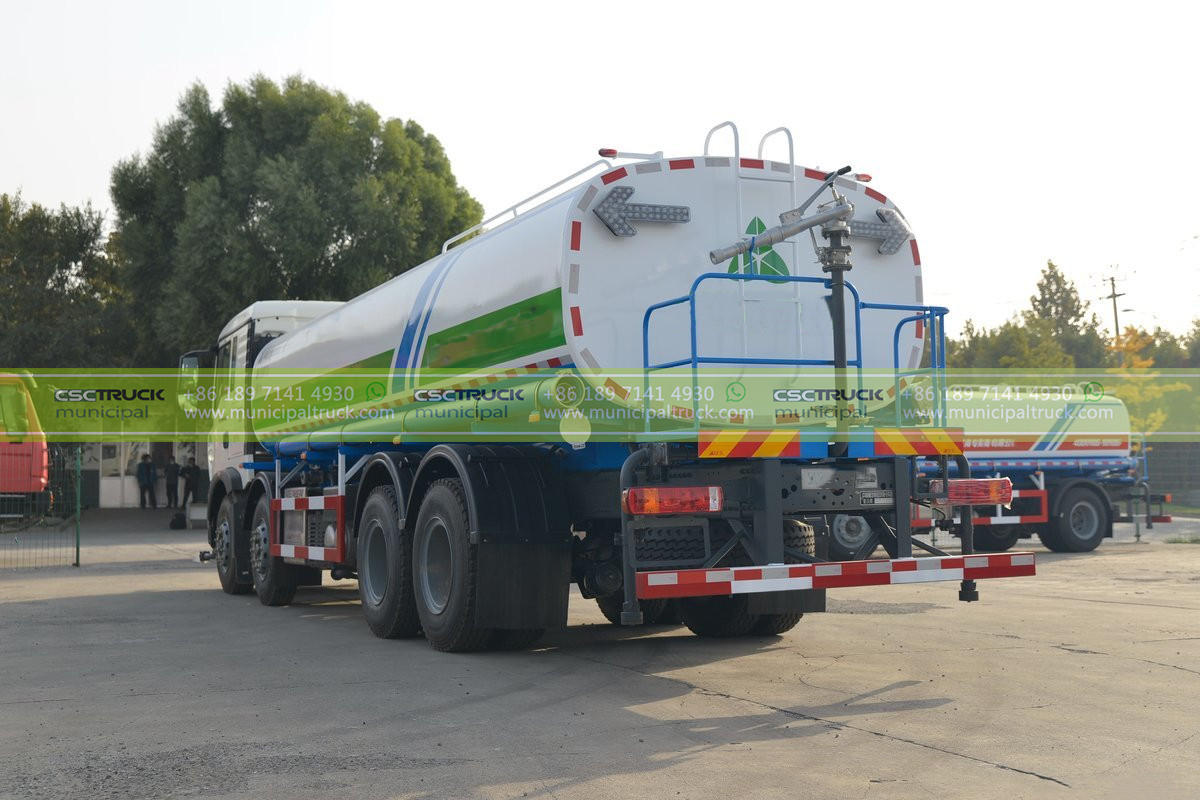

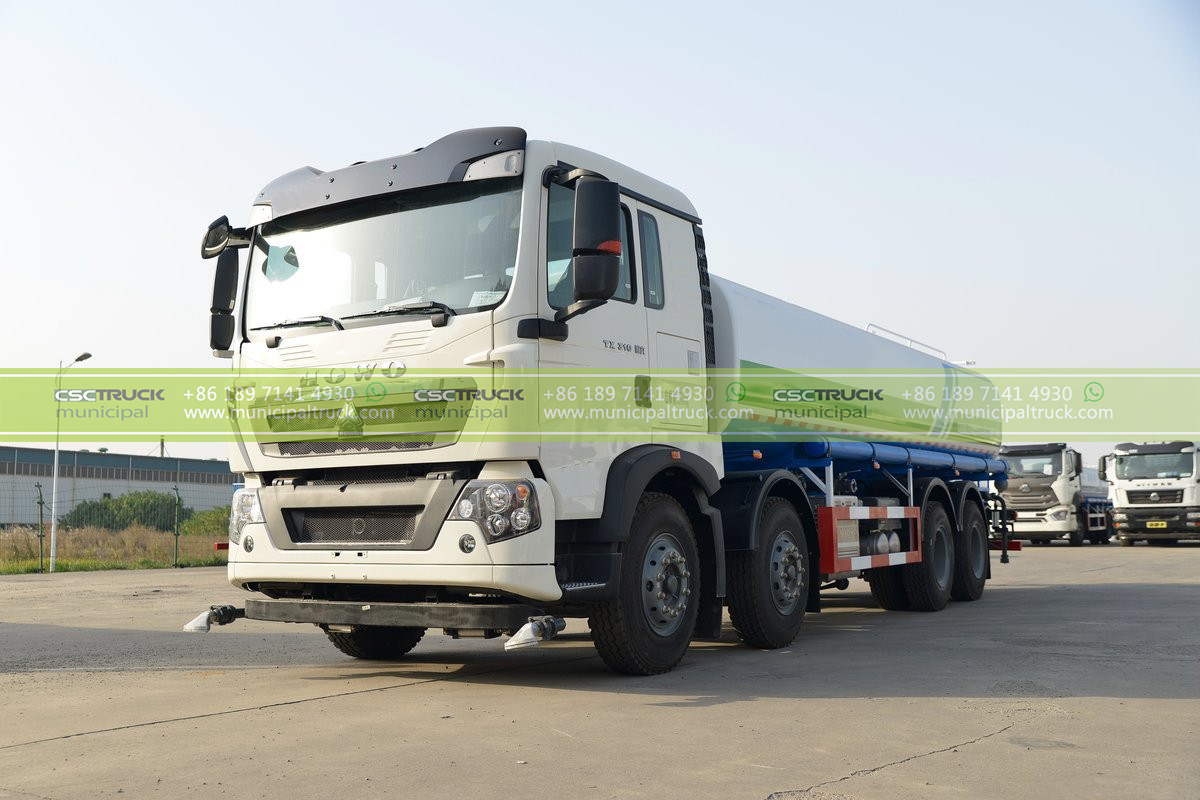

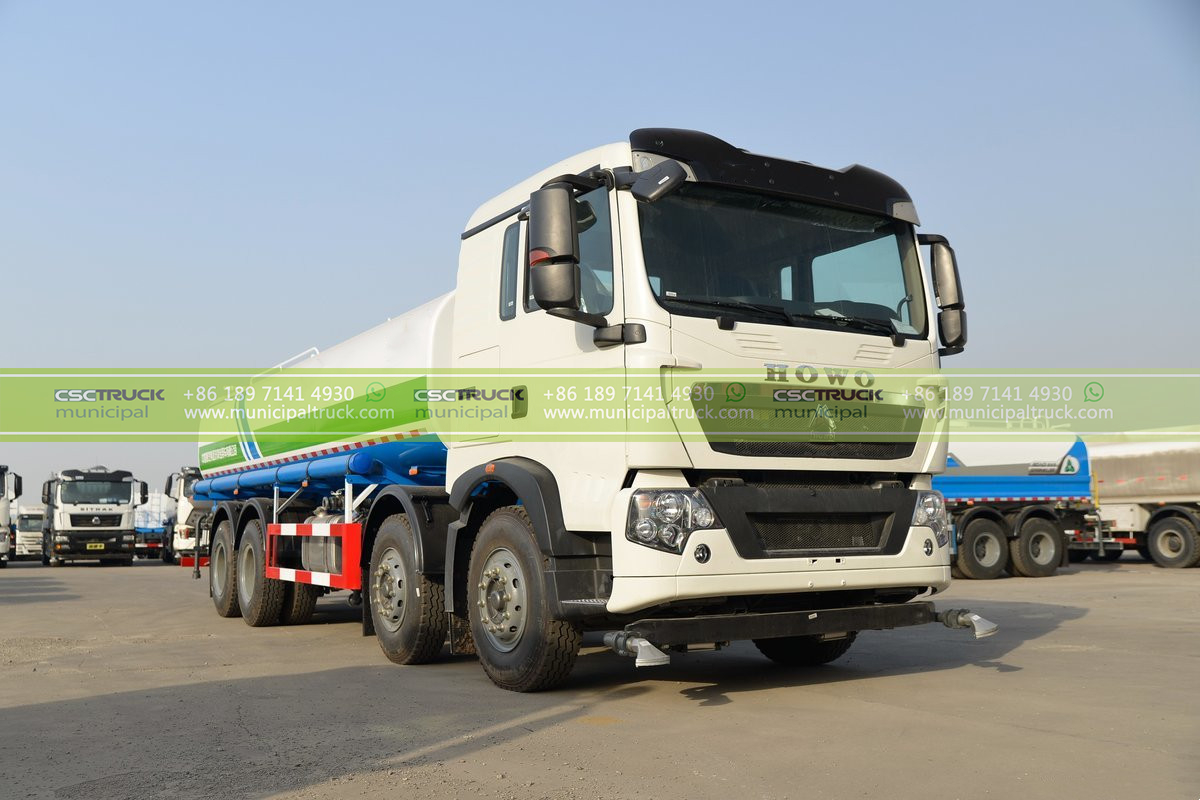

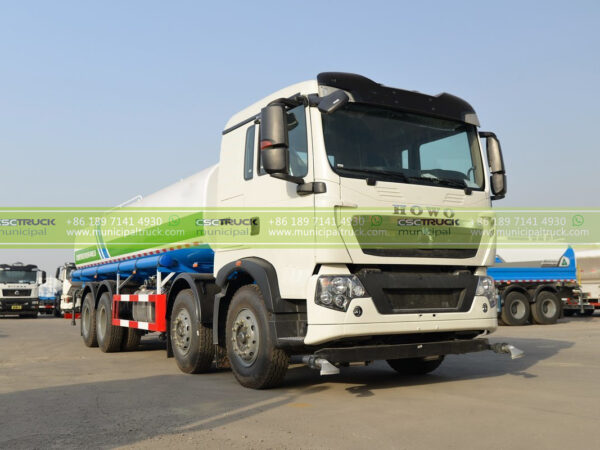

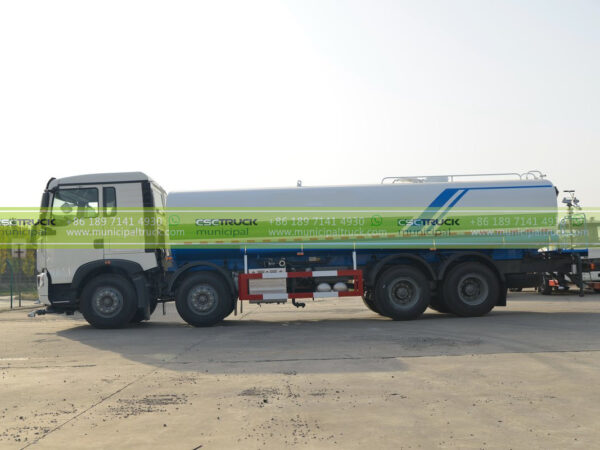

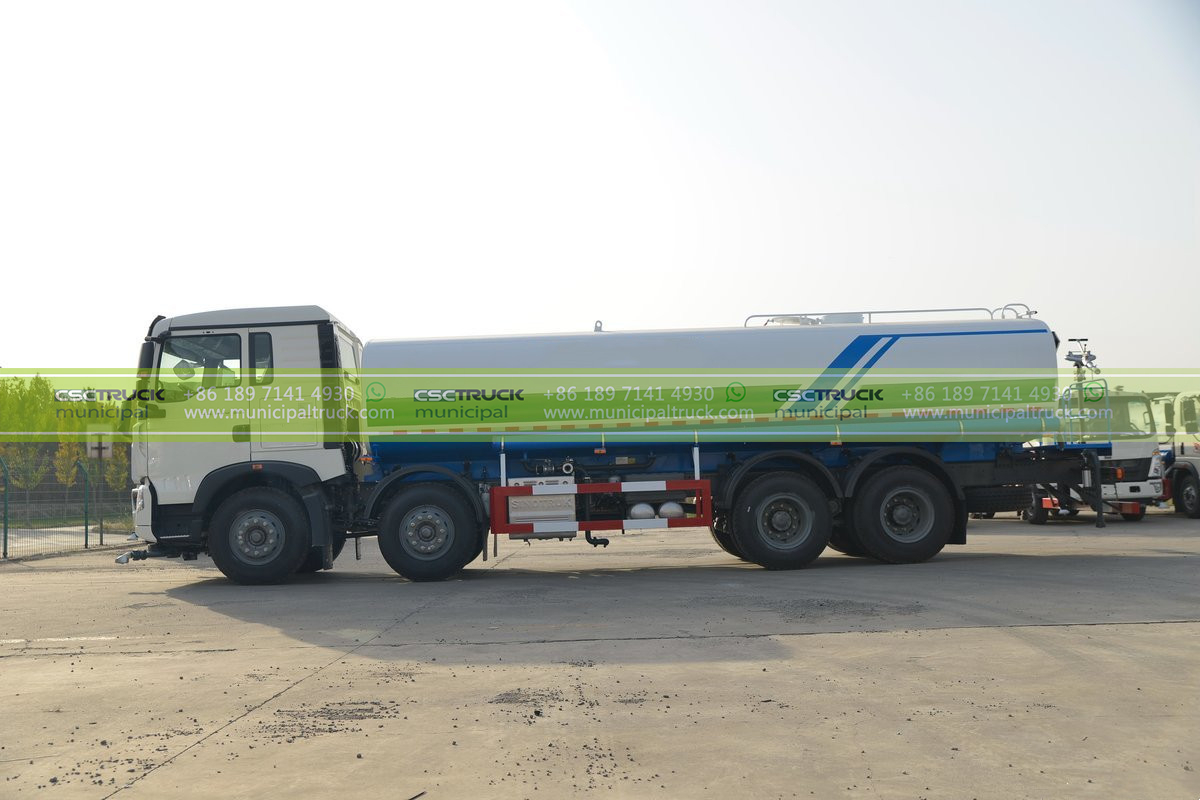

the HOWO 18 ton heavy water sprinkler truck from CSCTRUCK, a vehicle designed for superior performance and efficiency in water spraying applications. The truck is built on a sturdy HOWO chassis with a size of 10,240×2,515×3,035mm, making it ideal for use on rugged terrains.
Chassis:
The HOWO 18 ton heavy water sprinkler truck features a heavy-duty HOWO chassis that is designed to withstand the toughest conditions. The GVW/Curb Weight is 31,000kg/17,660kg, and the wheelbase is 1,800+4,600+1,350mm. The front and rear axles are 6.5/7/17.5Tx2, and the vehicle runs on 12.00R20 12+1 tires.
Engine and Transmission:
The truck is powered by a powerful and reliable diesel engine, the SINOTRUK/MC11.43-30, which has a power of 430hp/euro 3. The engine is paired with a SINOTRUK/HW25712XSTCL 12-speed manual transmission with 12 forward gears and 2 reverse gears, making it suitable for all kinds of terrains.

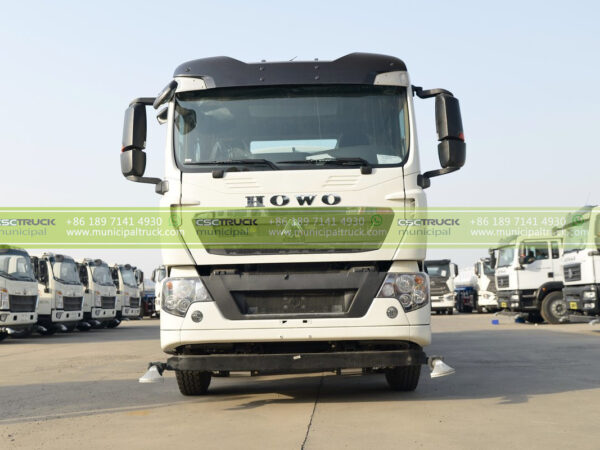

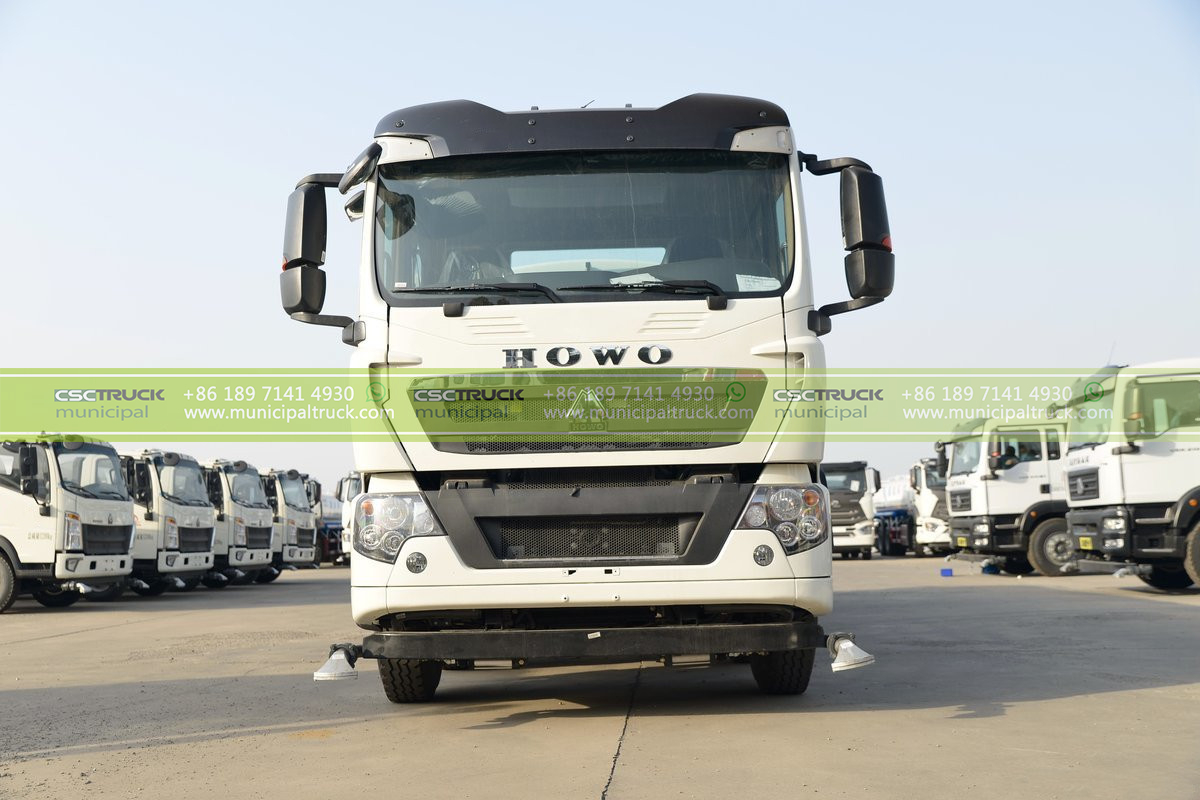

Cabin:
The HOWO 18 ton heavy water sprinkler truck has a spacious cabin with a night cab that is designed to provide maximum comfort and safety for the driver and passengers. The cabin is made of steel construction and has a single-row, flat design. The driving position is on the left or right-hand side, and it has a passenger capacity of three.
Body System:

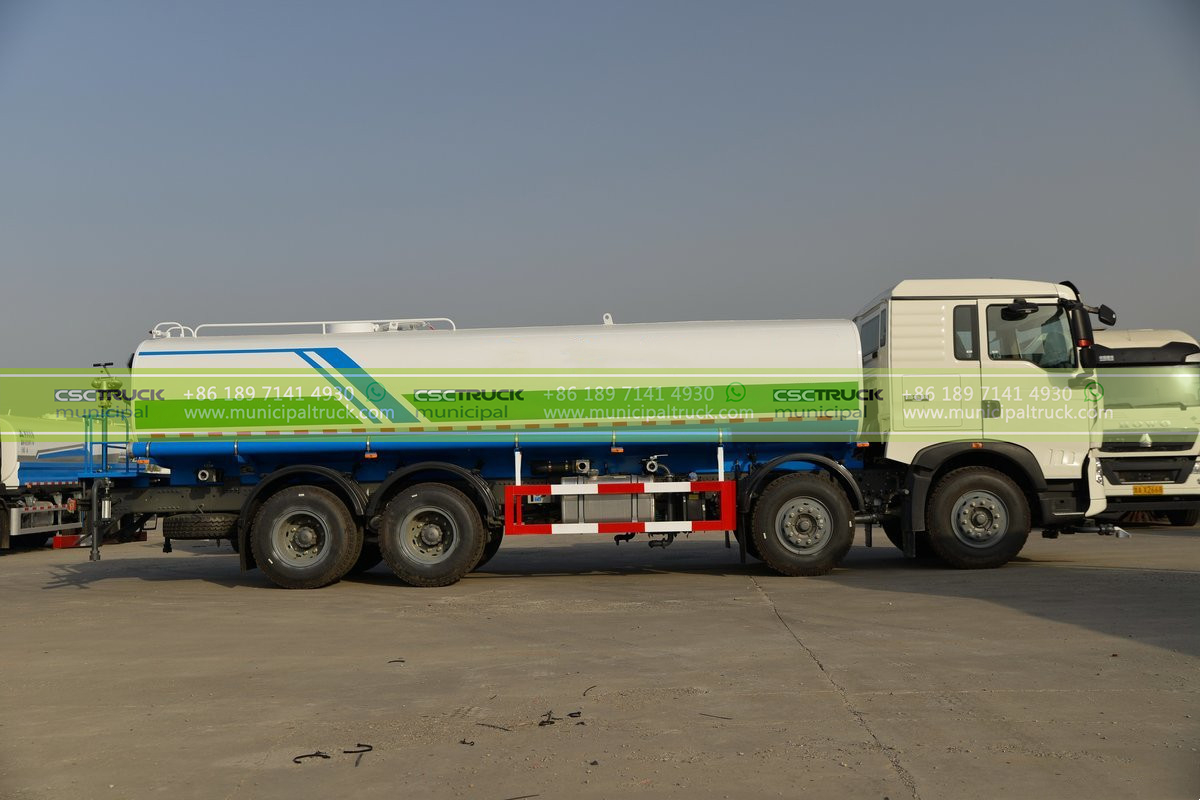

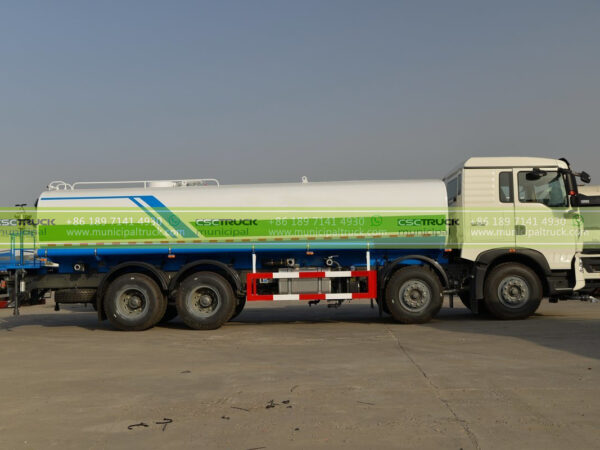

The water sprinkler vehicle comes with a stainless steel 304 water tank that has a capacity of 18,000 liters. The tank has a thickness of 6mm and is designed to withstand high-pressure water spraying. The truck’s spraying width is greater than 14m, and it has a canon range of over 35m. It has a suction height of more than 7m and a full tank suction time of less than 15 minutes.
Equipment:

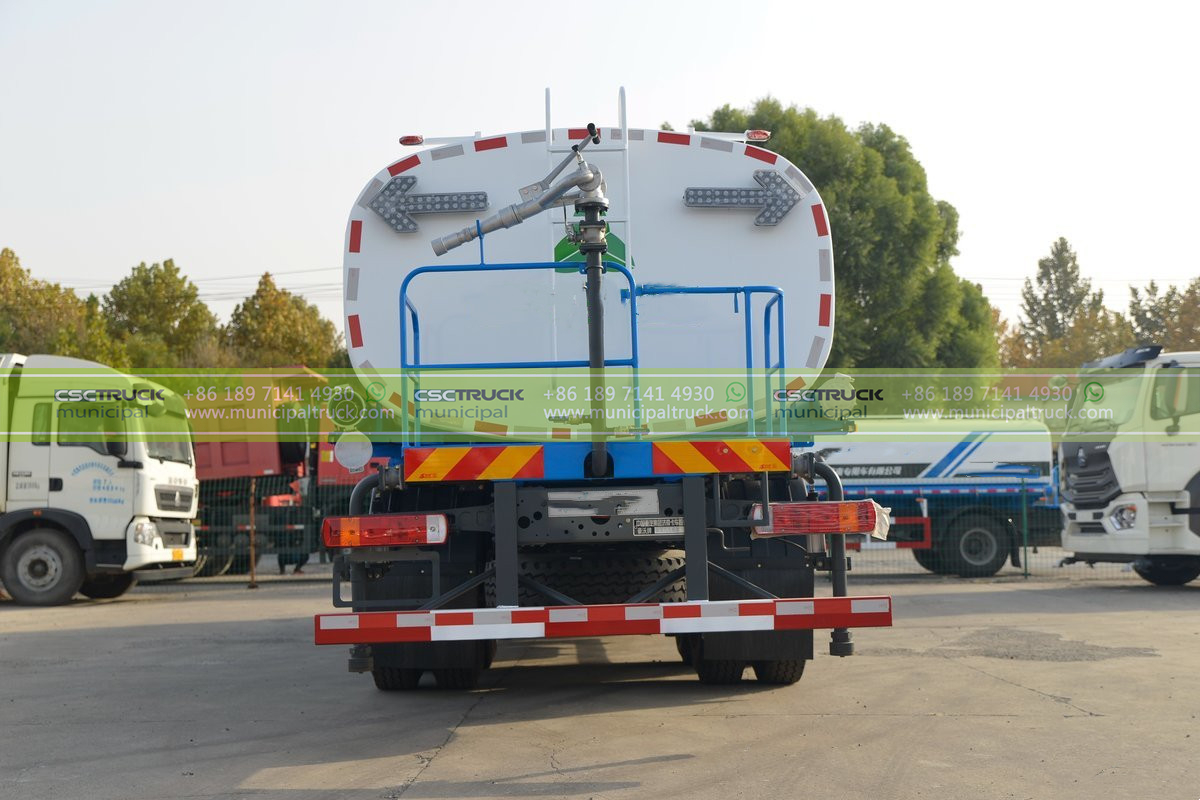

This sprinkler truck comes equipped with a front flushing, side spraying, and rear sprinkling nozzle. It also has a platform with a water cannon and gun, which can rotate 360 degrees. The water flow can be adjusted to heavy, medium, light rain, drizzle, and mist to meet various water spraying needs. The sprinkler pump is made of stainless steel and is self-priming. It has a flow rate of 60m³/h, a lift height of 90m, and a self-priming height of 7m. The truck also comes with a self-flow valve, a fire joint, and two water pipes.
The HOWO 18 ton heavy water sprinkler truck from CSCTRUCK is an efficient and reliable vehicle for water spraying applications. Its sturdy chassis, powerful engine, and durable body system make it ideal for use in tough environments. The truck’s range of equipment ensures that it can handle a wide range of water spraying needs, making it an excellent investment for those looking for a high-quality water sprinkler truck.
| Chassis | HOWO |
| Size | 10,240×2,515×3,035(mm) |
| GVW/Curb Weight | 31,000kg/17,660kg |
| Wheelbase | 1,800+4,600+1,350mm |
| Front/Rear Axle | 6.5/7/17.5Tx2 |
| Tire | 12.00R20 12+1 tires |
| Engine | |
| Type | Diesel |
| Make/Model | SINOTRUK/MC11.43-30/430hp/euro 3 |
| Transmission | |
| Make/Model | SINOTRUK/HW25712XSTCL |
| Gears | 12F+2R |
| Operation | Manual |
| Cabin | |
| Driving | SINOTRUK HOWO 8×4 Night Cab, Left/Right-hand Drive |
| Type | Steel construction, Single Row, Flat |
| Passenger No. | 3 |
| Body System | |
| Tanker Capacity | 18,000L |
| Shape | |
| Material | Stainless steel 304 |
| Thickness | Tank Body 6mm |
| Performance | |
| Spraying Width(m) | ≥14m |
| Canon Range(m) | ≥35m |
| Suction Height | >7m |
| Full Tank Suction Time | <15 minutes |
| Equipment | |
| Sprinkler Pump | Front flushing, side spraying, rear sprinkling nozzle, and platform with water cannon and gun.
The water cannon can be rotated 360 degrees. The water flow can be adjusted to heavy, medium, light rain, drizzle, and mist. |
| Type | Stainless steel self-priming sprinkler pump |
| Flow Rate | 60m³/h |
| Lift Height | 90m |
| Self-priming Height | 7m |
| Other Parts | |
| Include | Self-flow valve 1pc; Fire joint 1pc; Water pipe 2pcs |
