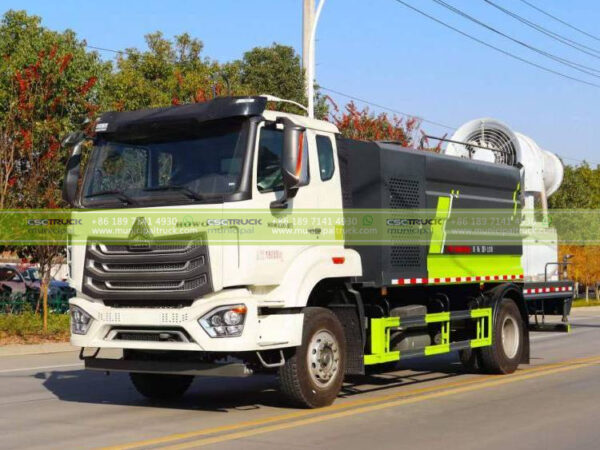

Introducing the SINOTRUK fog cannon spray truck by CSCTRUCK, an exceptional and versatile machine designed for spraying water and other liquids over a wide range of applications. This truck is equipped with a powerful engine and a state-of-the-art watering system that is perfect for controlling dust, extinguishing fires, and disinfecting streets, public places, and agricultural fields. Here’s everything you need to know about this truck:
Chassis:
The SINOTRUK fog cannon spray truck is built on a sturdy chassis measuring 9,000×2,550×3,350mm. With a GVW of 16,000kg and a curb weight of 10,600kg, this truck has a wheelbase of 4,500mm and a front/rear axle capacity of 6.5/11.5T respectively. The truck comes with 10.00R20 6+1 tires, which provide excellent grip and stability on any terrain.
Engine:
This water spray truck is powered by a diesel engine that is manufactured by SINOTRUK. The engine model is WD615.62, with a power output of 266hp, and meets Euro 2 emission standards. It’s a reliable and powerful engine that ensures the truck runs smoothly and efficiently.
Transmission:
The truck’s transmission system is also manufactured by SINOTRUK and comes with an HW19710 model that has 10 forward gears and 2 reverse gears. The transmission system is operated manually and provides excellent shifting quality, making it easier to drive the truck.

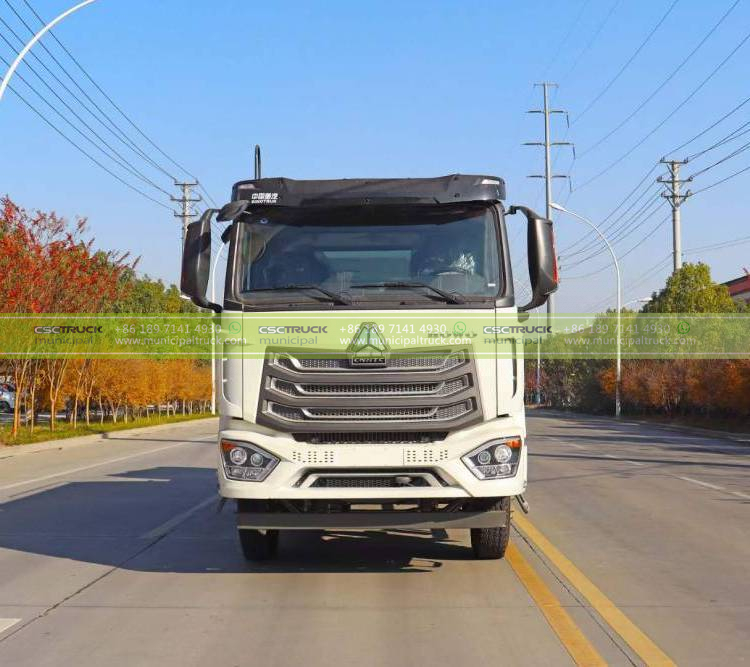

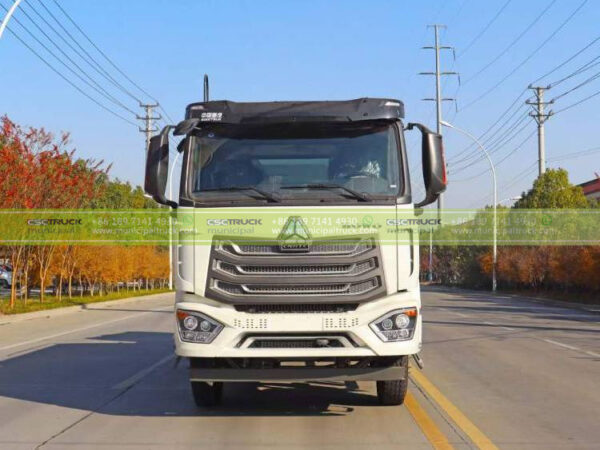

Cabin:
The truck features a spacious and comfortable cabin that is designed with steel construction and a flat single-row layout. It is equipped with a left-hand drive system and can accommodate up to three passengers.

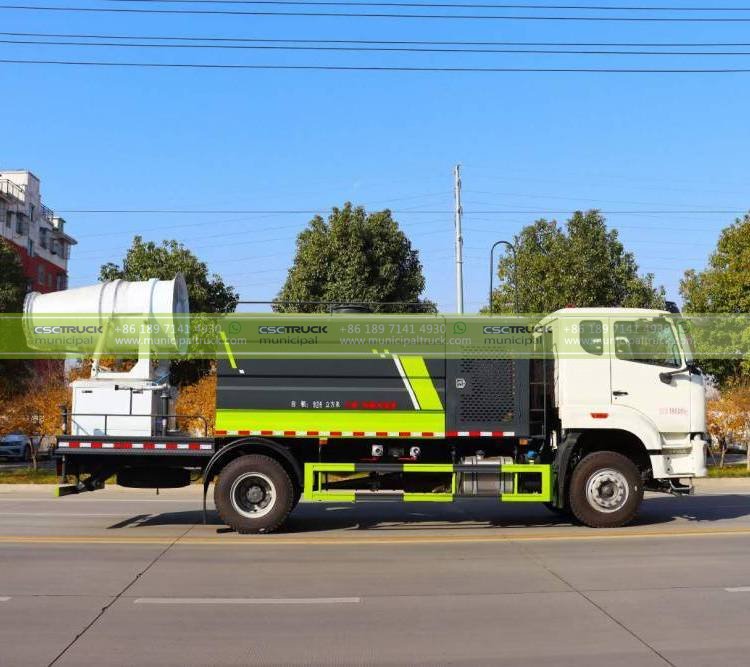

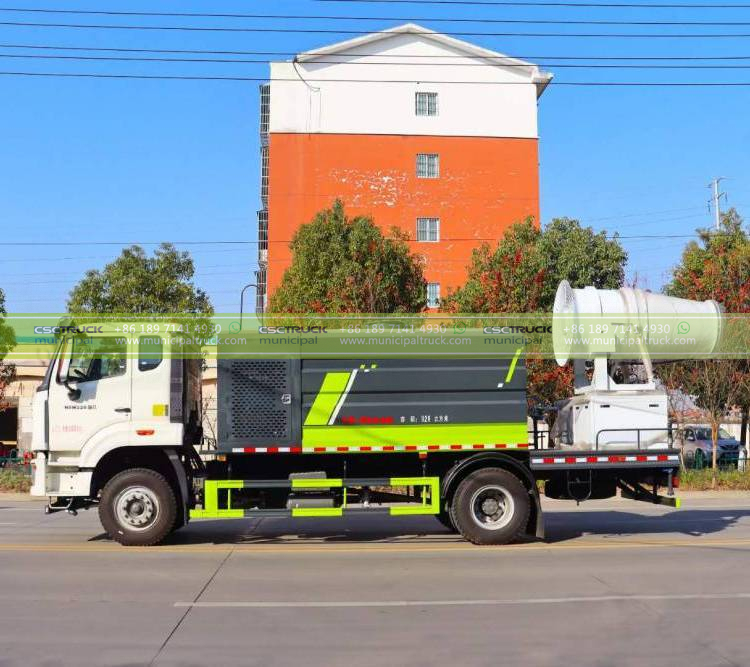

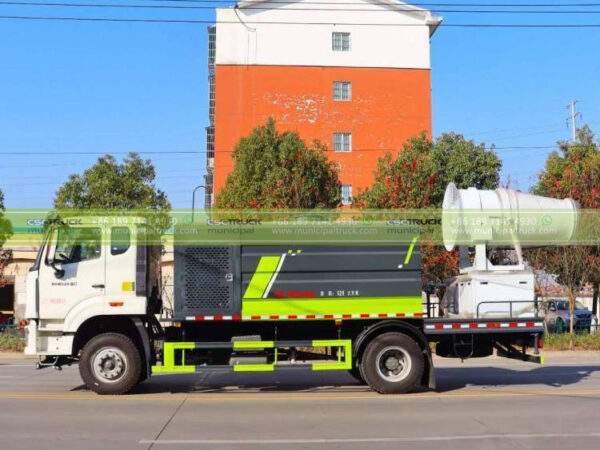

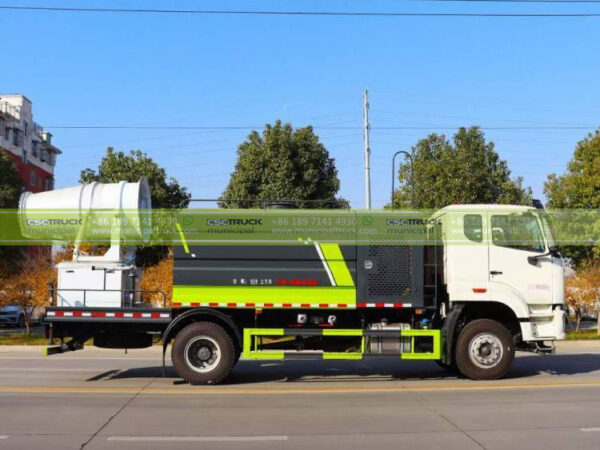

Watering System:
The truck comes with a 12,000L carbon steel water tank with a thickness of 6mm. It is designed to spray water or other liquids over a range of 0-80m. The truck is equipped with 80 spraying nozzles that allow you to control the water spray and direction manually, electrically, or through a wireless remote control. It has a front spraying pipe range of 14-18m and a rear spraying range of 5-9m. The fan machine power is 37 kW, and it has a fan air wind capacity of 127,500 m3/h, air pressure of 3,106 Pa, and a flow rate of 160-200L/m.
The SINOTRUK fog cannon spray truck is an exceptional machine that is designed for a range of applications, making it an ideal investment for municipalities, construction companies, and other industries. Its reliable engine, sturdy chassis, and advanced watering system make it the perfect choice for controlling dust, extinguishing fires, and disinfecting public spaces. The truck is also designed to meet the highest quality standards, ensuring maximum durability, and longevity.
| Chassis | |
| Size | 9,000×2,550×3,350mm |
| GVW/Curb Weight | 16,000kg/10,600kg |
| Wheelbase | 4,500mm |
| Front/Rear Axle | 6.5/11.5T |
| Tire | 10.00R20 6+1 tires |
| Engine | |
| Type | Diesel |
| Make/Model | SINOTRUK/WD615.62/266hp/Euro 2 |
| Transmission | |
| Make/Model | SINOTRUK/HW19710 |
| Gears | 10F+2R |
| Operation | Manual |
| Cabin | |
| Driving | SINOTRUK HOWO 4×2 Day Cab, Left-hand Drive |
| Type | Steel construction, Single Row, Flat |
| Passenger No. | 3 |
| Watering System | |
| Tanker Capacity | 12,000L |
| Material | Carbon steel, 6mm thickness |
| Performance | |
| Front Spraying Pipe | 14~18m |
| Rear Spraying | 5~9m |
| Spray Range | 0~80m |
| Fan Machine Power | 37 kW |
| Fan Air Wind Capacity | 127,500 m3/h |
| Air Pressure | 3,106 Pa |
| Plunger Pump Type | Single centrifugal pump Multistage centrifugal pump |
| Flow Rate | 160~200L/m |
| Spraying Nozzle No. | 80pcs |
| Control Method | Manual/Electric/Wireless remote control |
