Summary:

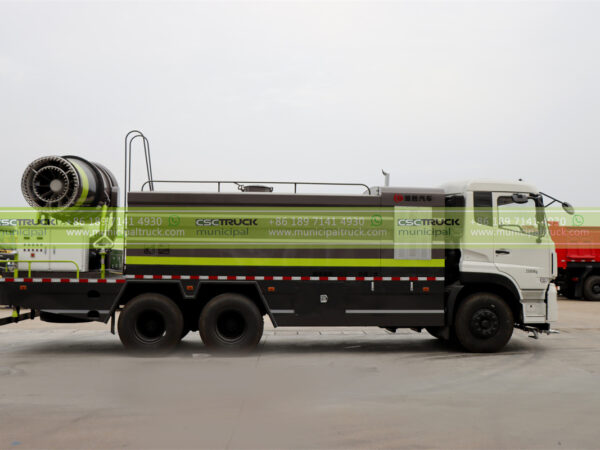

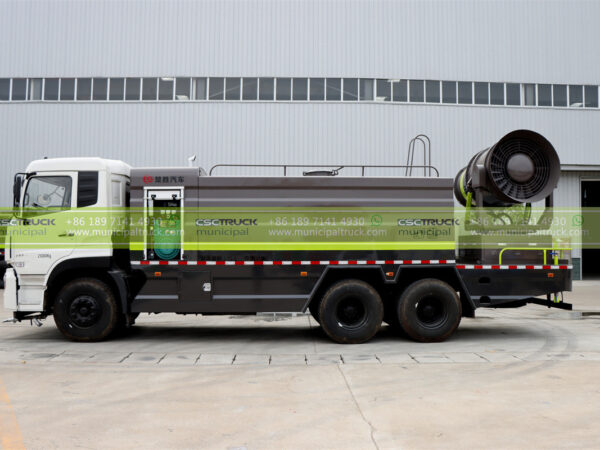

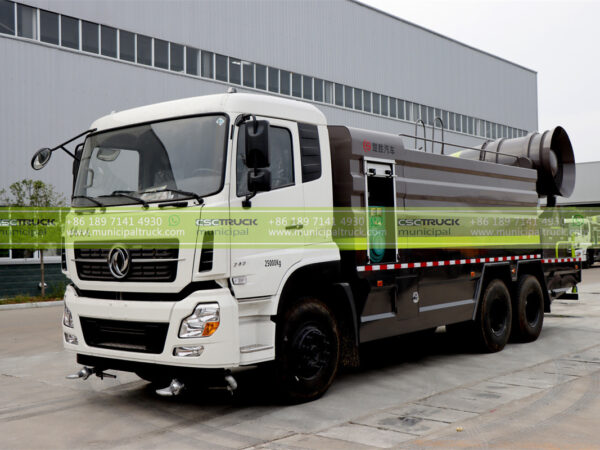

The DONGFENG 20CBM Dust Controller Lorry is a reliable and powerful solution to keep the air clean from dust and pollution. With a GVW/Curb Weight of 25,000kg/14,450kg and a tank capacity of 20,000L, this truck is perfect for heavy-duty use in construction sites, mining operations, and other industrial settings. The truck is powered by a YUCHAI/YC6L310-50/310hp/Euro 5 diesel engine, delivering the necessary power to operate the spraying system and transport the water.
Features:
This dust controller lorry comes with an impressive set of features that make it a versatile and efficient solution for dust control:
-
Powerful engine: The YUCHAI/YC6L310-50/310hp/Euro 5 diesel engine provides the necessary power to operate the spraying system and transport the water to the desired location.
- Large tank capacity: With a 20,000L tank capacity, this truck can cover a large area without the need for frequent refills.

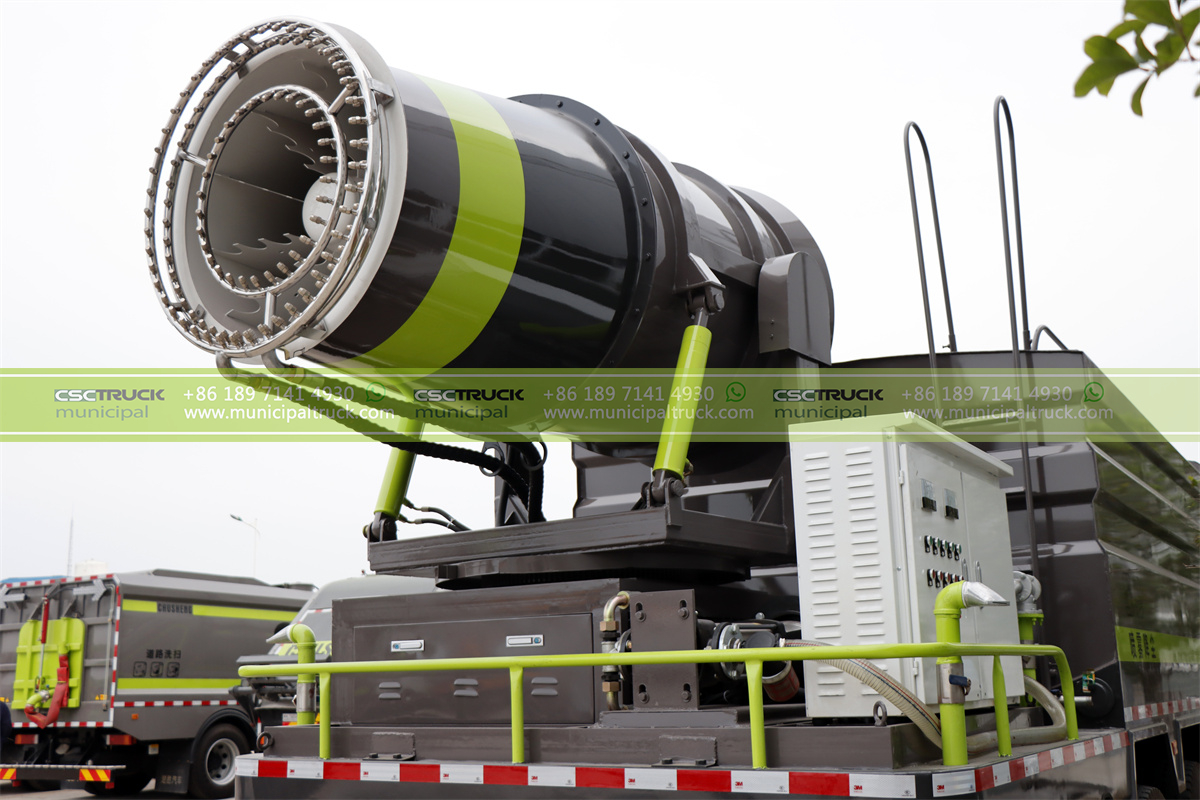

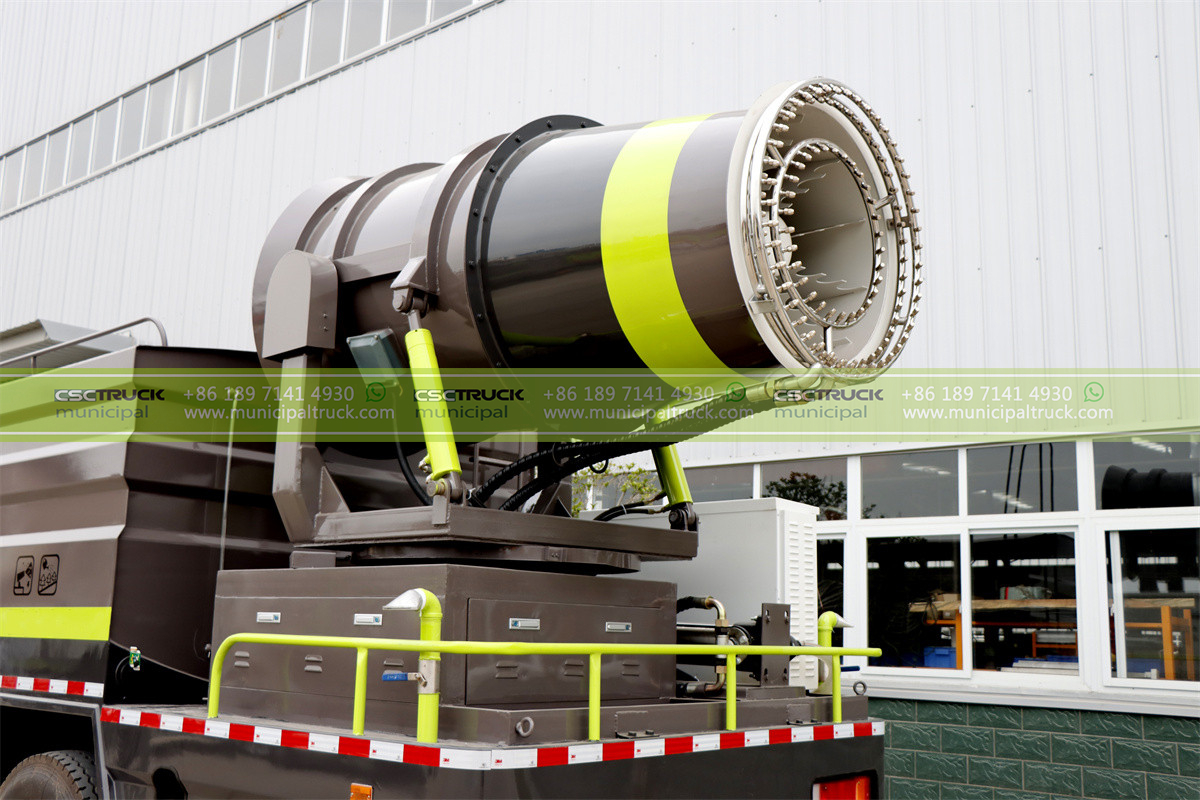

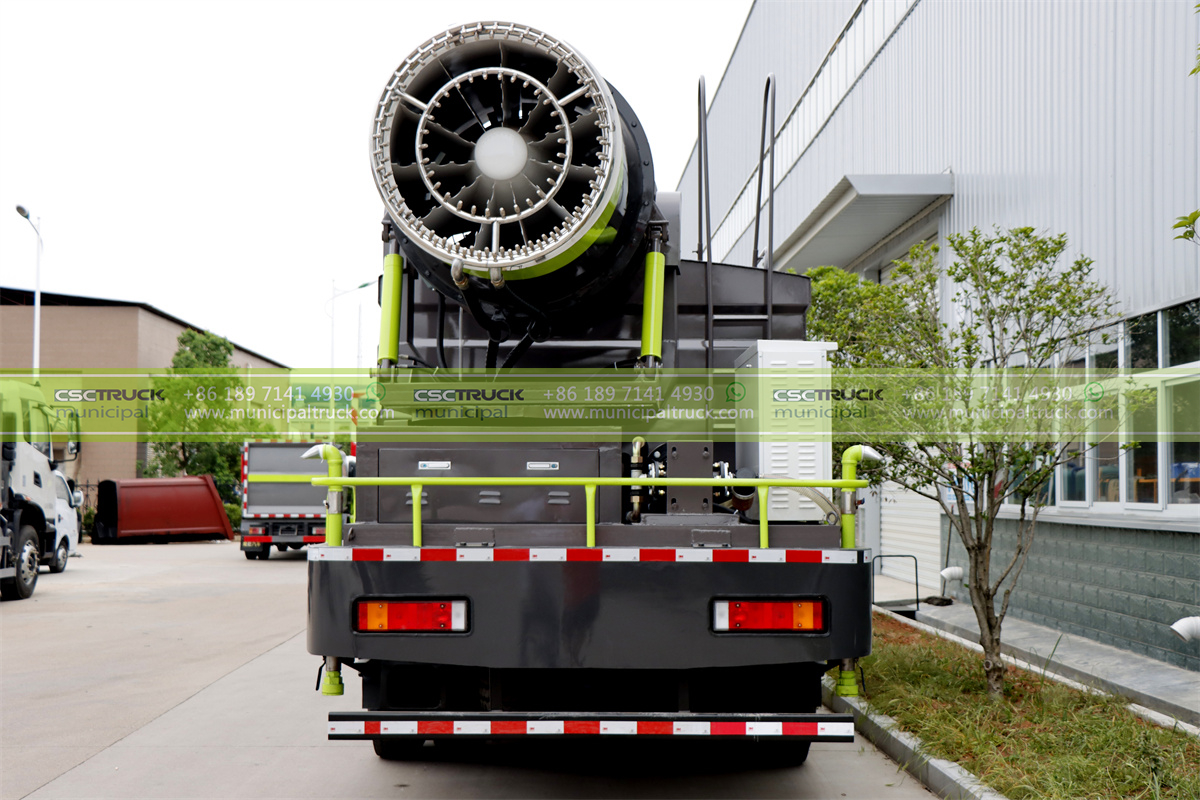

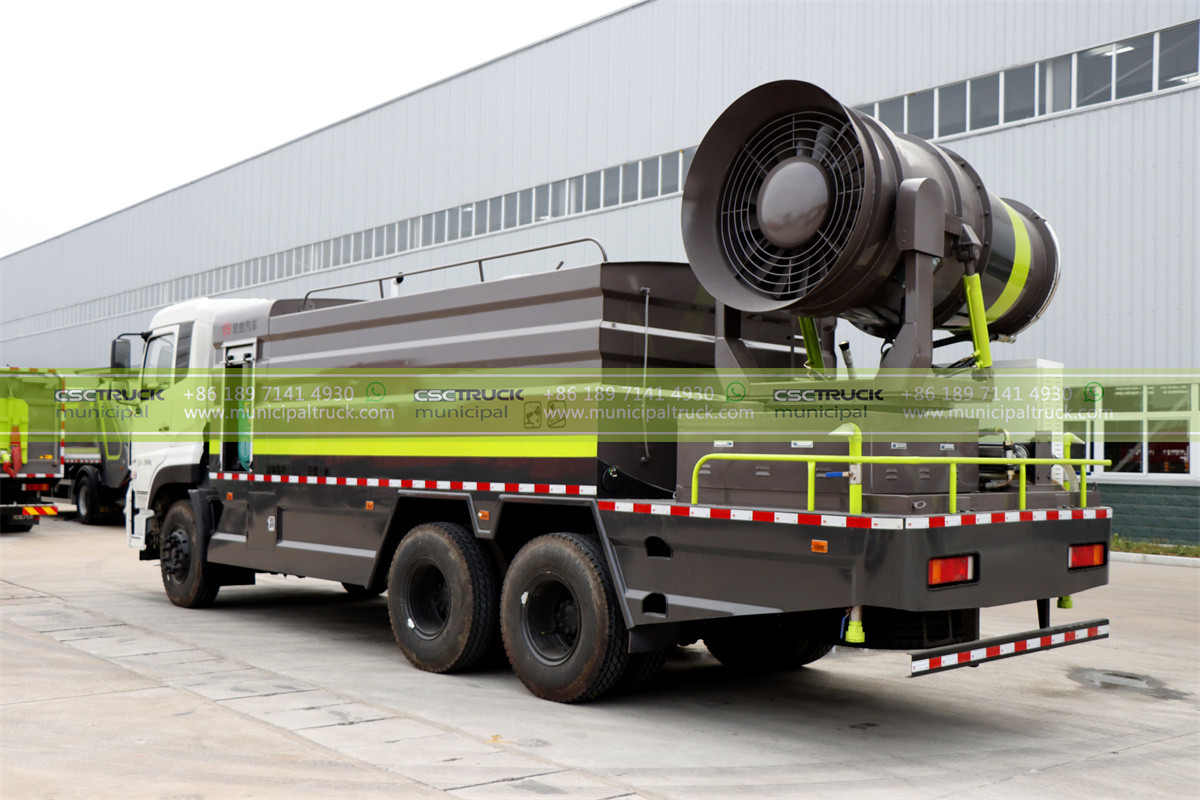

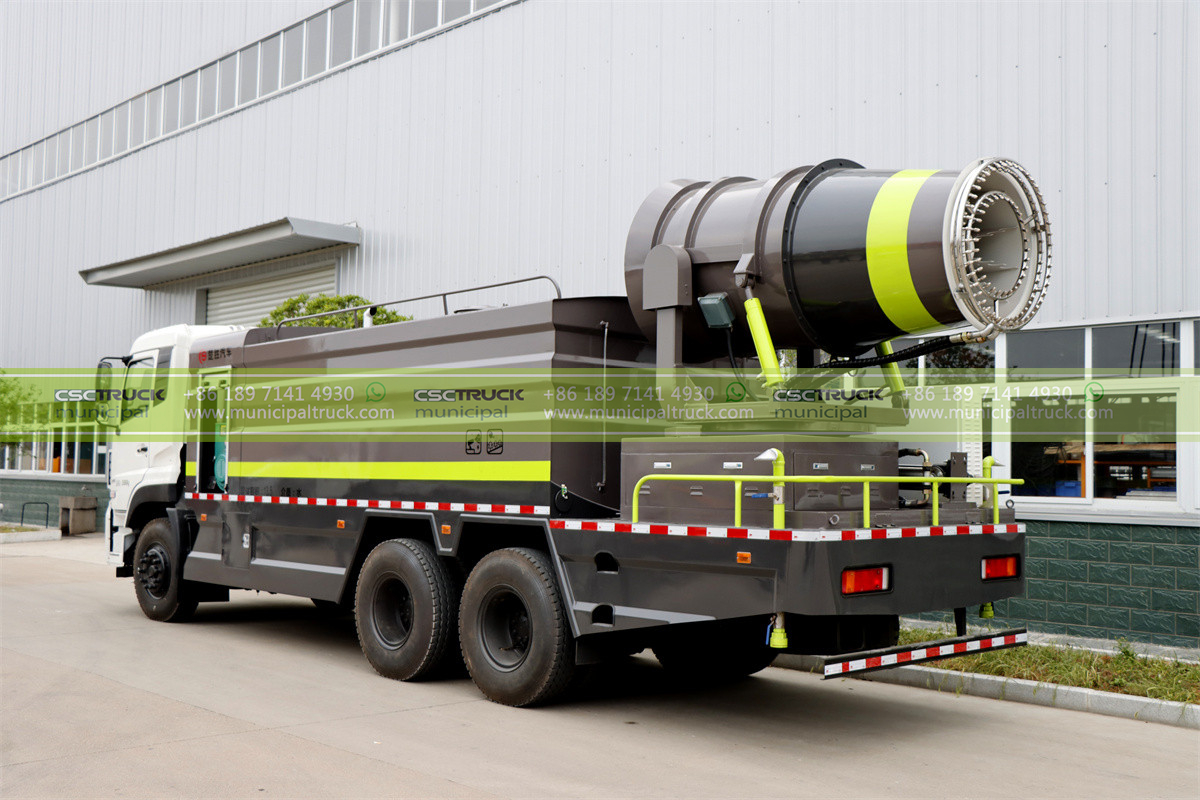

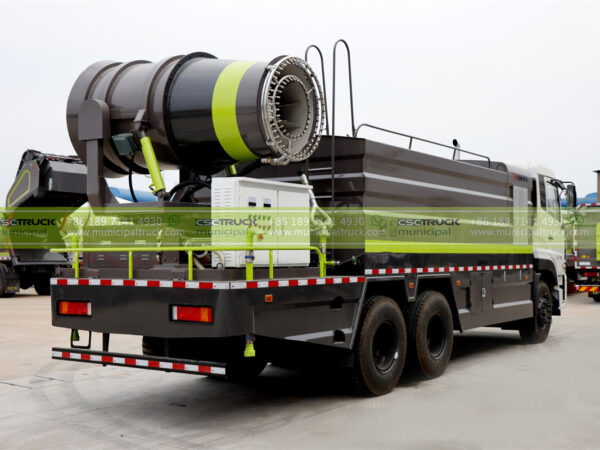

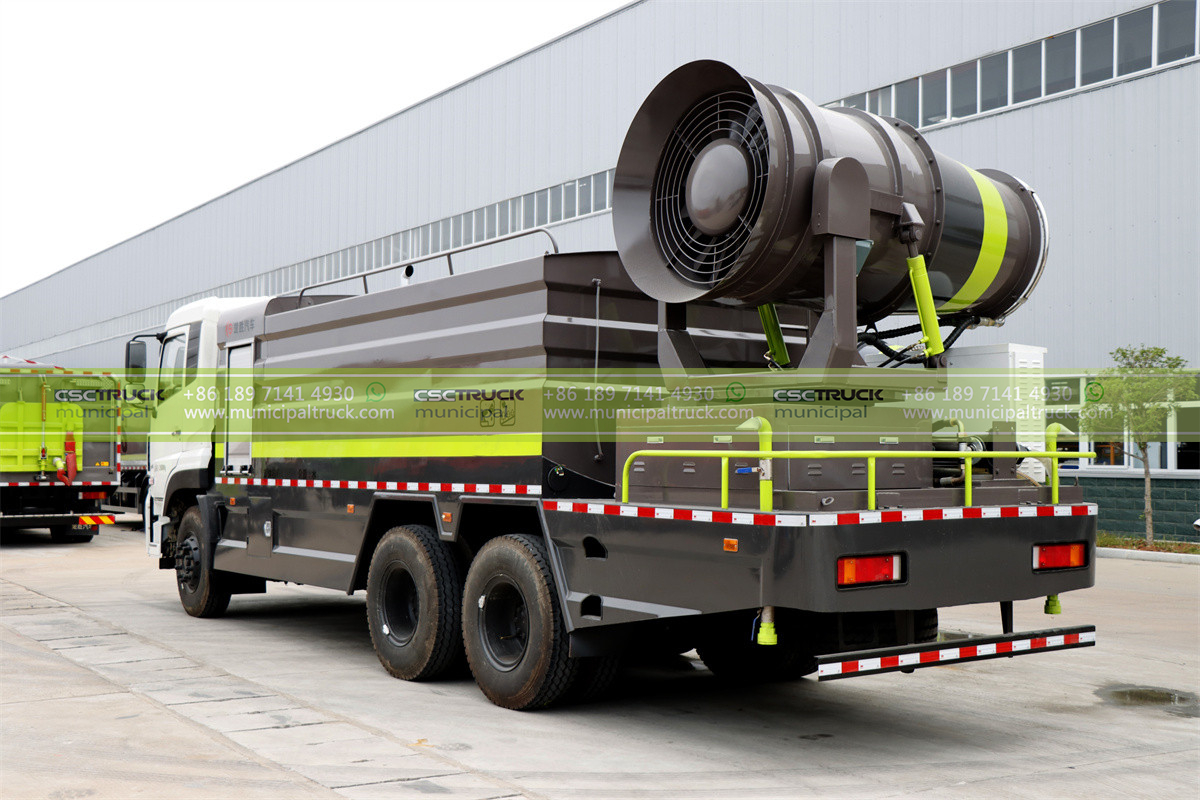

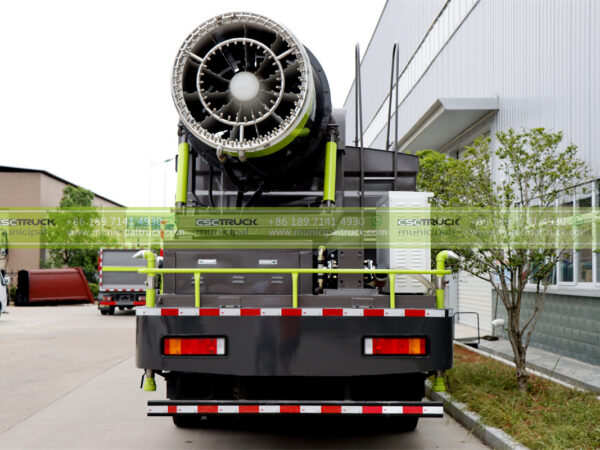

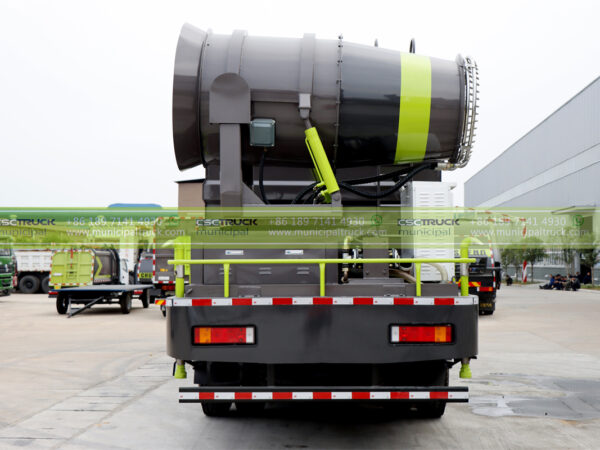

- Advanced spraying system: This municipal truck is equipped with a front spraying pipe that can reach up to 14-18m and a rear spraying system that can cover a distance of 5-9m. The spraying nozzle features 80pcs, allowing for precise control of the water flow.

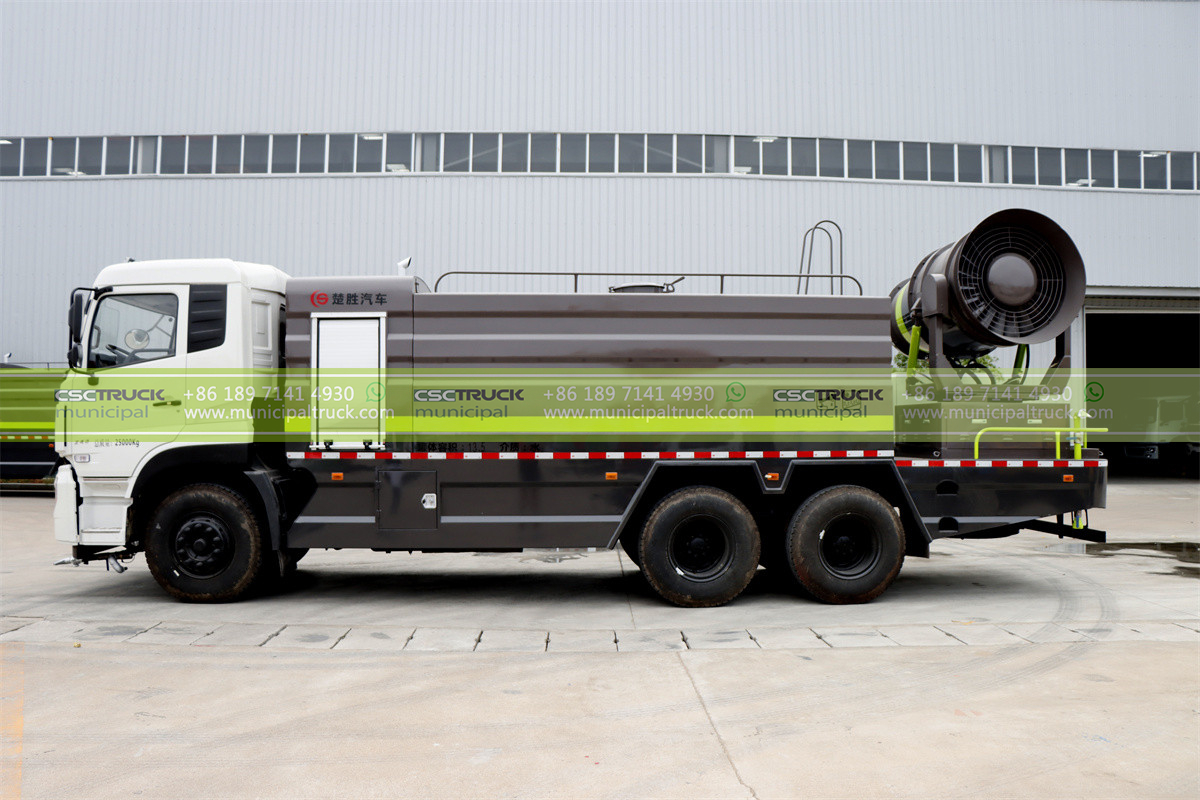

- High-quality construction: The tank is made of carbon steel with a thickness of 6mm, ensuring durability and resistance to corrosion.

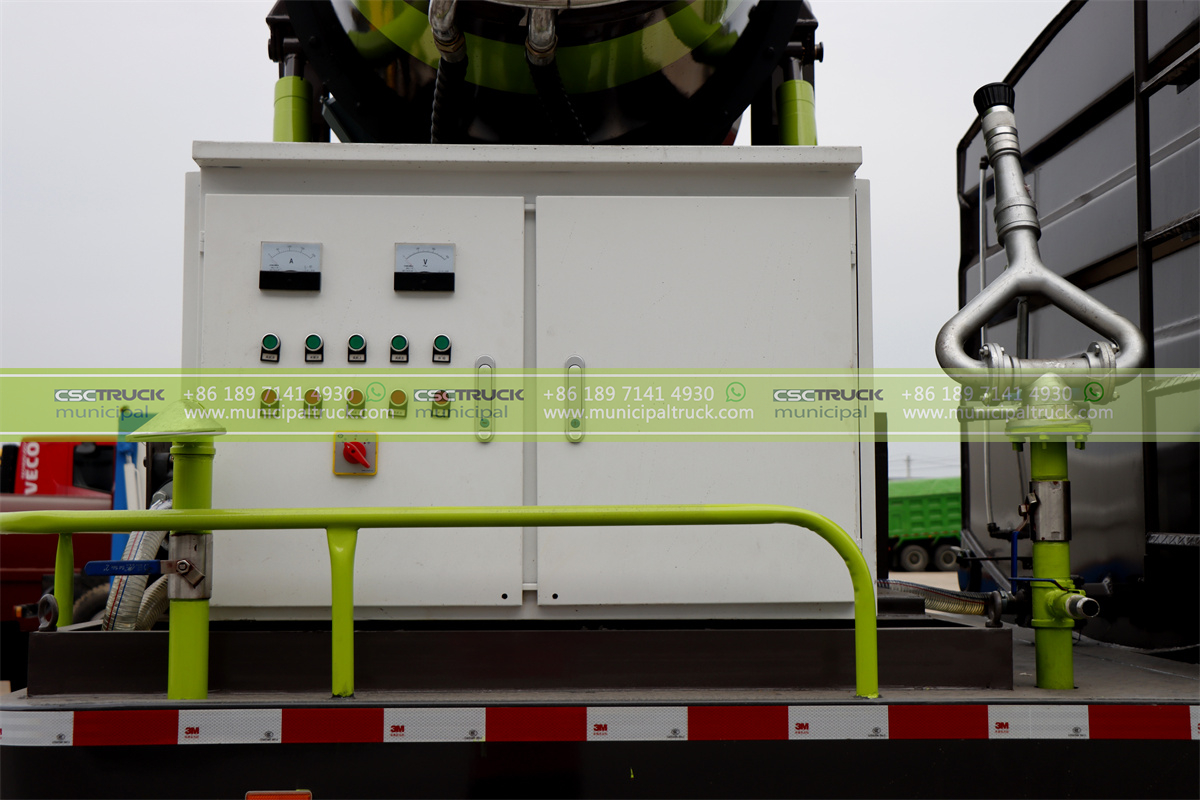

- Easy to control: The truck can be operated manually, electrically, or using a wireless remote control, providing flexibility and ease of use.

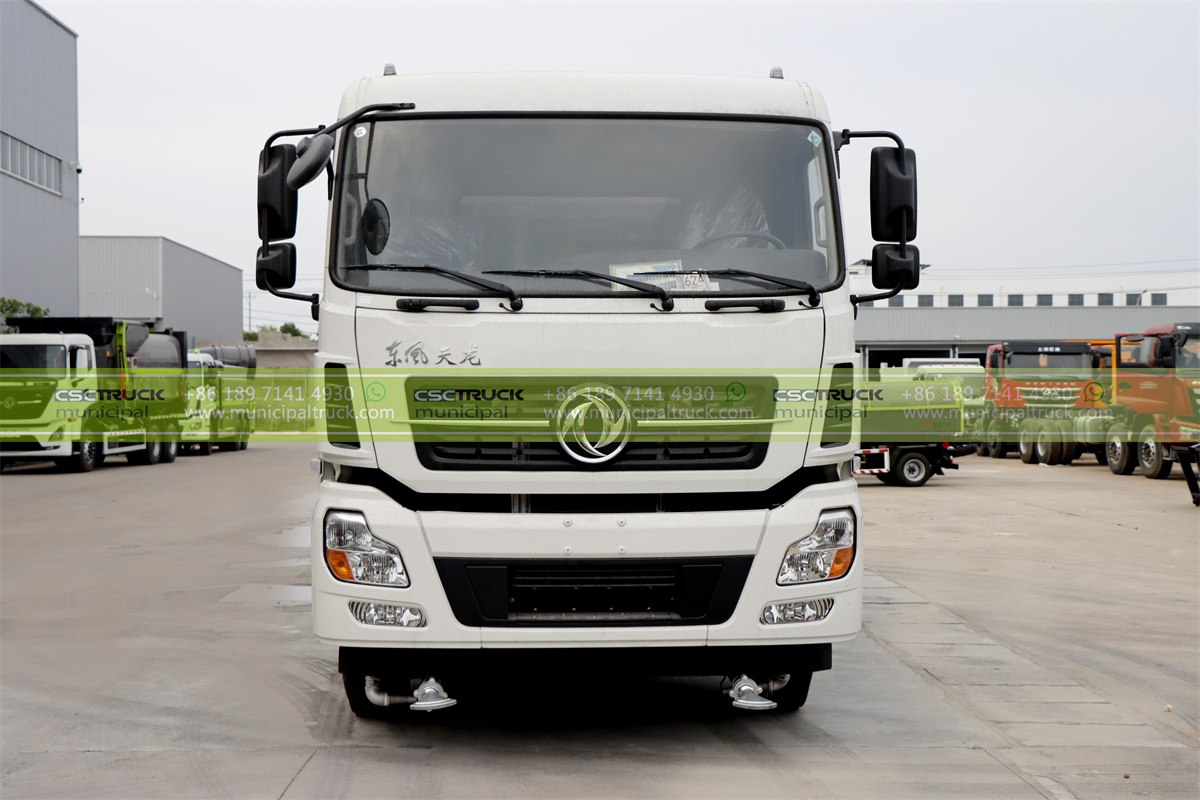

- Comfortable cabin: The driving cabin is designed for maximum comfort, with a flat, single-row construction that can accommodate up to three passengers.
- Reliable transmission: The FAST/10JS90A 10F+2R transmission provides smooth and reliable gear shifting, enhancing the overall driving experience.
The DONGFENG 20CBM Dust Controller Lorry is a top-of-the-line solution for dust control in industrial settings. Its powerful engine, advanced spraying system, and large tank capacity make it a reliable and efficient tool for keeping the air clean and the environment safe.
Specifications:
| Chassis | |
| Size | 10,650×2,550×3,450mm |
| GVW/Curb Weight | 25,000kg/14,450kg |
| Wheelbase | 4350+1350mm |
| Front/Rear Axle | 7/18Tx2 |
| Tire | 11.00R20 6+1 tires |
| Engine | |
| Type | Diesel |
| Make/Model | YUCHAI/YC6L310-50/310hp/Euro 5 |
| Transmission | |
| Make/Model | FAST/10JS90A |
| Gears | 10F+2R |
| Operation | Manual |
| Cabin | |

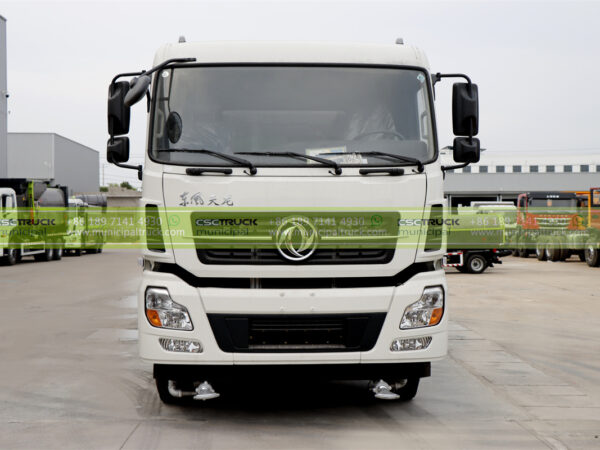

| Driving | Dongfeng KL 4×2 Day Cab, Left-hand Drive |
| Type | Steel construction, Single Row, Flat |
| Passenger No. | 3 |
| Watering System | |
| Tanker Capacity | 20,000L |
| Material | Carbon steel, 6mm thickness |
| Performance | |
| Front Spraying Pipe | 14~18m |
| Rear Spraying | 5~9m |
| Spray Range | 0~80m |
| Fan Machine Power | 37 kW |
| Fan Air Wind Capacity | 127,500 m3/h |
| Air Pressure | 3,106 Pa |
| Plunger Pump Type | Single centrifugal pump Multistage centrifugal pump |
| Flow Rate | 160~200L/m |
| Spraying Nozzle No. | 80pcs |
| Control Method | Manual/Electric/Wireless remote control |
