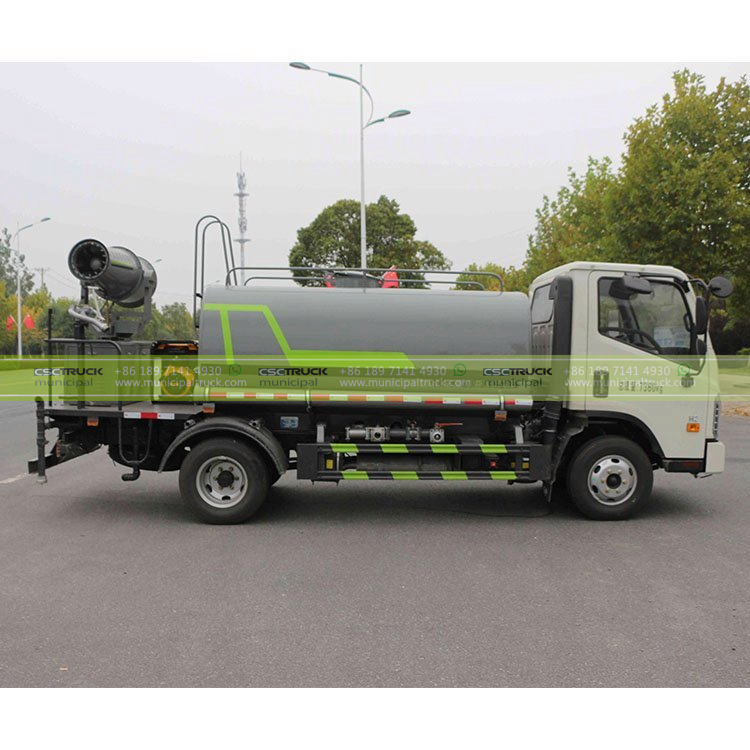

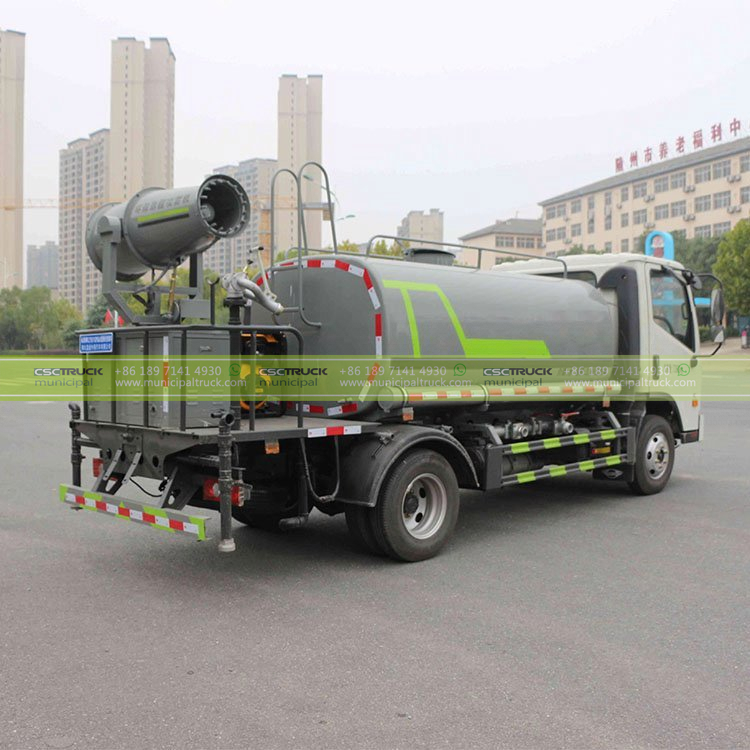

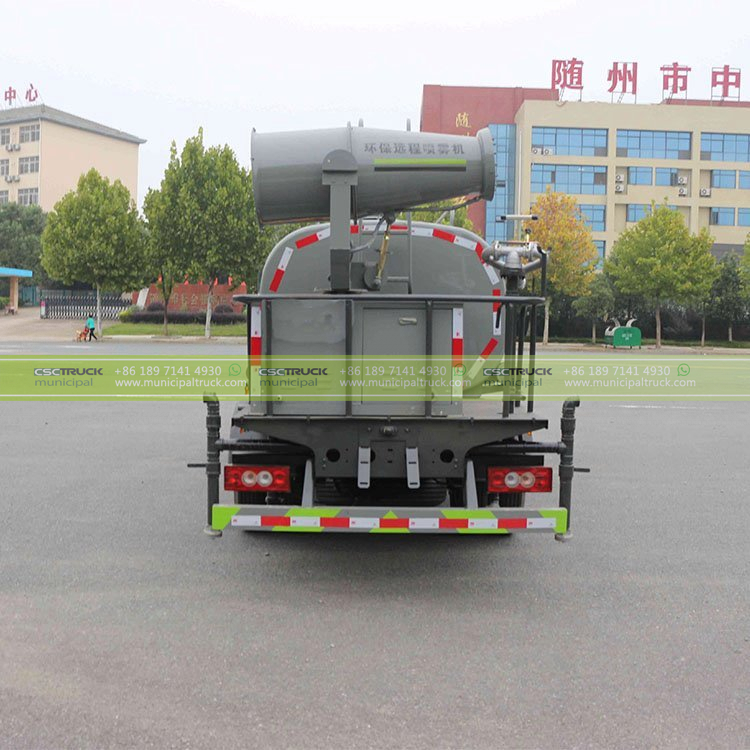

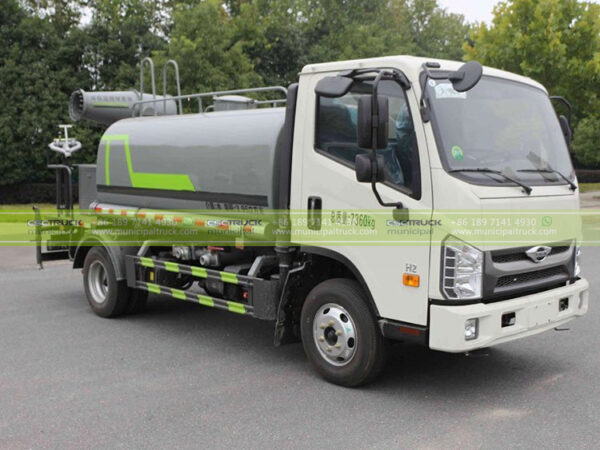

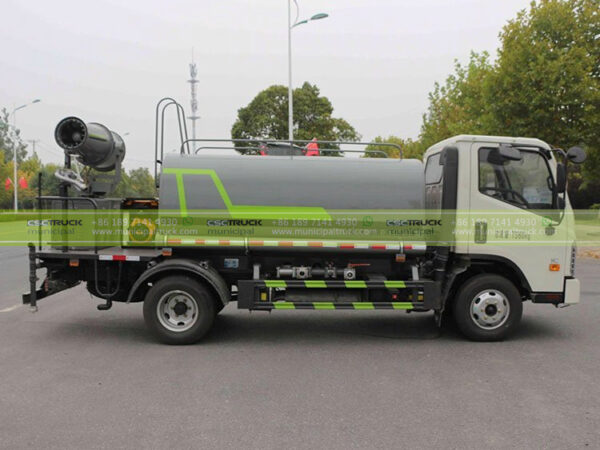

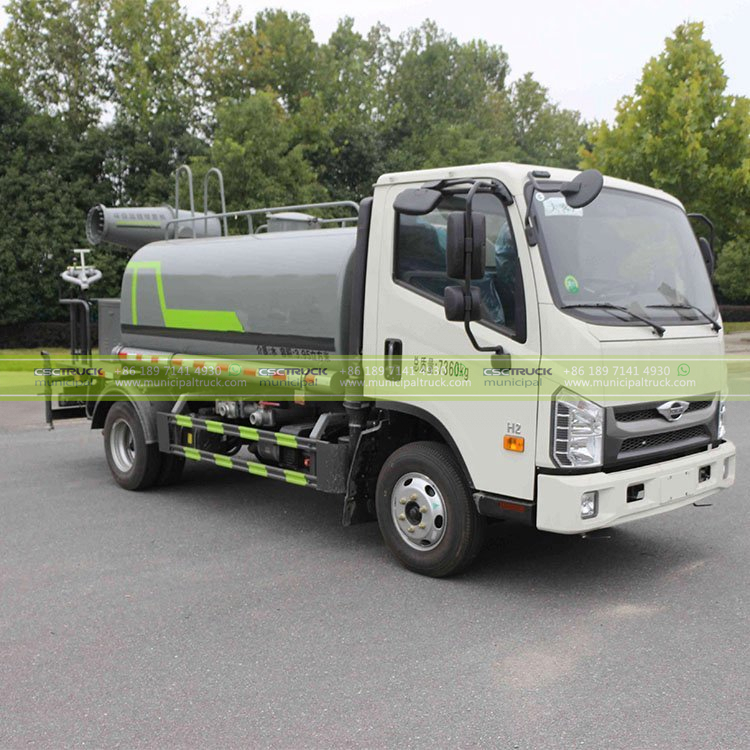

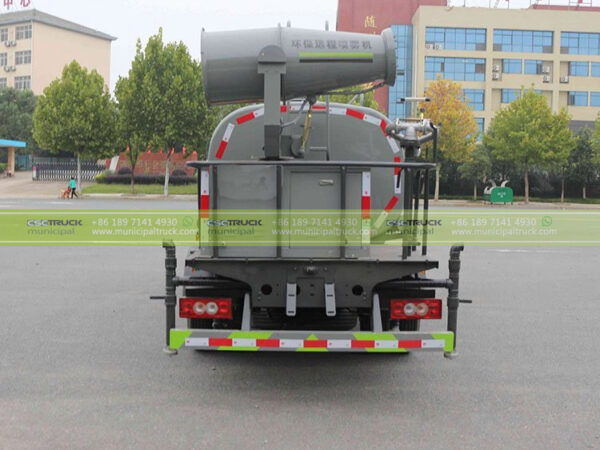

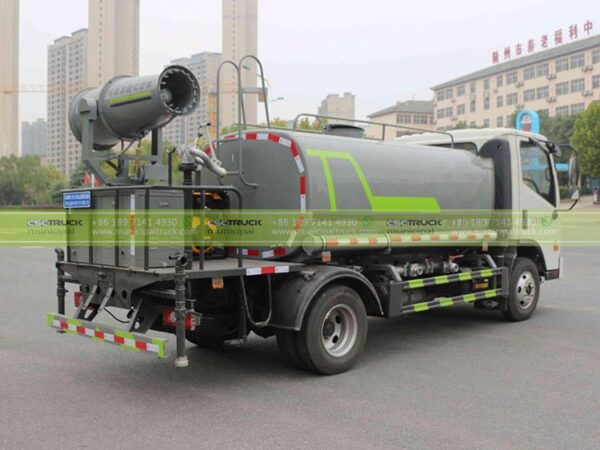

FOTON 5CBM Dust Suppression Vehicle

Summary:

The FOTON 5CBM dust suppression vehicle is a compact and efficient vehicle designed to control dust and other airborne particles on construction sites, mining sites, and other industrial settings. The vehicle is built on a sturdy FOTON 4×2 chassis and is powered by a reliable YUNNEI diesel engine. It features a 5,000L carbon steel water tank, a single centrifugal pump/multistage centrifugal pump, and 80 spraying nozzles. With a range of up to 80m and a fan air wind capacity of 127,500 m3/h, this vehicle is an effective solution for keeping dust and other particles under control.

Features:

This dust suppression vehicle is equipped with a powerful water spray system that helps control dust and other airborne particles in industrial settings. Its compact size and maneuverability make it ideal for use in areas where larger vehicles cannot operate. Some of the notable features of this vehicle include:

1. Reliable Engine: The vehicle is powered by a YUNNEI diesel engine that delivers 120hp of power and is compliant with Euro 3 emission standards.
2. Durable Chassis: The chassis is constructed of high-quality steel and is designed to withstand heavy loads and rough terrain. The vehicle has a curb weight of 4,500kg and a GVW of 7,360kg.
3. Efficient Watering System: The FOTON 5CBM dust suppression vehicle features a 5,000L carbon steel water tank and a single centrifugal pump/multistage centrifugal pump that can deliver a flow rate of 160-200L/m. The vehicle is also equipped with 80 spraying nozzles that can cover a range of up to 80m.
4. Easy-to-Use Controls: The vehicle’s watering system can be operated using manual, electric, or wireless remote control. This allows the operator to control the water spray system from a safe distance.
5. Maneuverability: The compact size of the FOTON 5CBM dust suppression vehicle, with dimensions of 6,290×1,960×2,440mm, and a wheelbase of 3,360mm, allows it to maneuver through tight spaces and narrow roads, making it ideal for use in urban areas.

Overall, the FOTON 5CBM dust suppression vehicle is a reliable, efficient, and effective municipal truck solution for controlling dust and other airborne particles in industrial settings. Its compact size, maneuverability, and powerful water spray system make it an ideal choice for construction and mining sites, as well as other industrial applications.



Specifications

Chassis
Size	6,290×1,960×2,440mm
GVW/Curb Weight	7,360kg/4,500kg
Wheelbase	3,360mm
Front/Rear Axle	2.64T/4.72T
Tire	7.00R16 6+1 tires
Engine
Type	Diesel
Make/Model	YUNNEI/YN38CR-1/120hp/Euro3
Transmission
Make/Model	WLY545
Gears	5F+1R
Operation	Manual
Cabin

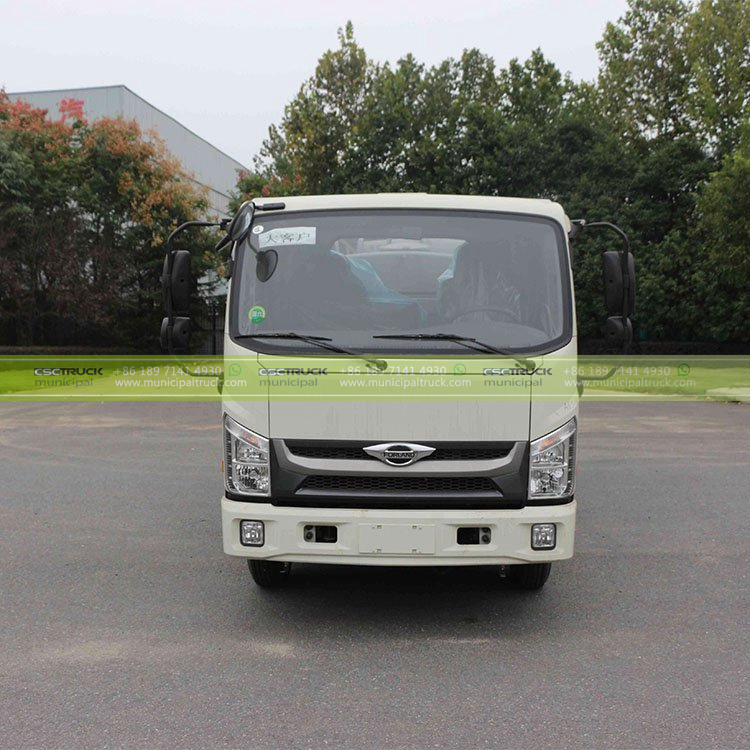

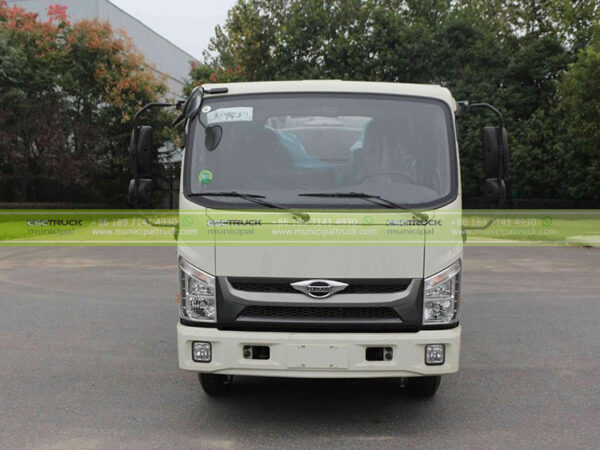

Driving	FOTON 4×2 Day Cab, Left-hand Drive
Type	Steel construction, Single Row, Flat
Passenger No.	3
Watering System
Tanker Capacity	5,000L
Material	Carbon steel, 6mm thickness
Performance
Front Spraying Pipe	14~18m
Rear Spraying	5~9m
Spray Range	0~80m
Fan Machine Power	37 kW
Fan Air Wind Capacity	127,500 m3/h
Air Pressure	3,106 Pa
Plunger Pump Type	Single centrifugal pump Multistage centrifugal pump
Flow Rate	160~200L/m
Spraying Nozzle No.	80pcs
Control Method	Manual/Electric/Wireless remote control
