Summary:

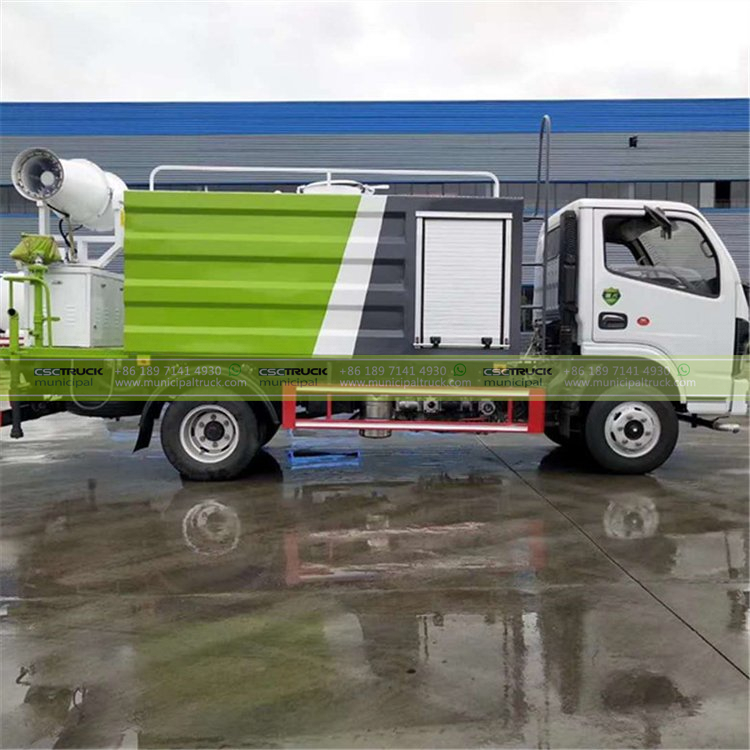

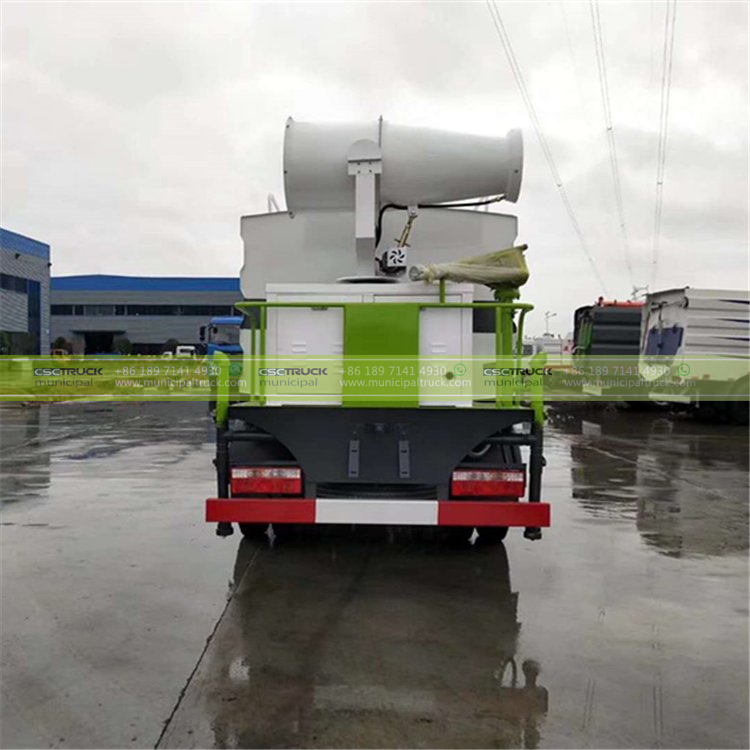

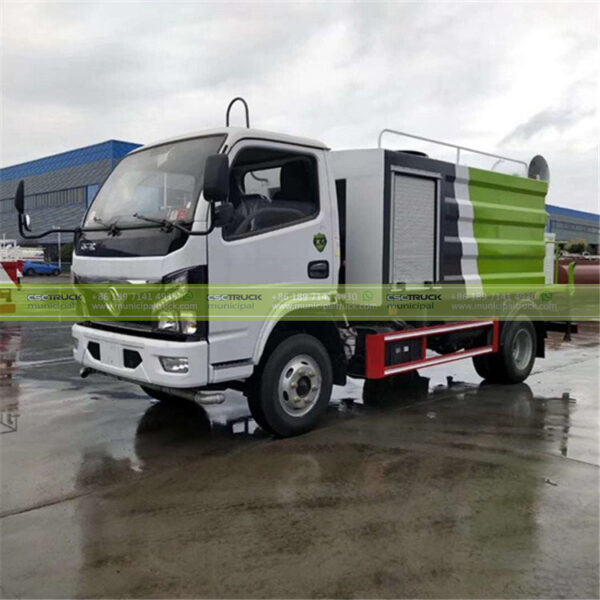

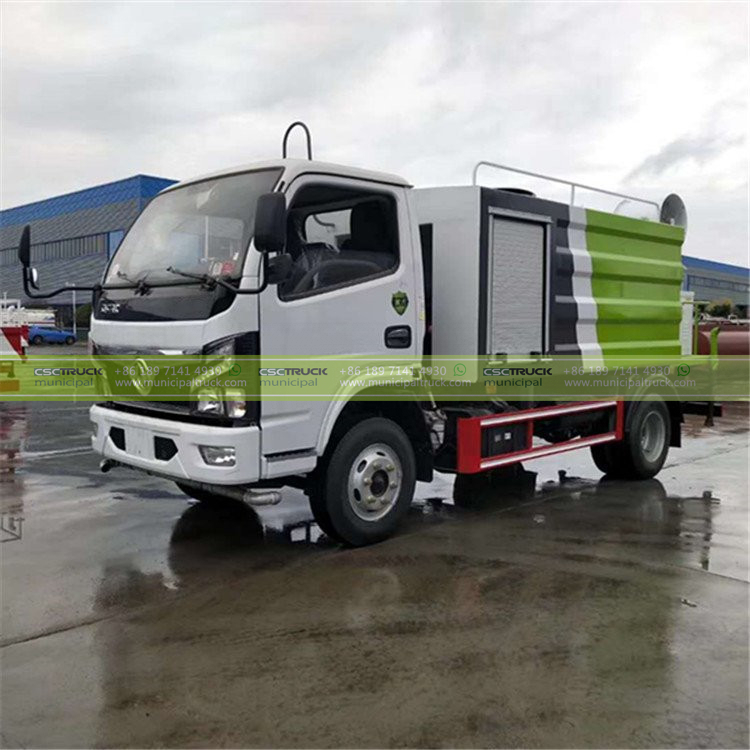

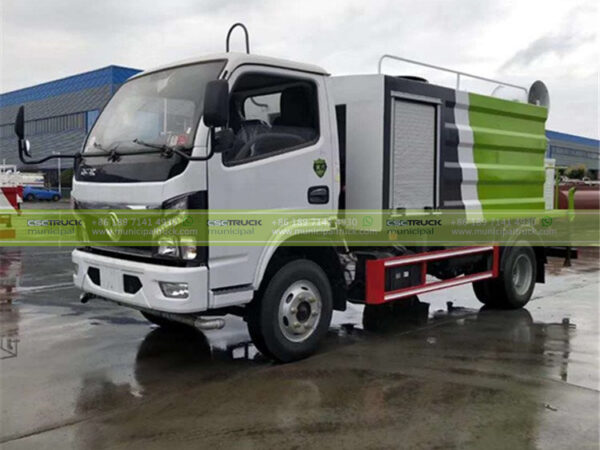

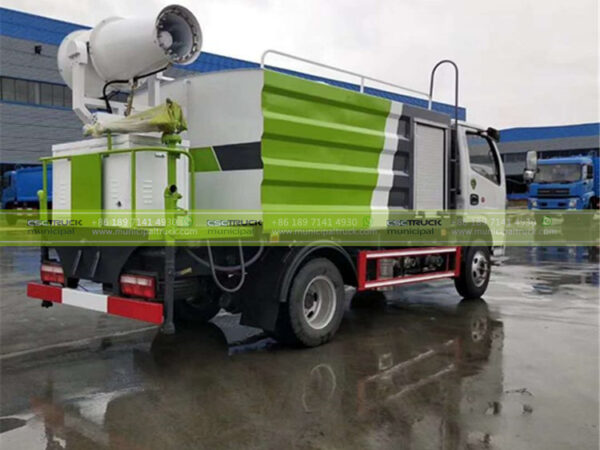

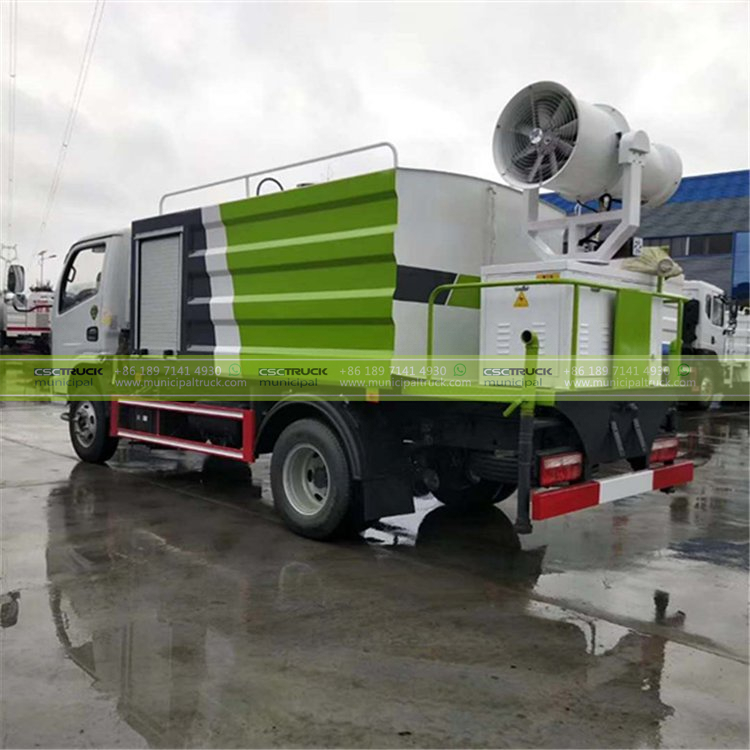

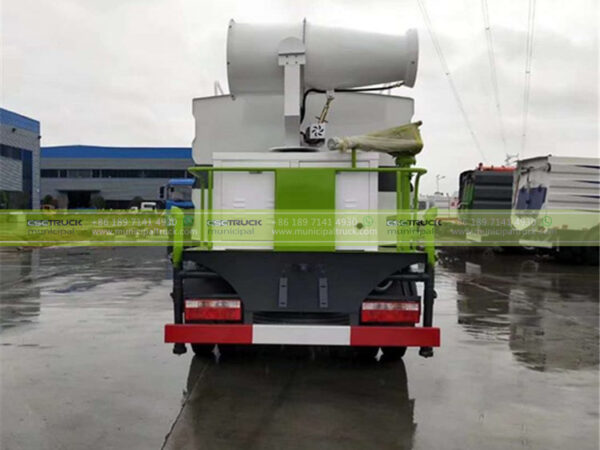

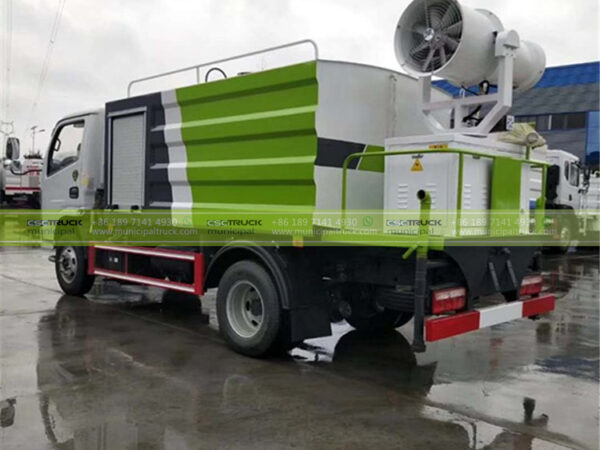

The DONGFENG 5CBM Water Mist Sprinkler Truck is a highly efficient and reliable vehicle designed for spraying water mist on various surfaces. With its compact size and powerful engine, this truck can easily navigate through tight spaces while delivering a steady stream of water mist. The sprinkler truck is equipped with a 5,000L carbon steel water tank, and it comes with a variety of spraying nozzles and control methods. This makes it ideal for a wide range of applications, including street cleaning, dust suppression, and firefighting.
Features:
- Chassis:
The DONGFENG 5CBM Water Mist Sprinkler Truck has a size of 5,390×2,030×2,800mm and a GVW/Curb Weight of 7,360kg/4,450kg. It has a wheelbase of 3,600mm, and its front and rear axles are rated at 2.64/4.72T. The vehicle is equipped with 7.00R16 6+1 tires that provide excellent traction and stability on different types of surfaces.
- Engine:
This municipal truck is powered by a diesel engine manufactured by CHAOCHAI. The model is CY4102-E3C, and it has a power output of 120hp. The engine is compliant with Euro 3 emission standards, and it delivers excellent performance and fuel efficiency.
- Transmission:
This truck is equipped with a WLY535 manual transmission. The gearbox has 5 forward gears and 1 reverse gear, which allows the driver to easily maneuver the vehicle in different terrains.

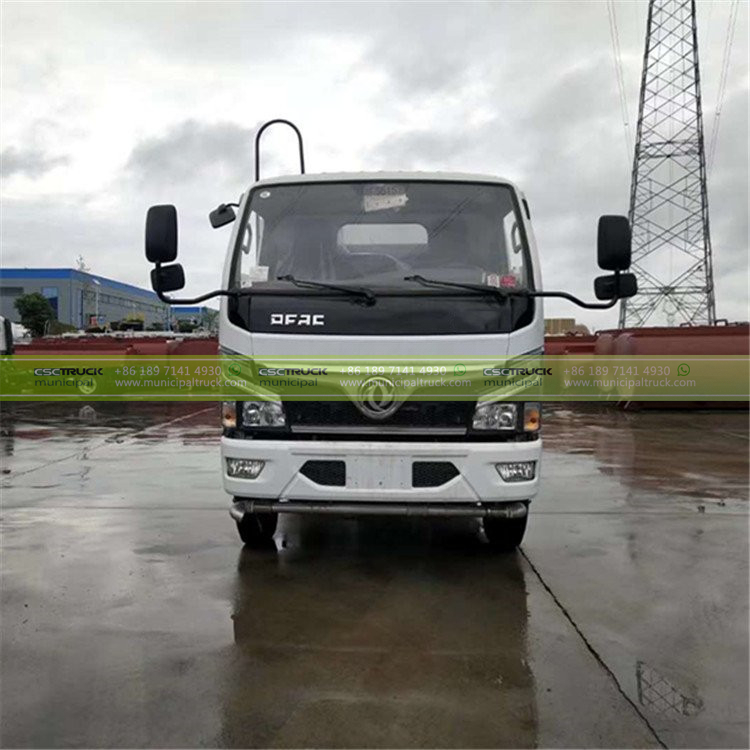

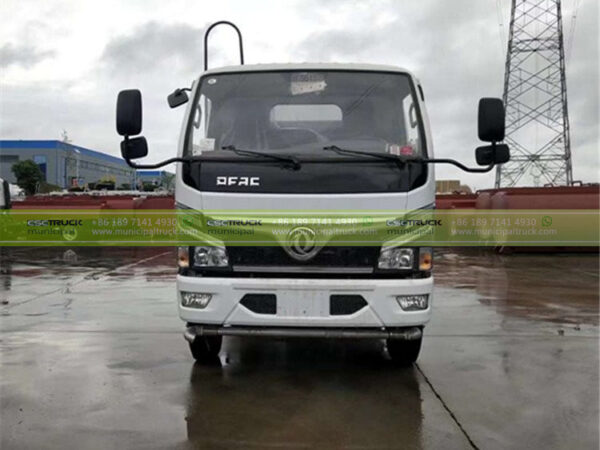

- Cabin:
The truck comes with a Dongfeng Dollica 4×2 Day Cab that has a left-hand drive configuration. The cabin is made of steel, and it has a single-row design that can accommodate up to 3 passengers. The cabin is designed to provide a comfortable and ergonomic working environment for the driver and the crew.

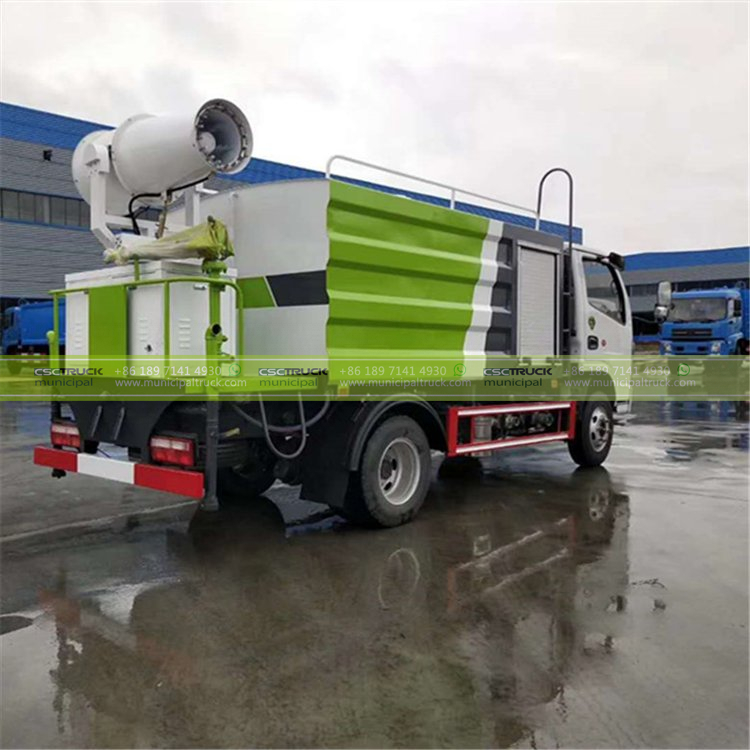

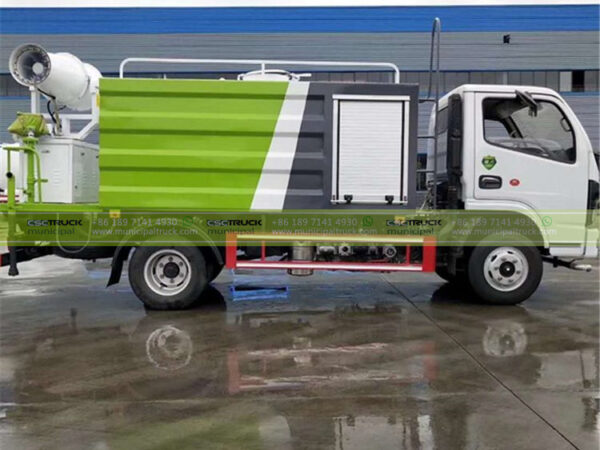

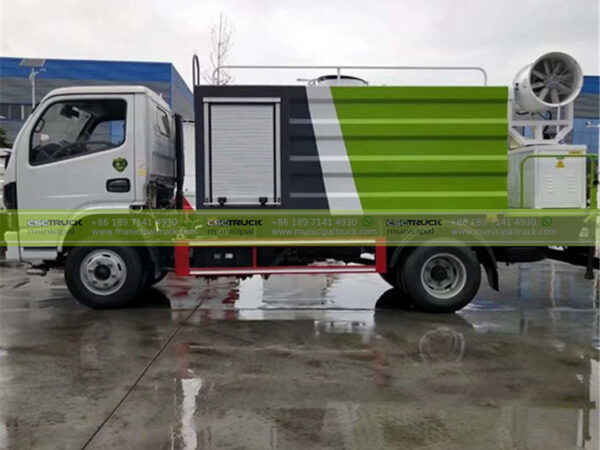

- Watering System:

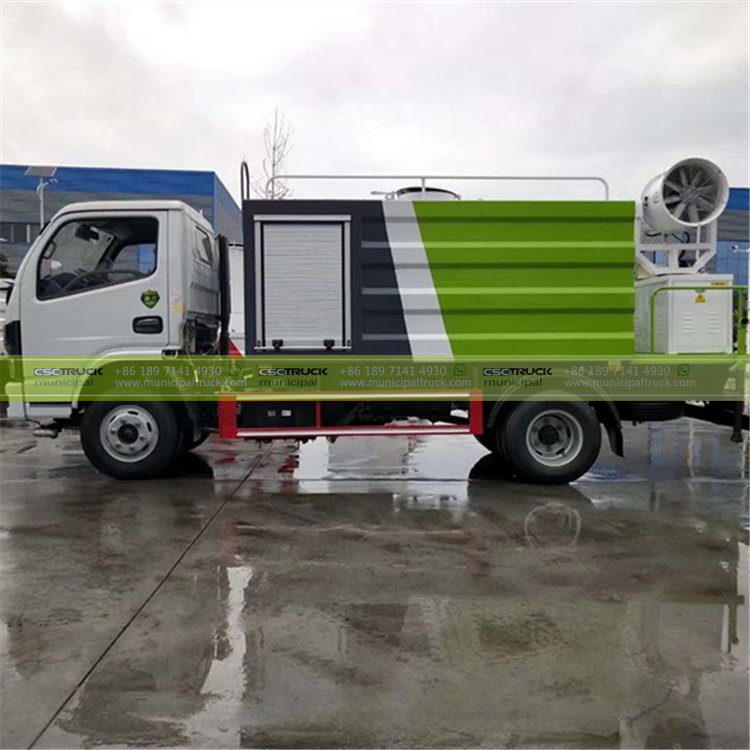

The vehicle is equipped with a 5,000L water tank made of 6mm thick carbon steel. The tank is designed to withstand heavy use and resist corrosion. The truck is equipped with 80 spraying nozzles that can deliver a range of spray patterns, from mist to jet.
- Control Method:
The DONGFENG 5CBM Water Mist Sprinkler Truck can be operated through a variety of control methods. It can be controlled manually, electrically, or through a wireless remote control. This makes it easy for the driver and the crew to operate the vehicle in different situations and terrains.
Overall, the DONGFENG 5CBM Water Mist Sprinkler Truck is a versatile and reliable vehicle that is ideal for various applications, including street cleaning, dust suppression, and firefighting. With its powerful engine, efficient transmission, and advanced watering system, this truck is designed to deliver high performance and durability, even in harsh environments.
Specifications:
| Chassis | |
| Size | 5,390×2,030×2,800mm |
| GVW/Curb Weight | 7,360kg/4,450kg |
| Wheelbase | 3,600mm |
| Front/Rear Axle | 2.64/4.72T |
| Tire | 7.00R16 6+1 tires |
| Engine | |
| Type | Diesel |
| Make/Model | CHAOCHAI/CY4102-E3C/120hp/Euro 3 |
| Transmission | |
| Make/Model | WLY535 |
| Gears | 5F+1R |
| Operation | Manual |
| Cabin | |
| Driving | Dongfeng Dollica 4×2 Day Cab, Left-hand Drive |
| Type | Steel construction, Single Row, Flat |
| Passenger No. | 3 |
| Watering System | |
| Tanker Capacity | 5,000L |
| Material | Carbon steel, 6mm thickness |
| Performance | |
| Front Spraying Pipe | 14~18m |
| Rear Spraying | 5~9m |
| Spray Range | 0~80m |
| Fan Machine Power | 37 kW |
| Fan Air Wind Capacity | 127,500 m3/h |
| Air Pressure | 3,106 Pa |
| Plunger Pump Type | Single centrifugal pump Multistage centrifugal pump |
| Flow Rate | 160~200L/m |
| Spraying Nozzle No. | 80pcs |
| Control Method | Manual/Electric/Wireless remote control |
