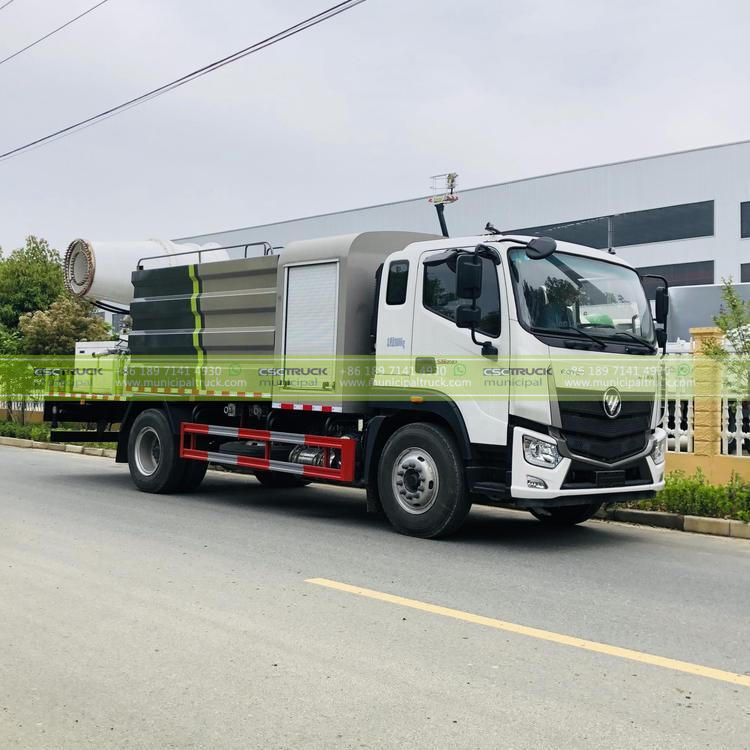

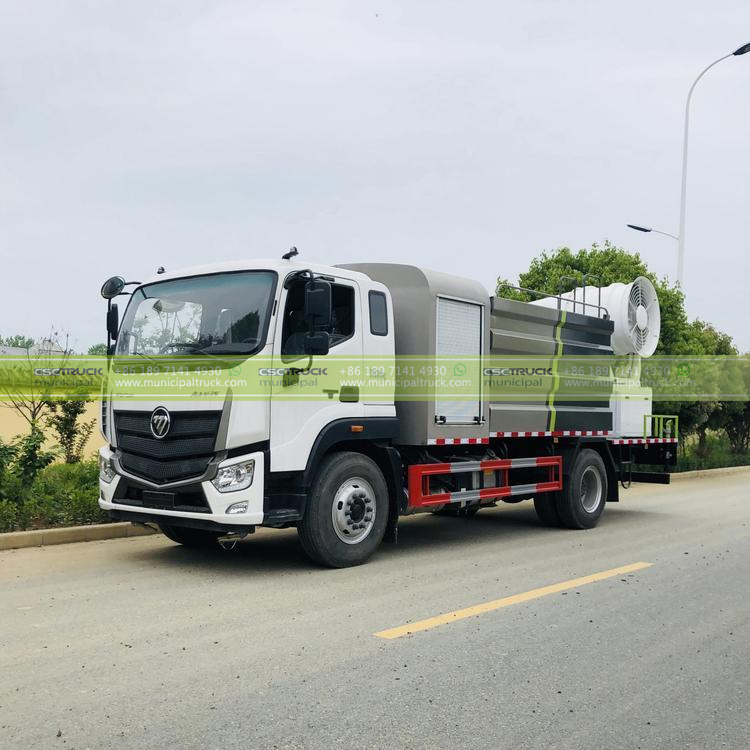

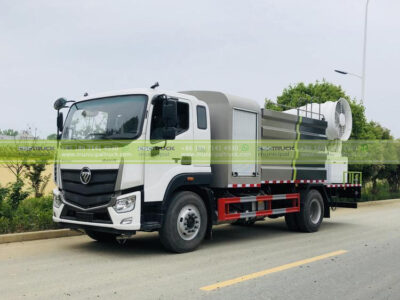

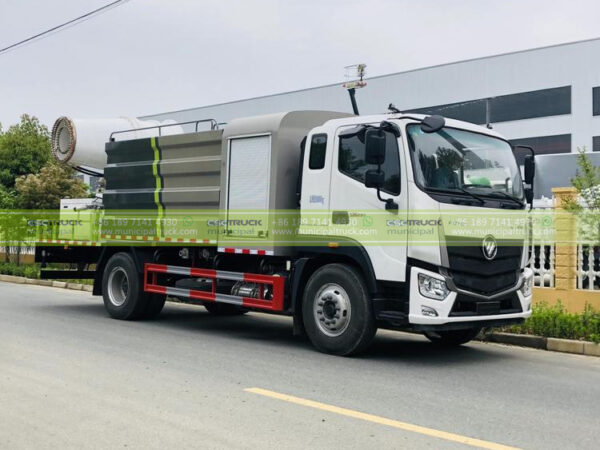

Summary:

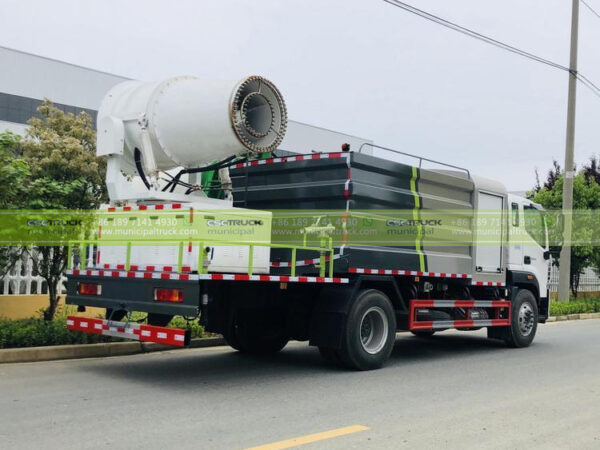

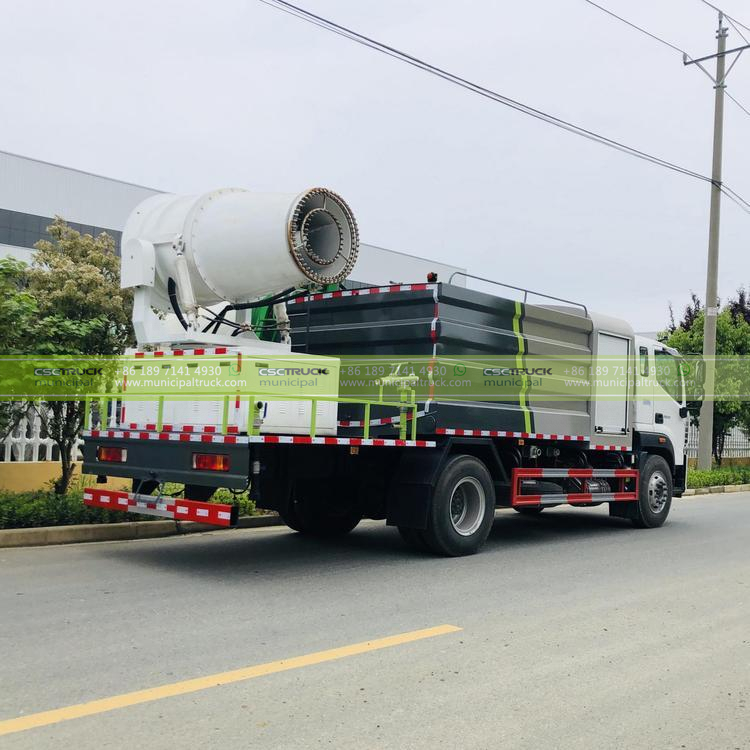

The FOTON dust control tank truck is a powerful and reliable vehicle that has been designed to help control dust on construction sites, mining sites, and other dusty environments. With its high-capacity tank and efficient spraying system, it can effectively suppress dust and keep the air clean and breathable for workers and nearby residents.
Features:
Chassis:
The FOTON dust control truck features a sturdy and durable chassis that measures 8,415mm in length, 2,430mm in width, and 2,920mm in height. Its GVW/Curb weight is 16,000kg/7,600kg, and it has a wheelbase of 4500mm. The front/rear axle is 6.5/11.5T, and it is equipped with 10.00R20 6+1 tires.
Engine and transmission:
The vehicle is powered by a WEICHAI/WP6.240 diesel engine that delivers 240 horsepower and is compliant with Euro 3 emission standards. It has a FAST/8JS85E manual transmission with 8 forward gears and 2 reverse gears, which provides smooth and efficient shifting.
Cabin:
The driving cabin is a FOTON AUMARK 4×2 Day Cab, which is designed for comfort and safety. It features a steel construction, single row, and a flat roof design. It can accommodate up to three passengers, and it is left-hand drive for better visibility and easier operation.

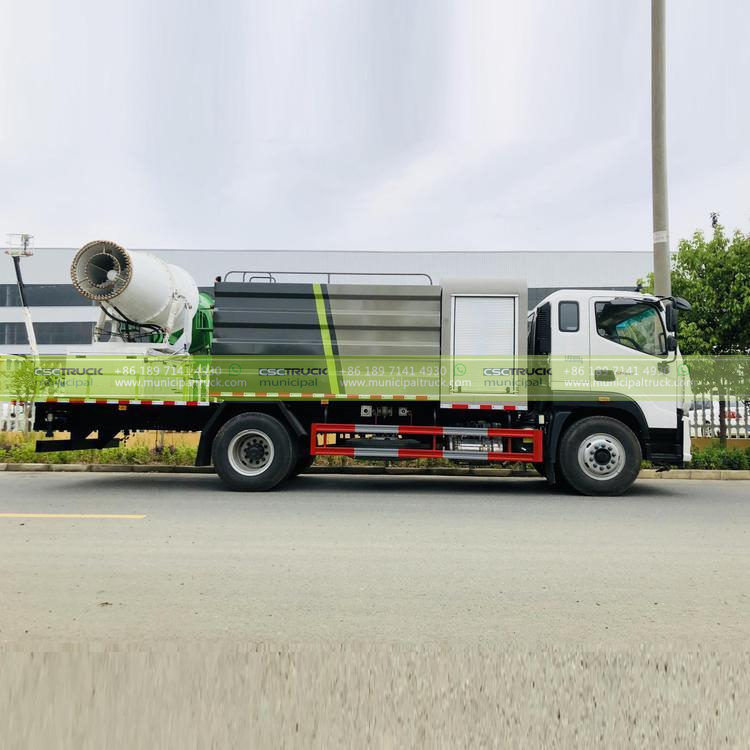

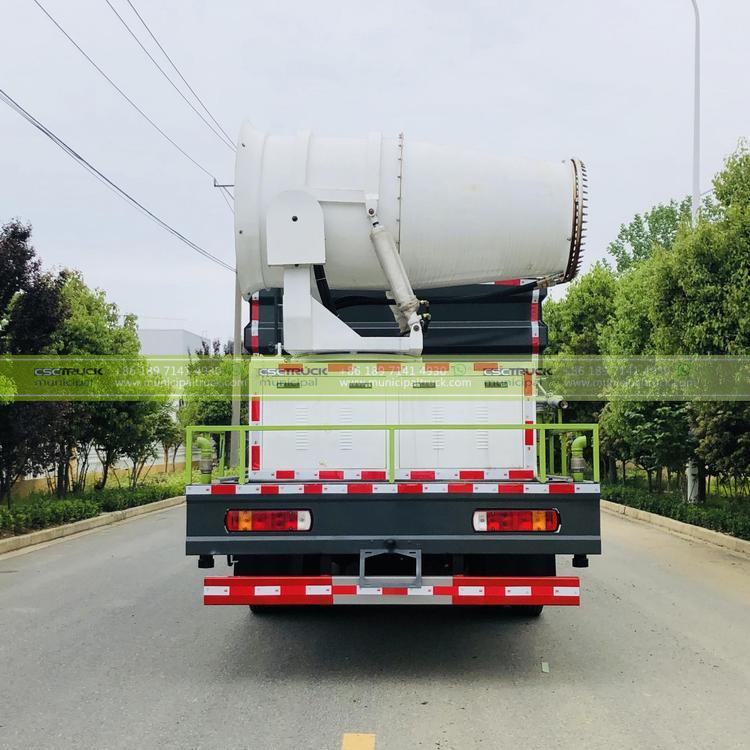

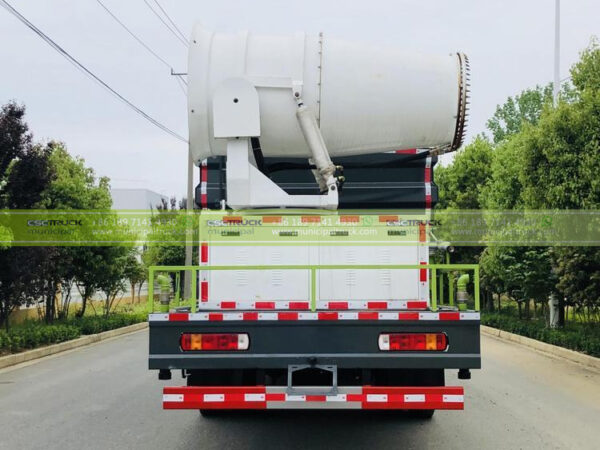

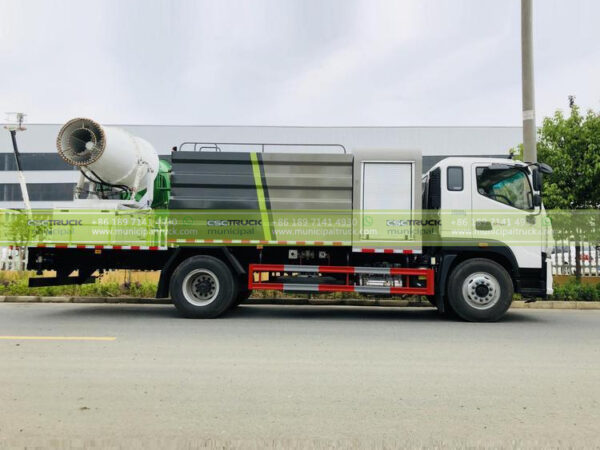

Watering system:
This municipal truck is equipped with a high-capacity tanker that can hold up to 12,000 L of water. The tank is made of high-quality carbon steel with a 6mm thickness for durability and long service life. The spraying system features a front spraying pipe with a range of 14-18m and a rear spraying system with a range of 5-9m. It has a spray range of 0-80m and is powered by a 37 kW fan machine that can provide an air wind capacity of 127,500 m3/h and an air pressure of 3,106 Pa. The plunger pump type is a single centrifugal pump or multistage centrifugal pump, depending on the configuration. There are 80 spray nozzles that can be controlled manually, electrically, or wirelessly for maximum flexibility and convenience.
Overall, the FOTON dust control tank truck is a reliable and efficient vehicle that can help keep dust levels under control and create a cleaner and healthier environment for workers and local residents.
Specifications
| Chassis | |
| Size | 8,415×2,430×2,920mm |
| GVW/Curb Weight | 16,000kg/7,600kg |
| Wheelbase | 4500mm |
| Front/Rear Axle | 6.5/11.5T |
| Tire | 10.00R20 6+1 tires |
| Engine | |
| Type | Diesel |
| Make/Model | WEICHAI/WP6.240/240hp/Euro 3 |
| Transmission | |
| Make/Model | FAST/8JS85E |
| Gears | 8F+2R |
| Operation | Manual |
| Cabin | |
| Driving | FOTON AUMARK 4×2 Day Cab, Left-hand Drive |
| Type | Steel construction, Single Row, Flat |
| Passenger No. | 3 |
| Watering System | |
| Tanker Capacity | 12,000L |
| Material | Carbon steel, 6mm thickness |
| Performance | |
| Front Spraying Pipe | 14~18m |
| Rear Spraying | 5~9m |
| Spray Range | 0~80m |
| Fan Machine Power | 37 kW |
| Fan Air Wind Capacity | 127,500 m3/h |
| Air Pressure | 3,106 Pa |
| Plunger Pump Type | Single centrifugal pump Multistage centrifugal pump |
| Flow Rate | 160~200L/m |
| Spraying Nozzle No. | 80pcs |
| Control Method | Manual/Electric/Wireless remote control |
