BRIEF

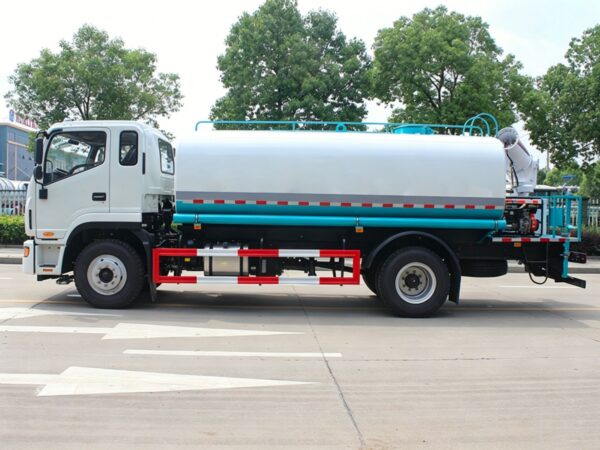

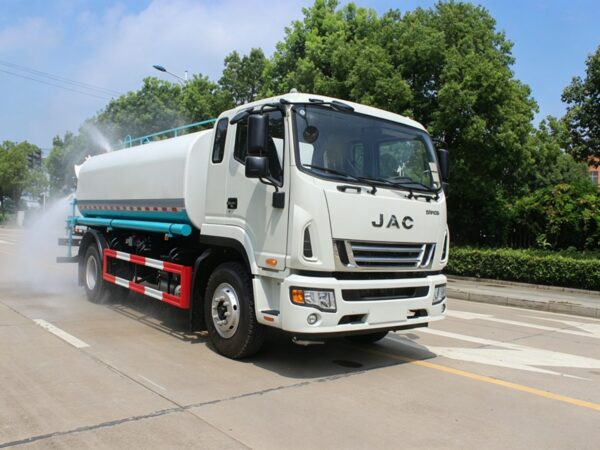

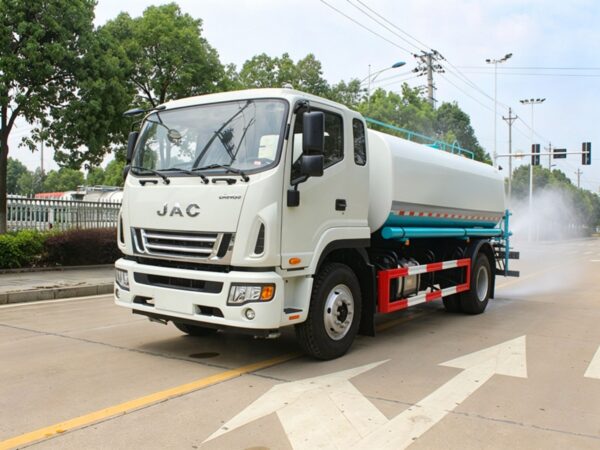

The JAC 12,000L Multi-functional Water Mist Sprayer Truck is a versatile environmental service vehicle designed for dust suppression, road cleaning, air quality improvement, disinfection, and landscape irrigation. Combining a reliable truck chassis with an advanced water spraying system, it provides an efficient solution for municipal, industrial, construction, and agricultural applications.
Built on the durable JAC HFC1180 chassis and powered by a high-performance Euro 6 diesel engine, the truck delivers strong power, stable operation, and excellent adaptability in different working environments. The integrated spraying system supports multiple functions, including front road flushing, rear sprinkling, side spraying, and optional fog cannon operation, allowing one vehicle to complete various environmental management tasks.
Equipped with a large-capacity water tank, high-efficiency pump system, and optional long-range mist cannon, the truck provides powerful dust control performance for construction sites, mining areas, industrial facilities, and urban roads. The flexible power options and reliable hydraulic design ensure continuous operation even in challenging conditions.
With its multifunctional capability, durable structure, and low operating costs, the water mist sprayer truck is an ideal choice for municipalities, contractors, industrial companies, and environmental service providers seeking efficient pollution control and cleaning solutions.
FEATURE
1. Multi-Functional Spraying System
The truck integrates multiple spraying functions into one vehicle, including road flushing, road sprinkling, side irrigation, and high-position spraying.
The optimized spraying layout allows it to handle different tasks such as:
- Road cleaning
- Dust suppression
- Green belt irrigation
- Public area disinfection
This multifunctional design improves equipment utilization and reduces the need for multiple specialized vehicles.

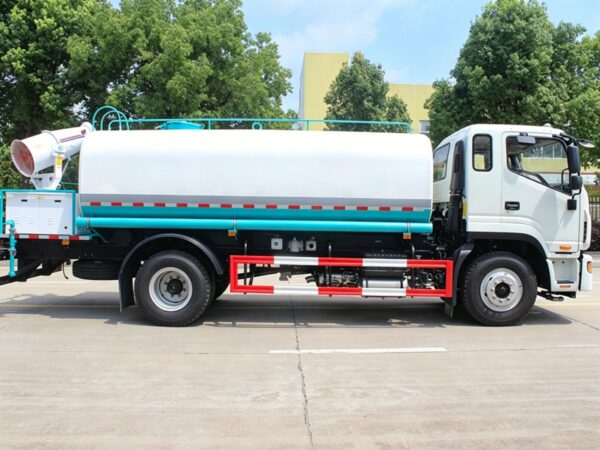

2. Long-Range Fog Cannon System
The air-assisted fog cannon provides powerful dust suppression capability by producing fine water mist particles that quickly capture airborne dust.
With wide-angle rotation and long-distance spraying performance, the system is suitable for:
- Construction sites
- Mining areas
- Industrial yards
- Urban dust control
The fog cannon expands the working range and improves efficiency in large-area environmental management.
3. Efficient Pumping & Spraying Performance
The vehicle is equipped with a high-performance water pump system designed for stable water delivery and continuous operation.
The reliable pump structure ensures:
- Strong water pressure output
- Smooth operation
- High efficiency
- Easy maintenance
It supports different spraying modes while maintaining consistent performance in various applications.
4. Large-Capacity Tank with Durable Construction
The large-volume water tank is designed for extended operation and reduced downtime.
Its durable steel structure and internal anti-wave design improve:
- Structural strength
- Corrosion resistance
- Driving stability
- Service life
The optimized tank design ensures reliable performance during daily transportation and spraying operations.
5. Flexible Power Supply Solutions
The truck supports different power configurations to meet various working conditions.
Available options include independent generator power or external power connection, allowing reliable operation in:
- Remote areas
- Construction sites
- Urban environments
This flexibility improves adaptability across different job sites.
6. Wide Application Range
The multi-functional water mist sprayer truck is designed for diverse environmental applications, including:
- Municipal sanitation
- Construction dust suppression
- Industrial pollution control
- Agricultural spraying
- Emergency disinfection
One vehicle can replace multiple types of equipment, improving operational efficiency and reducing investment costs.
7. Reliable JAC Chassis & Powerful Engine
Built on the proven JAC commercial chassis, the truck offers excellent durability, stability, and driving comfort.
The reliable power system provides:
- Strong transportation capability
- Smooth operation
- Efficient fuel performance
- Compliance with modern emission standards
It is designed for continuous operation in demanding environments.
8. Comfortable Operation & Safety Design
The spacious cab provides a comfortable working environment for operators during long shifts.
Features include:
- Ergonomic controls
- Good visibility
- Air conditioning
- Easy operation interface
The integrated control system allows operators to manage spraying functions conveniently, improving safety and work efficiency.
SPECIFICATION
| General | |
| Vehicle Dimension | 8,100 × 2,500 × 3,200 mm |
| GVW | 18,000 kg |
| Curb Weight | 7,300 kg |
| Payload Weight | 10,505 kg |
| Wheelbase | 4,500 mm |
| Front/Rear Track | 1,915 mm/1,810 mm |
| Front/Rear Overhang | 1,400 mm/2,200 mm |
| Engine | |
| Make/Model | Yunnei/D45TCIF1 |
| Type | 4-cylinder in line, diesel engine |
| Horsepower | 162 kW/220 HP |
| Max. Output Torque/Speed | 810N.m/1200-1800rpm |
| Displacement | 4.461 L |
| Emission standard | Euro 6 |
| Transmission | |
| Make | FAST |
| Type | MT |
| Gear Numbers | 8F+2R |
| Cabin | |
| Driving | 4×2 Sleeper Cab, Left-hand Drive |
| Passenger No. | 3 |
| Chassis | |
| Type | U-profile parallel ladder cold riveted cross |
| Frame Layer | 2 layers standard body unit mounting |
| Suspension | Mechanical, Semi-elliptic Leaf Springs 9/9+7,9/10+7 |
| Front/Rear Axle Rating | 6,500kg / 11,500kg |
| Tire | 10.00R20 18PR, 6+1 pcs |
| Superstructure | |
| Tank Material | Q235B |
| Tank Thickness | 4 mm |
| Tank Volume | 12,200 L |
| Front Flushing Width | ≥14 m |
|
|
460 L/min |
| Rear Spraying Width | ≥12 m |
| Rear Sprinkler Flow Rate | 430 L/min |
| Side Washing Width | ≥8 m |
| Water Cannon Range | ≥30 m |
| Self-Priming Height | 7 m |
