BRIEF

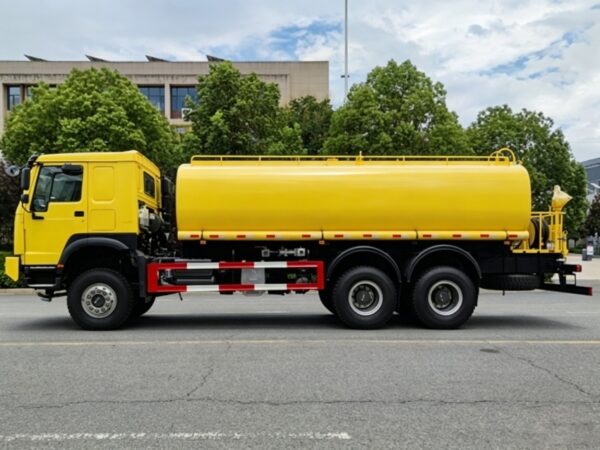

The HOWO 6×6 20,000 Liters Water Sprinkler Truck is a heavy-duty, all-terrain water transportation solution engineered for demanding water delivery, dust suppression, road washing, and firefighting applications. Built on the legendary SINOTRUK HOWO 6×6 all-wheel-drive chassis—a platform renowned for its outstanding durability and off-road capability—this truck delivers exceptional traction and stability on rough, uneven, and remote terrain where conventional 4×2 or 6×4 water trucks cannot operate. Equipped with a massive 20,000-liter water tank, it supports extended working hours with fewer refill stops, making it an ideal solution for mining operations, construction projects, agricultural irrigation, municipal dust control, and emergency firefighting throughout the Philippines and other developing markets.

Powering the truck is the proven SINOTRUK WD615.47 diesel engine, producing 371 HP (273 kW) and a peak torque of 1,500 N·m between 1,100–1,600 rpm, delivering strong low-speed pulling power for heavy loads and challenging off-road conditions. The 6×6 all-wheel-drive drivetrain, combined with generous ground clearance, enables confident operation across mud, sand, steep gradients, and rocky terrain. The HW19710 10-speed manual transmission (10F+2R) provides smooth and precise power delivery, while the robust STR front axle and ST16 rear axles ensure excellent load-carrying capability. Inside, the spacious HW76 cab features air conditioning, electric windows, and an air-suspension driver’s seat, providing superior comfort for long-distance transportation and demanding field operations.

A key highlight of this truck is its 20,000-liter elliptical water tank, manufactured from 5 mm carbon steel and treated with an anti-corrosion internal coating to ensure long-term durability and water quality. The tank is paired with a high-performance water pump, supporting front flushing, rear sprinkling, side spraying, and a rear-mounted high-pressure water cannon for versatile municipal and industrial applications. The complete water system also includes air-operated front and rear sprinkler valves, a 25-meter rear hose reel, self-priming water suction from open water sources, and a dedicated firefighting connection for emergency response. Fully equipped with PTO, manhole, hose boxes, suction pipes, and an access ladder, this water sprinkler truck is ready for immediate deployment in road cleaning, dust suppression, construction site watering, agricultural irrigation, municipal water supply, and disaster relief operations.

---

FEATURES

1. Chassis & Off-Road Capability – Built for the Toughest Terrains

• 6×6 all-wheel-drive configuration – Delivers outstanding traction on mud, sand, steep slopes, and rocky terrain, enabling the truck to access remote areas where conventional 4×2 or 6×4 trucks cannot operate.
• High ground clearance – Allows the vehicle to travel over obstacles, flooded roads, and uneven terrain with excellent off-road capability.

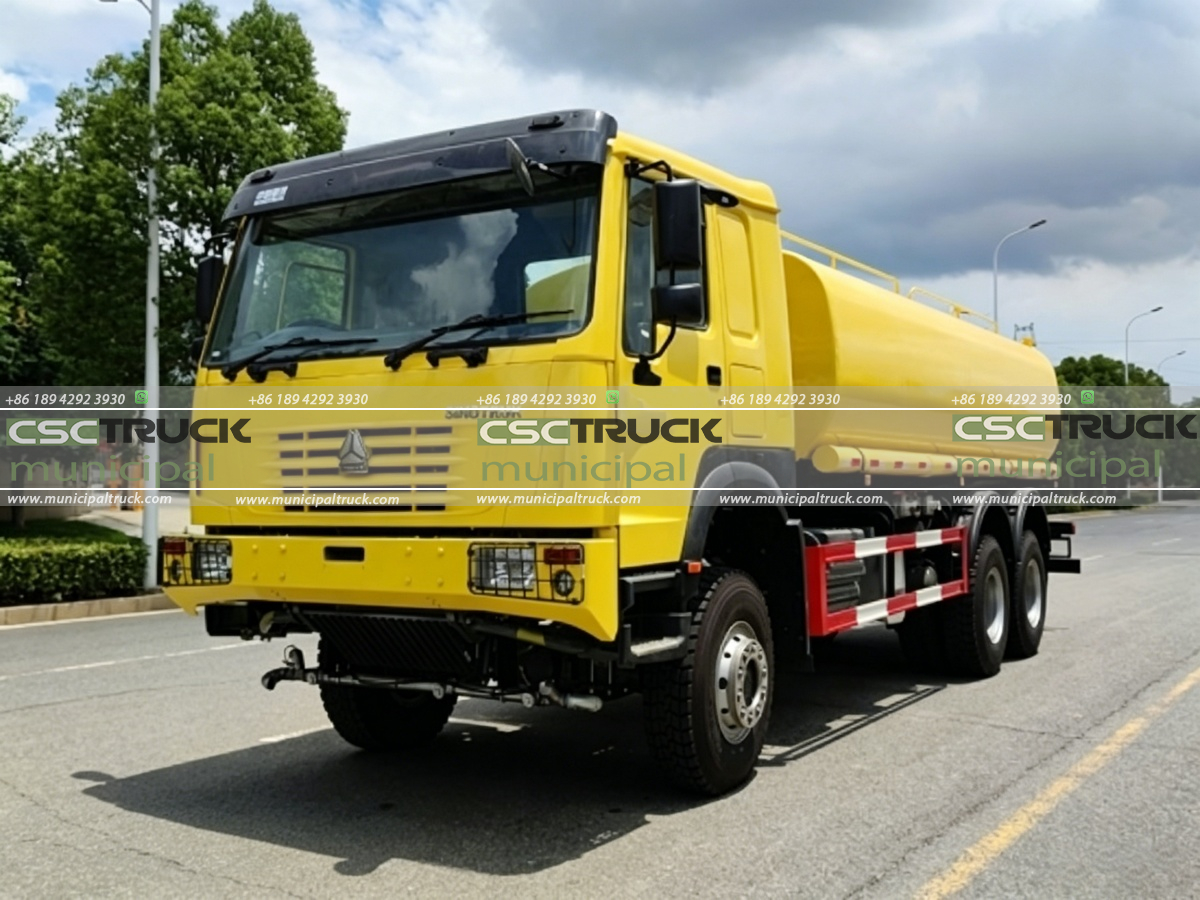

• HOWO 76 right-hand-drive sleeper cab – Designed for right-hand-drive markets, featuring a comfortable sleeper berth for long-haul transportation and extended operations.
• 12.00R20 heavy-duty tyres (10+1) – Provide excellent traction and durability on various road surfaces, while the full-size spare tyre minimizes downtime.
• 39,500 kg gross vehicle weight (GVW) – Heavy-duty front and rear axles ensure excellent stability and load-carrying capacity, even with a fully loaded 20,000-liter water tank.

---

2. Powertrain – Reliable and Powerful

• SINOTRUK WD615.47 diesel engine (371 HP) – Produces 273 kW and 1,500 N·m of peak torque, delivering powerful performance for heavy loads, steep gradients, and demanding off-road applications.
• HW19710 manual transmission (10F+2R) – Provides ten forward gears and two reverse gears for smooth shifting and precise vehicle control under varying operating conditions.
• Hydraulic clutch with air assistance – Reduces clutch pedal effort, improving driving comfort and minimizing operator fatigue during frequent stop-and-go operations.
• Fuel-efficient powertrain – Optimized engine performance helps reduce fuel consumption, lowering operating costs during long-distance transport and continuous field operations.

---

3. Water Tank – Large Capacity and Durable Construction

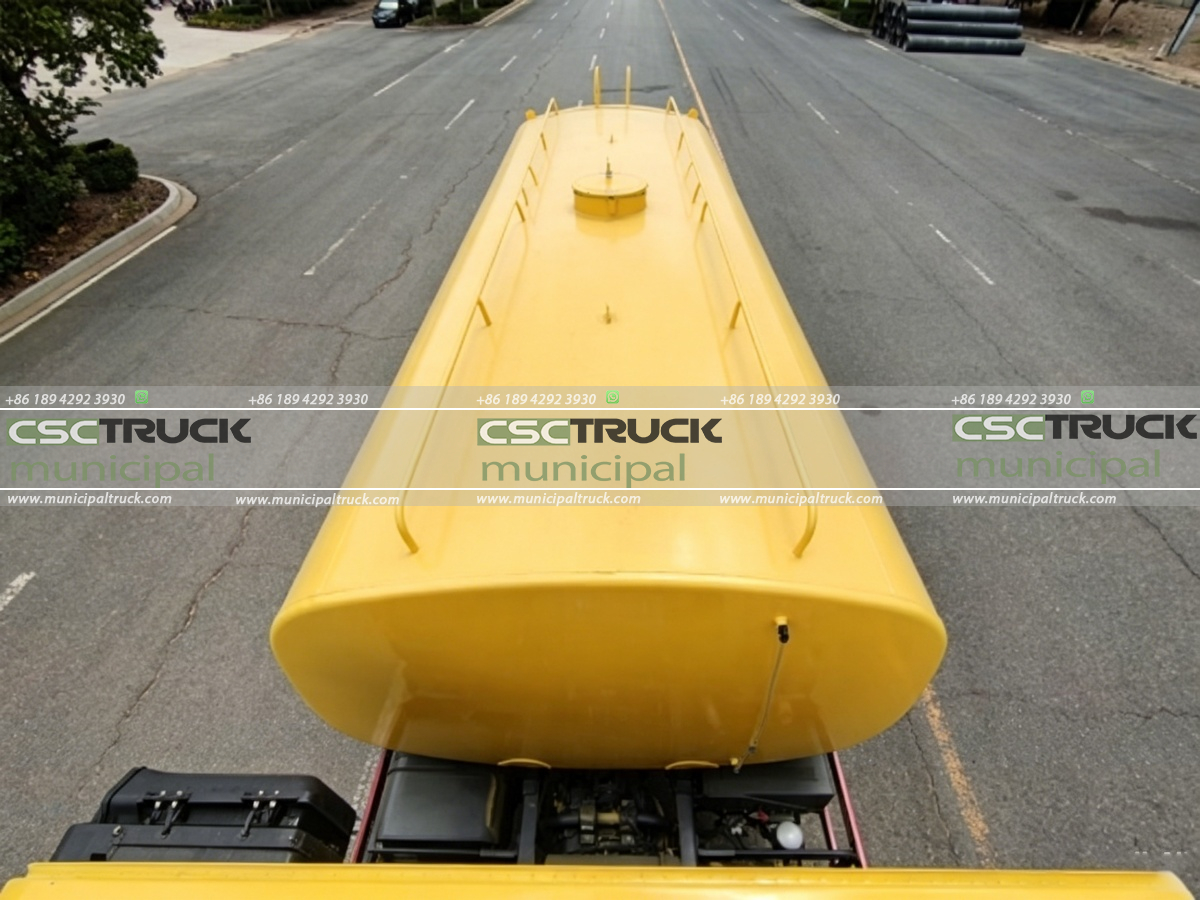

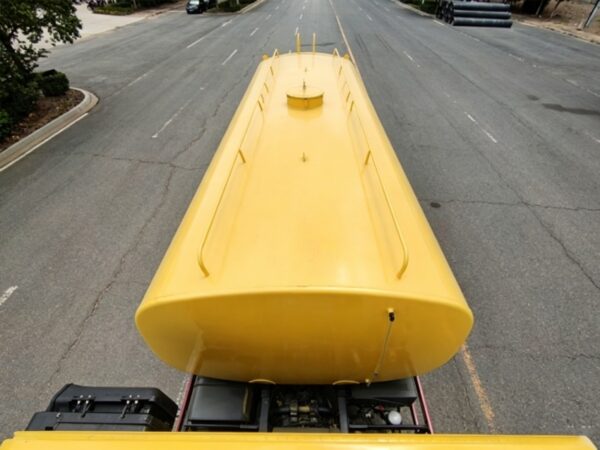

• 20,000-liter elliptical water tank – Supports extended operating time with fewer refilling stops, making it ideal for water transportation, dust suppression, and irrigation.
• 5 mm carbon steel construction – Heavy-duty steel provides excellent impact resistance and long-term structural durability in harsh working environments.
• Anti-corrosion interior coating – Protects the tank against rust and water impurities, ensuring longer service life and maintaining water quality.
• Elliptical tank design – Lowers the vehicle’s center of gravity, improving driving stability and reducing the risk of rollover during off-road travel.
• Customizable tank color – Available in customer-specified colors to match municipal fleets, corporate branding, or project requirements.

---

4. Water Pump & Spray System – Versatile and Efficient

• WEILONG water pump – Delivers high-flow, reliable water output for efficient spraying, washing, and water distribution.
• Front and rear sprinklers – Air-operated control valves allow convenient in-cab operation for road washing and dust suppression.
• Side spray nozzles – Provide wide-area coverage for effective dust control on construction sites, mining roads, and municipal streets.

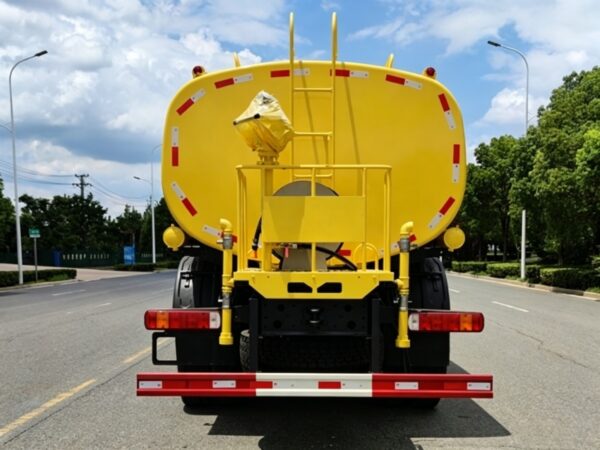

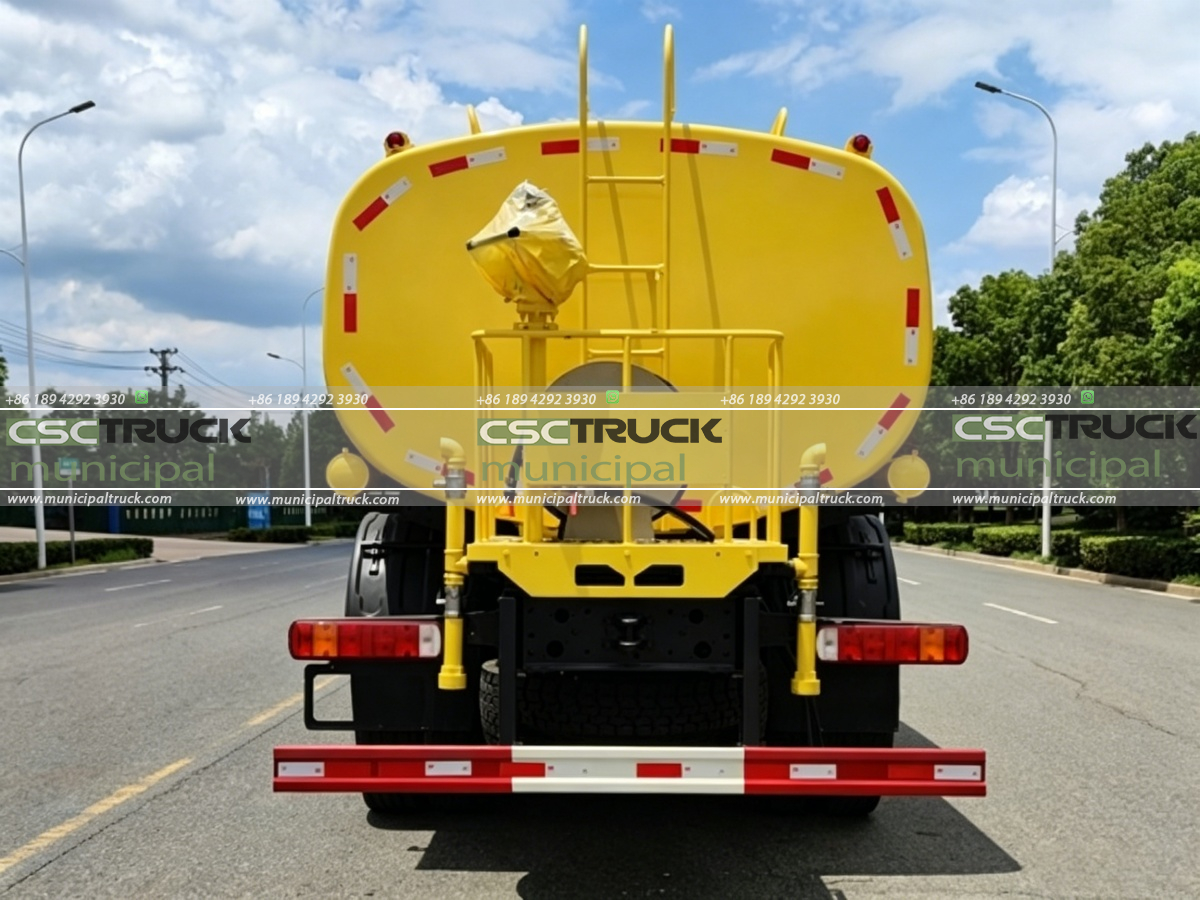

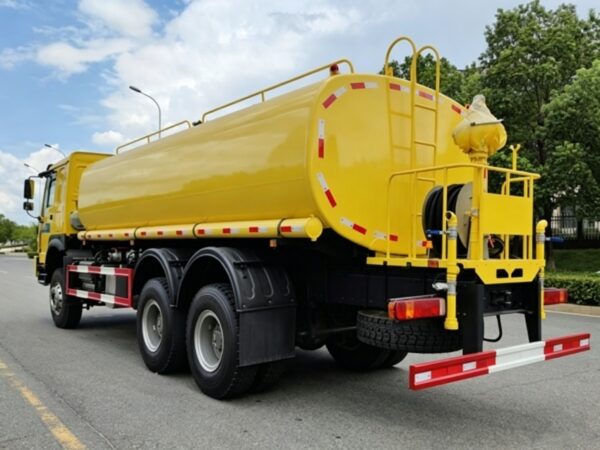

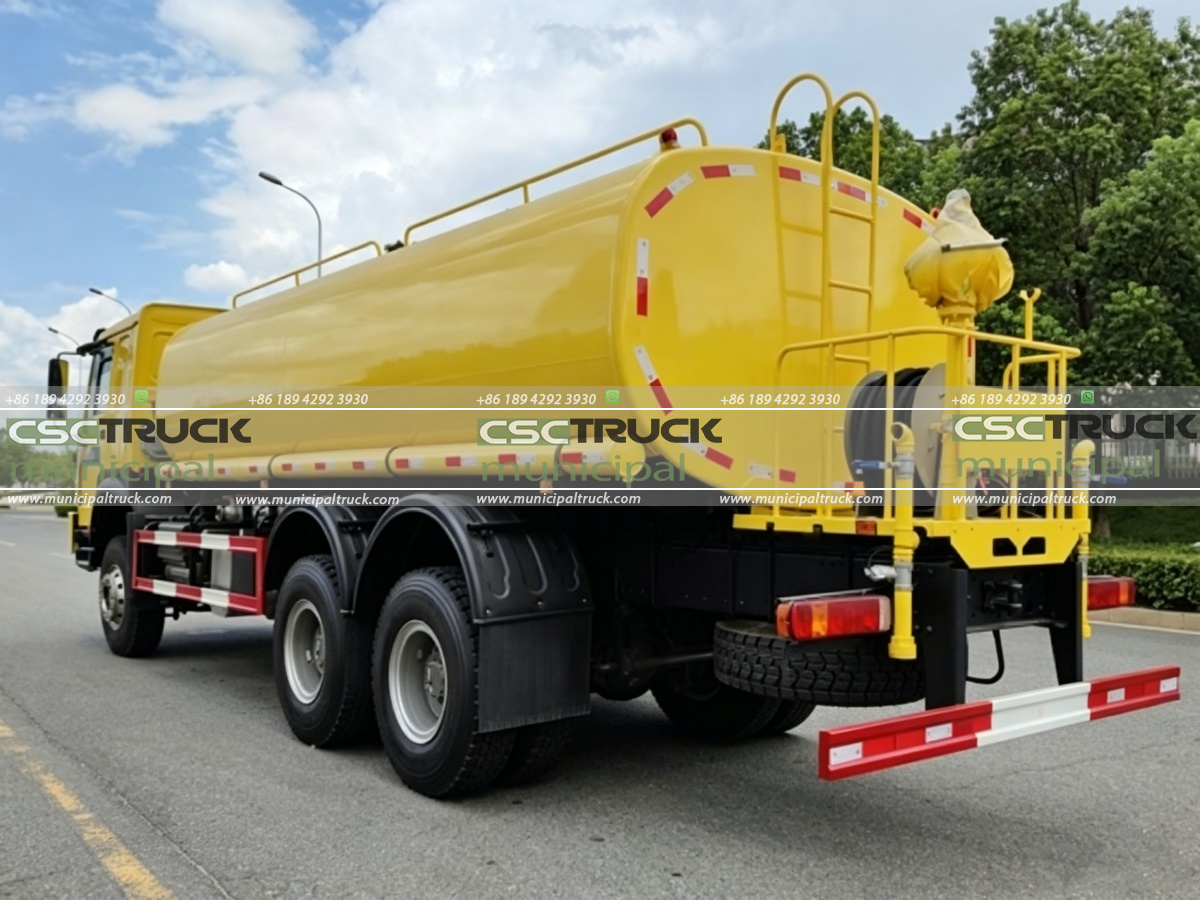

• Rear working platform with adjustable water cannon – Enables long-range, high-pressure spraying for firefighting, tree irrigation, and large-area dust suppression.
• Self-priming water suction system – Draws water directly from rivers, ponds, lakes, and reservoirs, eliminating dependence on pressurized filling stations.
• 25-meter rear hose reel – Extends the working range for detailed cleaning, landscape irrigation, and water supply tasks.
• Firefighting connection – Adds emergency firefighting capability, transforming the vehicle into a versatile dual-purpose water truck.

---

5. Operator Convenience – Comfort and Control

• Air-conditioned HOWO 76 cab – Provides a comfortable operating environment, especially in hot and humid climates such as the Philippines.
• Adjustable air-suspension driver’s seat – Improves ride comfort on rough terrain while reducing operator fatigue during extended working hours.
• Electric windows and central locking – Enhance daily convenience with easy access and ventilation control.
• Intuitive dashboard with digital displays – Allows operators to monitor water level, pump pressure, and vehicle operating status at a glance.
• USB charging port and FM radio – Improve driver convenience and comfort during long-distance operations.
• Rear parking assistance – Helps operators reverse and position the vehicle safely in confined construction sites and urban environments.

---

6. Safety & Compliance – Comprehensive Protection

• Warning lights, reflective markings, and side guards – Improve operational safety for both the driver and surrounding pedestrians during road and job-site operations.
• Rear parking assistance system – Reduces the risk of reversing accidents in crowded construction sites and municipal working areas.
• Compliance with applicable safety and environmental standards – Ensures the vehicle meets relevant local and international regulations for safe operation.
• Complete onboard tool kit – Includes a jack, wheel wrench, and screwdriver, allowing operators to perform basic roadside maintenance and minimize downtime.

---

7. Durability & Maintenance – Built for the Long Haul

• Corrosion-resistant protective coatings – Help prevent rust and weather damage, extending vehicle lifespan while preserving appearance and resale value.
• Low-maintenance design – Heavy-duty construction and high-quality components reduce servicing requirements and overall maintenance costs.
• Easy-access service points – Simplify routine inspection and maintenance, reducing workshop time and improving fleet availability.
• Complete factory-installed accessories – Includes PTO, manhole, hose boxes, suction pipes, access ladder, and wash boards, ensuring the truck is fully equipped for immediate operation.

---

SPECIFICATION

Category	Item	Parameter
General	Drive Type	6×6
	Overall dimensions (L x W x H)	10,350×2,600×3,490 mm
	G.V.W.	39,500 kg
	Tare Weight	12,200 kg
	Maximum Driving Speed	90 km/h
	Wheelbase	4,600+1,350 mm
Cabin	Make/Model	SINOTRUK/HW76
	Type	Sleeper Cab
	Number of seats	2,3
Engine	Make/Model	Sinotruck/WD615.47
	Type	4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling, diesel engine
	Output Power	273kW/371 HP
	Displacement	9.726 L
	Max. Output Torque/Speed	1500N.m/1100-1600rpm
	Emission standard	Euro II
Transmission	Make/Model	SINOTRUK/HW19710
	Type	MT
	Number of Gears	10F+2R
Clutch	Type	Hydraulically operating with air assistance
Axle	Front Axle Rating	7,500 kg
	Rear Axle Rating	2×16,000 kg
Tire	Tire Size	12.00R20 steel radial tires (mixed tread pattern, 18PR)
	Tire Nos.	10+1 pcs (including one spare tire)
Upper Body	Tank Volume	20,000 liters
	Tank Shape	Elliptical
	Tank Material	5 mm carbon steel
	Pump Brand	China brand
	Functions	Front sprinkler, rear sprinkler, side spray; rear working platform with adjustable water cannon; firefighting connection; overflow valve; self‑suction capability
	PTO	Equipped
	Manhole Cover	1 unit
	Water Hose Boxes	1 on each side of the tank
	Suction Pipes	2 sets × 5 meters
	Access Ladder	1 set (to tank top)
	Wash Boards	2 sets
	Anti‑corrosive Interior Coating	Yes
	Rear Hose Reel	25 meters
	Front/Rear Sprinkler Valves	Pneumatically controlled
