Summary:
The DONGFENG 16CBM Dust Control Spray Truck is a heavy-duty vehicle designed to effectively control dust and other airborne particles. It is equipped with a powerful CUMMINS diesel engine that delivers 245 horsepower and 8-speed manual transmission for smooth operation. The truck’s water spraying system includes a large 16,000-liter tank made of durable carbon steel, a single centrifugal pump, and 80 spraying nozzles to ensure maximum coverage.
Features:
Chassis:
The DONGFENG water spray truck has a size of 8,770 x 2,550 x 3,350mm and a GVW/curb weight of 18,000kg/8,270kg. It has a wheelbase of 4,700mm, with a front/rear axle of 6.5/11.5T and 11.00R20 6+1 tires for improved traction and stability.
Engine and Transmission:
This municipal truck is equipped with a diesel engine from CUMMINS, model ISDe245 30, with a power output of 245 horsepower and Euro 3 emission standards. It is mated to an 8-speed manual transmission from FAST, model 8JS85E, which offers smooth gear shifts and easy operation.
Cabin:

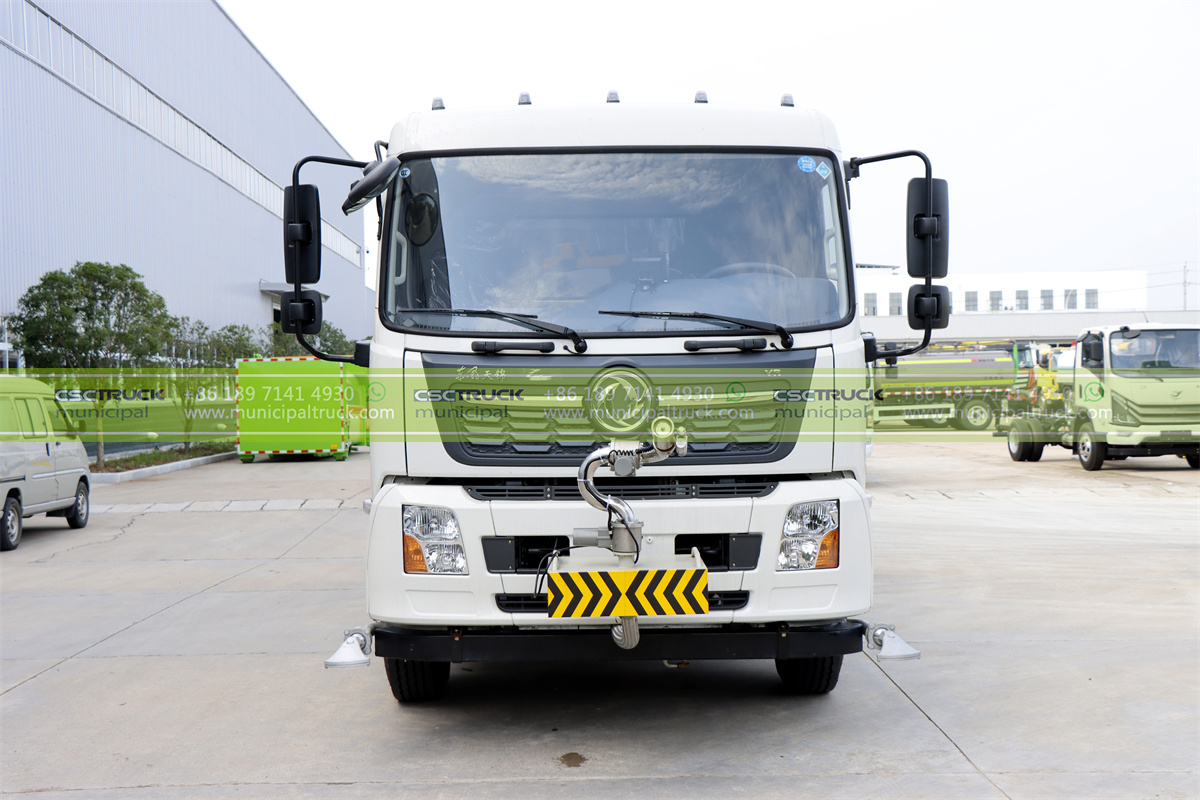

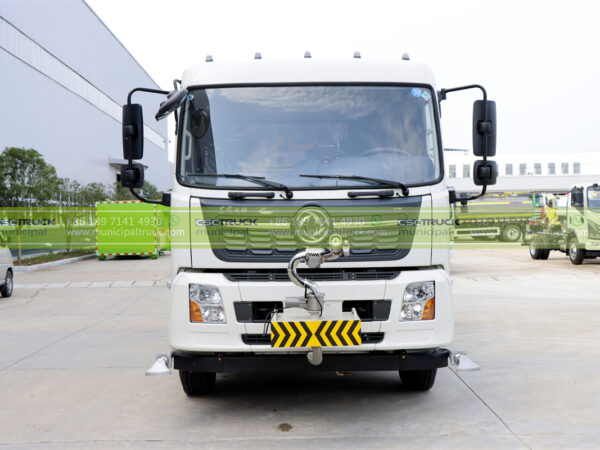

The cabin of the DONGFENG 16CBM Dust Control Spray Truck is a steel construction with a single row and flat design. It features a Dongfeng KR 4×2 day cab, left-hand drive, with a passenger capacity of three.
Watering System:

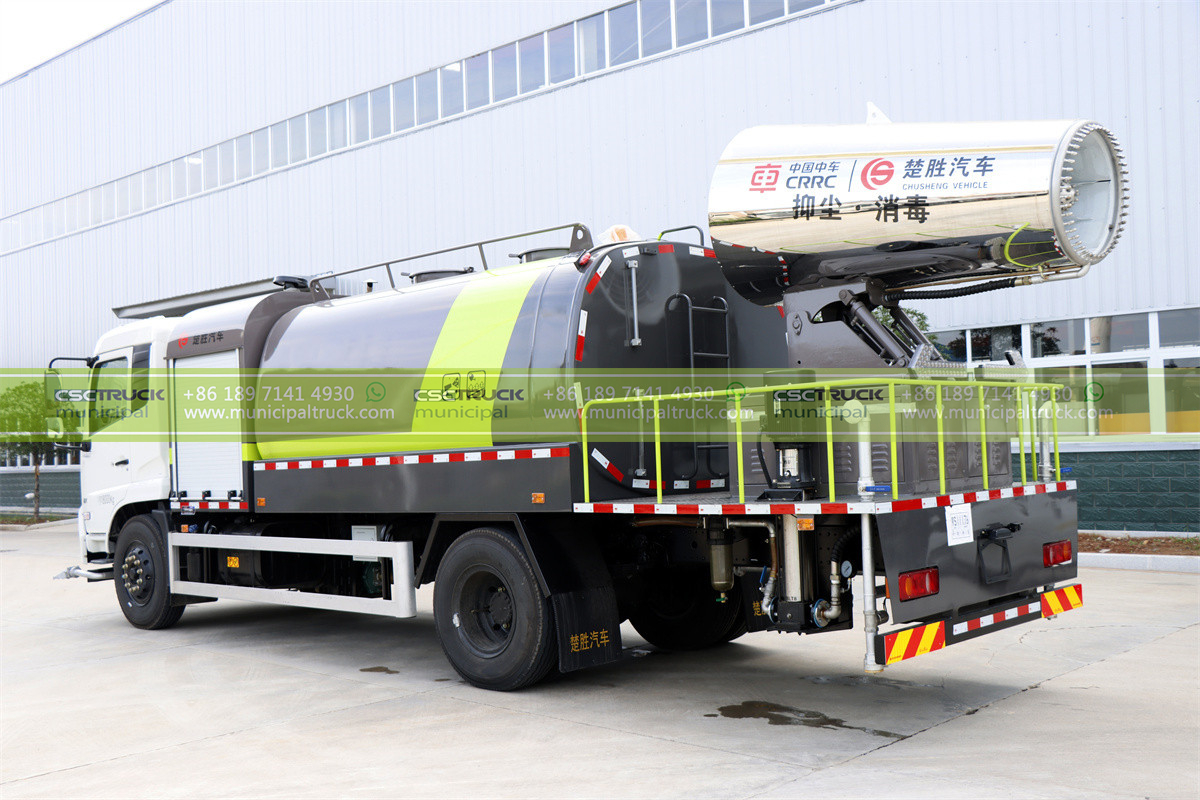

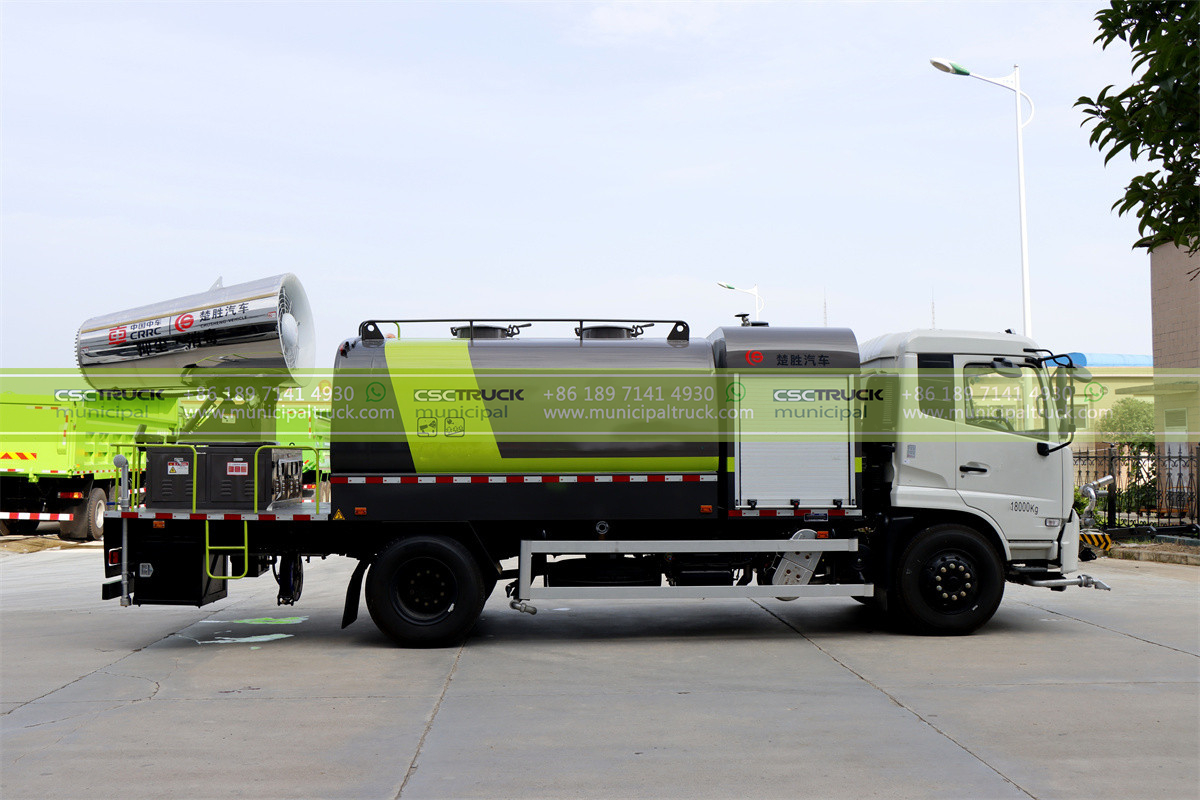

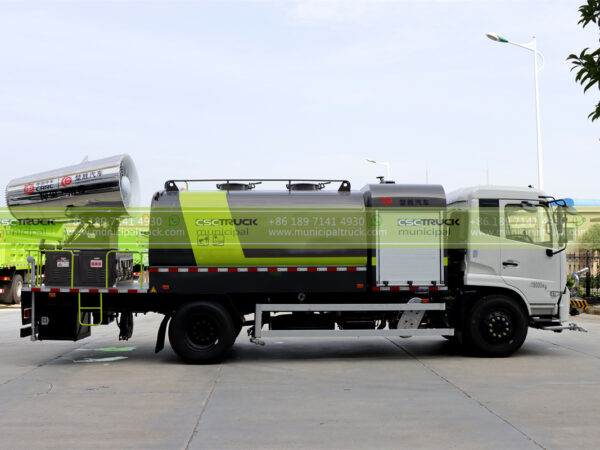

The water spraying system of this truck has a large 16,000-liter tank made of durable carbon steel, which is capable of effectively suppressing dust and airborne particles. It is equipped with a single centrifugal pump, a multistage centrifugal pump, and 80 spraying nozzles for maximum coverage.
Performance:

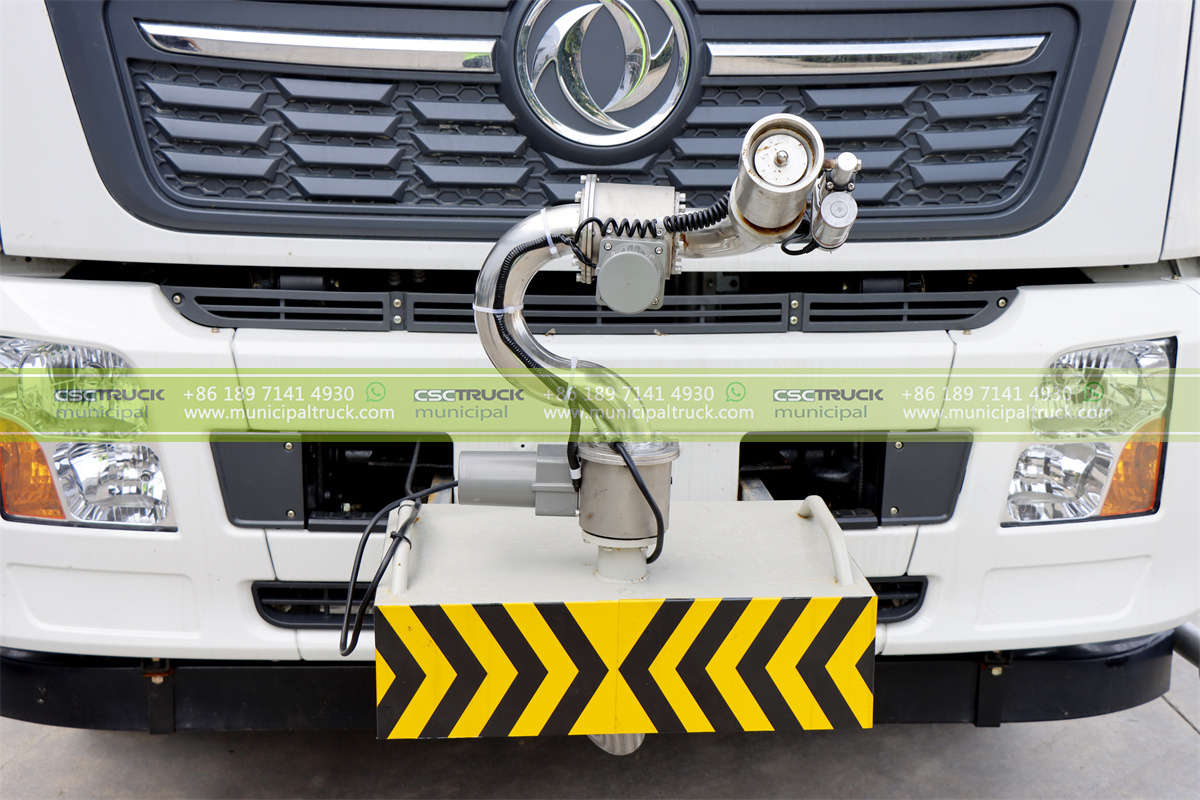

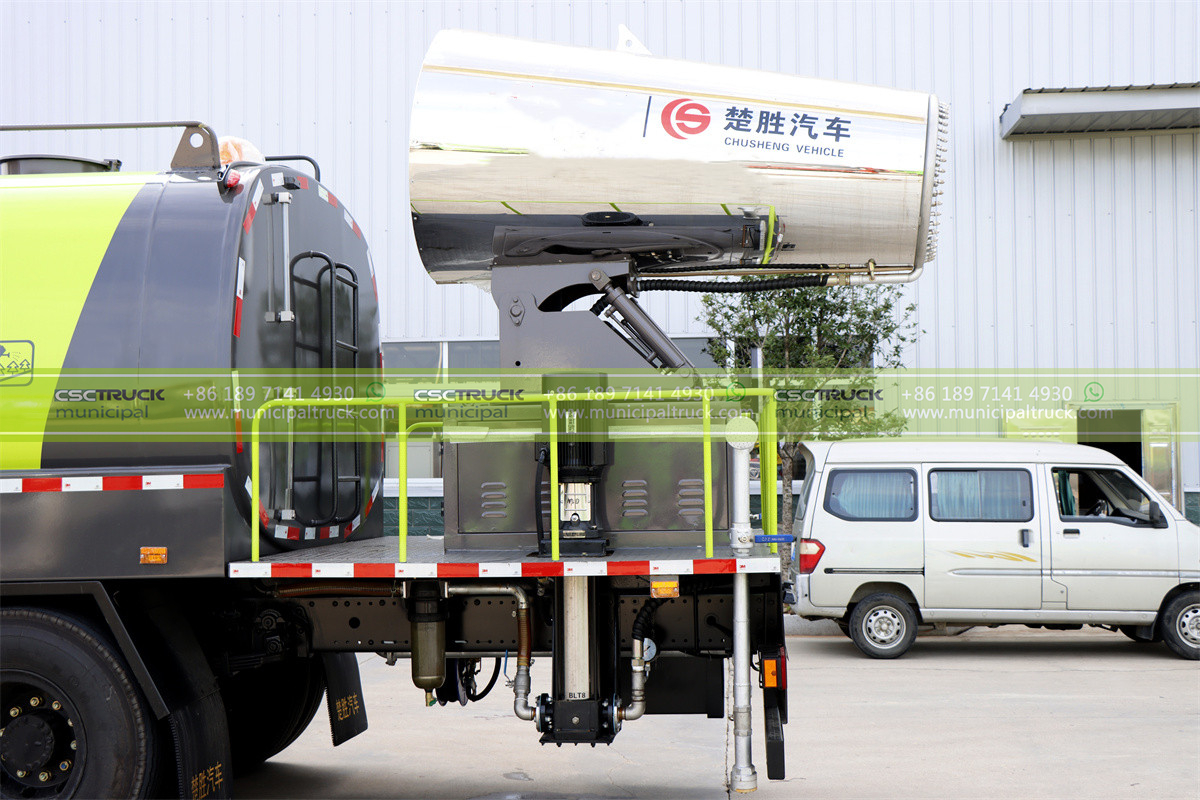

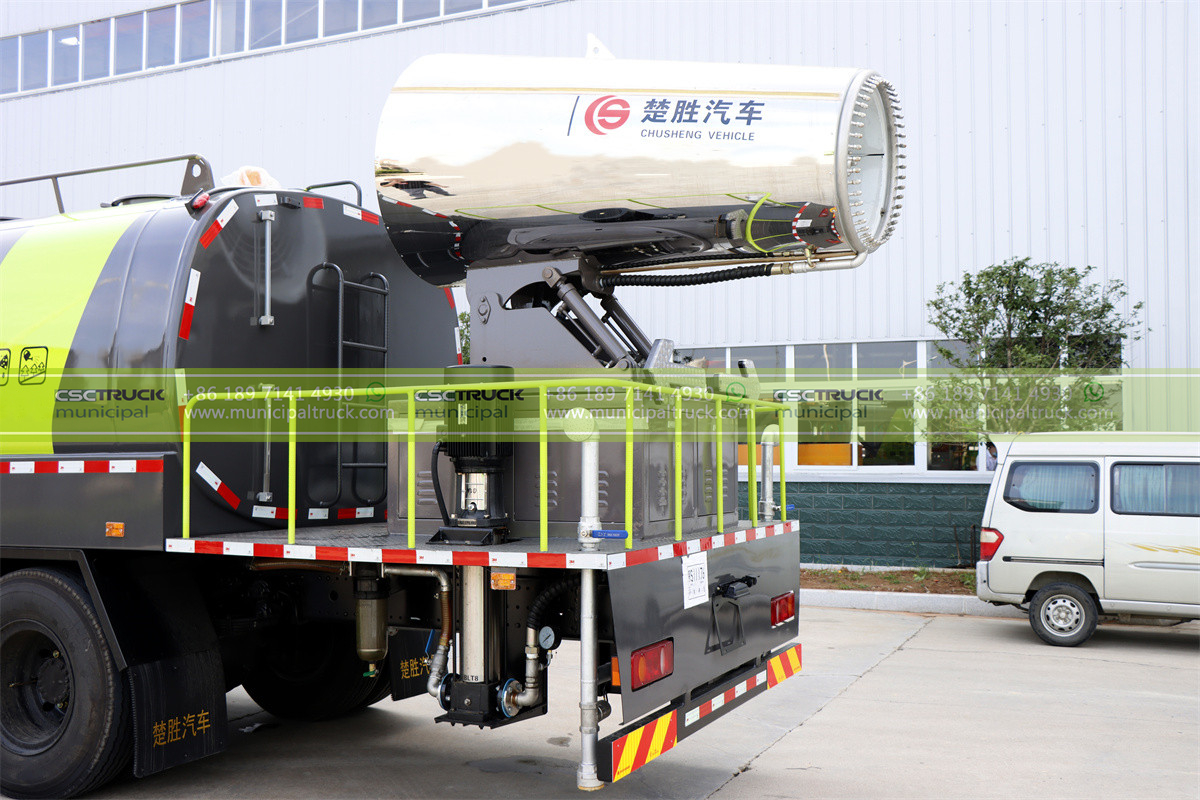

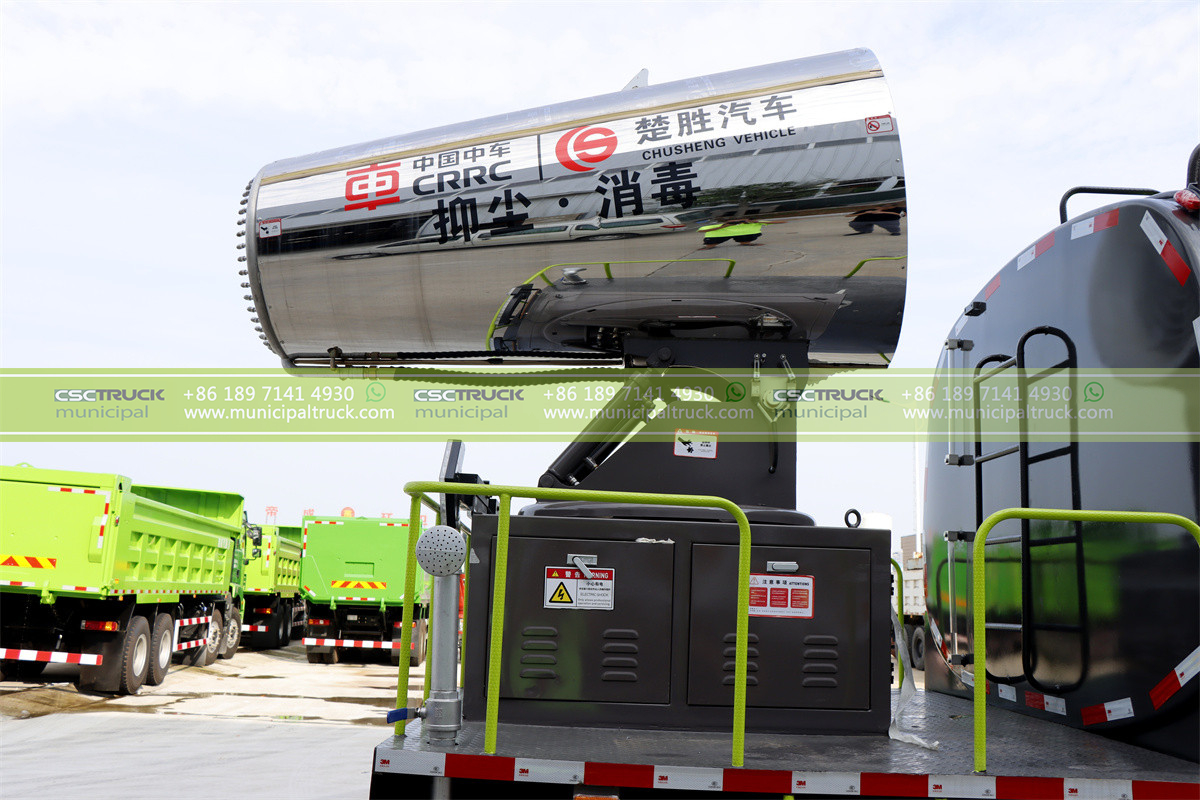

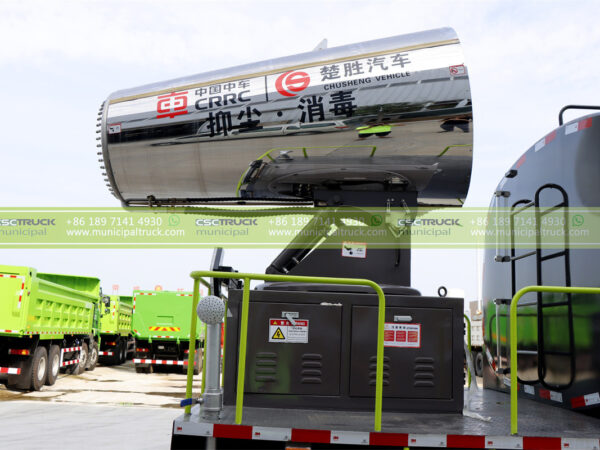

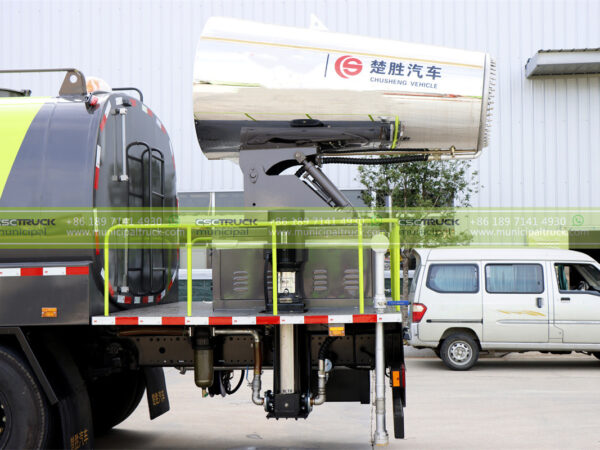

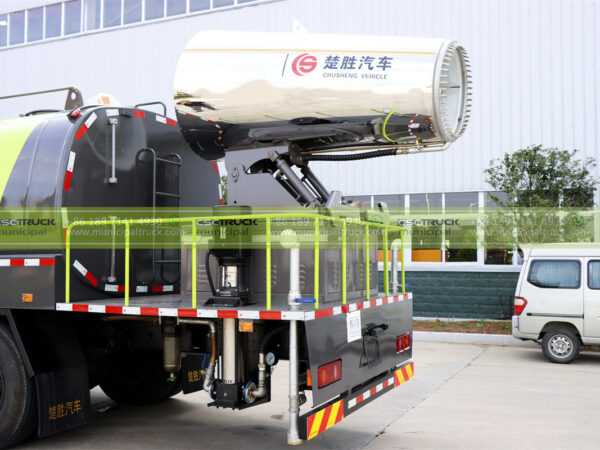

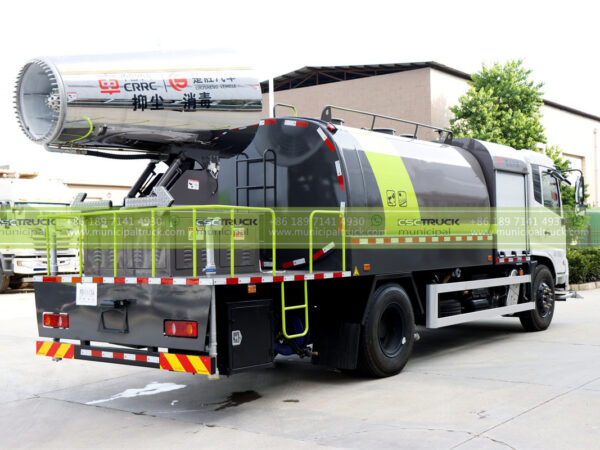

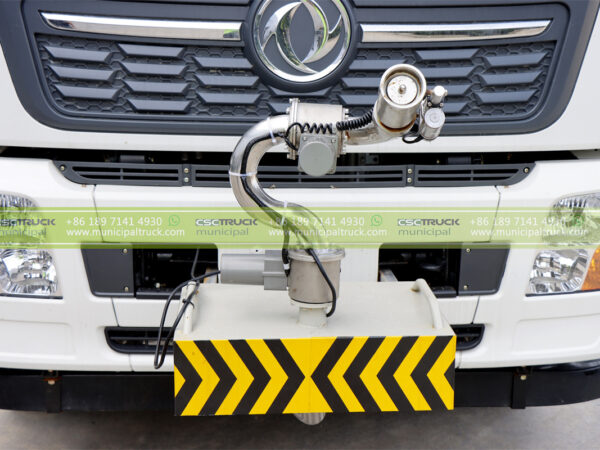

The DONGFENG 16CBM Dust Control Spray Truck has a front spraying pipe of 14-18m and a rear spraying range of 5-9m. It has a spray range of 0-80m and a fan machine power of 37 kW, with an air wind capacity of 127,500 m3/h and an air pressure of 3,106 Pa. The truck’s plunger pump has a flow rate of 160-200L/m. The truck’s control method is manual, electric, or wireless remote control.
In conclusion, the DONGFENG 16CBM Dust Control Spray Truck is a reliable and efficient vehicle designed to effectively control dust and other airborne particles. Its powerful engine, large water tank, and advanced spraying system make it an ideal choice for various industrial applications.
Specifications:
| Chassis | |
| Size | 8,770×2,550×3,350mm |
| GVW/Curb Weight | 18,000kg/8,270kg |
| Wheelbase | 4,700mm |
| Front/Rear Axle | 6.5/11.5T |
| Tire | 11.00R20 6+1 tires |
| Engine | |
| Type | Diesel |
| Make/Model | CUMMINS/ISDe245 30/245hp/Euro 3 |
| Transmission | |
| Make/Model | FAST/8JS85E |
| Gears | 8F+2R |
| Operation | Manual |
| Cabin | |
| Driving | Dongfeng KR 4×2 Day Cab, Left-hand Drive |
| Type | Steel construction, Single Row, Flat |
| Passenger No. | 3 |
| Watering System | |
| Tanker Capacity | 16,000L |
| Material | Carbon steel, 6mm thickness |
| Performance | |
| Front Spraying Pipe | 14~18m |
| Rear Spraying | 5~9m |
| Spray Range | 0~80m |
| Fan Machine Power | 37 kW |
| Fan Air Wind Capacity | 127,500 m3/h |
| Air Pressure | 3,106 Pa |
| Plunger Pump Type | Single centrifugal pump Multistage centrifugal pump |
| Flow Rate | 160~200L/m |
| Spraying Nozzle No. | 80pcs |
| Control Method | Manual/Electric/Wireless remote control |
