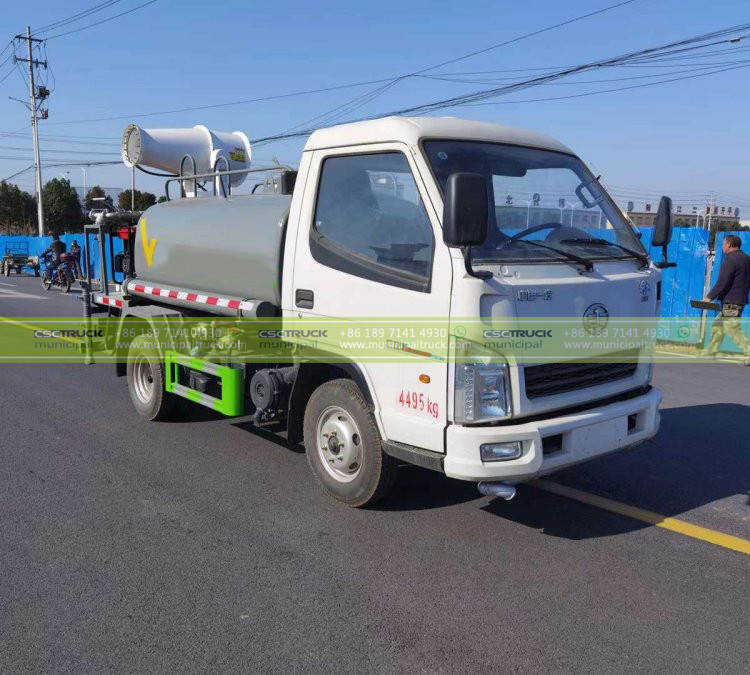

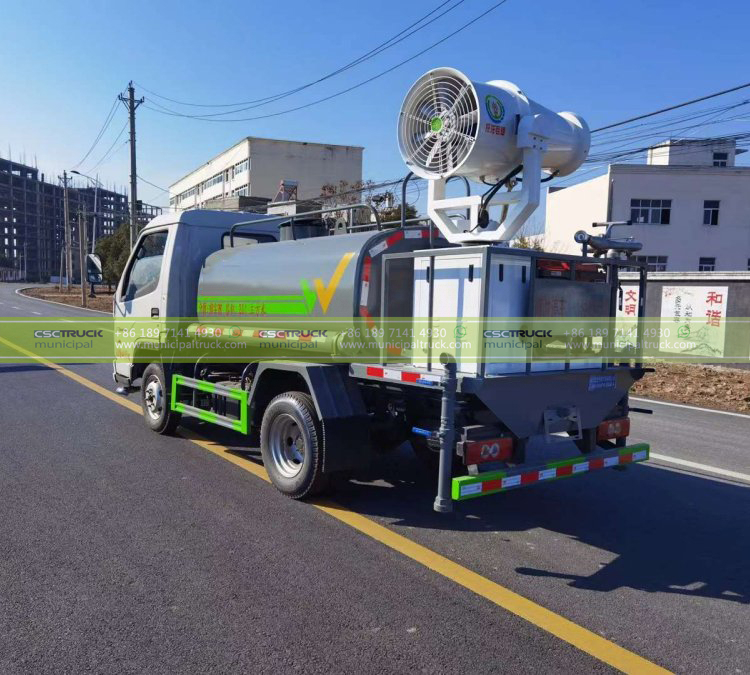

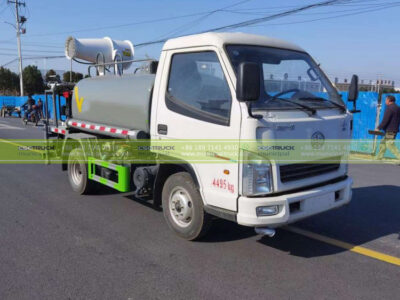

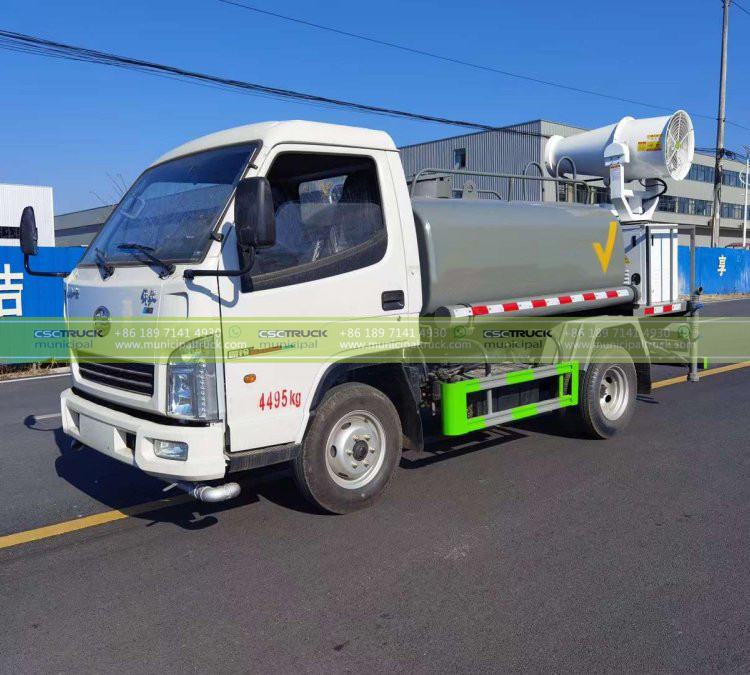

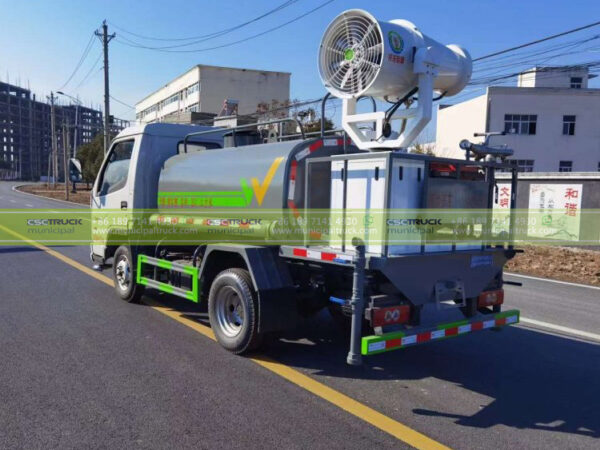

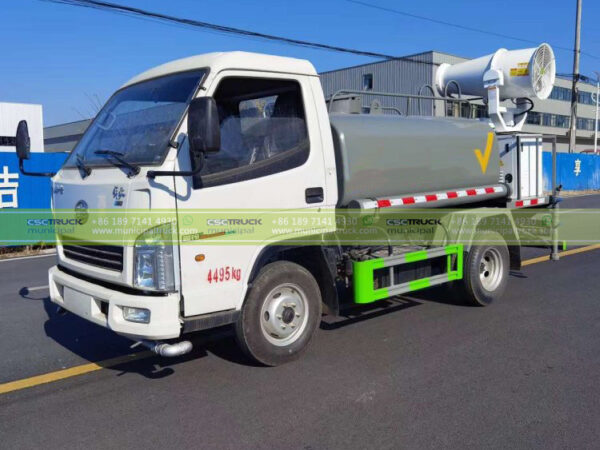

Introducing the FAW 5CBM dust control tank truck, the perfect solution for all your dust suppression needs. Designed and manufactured by CSCTRUCK, this truck offers a range of features and specifications that make it a versatile and reliable vehicle for any dust control operation.
Chassis:
The FAW 5CBM dust control tank truck has a compact size of 5,995×2,050×2,650mm, making it easy to navigate through narrow streets and tight spaces. It has a GVW/Curb Weight of 7,360kg/4,450kg and a wheelbase of 3,300mm. The front and rear axles are 2.64/4.72T, respectively. The truck comes with 7.00R16 6+1 tires, ensuring excellent stability and durability on all types of terrains.
Engine:
Powered by a WEICHAI/WP3Q130E50 diesel engine with 130 horsepower and Euro 5 emission standards, the FAW 5CBM dust control tank truck offers reliable and efficient performance. The engine is designed to be fuel-efficient and low in emissions, making it environmentally friendly.
Transmission:
The FAW 5CBM dust control tank truck comes with a WLY535 manual transmission with 5 forward gears and 1 reverse gear. The transmission offers smooth and precise gear shifting, ensuring a comfortable and safe ride.
Cabin:

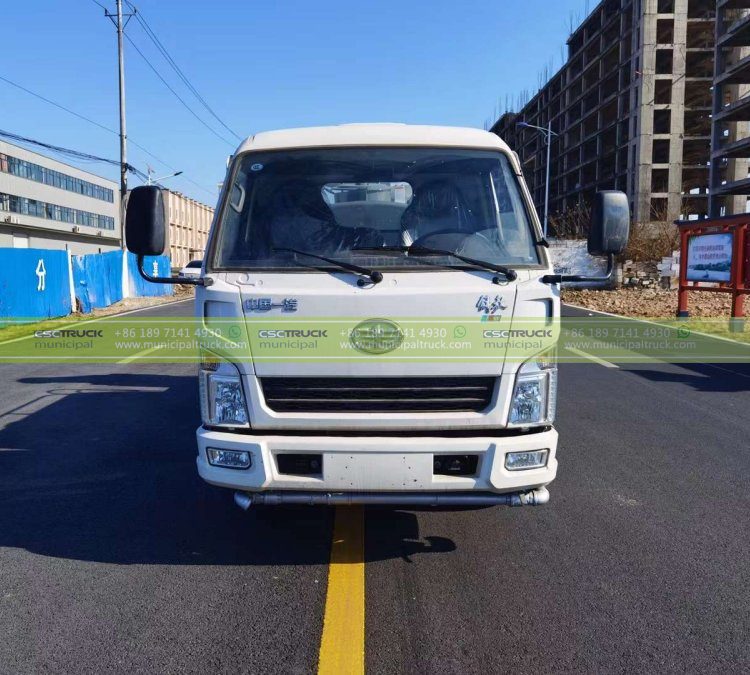

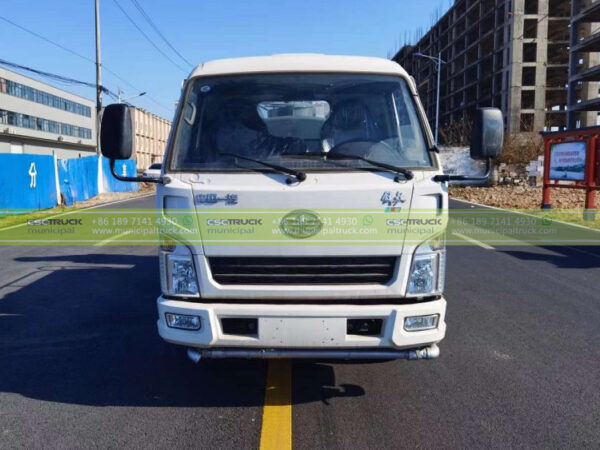

The driving cabin of the FAW 5CBM dust control tank truck is a FAW Tiger VH 4×2 Day Cab, Left-hand Drive, which can accommodate up to three passengers. The cabin is made of steel construction and is a single-row and flat design. The cabin is designed to offer a comfortable and safe driving experience for the driver and passengers.
Watering System:

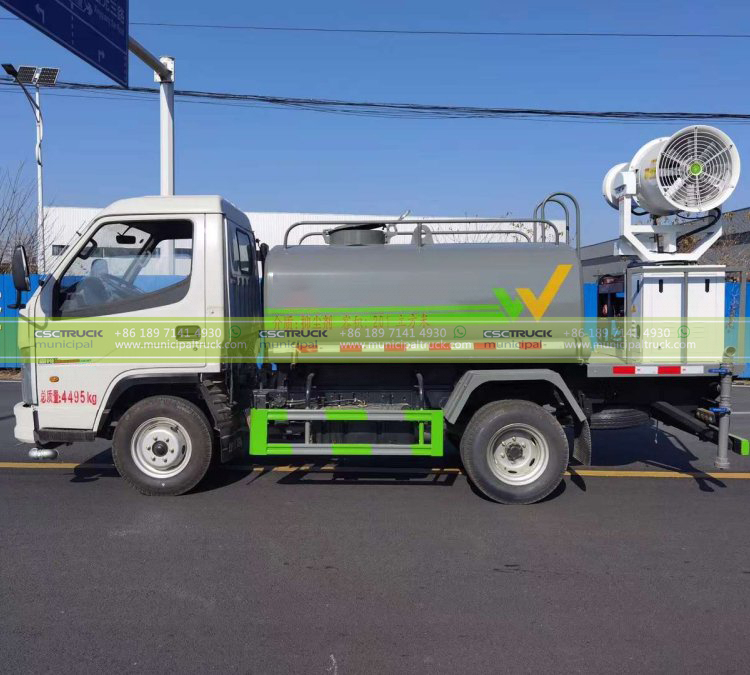

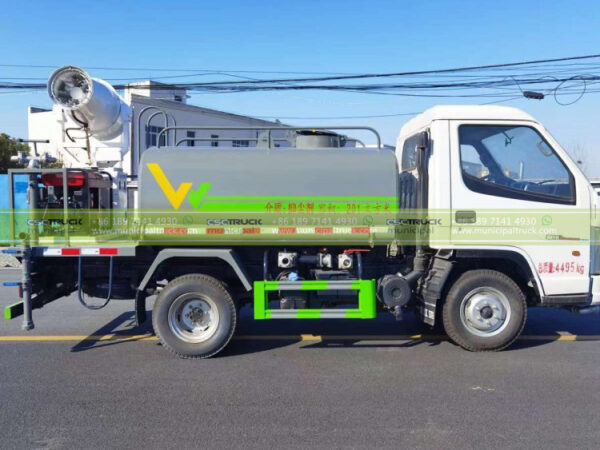

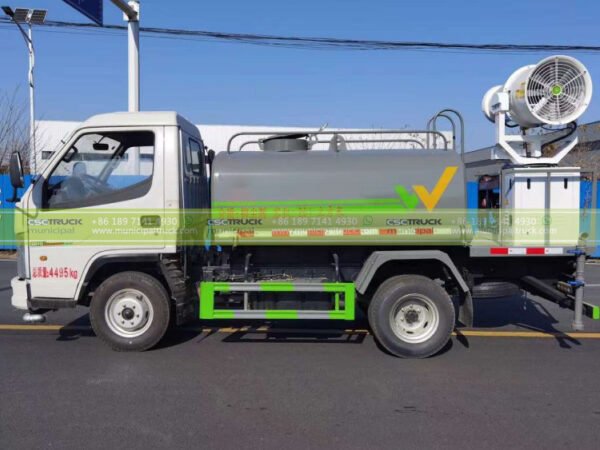

The FAW 5CBM dust control tank truck has a tanker capacity of 5,000L, and the tank material is made of carbon steel with 6mm thickness. The truck is equipped with 80 spraying nozzles, and the control method is manual/electric/wireless remote control.
The FAW 5CBM dust control tank truck is an excellent choice for those looking for a reliable and efficient dust suppression vehicle. With its compact size, fuel-efficient engine, and versatile features, this truck is ideal for a wide range of applications, including construction sites, mining sites, and road maintenance operations.
| Chassis | |
| Size | 5,995×2,050×2,650mm |
| GVW/Curb Weight | 7,360kg/4,450kg |
| Wheelbase | 3,300mm |
| Front/Rear Axle | 2.64/4.72T |
| Tire | 7.00R16 6+1 tires |
| Engine | |
| Type | Diesel |
| Make/Model | WEICHAI/WP3Q130E50/130hp/Euro 5 |
| Transmission | |
| Make/Model | WLY535 |
| Gears | 5F+1R |
| Operation | Manual |
| Cabin | |
| Driving | FAW Tiger VH 4×2 Day Cab, Left-hand Drive |
| Type | Steel construction, Single Row, Flat |
| Passenger No. | 3 |
| Watering System | |
| Tanker Capacity | 5,000L |
| Material | Carbon steel, 6mm thickness |
| Performance | |
| Front Spraying Pipe | 14~18m |
| Rear Spraying | 5~9m |
| Spray Range | 0~80m |
| Fan Machine Power | 37 kW |
| Fan Air Wind Capacity | 127,500 m3/h |
| Air Pressure | 3,106 Pa |
| Plunger Pump Type | Single centrifugal pump Multistage centrifugal pump |
| Flow Rate | 160~200L/m |
| Spraying Nozzle No. | 80pcs |
| Control Method | Manual/Electric/Wireless remote control |
