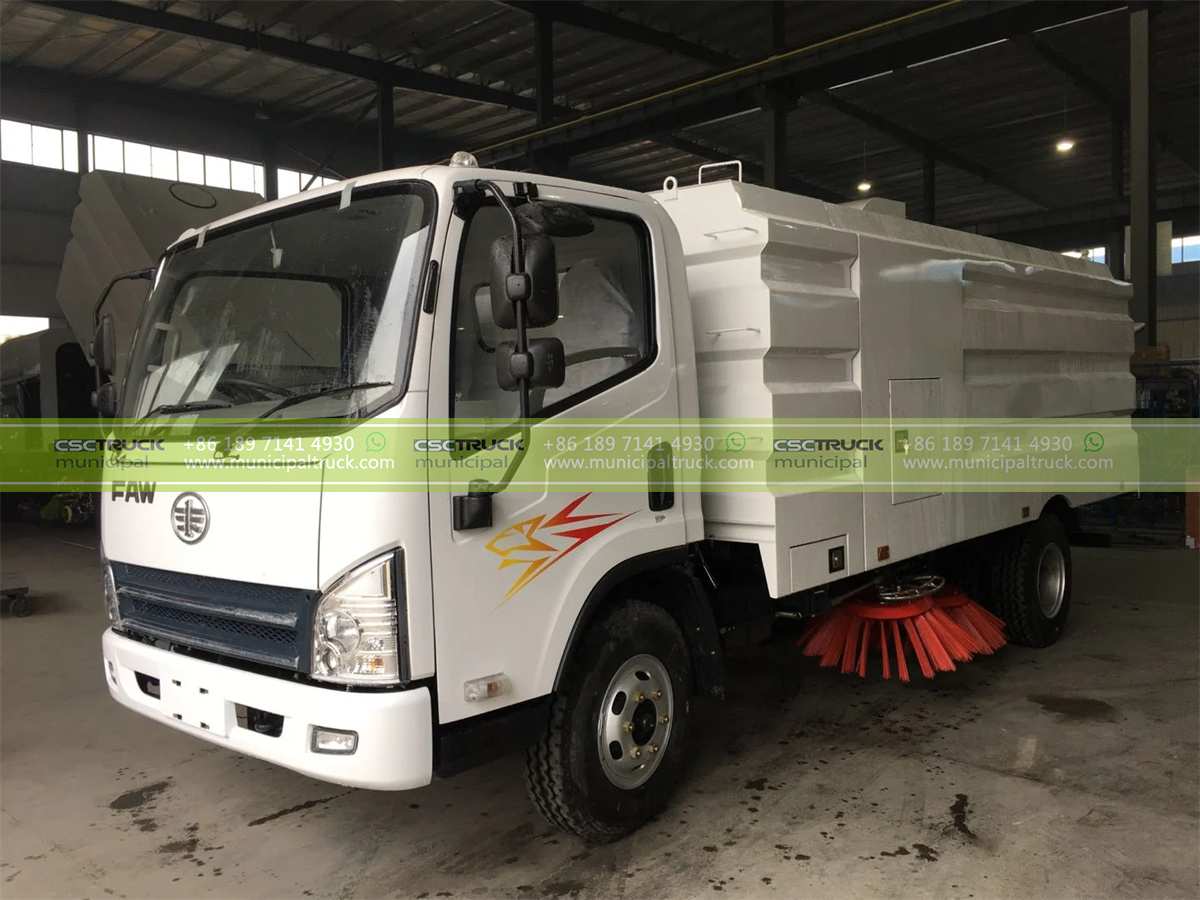

Introducing the FAW 5CBM street sweeper truck, the latest addition to the CSCTRUCK lineup. With its impressive specifications and cutting-edge features, this street sweeper truck is designed to provide efficient and reliable cleaning services to any municipality, city, or commercial area.
Chassis:
Built on a sturdy FAW chassis, the FAW 5CBM street sweeper truck measures 5,995×2,050×2,600mm in size and has a GVW/Curb Weight of 7,360kg/4,950kg. It comes with a 3,600mm wheelbase, 2.64T/4.72T front/rear axle, and 7.00R16 6+1 tires, making it perfect for navigating tight city streets.
Engine and Transmission:
Powered by a Diesel engine, the FAW 5CBM street sweeper truck is equipped with a DACHAI/CA498E3-12 engine that delivers 120hp and meets Euro 3 emissions standards. The truck has a WLY/WLY535 transmission, 5F+1R gears, and manual operation.
Cabin:
The FAW 5CBM street sweeper truck has a comfortable cabin designed for the driver’s convenience. It features a steel construction, single row, flat type, and can accommodate up to three passengers. The driving position is located on the right-hand side, making it easier to navigate through narrow city streets.
Body System:

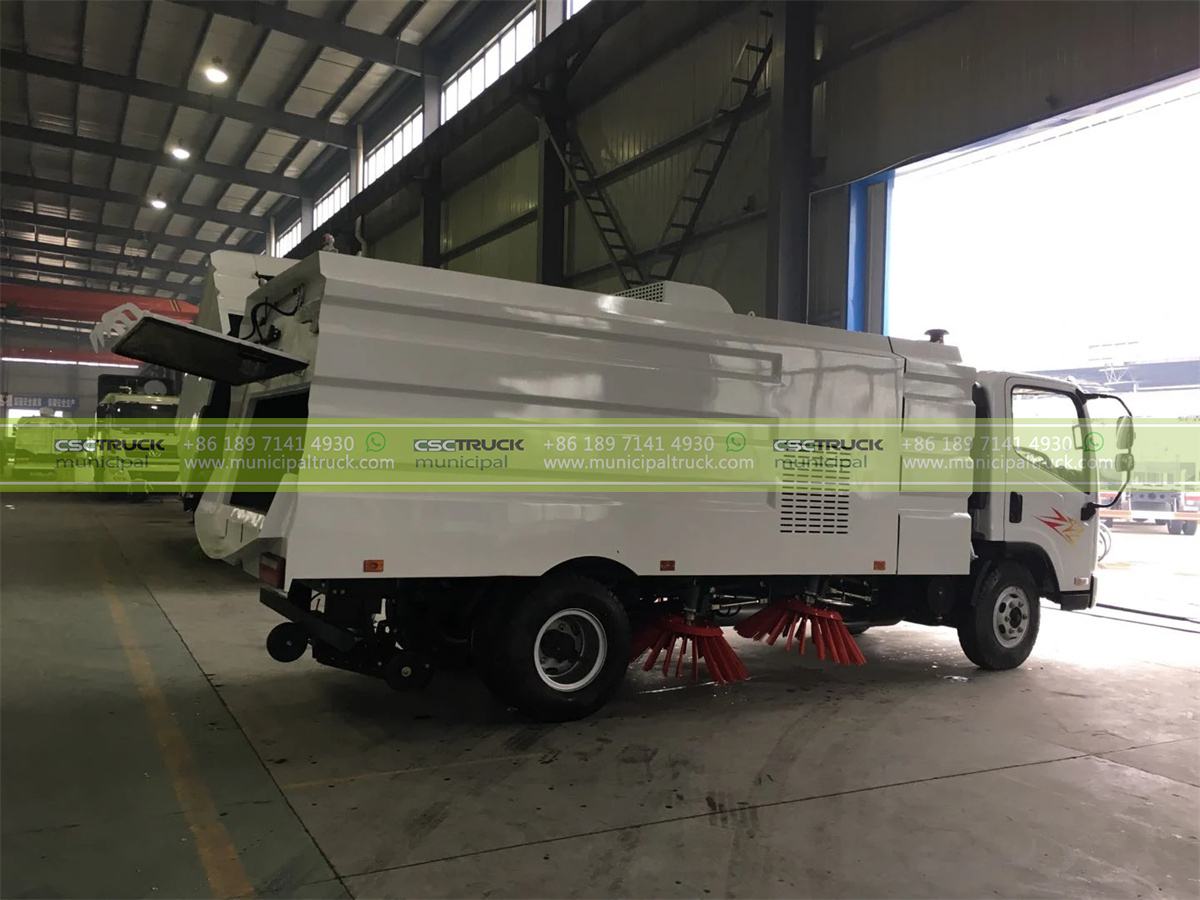

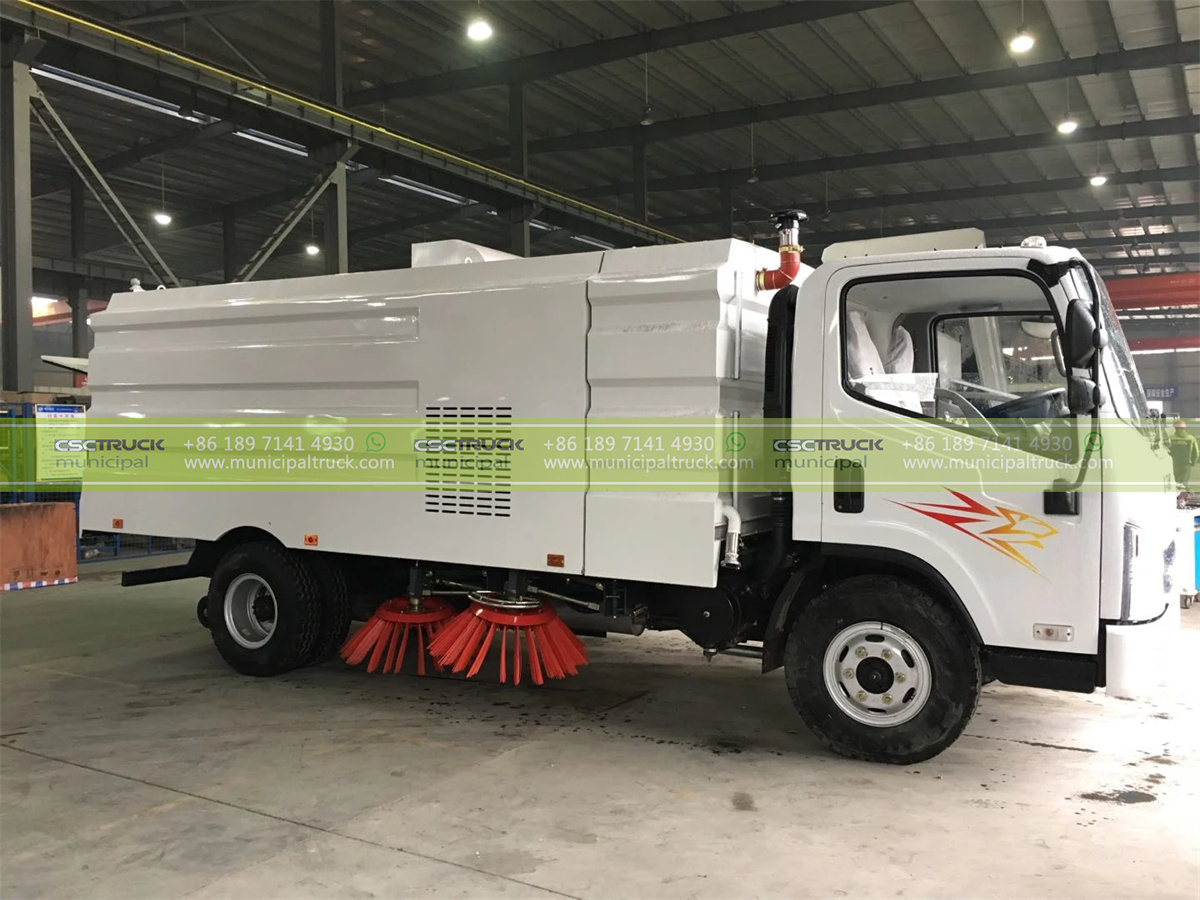

The FAW 5CBM street sweeper truck has a stainless steel 304 body that features a 5CBM capacity, with a 4m³ garbage tank and a 1,000L water tank. The tank body is 6mm thick and is designed to be durable and long-lasting. The truck comes equipped with a JMC auxiliary engine that provides 87HP power, as well as a high-pressure, centrifugal, sweeping truck-specific air blower that can work at speeds between 2600～2900r/min.
Sweeping Equipment:

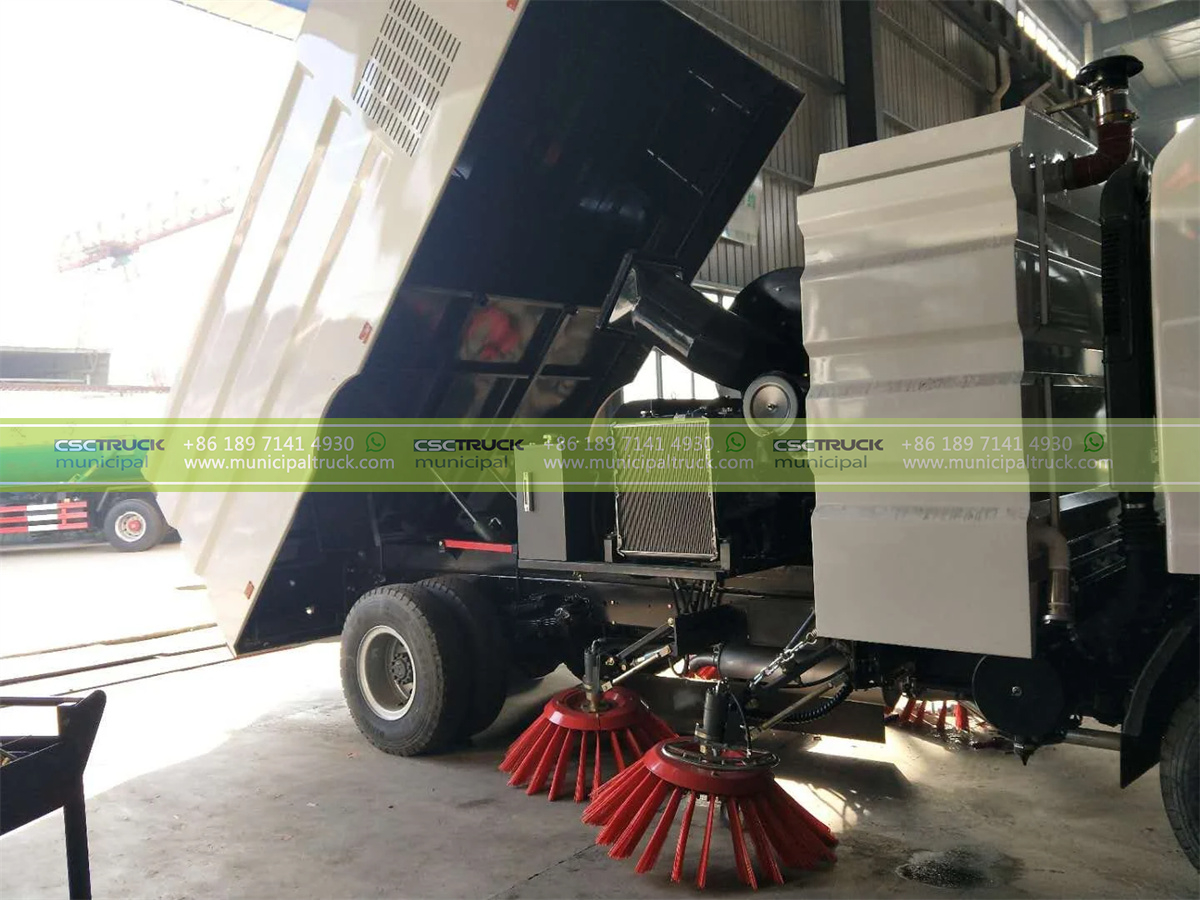

The FAW 5CBM street sweeper truck is equipped with a four-disc typed broom that is symmetrically mounted on the right and left sides of the truck, driven by motors, and is located between the front and rear axles. The sweeping width is adjustable between 2.6~3.2m, making it perfect for cleaning wide streets or narrow alleys.
Suction Equipment:
The FAW 5CBM street sweeper truck is equipped with a full-floating suction nozzle that operates independently, with a hydraulic raise & lower 200mm diameter suction port. It can inhale particles up to 100mm in size, ensuring that the streets are clean and free of debris.
In conclusion, the FAW 5CBM street sweeper truck is the perfect choice for municipalities, cities, and commercial areas that require efficient and reliable cleaning services. With its impressive specifications and features, it is sure to provide a clean and safe environment for everyone.
| Chassis | FAW |
| Size | 5,995×2,050×2,600mm |
| GVW/Curb Weight | 7,360kg/4,950kg |
| Wheelbase | 3,600mm |
| Front/Rear Axle | 2.64T/4.72T |
| Tire | 7.00R16 6+1 tires |
| Engine | |
| Type | Diesel |
| Make/Model | DACHAI/CA498E3-12/120hp/Euro3 |
| Transmission | |
| Make/Model | WLY/WLY535 |
| Gears | 5F+1R |
| Operation | Manual |
| Cabin | |
| Driving | FAW Tiger VR 4×2 Day Cab, Right-hand Drive |
| Type | Steel construction, Single Row, Flat |
| Passenger No. | 3 |
| Body System | |
| Tanker Capacity | 5CBM(4m³ garbage tank+1,000L water tank) |
| Material | Stainless steel 304 |
| Thickness | Tank Body 6mm |
| Auxiliary Engine | |
| Brand | JMC |
| Power | 87HP |
| Air Blower | |
| Type | High-pressure, centrifugal, sweeping truck specific
used blower |
| Working Speed | 2600～2900r/min |
| Driving Mode | Drive by an ancillary engine, automatic clutch, V belt
powered |
| Sweeping Equipment | |
| Type | Four-disc typed brooms equipped between the front and rear axle, symmetric on the right and left side of the truck driven by motors. |
| Sweep Width | 2.6~3.2m. |
| Suction Equipment | |
| Type | Full-floating suction nozzle, independent forward operation, hydraulic raise & lower 200mm diameter
suction port |
| Maximum Inhalation Particle Size | ≥100mm |
