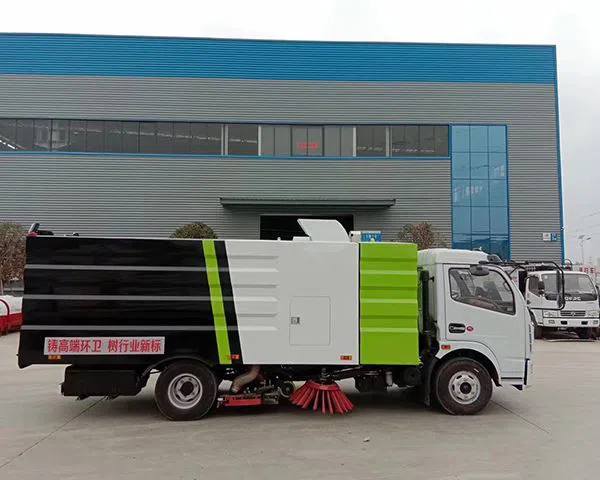

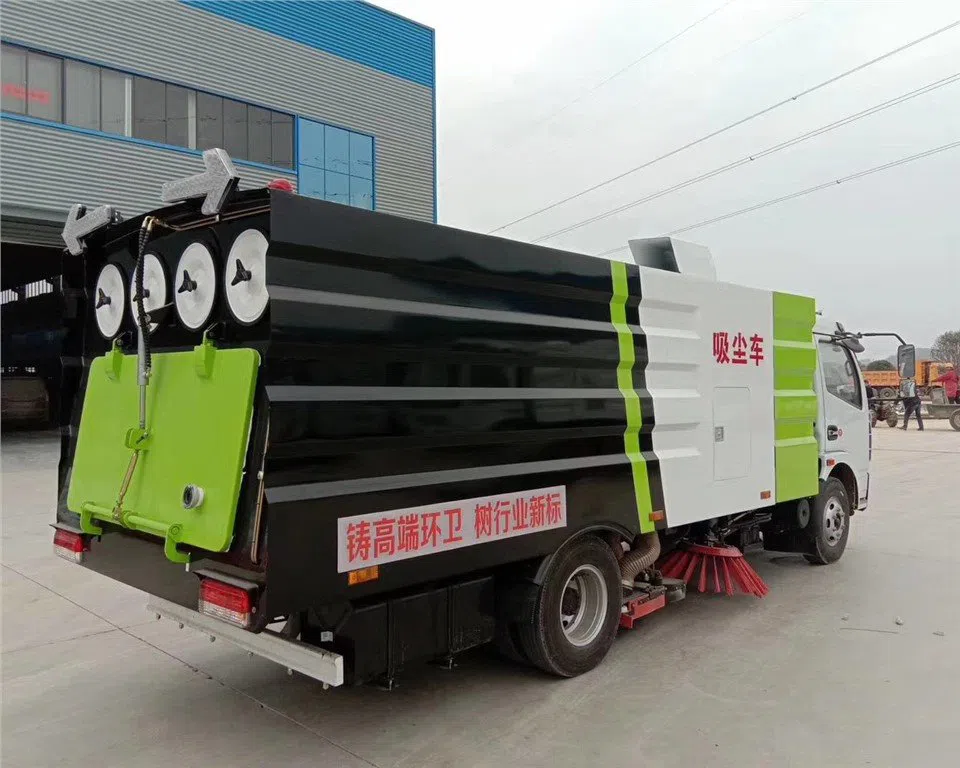

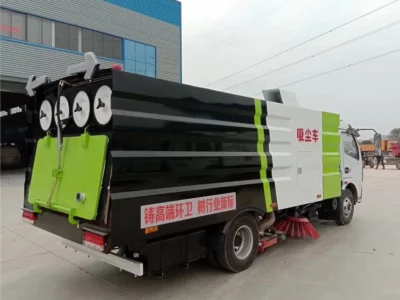

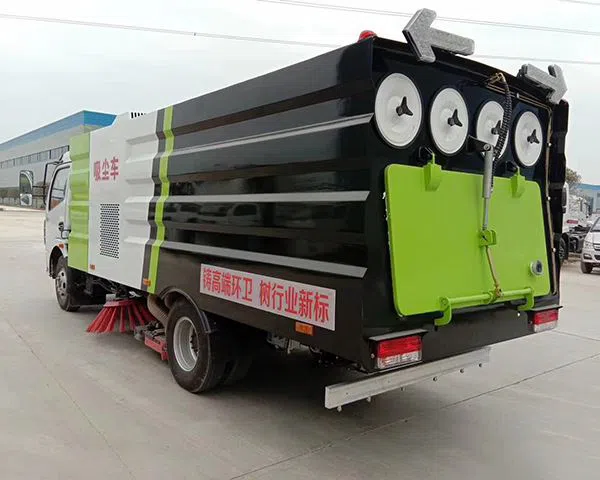

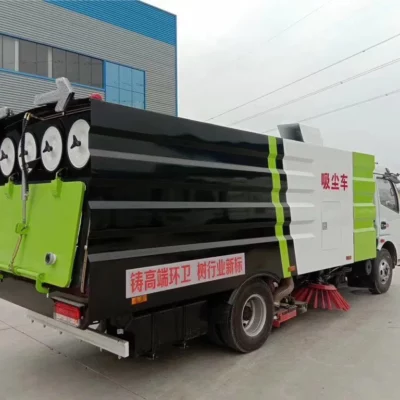

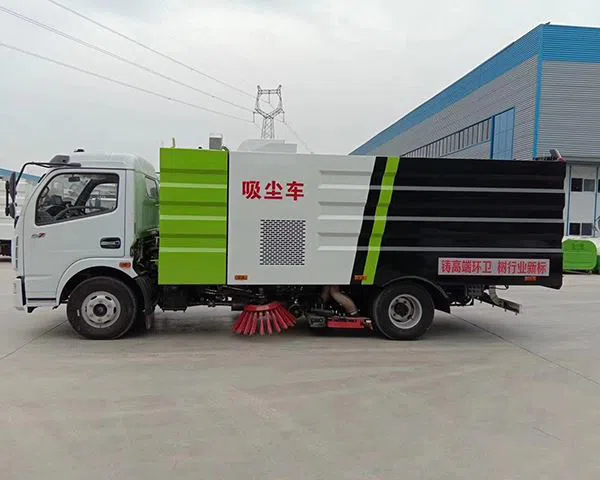

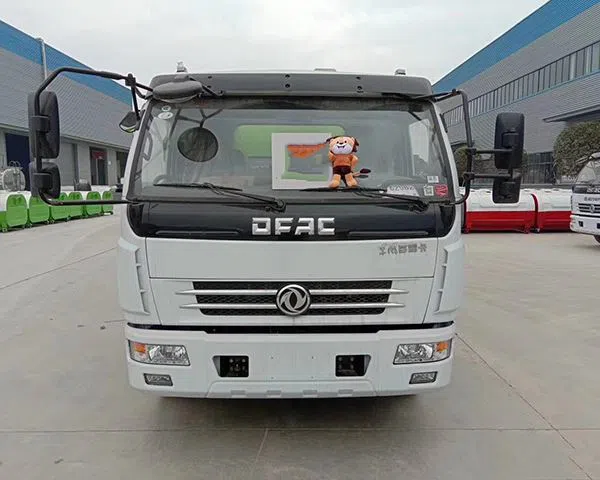

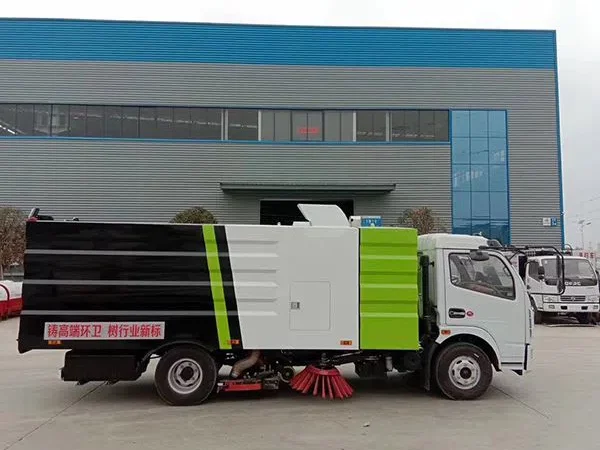

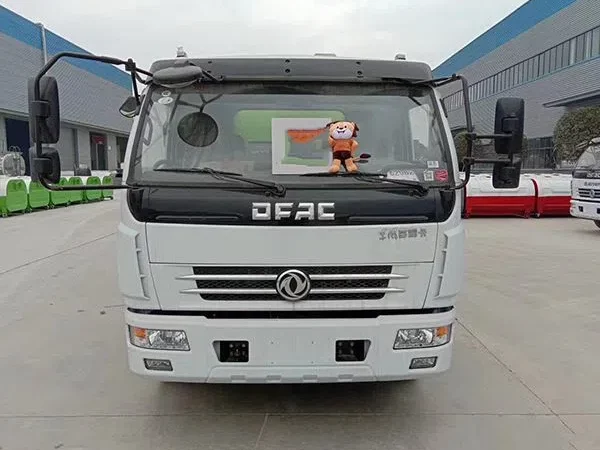

The road sweeper adopts Dongfeng Dolica chassis (wheelbase 3308mm), with auxiliary engines, fans, clean water tanks, trash cans, left and right vertical sweepers, rear suction cups, sweeping disc dust reduction system, hydraulic system, and special electric control system and the sub-frame are refitted (can be equipped with front flushing and rear sprinkling).
Model Number: CSC5075TSLEQ6
water tank capacity/garbage tank capacity（m³）: 1.5/4
Outer size (mm): 6190*1990*2590
Cleaning width: 2.8m
Cleaning efficient: 7 m/s
1-As one of the sanitation equipment, the road sweeper is a new type of efficient cleaning equipment integrating road cleaning, garbage recycling and transportation. It can be widely used in city streets, municipal squares, airport roads, urban residential areas, parks and other road cleaning operation. The road sweeper can not only clean up garbage, but also clean the air medium on the road to ensure the cleanliness of the road, prevent dust from flying, maintain the good working condition of the road, reduce and prevent the occurrence of traffic accidents and further The terrain of the road is extended, which saves time, effort and efficiency.

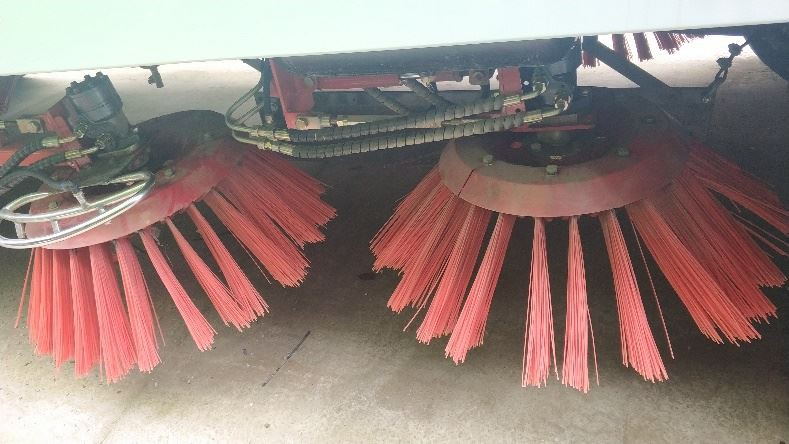

2-The road sweeper adopts the arrangement structure of “four vertical sweepers in the middle + rear suction cup”. The sweeper is used to clean the garbage and dirt on the ground. During operation, the sweeper sweeps the garbage to the bottom of the vehicle from the outside to the inside, and then passes through the suction nozzle. Suck the garbage into the trash tank.
3- The rear suction nozzle and three height-adjustable nozzle wheels can ensure a reasonable gap between the suction nozzle and the road surface, so as to achieve a better suction effect and higher dirt suction efficiency. There is a spray pipe above the suction nozzle, which plays a role of secondary dust reduction.
4- The truck can be equipped with front and rear sprays to save water while eliminating secondary pollution and beautifying the road.
|Sweep box||Auxiliary engine||Euro3 62KW|
|water tank capacity/garbage tank capacity（m³）||1.5/4|
|cleaning width （m）||2.8|
|Cleaning efficient （m/s）||7|
|Max tipping angle of the garbage tank/time（°/s）||45/30|
|Max tipping angle of the rear door /time（°/s）||90/10|
