| Chassis | |
| Size | 10150×2500×3360mm |
| GVW/Curb Weight | 25,000kg/15,600kg |
| Wheelbase | 4300+1350mm |
| Front/Rear Axle | 8/17Tx2 |
| Tire | 12.00R20 10+1 tires |
| Engine | |
| Type | Diesel |
| Make/Model | SINOTRUK/WD615.47/371hp/Euro 2 |
| Transmission | |
| Make/Model | HW19710 |
| Gears | 10F+2R |
| Operation | Manual |
| Cabin | |
| Driving | SINOTRUK HOWO 6×4 Night Cab, Right-hand Drive |
| Type | Steel construction, Single Row, Flat |
| Passenger No. | 3 |
| Body System | |
| Tanker Capacity | 20CBM(8m³ garbage tank+12,000L water tank) |
| Material | Stainless steel 304 |
| Thickness | Tank Body 6mm |
| Auxiliary Engine | |
| Brand | CUMMINS |
| Power | 140HP |
| Air Blower | |
| Type | High-pressure, centrifugal, sweeping truck specific
used blower |
| Working Speed | 2600～2900r/min |
| Driving Mode | Drive by an ancillary engine, automatic clutch, V belt
powered |

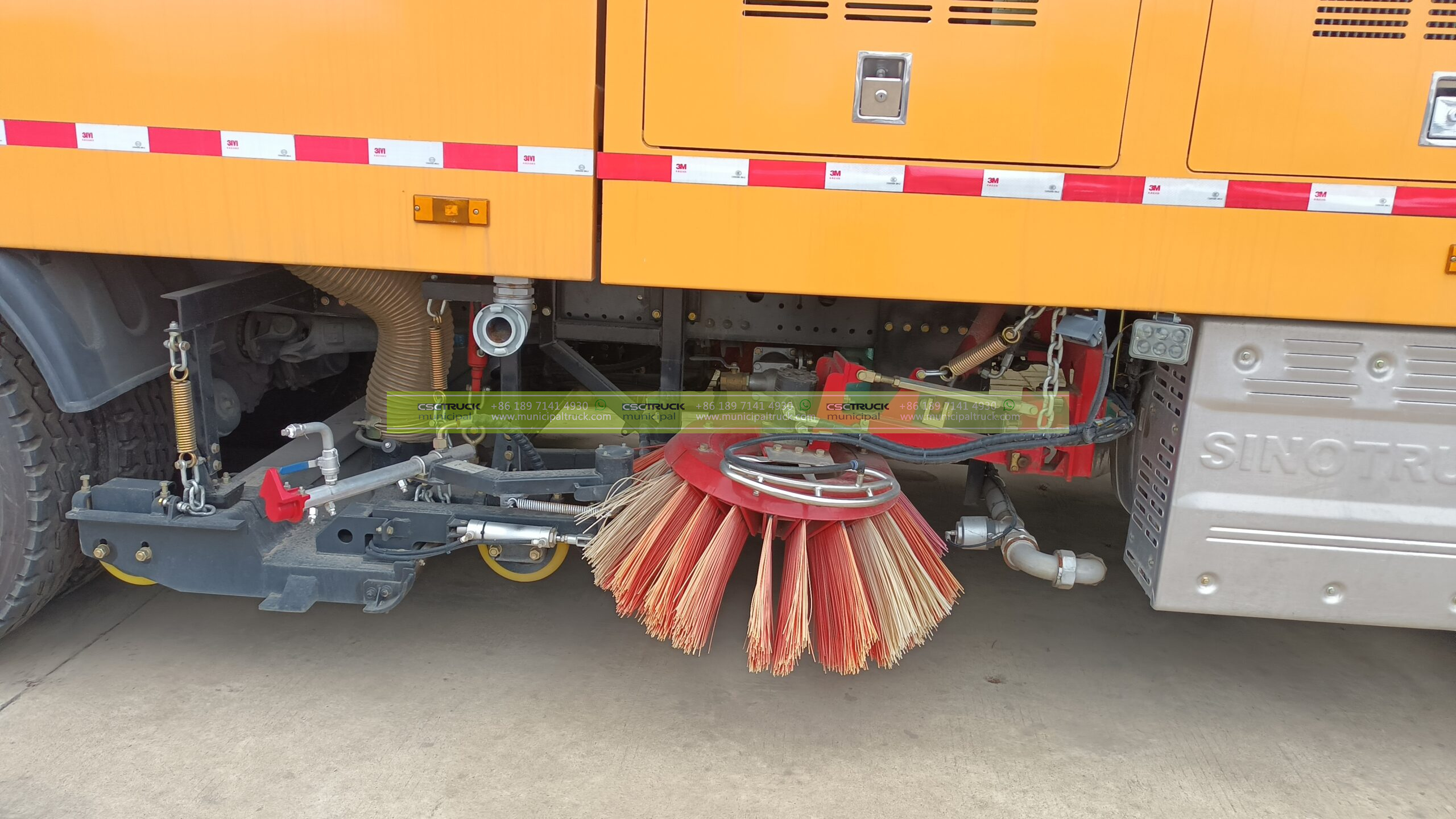

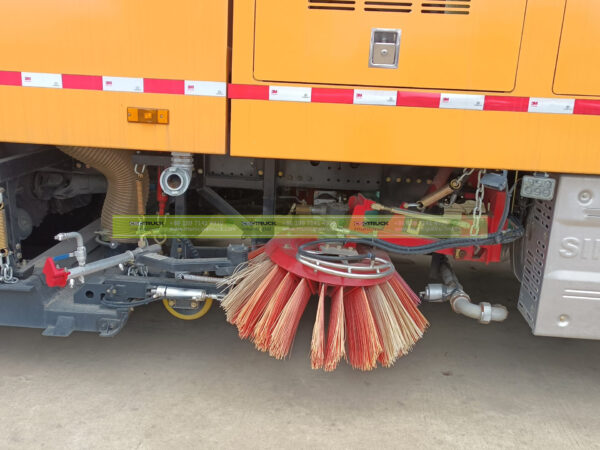

| Sweeping Equipment | |
| Type | Four-disc typed brooms equipped between the front and rear axle, symmetric on the right and left side of the truck driven by motors. |
| Sweep Width | 2.6~3.2m. |
| Suction Equipment | |
| Type | Full-floating suction nozzle, independent forward operation, hydraulic raise & lower 200mm diameter
suction port |
| Maximum Inhalation Particle Size | ≥100mm |
