BRIEF

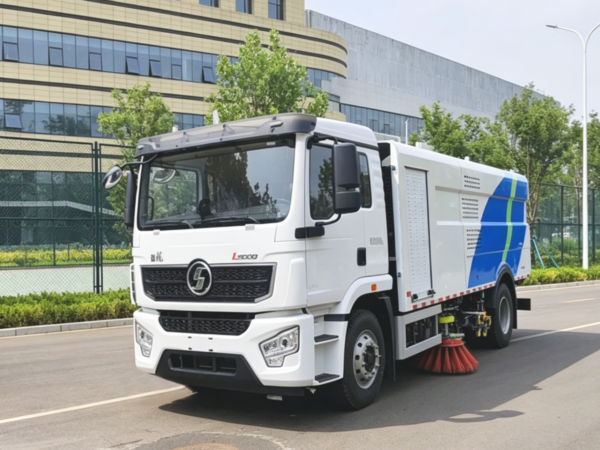

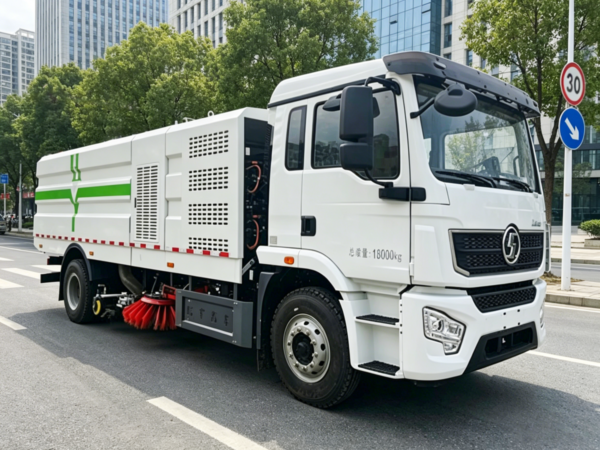

The Shacman Delong L5000 4×2 Pure Electric Sweeper Truck is a next‑generation urban cleaning solution powered by a 210.56 kWh CATL lithium‑iron‑phosphate battery and a high‑efficiency permanent magnet synchronous motor delivering 175 kW peak power and 1000 N·m peak torque. Designed for all‑day, zero‑emission operation, it combines a rugged stainless‑steel water tank, a high‑capacity suction system, and an intelligent electro‑hydraulic control architecture. The sweeper truck supports nine one‑button work modes, operates at low noise (≤88 dB), and features advanced safety protections including overload protection, overheat protection, and an anti‑overflow alarm system. With a compact 4×2 chassis (wheelbase and overhang optimized for urban maneuverability), it is ideal for municipal street cleaning, airport aprons, industrial parks, and other environmentally sensitive areas.

This combination of high‑capacity electrification, intelligent controls, and heavy‑duty cleaning hardware makes the Shacman Delong L5000 a versatile, eco‑friendly workhorse for modern municipal sanitation fleets.

FEATURES

1. Chassis & Powertrain

• Pure electric drive – 210.56 kWh CATL LFP battery, 175 kW peak motor power, 1000 N·m peak torque.
• Automatic transmission for smooth operation under varying road conditions.
• Front/rear track – 1935 / 1860 mm; overhang – 1.34 / 2.31 m for excellent maneuverability.

2. Box Assembly (Water Tanks)

• Stainless steel construction – Excellent corrosion resistance, long service life.
• Lightweight ribbed design – Increases strength and rigidity while reducing weight.
• Two‑section structure – Easy maintenance.

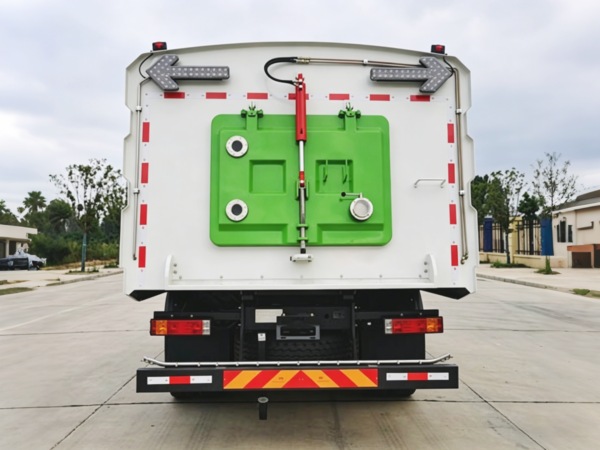

• Plug‑type rear door – High stability and sealing.
• Large inclined floor (50° dump angle) – Clean waste discharge; includes anti‑overflow alarm and high‑pressure spray cleaning.
• Low‑water alarm – Prevents pump damage.
• Copper ball valves with backwash and filtration – Clean water intake.

3. Sweeping System

• Left & right sweeping units – Flexible floating design with automatic obstacle avoidance and reset.
• Maintenance‑free engineering plastic bushings – No grease needed.
• Cylinder‑controlled lifting and swinging – Adjustable working width.
• Side protection bars for safety.

4. Suction System

• Floating suction nozzle with dual air ducts – Wide pick‑up area, high dirt intake rate.
• Low‑clearance high‑pressure spray bar – Reduces splashing, improves cleaning efficiency.
• Four‑link hydraulic lifting and four‑point adjustable limit posts – Stable during work and transport.

5. Electric Control System

• Display + controller + CAN bus panel – Intelligent one‑key operation.
• 9 selectable modes – Full sweep, left/right sweep, full suction, left/right wash, etc.
• Manual override – Allows independent motor speed adjustment for special conditions.
• Comprehensive safety protection – Reverse, water level, motor overload, body lift, and maintenance lock.
• 16 voice alerts & music alarms – Clear fault and safety notifications.
• Two cameras (right front & rear) with an in‑cab color monitor for real‑time viewing.
• Silencer on fan – Operating noise ≤88 dB.

6. Hydraulic System

• Northern Precision Hydraulic valves – Stable and smooth.
• CNC cold‑bent seamless steel tubes + optimised ferrule connectors – Leak‑free reliability.
• High‑quality hydraulic motors – Long life, stable brush rotation.
• Manual pump for emergency hopper lowering or component reset.
• Leak alarm on the hydraulic tank.

7. High‑Pressure Water System

• 20 m hand‑held high‑pressure gun (rear left side) – Spot cleaning and truck washing.
• Front fixed high‑pressure nozzles (left & right) – For stubborn road stains.
• Rear spray dust suppression – Row of atomising nozzles for humidification and dust control.
• Stainless steel piping – Triple over‑pressure protection (safety valve, unloading valve, idle circuit).
