Chassis | |
Size | 8,360×2,400×3,000mm |
GVW/Curb Weight | 16,000kg/9,600kg |
Wheelbase | 4,500mm |
Front/Rear Axle | 6/10T |
Tire | 9.00R20 6+1 tires |
Engine | |
Type | Diesel |
Make/Model | WEICHAI/WP6.210/210hp/Euro 3 |
Transmission | |
Make/Model | WLY635 |
Gears | 6F+1R |
Operation | Manual |
Cabin | |
Driving | SINOTRUK HOWO 4×2 Day Cab, Left-hand Drive |
Type | Steel construction, Single Row, Flat |
Passenger No. | 3 |
Body System | |
Tanker Capacity | 12CBM(8m³ garbage tank+4,000L water tank) |
Material | Stainless steel 304 |
Thickness | Tank Body 6mm |
Auxiliary Engine | |
Brand | JMC |
Power | 87HP |
Air Blower | |
Type | High-pressure, centrifugal, sweeping truck specific
used blower |
Working Speed | 2600~2900r/min |
Driving Mode | Drive by an ancillary engine, automatic clutch, V belt
powered |
Sweeping Equipment | |
Type | Four-disc typed brooms equipped between the front and rear axle, symmetric on the right and left side of the truck driven by motors. |
Sweep Width | 2.6~3.2m. |
Suction Equipment | |
Type | Full-floating suction nozzle, independent forward operation, hydraulic raise & lower 200mm diameter
suction port |
Maximum Inhalation Particle Size | ≥100mm |

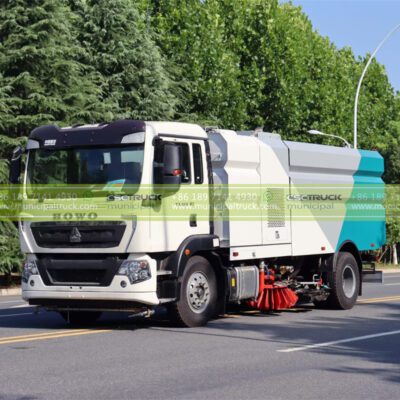

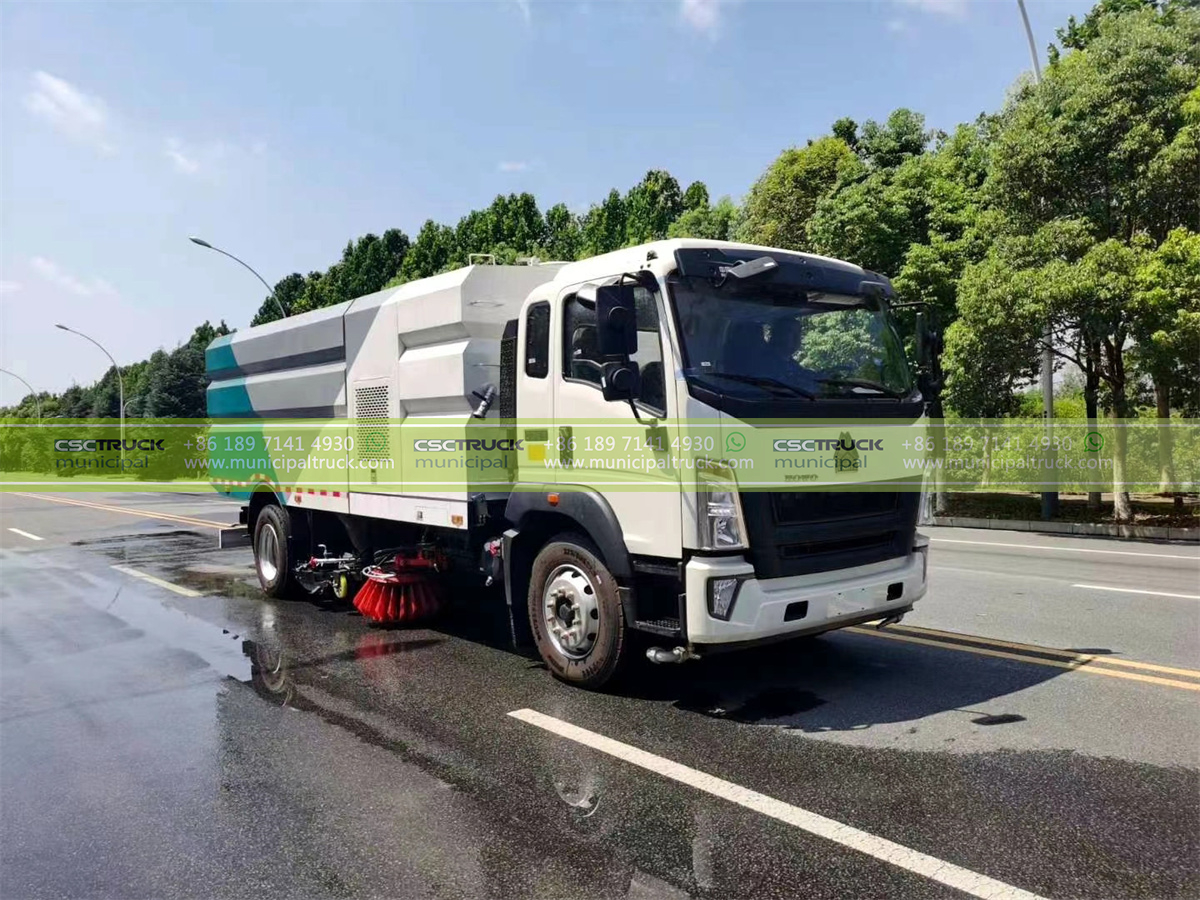

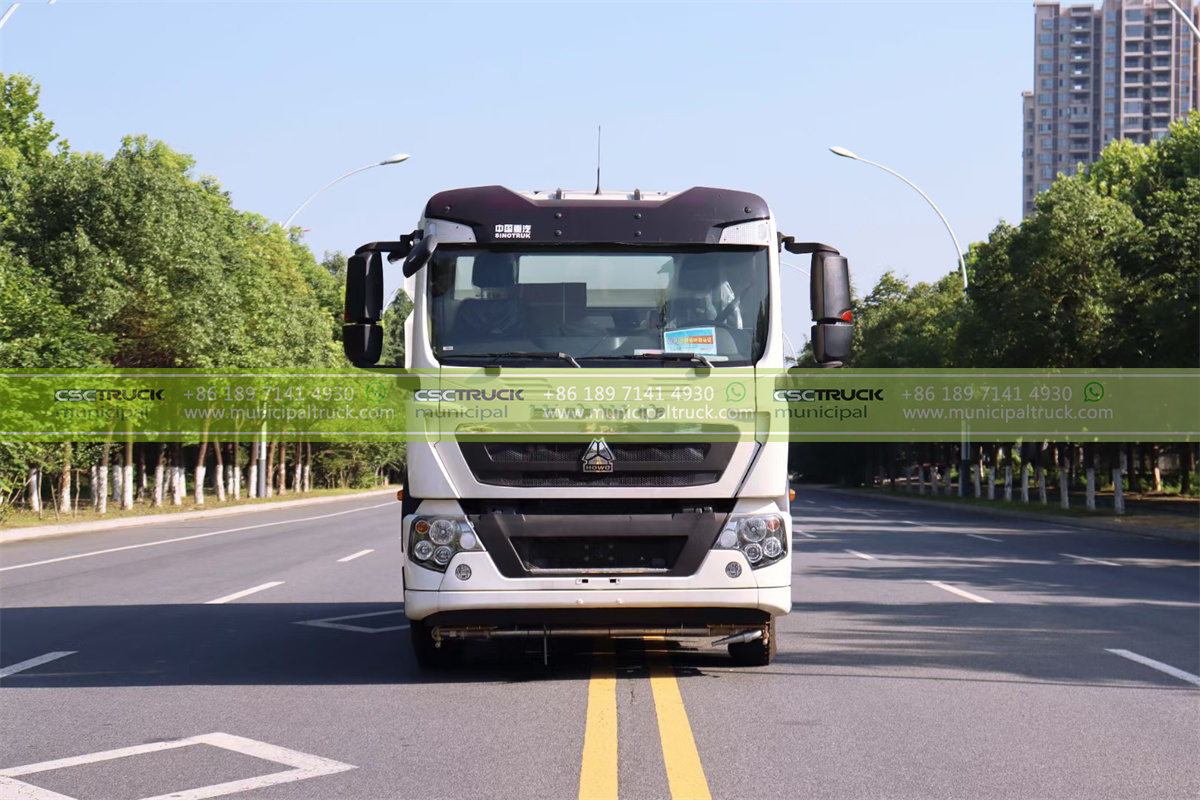

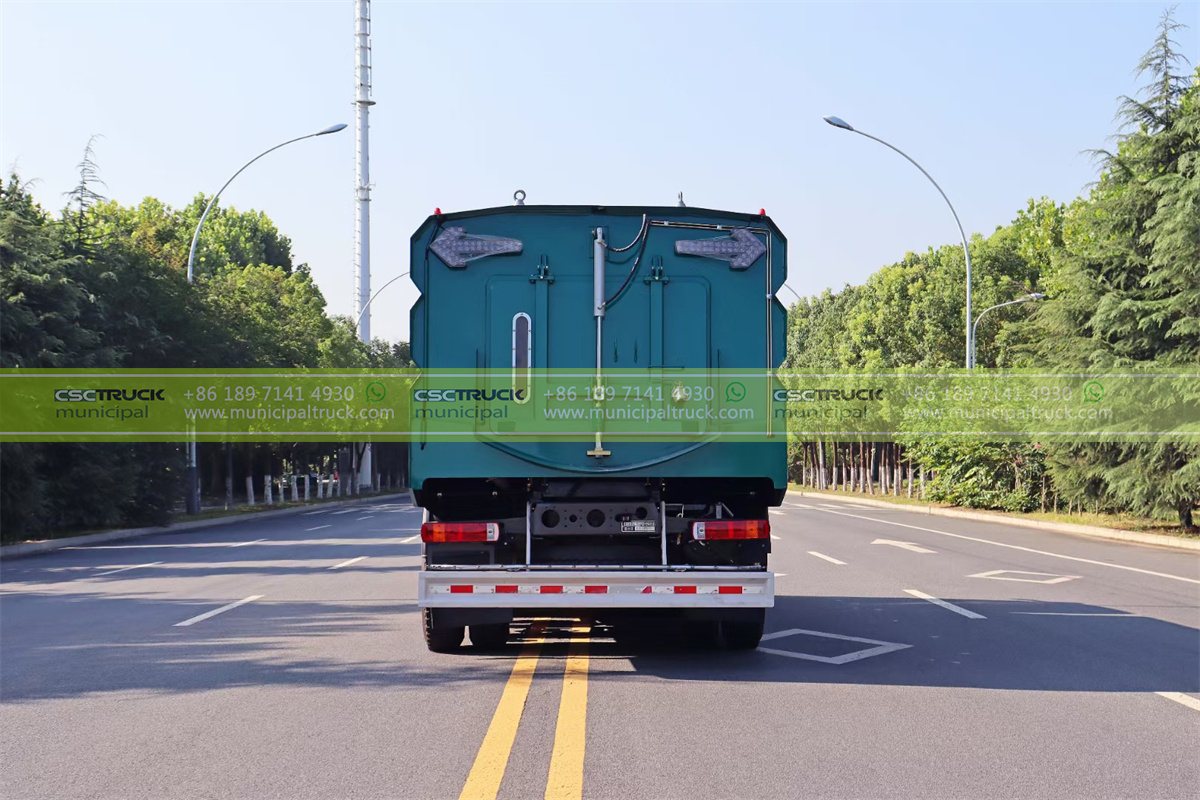

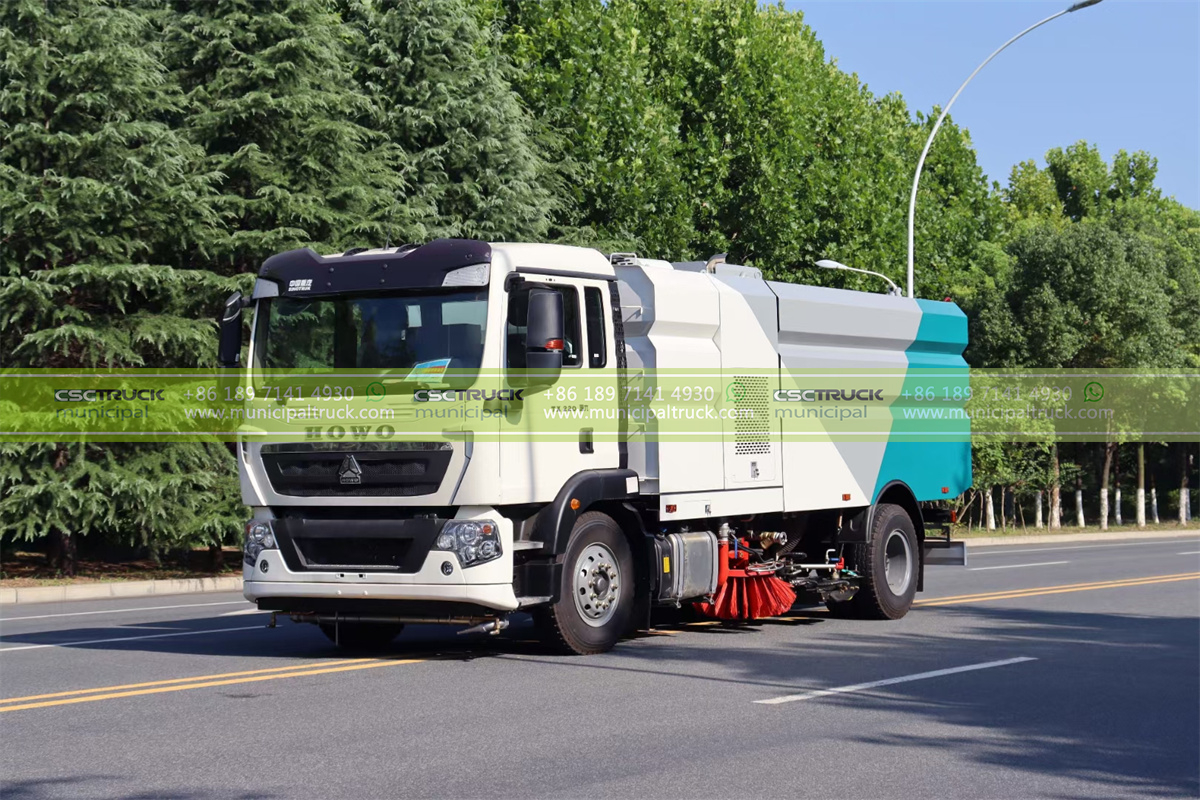

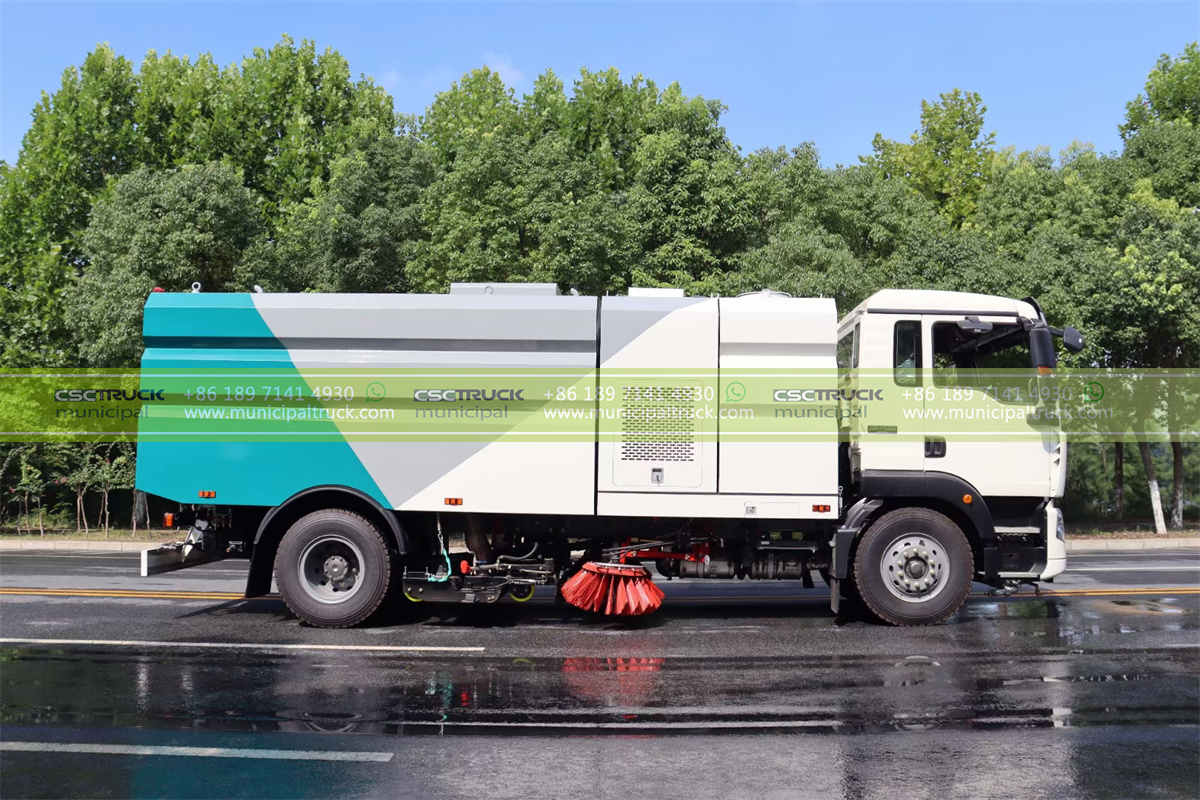

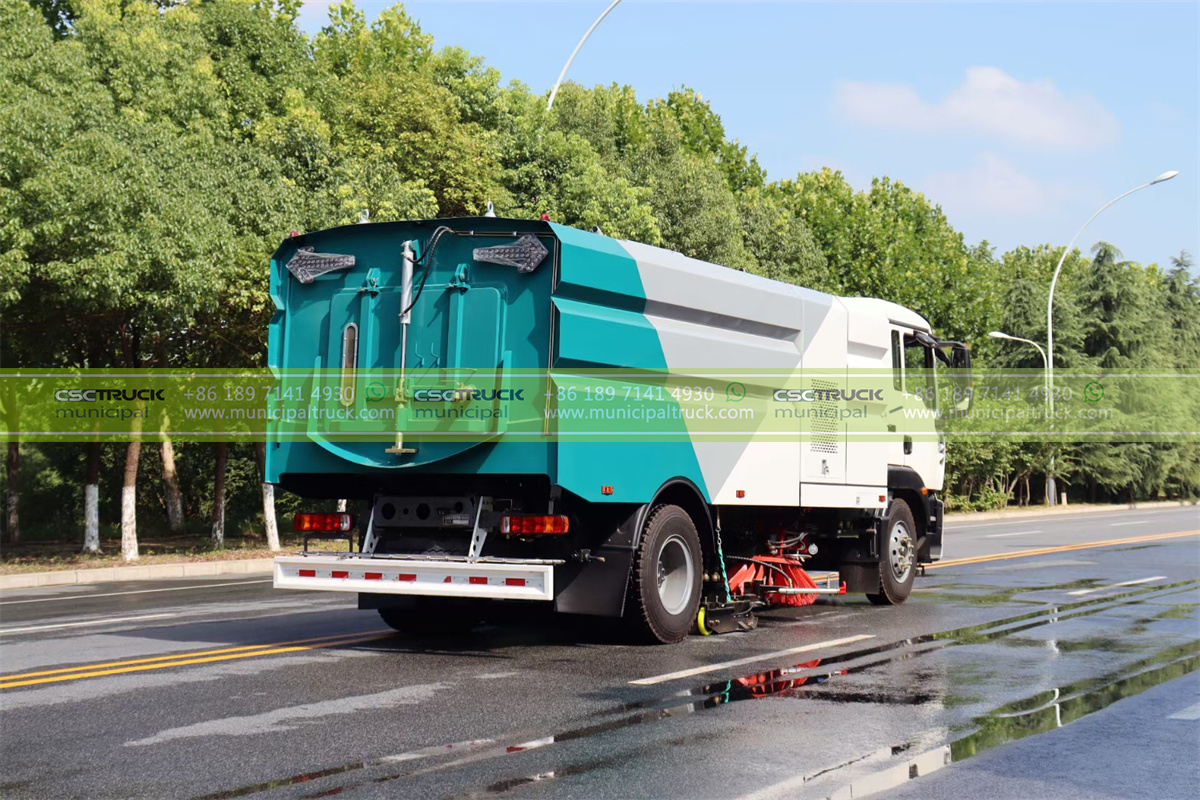

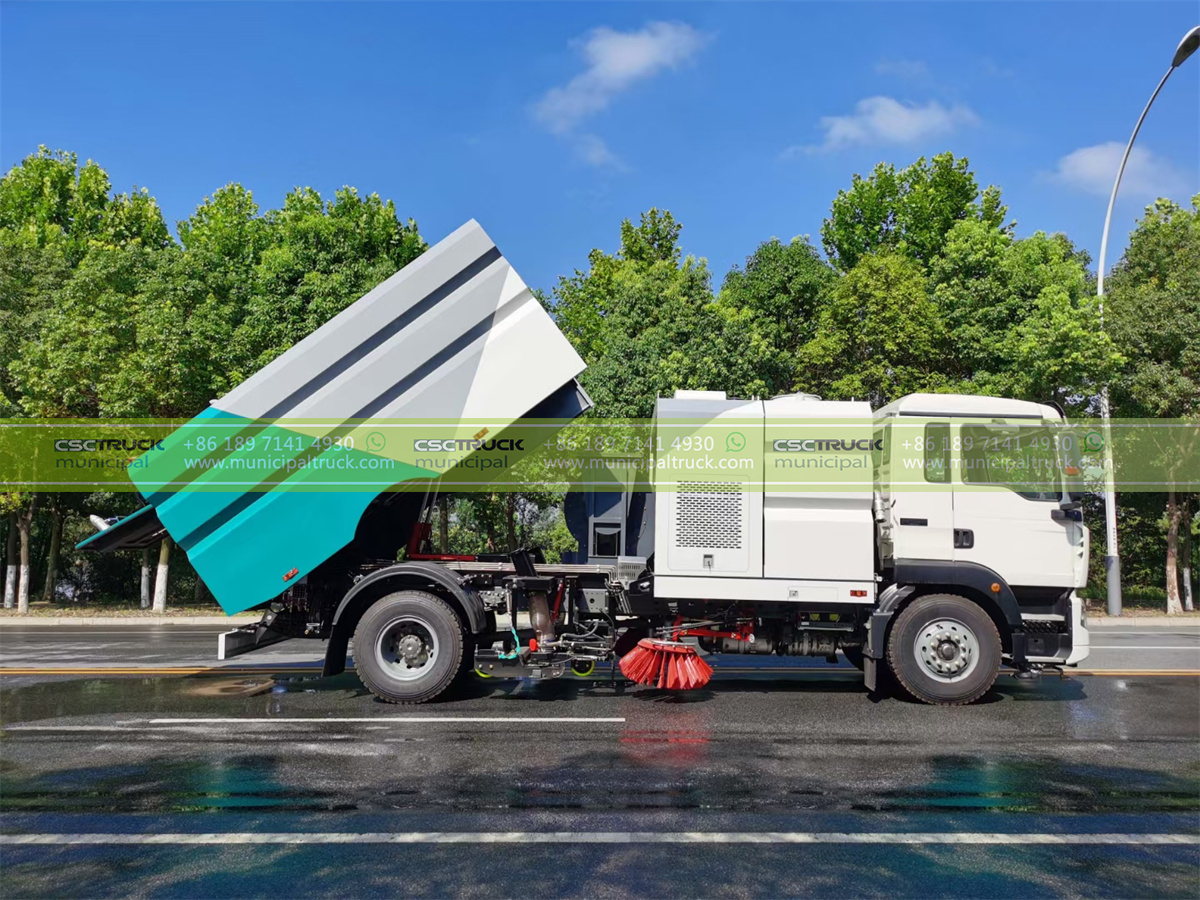

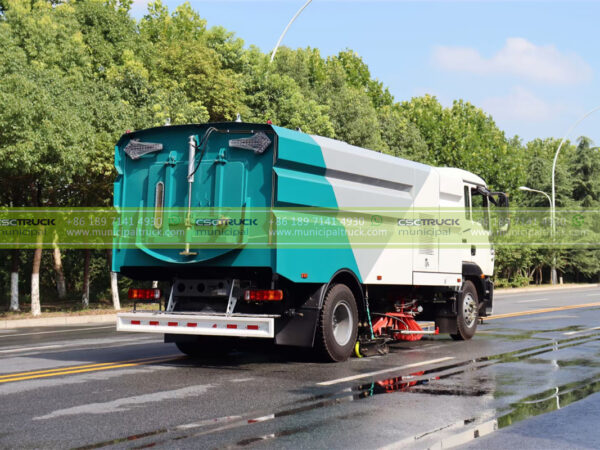

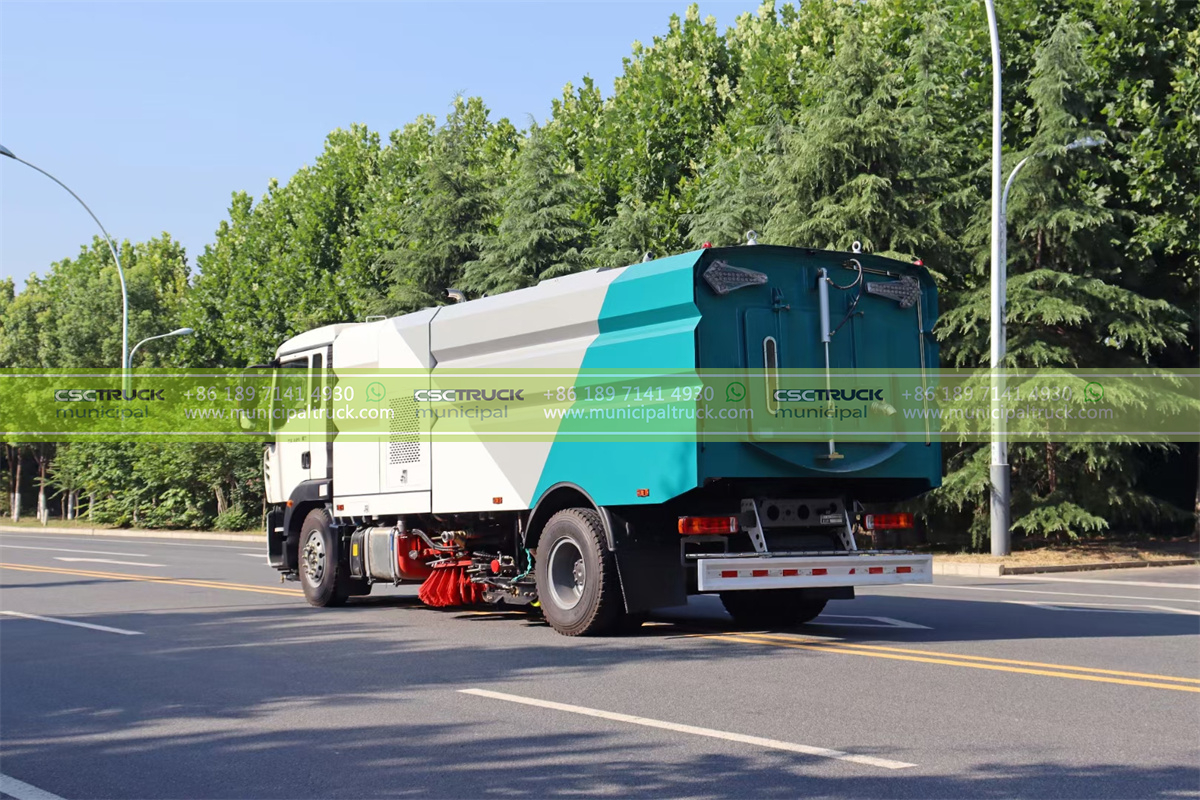

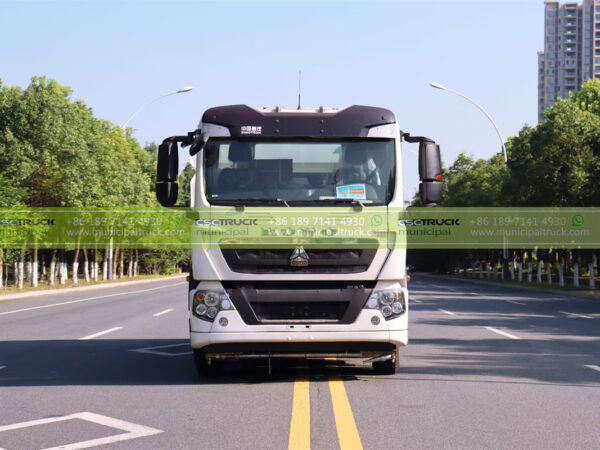

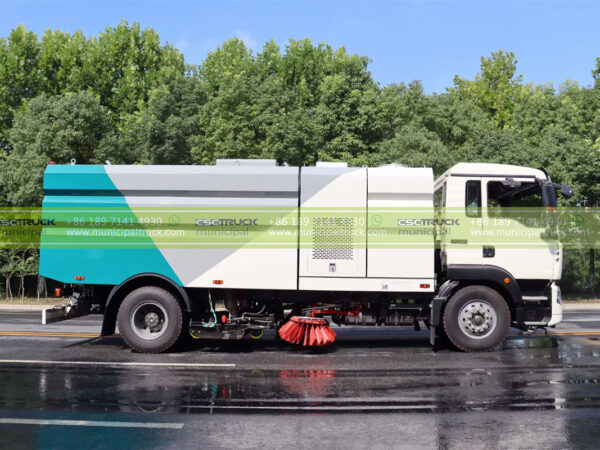

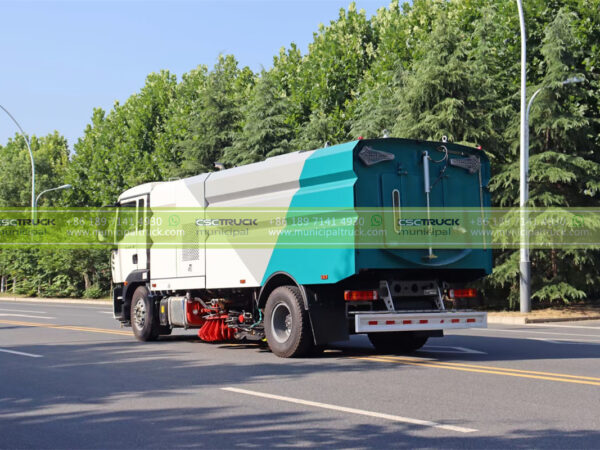

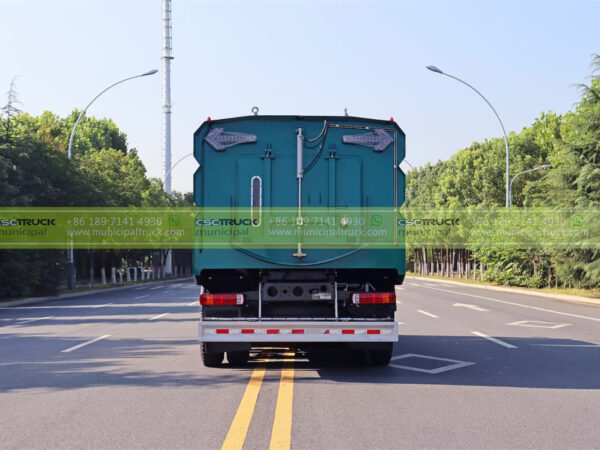

SINOTRUK Road Flushing Sweeper Truck
Make/Model | CSCTRUCK/RW12ZZ210L3 |
GVW | 16,000kg, Heavy Duty Vehicle |
Cab Truck | SINOTRUK HOWO 4×2 Day Cab, Left-hand Drive |
Engine | WEICHAI/WP6.210/210hp/Euro 3 |
Transmission | WLY635/Manual 6+1 Speed |
Tanker Capacity | 12CBM(8m³ garbage tank+4,000L water tank) |
Categories: Combined Sweeper Jetter, Road Sweeper, Sweeper Truck
Certification | ISO9001:2015 |
---|---|
Chassis Truck | SINOTRUK |
Color | Customized Color |
Condition | New |
Country of Origin | |
Customized | Yes |
Delivery Time | 50 Days |
Drive Mode | 4×2 |
Emission Standard | Euro III |
Fuel Type | Diesel |
Intercom | CIF |
Main Markets | Africa, Eastern Asia, Mid East, North America, Oceania, South America, Southeast Asia |
Packaging Details | Waxed |
R&D Capacity | ODM, OEM, Own Brand(CSCTRUCK) |
Shipping Vessel | Bulk Shipment, Container Shipment, Flat Rack, FR Container Shipment, RORO Shipment |
Steering | LHD |
Terms of Payment | T/T |
Truck Class | Heavy Duty |
Warranty Period | 12 Months |
