BRIEFS:

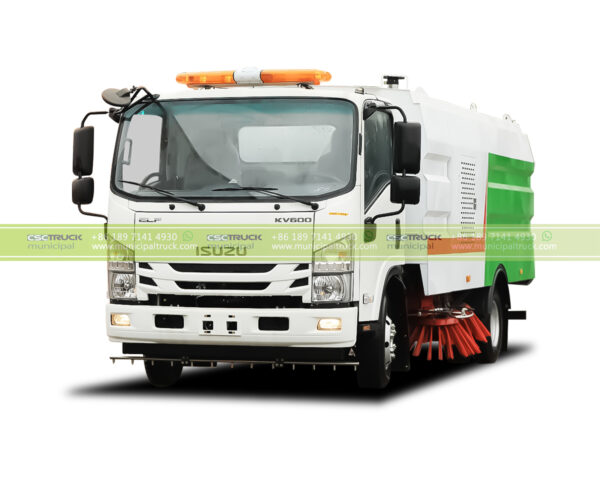

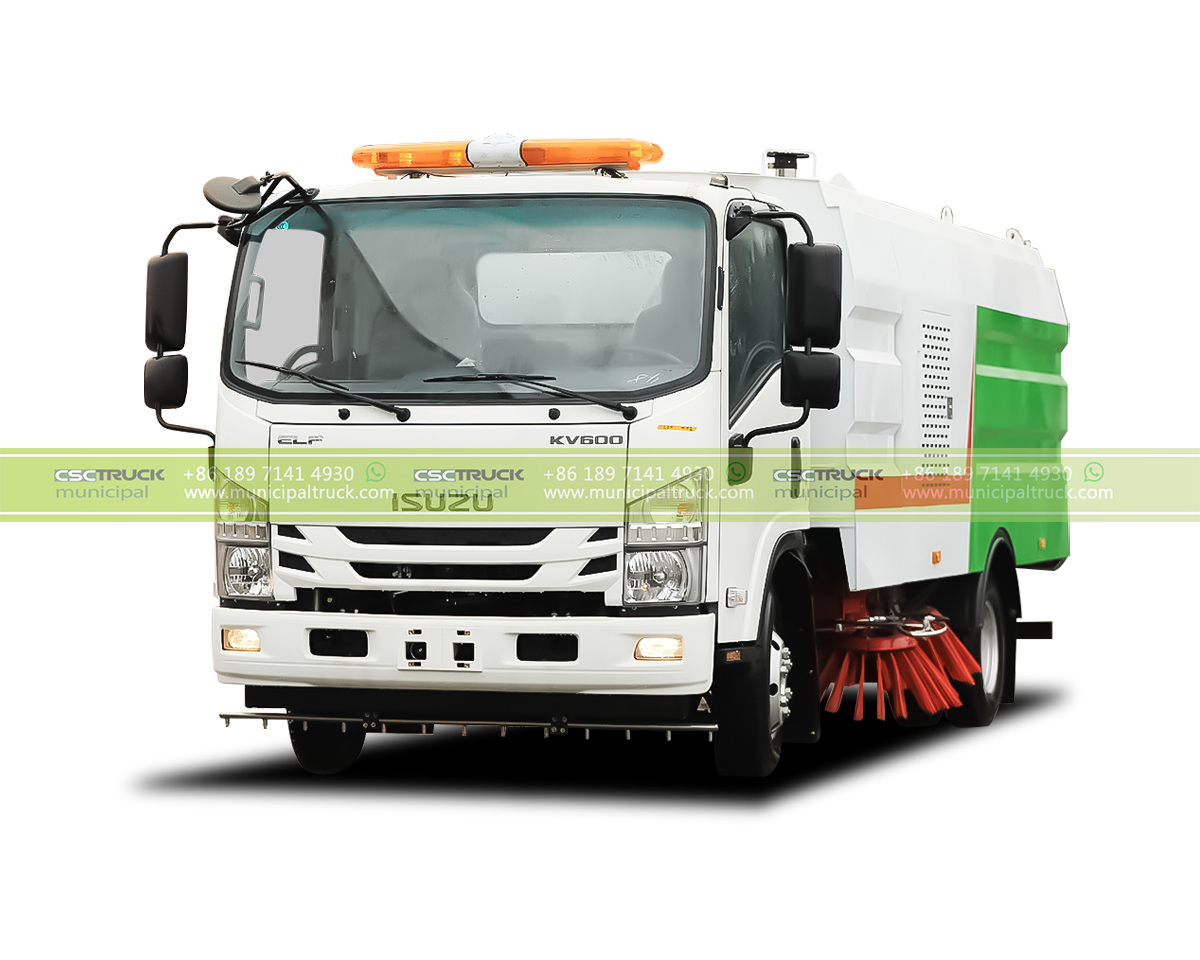

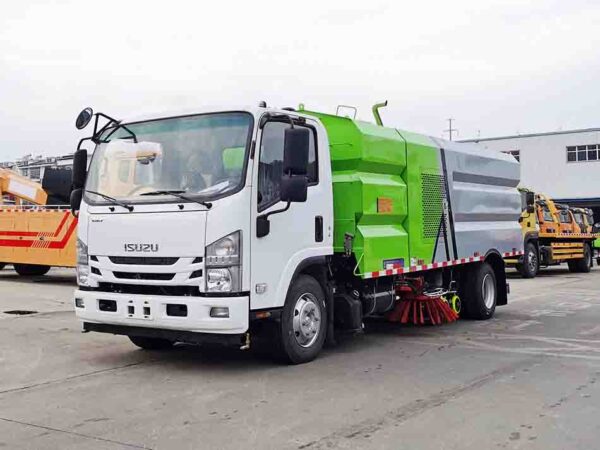

Introducing the ISUZU 6CBM Street Sweeper Truck with a versatile and efficient design that is tailored to meet your specific needs. With its compact size and robust construction, this chassis is ready to tackle various applications with ease. Whether it’s for transportation, delivery, or specialized operations, the ISUZU 600P Chassis delivers reliable performance and exceptional durability. Discover how this chassis can be customized to create the perfect solution for your business requirements.
FEATURES:
- Powerful and Efficient Engine:
The ISUZU 6CBM Street Sweeper Truck is equipped with a diesel engine that delivers 130 horsepower, ensuring ample power and excellent fuel efficiency. With its Euro 5 compliance, it meets the highest standards of emission regulations.
- Smooth Transmission:
The chassis features an ISUZU manual transmission with 5 forward gears and 1 reverse gear. The precise gear shifting allows for smooth operation and optimal control over different driving conditions.
- Sturdy Chassis Construction:
Built on the ISUZU 600P platform, this chassis offers a strong and durable foundation. With a GVW of 7,300kg and a curb weight of 5,200kg, it provides a solid base for various applications.

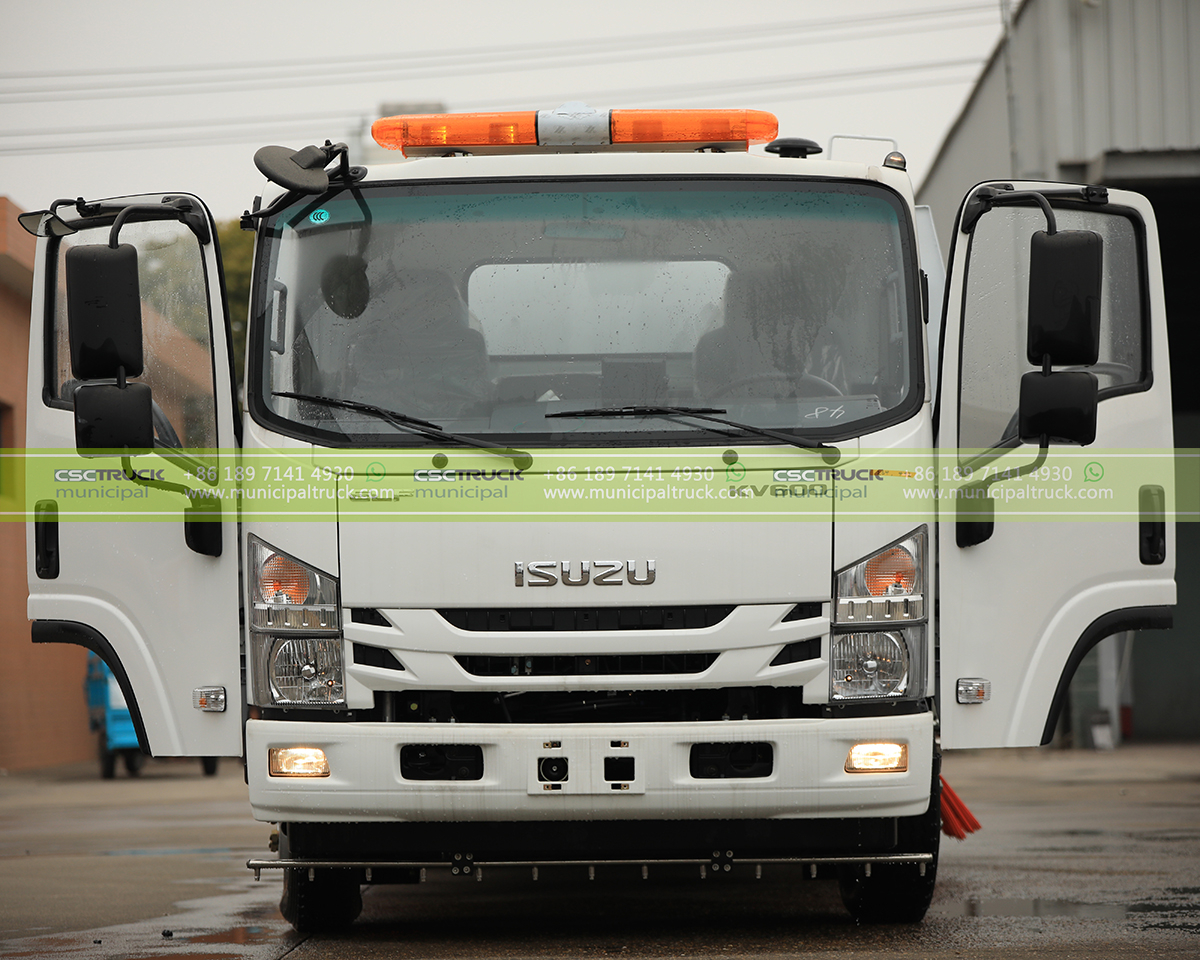

- Spacious and Comfortable Cabin:
The ISUZU 600P Chassis features a day cab with a single-row configuration, providing ample space for the driver and two passengers. The cabin is designed with a focus on comfort and functionality, ensuring a pleasant driving experience.
- Versatile Body System:
The chassis comes with a specialized body system designed for efficient waste management. It includes a 6CBM garbage tank and a 2,000L water tank, both made of durable stainless steel. The tank body has a thickness of 6mm, ensuring longevity and resistance to wear and tear.
- Auxiliary Engine:
The chassis is equipped with a reliable ISUZU 4JB1-TC1 auxiliary engine with a power output of 95 horsepower. This engine powers the sweeping and suction equipment, providing optimal performance and efficiency.
- Advanced Sweeping and Suction Equipment:
The ISUZU 600P Chassis is equipped with high-performance sweeping and suction equipment. It features four-disc typed brooms, driven by motors, providing a sweeping width of 2.6 to 3.2 meters. The full-floating suction nozzle, with a hydraulic raise and lower function, ensures efficient collection of debris, with a maximum inhalation particle size of ≥100mm.
- Enhanced Safety and Handling:
The chassis is designed with safety and handling in mind. It features a left-hand drive configuration, providing optimal visibility for the driver. Additionally, the tire specification of 7.00R16 6+1 ensures excellent traction and stability on various road surfaces.
The ISUZU 6CBM Street Sweeper Truck combines power, versatility, and reliability to meet the demands of various applications. With its efficient engine, durable construction, and advanced body system, this chassis offers a customized solution for your specific business requirements. Experience the exceptional performance and durability of the ISUZU 600P Chassis, delivering reliable results for your operations.
SPECIFICATIONS:
| Chassis | ISUZU 600P |
| Size | 6,980*2,220*2,620mm |
| GVW/Curb Weight | 7,300kg/5,200kg |
| Wheelbase | 3,815mm |
| Front/Rear Axle | 2.5T/4.8T |
| Tire | 7.00R16 6+1 tires |
| Engine | |
| Type | Diesel |
| Make/Model | ISUZU/4KH1CN5HS/130hp/Euro5 |
| Transmission | |
| Make/Model | ISUZU/MSB |
| Gears | 5F+1R |
| Operation | Manual |
| Cabin | |
| Driving | ISUZU 600P 4×2 Day Cab, Left-hand Drive |
| Type | Steel construction, Single Row, Flat |
| Passenger No. | 3 |
| Body System | |
| Tanker Capacity | 6CBM(4m³ garbage tank+2,000L water tank) |
| Material | Stainless steel 304 |
| Thickness | Tank Body 6mm |
| Auxiliary Engine | |
| Brand | ISUZU/4JB1-TC1 |
| Power | 95HP |
| Air Blower | |
| Type | High-pressure, centrifugal, sweeping truck specific
used blower |
| Working Speed | 2600～2900r/min |
| Driving Mode | Drive by an ancillary engine, automatic clutch, V belt
powered |
| Sweeping Equipment | |

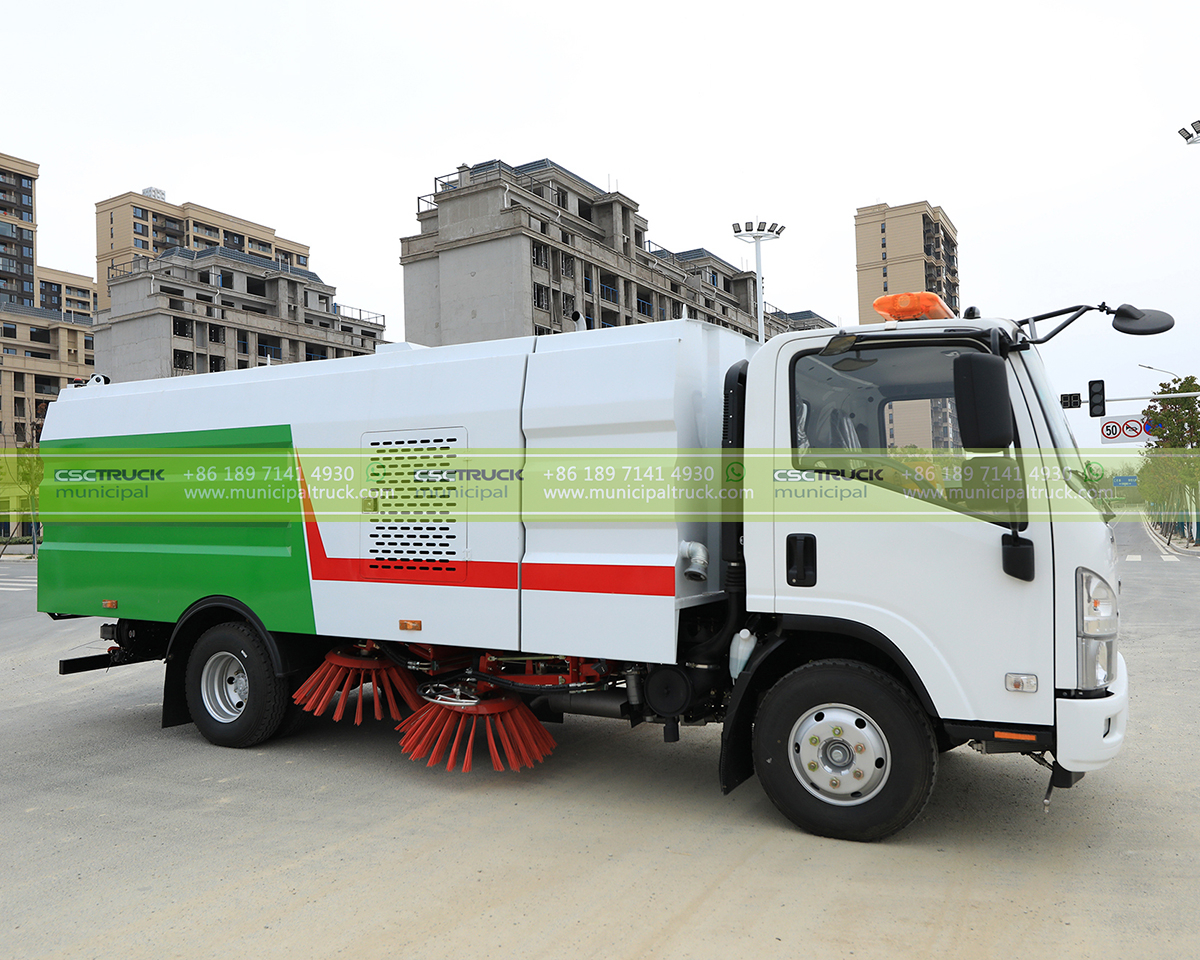

| Type | Four-disc typed brooms equipped between the front and rear axle, symmetric on the right and left side of the truck driven by motors. |
| Sweep Width | 2.6~3.2m. |
| Suction Equipment | |

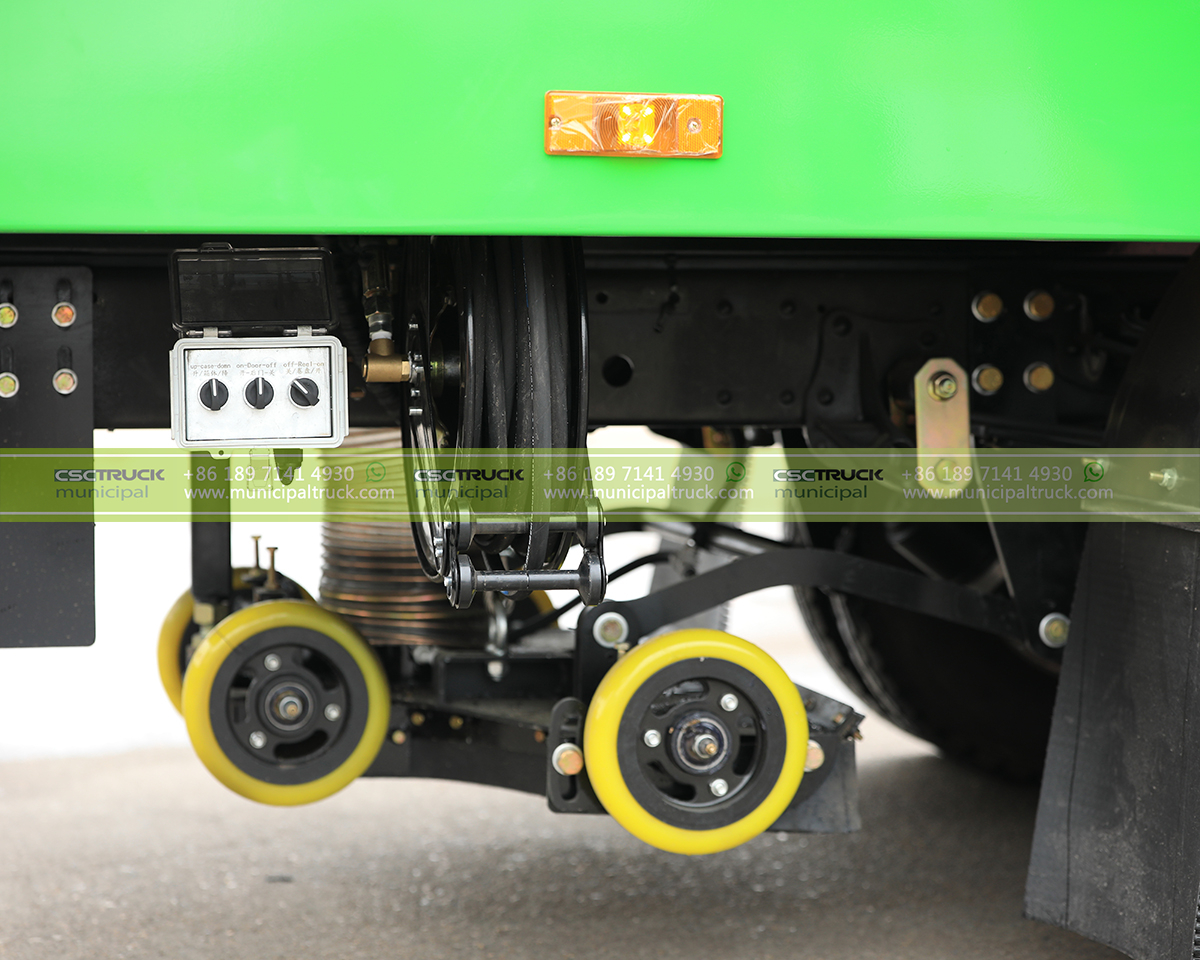

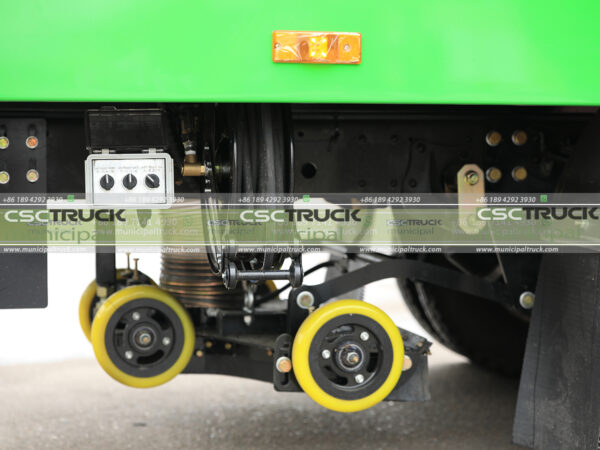

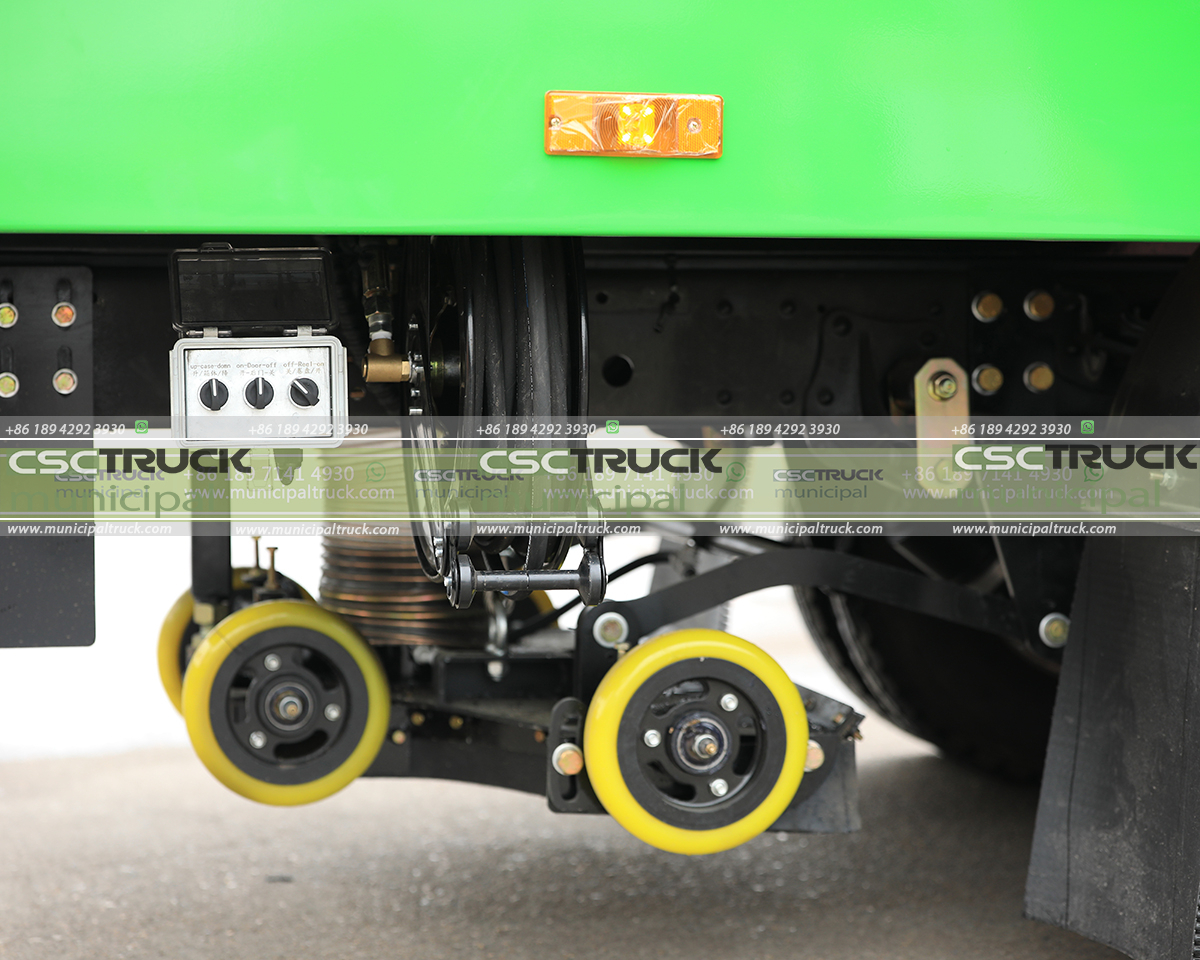

| Type | Full-floating suction nozzle, independent forward operation, hydraulic raise & lower 200mm diameter
suction port |
| Maximum Inhalation Particle Size | ≥100mm |
