The FOTON high pressure road sweeper truck by CSCTRUCK – is the perfect solution for keeping your roads clean and free of debris. This powerful and efficient road sweeper truck is designed to make street cleaning easier and more efficient, with its state-of-the-art features and innovative design.
Chassis:
The FOTON road sweeper truck features a FOTON chassis with a size of 8,890×2,500×3,300(mm). With a GVW/Curb Weight of 18,000kg/10,300kg, a wheelbase of 4,500mm, front/rear axle of 6.5T/11.5T and 11.00R20, 6+1 tires, it is built to withstand tough working conditions, and heavy loads.
Engine:
Powered by a diesel engine, the sweeper truck features a YUCHAI/YC6A240-33/240hp/Euro 3 engine that delivers excellent performance and efficiency. The engine is designed to meet the highest standards of durability, reliability, and fuel efficiency.
Transmission:
The FAST/8JS85E transmission system of the FOTON high pressure road sweeper truck provides smooth and efficient gear shifting with 8F+2R gears. The manual operation ensures precise control over the vehicle.
Cabin:

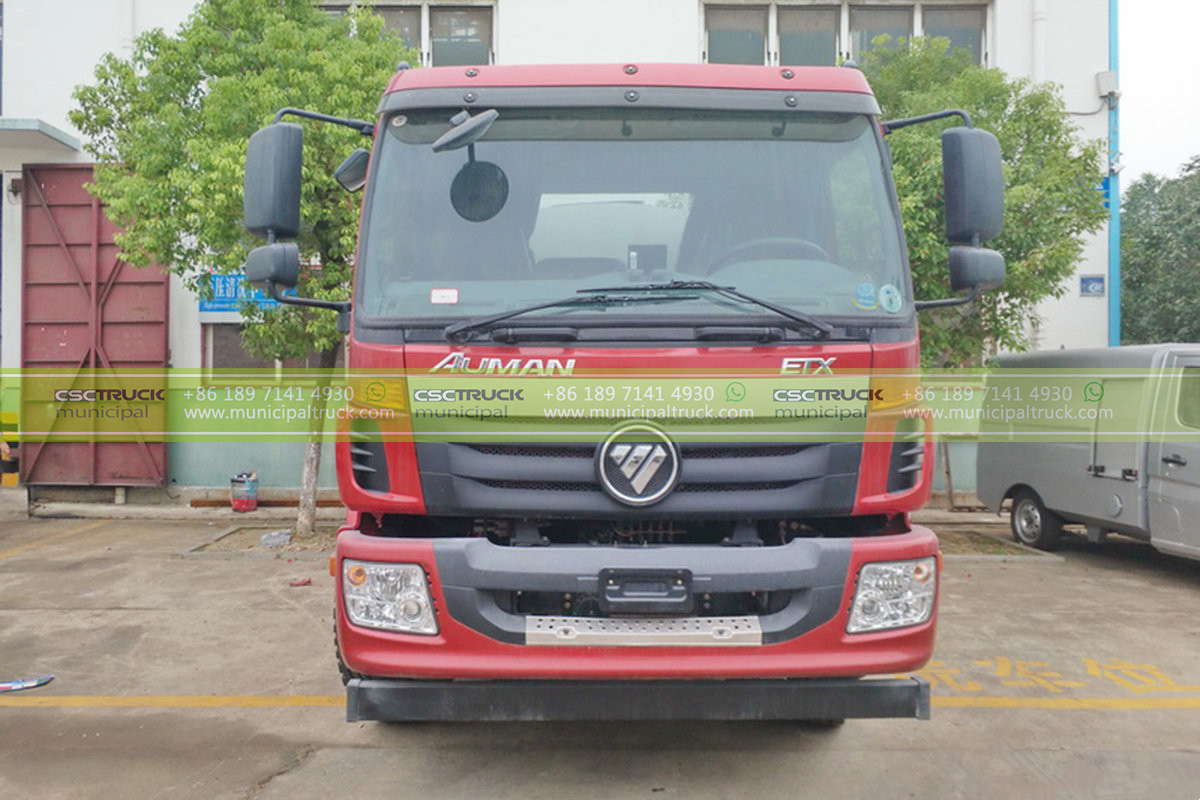

The FOTON sweeper truck has a FOTON AUMAN 4×2 Day Cab, which is designed for comfort, convenience, and safety. The steel construction single-row flat cabin has a passenger capacity of 3 and is available in left or right-hand drive options.
Body System:
The sweeper truck has a 10CBM (8m³ garbage tank+2,000L water tank) tanker capacity with a stainless steel 304 material tank body. The 6mm tank body thickness ensures that it is sturdy enough to withstand the wear and tear of daily use.
Auxiliary Engine:
The Cummins engine powers the air blower of the FOTON High Pressure Road Sweeper Truck, which delivers a power of 140HP. The high-pressure, centrifugal, sweeping truck-specific used blower operates at a working speed of 2600～2900r/min and is driven by the ancillary engine, automatic clutch, and V belt.
Suction Equipment:
This road sweeper truck features a full-floating suction nozzle, independent forward operation, and hydraulic raise & lower 200mm diameter suction port. The suction equipment can handle particles of up to 100mm in size, making it ideal for cleaning up debris and waste from the streets.
With its state-of-the-art features, powerful engine, and efficient design, the FOTON high pressure road sweeper truck is the perfect choice for keeping your streets clean and debris-free.
| Chassis | FOTON |
| Size | 8,890×2,500×3,300(mm) |
| GVW/Curb Weight | 18,000kg/10,300kg |
| Wheelbase | 4,500mm |
| Front/Rear Axle | 6.5T/11.5T |
| Tire | 11.00R20, 6+1 tires |
| Engine | |
| Type | Diesel |
| Make/Model | YUCHAI/YC6A240-33/240hp/Euro 3 |
| Transmission | |
| Make/Model | FAST/8JS85E |
| Gears | 8F+2R |
| Operation | Manual |
| Cabin | |
| Driving | FOTON AUMAN 4×2 Day Cab, Left/Right-hand Drive |
| Type | Steel construction, Single Row, Flat |
| Passenger No. | 3 |
| Body System | |
| Tanker Capacity | 10CBM(8m³ garbage tank+2,000L water tank) |
| Material | Stainless steel 304 |
| Thickness | Tank Body 6mm |
| Auxiliary Engine | |
| Brand | CUMMINS |
| Power | 140HP |
| Air Blower | |
| Type | High-pressure, centrifugal, sweeping truck specific
used blower |
| Working Speed | 2600～2900r/min |
| Driving Mode | Drive by the ancillary engine, automatic clutch, V belt
powered |
| Suction Equipment | |
| Type | Full-floating suction nozzle, independent forward operation, hydraulic raise & lower 200mm diameter
suction port |
| Maximum Inhalation Particle Size | ≥100mm |
