Summary:

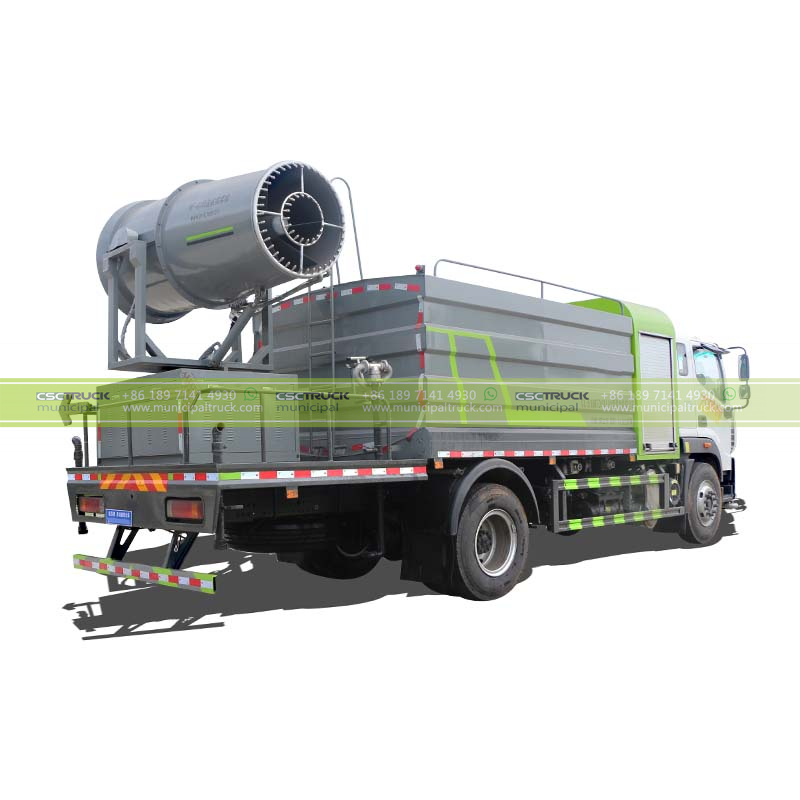

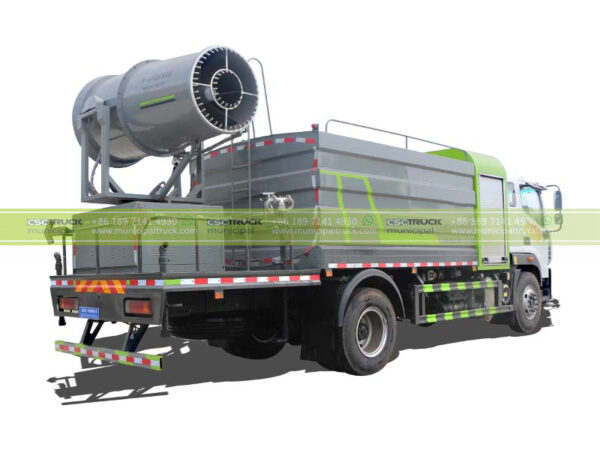

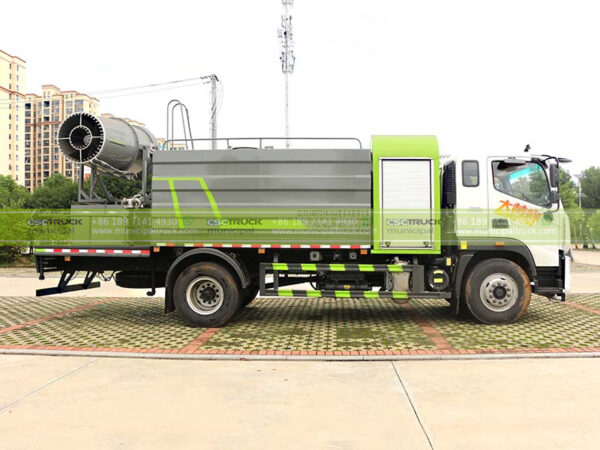

The FOTON 16CBM Water Mist Spray Truck is a powerful and efficient vehicle designed for dust suppression and firefighting operations. With its YUCHAI diesel engine and FAST transmission, this truck offers high performance and reliability, while its sturdy carbon steel tanker has a capacity of 16,000 liters, making it capable of covering a wide area. This truck’s compact size and maneuverability make it an excellent choice for urban and industrial environments.
Features:
The FOTON water mist spray truck features a YUCHAI diesel engine with a horsepower of 270, ensuring powerful and efficient performance. The FAST transmission has 8 forward gears and 2 reverse gears, providing smooth and precise shifting. The truck’s sturdy carbon steel tanker has a capacity of 16,000 liters and is capable of generating a mist of water droplets to suppress dust and control fires.
The front spraying pipe has a range of 14-18 meters, while the rear spraying system can cover a range of 5-9 meters. The spray range can be adjusted up to 80 meters, making it ideal for large-scale dust suppression and firefighting operations. The truck’s fan machine has a power of 37 kW and an air wind capacity of 127,500 m3/h, providing high air pressure of 3,106 Pa.
The truck’s plunger pump can generate a flow rate of 160-200 L/m, and the spraying nozzle system consists of 80 pieces, ensuring efficient and wide coverage. The control system of this municipal truck is highly flexible, with options for manual, electric, and wireless remote control. The FOTON AUMAN 4×2 Day Cab provides a comfortable and safe driving experience, with a steel construction single-row flat cabin that can accommodate up to 3 passengers.
Overall, the FOTON 16CBM Water Mist Spray Truck is a versatile and reliable vehicle that can handle a wide range of dust suppression and firefighting tasks, making it an excellent choice for industrial and urban environments.
Specifications:
| Chassis | |
| Size | 8,650×2,550×3,370mm |
| GVW/Curb Weight | 18,000kg/7,600kg |
| Wheelbase | 4500mm |
| Front/Rear Axle | 6.5/11.5T |
| Tire | 10.00R20 6+1 tires |
| Engine | |
| Type | Diesel |
| Make/Model | YUCHAI/YC6A270-50/270hp/Euro 5 |
| Transmission | |
| Make/Model | FAST/8JS85E |
| Gears | 8F+2R |
| Operation | Manual |
| Cabin | |
| Driving | FOTON AUMAN 4×2 Day Cab, Left-hand Drive |
| Type | Steel construction, Single Row, Flat |
| Passenger No. | 3 |
| Watering System | |

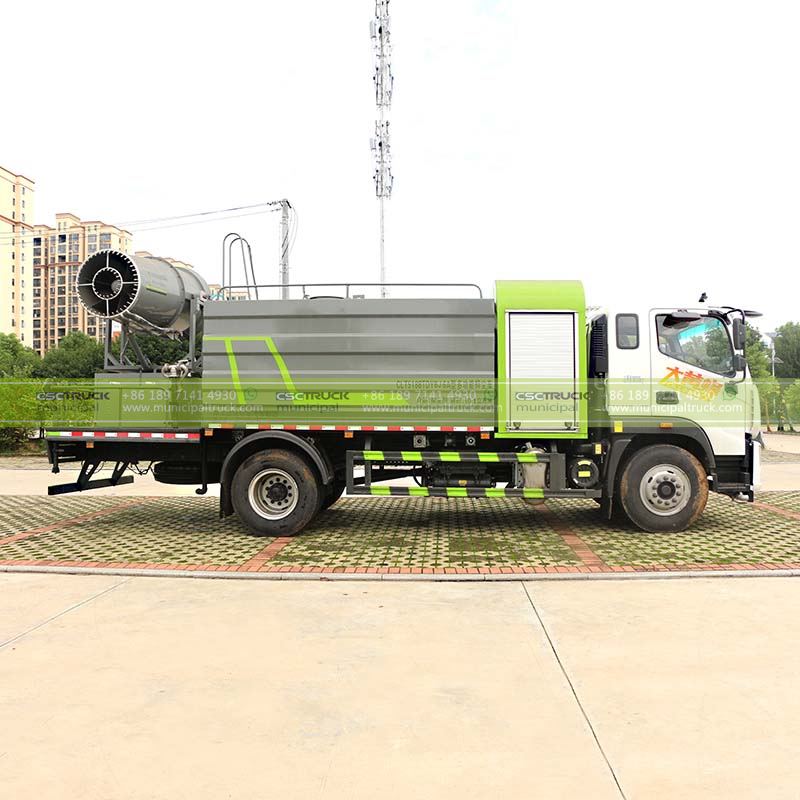

| Tanker Capacity | 16,000L |
| Material | Carbon steel, 6mm thickness |
| Performance | |
| Front Spraying Pipe | 14~18m |
| Rear Spraying | 5~9m |
| Spray Range | 0~80m |
| Fan Machine Power | 37 kW |
| Fan Air Wind Capacity | 127,500 m3/h |
| Air Pressure | 3,106 Pa |
| Plunger Pump Type | Single centrifugal pump Multistage centrifugal pump |
| Flow Rate | 160~200L/m |
| Spraying Nozzle No. | 80pcs |
| Control Method | Manual/Electric/Wireless remote control |
