Brief

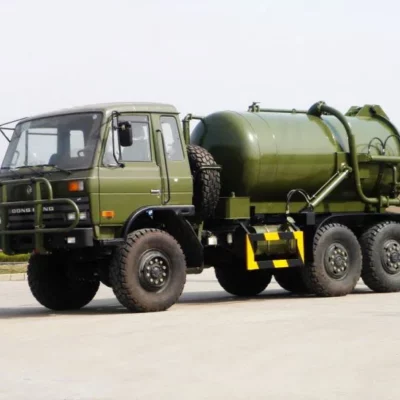

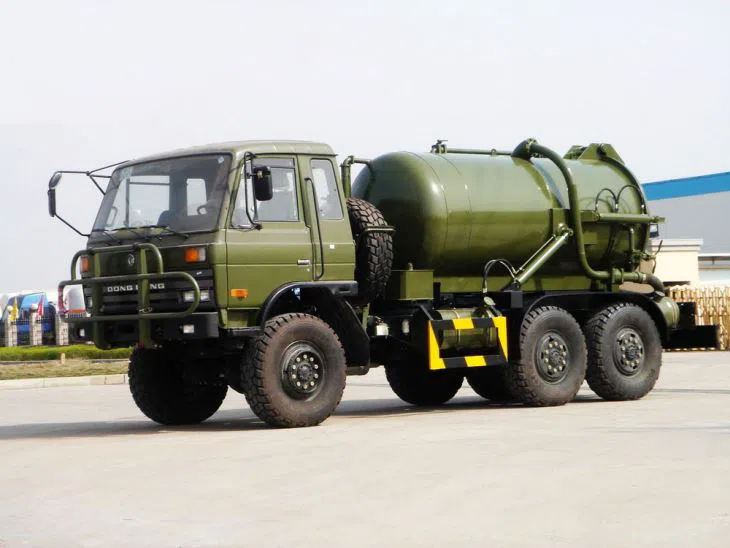

The 12000 Liters Offroad Vacuum Truck Oilfield Services unit is mounted on Dongfeng Military (off-road) Truck Chassis. It is a full-featured vacuum truck in a compact package. This vacuum unit is ideal for projects and clients located in residential and commercial buildings. With a JUROP vacuum pump, PN155, sliding vanes, a capacity of 15,200LPM, it’s suitable for sensitive areas.
features
Chassis Truck
Dongfeng Off-Road chassis
Dongfeng off-road chassis is a classic domestic military type. The chassis uses Dongfeng 153 cab, all of which use military standards.
Reinforced Chassis Capacity
The truck chassis adopts a 6X6 all-wheel drive/AWD truck-reinforced chassis.
Application
Suitable for poorly paved roads or fields, mountains, slopes, swamps, deserts, snow and ice road.
Body Unit
Vacuum Tank
Vacuum Tank Cylindrical shaped with 12 Cubic Meters (m3)
Loading and Discharge
Suction 8m, Fully filling time less than 5s, emptying Time less than 4s.
Effective Liquid Waste Management
It is the most versatile unit in the industry allowing operators to tackle various applications with jetting, vacuuming, and excavating. Whether addressing emergency situations or performing maintenance, municipalities and contractors depend on reliable and efficient equipment.
Reliability
These sewage trucks are designed to withstand the harshest environments and applications.
High Performance
These sewer trucks come standard with a variety of features and multiple options to increase onsite performance.
specification
| Size | 9670x2500x3100(mm) |
| Gross weight | 25,000kg |
| Curb Weight | 8,100kg |
| Wheelbase | 4600+1450mm |
| Driving type | 4*2 LHD |
| Chassis model | DONGFENG 6×6 |
| Tire size | 14.00R20 |
| Number of Tires | 10+1 |
| Passengers in cab | 3 |
| Engine model | CUMMINS,240hp, Euro 3 |
| Sewage Tank | 12,000L |
| Body Material | High-strength carbon Steel |
| Vacuum Pump | JUROP PN155,Sliding Vanes,Capacity 15,200LPM |
