Chassis | |
Size | 6132×2330×2640mm |
GVW/Curb Weight | 6,600kg/5,320kg |
Wheelbase | 3,800mm |
Front/Rear Axle | 2.4/4.2T |
Tire | 7.50R16 6+1 tires |
Engine | |
Type | Diesel |
Make/Model | CUMMINS/ISF3.8/141hp/Euro3 |
Transmission | |
Make/Model | WLY651 |
Gears | 6F+1R |
Operation | Manual |
Cabin | |
Driving | SINOTRUK HOWO 4×2 Day Cab, Right-hand Drive |
Type | Steel construction, Single Row, Flat |
Passenger No. | 3 |
Body System | |
Capacity | 5CBM |
Shape | Oval |
Material | Q235B Carbon Steel |
Thickness | Tank Body 6mm |
Vacuum Pump | Chinese famous brand |
Flow Rate | 45m3/h |
Ultimate Pressure | 7000pa |
Max Suction Lift | >6m |
Vacuum | >500mmHg |
Speed | 800~1400r/min |
Sewage Pipe | 5 meters |
Suction Time | ≤5min |
Basic Equipment | Vacuum pump, ball valve, suction pipe, pressure
meter, inspect windows, cleaning systems, hoist bases, oil-water separators, overflow valves, etc. |
Optional Equipment | Tanker material: stainless steel. Vacuum pump: Italy or Spain vacuum pumps. Anti-rust coating inside the tank Anti-flow devices |

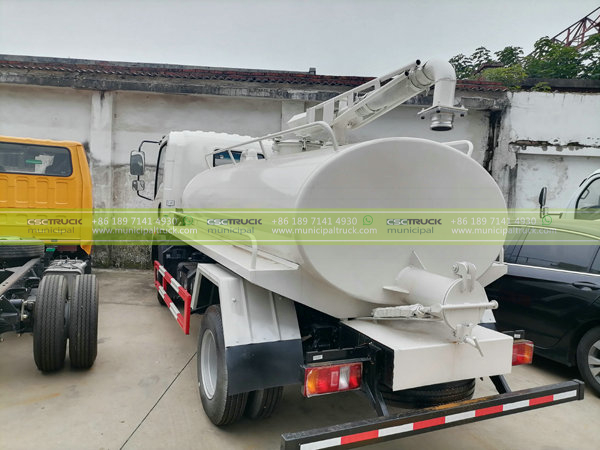

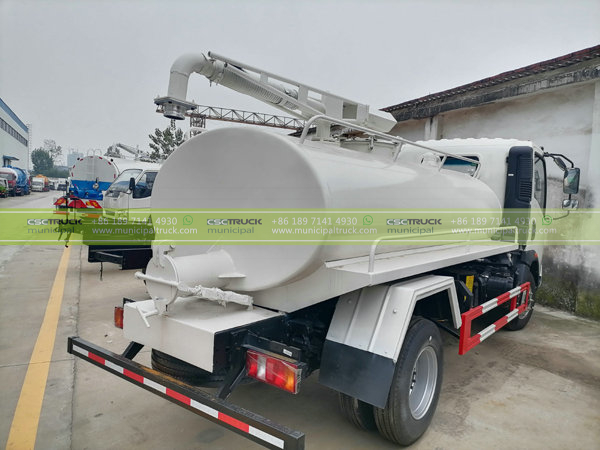

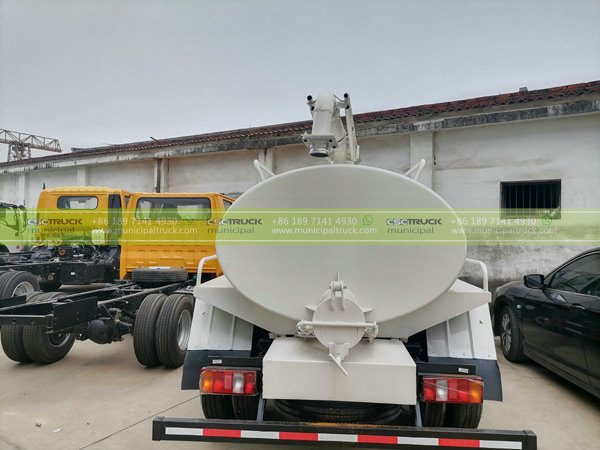

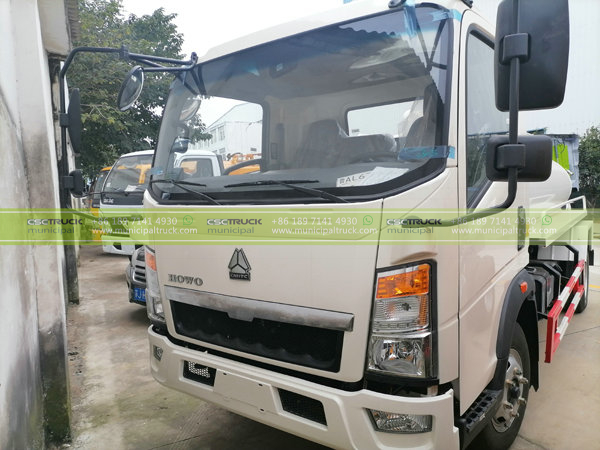

SINOTRUK 5CBM Fecal Suction Truck
Make/Model | CSCTRUCK/SC05ZZ141R3 |
GVW | 6,600kg, Medium Duty Vehicle |
Cab Truck | SINOTRUK HOWO 4×2 Day Cab |
Engine | CUMMINS/ISF3.8/141hp/Euro3 |
Transmission | WLY651 manual 5+1 Speed |
Sludge Tank Capacity | 5,000 Liters, 5 Cubic Meters, 1320 Gallon |
Vacuum Pump | Weilong/JUROP/MORO Capacity 700LPM to 3333LPM |
