features

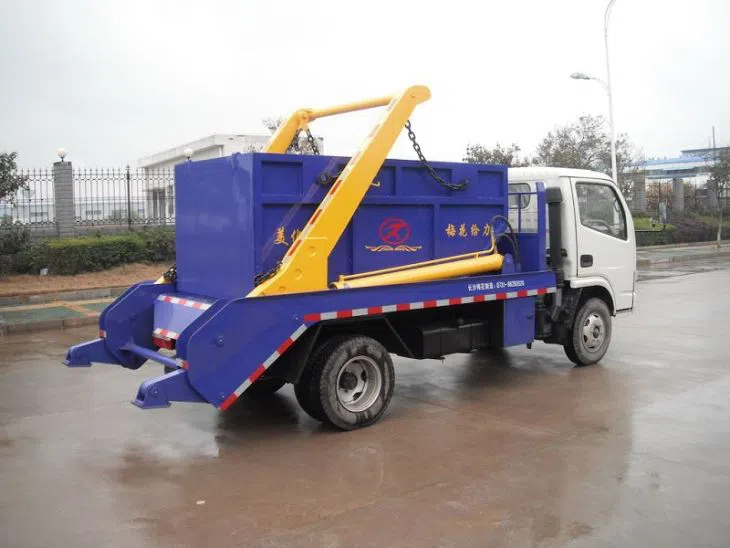

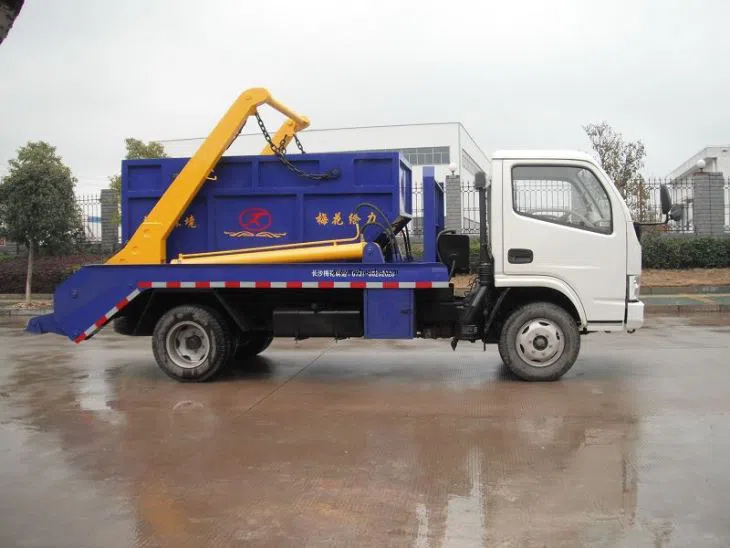

Swing Arm Mechanism
The self-unloading mechanism is composed of steel plates and welded in a box-shaped structure. The main function is to control the oil tank by a multi-way valve, drive the swing arm, and the rotation angle is 145 degrees.
Double Rear Outriggers
Two outriggers are designed at the rear, which is controlled by a hydraulic multi-way valve, which can keep the vehicle stable when the garbage container is lifted up and down.
Container
Garbage buckets are available in pit type and ground type. They are made of high-quality carbon steel with 3 sides and 4 bottoms, which is anti-corrosion and rust-proof.
specifications
| Engine | Make | Dongfeng |
| Model | ZD30D13-4N | |
| Type | Water-cooled, Vertical, in line, 4 cylinders, diesel engine | |
| Power | 130HP (95kw) @3100rpm | |
| Torque | 295(N.m)/ 1600 (rpm) | |
| Displacement | 2953ml | |
| Cabin | Model | Dollicar |
| Type | Short cabin, Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly | |
| Axle | Front | Pneumatic brake, non-driving steering axle, loading 2930kg |
| Rear | Double reduction driving axle, rating: 4390kg | |
| Suspension | Semi-elliptic metal leaf spring, parallel steel shock absorber | |
| Chassis Frame | Light-duty all strong steel constructed frame to be reinforced with cross members | |
| Transmission | Type | Manual, Constant speed synchromesh gearbox |
| Gear Nos | 5 speed forward and 1 speed reverse | |
| Geared Speed | 105km/h | |
| Clutch | Type | Single dry frictional disc, Hydraulic boosting, Φ325mm |
| Steering | Whole circulation in a ball, hydraulic booster; Power assistance steering | |
| Brakes | Service brake, Park brake, engine brake | |
| Tires | 7.00R16LT, Ridus tire (ALL WHEELS) | |
| Performance | Lifting Capacity | From ground level 3,000 (Kg) |
| Pick-up Time | 44 (s) | |
| Unloading Time | 36 (s) | |
| Jack legs out/in | ﹤6(s) | |
| Fast offload empty container | 13 (s) | |
