The 18CBM Combo Sewer Jetter Truck is a combination truck for sewer cleaner and vacuum suction truck which is suitable for suction and transportation sludge from the sanitary sewer lines, road or street catch basin, well station, and Jet flushing or jet rodding for storm line cleaning, water wells, and sediment. The vehicle is multifunctional for municipal, waste processing plants, industrial factories, sewer cleaning, river cleaning, and wastewater collections.
Our Jet-Vac Trucks are Available in:
● 4CBM Vac Jet Combination Truck
● 6CBM Combination Sewer Cleaning Truck
● 8CBM Combined Vacuum Sewer Truck
● 10CBM Combined Sewer Cleaner Truck
● 12CBM Combination Sewer Jetter Truck
● 14CBM Combination Sewer Jetting Truck
● 16CBM Combination Jetting Cleaning Truck
● 18CBM Combo Sewer Jetter Truck
● 20CBM Combo Sewer Cleaning Truck
KEY FEATURES
● MORO Vacuum Pump
● PRAISSOLI Water Pump
● Steel Round Vacuum Tank
● Overflow Prevention Valve, Safety Valves
● Out-cabin engine throttle
● Two independent water pump and vacuum pump system
● Hydraulically openable rear lids, Hydraulic lift tipping tanks
● Hydraulic Hose reel
● Level Indicator
● Rotation Suction Boom, automatically extended
● Powerful Vacuum Pump System
● Large volume size drier with safety device, filtration system
● Reliable plunger water pump
● 120m high-pressure water hose with steel reinforcement
● Self-Priming & Self-discharging System
● 4-inch manual controlled ball valves
● 6-inch air-controlled discharge valves
● Overturn Prevention System

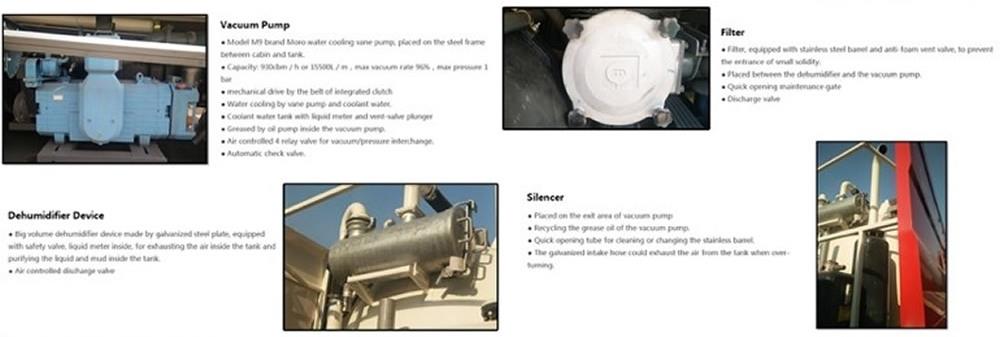

MAIN COMPONENTS
Vacuum System
Water System
Control System
APPLICATION
● Municipal Applications -Sewer cleaning for municipalities and contractors
● Industrial Applications -Industrial water treatment
● Commercial Applications -House Residential Waste Collection
SPECIFICATION FROM SELLER
| Debris Tank | Steel Round Tipping Tank volume with 14m3 |
| Water Tank | PE module water tank volume 6m3 |
| Water Pump | Praissoli MK55 Plunger Pump |
| Pump Capacity | 290l/min, 10357CFM, 76.7GPM |
| Pump Pressure | 200bar, 2900PSI |
| Vacuum Pump | Moro, PM3000 Liquid Cooled Sliding Vane Pump |
| Free air capacity | 1700cbm/hour, 10001CFM |
| Air capacity at 15″ Hg/50% vacuum | 857CFM |
| Suction Boom | 320-degree angle rotation |
| Controls | Remote controls cleaning, suction, rear door with hatches. |
| Read Door | Hydraulic open, rear door mounted hose reel. |
CHASSIS SPECIFICATION
| Chassis Make | HOWO |
| Chassis Model | ZZ1257N464GE1 |
| Cab Model | T5G |
| Wheelbase | 4500+1300mm |
| GVW(KGS) | 25000 |
| Chassis Engine | MC07.34-50 |
| Clutch | HW13710 |
| Front axle： | H153 7Ton |
| Rear axle | HT457 10Ton |
| Tyre | 11.00R20 11+1 pcs of spare |
| ABS | Equipped |
| Emission standard | Euro 5 |
PICK UP A CHASSIS
We offer oil tank trucks on a variety of chassis including ISUZU, HINO, UD, JAC, SINOTRUK, SHACMAN, BEIBEN, and DONGFENG, available on any commercial chassis.
*Please scroll down to see this Municipal Vacuum Tank Truck chassis inventory, you may optionally choose above different brand of chassis for one of your tanks, or need a new tank for one of your truck chassis for mounting this Municipal Vacuum Tank. There is the one you need.
BENEFITS
● Much more silencer than similar vehicles
● Optional sewage water recycle system water saving.
● Super suction, 2 minutes to full loading the tank.
● Long distance reach 50m, depth 9m
● Multi-function vehicle less investment
● One-man operation
● Intelligence easy control
● Various applications in different working areas.
