BRIEFS:

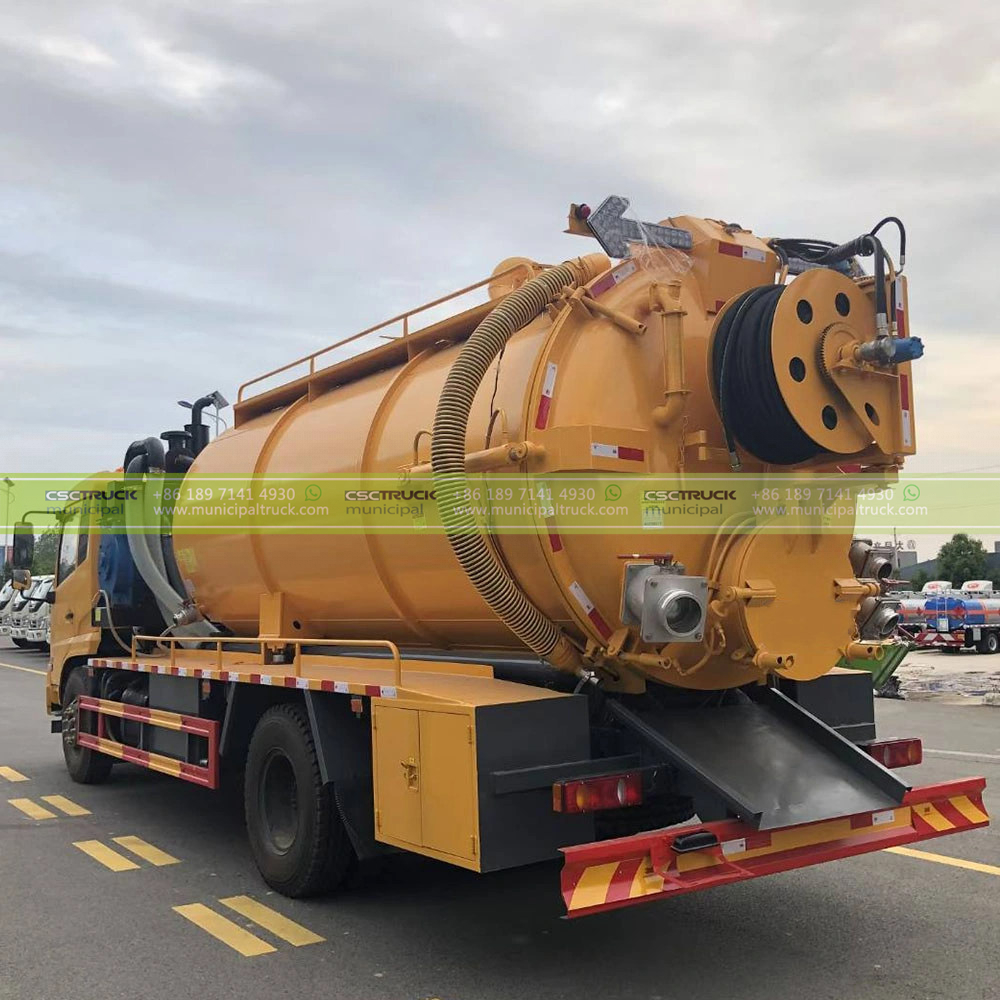

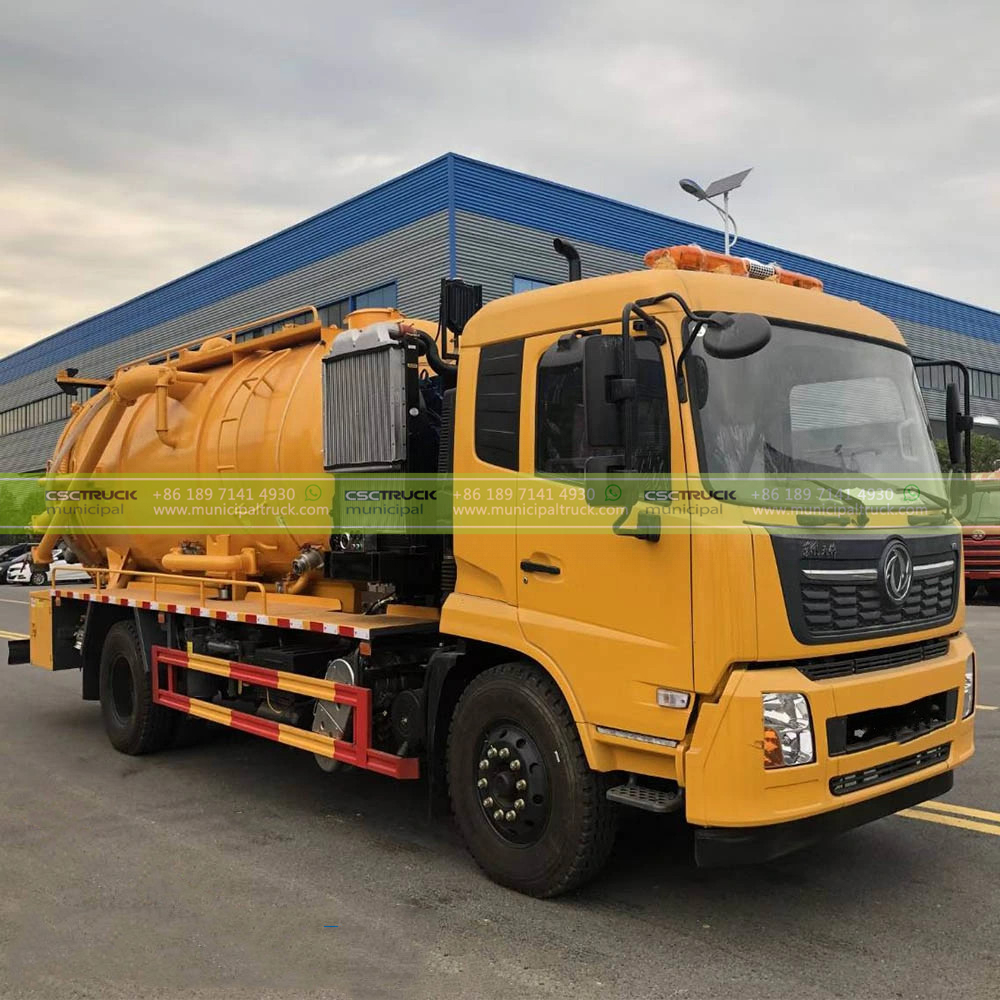

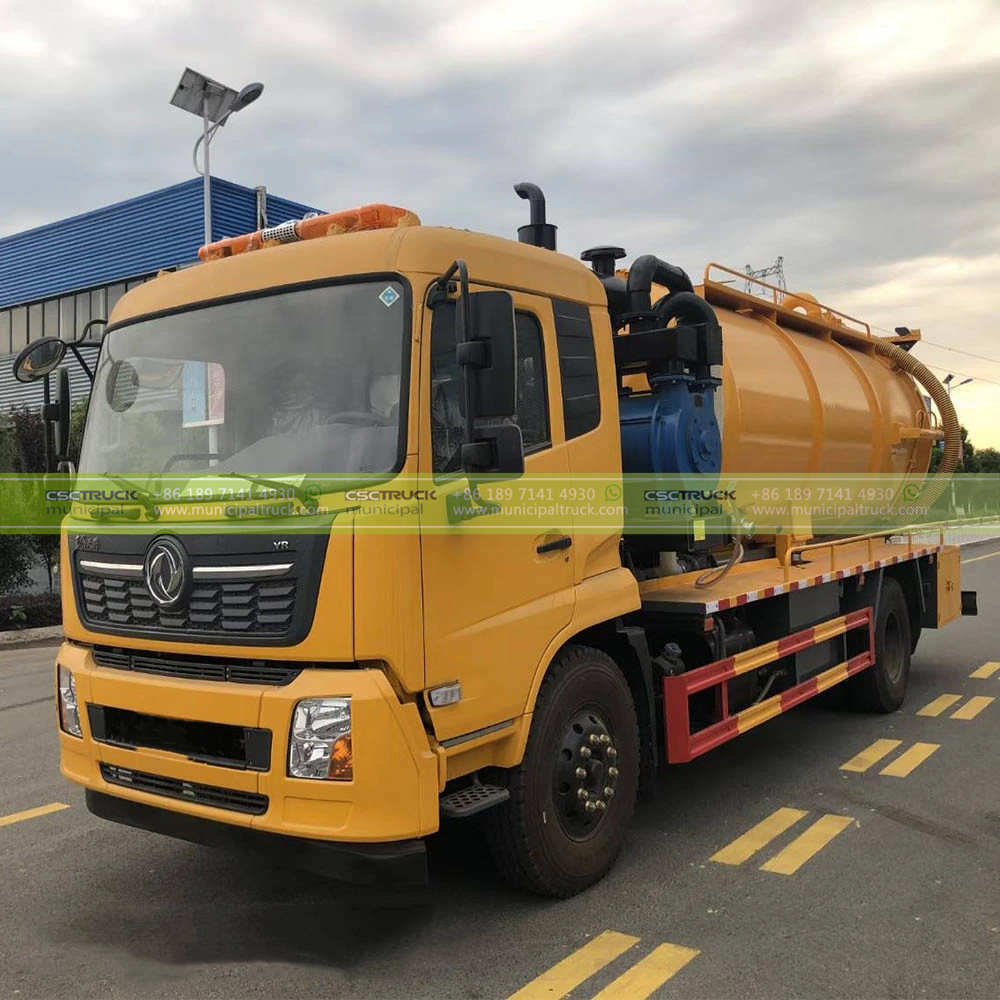

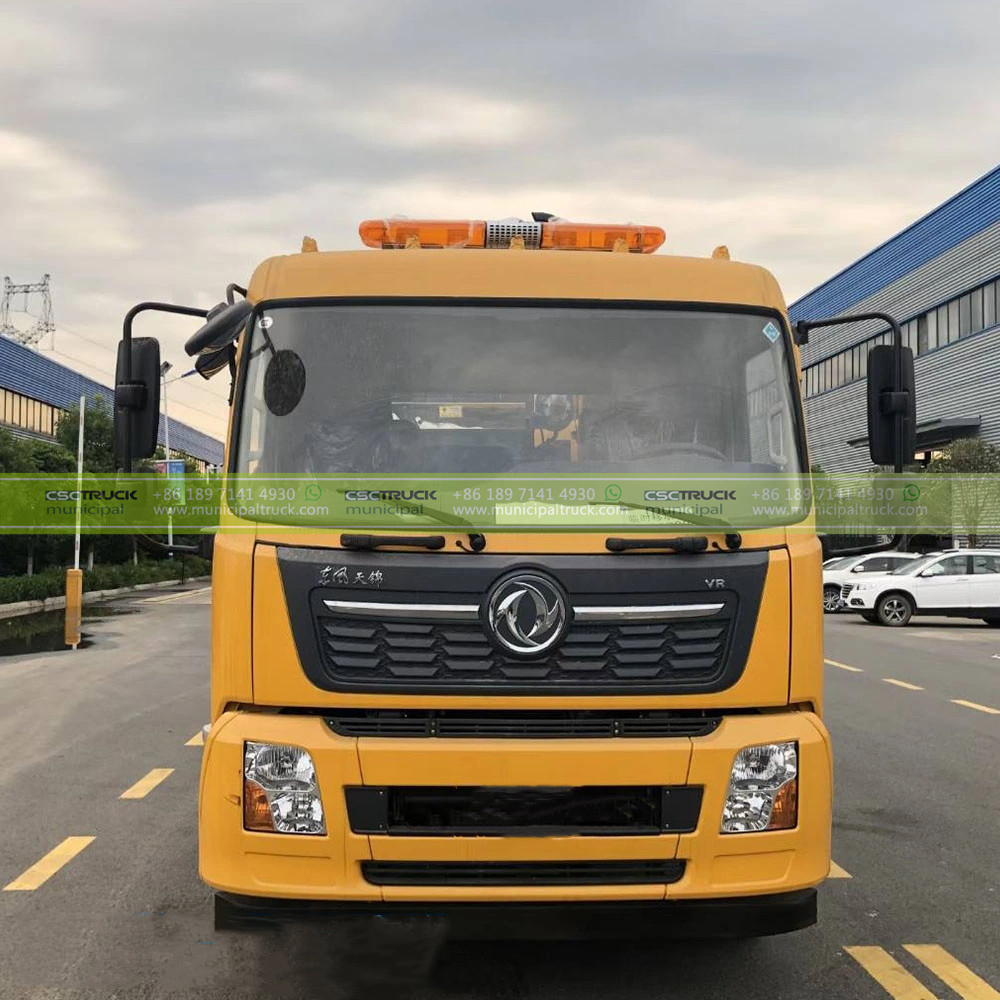

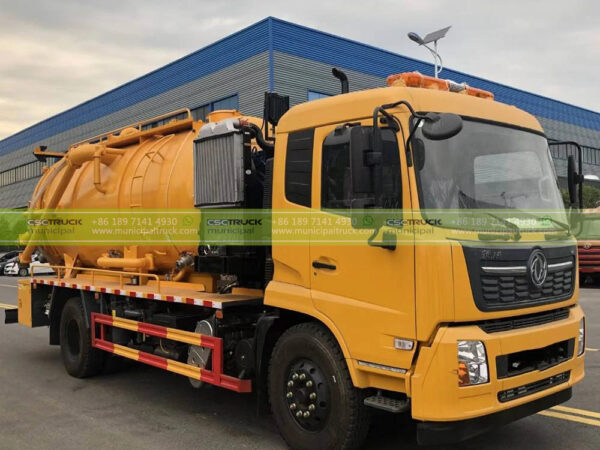

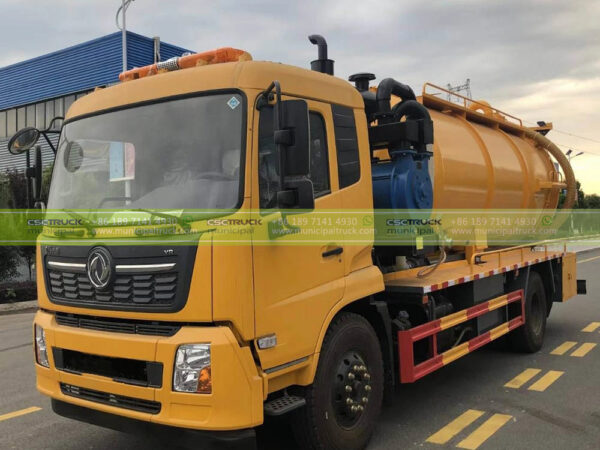

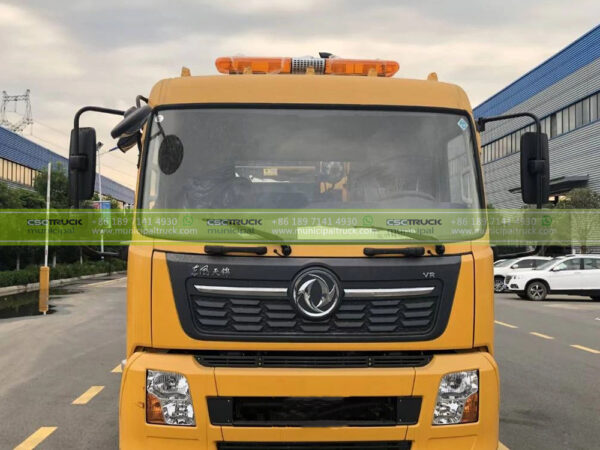

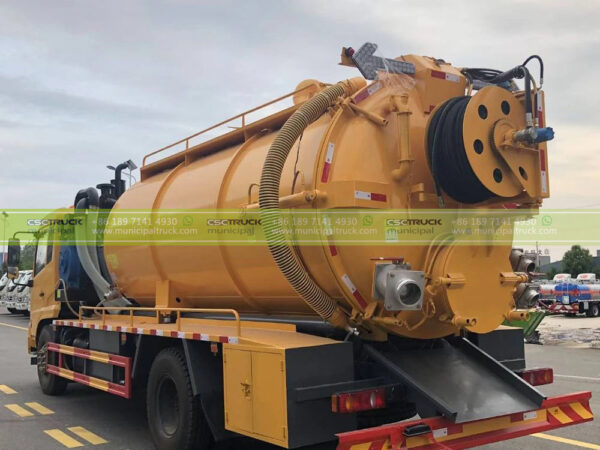

The DONGFENG 10 Ton Sewage Vacuum Suction Truck is a versatile and high-capacity vehicle designed for efficiently collecting and transporting various substances, including sewage, sludge, septic waste, crude oil, stone, and brick debris. This rugged and reliable truck is built on a DFAC chassis, offering superior performance and ease of operation. With a tank volume of 10,000 liters and powerful vacuum equipment, it ensures thorough and efficient cleaning, making it an ideal choice for sanitation and waste management applications.
This sewage vacuum suction truck combines durability, efficiency, and versatility to meet the demands of sanitation and waste management tasks, making it a valuable asset for various applications.
FEATURES:
- Chassis: Built on a robust Dongfeng (DFAC) chassis, the truck is known for its durability and performance in challenging environments.
- Tank Volume: The generous 10,000-liter tank allows for extended operation without frequent emptying, increasing efficiency.
- Drive Configuration: The 4×2 drive configuration provides excellent maneuverability and control on various terrains.
- Tank Material: Constructed with Q235B material and a tank thickness of 5mm, ensuring longevity and resistance to wear and tear.
- Steering Options: Choose between Left-Hand Drive (LHD) or Right-Hand Drive (RHD) steering to meet specific regional or operator requirements.
- Engine Power: Equipped with a 125 kW (170 hp) engine, providing ample power for effective suction and transport.
- Vacuum Pump: Features a high-capacity liquid (water)-ring vacuum pump with a pump flow of 420 m³/h (120 L/s) for efficient substance suction.
- Pump Pressure Limit: The vacuum pump offers a maximum pressure limit of -90,000 Pa to handle various materials with ease.
- Displacement: With a 5.9L engine displacement, it offers a perfect balance of power and fuel efficiency.
- Inhalable Diameter: The DN100 inhalable diameter ensures efficient suction of different substances.
- Suction Pipe Diameter: Features a DN102 suction pipe diameter for effective substance intake.
- Discharging Mechanism: Utilizes a hydraulic lifting rear-open system for easy and controlled discharge.
- Suction Height: Provides an impressive 10 meters of suction height, reaching even deep or challenging areas.
- Tank Thickness Options: Choose from tank thicknesses of 5mm, 6mm, 7mm, or 8mm based on specific application requirements.
- Vacuum Pump Brands: Compatible with reputable vacuum pump brands, including Moro, Jurop, and Mec.
- Vacuum Pump Types: Available in various vacuum pump types, including liquid (water) ring, The Roots, and rotary vane.
- Chassis Options: Choose from a variety of chassis options, including DFAC, HOWO, Shacman, Foton, FAW, Beiben, based on your preference or operational needs.
- Steering Models: Offers both Left-Hand Drive (LHD) and Right-Hand Drive (RHD) models to accommodate local driving conventions.
- Application: Ideal for applications related to sewer maintenance, fecal waste disposal, cesspit cleaning, and gully maintenance.
- Transport Package: Available in “Nude” or “Wax-Polishing” transport packages, ensuring safe and reliable delivery.
- Specification: The vehicle’s overall specification includes dimensions of 7,600 x 2,490 x 3,200 mm, providing ample space for effective operation and storage.
SPECIFICATIONS:
| Specification | Details |
|---|---|
| Chassis | Dongfeng (DFAC) |
| Tank Volume | 10,000 L |
| Drive | 4×2 |
| Tank Material | Q235B |
| Steering | Left-Hand Drive or Right-Hand Drive (optional) |
| Tank Thickness | 5 mm |
| Wheelbase | 3,950 mm |
| Vacuum Pump | Liquid (Water)-Ring Vacuum Pump |
| Tire | 10.00-20 |
| Engine | 125 kW (170 hp) |
| Displacement | 5.9 L |
| Pump Flow | 420 m3/h (120 L/s) |
| Pump Pressure Limit | -90,000 Pa |
| Pump Speed | 950 rpm |
| Inhalable Diameter | DN100 |
| Tank Material (Optional) | Stainless Steel |
| Inhalable Substances | Sewage, Sludge, Septic, Crude Oil, Stone, Brick |
| Suction Pipe Diameter | DN102 |
| Discharging Mechanism | Hydraulic Lifting Rear-Open |
| Suction Height | 10 m |
| Tank Thickness Options | 5 mm, 6 mm, 7 mm, 8 mm |
| Other Names | Honey Sucker |
| Product Name | Sewage Vacuum Truck, Sewage Suction Truck |
| Vacuum Pump Brands | Moro, Jurop, Mec |
| Vacuum Pump Type | Liquid (Water) Ring, The Roots, Rotary Vane |
| Chassis Brands | DFAC |
| Steering Model Options | Left-Hand Drive or Right-Hand Drive |
| Application | Sewer, Fecal, Cesspit, Gully |
| Transport Package | Nude, Wax-Polishing |
| Specification | 7,600 x 2,490 x 3,200 mm |
