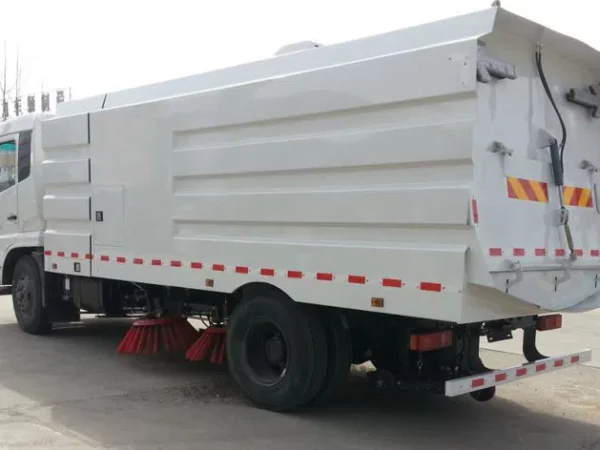

features

-Tank

Debris Hopper Capacity8000 liters, fabricated from stainless steel.

Water tank capacity with 3,800 liters, stainless steel tank.

-Sweeping System

Center mounted 4 brooms, front left, and right broom independent control.

Washing system Electric water pump, water filter, nozzle, water tanker, etc.

Function with Clean sweep and dust control.

3.5m sweeping width.

-Suction Nozzle

U-shaped servo Suction nozzle

Suction hose size diameter with190mm.

-Air Blower

High pressure, centrifugal, sweeping truck-specific used blower.

Suction Equipment Centrifugal fan, strong suction power performance.

specification

Truck Make/ Model	CSCTRUCK/ CSC5163TSLDFE
Chassis Make	DONGFENG/ DFL1160BX
Engine Make	Dongfeng Cummins
Engine Model	B190 33
Engine Horsepower @ Speed	140kw/ 190hp @2500RPM
Torque @ Speed	640N.m @ 1500RPM
Displacement	5.9L
Transmission	DF6S900, 6 speed forward 1-speed reverse
Steering	Powered Steering
Brake	Air brake, exhaust brake, ABS
Gross Vehicle Weight	16000kg
Loading Capacity	4935 kg
Truck Weight	10670 kg
Overall Size	7875*2470*3160mm
Water Tanker Capacity	3800 Liters
Hopper Capacity	8000 liters
Front Axle Loading	6000kg
Rear Axle Loading	10000kg
Wheelbase	4700mm
Tire	10.00R20/ 6+1 nos
Driving Speed	98 (km/h)
