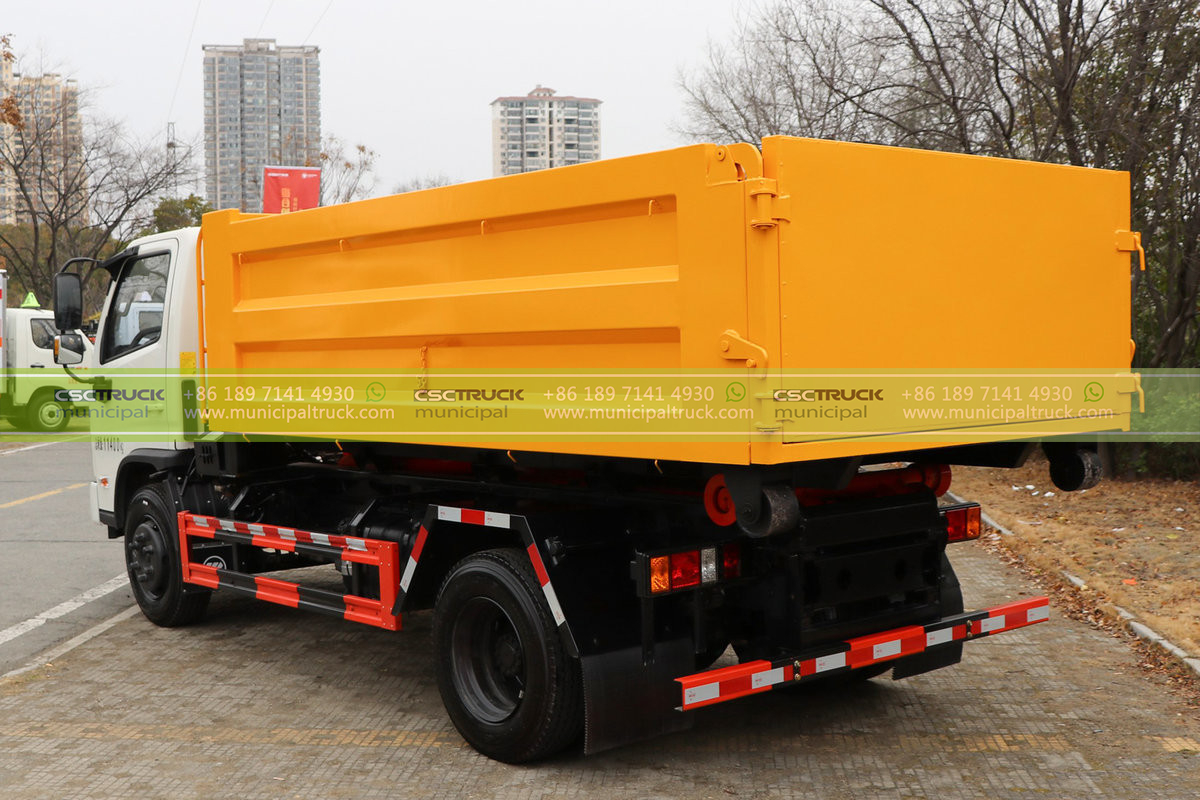

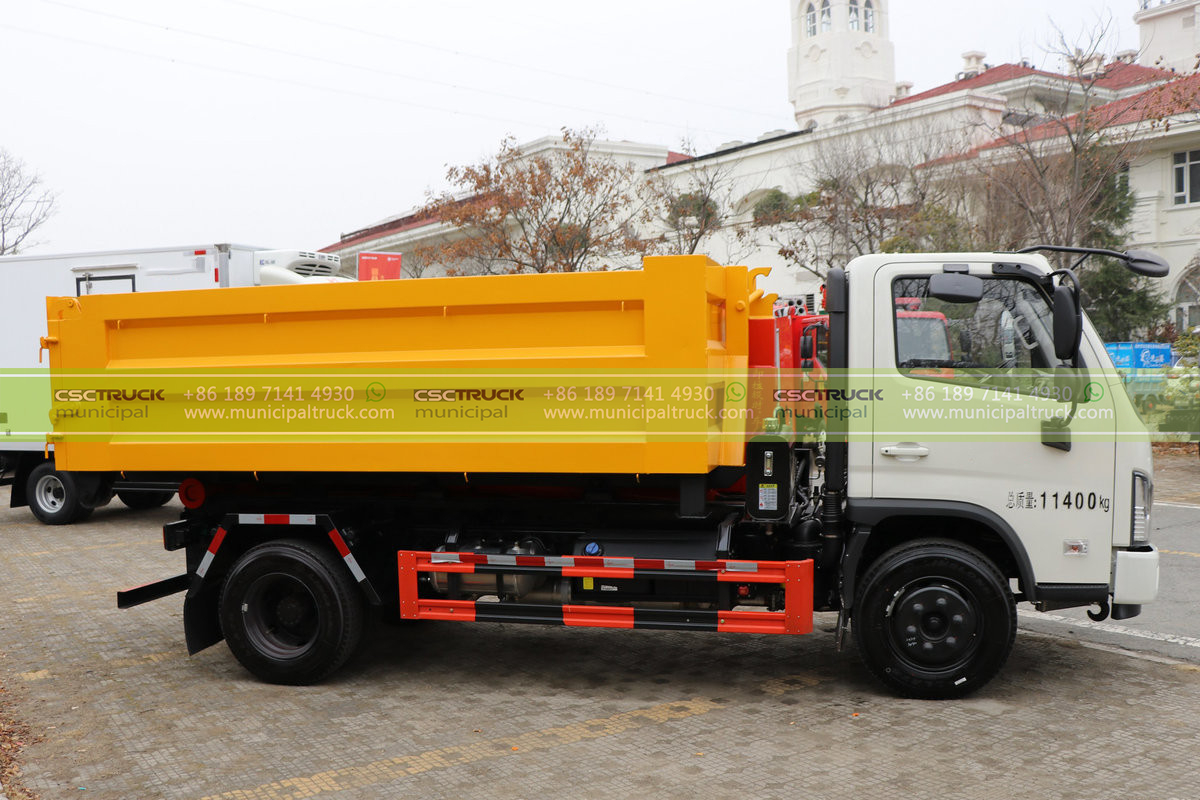

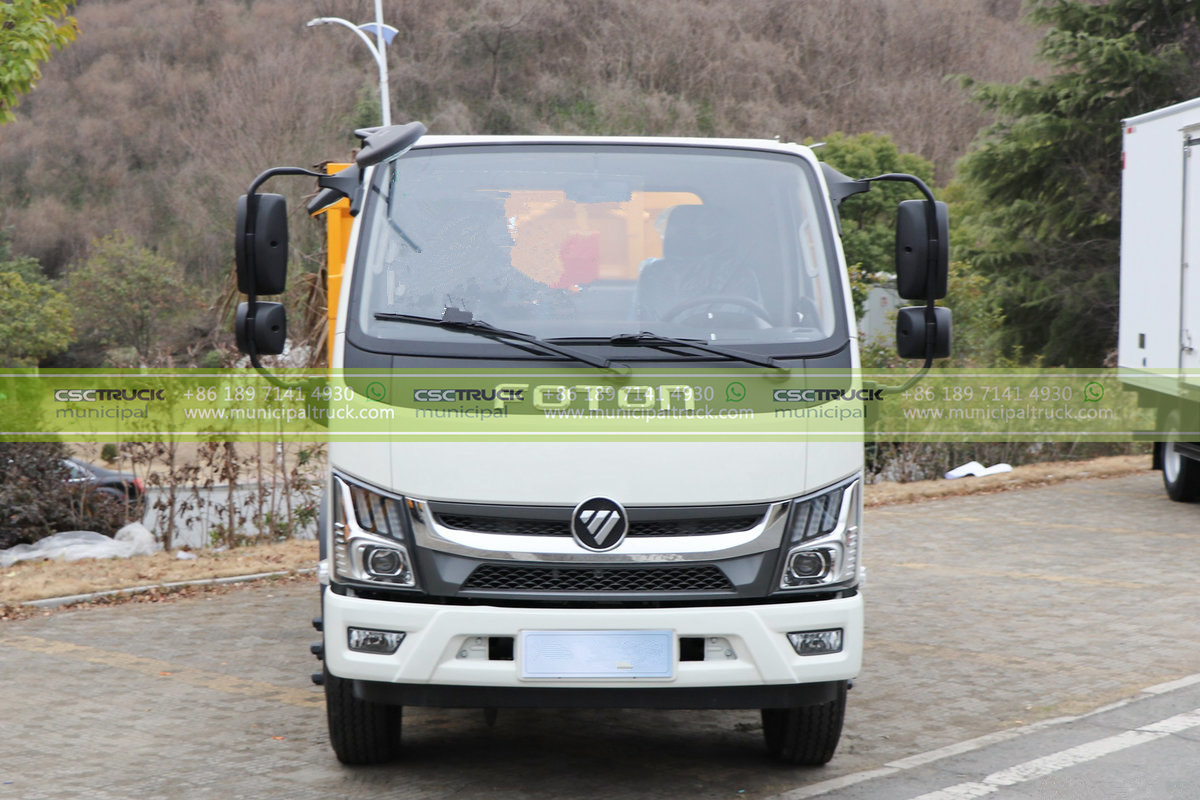

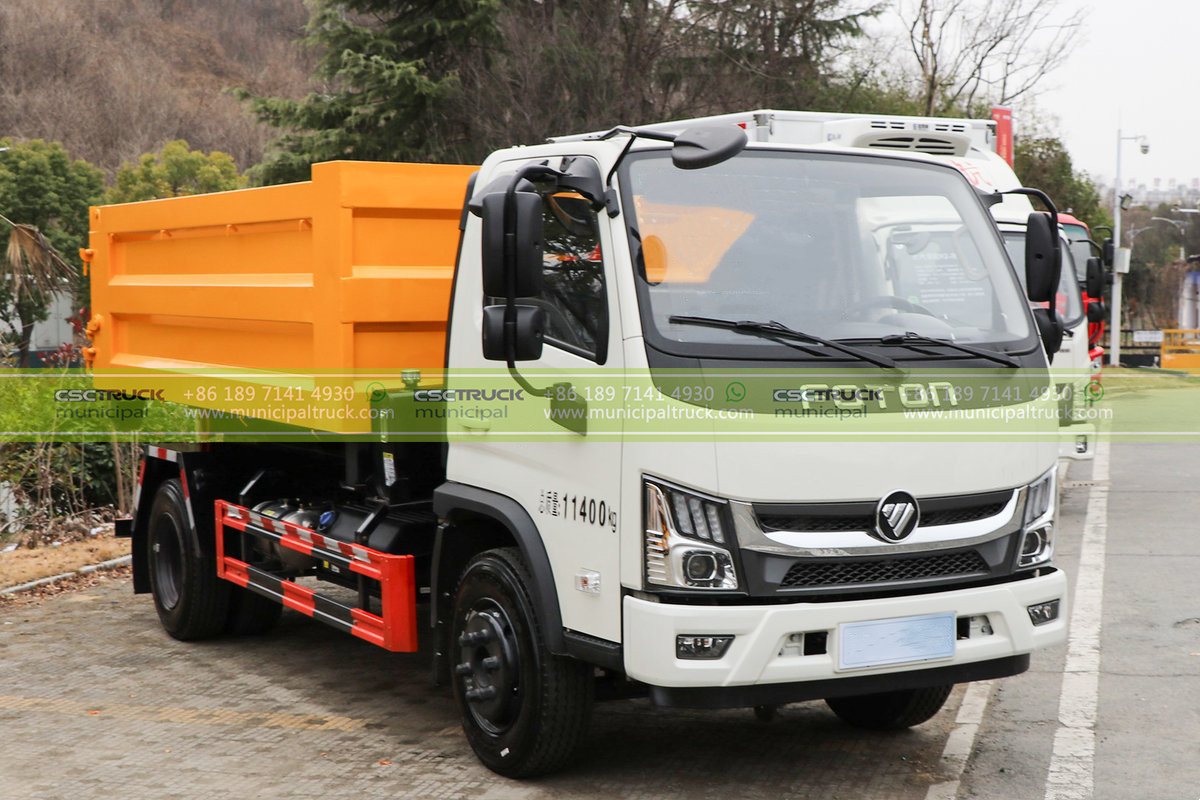

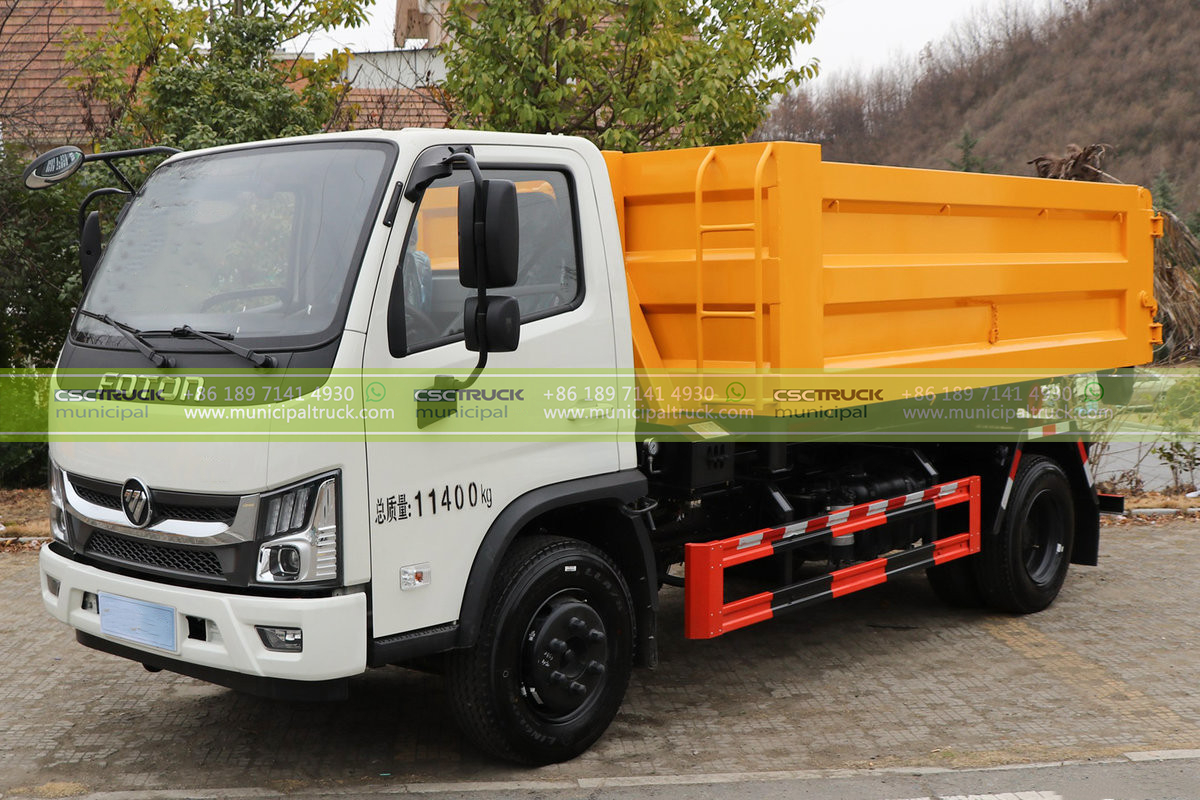

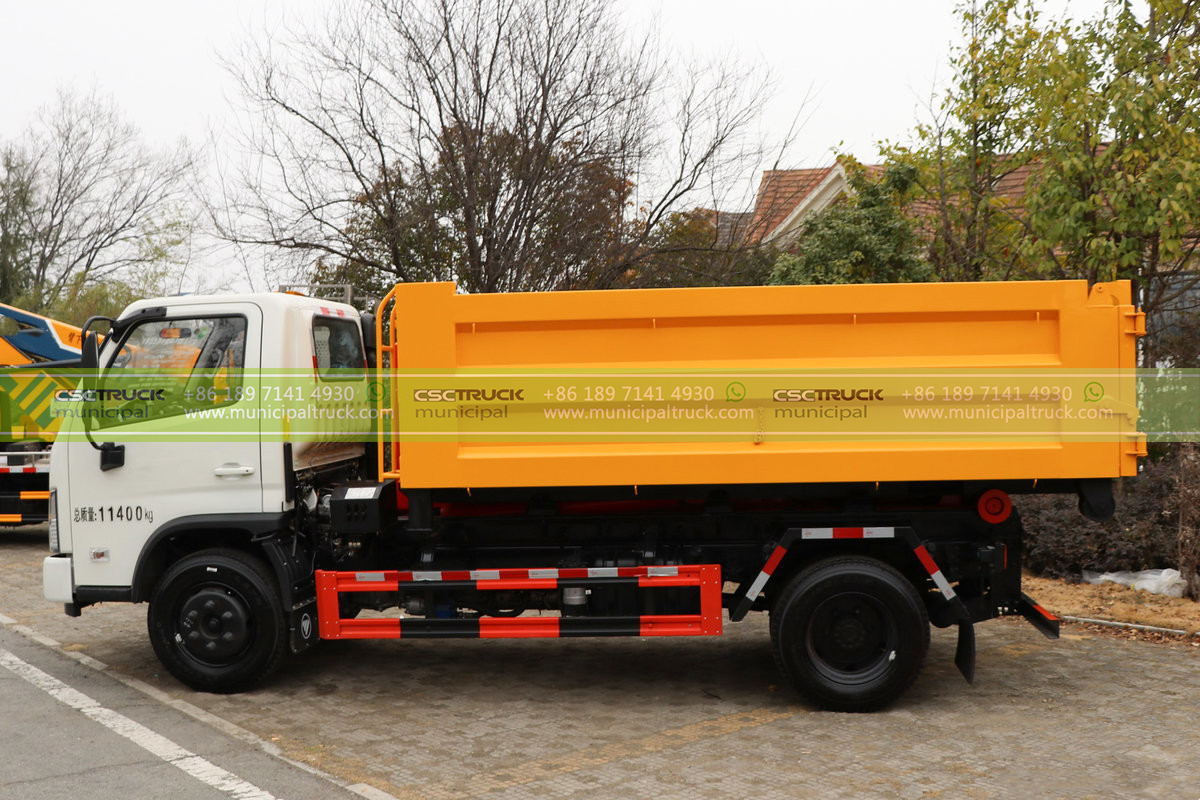

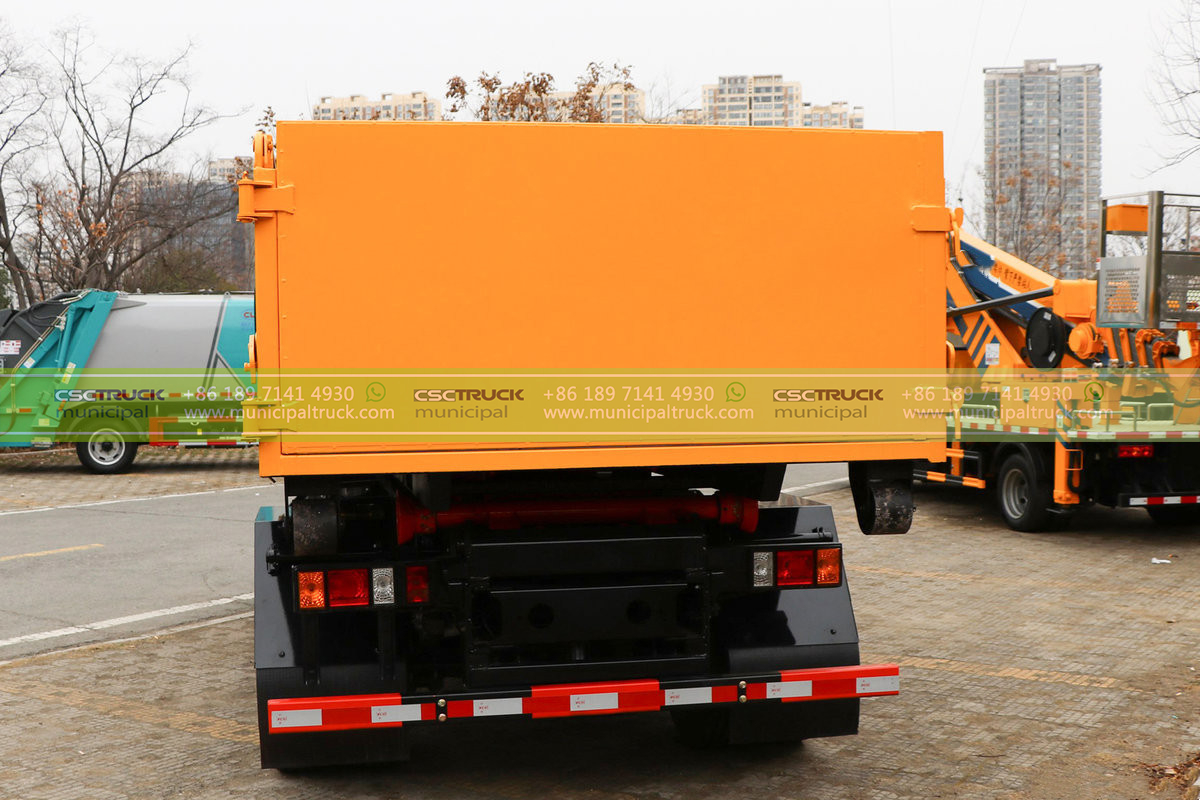

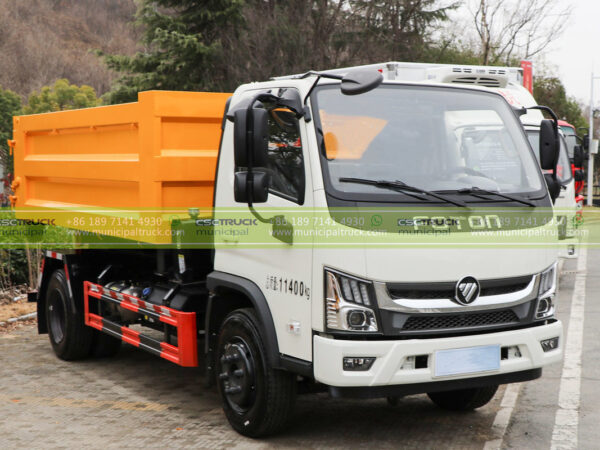

SUMMARY:
The FOTON 8 Ton Dump Garbage Truck is a versatile waste management solution designed to efficiently collect and transport various types of waste. With its powerful engine, advanced features, and adaptable design, this truck offers a reliable and effective solution for waste management needs. Its detachable dump body, combined with a sturdy chassis, makes it an indispensable tool for maintaining cleanliness and order in urban environments.
The Dump Garbage Truck combines advanced engineering, versatile waste management capabilities, and an eco-conscious design to effectively collect and manage various types of waste in urban environments. With its adaptable features and specifications, it is an indispensable tool for maintaining hygiene and orderliness.
FEATURES:
- Drive Mode: The truck operates in a 4×2 drive mode, ensuring optimal maneuverability and control to navigate through urban streets and confined spaces with ease.
- Wheelbase: With a wheelbase of 3360mm, the truck maintains stability and balanced weight distribution, contributing to safe and efficient waste collection operations.
- Type: Designed as a “dump truck,” this versatile vehicle excels at efficiently collecting and managing waste, offering flexibility.
- Body Size: The truck boasts a body size of 5.505×2.06×2.18 meters, providing ample space for waste collection while optimizing operational efficiency.
- Weight Capacities: With a gross weight of 4.06 tons and a rated weight of 7.21 tons, the truck is equipped to handle substantial amounts of waste while maintaining performance.
- Front/Back Overhang: The 1.14/1.005 meters front/back overhang facilitates smooth entry and exit from tight spaces, ensuring efficient waste collection activities.
- Front/Rear Wheelbase: Featuring front and rear wheelbase dimensions of 1535mm and 1552mm respectively, the truck ensures stability and control during waste collection tasks.
- Engine Parameters: Powered by the Yuneidongli D25TCIF1 engine with a displacement of 2.5L, the truck delivers a maximum output power of 110kW (150 hp) at a rated speed of 3000rpm.
- Emission Standard and Fuel Type: The engine adheres to Euro 3, Euro 4, and Euro 5 emission standards, ensuring an environmentally conscious approach. It operates on diesel, combining efficiency and power for waste management tasks.
- Upper Equipment Parameters: The truck’s unique identification code, BJ5114ZXXGJBA-01, denotes its specific configuration, making it well-equipped for effective waste collection.
- Transmission Parameters: The garbage truck utilizes the Wanliyang WLY8G45 transmission system with 8 gears, guaranteeing smooth power delivery and precise control.
- Chassis Parameters: The robust CSCTRUCK chassis, part of the Foton Jin’gang S1 series, incorporates the BJ1114VGJBA-01 model. With dimensions of 215x65x6+4-760mm, it provides stability and support for waste collection activities.
- Rear Axle Description: The 1088Z Rear Axle enhances the truck’s stability and load-bearing capacity, essential for effective waste collection.
- Number of Spring Leaves and Speed Ratio: Featuring 8/8+5 spring leaves and a speed ratio of 5.833, the truck ensures smooth rides and controlled handling, vital for waste management operations.
- Tires: Equipped with 6 tires adhering to the specifications 235/75R17.5 16PR, the truck guarantees stability, traction, and durability during waste collection tasks.
SPECIFICATIONS:
| Drive Mode | 4×2 |
| Wheelbase | 3360mm |
| Type | Dump Truck |
| Body Size | 5.505×2.06×2.18 meters |
| Gross Weight | 4.06 tons |
| Rated Weight | 7.21 tons |
| Front/Back Overhang | 1.14/1.005 meters |
| Front/Rear Wheelbase | Front: 1535mm; Rear: 1552mm |
| Engine Parameters | |
| Engine Model | Yuneidongli D25TCIF1 |
| Displacement | 2.5L |
| Max Output Power | 110kW |
| Max Horsepower | 150 hp |
| Emission Standard | Euro 3, Euro 4, Euro 5 |
| Fuel Type | Diesel |
| Rated Speed | 3000rpm |
| Upper Equipment Parameters | |
| Vehicle Announcement | BJ5114ZXXGJBA-01 |
| Transmission Parameters | |
| Transmission Model | Wanliyang WLY8G45 |
| Number of Gears | 8 |
| Chassis Parameters | |
| Chassis Brand | CSCTRUCK |
| Chassis Series | Foton Jin’gang S1 |
| Chassis Model | BJ1114VGJBA-01 |
| Frame Dimensions | 215x65x6+4-760mm |
| Rear Axle Description | 1088Z Rear Axle |
| Number of Spring Leaves | 8/8+5 |
| Speed Ratio | 5.833 |
| Tires | |
| Number of Tires | 6 |
| Tire Specifications | 235/75R17.5 16PR |
