features

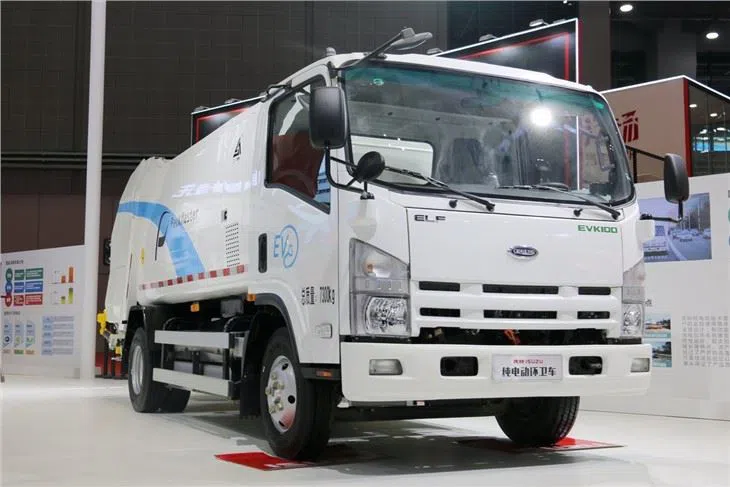

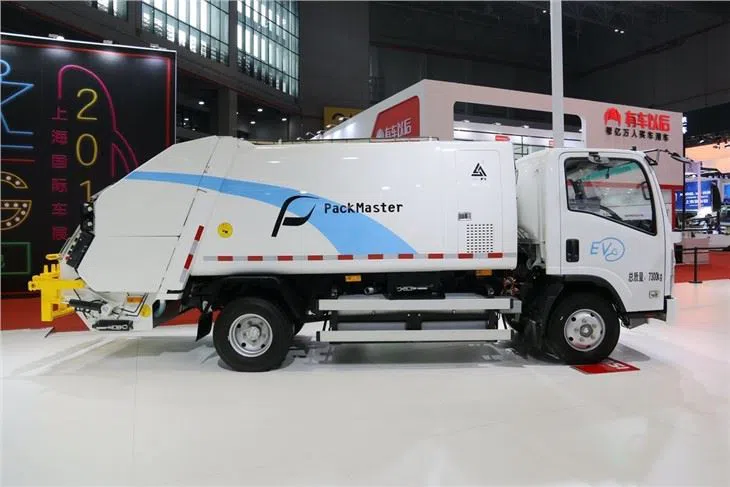

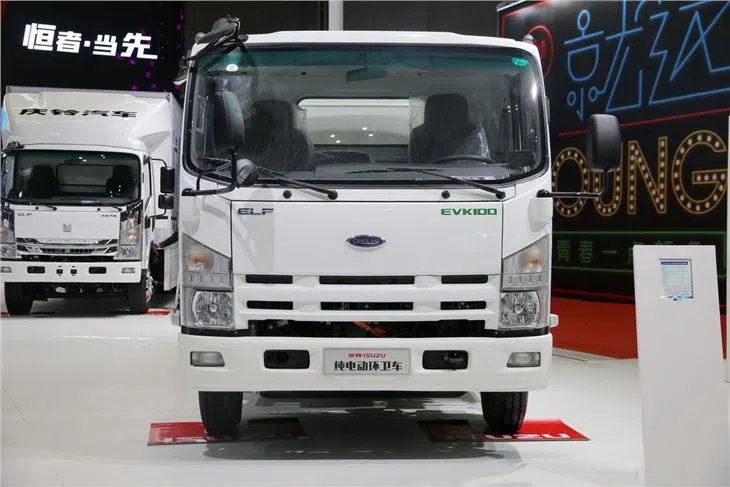

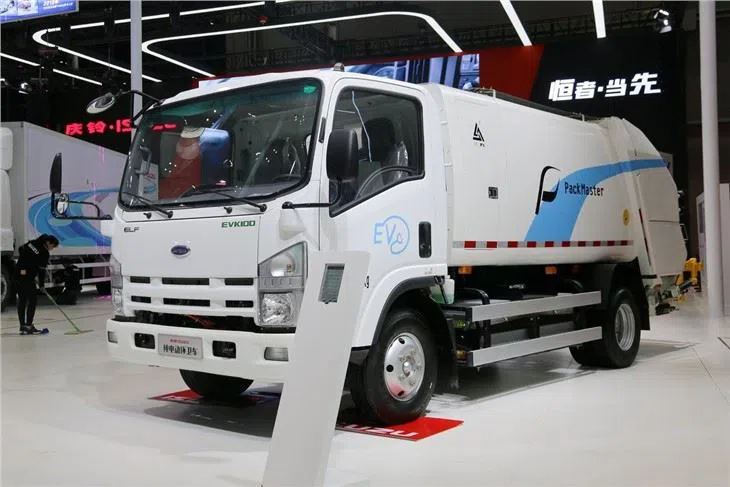

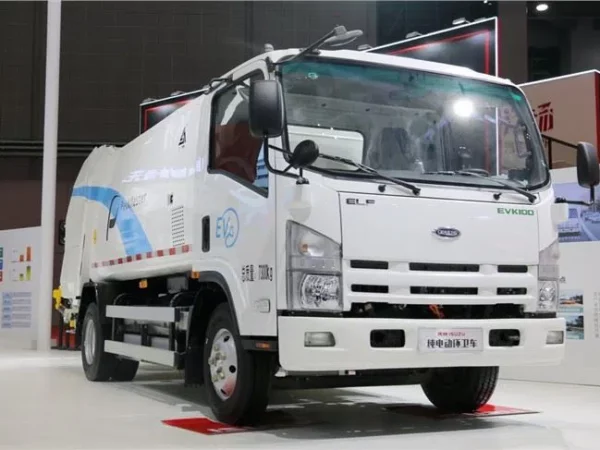

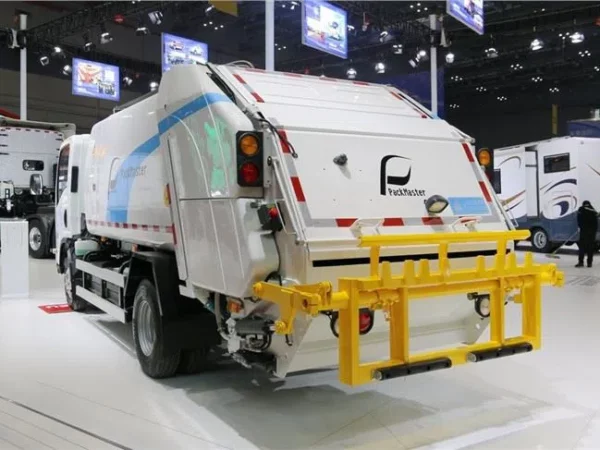

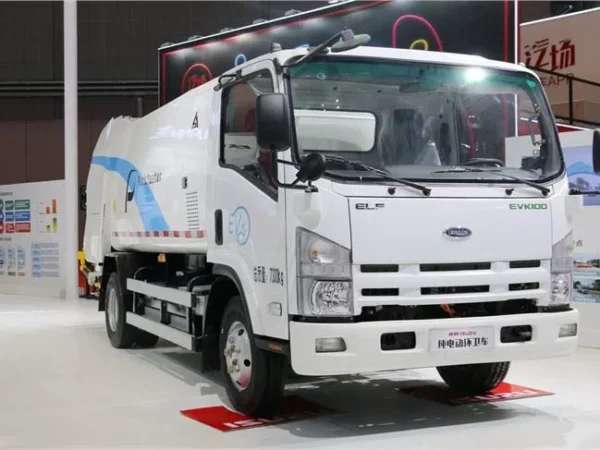

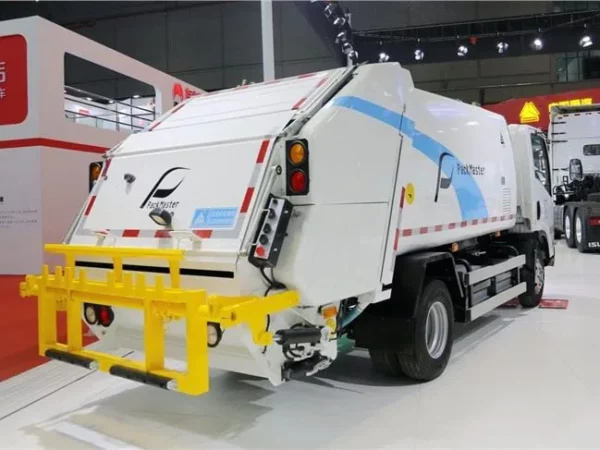

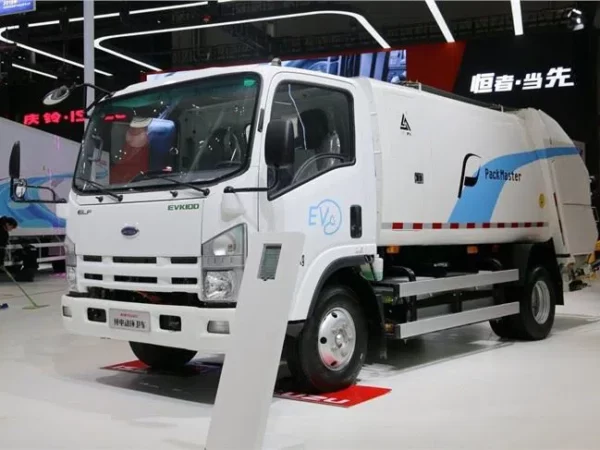

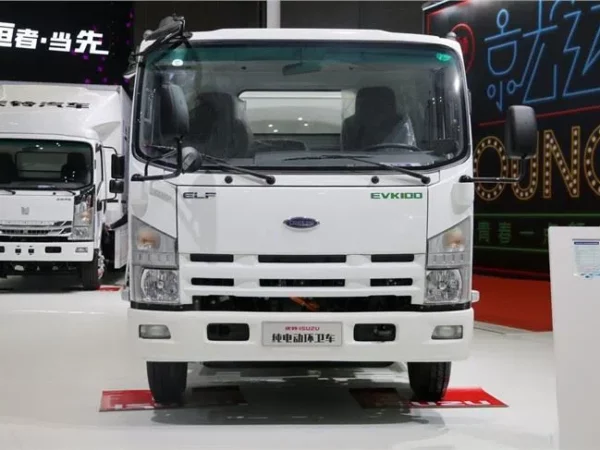

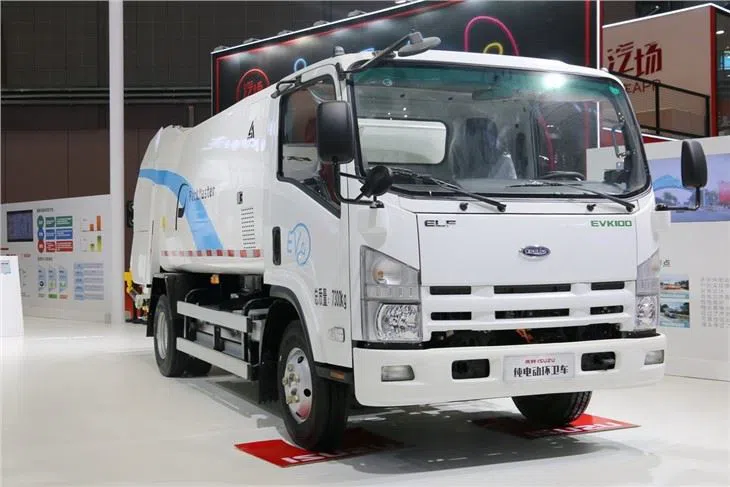

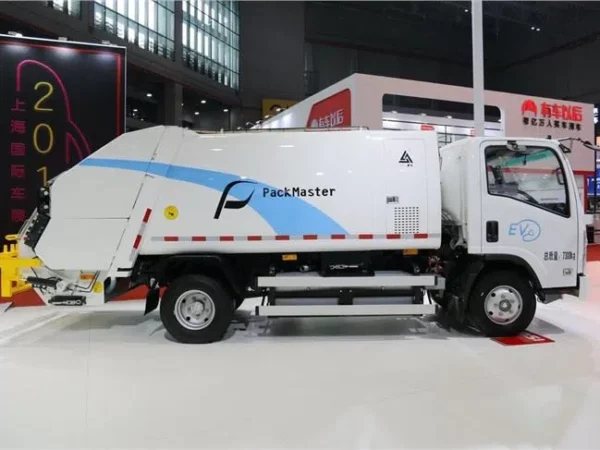

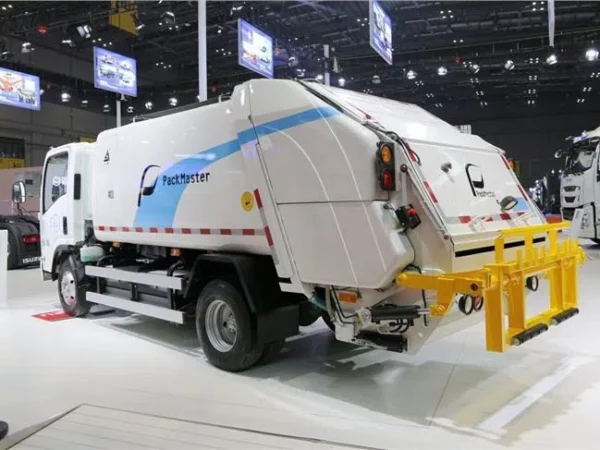

– ISUZU New Energy Garbage Truck, EVK100 realizes integrated intelligently control of garbage tank and chassis system, and transmission is of high efficiency, largely reduces the energy consumption, and improves the driving range and operation time.

-Adopts a modular power compartment design, which has good integration and is easy to maintain.

-The New Energy Garbage Truck adopts a lithium iron phosphate battery (LFP), which has good thermal stability and higher safety and reliability, high energy density, high consistency of cell, equipped with a passive balanced battery management system. Long cycle life, up to 3000 times; Long service life, up to 8 years.

-The battery is made from CATL, which provides strong power electric vehicles for meeting the working conditions of short-haul and long-haul transportation in urban areas and construction sites, to satisfy the requirements of industrialization and transport electrification, and greatly improve operational efficiency and provide practical solutions for reduced mobile source pollution.

specification

Chassis
G.V.W	7300kg	Curb Weight	5650kg
Full Pay Loading	1455kg	Size	6755*2020*2460mm
Motor
Brand	SAIC	Model	YTD060W23
Type	Permanent Magnet Synchronous Motor	Output Power	60kW
Peek Power	110kW	Peak Torque	1000N·m
Battery
Brand	Gotion High tech Co Ltd	Model	GXB2-G7A-6P42S
Type	Lithium iron phosphate power battery

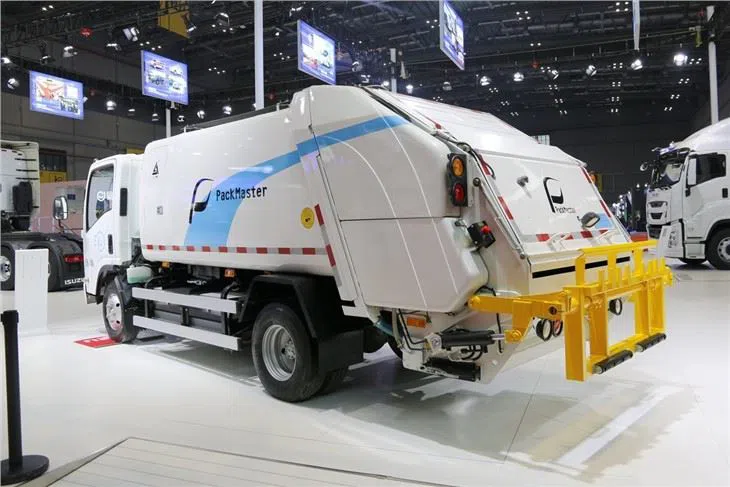

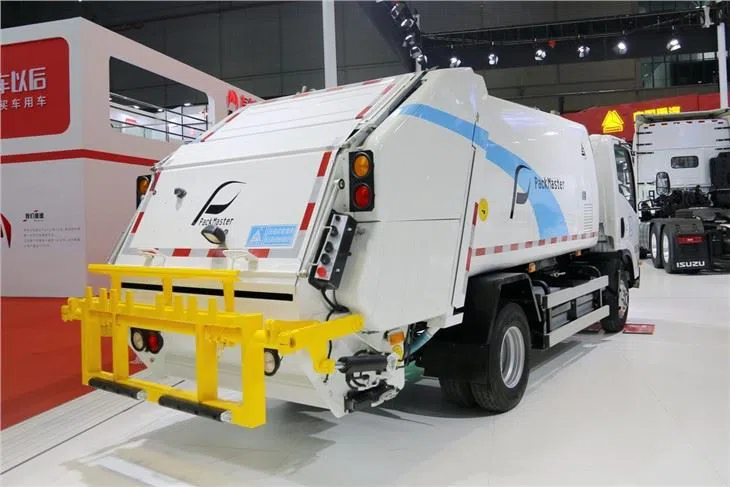

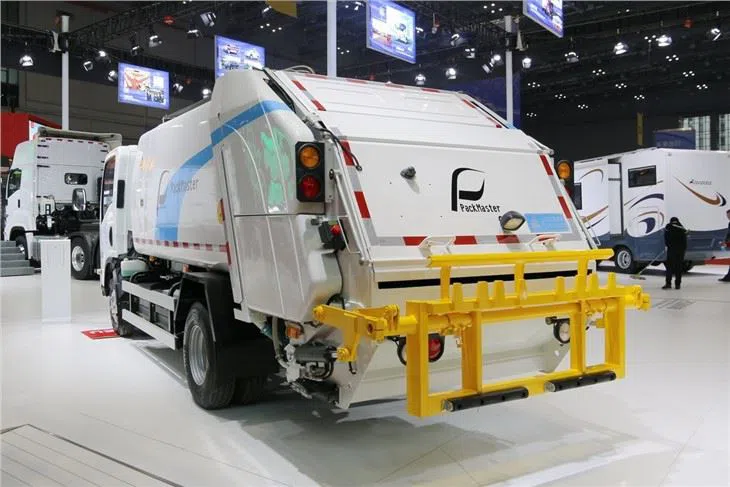

Function：	Equipped with refuse tank, hydraulic equipment and refuse hopper, used to waste compaction loading, transport and unload functions.
