Brief

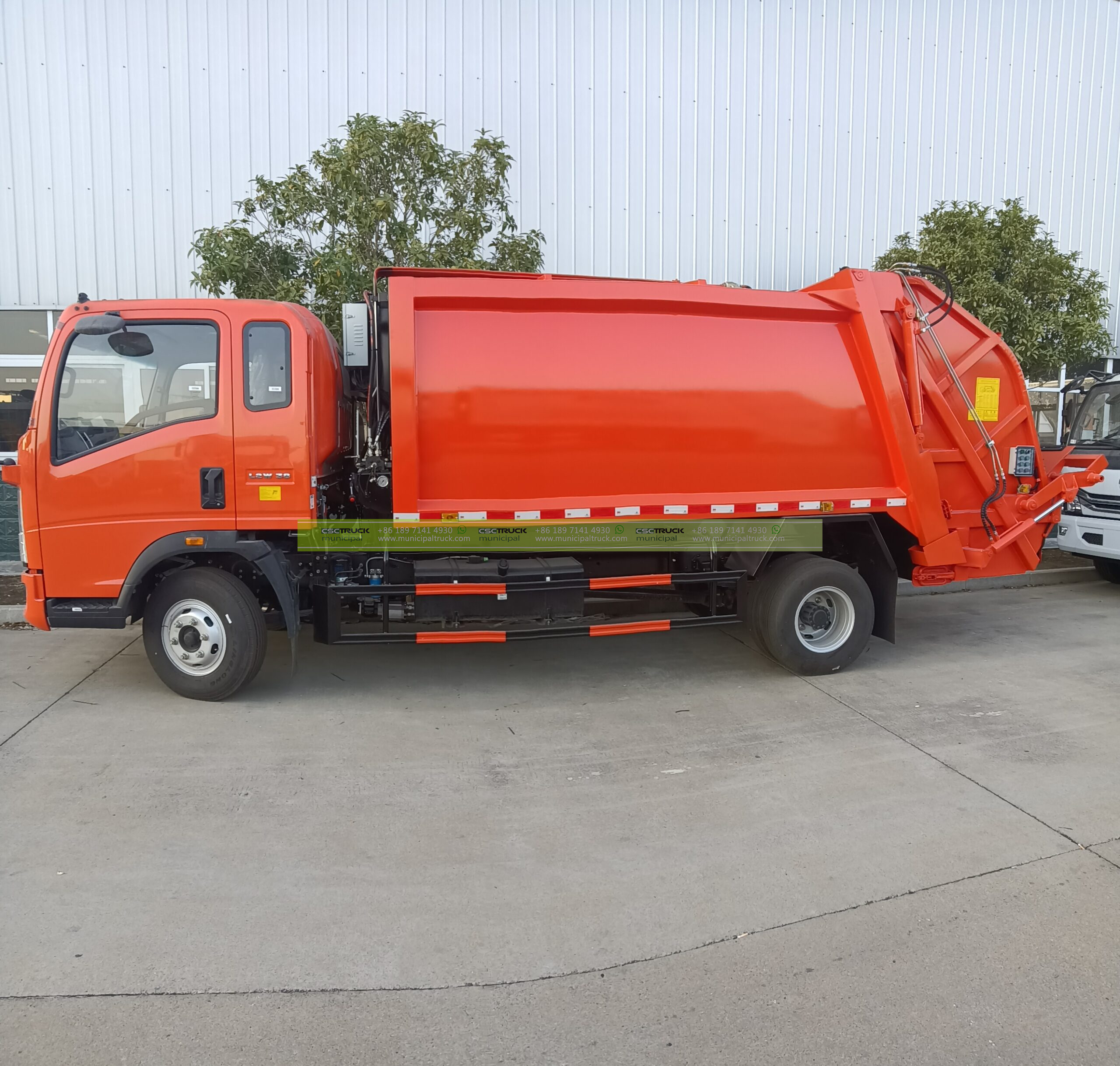

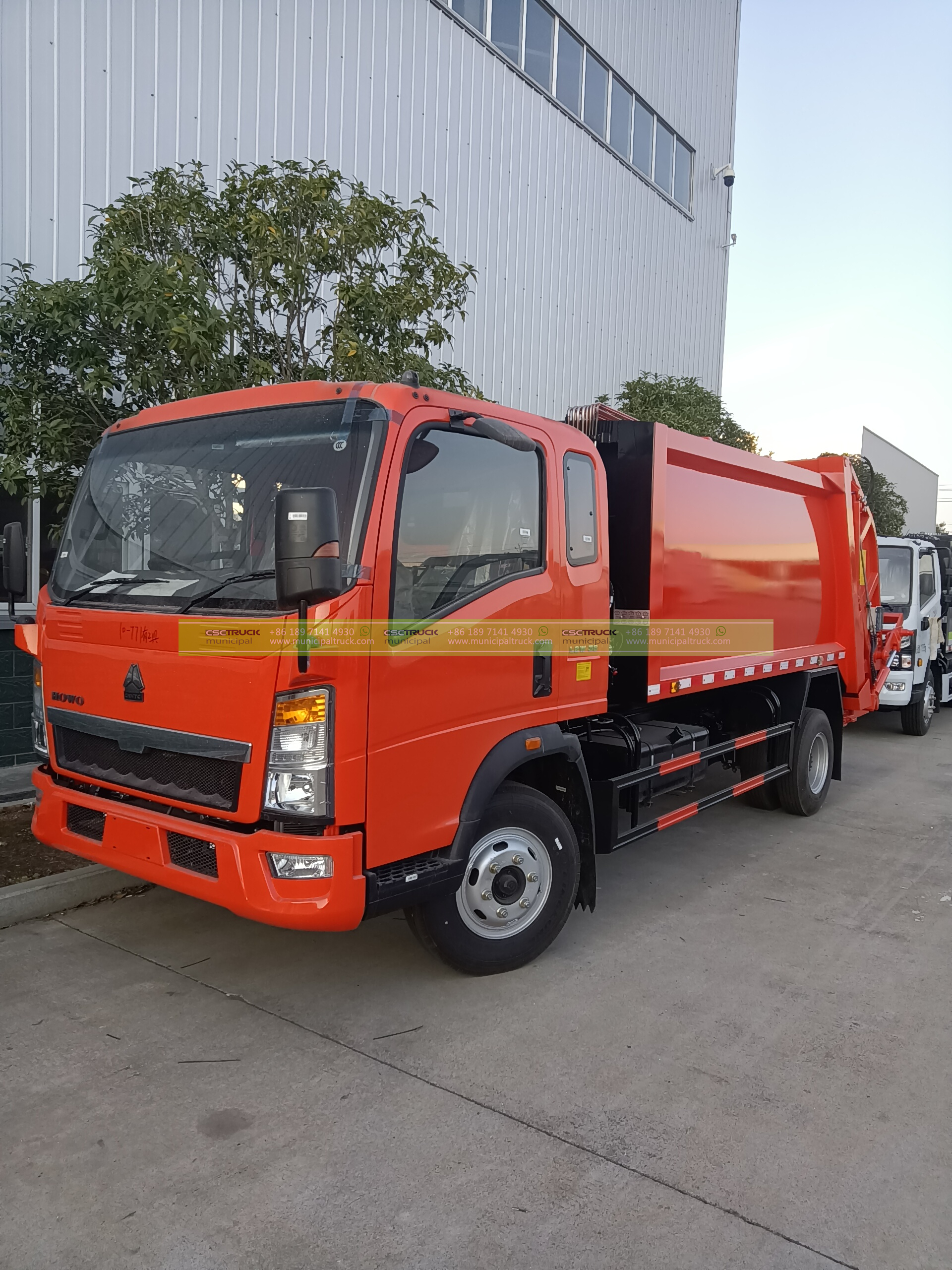

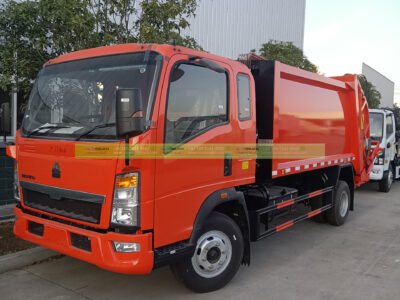

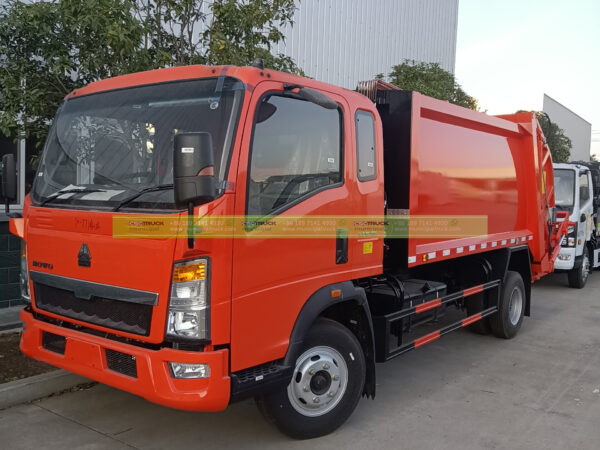

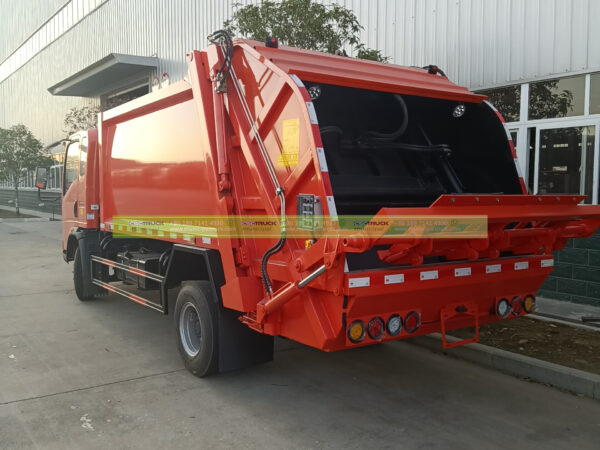

The Bin Lifter Compact Garbage Truck is ideal for the collection and transfer of garbage in urban residential areas, communities, large factories, and mines. Absorbing foreign advanced technology development and design, the performance adopts post-installed two-way compression technology to complete garbage collection and transportation, with a large compression ratio, strong loading capacity, multiple control methods, reliable performance, and convenient operation.
features
specification
| Engine | |
| Make/Model | CHUANCHAI/Q23-95E60 |
| Type | Diesel Engine |
| Engine System | 4 Stroke, High-Pressure Common Rail, Inter-cooling Turbo-Charged, 4 Cylinders |
| Output Power@ speed | 95hp@3000rpm |
| Displacement | 2.3L |
| Max. torque @ Speed | 240N.m@2000rpm |
| Emission standard | Euro 6 |
| Transmission | |
| Gears | 6F+1R |
| Operation | Manual |

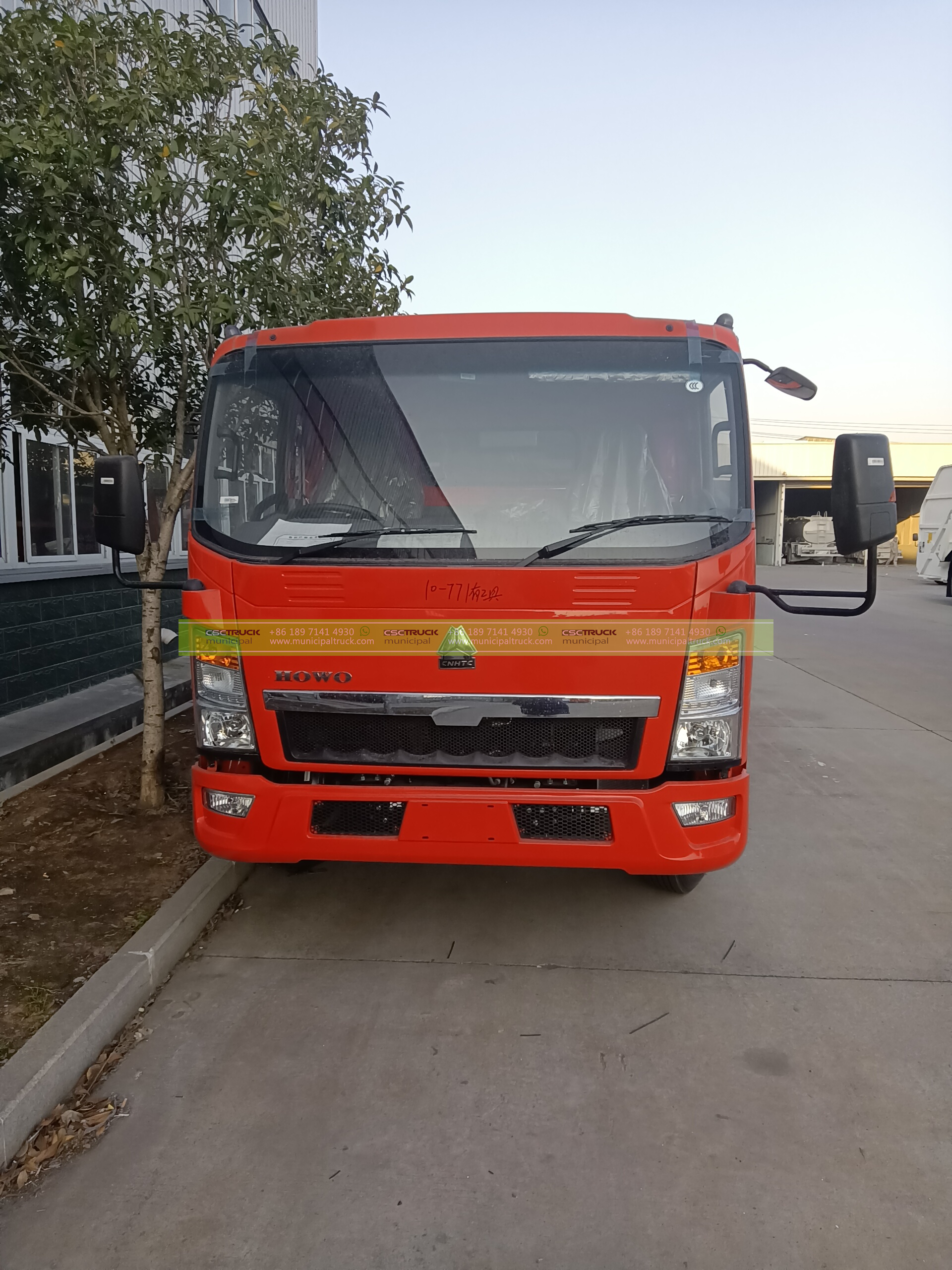

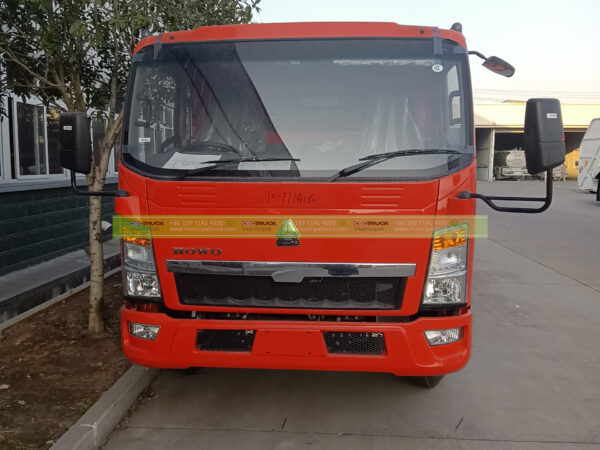

| Cabin | |
| Type | Steel construction, Single Row, Flat |
| Passenger No. | 2 |

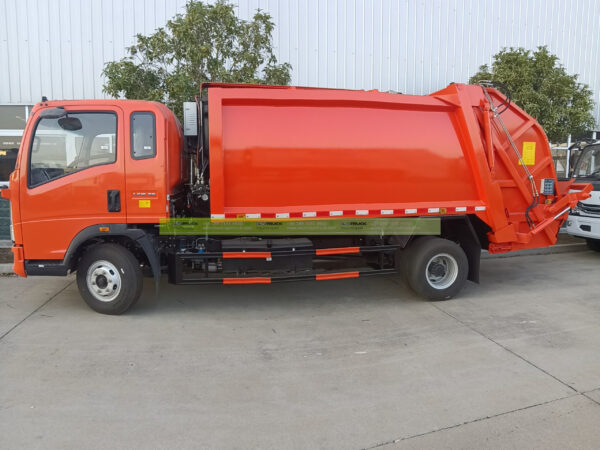

| Body and Compaction System | |
| Capacity | 3.5CBM |
| Material | Weather-resistant steel, high corrosion resistance |
| Design | Sealed leakage proof |
| Compaction Ratio | 1/3 – 1/4 |

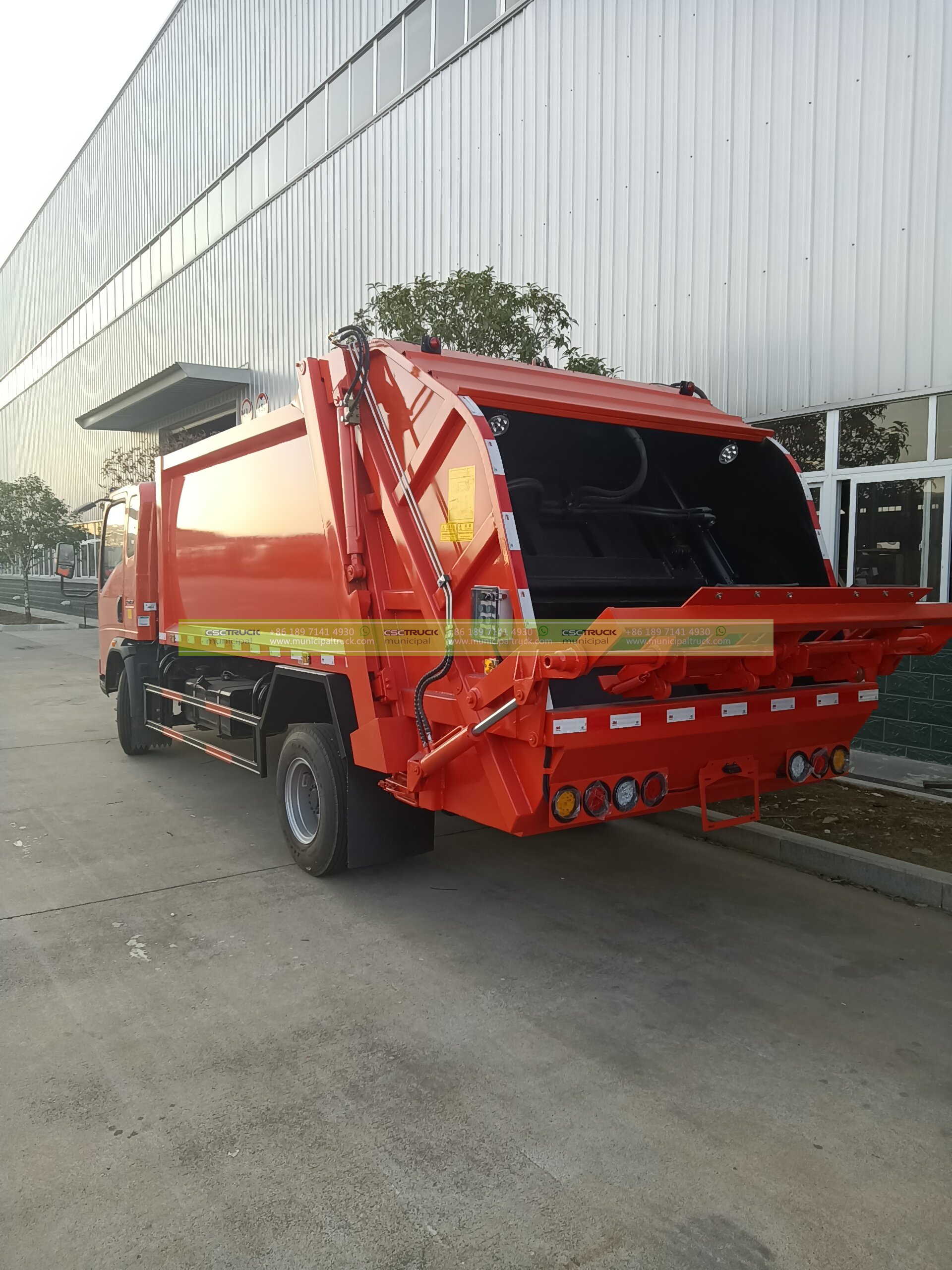

| Containers Lifting Devices | High capacity articulated lifter works in a minimum of two stages by four double effects hydraulic cylinders to ensure the lifting and lowering of containers smoothly.
Lifting weight capacity not less than 800 kg. |
| Control System | Equipped with three sets of automatic, manual control, and wireless remote control modes, it can control the operation of the garbage truck in the driver’s cab, the middle of the garbage, and the rear of the garbage. |
