Brief

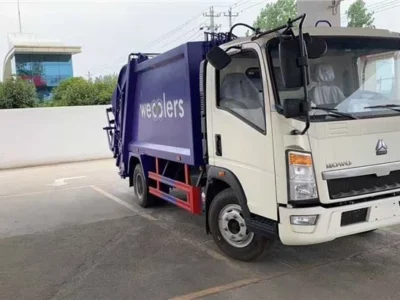

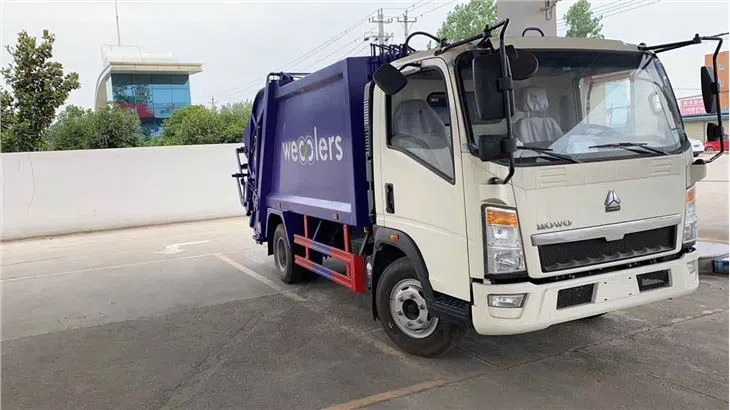

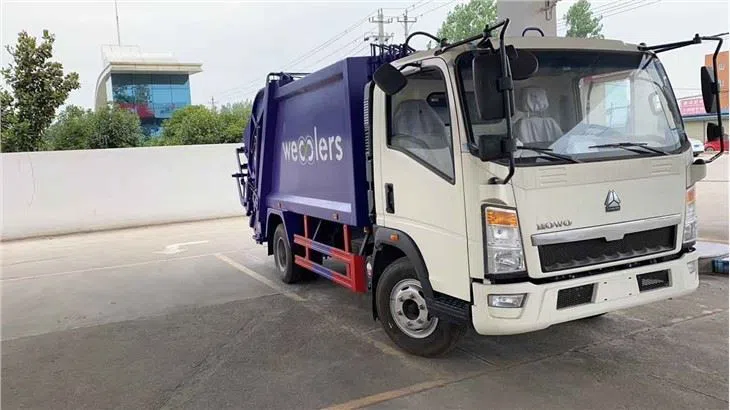

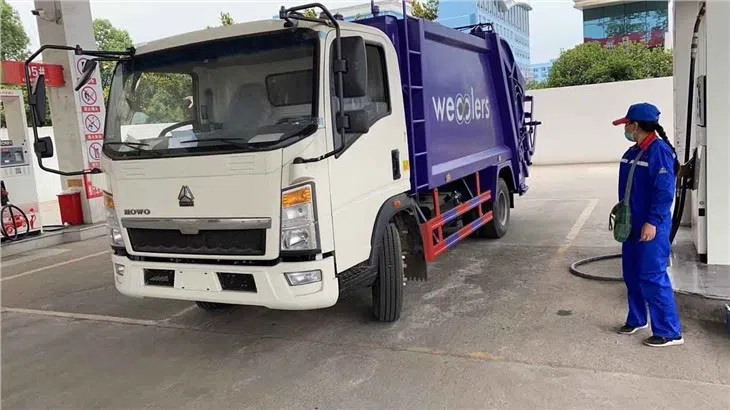

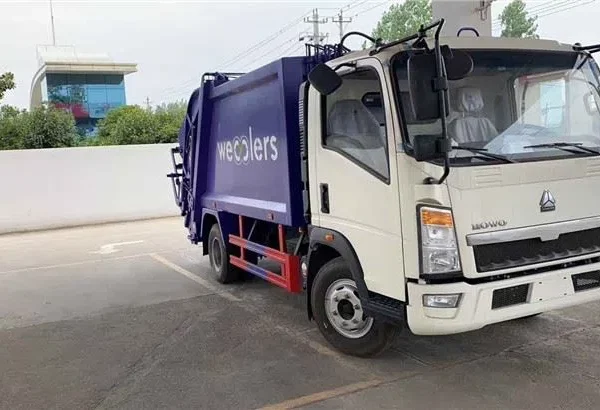

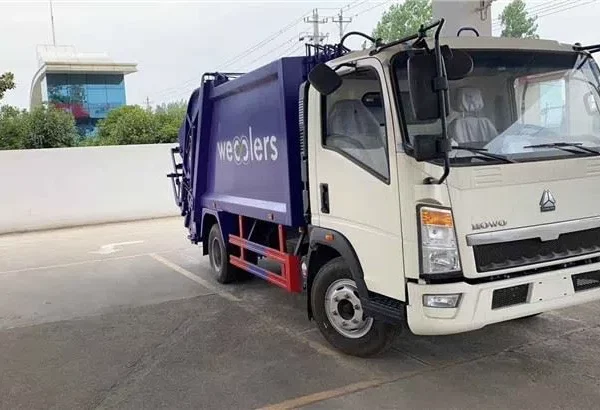

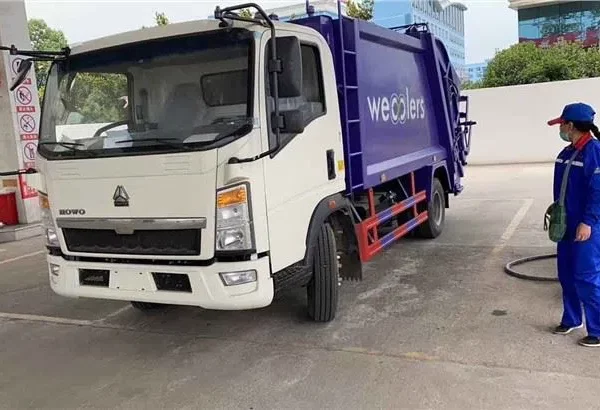

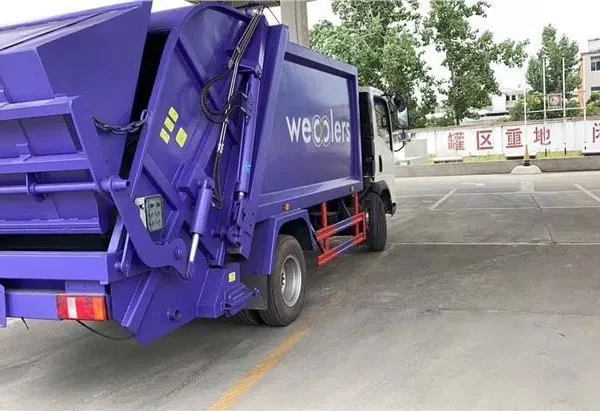

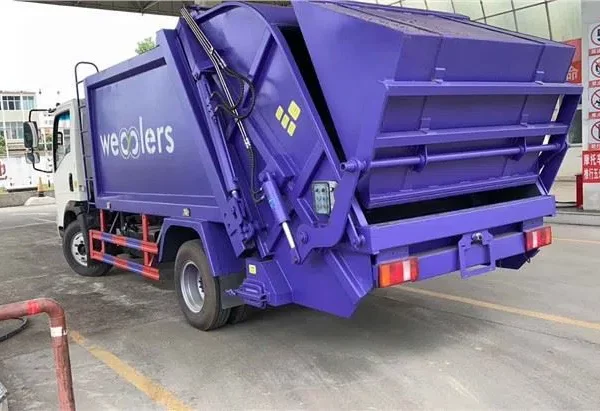

The HOWO Truck Mounted Solid Waste Compactor Truck is designed to gather municipal solid wastes and refuse to transport them to waste treatment facility. The compactor truck is manufactured using high-tensile abrasion-resistant steel that is built to last for years without showing signs of corrosion. The hopper’s large size allows for more trash and fewer tailgate cycles, increasing route productivity and providing route flexibility. It has 12CBM capacity, with two-way compression, and the compression ratio is 1:2-1:3. Optional bin tippers.
features
Refuse Body
The curved refuse body and the bottom plate are welded seamlessly. High-strength, wear-resistant steel plate is used, and all reinforcements of the body are in the form of “U” shaped braces and full-seam welded on the body sheets.
Collecting & Compacting
Capacity: 10 m3
Hopper floor made from high tensile steel sheet of thickness thickness: 6mm
Body floor: 5 mm
Body side: 4 mm
Body roof: 4 mm
Compaction ratio: 5:1
Sewage water relieve to suitable volume tank under tail gate with leak proof discharging outlet.
Dimension and thickness of material (body side roof, floor, tailgate sides and floor) should be compatible with the required compaction ratio using high corrosion resistance material.

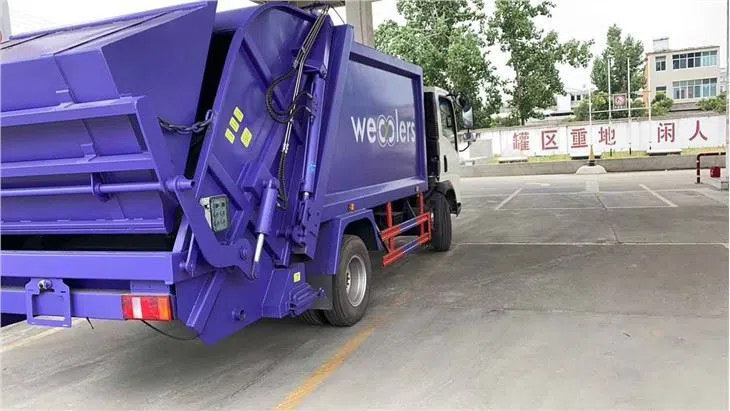

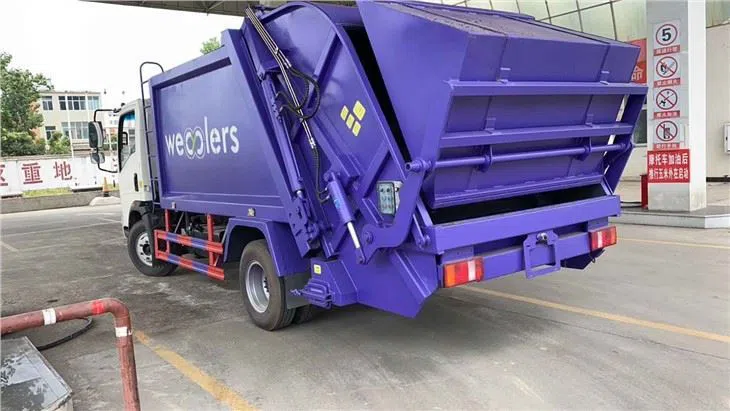

Containers Lifting Devices
High capacity articulated arm lifting device works in two stages by four double effects hydraulic cylinders to ensure lifting and lowering of containers smoothly.
The container isvisible while being lifted using manual and electric lifts that are
fixed to the back of the truck.
specification
|
Chassis |
|
|
Size |
6970x2180x2620mm |
|
GVW/Curb Weight |
9,900/5,495kg |
|
Wheelbase |
3800mm |
|
Axle Load |
2700/7200kg |
|
Tire |
7.50R16, 7+1 tires |
|
Engine |
|
|
Make/Model |
YUNNEI/YN4102QBZL |
|
Type |
Diesel Engine |
|
Engine System |
4 Stroke, High Pressure Common Rail, Inter-cooling Turbo-Charged,4 Cylinders |
|
Output Power@ speed |
116hp@3000rpm |
|
Displacement |
3.76L |
|
Max. torque @ Speed |
290N.m@1800-2100rpm |
|
Emission standard |
Euro 2 |
|
Transmission |
|
|
Model |
WYL646 |
|
Gears |
6F+1R |
|
Operation |
Manual |
|
Cabin |
|
|
Type |
Steel construction, Single Row, Flat |
|
Passenger No. |
3 |
|
Body and Compaction System |
|
|
Capacity |
8CBM |
|
Material |
Weather-resistant steel, high corrosion resistance |
|
Design |
Sealed leakage proof |
|
Compaction Ratio |
1:2 – 1:3 |
|
Containers Lifting Devices |
High capacity articulated lifter works in minimum two stages by four double effects hydraulic cylinders to ensure lifting and lowering of containers smoothly. Lifting weight capacity not less than 800 kg. |
|
Control System |
Equipped with three sets of automatic, manual control and wireless remote control modes, it can control the operation of the garbage truck in the driver’s cab, the middle of the garbage, and the rear of the garbage. |
