BRIEF

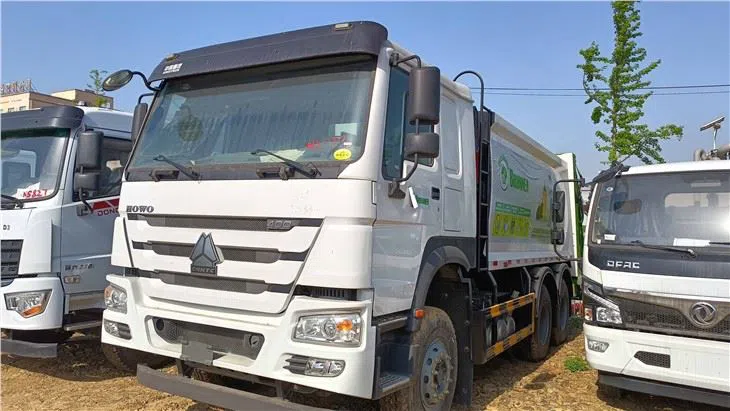

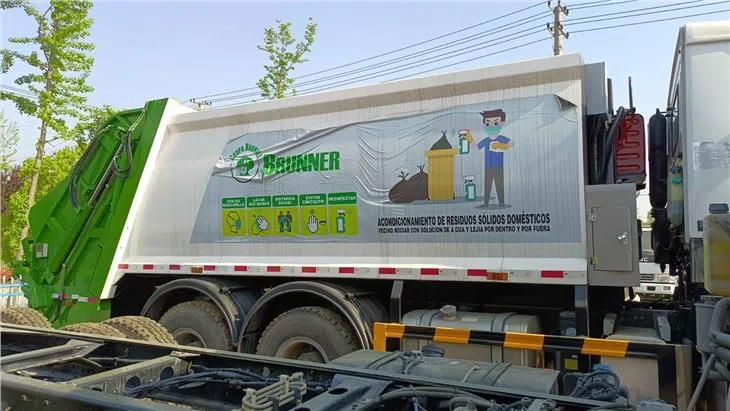

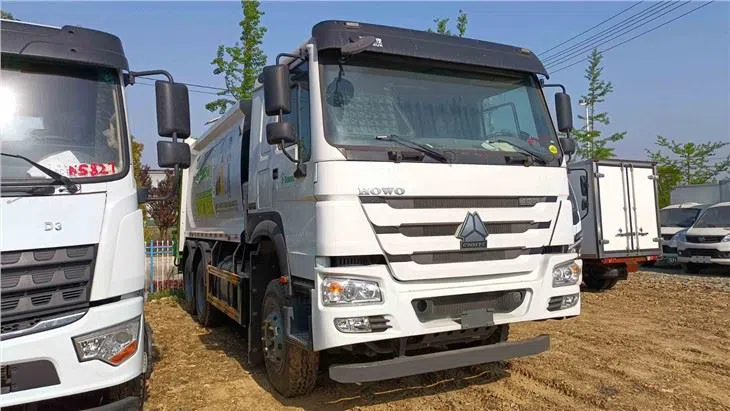

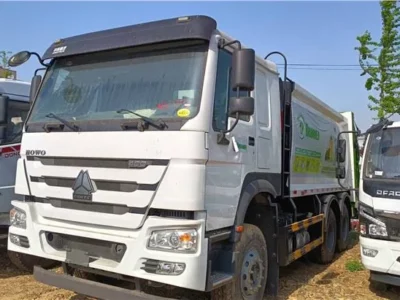

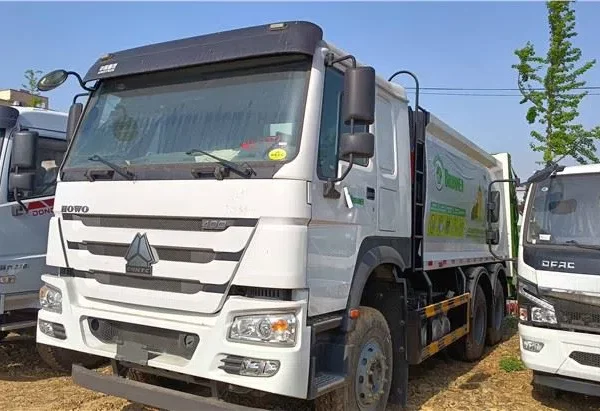

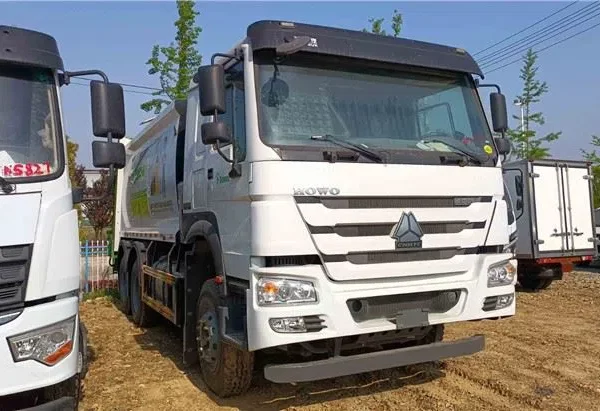

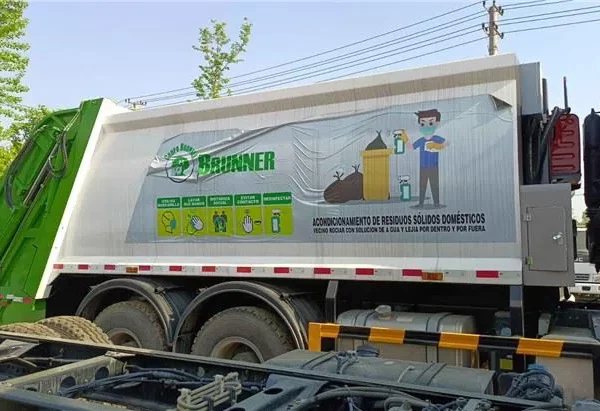

SINOTRUK Municipal Standard Compactor Garbage Truck is a garbage truck specially designed to collect municipal solid waste and transport it to a solid waste treatment facility, such as a landfill, recycling center, or transfer station. The garbage compactor truck combines the features of self-loading and self-discharging. It has the capability to collect garbage up to a maximum volume of 18cbm.
features
–Back Pressure Valve: The function is to increase the pressure capacity of the ejection plate so that the extrusion density of the garbage is greater. In the case of 18MP, the pressure of the back pressure valve is set at about 14MP, and the density of the garbage is 0.8~0.85kg/m³.
–Hydraulic Lifting Safety Circuit: In the hydraulic system of the tailgate, a two-way balance valve is set. The valve not only ensures the smooth descent of the tailgate but also cuts off the direct connection between the lift cylinder and the hydraulic hose. Even if the hose bursts, the tailgate will not drop suddenly, which improves the safety of use;
–Eliminate Secondary Pollution: The joint surface of the waste tank and the filler is equipped with a special rubber sealing strip, which is compressed and sealed by a locking device; a unique drain valve is installed on the sewage tank.
–Control System: Automatic and manual control system
specification
| Engine | |
| Make/Model | WEICHAI/WP10H400E50 |
| Type | Diesel Engine |
| Engine System | 4 Stroke, High-Pressure Common Rail, Inter-cooling Turbo-Charged, 4 Cylinders |
| Output Power@ speed | 400hp@1900rpm |
| Displacement | 9.5L |
| Max. torque @ Speed | 1900N.m@1200-1300rpm |
| Emission standard | Euro 5 |
| Transmission | |
| Gears | 12F+2R |
| Operation | Manual |
| Cabin | |
| Type | Steel construction, Single Row, Flat |
| Passenger No. | 3 |
| Body and Compaction System | |
| Capacity | 18CBM |
| Material | Weather-resistant steel, high corrosion resistance |
| Design | Sealed leakage proof |
| Compaction Ratio | 1:2 – 1:3 |
| Containers Lifting Devices | High capacity articulated lifter works in a minimum of two stages by four double effects hydraulic cylinders to ensure the lifting and lowering of containers smoothly.
Lifting weight capacity not less than 800 kg. |
| Control System | Equipped with three sets of automatic, manual control, and wireless remote control modes, it can control the operation of the compactor garbage truck in the driver’s cab, the middle of the garbage, and the rear of the garbage. |
