Brief

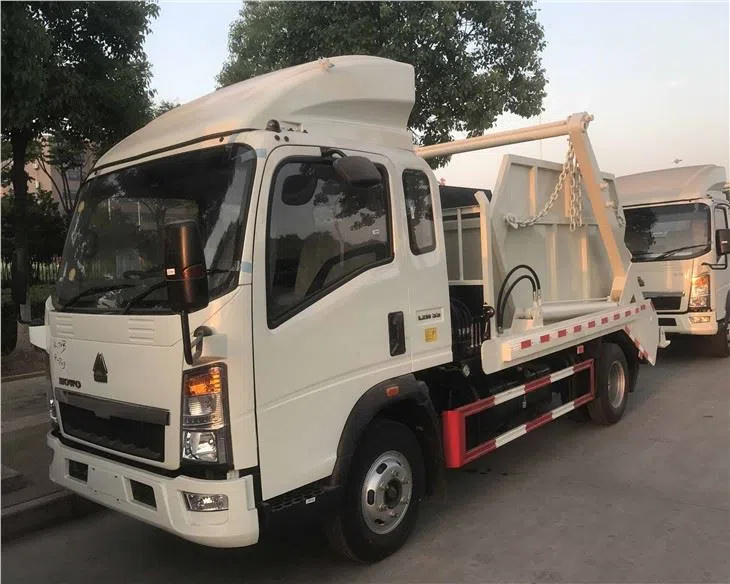

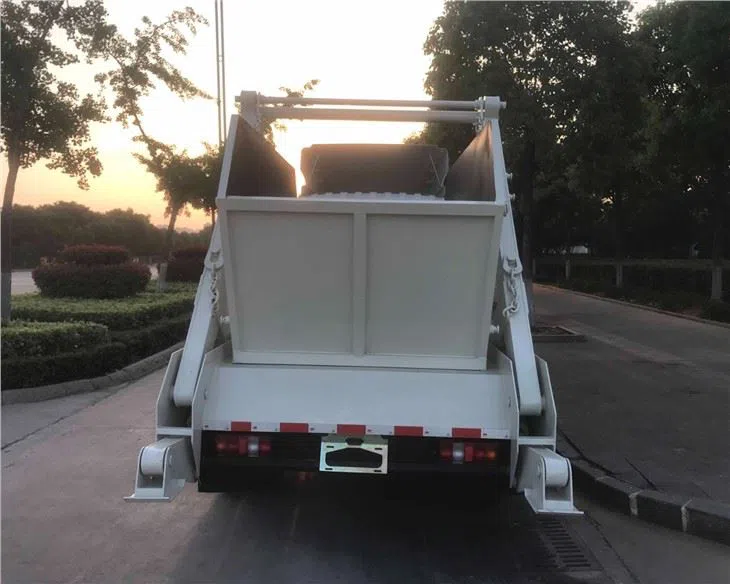

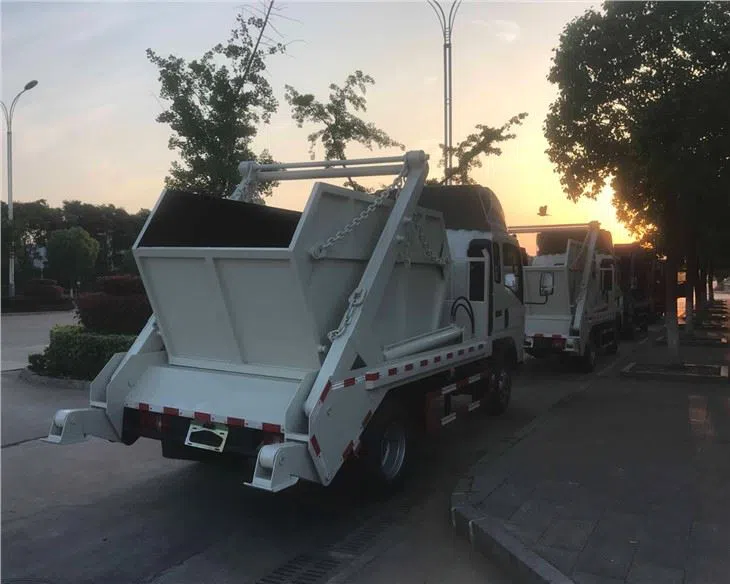

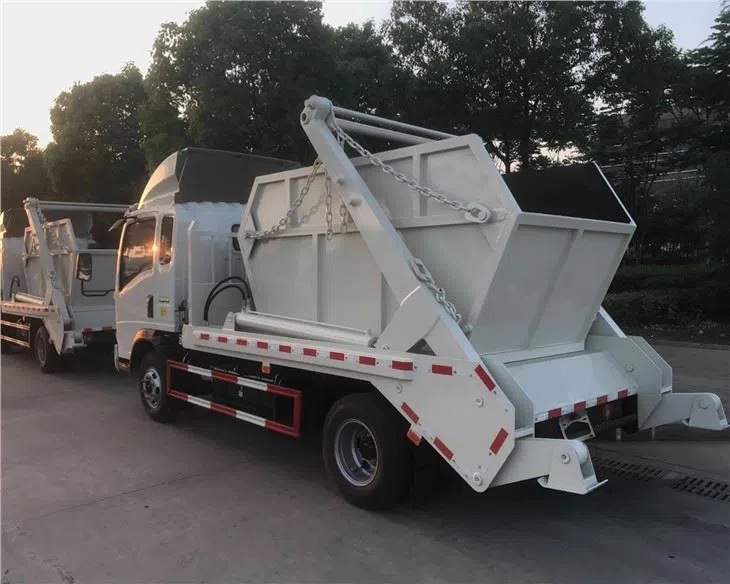

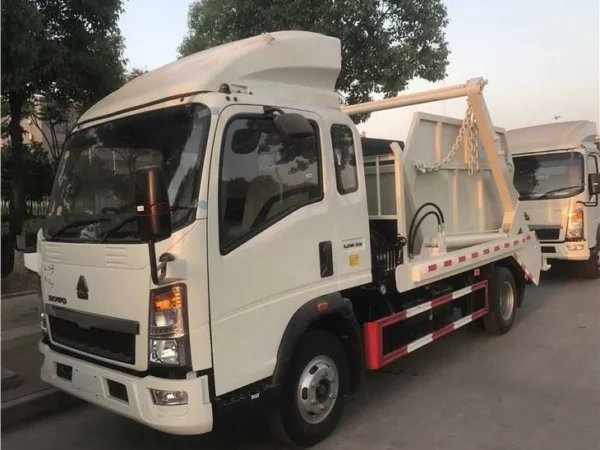

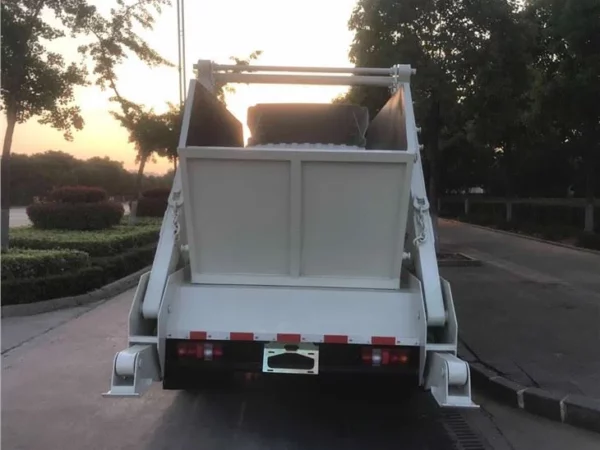

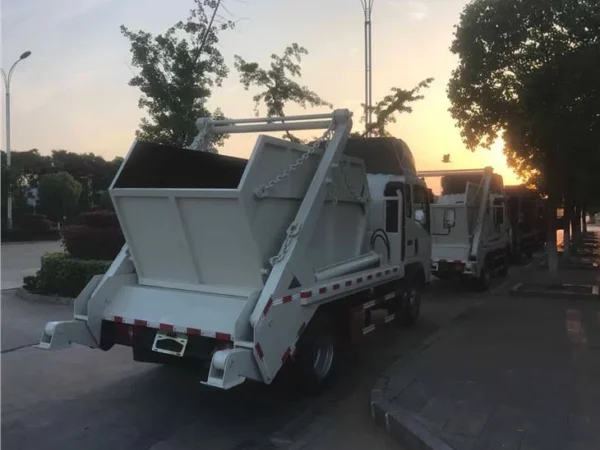

SINOTRUK Small Transit Skip Loader Truck is mounted on SINOTRUK HOWO chassis. The collecting hopper is placed in the semi-enclosed refuse body. The two cylinders are to lift and dump the collecting hopper by hoisting arm rotates around the hinge point. Combined with the advanced technical design of similar sanitation garbage trucks abroad, the hydraulic technology is fully utilized, so that the design structure is reasonable, the performance is excellent, and the operation is flexible and simple.

features

1. Self-unloading mechanism: It is formed by welding a box-shaped structure composed of steel plates. The main function is that the multi-way valve controls the oil tank to drive the swing arm to rotate around the axis. The rotation angle is 145 degrees, which can lift heavy objects (such as a hopper), and a tipping motion on the hopper.

2. Hopper: When the bulk garbage are loaded into the hopper, hang the hoisting chains at both ends, and the hopper can be hoisted to the refuse tank by rotating. When unloading, the swing arm is rotated and lifted away from the refuse tank. Reverse unloading is possible, and its maximum tipping angle can reach more than 86 degrees.

3. Hydraulic System: It consists of power take-off, oil pump, manual multi-way reversing valve, balance valve, oil pipe, oil tank, etc. The whole system is powered by automobile gearbox and power take-off. Manual multi-way valve operates outrigger cylinder and swing arm cylinder for telescopic motion. The amount of oil discharged by the oil pump of this system can be regulated by the manual throttle under the car. The handle of the manual reversing valve controls the stroke of the valve rod to control the movement speed of the piston rod of the oil cylinder. The system pressure can be set (adjusted) by the safety relief valve. If the system exceeds the set pressure will be overflowed by the safety relief valve

specification

Cab	Cab Capacity	2 persons allowed
	Air Conditioner	Air conditioner is optional
Engine	Fuel Type	Diesel
	Engine Brand	SINOTRUK engine
	Power	120 Hp
	Emission Standard	Euro V
Chassis	Drive Type	4X2 left or right-hand drive
	Transmission	6-speed forward, 1 reverse
	Wheelbase/No. of axle	3800 mm / 2
	Paint	Metallic paint
Superstructure	Container Capacity	5 CBM
	Waste Box Material	Carbon steel
	Waste Box Thickness	Floor plate: 4 mm; side and top plate: 3 mm
Optional	A sealed cover for the container. A truck with several containers.
