Brief

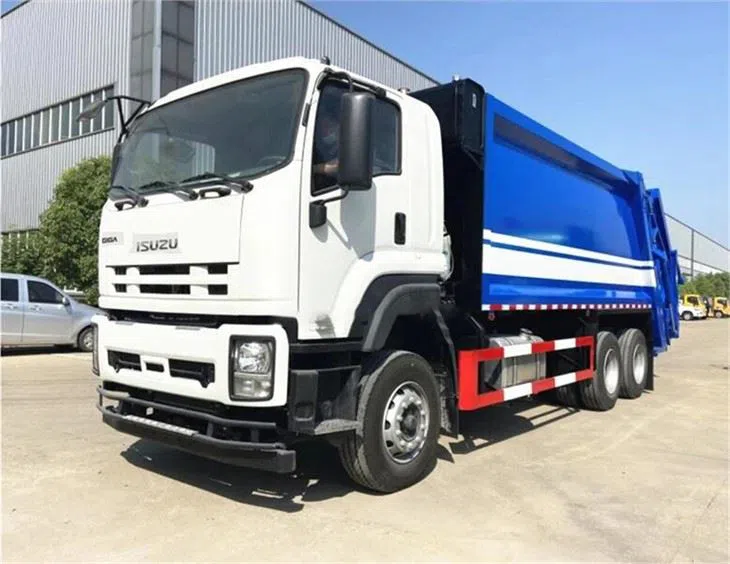

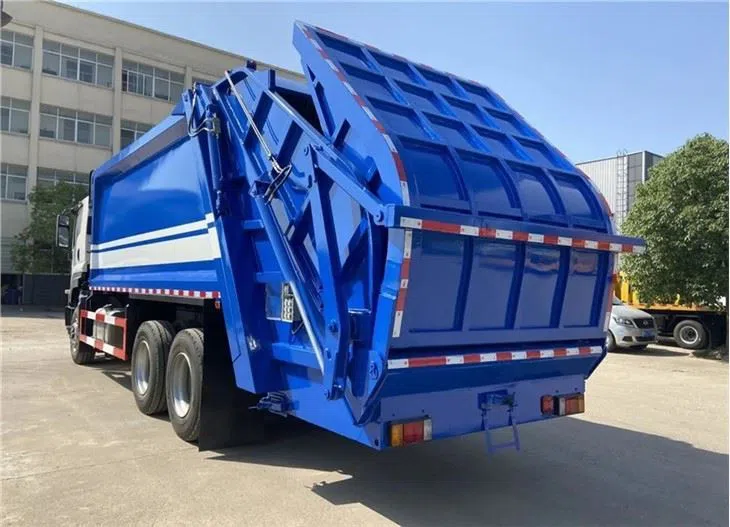

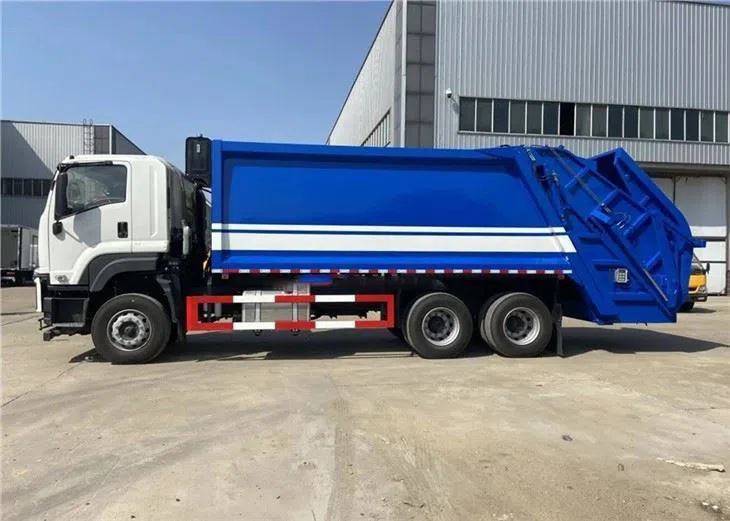

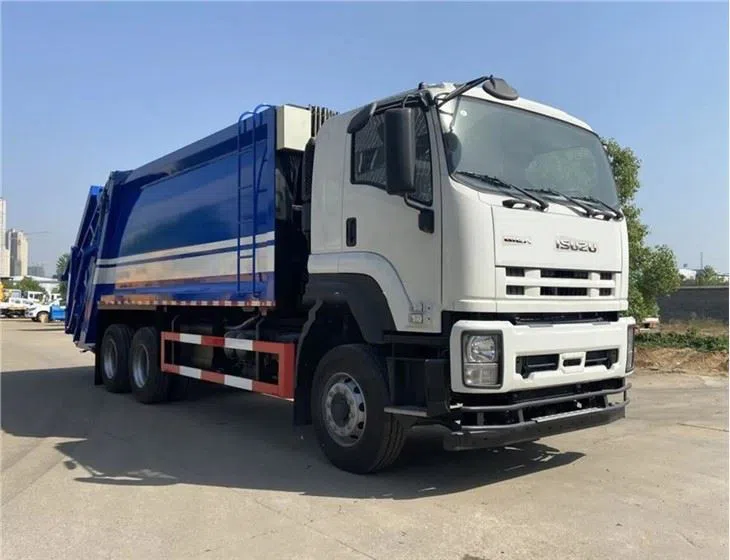

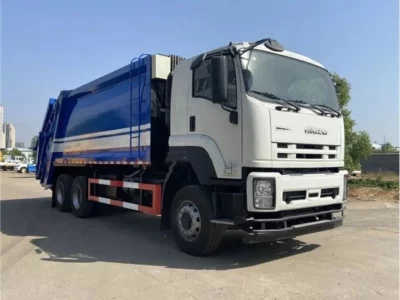

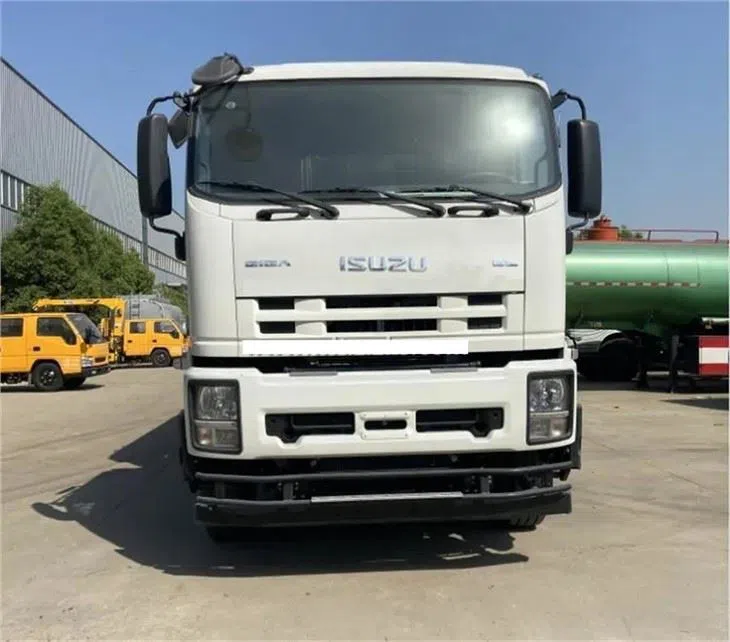

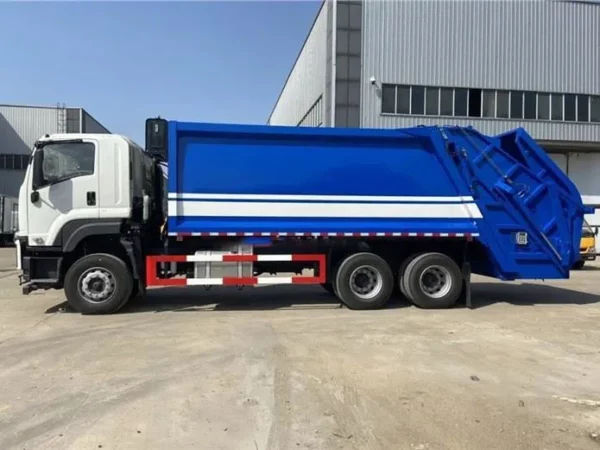

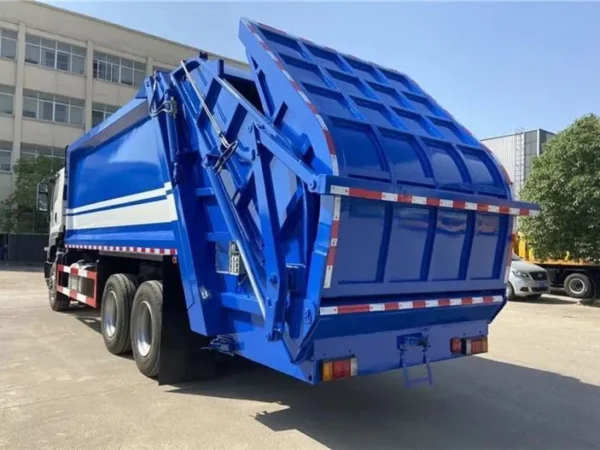

The ISUZU GIGA 6×4 Garbage Compression Truck is a refuse collection vehicle that has an opening at the rear that a waste collector can throw waste bags or empty the contents of bins into. The Garbage Compression Truck compacts the waste using a hydraulically powered mechanism that employs a moving plate or shovel to scoop the waste out from the loading hopper and compress it against a moving wall. Following the continues technology improvements, CSCTRUCK continuously upgraded and develop in special truck field as well as in its area of application.
FEATURES
Wear Resistant Steel
Hopper made of NM450 (similar with HARDOX 400-450) wear resistant steel, with thickness of 6 mm
Container floor made of NM450 (similar with HARDOX 400-450) wear resistant steel, with thickness of 4 or 5 mm
High Quality Seal
High quality / reliability seal, good airtightness, no secondary pollution.
High Compression Ratio
Installed back pressure valve, two-way compression, compression ration can reach 0.6~0.8t/m3.
Safety Devices
-Safety circuit to prevent the oil pipe from bursting and the tailgate suddenly falling down and causing a vicious accident.
-Built in Safety bar for maintenance.
-Equipped with weighting system (optional).
-Equipped with rear view camera.
-Sound warning during waste discharge.
-Safety systems on workers foot-step.
Unloading
Material unloading can be completed using a double acting telescopic cylinder either by cab controls or rear controls.
Bin Lifting Device
-Bin lifter can load bins of 80 Lt to 360 Lt (as pair) and four wheel bins 1300 Lt.
-Bin lifter mechanism can tilt up to 50 degrees.
specification
| ISUZU GIGA 6×4 Garbage Compactor Truck | ||
| General | Vehicle Brand | CSCTRUCK |
| Chassis Brand | ISUZU | |
| Overall Dimension | 9900 * 2500 * 3180 mm | |
| GVW / Kerb Weight | 34,000kg / 9,200kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | Heating/cooling air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 380HP | |
| Displacement | 9839 ml | |
| Emission Standard | Euro 5 | |
| Chassis | Drive Type | 6X4 (left-hand drive) |
| Transmission | FAST 9-speed levers with 1 reverse | |
| Wheelbase/No. of axle | 4565+1370mm / 3 | |
| Tire Specification | 315/80R22. | |
| Tire Number | 10 tires and 1 spare tire | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Body capacity | 20 cbm |
| Fill Hopper capacity | 2.4 cbm | |
| Sewage tank | 200 liters | |
| Filling work cycle time | 20~25 s | |
| Discharge model | Horizontal Ejection | |
| Control system | Electrically Hydraulic control Manual hydraulic control |
|
| Control panel | English or Your language | |
| All standard accessories: Garbage bin lifter, ladder, warning lights, emergency stop button, handrail, fire extinguisher, basic tool kit, English manual… |
||
| Optional | The back alarm and Camera can be equipped. Italy manifold valve can be chosen. 240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be chosen. |
|
