BRIEF

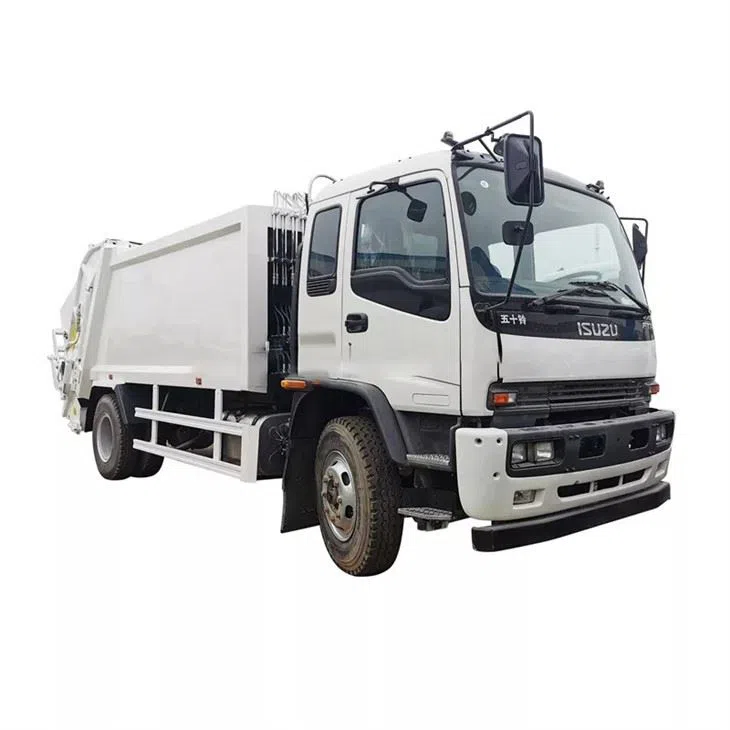

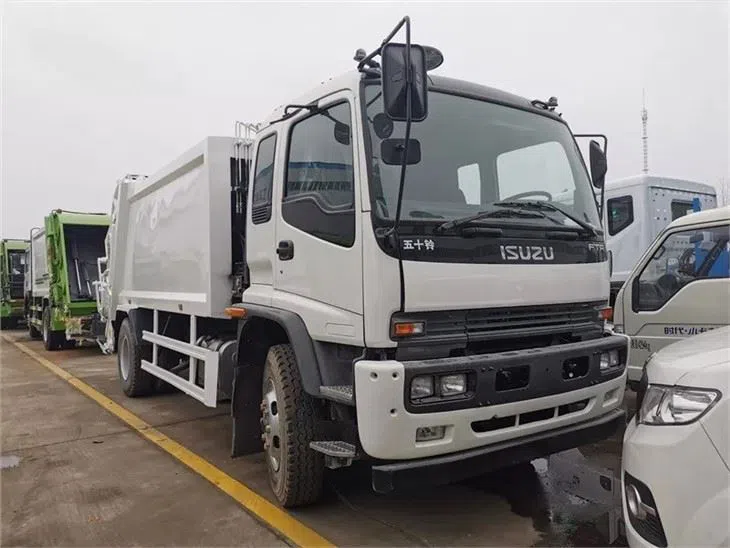

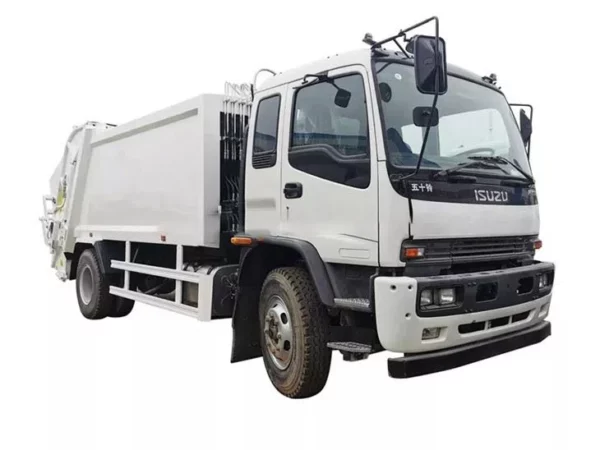

The ISUZU 6 Wheelers Trash Garbage Compactor Truck is mounted on the ISUZU FTR chassis truck, equipped with ISUZU original engine, transmission, and cab etc. The garbage compactor truck is designed to collect, compact and transfer residential and commercial garbages.There is a closed process of collecting and transporting waste, ensuring hygiene and avoiding environmental pollution. Equipped with 12m3 container made of high quality steel, resistant to corrosion and deformation.
features
Designed for High Compression Ratio
• Welded and formed by high-quality corrosion-resistant and wear-resistant steel plates, a high compression ratio.
Good Performance and Reliability
• The power output is provided by the Japanese original engine, automobile power take-off is connected to a high-power gear oil pump, and the performance is stable, safe, and reliable.
Convenient Control System
• Adopts the electromechanical-hydraulic integration technology, installs the PLC intelligent control program, and one-button operation.
High Working Efficiency
• The compression ratio can reach 0.6-0.8t/m3, one cycle time of filling operation is ≤30 seconds, and unloading operation is ≤40 seconds, which greatly improves the operation efficiency.
Sealed Design, No Pollution

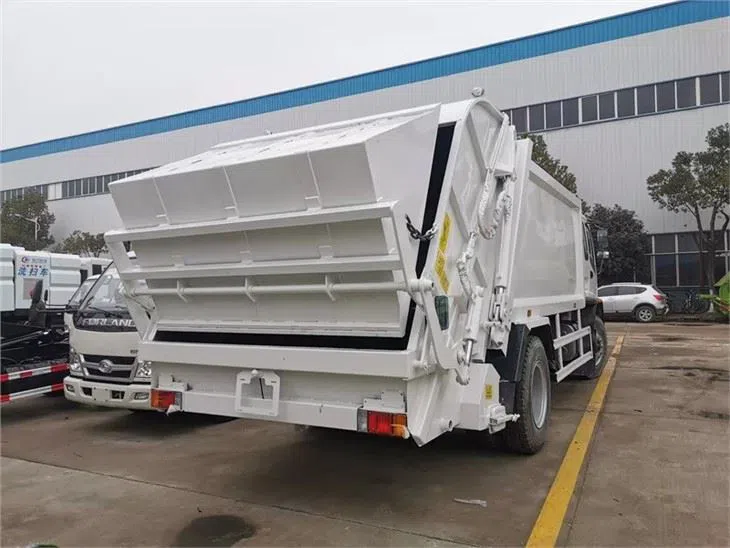

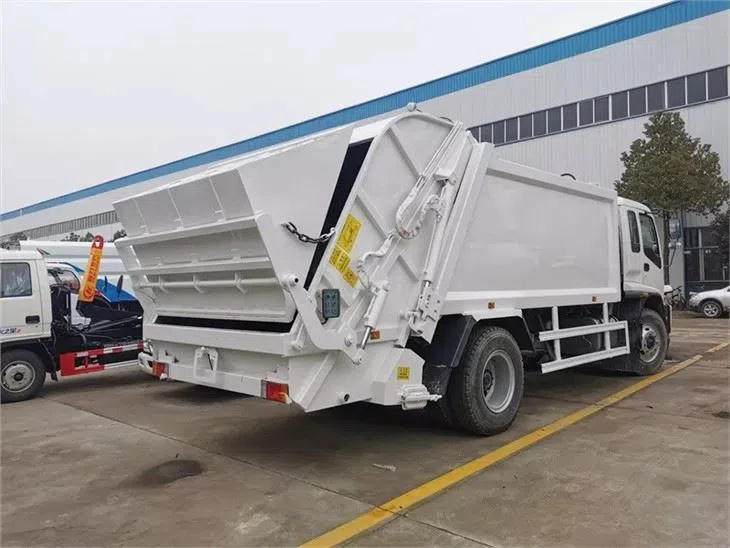

• The junction of the hopper and the refuse body is locked by a sealing strip through hydraulic locking. A sewage tank is separately designed to collect the sewage generated during the garbage compression process, effectively avoiding secondary pollution.
Safety Operation

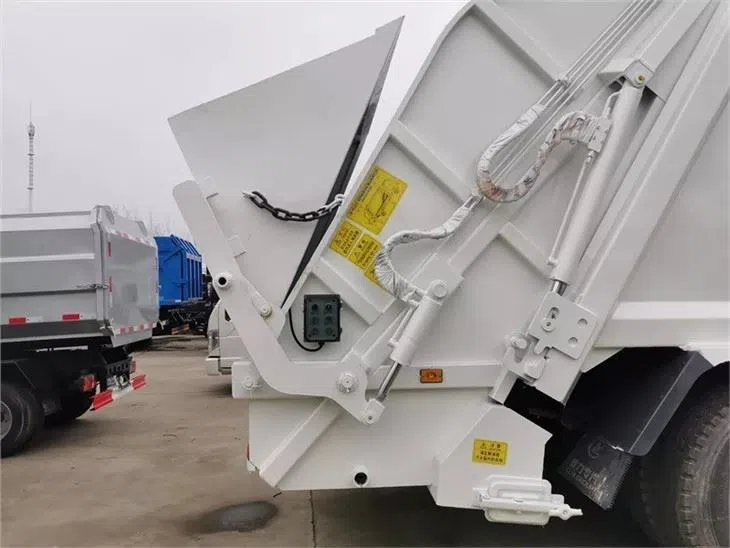

• In order to effectively ensure the safety of operators and equipment, an emergency brake button is installed, which can make the garbage hopper stop in any state or at any position; and in the hydraulic oil circuit of the tailgate, equipped with a safety device to prevent the oil pipe from bursting and the filler from falling suddenly to improve the safety of use.
specification
| ISUZU 6 Wheeler Garbage Compactor Truck | ||
| Vehicle Main Dimensions | (L x W x H)mm | 8500×2490×3250 |
| Wheelbase (mm) | 4500 or 4700 | |
| Track front/rear mm | 1880/1800 | |
| F/R Axle-Load | 6300/13000 kg, | |
| Weight in KGS | Curb Weight | 9850kg |
| GVW | 15800kg | |
| Engine | Brand | Isuzu Brand,Diesel ENGINE |
| Model | 4HK1-TCG40 | |
| Type | 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging, and inter-cooling; | |
| Horse Power(HP) | 205hp | |
| Emission standard | Euro V | |
| Gearbox | 6 forwards + 1 reverse | |
| Steering Gear | power steering, hydraulic steering with power assistance | |
| Equipment for Garbage Compactor | ||
| Garbage Box Material | Carbon Steel Q235 | |
| Garbage Box Volume | 12cbm or 14cbm | |
| Body material | Floor plate 5mm and side plate 4mm | |
| Waste water tank | 200L | |
| Filling container volume | 500L | |
| Filling time | 8~10s | |
| Filling cycle time | 50~60s/time | |
| Discharge time | 30~40s | |
| Hydraulic System | The Chinese brands consist of oil pumps, oil cylinders, front valves, rear valves, pressure gauges, oil boxes, filters, and pipelines. The front valve controls the push panel and strike-off board. | |
