Brief

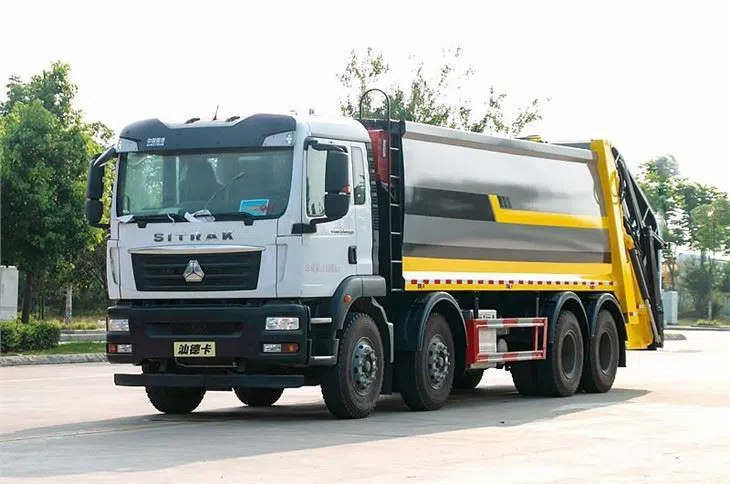

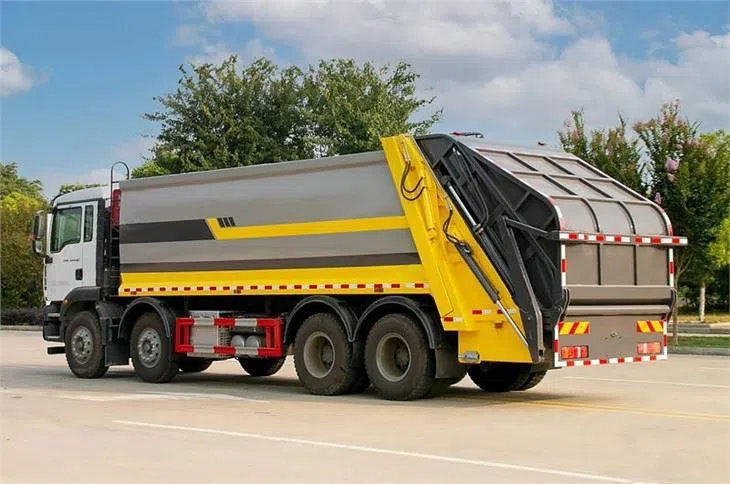

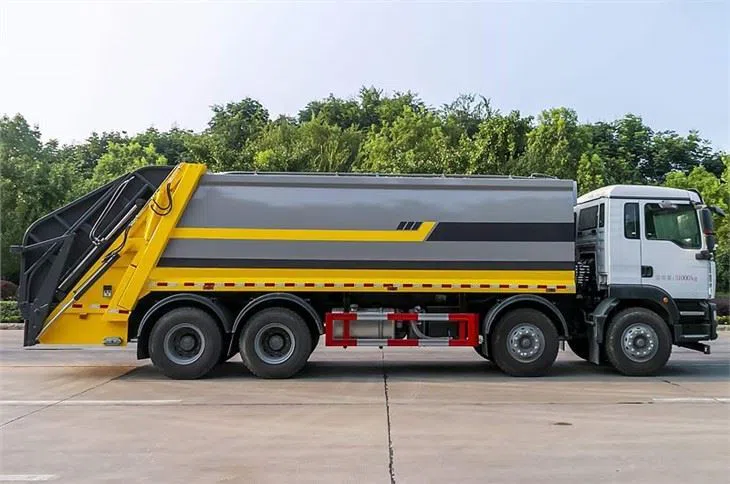

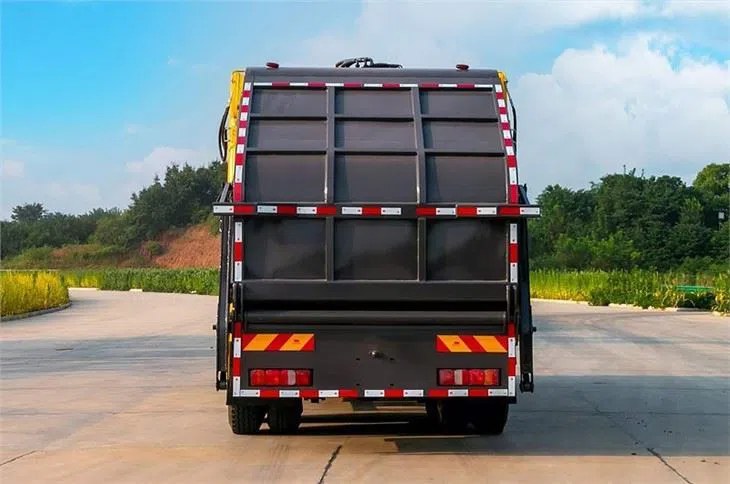

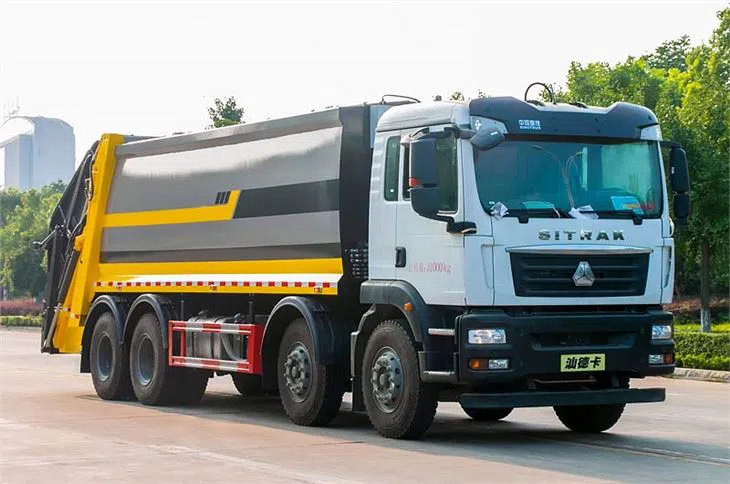

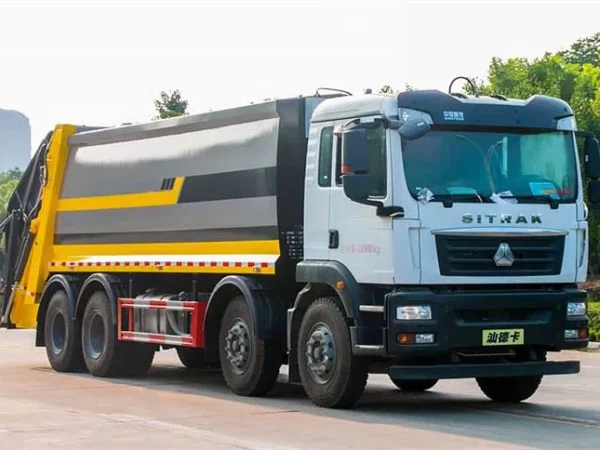

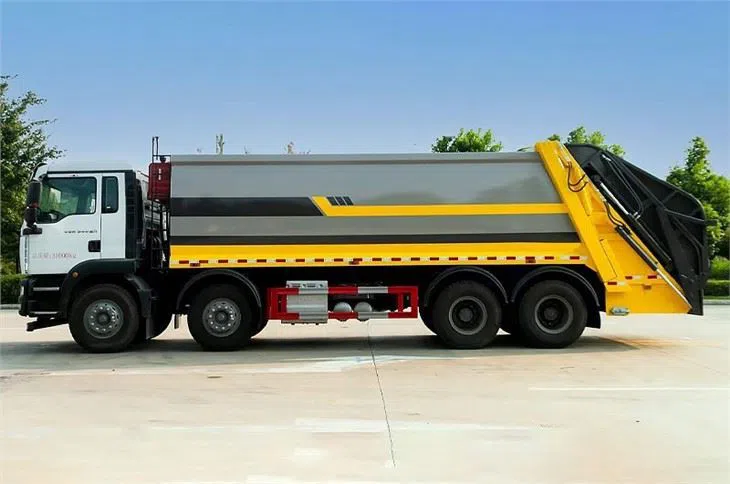

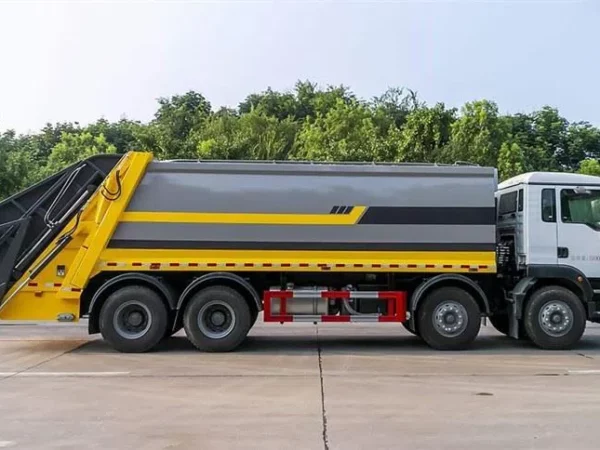

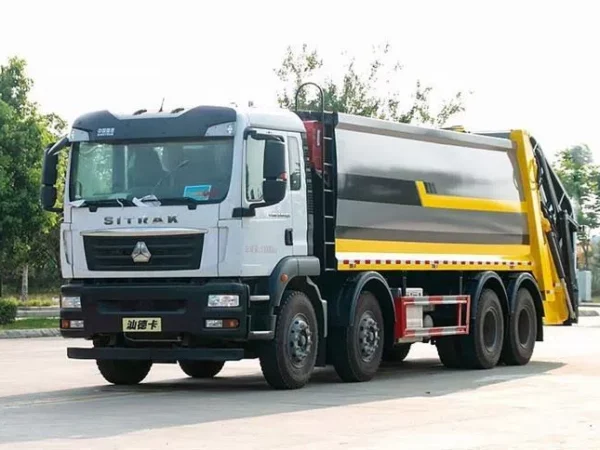

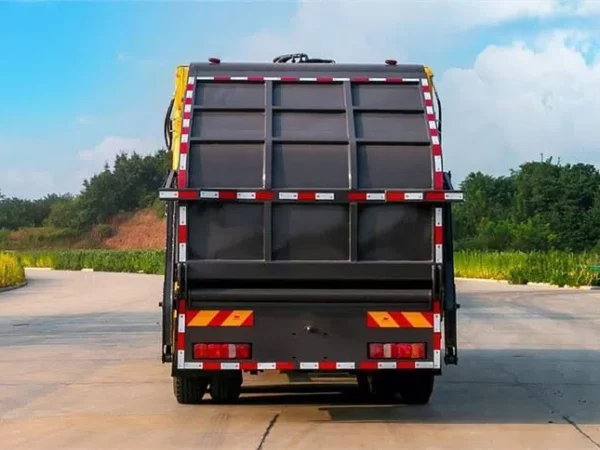

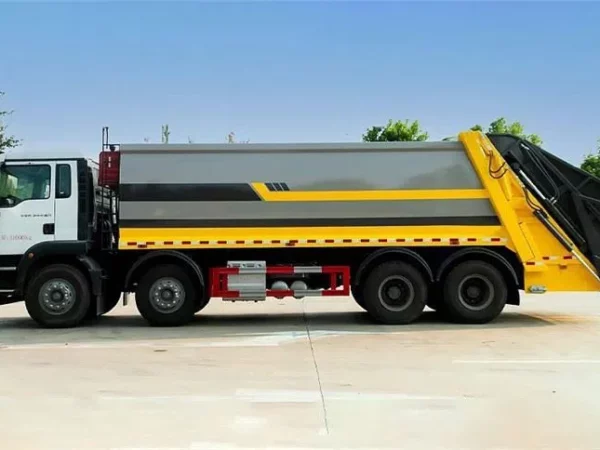

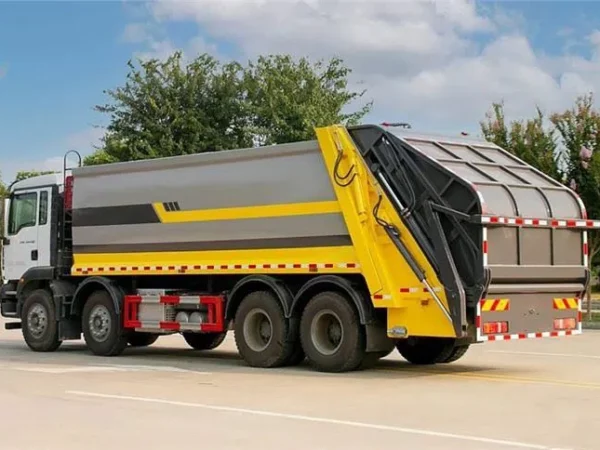

The 25CBM Garbage Disposal Truck is a heavy-duty compressed garbage truck, with high compression ratio and strong chassis carrying capacity. Designed for long-distance transportation of garbage with high clearance and transportation efficiency.
features
Refuse Body
The new arc-shaped body increases the volume. It is made of carbon steel, the bottom of body and the hopper are made of thick wear-resistant steel plate, which has a long service life.
Performance
Loading Cycle Time=25s
Garbage Discharge Time≤25s
Packing Lift Angle≥95°
Two-way Compression, Compression Ratio 1/3~1/2
Control System
-Manual and electric integrated operation mode, with cab operation, one-key unloading in the cab.
-CAN bus control, reduce failure rate and facilitate maintenance.
specification
| Size | 11,445×2,550×3,500mm |
| Gross/ Kerb Mass (kg) | 31,000/15,860 |
| Wheelbase (mm)/ Axis No. | 1800+3800+1350 |
| Driving type | 8*4 LHD |
| Chassis model | SINOTRUK SITRAK |
| Tire size | 11.00R20/8+4spare tire |
| Engine | SINOTRUK/MC07H.35-60/350HP/Euro6 |
| Container Capacity | 25CBM |
| Garbage container material | 16Mn Manganese steel |
| Hopper Material | Q345 stainless steel |
| Hydraulic System Pressure | 18MPa |
| Hydraulic Cylinder Control | Manual mechanical control and Electrical auto control |
| Compaction Ratio | 0.6~0.8T/m3 |
| Lifting weight capacity | 750 kg |
| Tailgate Lifting Cycle (s) | 10-15s |
| Compaction Plate Working Cycle (s) | 15-20s |
| Hopper Opening (°) | 95 |
| Container Opening (°) | 48 |
| Safety Valve | Equipped on tailgate to prevent sudden fall during maintenance |
